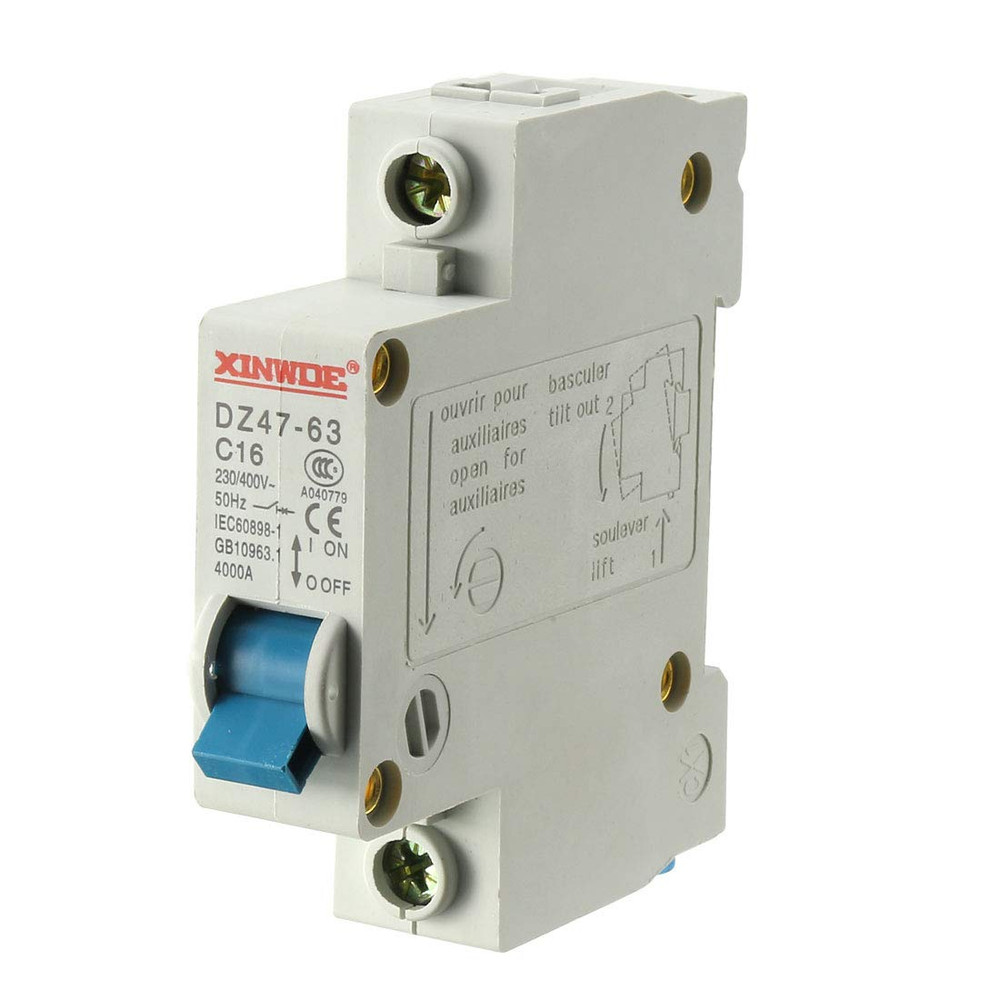

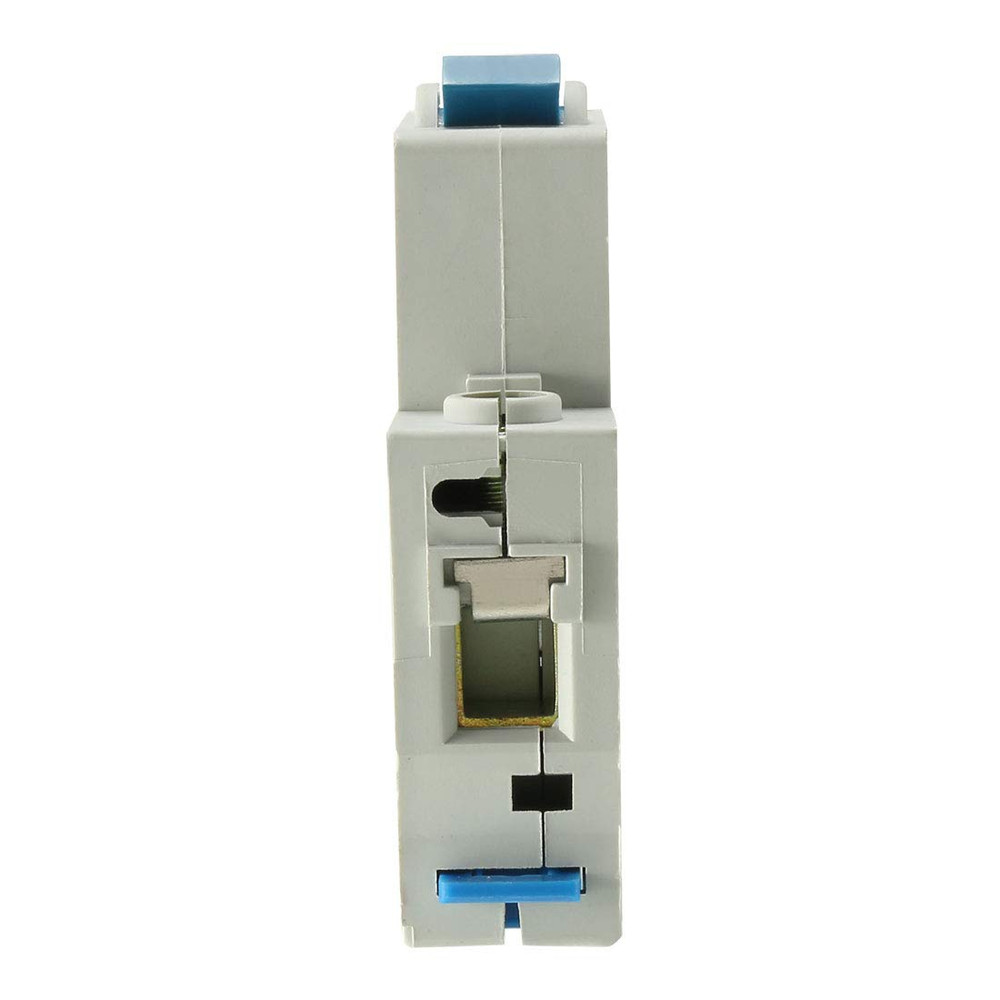

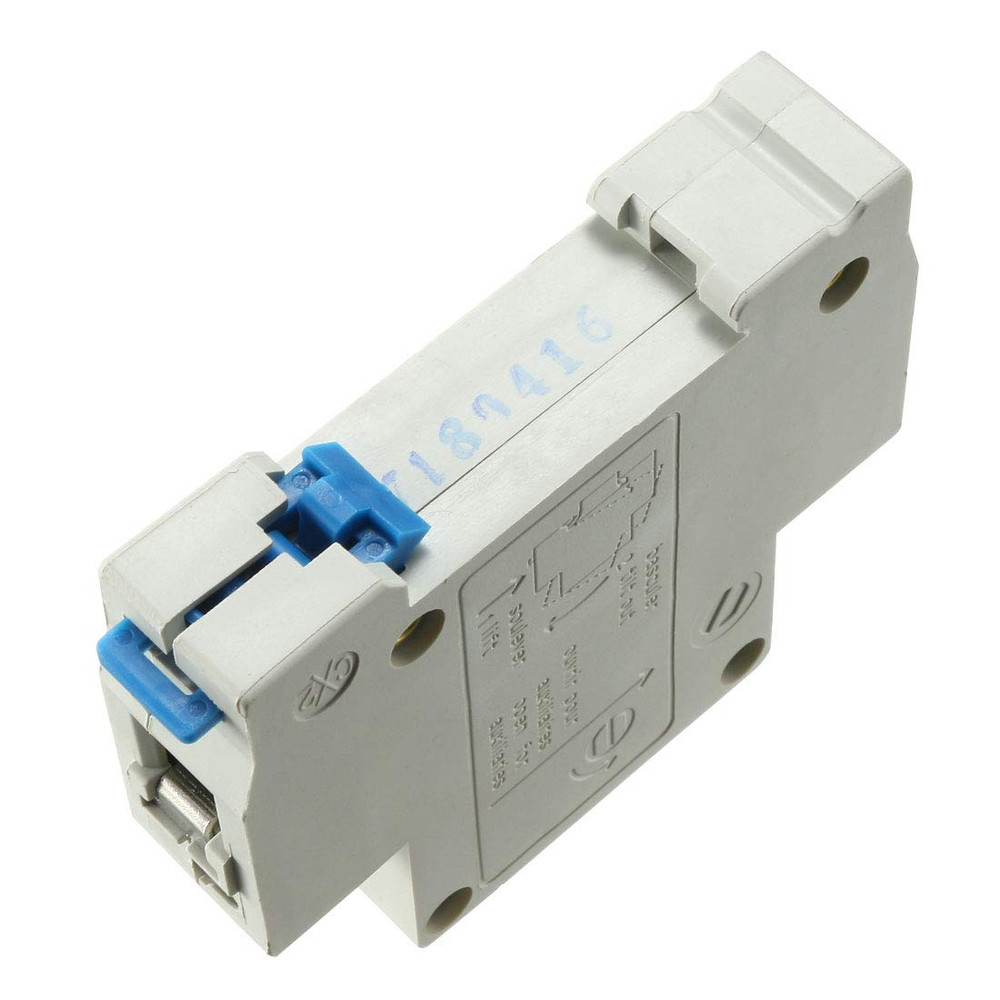

1 Pole 16A 230/400V Low-Voltage Miniature Circuit Breaker Din Rail Mount
$ 11.39
Description
1 Pole 16A 230/400V Low-Voltage Miniature Circuit Breaker Din Rail Mount. DZ47-63 series miniature circuit breaker, Rated Current: 1A，3A，6A，10A，16A，20A，25A，32A，40A，50A，63A. Rated Current: 16A ; Model: DZ47-63 C16 ; Number of Pole:1. Overall Size:79 x 18 x 72mm/3.11" x 0.71" x 2.83"(L x W x H) ; Rail Mounting : 35mm DIN Rail. Rated Circuit Breaking Capacity: 4000A; Rated Voltage: 230/400V Rated Current: 16A ; Model: DZ47-63 C16 ; Number of Pole:1 Overall Size:79 x 18 x 72mm/3.11'' x 0.71'' x 2.83''(L x W x H) ; Rail Mounting : 35mm DIN Rail Fast trip to ensure reliable operation of the load and prolong the life of electrical circuit breakers. It can also work as on-off switch for load circuits. Modular structure, can be easily installed on the DIN standard guide rail in distribution box, the installation more convenient. Suitable for isolation in accordance with industrial standards: IEC EC60898-1/GB10963.1. Product description DZ47-63 series miniature circuit breaker, Rated Current: 1A，3A，6A，10A，16A，20A，25A，32A，40A，50A，63A. DZ47-63 series miniature circuit breaker always used for the illumination of office buildings, residential buildings and like that, and it is also intended for distribution and protecting the facility from damages arising from overload and short circuit. Modular structure, can be easily installed on the DIN standard guide rail in distribution box, bistable locking clip, the installation more convenient.Suitable for isolation in accordance with industrial standards: IEC EC60898-1/GB10963.1. Function: Short circuit protection Overload protection Control Isolation Fast trip to ensure reliable operation of the load and prolong the life of electrical circuit breakers. It can also work as on-off switch for load circuits. Bakelite flame retardant PC material. Distribution box External construction introduction Household electric box PC flame retardant heat-fixed shell
