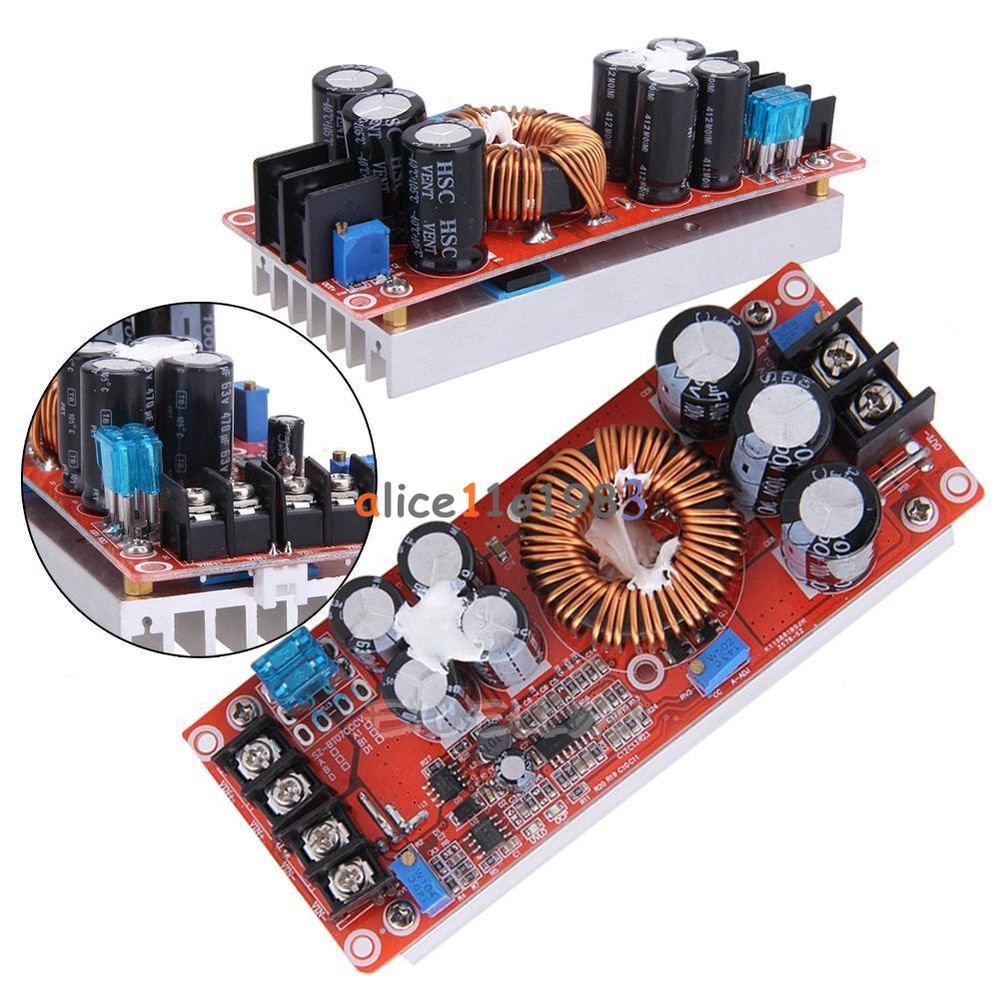

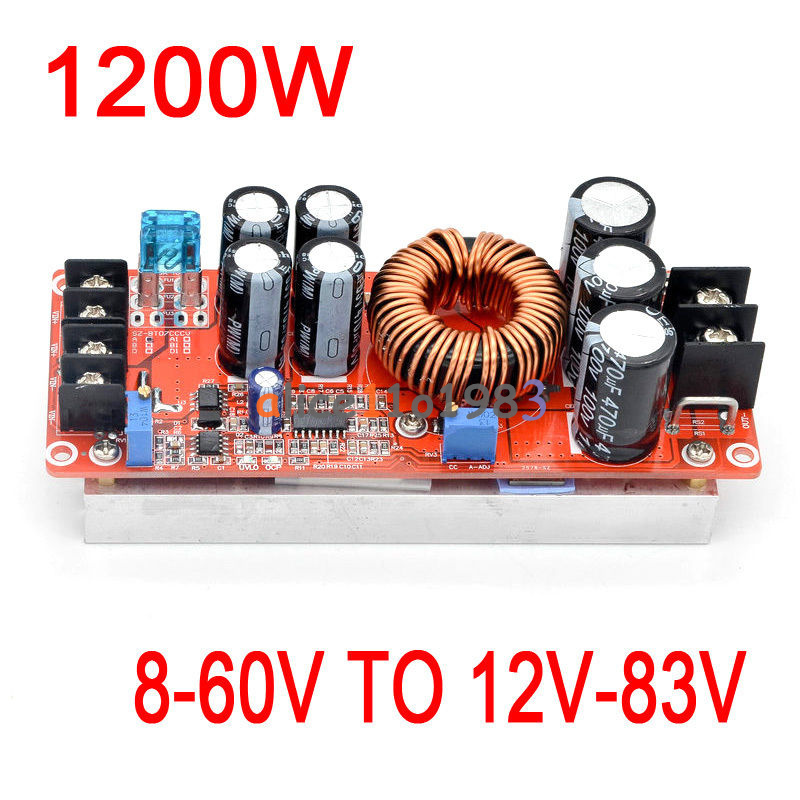

1200W 20A DC Converter Boost Car Step-up Power Supply Module 8-60V to 12-83V
$ 8.17
Description
1200W 20A DC Converter Boost Car Step-up Power Supply Module 8-60V to 12-83V. Enter 36V 20A = 720W, input 48V 20A = 960W, input 60V 20A = 1200W. Input Current: 20A. Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security. The current per module can be adjusted to 15A. Visit store Items for sale About us Product Details Features: Input voltage: 8-60V Input Current: 20A Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet) Output voltage: 12-80V continuously adjustable Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current) Constant Range: 0.5-20A Output Power: Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W, Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel, The current per module can be adjusted to 15A. Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation) Operating frequency: 150KHz Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related) Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.) Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security. Input reverse polarity protection: None, (if necessary, please enter the string into the diode) Output Counter filling: Yes, for charging plus blocking diode is not required. Installation: four 3mm screws Connection: solderless terminals output Module dimensions:116x52x15mm Weight: 300 g Package Contents 100% Brand New 1 x 1200W 20A DC Converter Boost Power Supply Module 8-60V 12v Step-up12-83V 24v 48v Payment Method Shipping Policy Returns & Refund Policy Feedback Payment Method EBAY Managed Payment. But we only Accept your Ebay Address , please Make sure it's 100% right. Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Policy 1. We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2. Orders will be processed instantly and dispatched within 1-3 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3. All package need to wait 30 days,Please take care it.Less than 30 days,we can't take a refund. Returns & Refund Policy All package need to wait 30 days (US only n eed 7-10 days) ,Please take care it.Less than 30 days,we can't take a refund. If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please keep in touch with us and double check the return address before you return it. If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you keep in touch with us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
