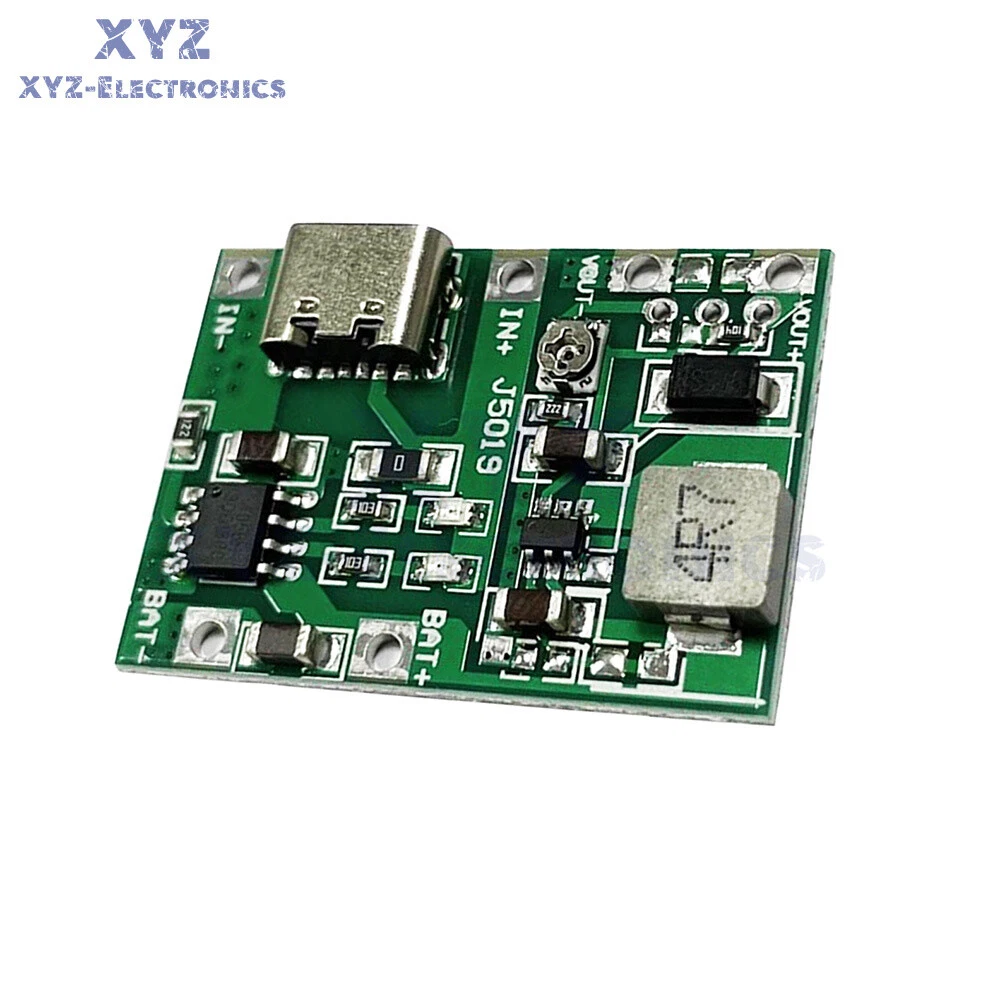

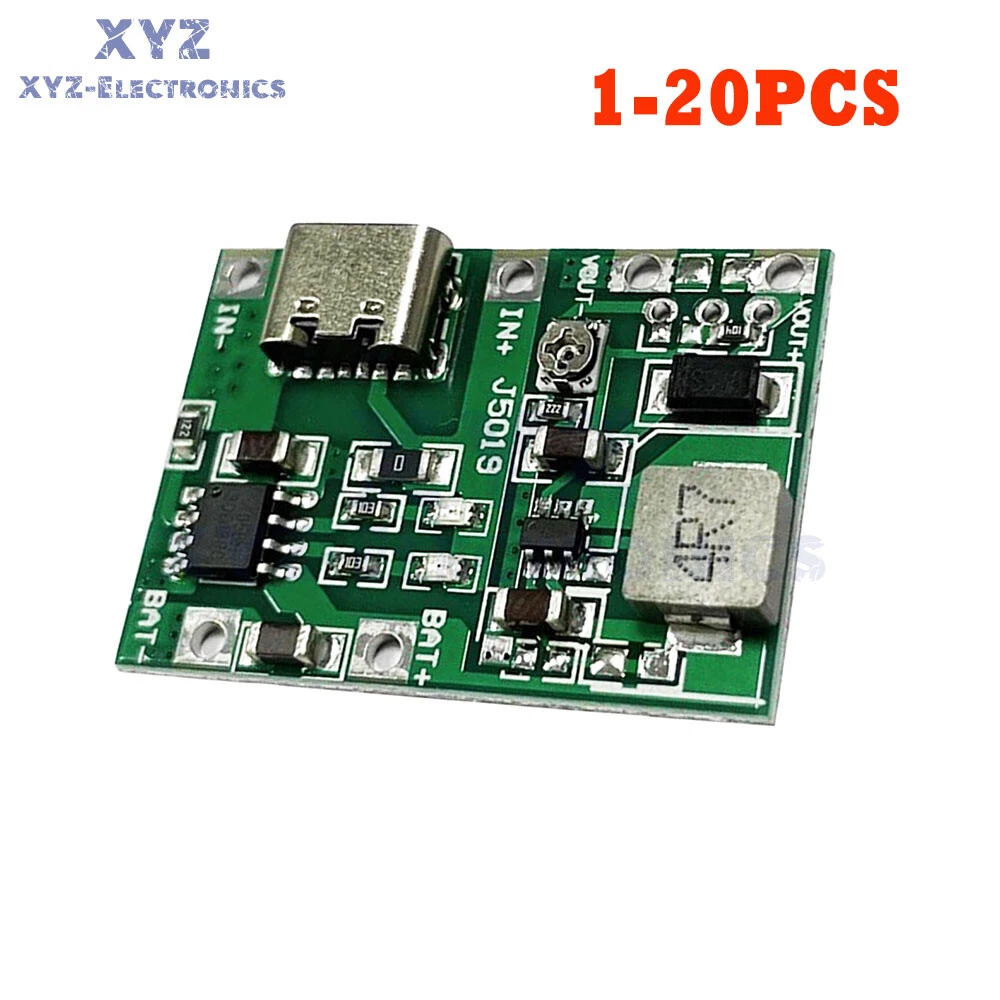

1-20PCS 3.7V 4.2V Type-C USB 18650 Lithium Battery Charging Board Charger Module

Description

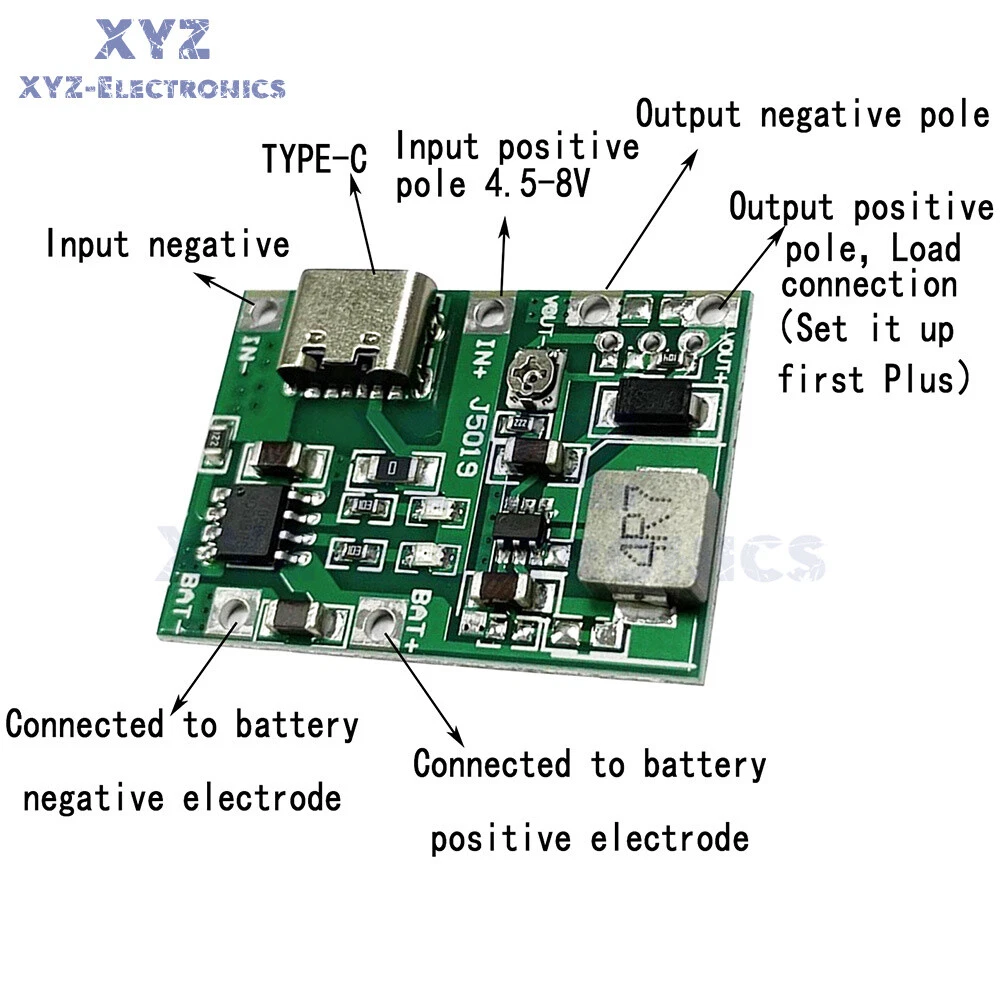

Store Categories Store Categories Other 1-20PCS 3.7V 4.2V Type-C USB 18650 Lithium Battery Charging Board Charger Module Details Features: 1.100% brand new and high quality product, 2 interfaces to choose from. 2.Made of high quality material, DC4.3-27V adjustable voltage, durable and practical. 3. Small size, only 3.3X2.3X0.9 CM, easy to apply and install. 4. Efficient and stable performance, long working life. 5. Wide range of applications, can be used for multimeter Retrofit lithium battery charging. Parameters: TYPE-C interface model: Interface: TYPE-C interface Before use, the default output is about 9V. Input voltage: DC 4.5-8V Output voltage: DC4.3-27V adjustable (4.3V above 27V below any voltage can be output, their own adjustments can be adjusted counterclockwise boost) Charging voltage: 4.2V Charging current: maximum 1A Discharge current: Maximum 2A (output current should be calculated by yourself, output reference maximum current 5V 1.4A, 9V 0.8A, 12V 0.6A) Static current: about 0.5MA Overshoot protection: Yes Size:3.3X2.3X0.9 CM Wiring example: For example, VIN + terminal connected to the 5V solar panel, BAT + terminal can output 4.2V to 3.7V 18650 battery charging, OUT + terminal can output an adjustable voltage, how much you need to adjust their own can be used for multimeters Retrofit Li-ion battery charging! List： 1-20pcs X Module Shipping Policy Payment Method Returns Policy Shipping Policy Payment Method This is the description of Payment Method. Do not dismiss your dream. To be without dream is to be without hope. To be without hope is to be without purpose. Do not run through your life so fast that you forget not only where you have been, but also where you are going. Life is not race, but a journey to be savored each step of the way. Returns Policy This is the description of Returns Policy. Do not dismiss your dream. To be without dream is to be without hope. To be without hope is to be without purpose. Do not run through your life so fast that you forget not only where you have been, but also where you are going. Life is not race, but a journey to be savored each step of the way. Copyright©2017 DataCaciques Home Payment Return Policy About us Contact us 1-20PCS 3.7V 4.2V Type-C USB 18650 Lithium Battery Charging Board Charger Module Details Features: 1.100% brand new and high quality product, 2 interfaces to choose from. 2.Made of high quality material, DC4.3-27V adjustable voltage, durable and practical. 3. Small size, only 3.3X2.3X0.9 CM, easy to apply and install. 4. Efficient and stable performance, long working life. 5. Wide range of applications, can be used for multimeter Retrofit lithium battery charging. Parameters: TYPE-C interface model: Interface: TYPE-C interface Before use, the default output is about 9V. Input voltage: DC 4.5-8V Output voltage: DC4.3-27V adjustable (4.3V above 27V below any voltage can be output, their own adjustments can be adjusted counterclockwise boost) Charging voltage: 4.2V Charging current: maximum 1A Discharge current: Maximum 2A (output current should be calculated by yourself, output reference maximum current 5V 1.4A, 9V 0.8A, 12V 0.6A) Static current: about 0.5MA Overshoot protection: Yes Size:3.3X2.3X0.9 CM Wiring example: For example, VIN + terminal connected to the 5V solar panel, BAT + terminal can output 4.2V to 3.7V 18650 battery charging, OUT + terminal can output an adjustable voltage, how much you need to adjust their own can be used for multimeters Retrofit Li-ion battery charging! List： 1-20pcs X Module Shipping Policy Payment Method Returns Policy Shipping Policy 1.We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2.Orders will be processed instantly and dispatched within 1-2 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3.All package need to wait 30 days , Please take care it.Less than 30 days,we can't take a refund . Payment Method 1.We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase. 2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. 3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country. Returns Policy 1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase. 2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse. 3. Please include your eBay ID and item number with any email requests.
