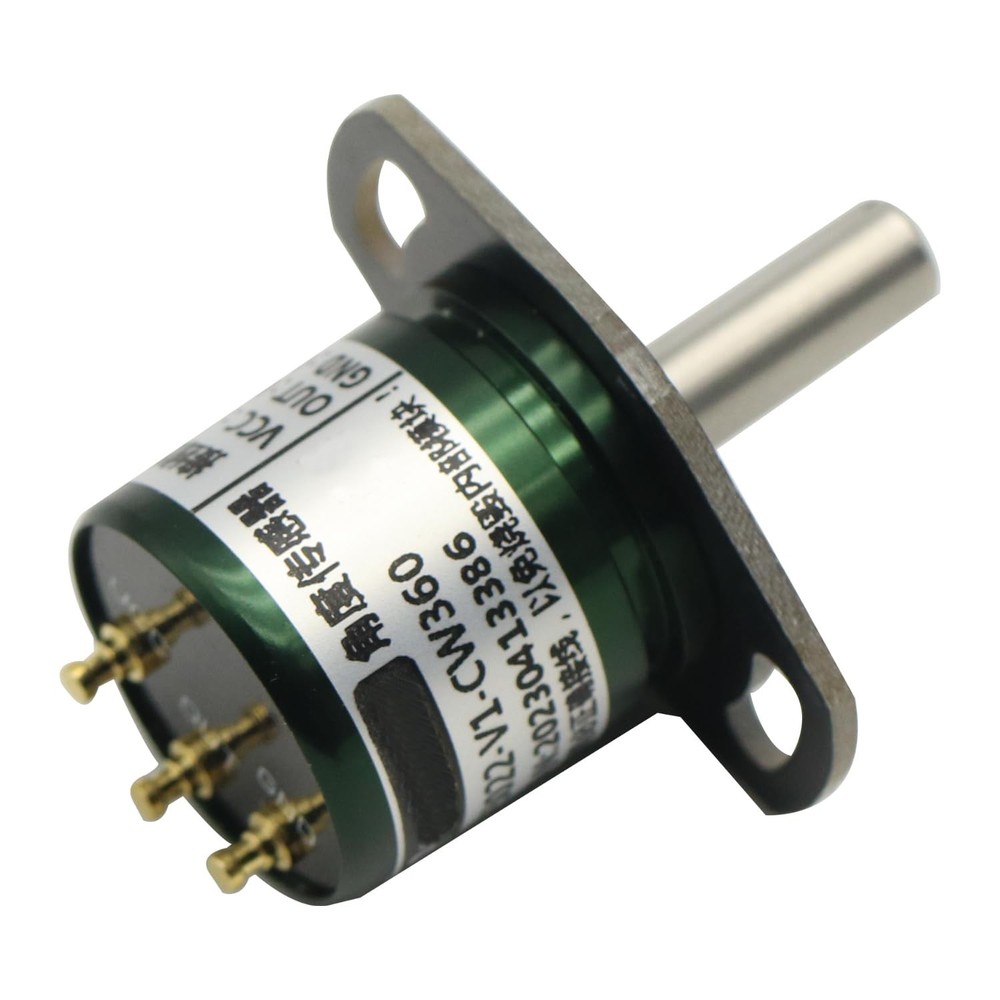

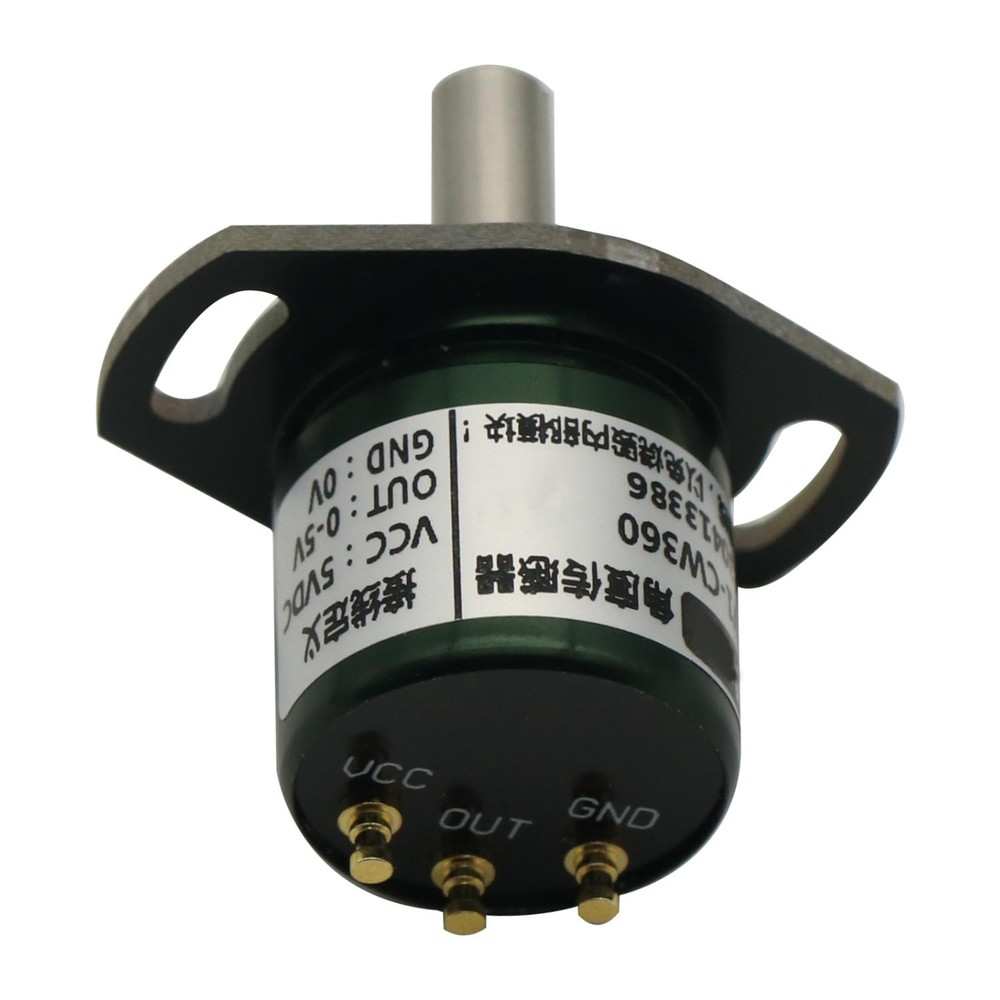

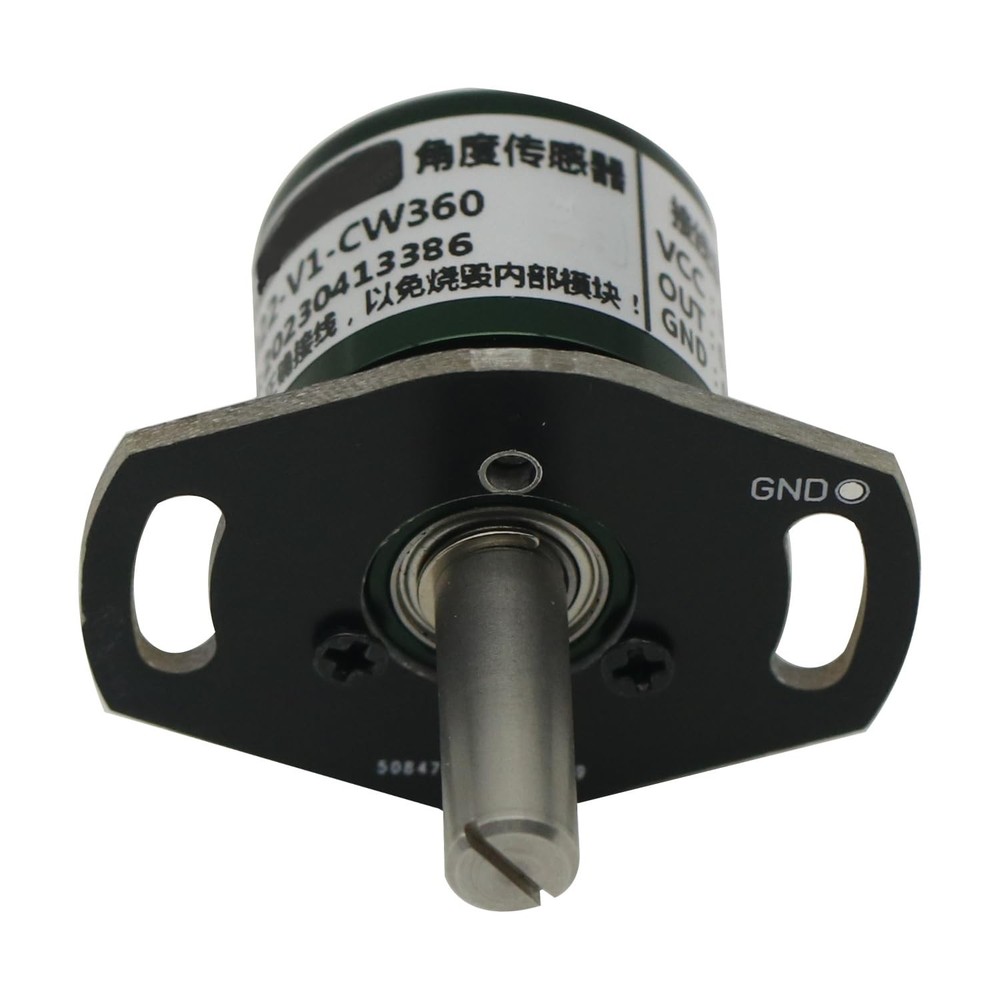

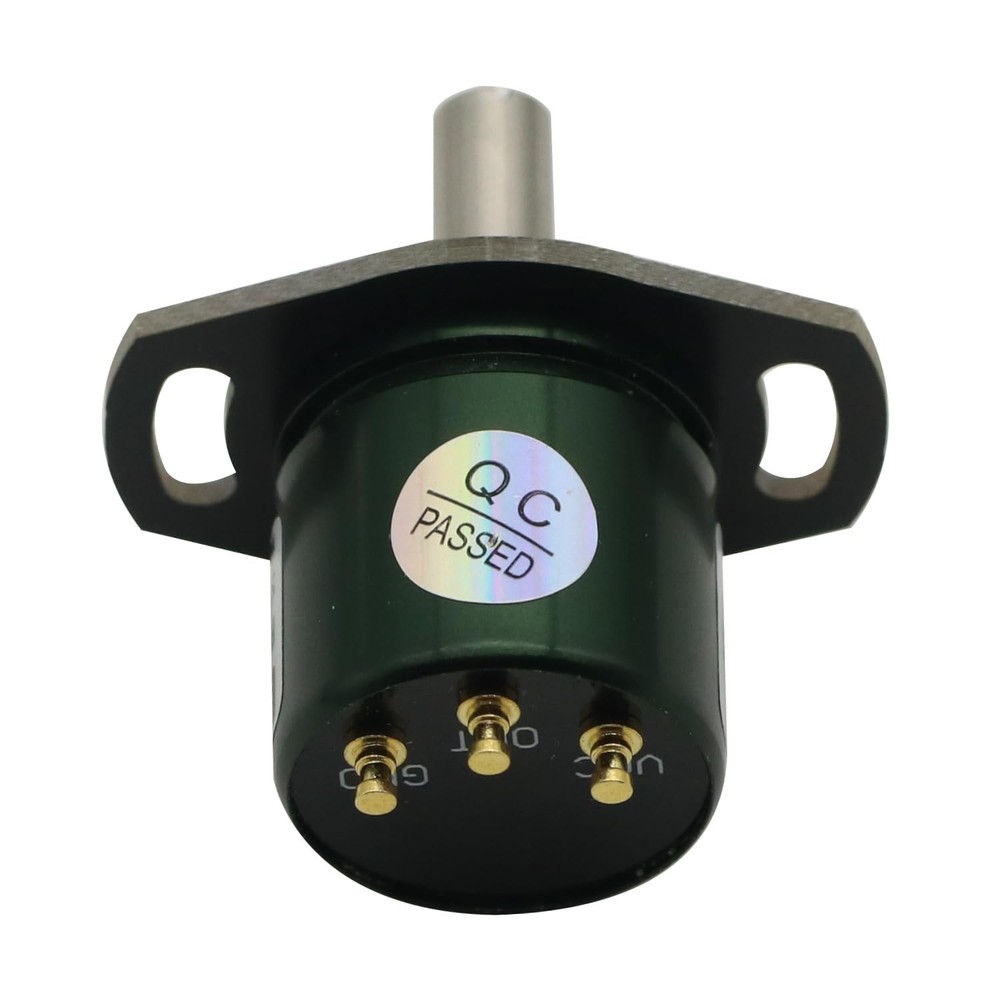

12Bit Hall Angle Sensor 0.088 Resolution 360 Rotation 05V Output
$ 21.68
Description
12Bit Hall Angle Sensor 0.088 Resolution 360 Rotation 05V Output. Induction, the angle is converted to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, P3022 angle sensor outputs an electrical signal that is proportional to the rotational angle. Feature: Small size, the maximum outer diameter of 22mm Full 360 ° no dead angle measurement Linearity is ±0.3% F.S. Output signal 0-5V DC Supply voltage 5V DC Angle Direction: Clockwise rotation of the rotary shaft Long product life. Small rotational torque Aluminum shell Easy to install Description: Non-contact hall angle sensor works through the principle of electromagnetic induction, the angle is converted to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, P3022 angle sensor outputs an electrical signal that is proportional to the rotational angle. This series of products using hard aluminum alloy material shell; Hall-type non-contact technology, P3022 series angle sensor has the advantages of non-contact angle sensor, and the use of high-quality imported high quality stainless steel high speed bearing member, so that it reduced frictional resistance when measuring the minimum, not because of the wear surface measurement component caused decrease measurement accuracy, long service life theoretically unlimited; the product compact structure, small size, optional strong, high resolution, smooth rotation dynamic noise in addition to the excellent performance suitable for electromagnetic interference outside the water,oil,vibration, shock and other harsh industrial environment, is a cost-effective non-contact angle sensor. Application: Manipulators Textile Machinery Construction machinery Full 360 ° no dead angle measurementLinearity is ±0.3% F.S. Output signal 0-5V DCSupply voltage 5V DCAngle Direction: Clockwise rotation of the rotary shaftinduction, the angle is converted to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, angle sensor outputs an electrical signal that is proportional to the rotational angle.
