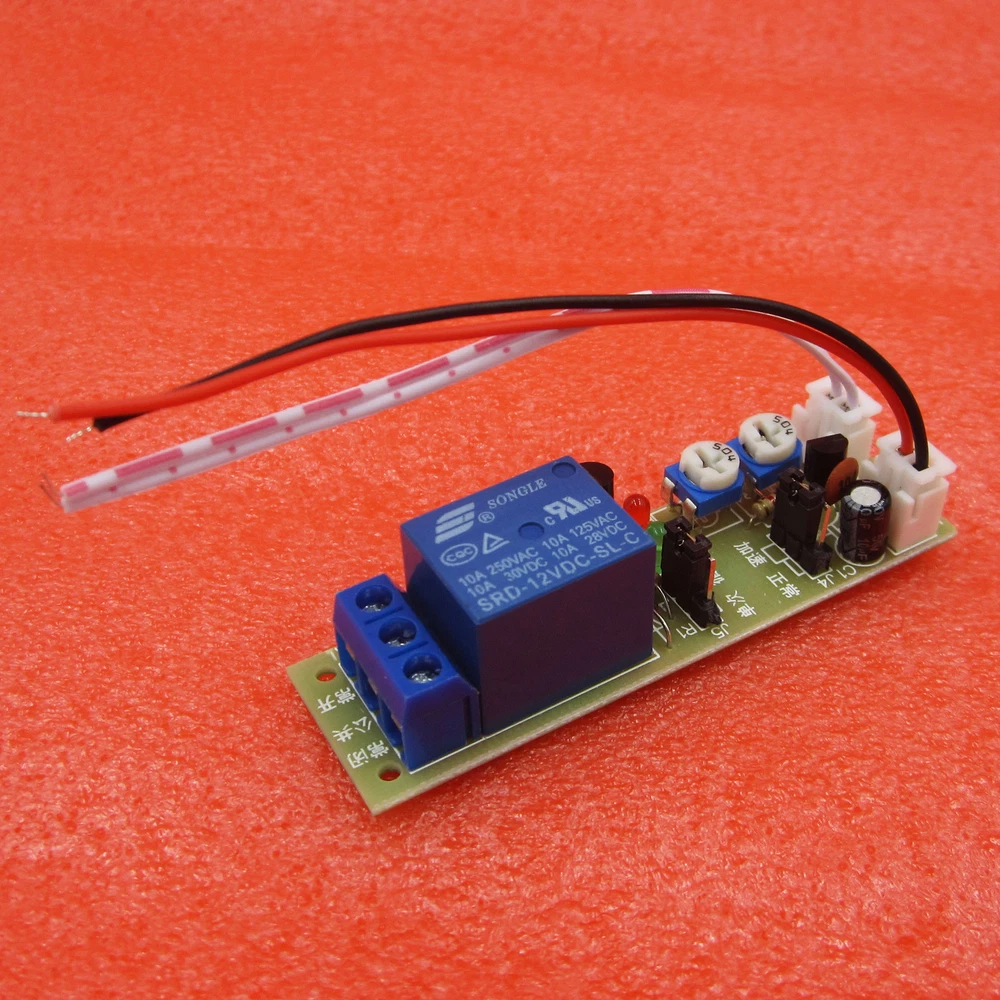

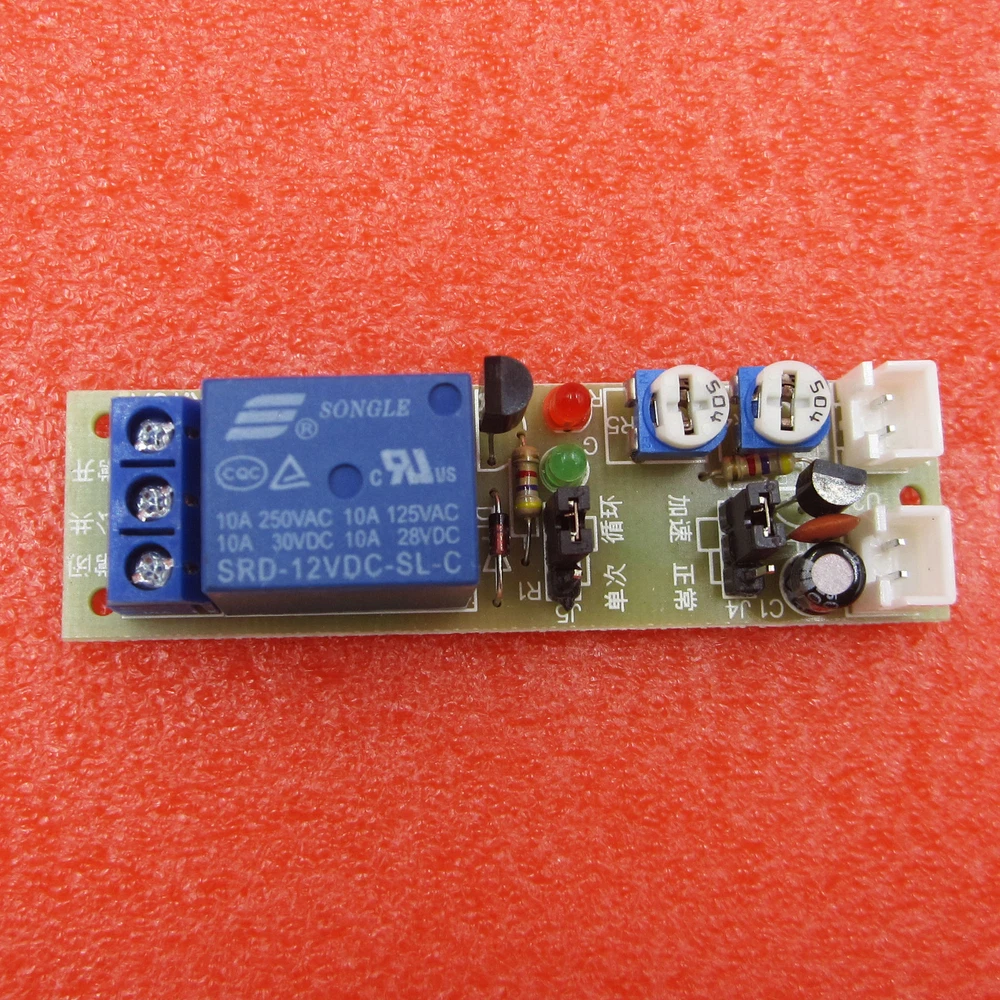

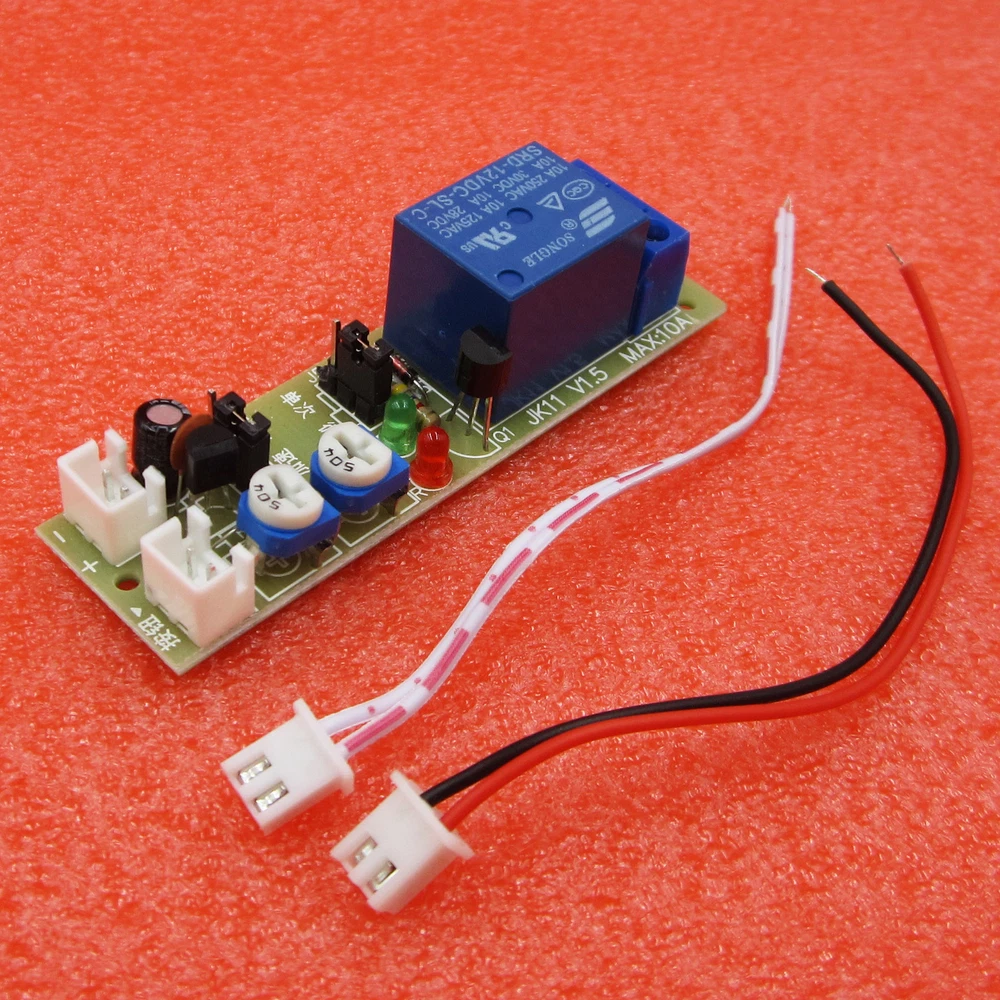

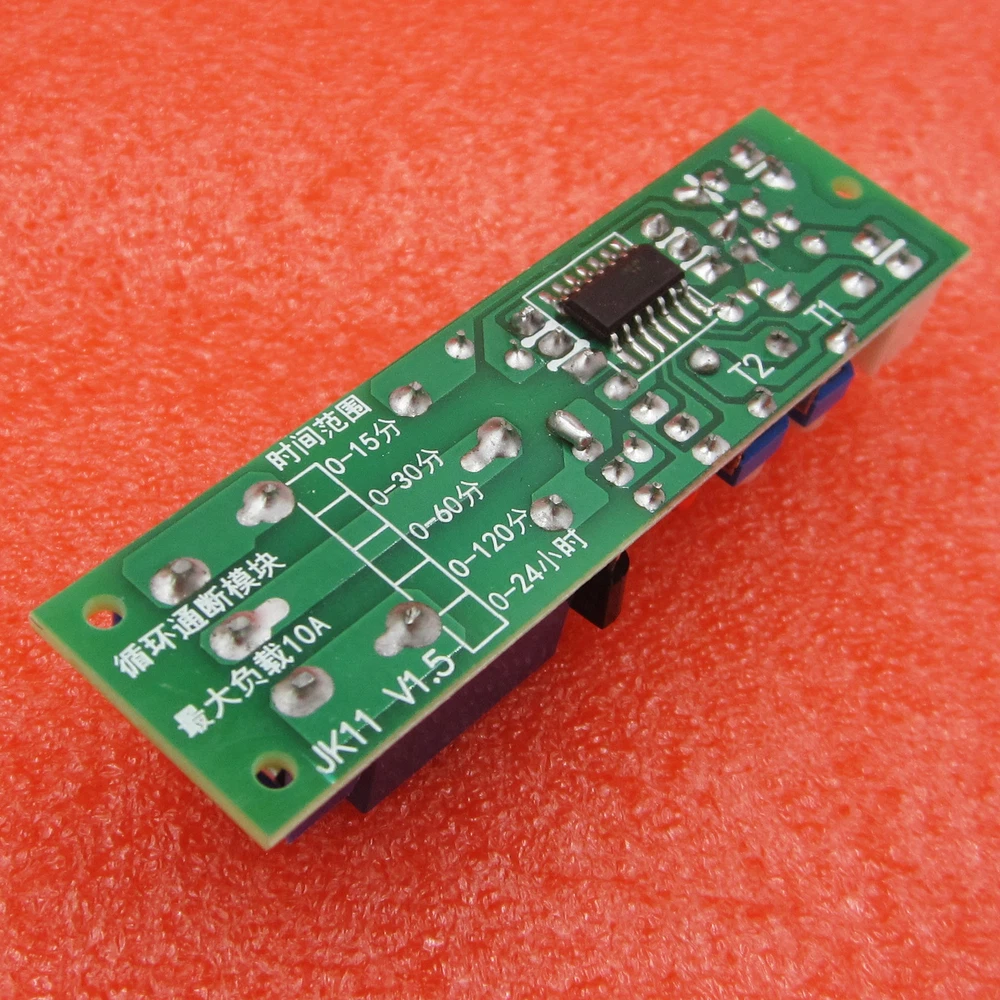

12V DC Infinite Cycle Delay Timing Timer Relay ON OFF Switch Loop Module Trigger
$ 1.8
Description
Product View Detail Description: Features: This module uses MCU as the main chip. High timer precision. MCU watchdog circuit and special reset chip. Stable and reliable work. Specification: T1(the relay turn on delay time), T2(the relay turn off delay time) Once mode (Jumper OP3) 1. The module Power-on, When triggered the relay is switched on, delay T1, and the relay disconneted. 2. When triggered on the delay process, again triggered, it will immediately interrupt the delay. Cycle mode(Jumper OP4) 1. The module Power-on, When triggered the relay is switched on, delay T1,and the relay is disconneted, delay T2, the relay is switched on again. Such cycle. T1 and T2 are set by two adjustable resistors, respectively. 2. When triggered on the delay process, again triggered, it will immediately interrupt the delay. Typical application reference: 1. timer operating equipment, such as each press key trigger,when reach 5 minutes the automatic power off. 2. machine repeat test circuits, such as power 1 minutes on and then power off 1 minutes of ,such a cycle of testing. 3. fish tank pump intermittent pumping oxygen. 4. other timer control equipment. Performance: Jumper OP1: 1 to 100 seconds, 0.1 seconds of regulation accuracy Jumper OP2: 1 seconds to 15 minutes, 1 seconds of regulation accuracy The time delay error of all kinds of temperature and humidity is not more than 2% Size: 7x2cm/2.76x0.79inch Quantity: 1 Pc Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!! Feedback Payment Shipment About us Feedback We appreciate positive feedback . we always try our best to service our customers . so if you have ant question ,PLEASE DON’T HESITATE TO TELL US, we are always here to offer help . Payment We prefer PayPal .For purchasing multiple items , please contact us for a combined invoice . generally we would like to receive payment thin 48 hours if . Shipment We provide airmail service with good package . The items will be shipped within the nest 2 business days after we received the payment . when you buy multiple items ,your shipping cost will be combined with discount . SHIPPING TIME (weekends/holidays excluded) Country Name Shipping Time Country Name Shipping Time USA/Canada 10 -15d Spanish/Portugue 10-25d East/South Asia 10 -15d France/West Asia 10-25d United Kingdom 10 -20d Italy 10-30d Australia/New Zealand 10 -15d West Asia/Middle East 15-25d Most Country of West/North Europe 10-20d South America and Africa 15-30d East /Middle Europe/Russia 10-25d About us NEW, GOOD QUALITY, ORIGINAL PACKAGE LARGE STORE AND THE LOWEST PRICE NO-QUESTION-REFUND, FOR LARGE QUANTITY ,OFFER BETTER PRICE, ORIGINAL PACKING(TAPE REEL/TUBE/TRAY） We specialize in electronic components . ICs, Capacitors, Diodes, Resistors, LEDs, Transistors, and so on. Especially in Hard To Find Parts . we only sell NEW , ORIGINAL parts . please buy with confidence .We offer NO-QUESTION-REFUND go to my store
