12pcs 7mm Pre-Wired Mini Momentary Push Button 3V 6V 12V 24V 110V 250V 1A SPS...

$ 5.84

Contact Material: Metal Part Number: Mnan-2Phx10Cm-6Blk+6Red Operation Mode: On-Off UPC: Does not apply Contact Type: Normally Open Control Method: Push Button Country of Origin: China gtin13: Does not apply Brand: Dmwd Type: Does not apply Package Dimensions LxWxH: 5.91x3.15x0.39 Inches Button Color: Black+Red Operating Voltage: 120.0 Wattage: 120.0 Compatible Devices: Appliances, Electronics, Diy Projects Switch Type: Push Button Circuit Type: 1-Way Weight: 0.21 Pounds Number of Positions: 1 Connector Type: Soldering Mounting Type: Snap In Mount Unit Count: 12.0 Current Rating: 1.0

Description

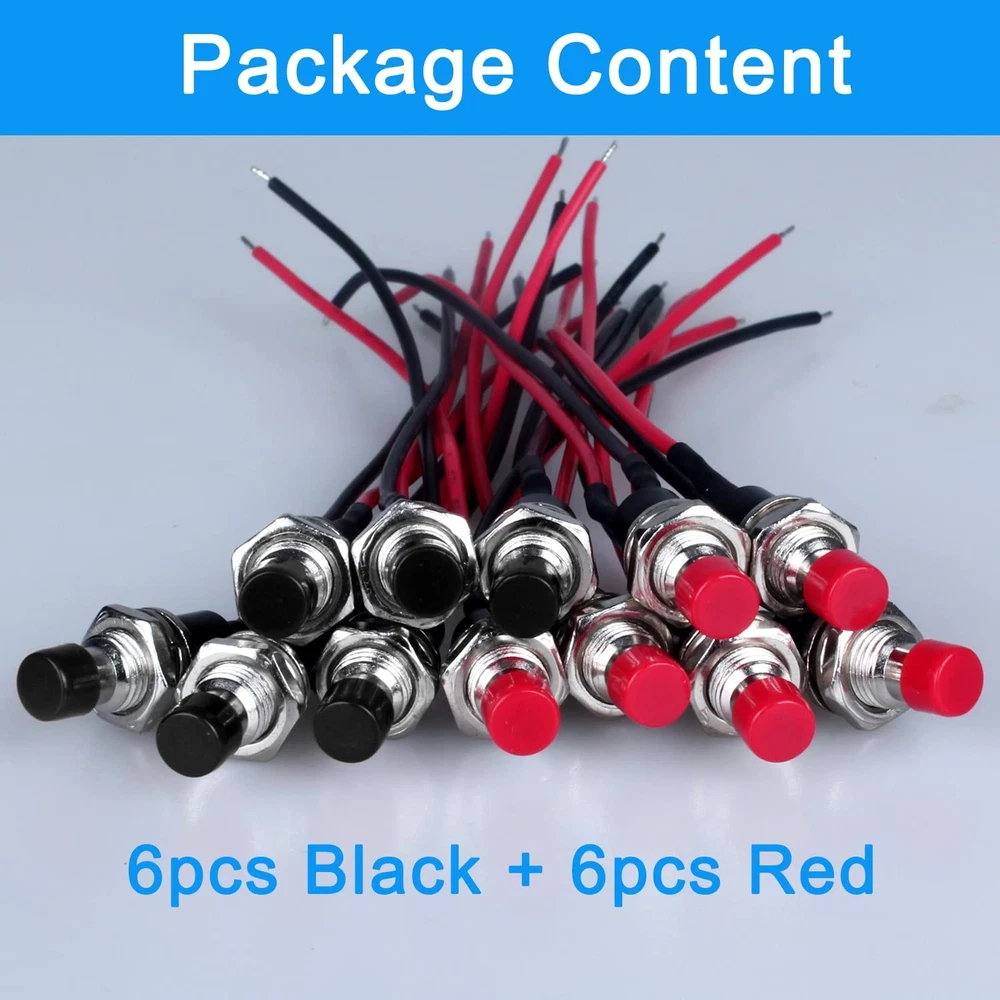

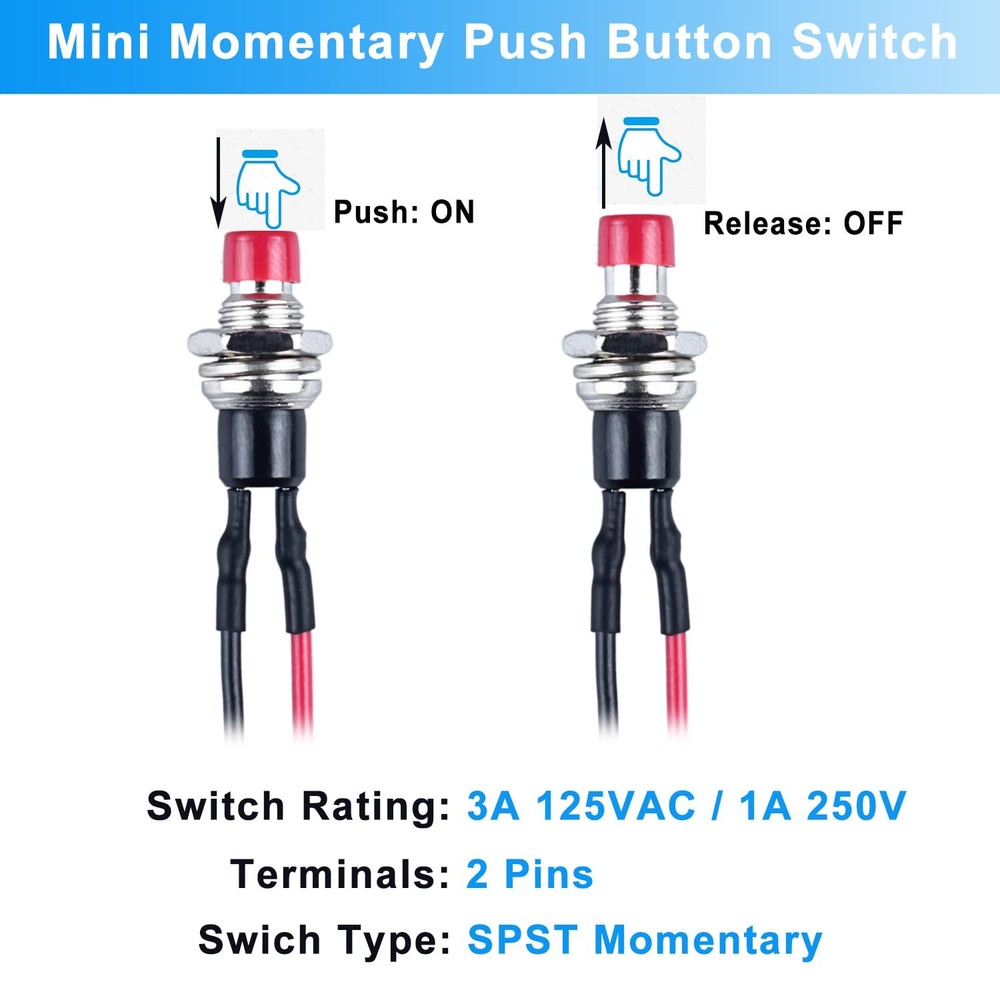

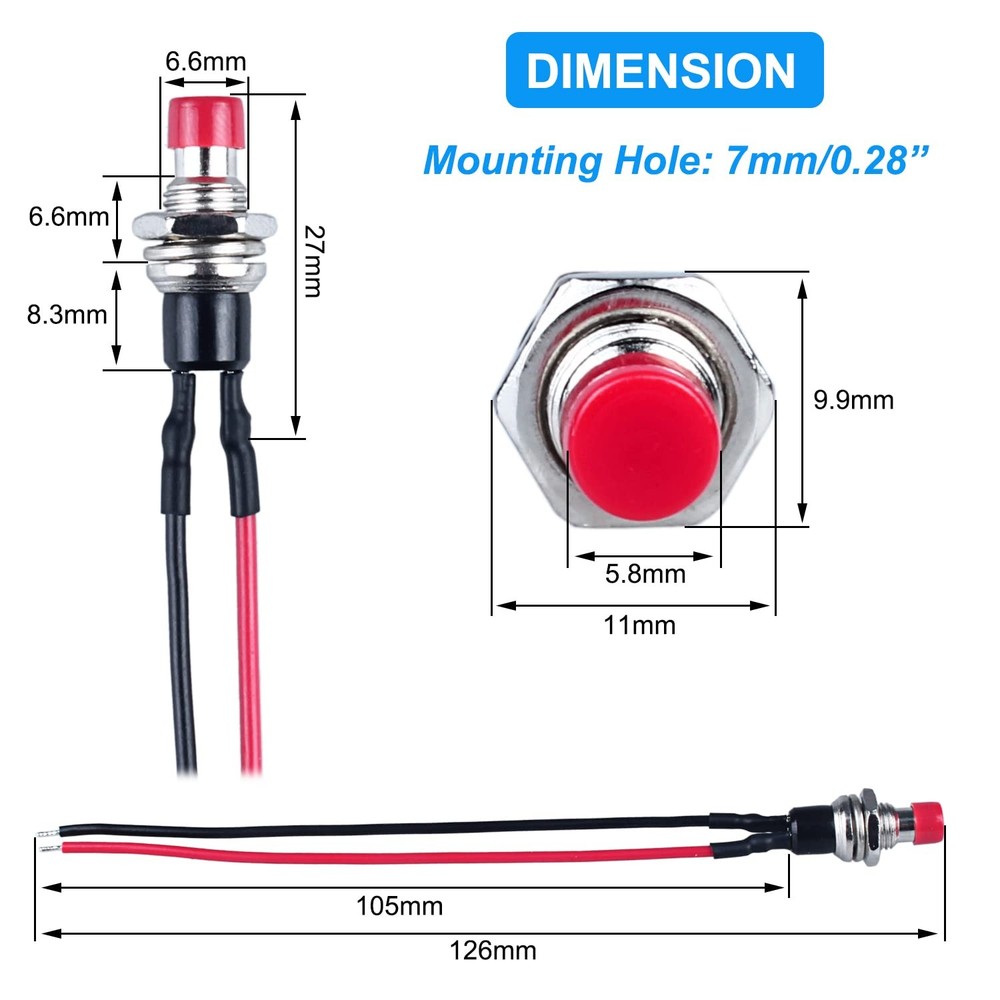

Product Name : Mini Push Button Switch; Operation Type : Momentary; Contact Type : 1 NO (Normally Open) Poles: SPST; Rating : 3A 125V / 1A 250V; Terminals : 2 Pins Button Diameter: 6.9mm / 0.27"; Cap Dia. : 6mm / 0.24"; Hole Diameter: 7mm/0.28" Pre-wired design:Easy to install, and saves unnecessary cost; Wire length: 10cm/4" Package Content: 6*Black + 6* Red Button Switch with Cable
