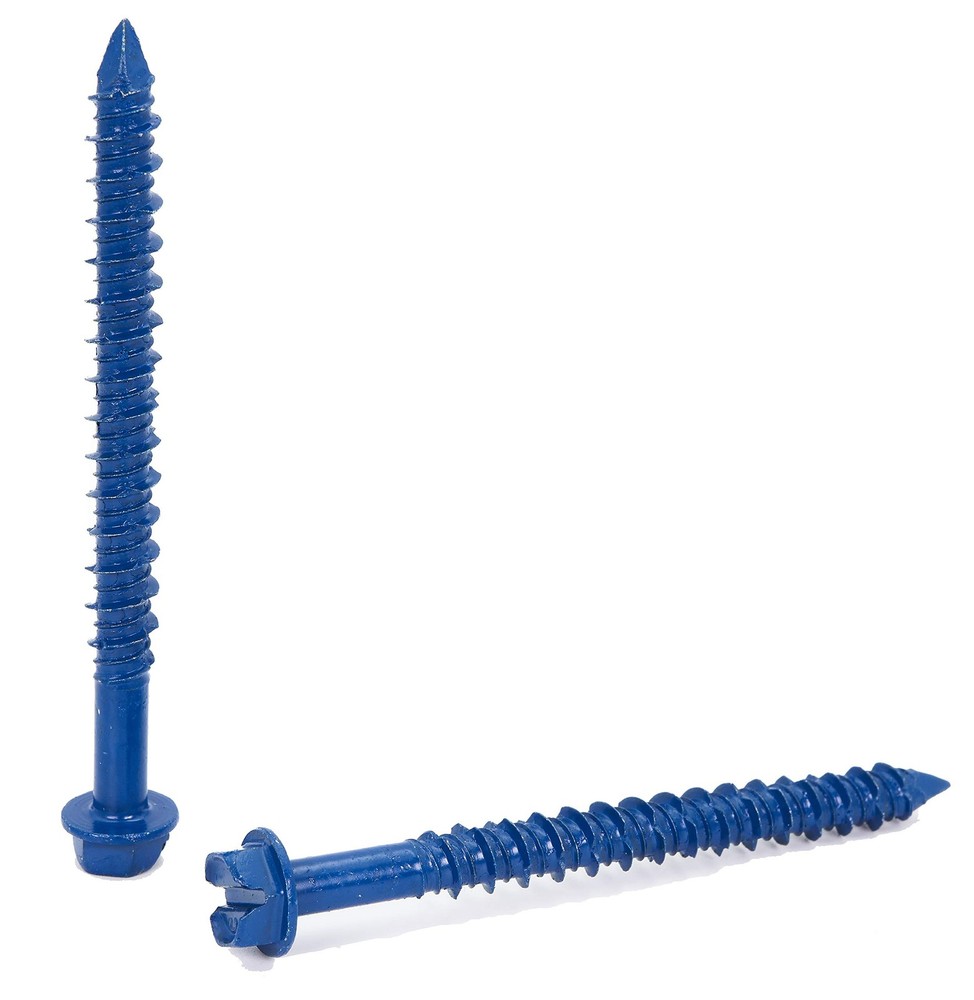

1/4 x 2-3/4 Hex Head Concrete Screw Anchor with Drill Bit for Secure Fastening-image

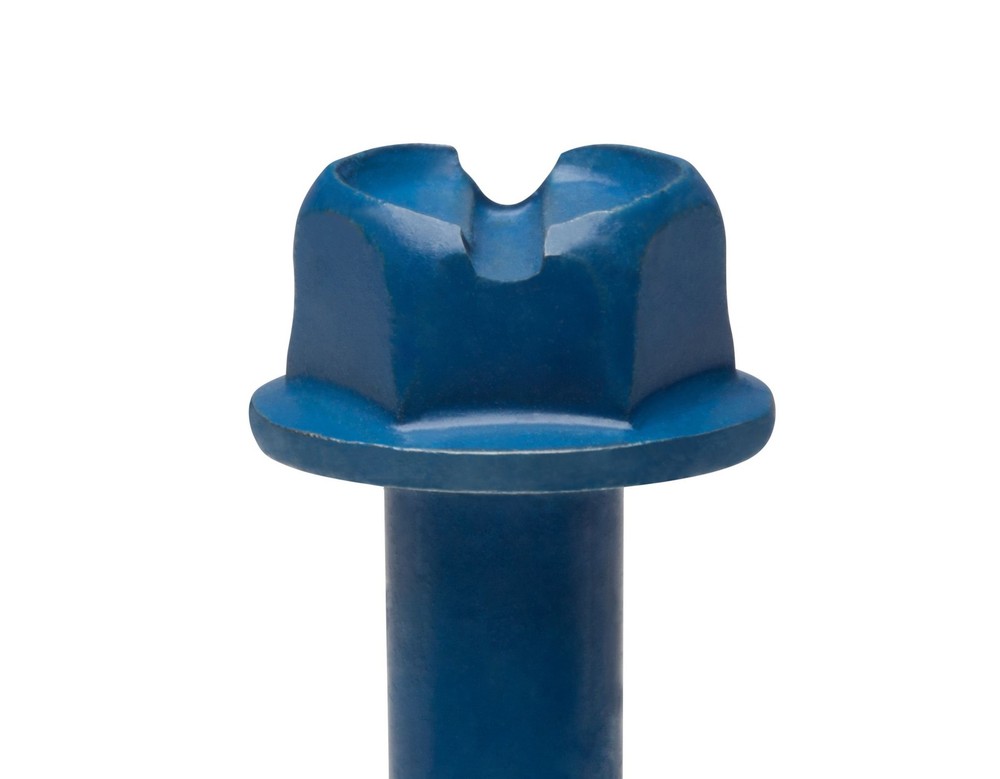

1/4 x 2-3/4 Hex Head Concrete Screw Anchor with Drill Bit for Secure Fastening-image

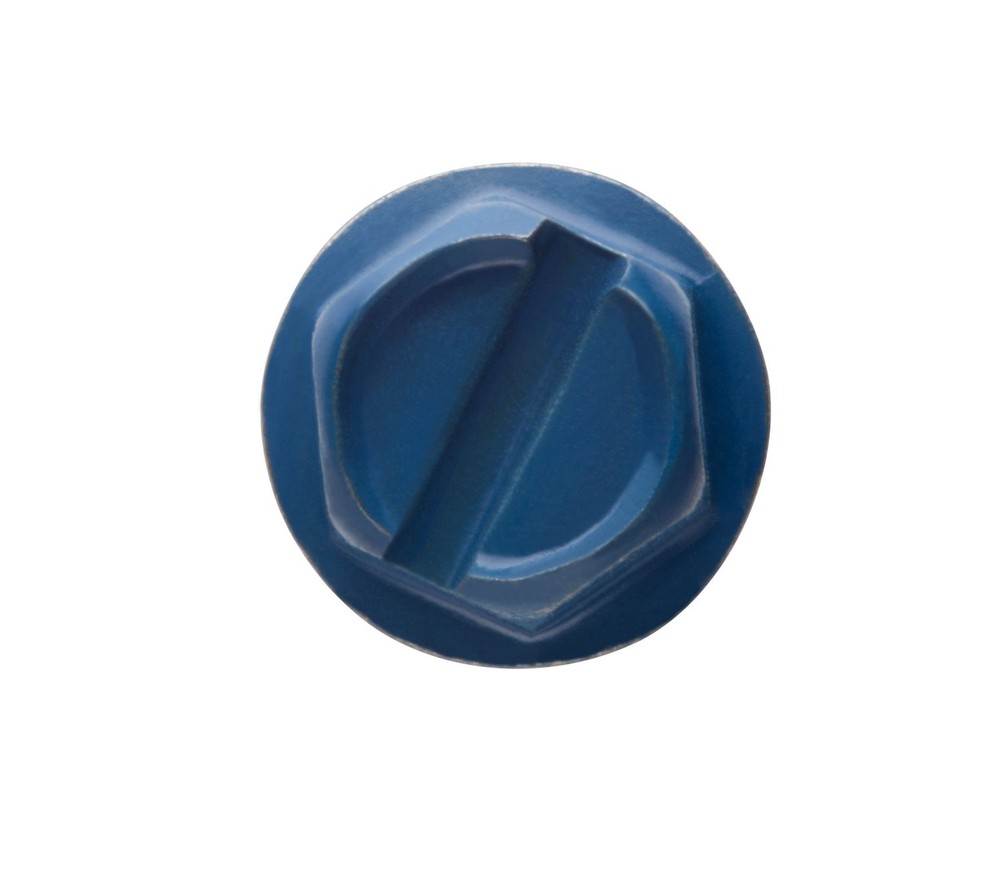

1/4 x 2-3/4 Hex Head Concrete Screw Anchor with Drill Bit for Secure Fastening-image
1/4 x 2-3/4 Hex Head Concrete Screw Anchor with Drill Bit for Secure Fastening-image

1/4 x 2-3/4 Hex Head Concrete Screw Anchor with Drill Bit for Secure Fastening

$ 24.59

Drive System: External Hex Fastener Size: 1/4" Thread Style: Fully Threaded ISBN: 0820274000182 Type: Does not apply Thread Coverage: Partially Threaded Head Type: Hex Model Number: Csh14234 Weight: 2.54 Pounds Point Style: Diamond Point-Easier Metal Type: Carbon Steel Thread Type: Unc Head Style: Hex Fastener Type: Self-Tapping-Taps Material: Carbon Steel - Blue Coated Part Number: Csh14234 Size: 1/4" X 2-3/4" gtin13: 0820274000182 UPC: 820274000182 Number Of Pieces: 100 Package Dimensions LxWxH: 6.26x4.49x2.91 Inches Brand: Does not apply Exterior Finish: Alloy Steel Unit Count: 100.0 Measurement System: Imperial Item Package Quantity: 1 EAN: 0820274000182

Description

Applications The anchor is made from Carbon Steel, and is Blue. This anchor is designed for use in Concrete, Block, and Brick. Environment The anchor is designed for use in a Dry environment. Head Style The anchor is a Hex Washer head and is designed to allow the head to sit on top of the surface of the item being attached. Hole Diameter/Bit Diameter The anchor requires a 3/16" hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill. Driver Required A 5/16" nut driver is required for driving the anchor into the base material. Diameter of Anchor The diameter of the anchor is 1/4". Length Anchor The length of the anchor is 2-3/4" Thread Length The length of the threads on the anchor is 1-3/4" in length. Minimum Embedment The minimum anchor embedment into the concrete is 1". Therefore, the anchor must be installed so that a minimum of 1" of the anchor is embedded into the concrete. Maximum Fixture Thickness The maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 1-1/4" to 1-3/4". This will ensure that the minimum embedment of 1" will be met. Fixture Hole Diameter The hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 1/4" diameter anchor requires the hole in the fixture to be 5/16". Spacing between Anchors Each anchor must be spaced a minimum distance of 4" from each other when measured center to center. Edge Distance It is very important not to install the anchor any closer than 3" from an unsupported edge of the concrete. BIT INCLUDED IN EACH BOX-Proper bit equals improved holding values and reduced cost SLOTTED HEX HEAD-Can be driven with a nut driver SELF-TAPPING-Taps threads directly into masonry and requires no other anchor DIAMOND POINT-Easier to drive the screw to save time
