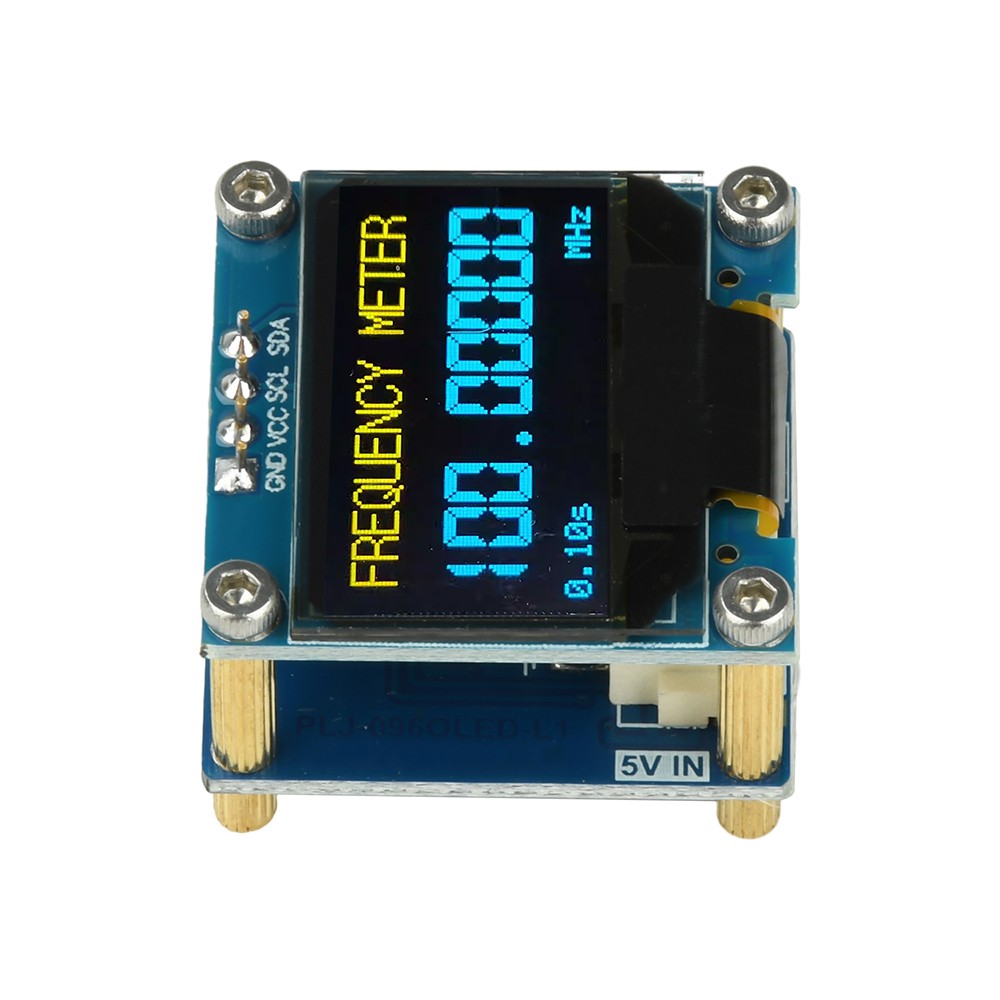

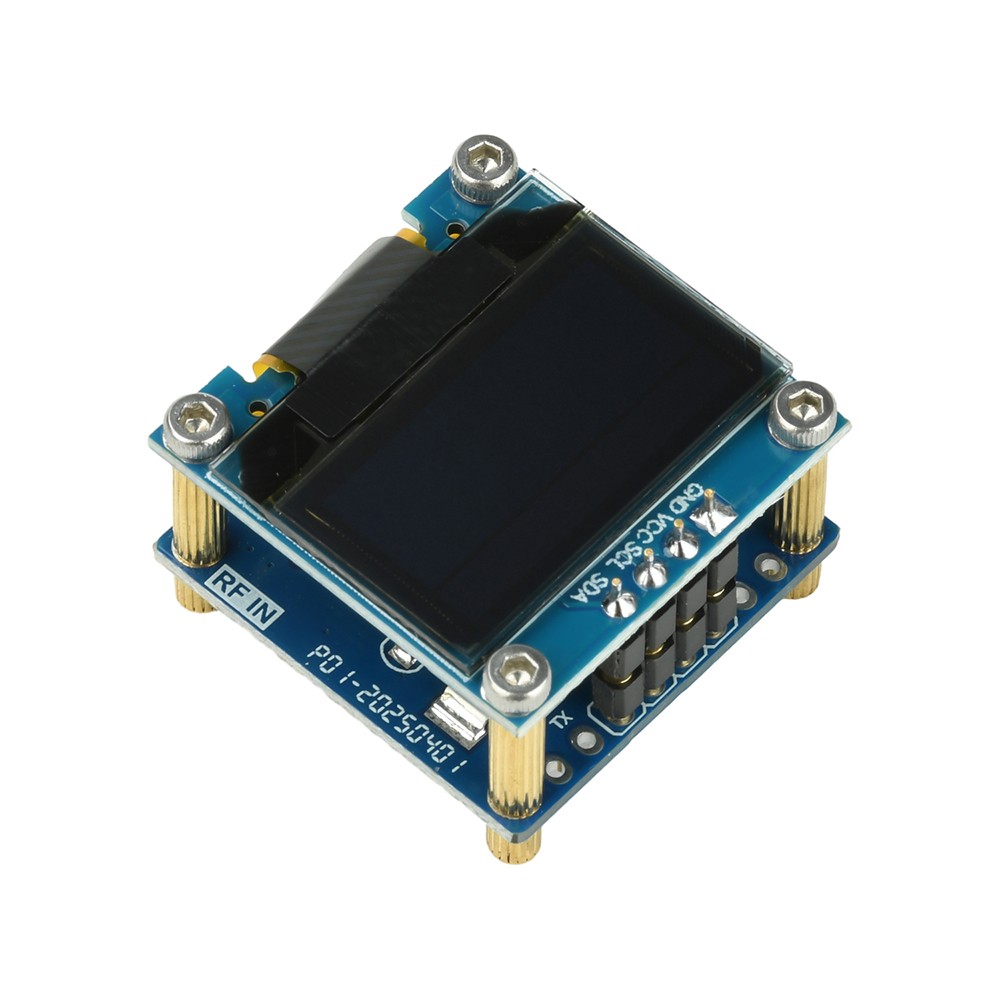

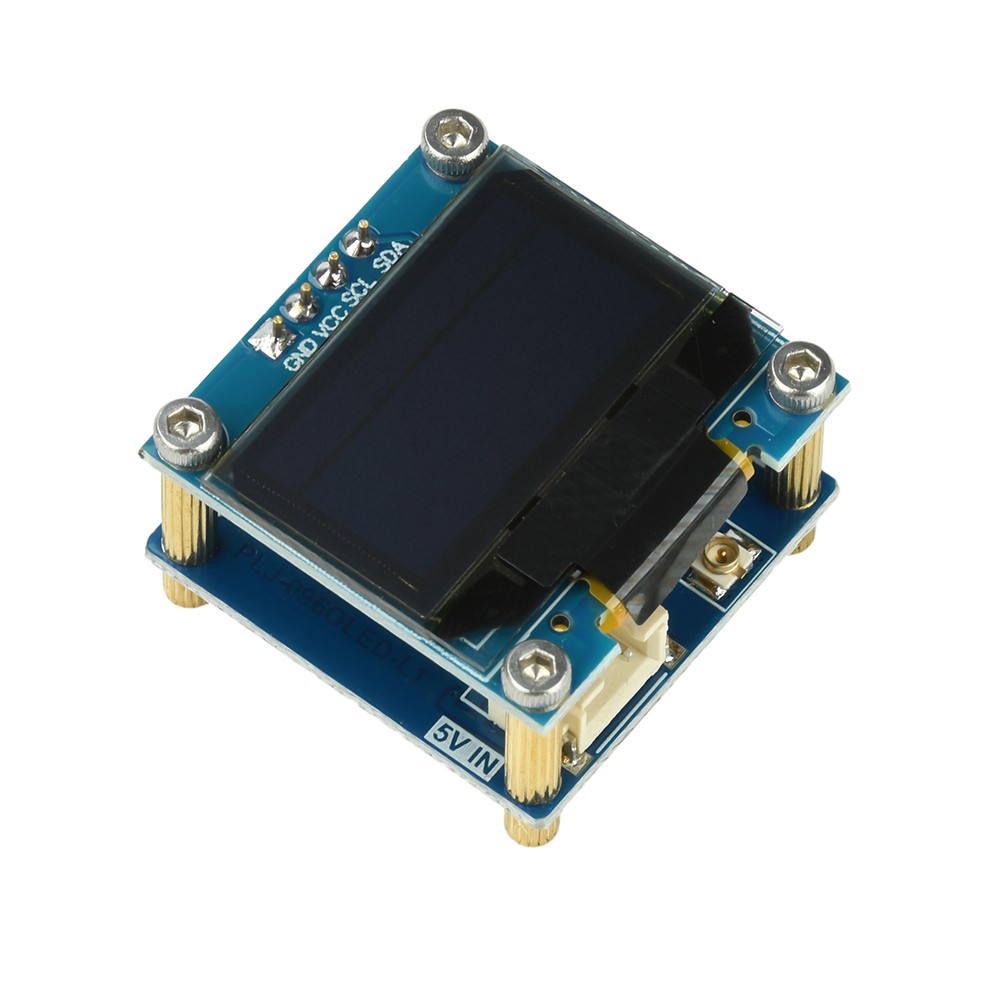

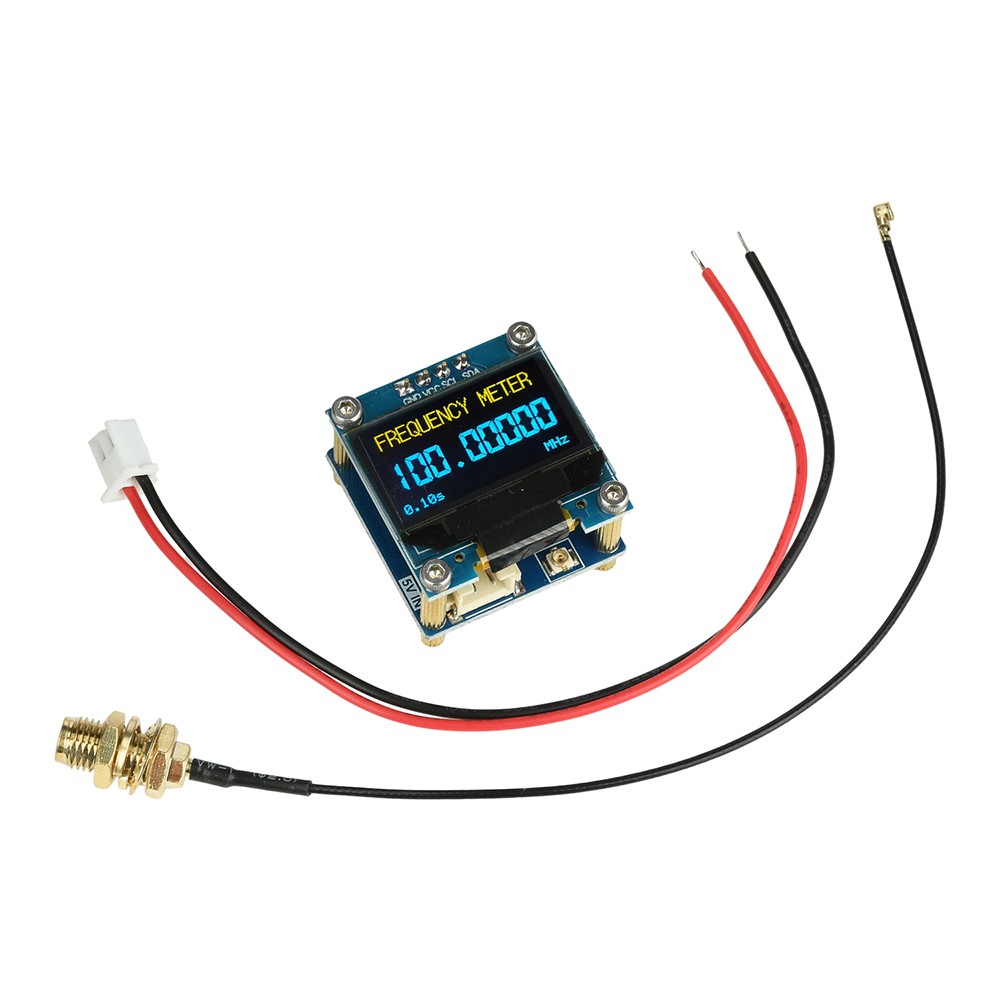

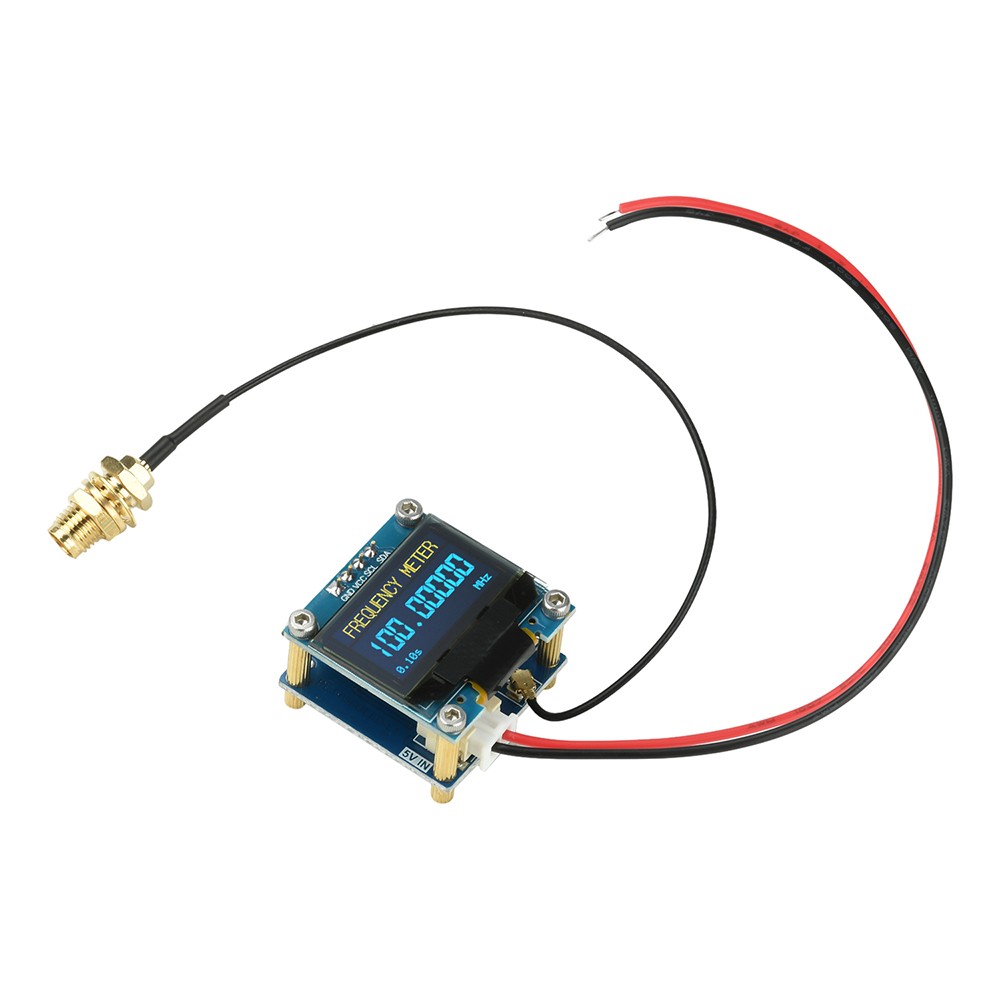

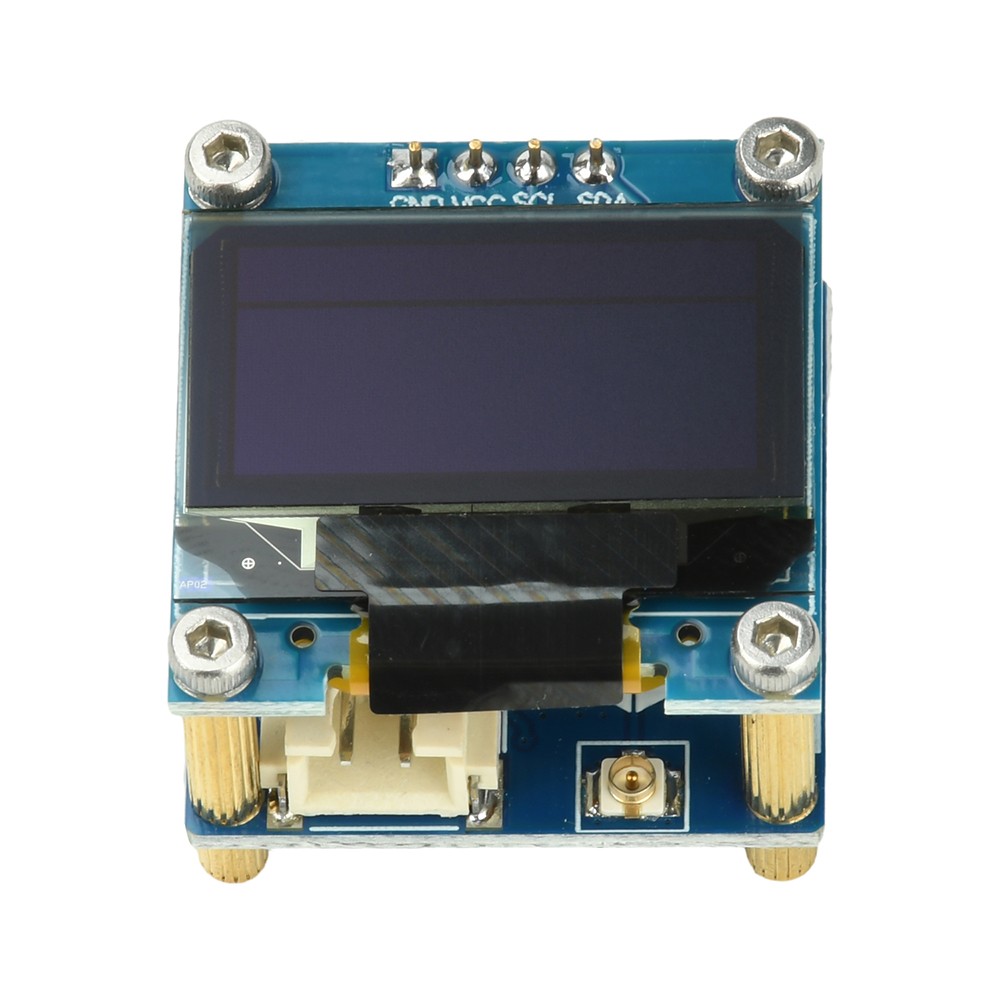

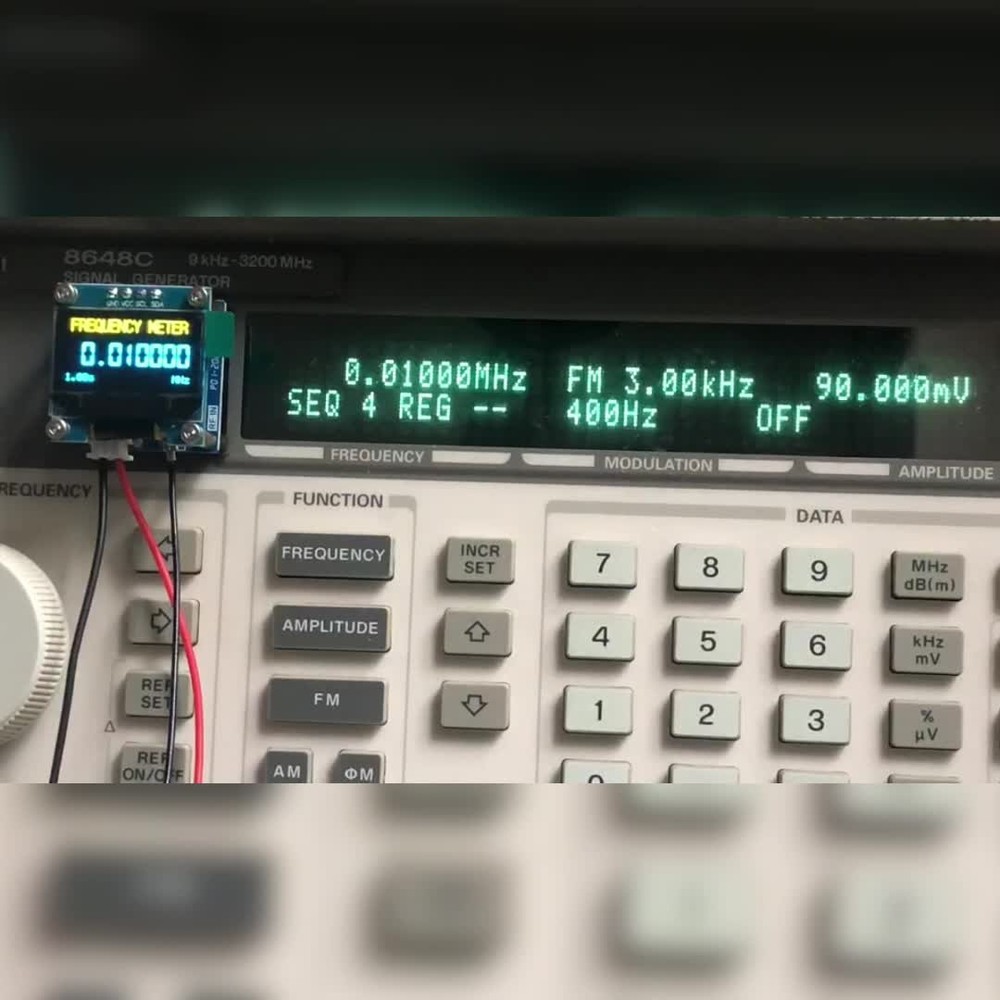

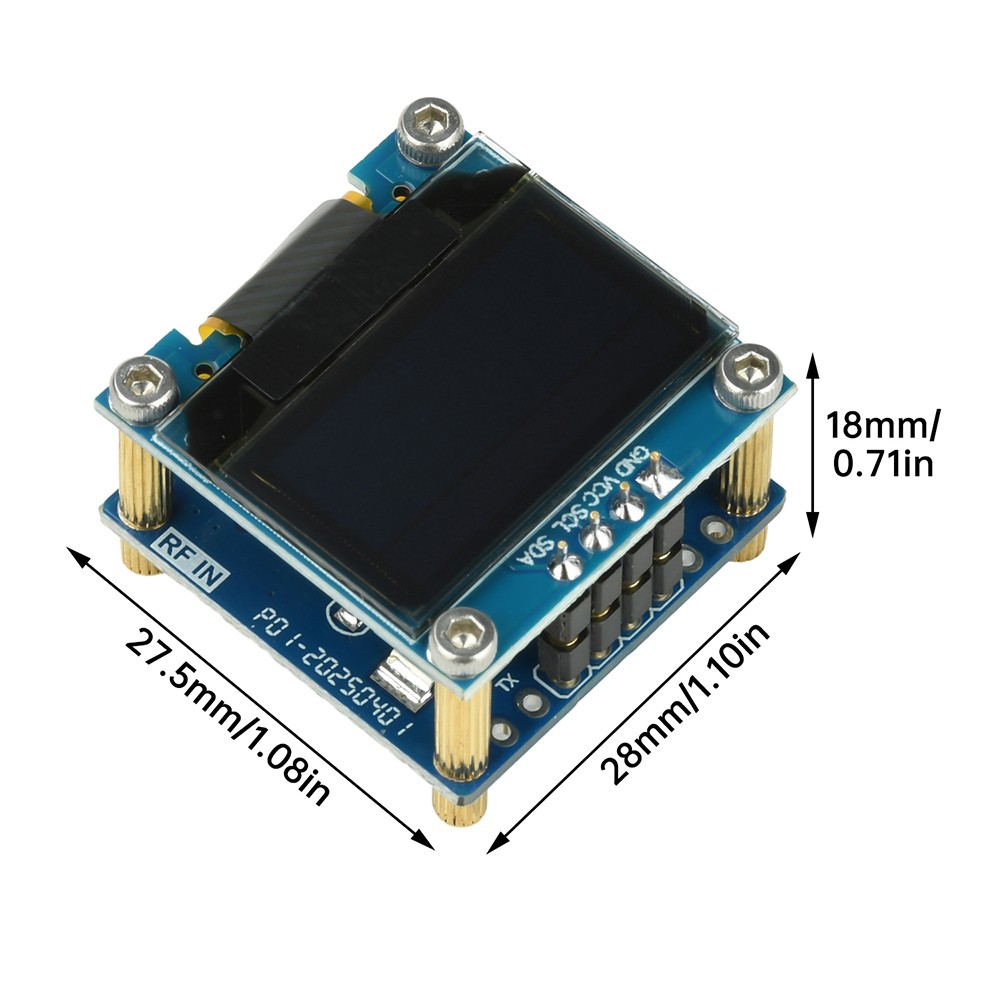

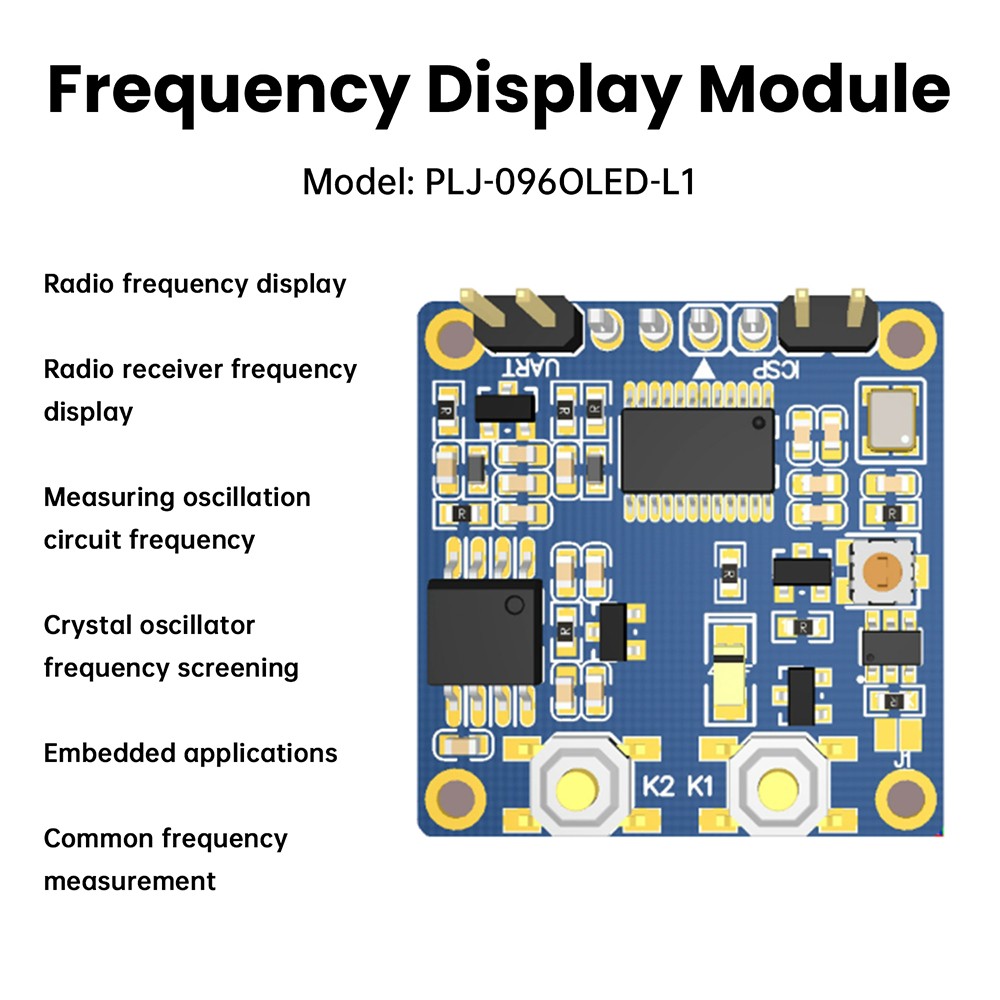

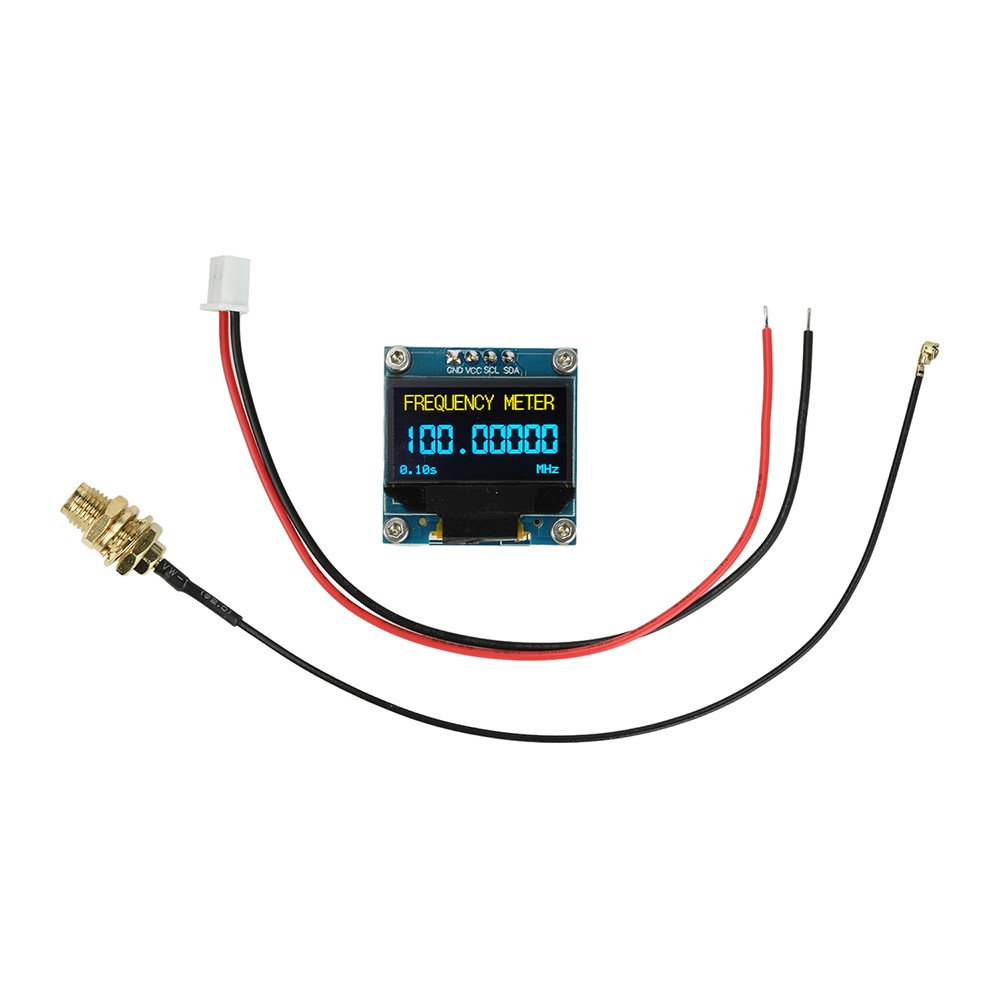

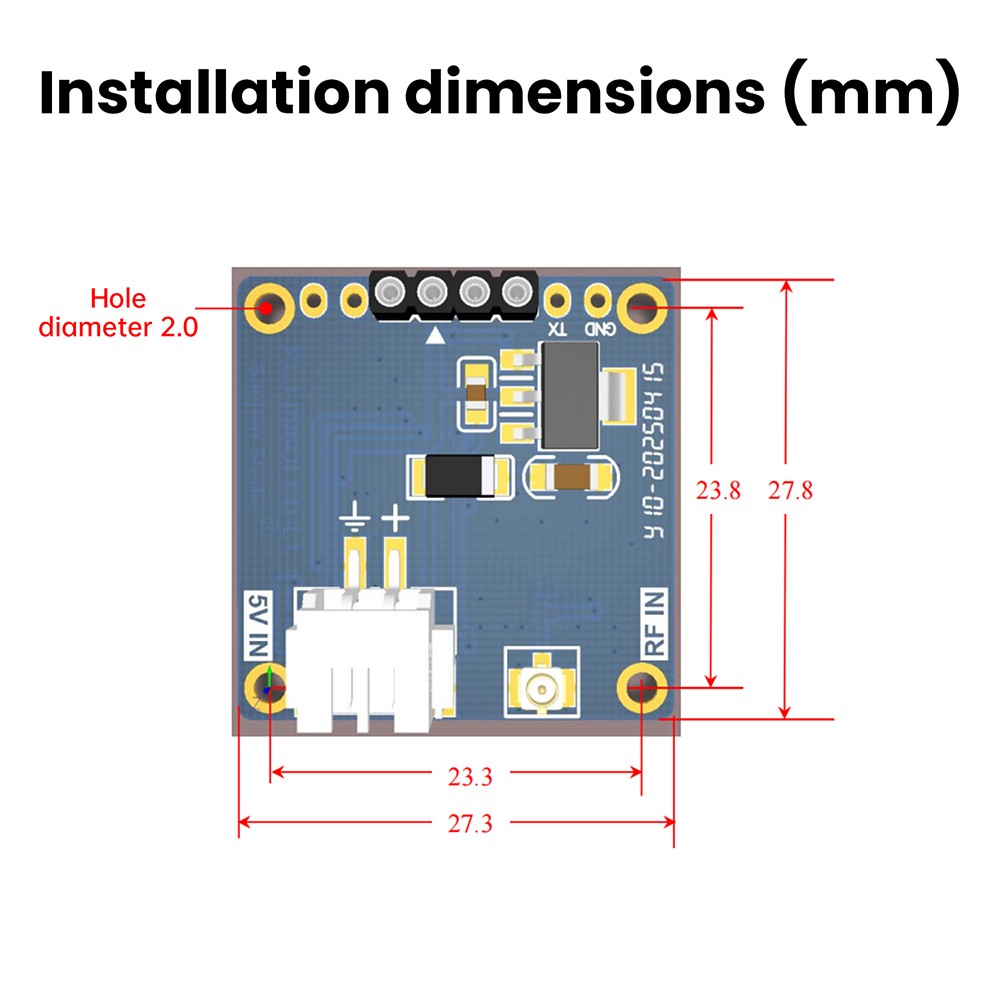

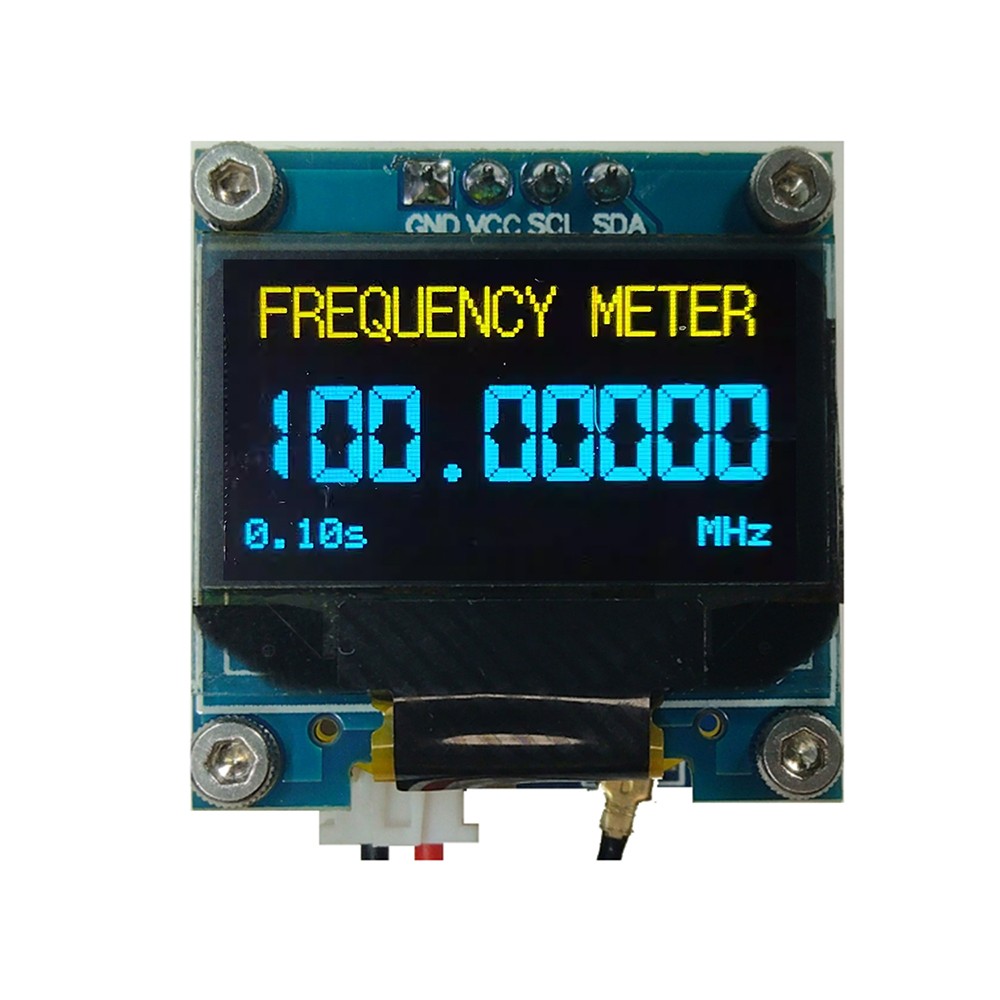

1KHz-100MHz RF Signal Frequency Counter 0.96inch OLED Display Frequency Module

Description

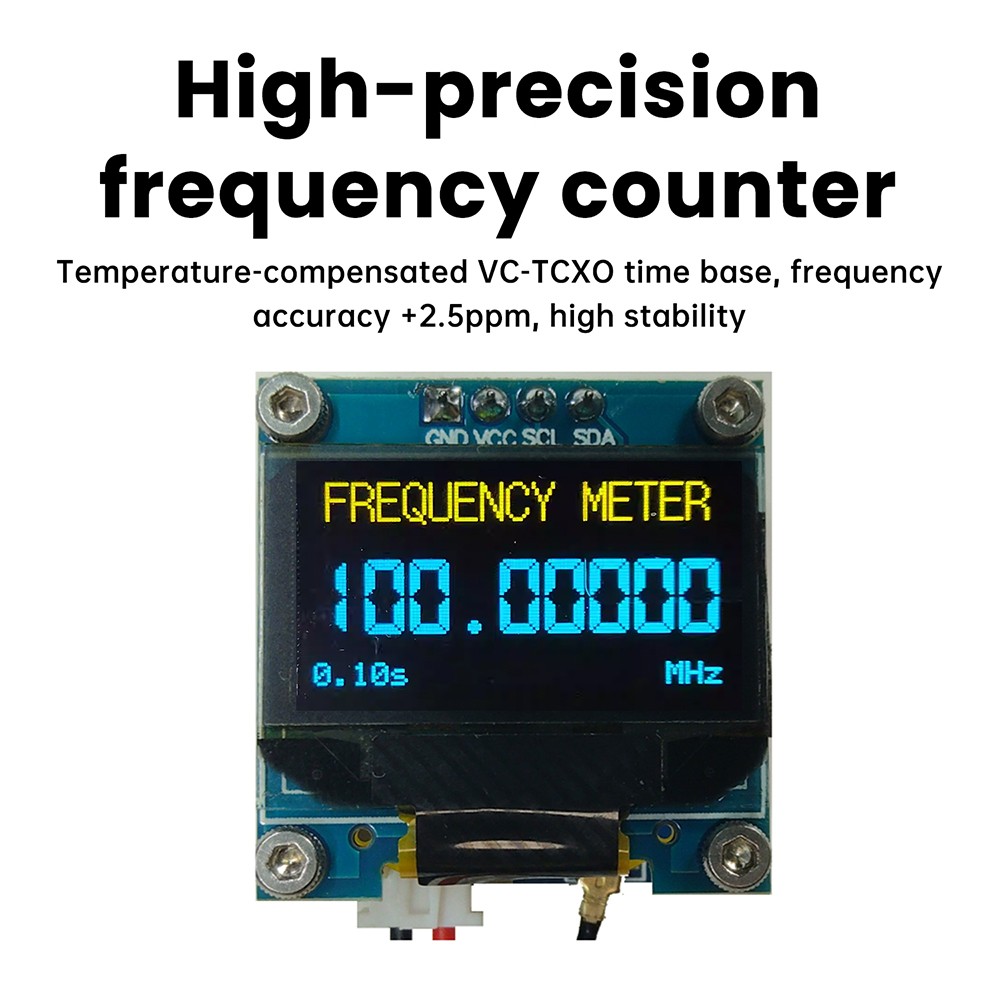

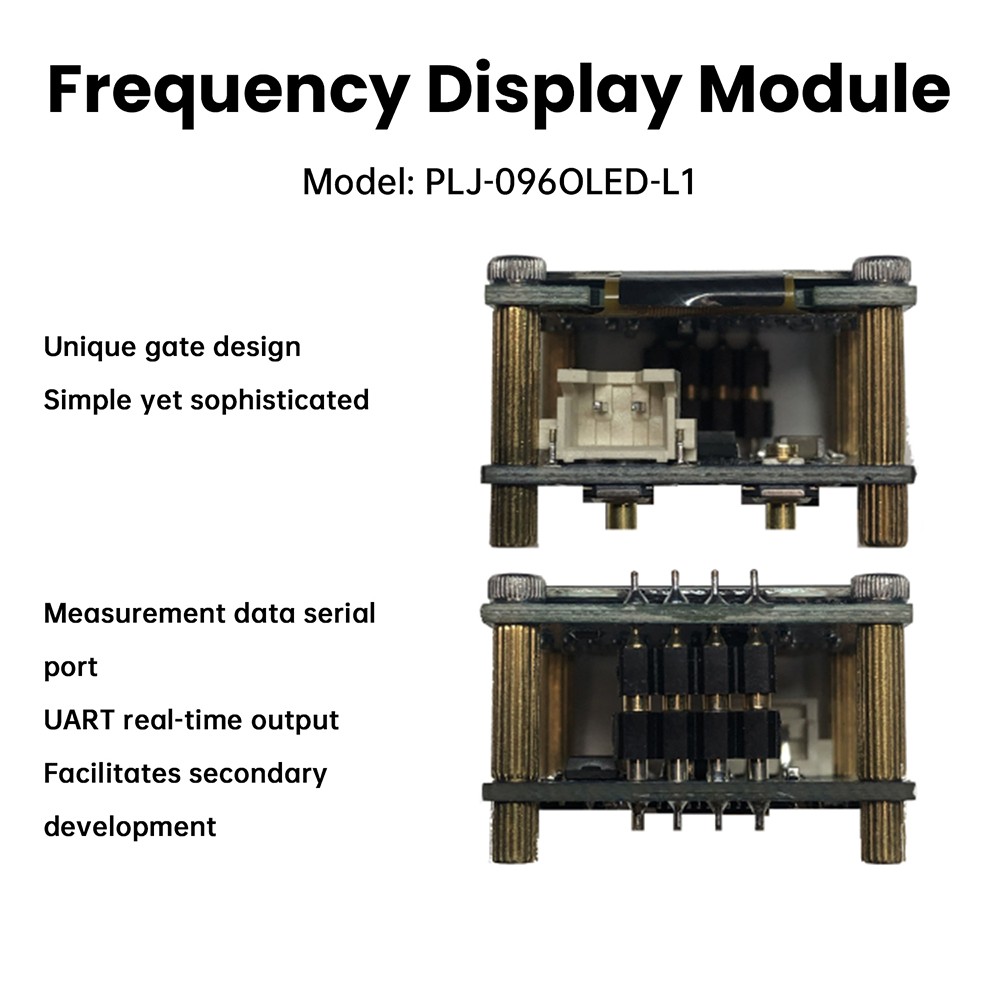

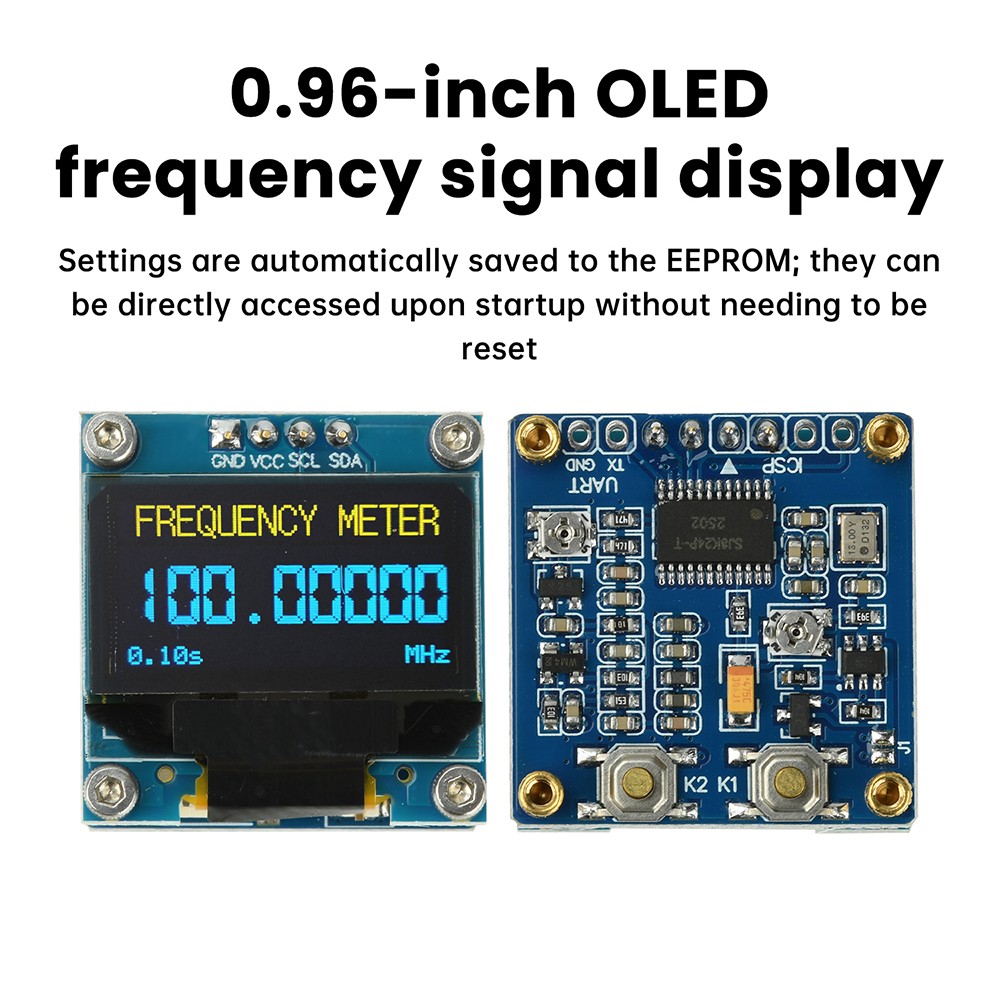

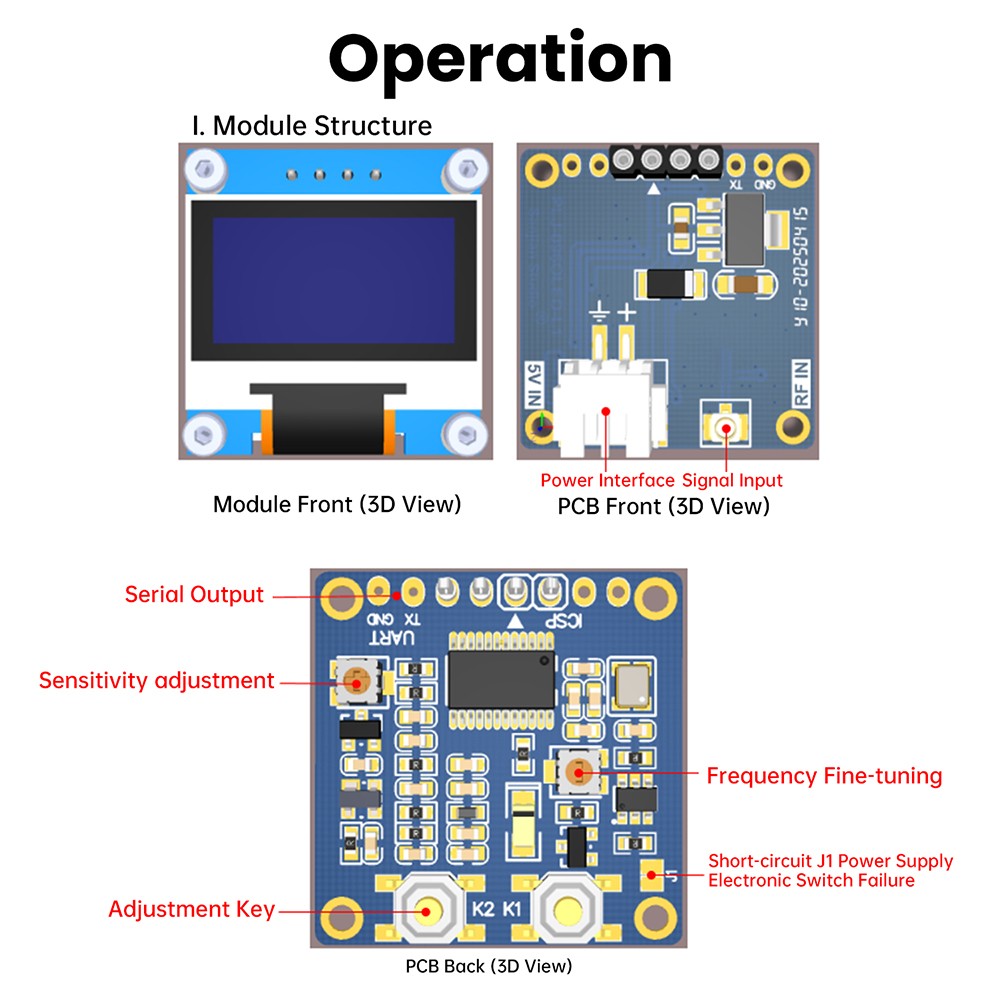

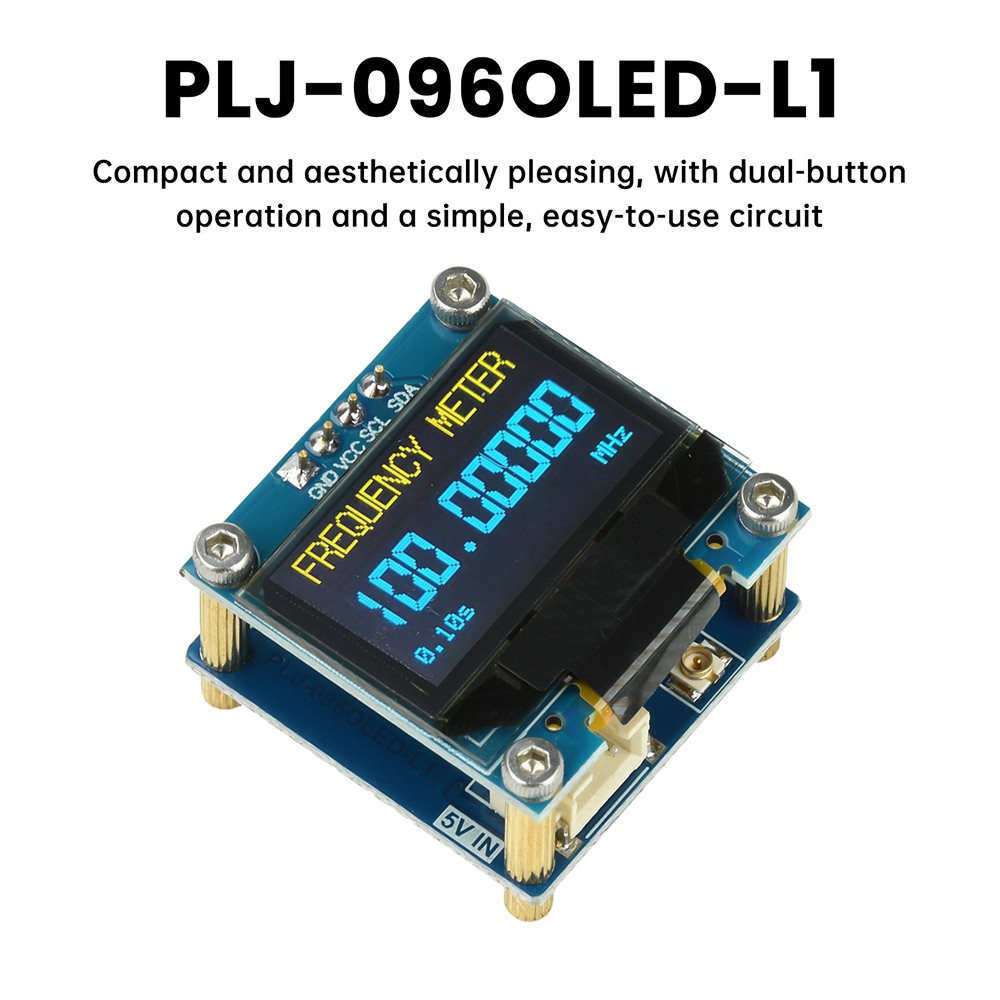

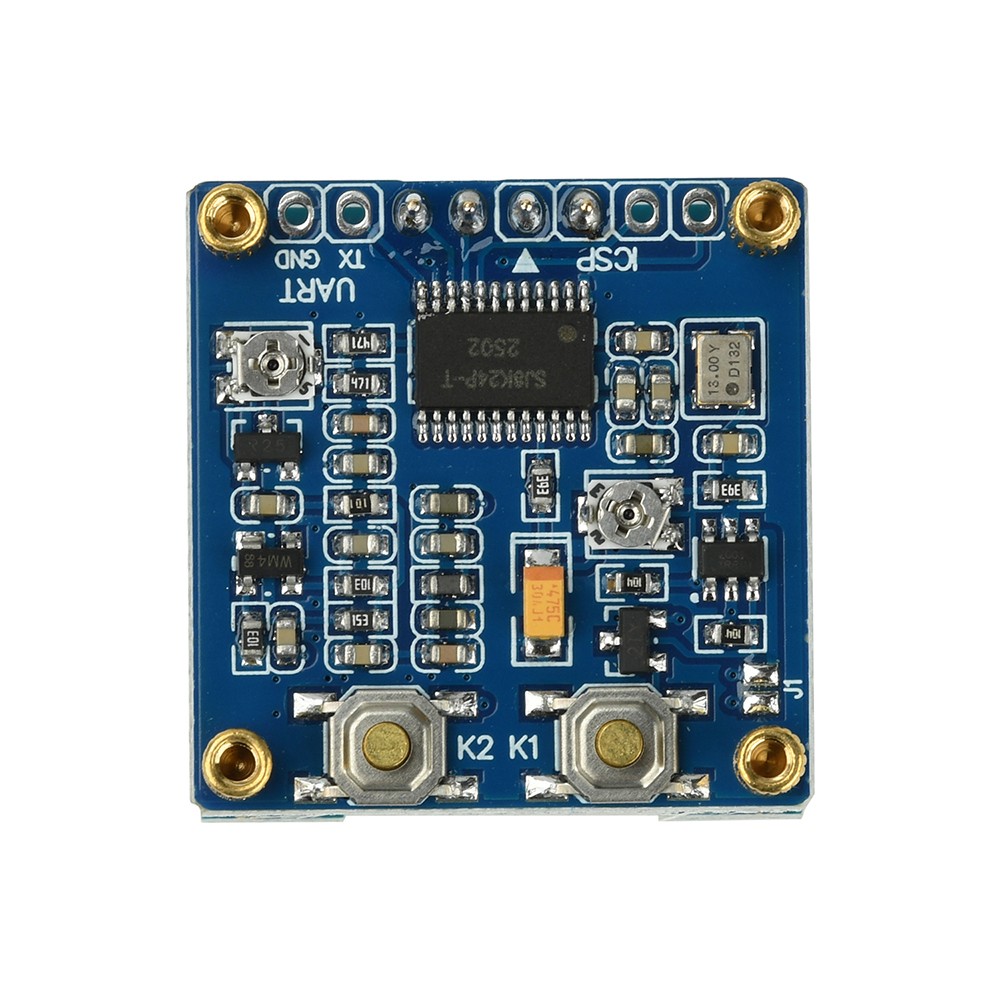

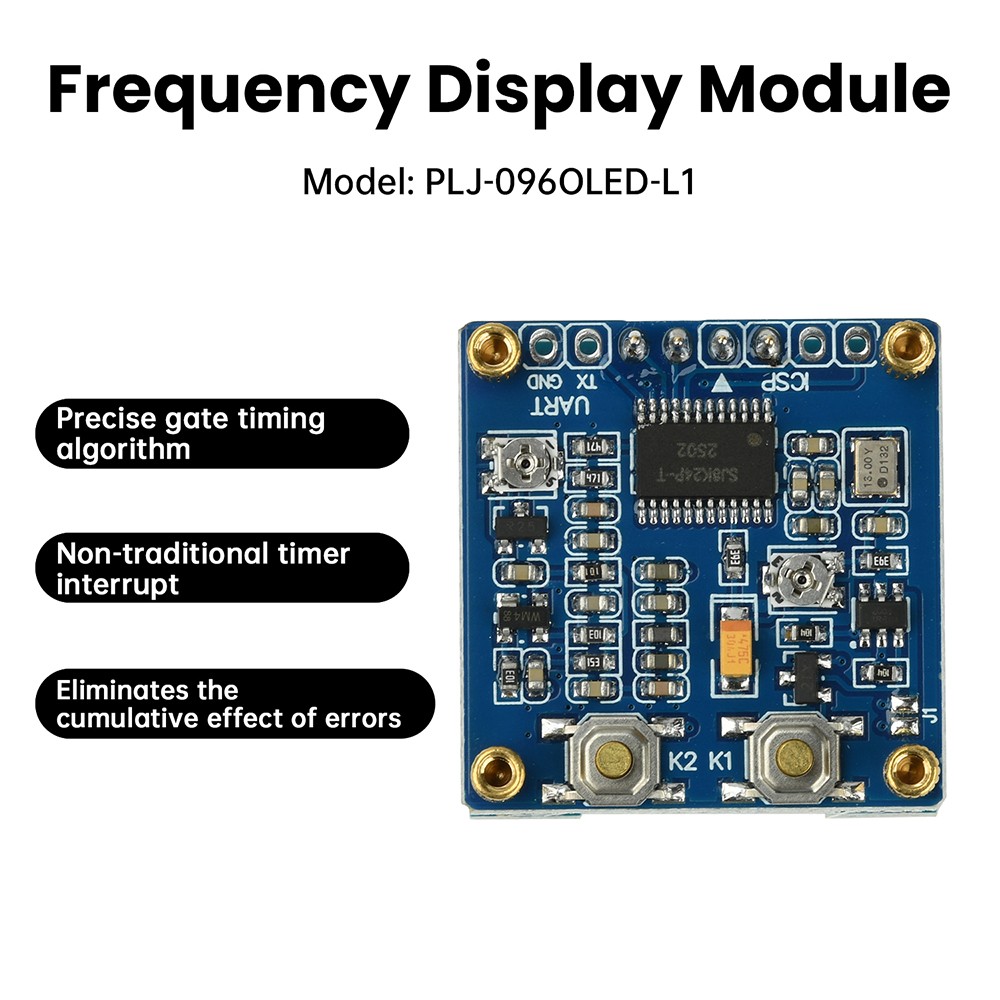

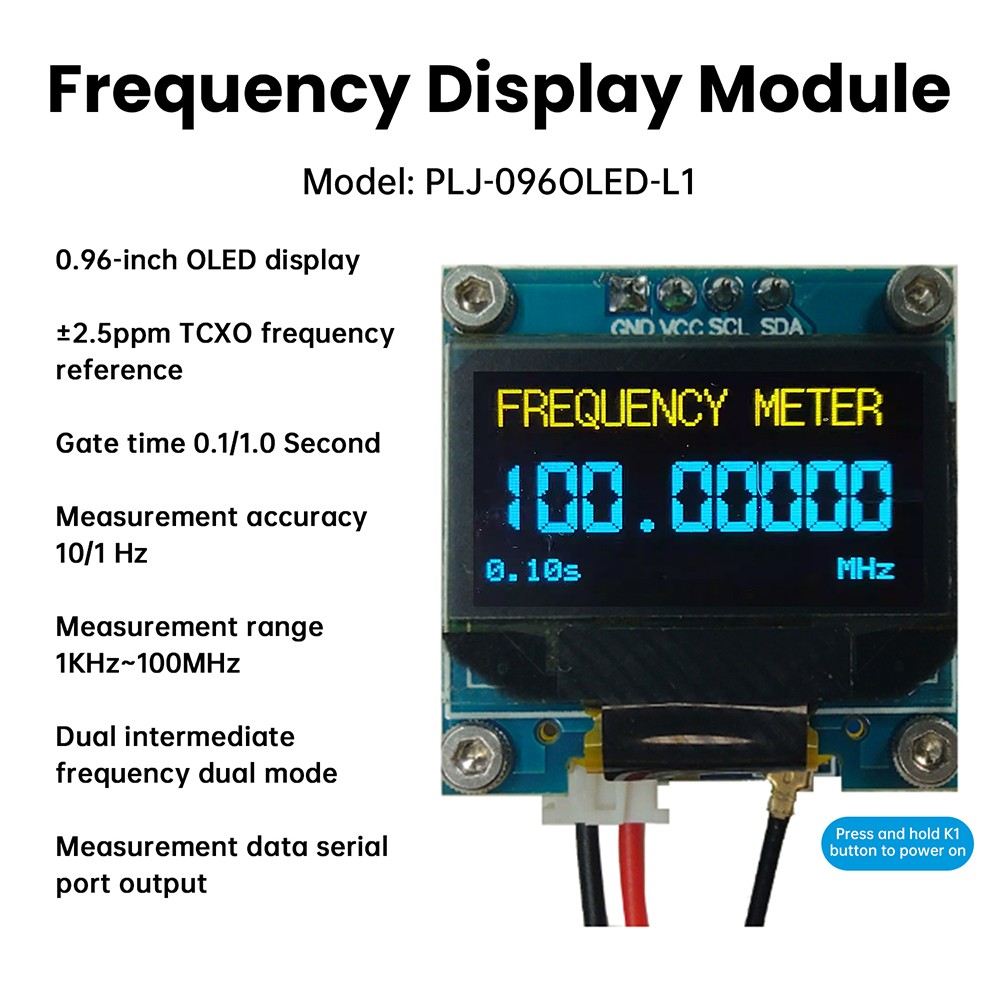

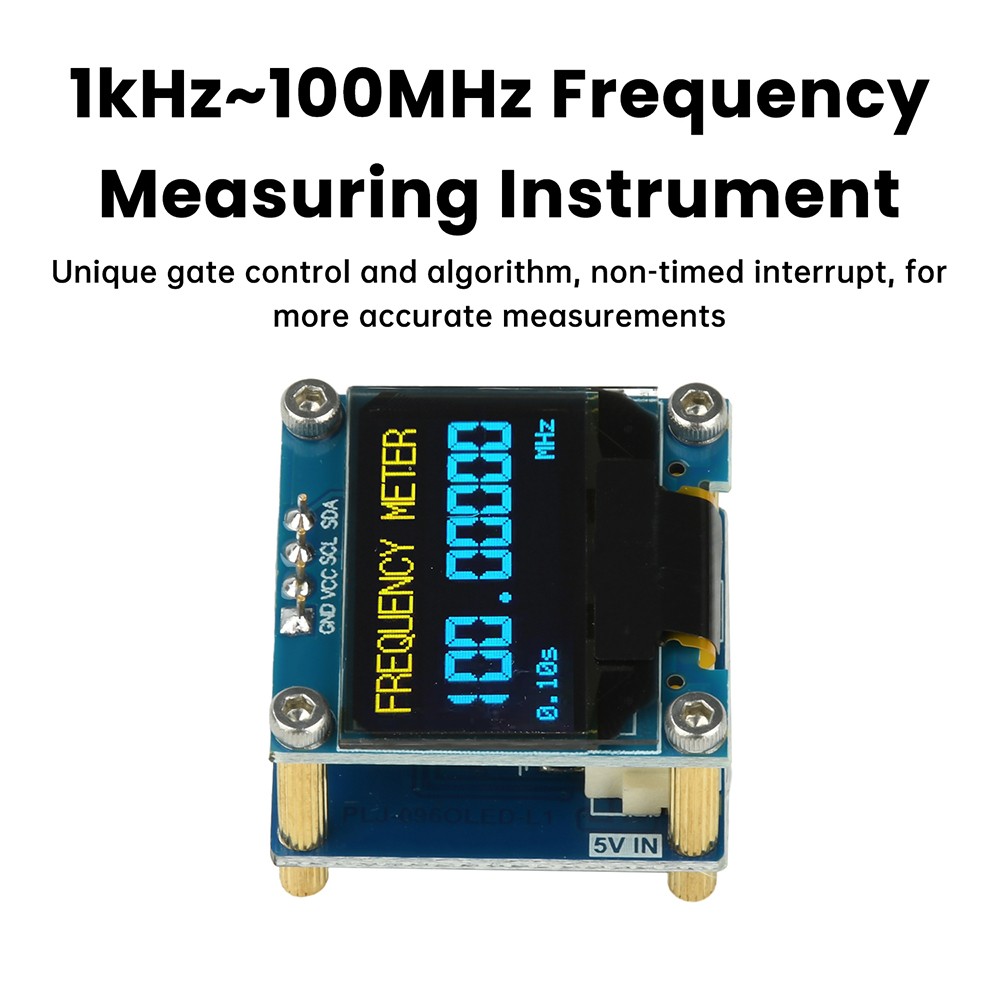

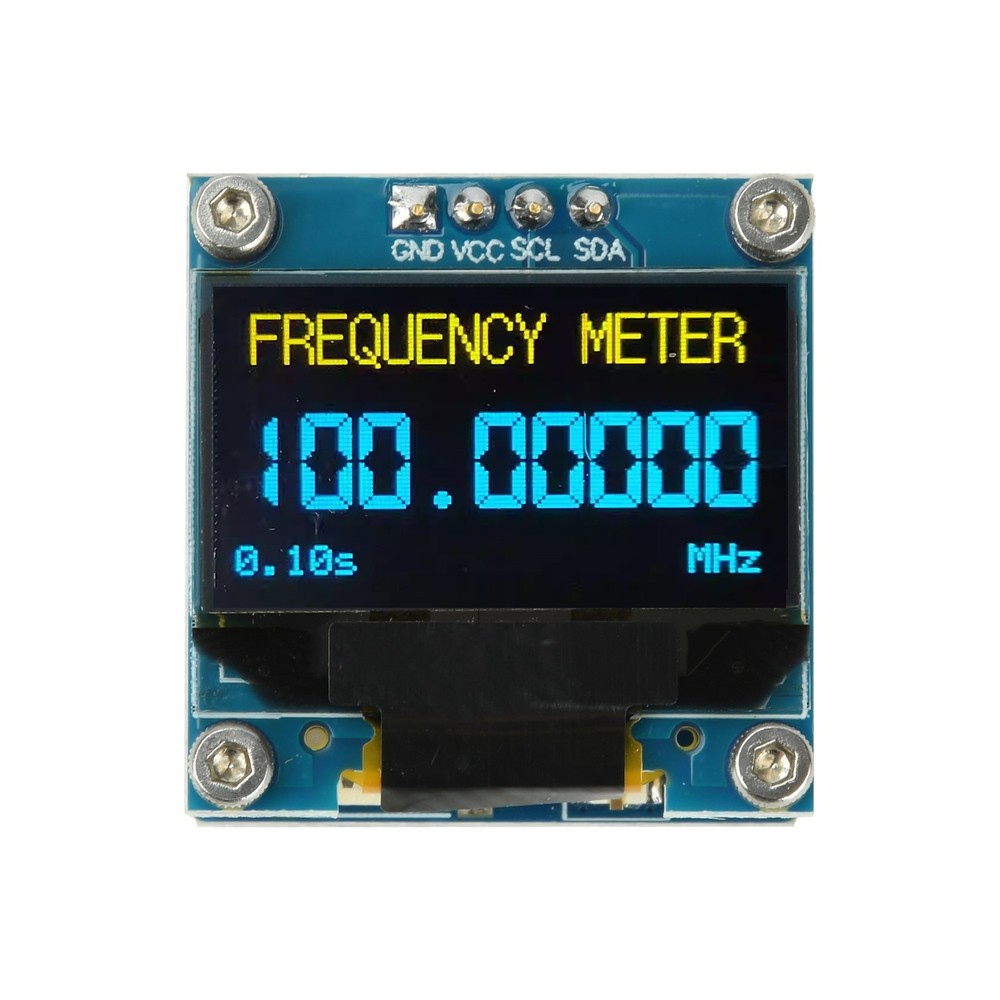

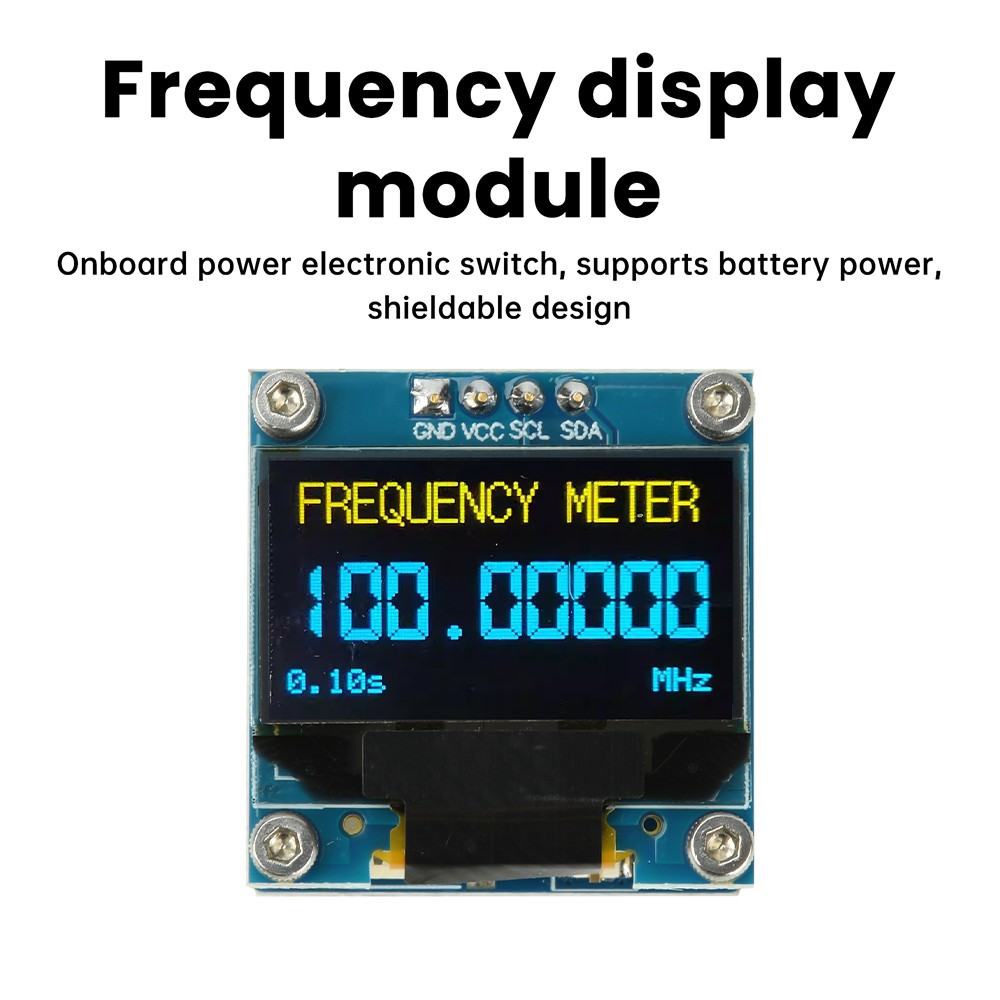

1KHz-100MHz RF Signal Frequency Counter 0.96inch OLED Display Frequency Module. Answer: Zero interference is impossible. If interference occurs, relocate the module or add shielding. On-Board Interfaces: Signal Input, Power Interface. Temperature-compensated VC-TCXO timing base ensures high stability with frequency accuracy of ±2.5ppm. Features: 1. Compact and aesthetically pleasing design with dual-button operation and simplified circuitry for ease of use 2. On-board power supply electronic switch supports battery operation with shielding capability 3. Temperature-compensated VC-TCXO timing base ensures high stability with frequency accuracy of ±2.5ppm 4. Unique gate control and algorithm eliminate timing interrupts for enhanced measurement precision 5. Settings automatically saved to EEPROM; no need to reset upon power-up Product Specifications: Product Name: Frequency Display Module Operating Voltage: DC 4.5-9V (5V recommended) Operating Current: < 30mA (Test condition: DC 5V supply) Display: 0.96-inch OLED Gate Time: 0.1 / 1.0 seconds Measurement Accuracy: 10/1Hz Measurement Range: 1KHz-100MHz Input Impedance: High Impedance Time Base Stability: ±2.5ppm Measurement Data Output: UART Serial Port Output On-Board Interfaces: Signal Input, Power Interface Application Scenarios: Radio Frequency Display, Radio Frequency Measurement, Oscillator Circuit Frequency Measurement, Crystal Oscillator Frequency Screening, Embedded Applications, General Frequency Measurement Description: The PLJ-096OLED-L1 is a cost-effective OLED frequency display module designed for continuous signal frequency measurement. Primarily used for displaying frequency values in transceivers and similar devices, it also supports general-purpose frequency measurement. Its unique gate control method and precise gate timing algorithm (non-timed interrupt) ensure high measurement accuracy. Precautions: 1. Avoid exposing the device to high temperatures, humidity, dusty environments, and prevent severe vibration. 2. The clock reference was calibrated with GPSDO and sensitivity optimized before shipment. Do not adjust settings unless necessary. 3. The onboard signal input connector is fragile; handle plug insertion/removal gently. FAQ: 1. Does this module interfere with transceivers? Answer: Zero interference is impossible. Microcontrollers, crystal oscillators, etc., emit radiation, though at low intensity. Design measures mitigate this. Interference also depends on module placement relative to transceiver components and transceiver characteristics. If interference occurs, relocate the module or add shielding. 2. Why does the frequency display fluctuate? Answer: First, ensure the input signal quality (strength, stability, etc.) meets the module's minimum requirements (see technical specifications). Additionally, verify power supply quality—ripples should not be excessive. Alternatively, adjust the sensitivity trimming resistor to improve stability. 3. Why does the display fluctuate irregularly when no measurement signal is connected? Answer: First, check if the power supply ripple for this module is excessive. Then, inspect the module's surroundings for strong signal radiation. Shipping List: Module x1 Signal Cable x1 Power Cable x1 If you need additional products or a larger quantity, please feel free to contact me at any time. I will get in touch with you within the next 24 hours! NOTE: 1.Please check with your country's customs to determine what these additional costs will be prior to bidding/buying. 2.Please leave your valid phone number when you make order, otherwise we can't guarantee the package would arrive smoothly. RETURN: 1.Return accepted in 30 days after you receive the item. The buyer need to affordthe return postage fee who also need to return it to our designated place. 2.Return package must be in the original packaging, item must be in new condition.Missing parts or any damaged by the buyer will not give any return. 3.Within warranty period, all repair parts will be free, but the buyer need to pay for the freight. Your satisfaction is our top priority. Thank you for your positive feedback! Our goal is to consistently provide every customer with the highest quality service and reliable produ cts. However, unexpected si tuations may occasionally arise, and we understand your concerns and frustrations. Before leaving negative feedback, please contact us first to resolve the issue. We will respond to you as soon as possible. We typically assist with resolving issues within 24 hours. Please check your messages, emails, etc. (Note: During weekends and holidays, all inquiries will be responded to on the next business day.)
