24-Port Gigabit Ethernet Switch with 12 Outlet PDU, 2 SFP and 8 PoE+ Ports, 120W

Description

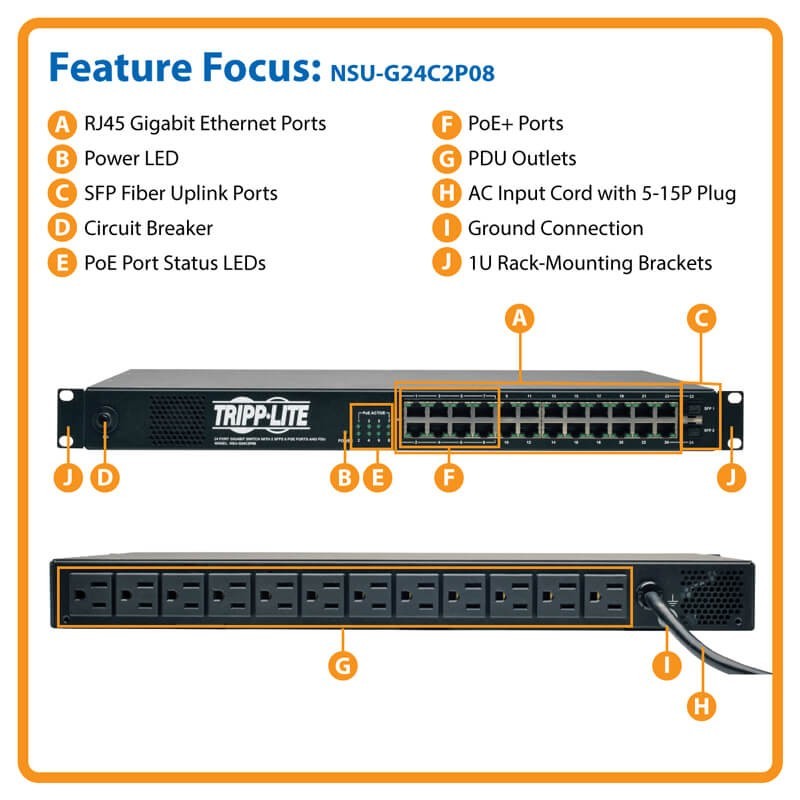

24-Port Gigabit Ethernet Switch with 12 Outlet PDU, 2 SFP and 8 PoE+ Ports, 120W MODEL NUMBER: NSU- G24C2P08(CB88E0) Combines a Basic PDU and an Unmanaged 24-Port Gigabit Ethernet Switch (8 Ports PoE+) with 2 SFP uplink ports in a single, space-saving 1U rack-mountdesign. Description Tripp Lite's NSU-G24C2P08 combines a 1.44kW single-phase120V Basic Power Distribution Unit (PDU) and an Unmanaged 24-Port GigabitEthernet Switch (8 Ports POE+) with 2 Combo SFP (Small Form-Factor Pluggable)uplink ports, for an all-in-one 1U rack-mount solution. It is perfect for racksin smaller, distributed networks where space is at a premium by providing bothpower and Ethernet connectivity in only 1U of rack space. The powerdistribution unit supplies continuous AC power from a connected UPS system oralternate source and contains 12 NEMA 5-15R outlets, allowing you to powercritical IT equipment. The Gigabit Ethernet Network Switch has 24 RJ45 portsthat support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for true “plug and play” capability. It features 8 PoE+ ports, which support up to 30W per port anda POE budget of 120W, to connect POE devices such as Wireless APs, IP Cameras,VoIP phones and more. Two Combo SFP ports can uplink to other switches usingoptical fiber. Utilizing Green Ethernet technology, power consumption isautomatically lowered by (i) turning off Ethernet ports not in use or connectedto a shutdown computer, and (ii) detecting the connected network cable lengthsto adjust the power usage to only what is necessary. Constructed of heavy-dutysteel housing, the NSU-G24C2P08 has a rugged design built for years of reliableperformance. Features Tripp Lite's NSU-G24C2P08 combines a 1.44kW single-phase 120V Basic Power Distribution Unit (PDU)and an Unmanaged 24-Port Gigabit Ethernet Switch (8 Ports PoE+) with 2 ComboSFP uplink ports, for an all-in-one 1U rack-mount solution. Power Distribution Unit (PDU) :1.44kW 12A 120V Basic PowerDistribution Unit12 NEMA 5-15R AC outletsNEMA 5-15P input plug; 6-ft. linecord12 Amps UnmanagedEthernet Switch :24 RJ45 Gigabit Ethernetports, 8 Ports PoE+8 PoE+ ports support up to 30W per port and a POE budget of120W, to connect POE devices such as Wireless APs, IP Cameras, VoIP phones andmoreAuto-negotiable 10/100/1000 Mbps Ethernet on all ports selects port speedautomatically based on the capabilities of the clientAuto MDI/MDIX crossoverdetection provides true, plug-and-play functionalityTwo SFP (Mini-GBIC) portsfor uplinking to other switches using optical fiber. Each SFP port is shared with a RJ45 port. When the SFP port is active, the corresponding RJ-45 port will be disabled.48 Gbps switching capacity at Full-DuplexStore-and-Forward switching method2Mb RAM for data buffering8K address MAC addresstableSupports Jumbo Frames up to 9216 BytesPower ON/OFF LED illuminates to indicate that the switch is receiving powerRJ45 LED's Per Port (Left LED Blinks Green for Activity, Right LED is off for 10 Mbps speeds, and solid Green for 100/1000 Mbps)POE LED's (LED is solid Green when a device is connectedand power is being provided through the port, and blinks when the connecteddevice exceeds the POE Budget or a device fault is detected)Using GreenEthernet technology, energy efficiency is maximized by (i) turning off Ethernetports not in use or connected to a shutdown computer and (ii) adjusting powerusage relative to network cable lengthsCompliant with IEEE 802.3ab (1000BASE-T GbE), IEEE 802.3u (100BASE-TX FastEthernet), IEEE 802.3i (10BASE- T Ethernet), IEEE 802.3x (Full Duplex/Flow Control), IEEE 802.3 (NWAY Auto-Negotiation), IEEE 802.1P (QOS,Traffic Prioritization), IEEE 802.3at (POE+), IEEE 802.3ac (VLAN) and IEEE802.3az (Energy Efficient Ethernet)Cat6A cables, such as Tripp Lite'sN261-Series, are recommended for optimal performance Rack-mountConfiguration :1U Horizontal 19-inch rackmount Constructed of heavy-duty steel housing Works with the Most Popular Web Browsers The NSU-G24C2P08 is browser-based and works independentlyfrom the connected computer's operating system. Because switch compatibility isbased on common hardware standards, rather than system software dependencies,the NSU-G24C2P08 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only). Specifications OVERVIEW UPC Code 037332184412 Product Type Switch/PDU Combination PDU Type Basic INPUT Input Phase Single- Phase Electrical Consumption (Max) 141W Electrical Consumption (Max PoE Load) 120W Maximum Input Amps 12 PDU Plug Type NEMA 5- 15P Voltage Compatibility (VAC) 120 Input Plug Type NEMA 5- 15P Input Cord Length (ft.) 6 Input Cord Length (m) 1.83 OUTPUT Output Circuit Breakers 12A Output Receptacles (12) 5- 15R POWER Power Consumption (Watts) 141 Power Consumption Detail PDU supports up to 12A total; Network switch consumes up to 141 watts (with a maximum POE load of 120 watts) CONNECTIONS Number of Ports 24 Ports 24 Ports Detail 22x 10/100/1000BASE-T; 2x Combo RJ45/SFP SFP Uplink Ports 2 SFP Uplink Ports Detail 2x Combo Mini-GBIC SFP Uplinks PoE Capability 15.4W (802.3af); 30W (802.3at) PoE Power Budget (Watts) 120 PoE Port Description Ports 1-8 support up to 30W (PoE+) per port and a PoE budget of 120W PoE Supported Ports 8 Network Switch Ports (22) 10/100/1000 (RJ45); (2) Combo RJ45/SFP USER INTERFACE, ALERTS & CONTROLS LED Indicators Power LED (Green for Power On), (x2) RJ45 LED's Per Port (Left LED Blinks Green for Activity, Right LED is off for 10 Mbps speeds, and solid Green for 100/1000 Mbps), PoE LED's LED is solid Green when a device is connected and power is being provided through the port, and blinks when the connected device exceeds the PoE Budget or a device fault is detected) PHYSICAL Primary Form Factor Rackmount Color Black Minimum Required Rack Depth (cm) 28.96 Minimum Required Rack Depth (inches) 11.4 PDU Form Factor Horizontal (1U) Shipping Dimensions (hwd / in.) 4.41 x 21.57 x 12.52 Shipping Dimensions (hwd / cm) 11.20 x 54.79 x 31.80 Shipping Weight (lbs.) 8.44 Shipping Weight (kg) 3.83 Unit Dimensions (hwd / in.) 1.710 x 18.660 x 8.400 Unit Dimensions (hwd / cm) 4.34 x 47.4 x 21.34 Unit Weight (lbs.) 7.05 Unit Weight (kg) 3.20 Rack Units 1 ENVIRONMENTAL Storage Temperature Range 14 to 158 F (-10 to 70 C) Relative Humidity 5 to 95% RH, Non- Condensing Operating Temperature 32 to 104 F (0 to 40 C) COMMUNICATIONS Network Compatibility 1 Gbps (Gigabit) Network Compatibility Details Auto- negotiable Switching Capacity 48 Gbps Switching Capacity Details 2 Gbps per port with full duplex FEATURES & SPECIFICATIONS Jumbo Frames 9000 Console Port No MAC Auto Learning No MAC Addresses 8000 RMON No SNMP No Storm Control No DHCP Snooping No Auto MDI/MDIX Crossover Detection Yes STANDARDS & COMPLIANCE Product Certifications CAN/CSA-C22.2 No. 60950-1 (Canada); UL 60950- 1 Product Compliance RoHS; IEEE 802.1p CoS/QoS; IEEE 802.3 Auto-Negotiation; IEEE 802.3ab 1000Base-T; IEEE 802.3ac (VLAN); IEEE 802.3at PoE+; IEEE 802.3az (Energy Efficient Ethernet); IEEE 802.3i 10Base-T; IEEE 802.3u 100Base-TX/FX; IEEE 802.3x Flow Control; REACH; FCC Part 15 Class A (USA) WARRANTY & SUPPORT Product Warranty Period (Worldwide) Sold As Is
