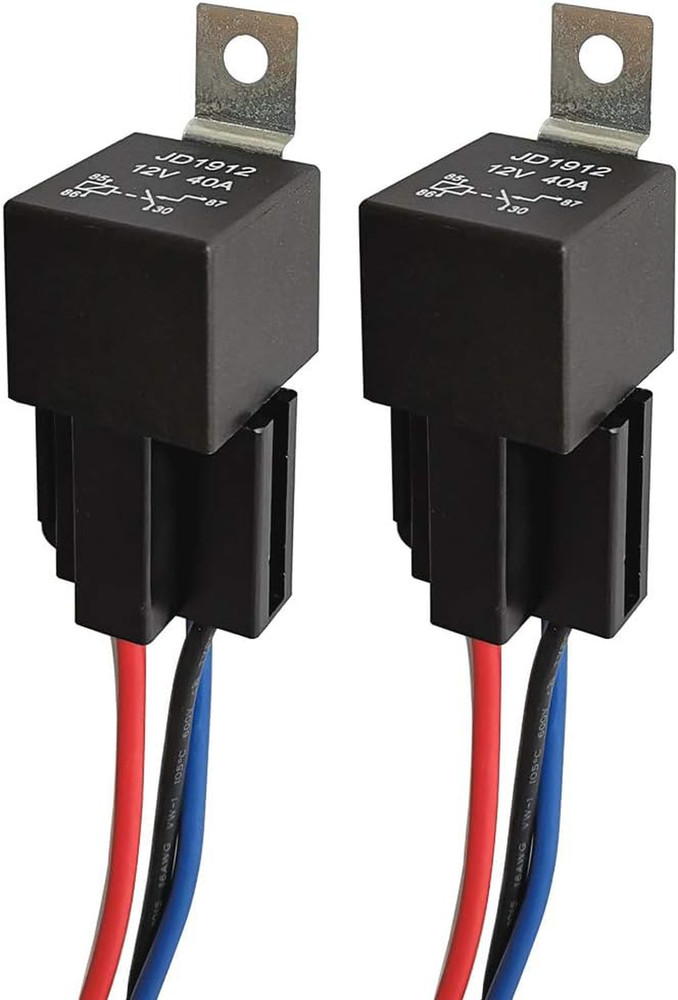

2Pcs JD1912 Car Relay Harness 12V 40A 4 Pin SPST 12AWG Harness Sockets with Buil
$ 6.34
Description

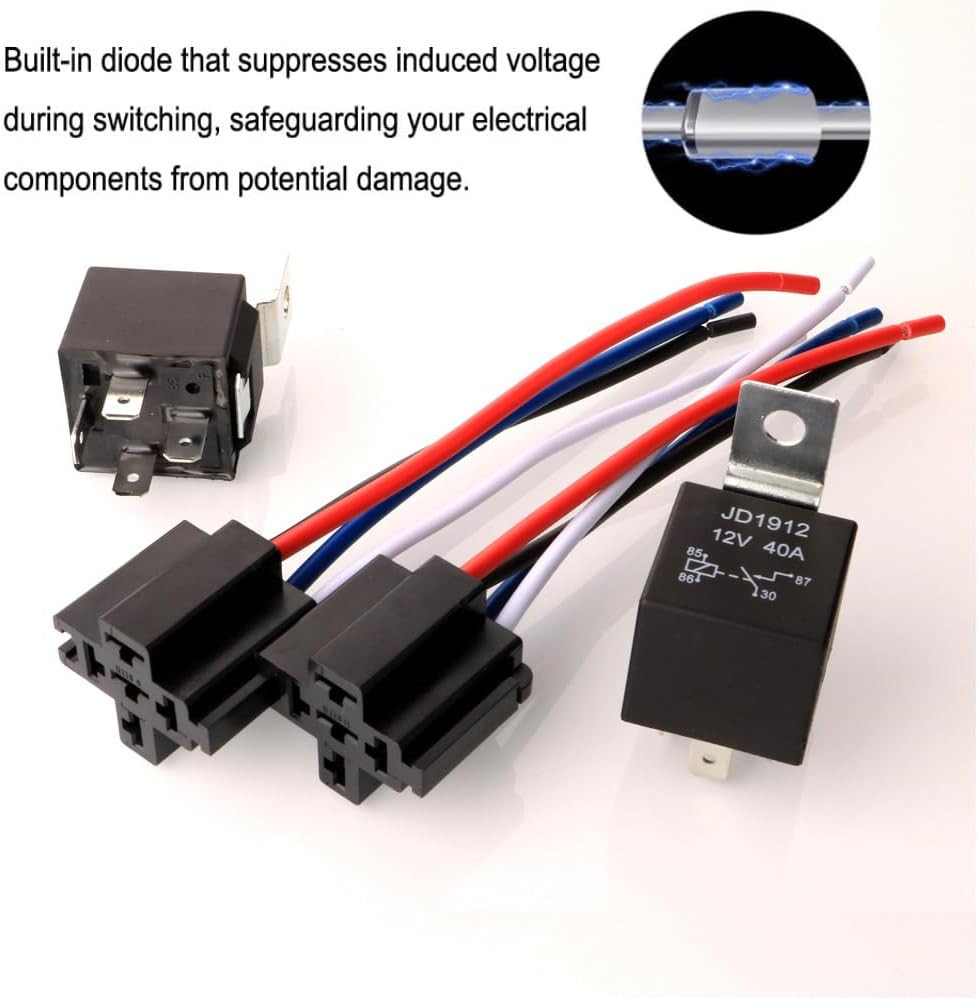

2Pcs JD1912 Car Relay Harness 12V 40A 4 Pin SPST 12AWG Harness Sockets with Buil. Relay load: 40A/12VDC. Relay technical specification Mounting Type Socket Mount. Insulation Resistance: 100MΩ/( 500VDC). Interchangeable/Compatible with We're happy to help. After Sale Service Operation Goal. Store New Arrivals Add to Favorite View Feedback Contact 2Pcs JD1912 Car Relay Harness 12V 40A 4 Pin SPST 12AWG Harness Sockets with Built-In Diode for Automotive Truck Van Motorcycle Boat Description Maximum Switching Current 40 Amps Part Number E079 Operating Time 0.02 Seconds Minimum Switching Voltage 8 Volts Current Rating 40 Amps Mounting Type Socket Mount Brand Name Gebildet Contact Current Rating 40 Amps Upper Temperature Rating 70 Degrees Celsius Wattage 480 watts Coil Voltage 12 Volts Connector Type Spade Operation Mode Manual Contact Type Normally Open Model E079 Manufacturer Gebildet Contact Material Silver Alloy Integrated Diode: Each relay includes a built-in diode that suppresses induced voltage during switching, safeguarding your electrical components from potential damage. Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA. Small size/Low power consumption/High contact voltage/ High sensitivity. Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ. Life Expectancy Electrical: 100,000 Operation, Life Expectancy Mechanical: 10,000,000 Operation. Interchangeable/Compatible with: All automobiles and devices equipped with a 12 Volt DC power source. Relay technical specification: Relay load: 40A/12VDC Contact Resistance: ≤ 100MΩ Contact Material: Ag Alloy Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations Coil power:1.8W Operate Time: 15ms Release Time: 10ms Initial withstand voltage of Contact and Contact: 1000VAC/1min Initial withstand voltage of Contact and Coil: 1500VAC/1min Insulation Resistance: 100MΩ/( 500VDC) Temperature Range: -55°C ~+70°C Humidity Range:35%-80% Atmospheric Pressure:86-106KPa Operation Goal: Create value for our customers is our responsibility, quality products and sincere service is our eternal pursuit. After Sale Service: Customer satisfaction is our greatest pursuit, If you found our products don’t work or not so good quality as you think, Please contact us without hesitation.
