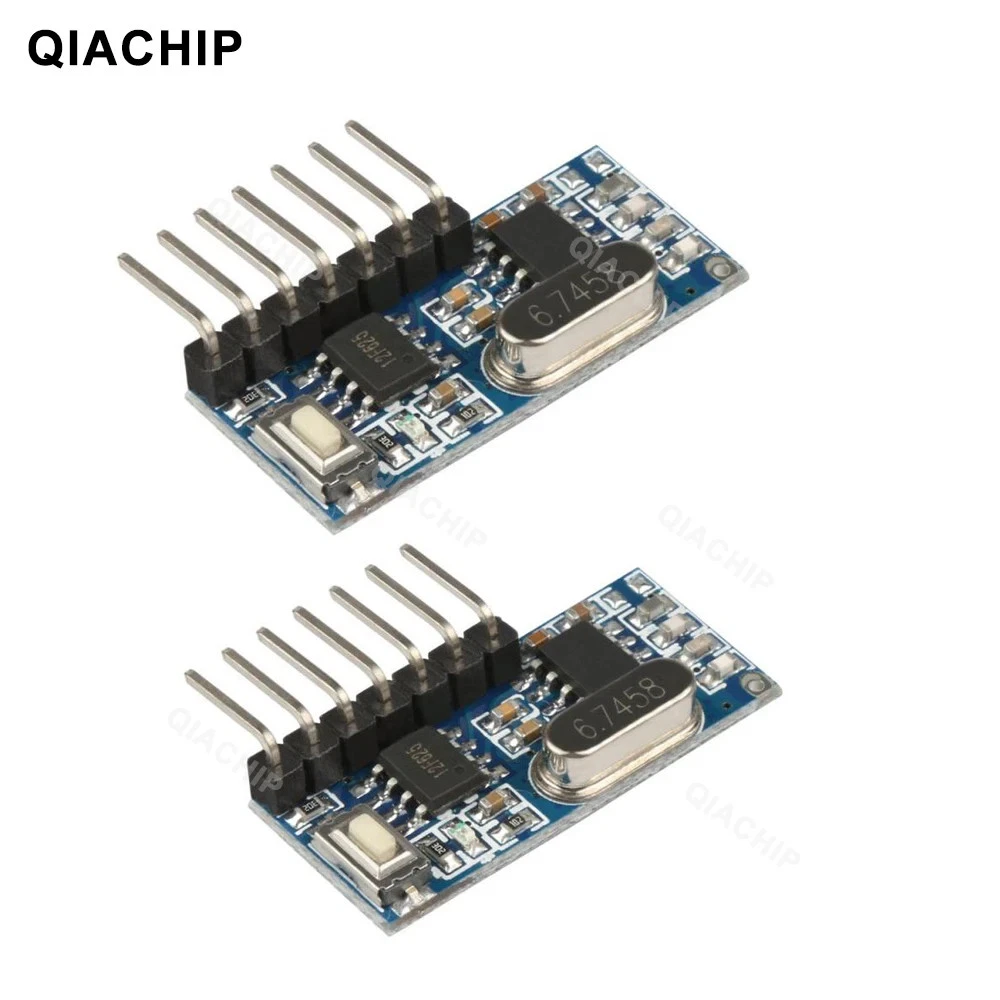

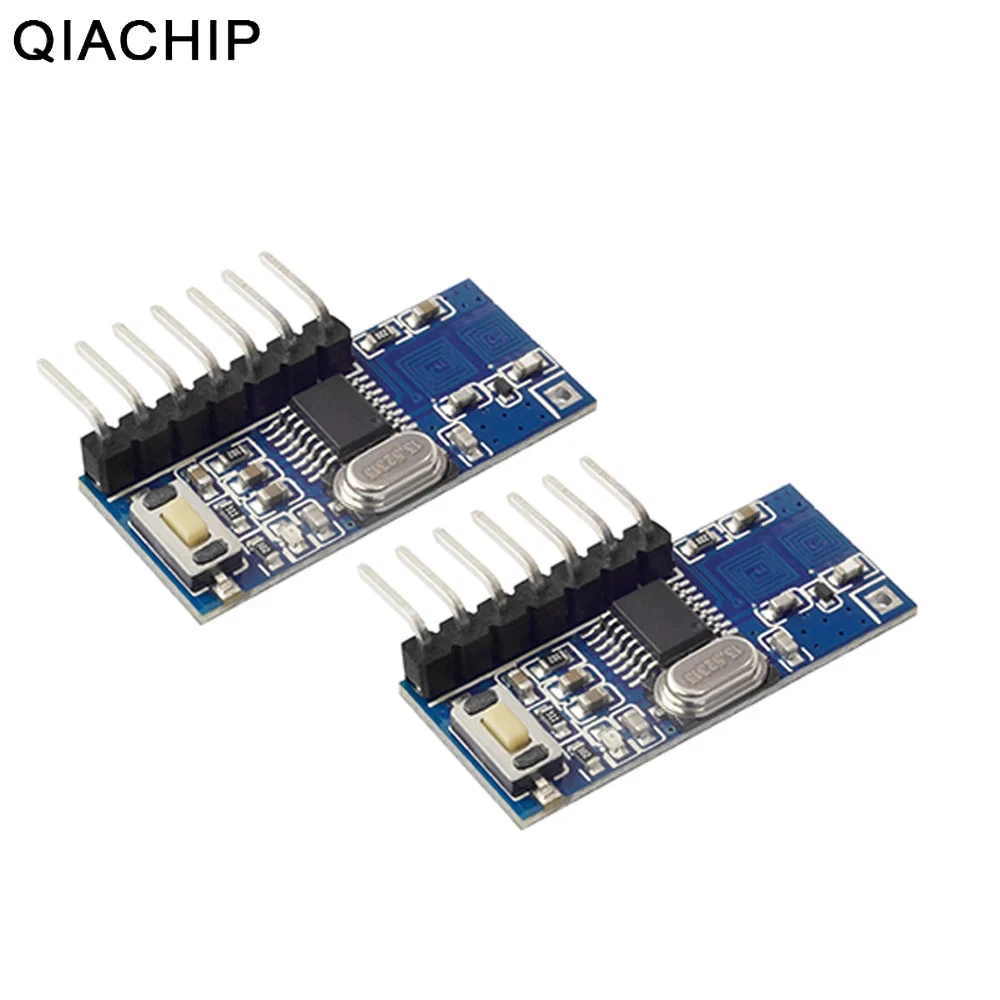

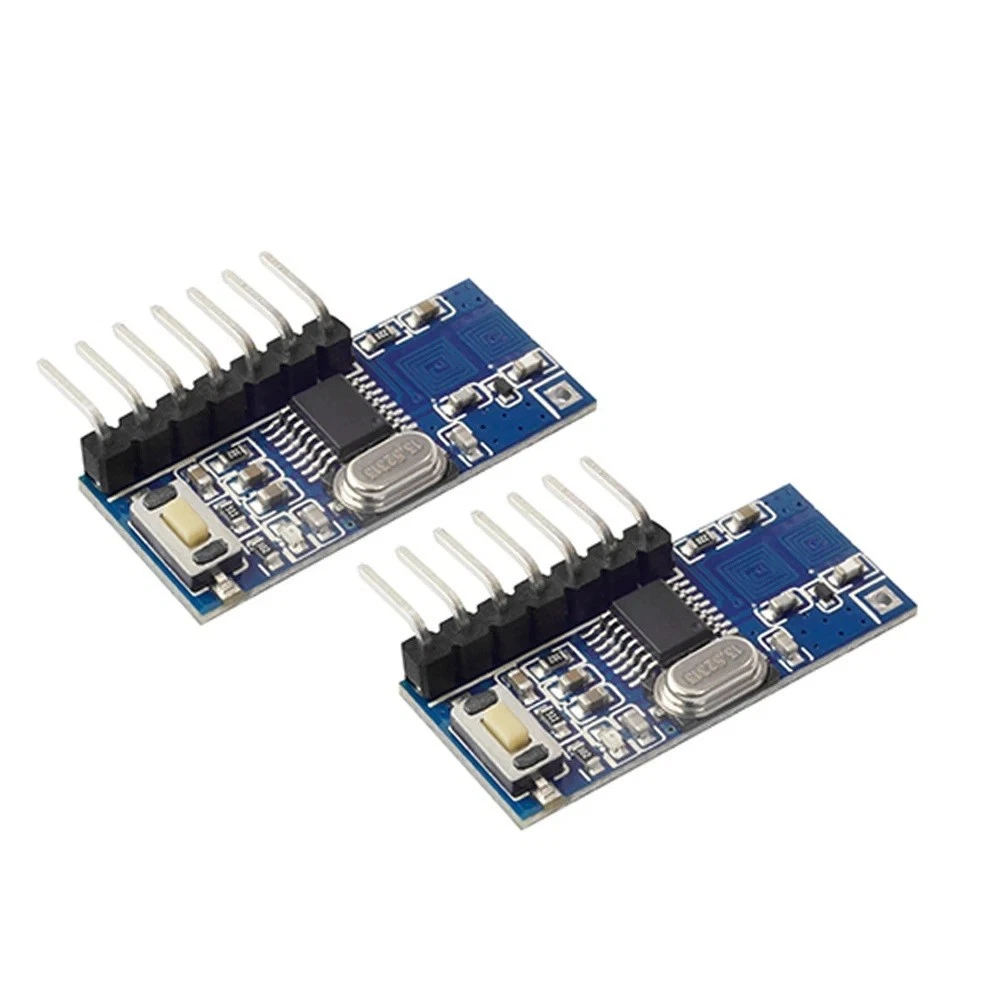

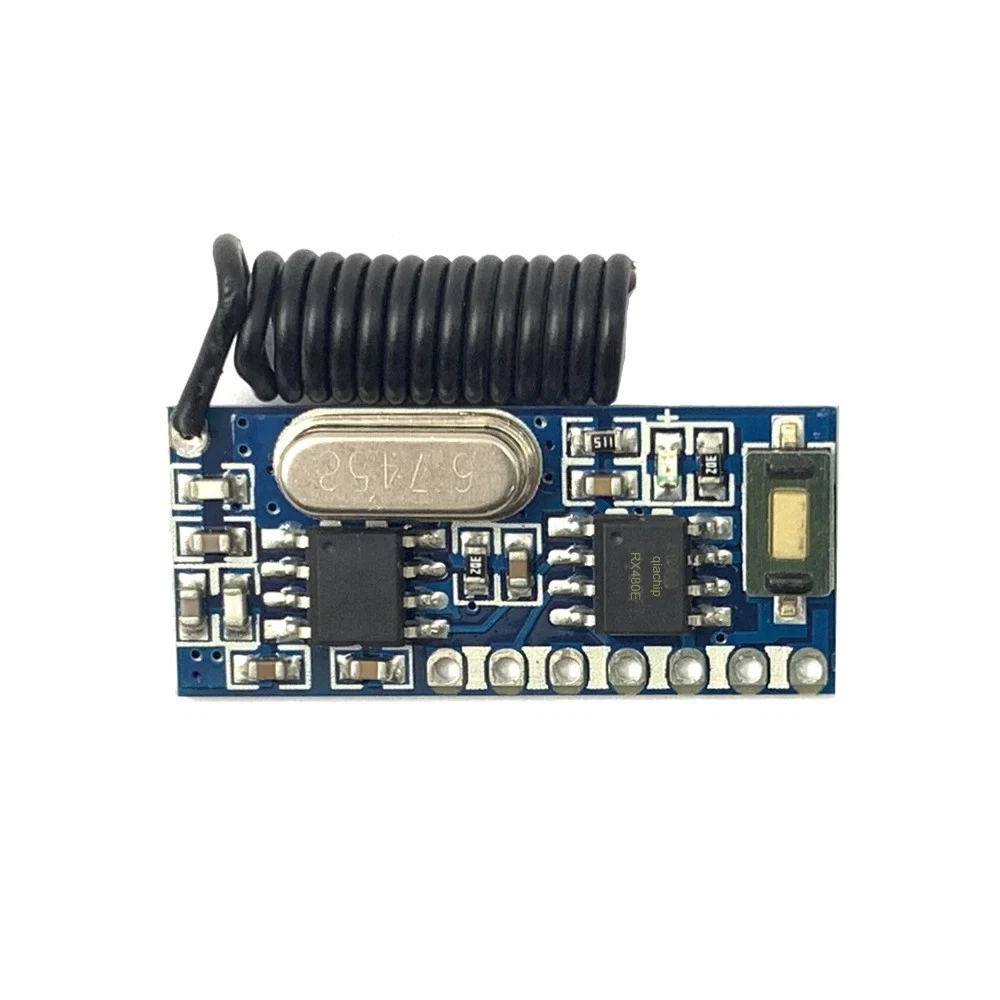

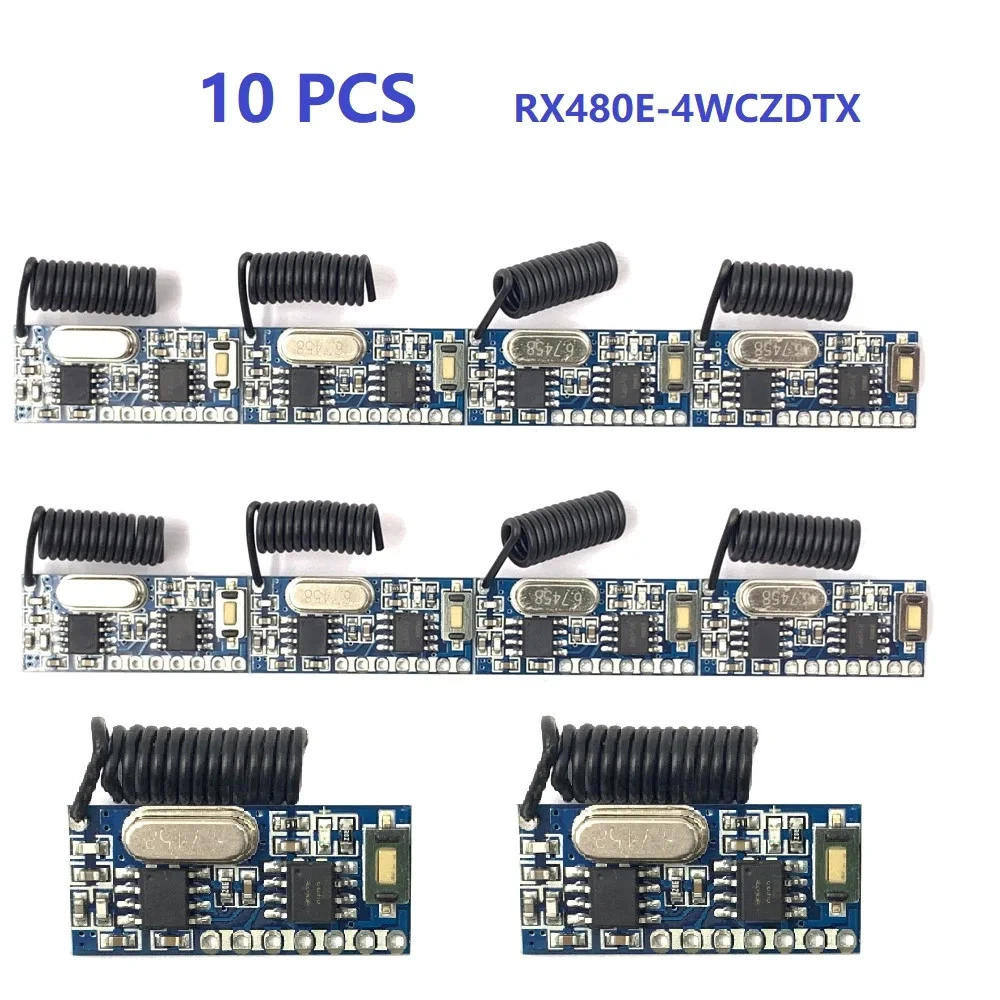

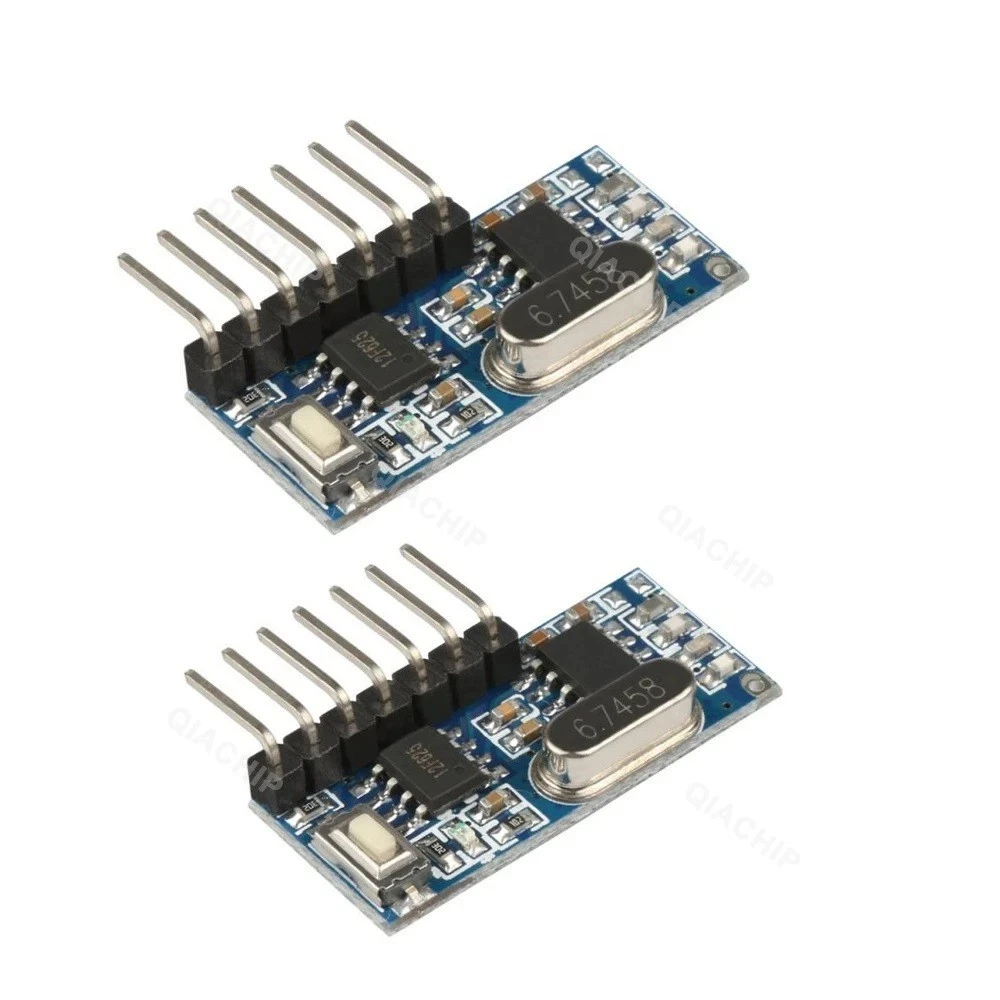

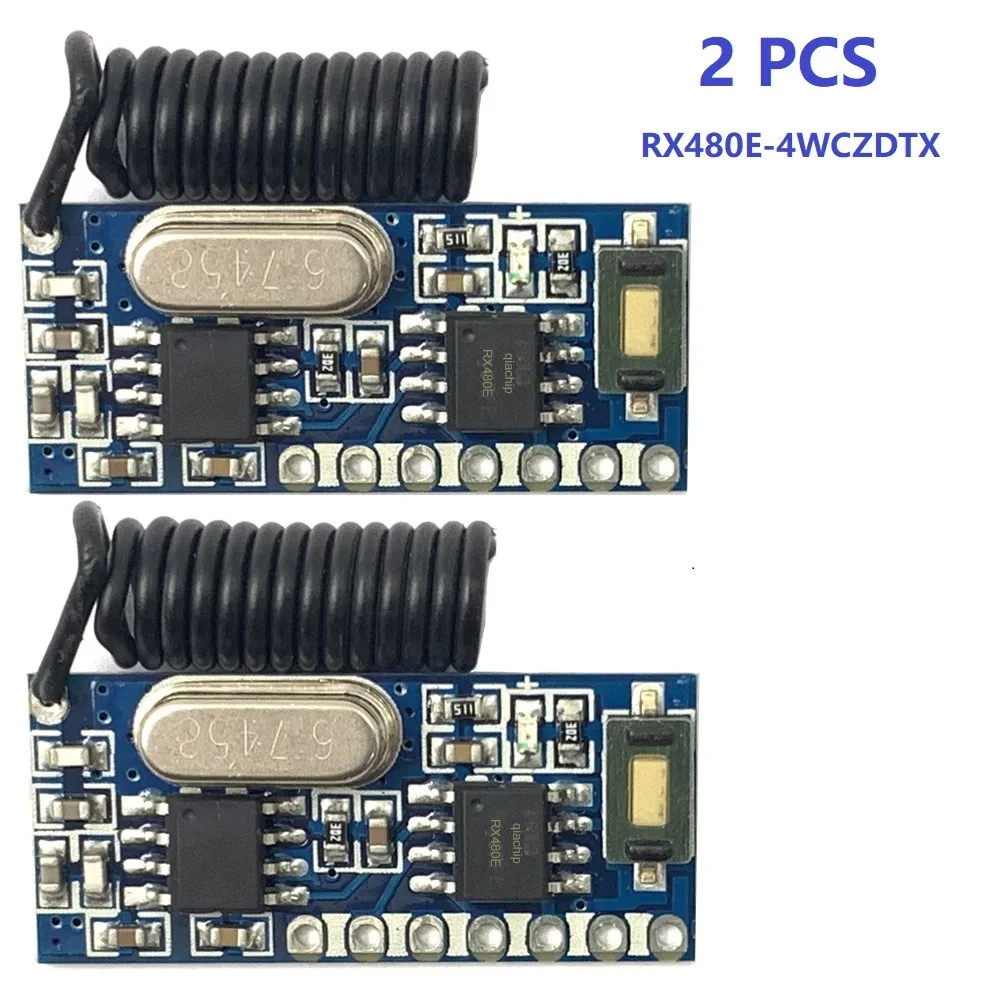

433MHz RF Receiver Learning Code Decoder Module 4 Channel Output Wireless
$ 6.34
Description

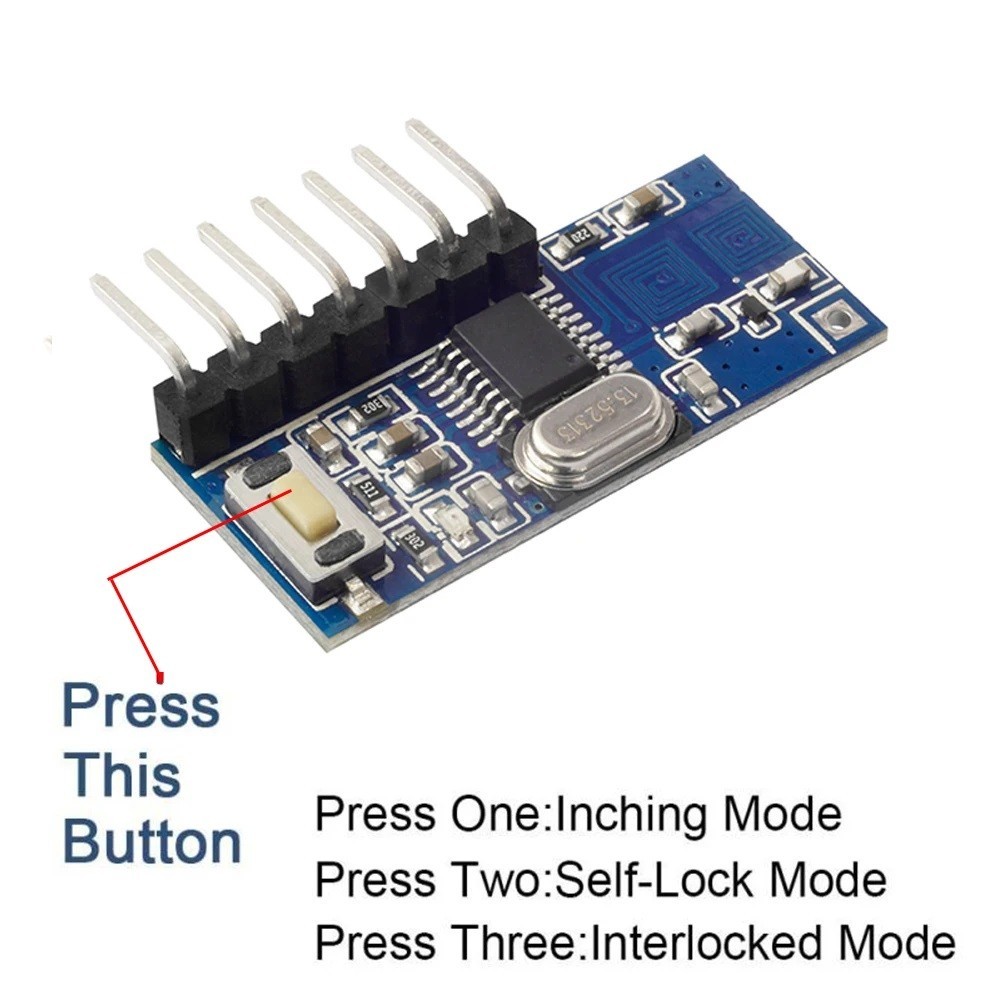

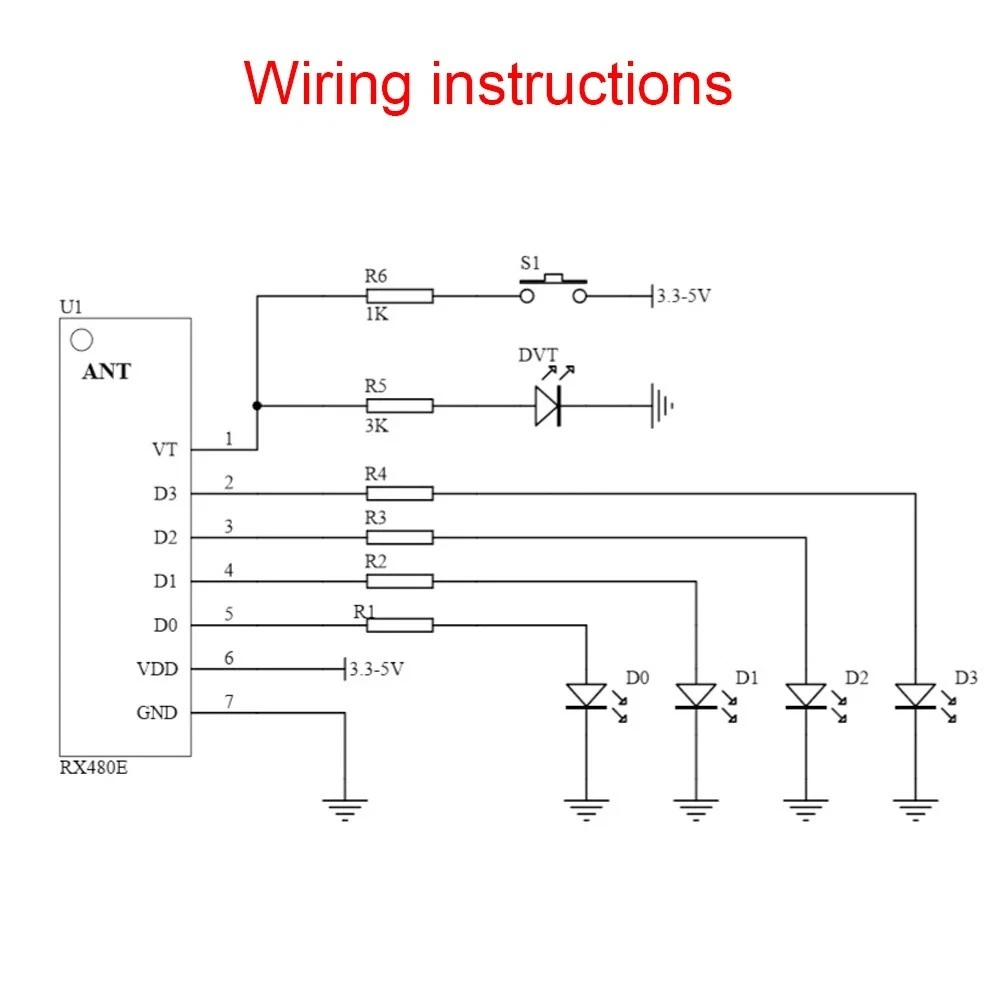

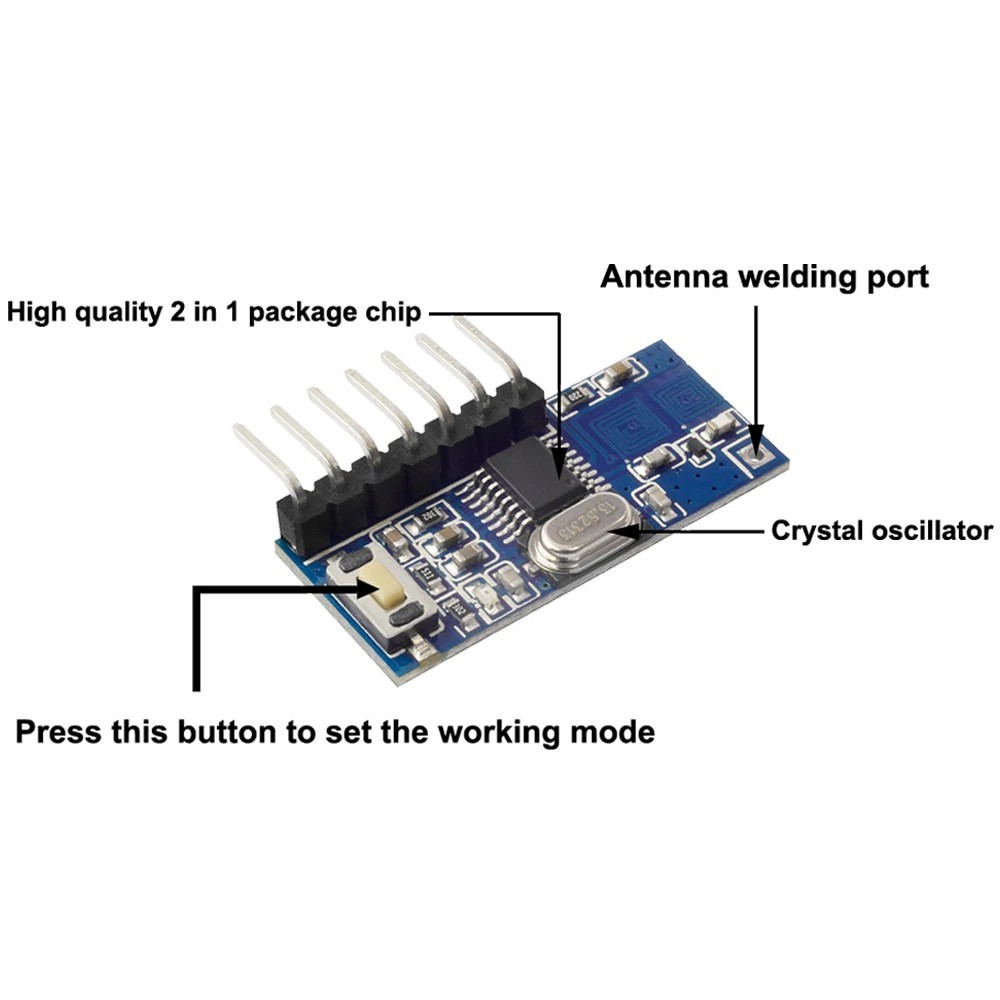

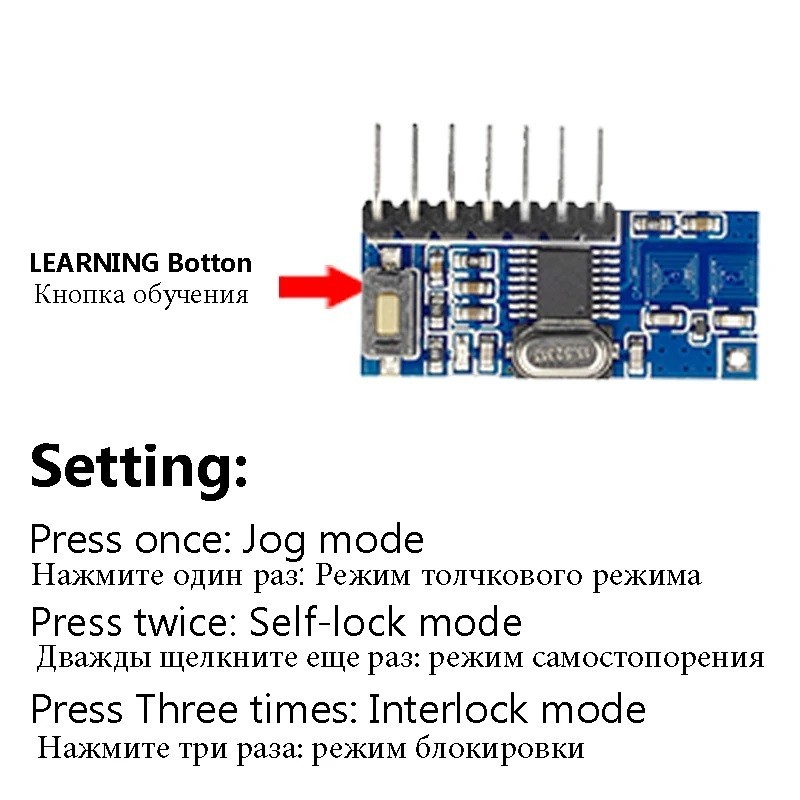

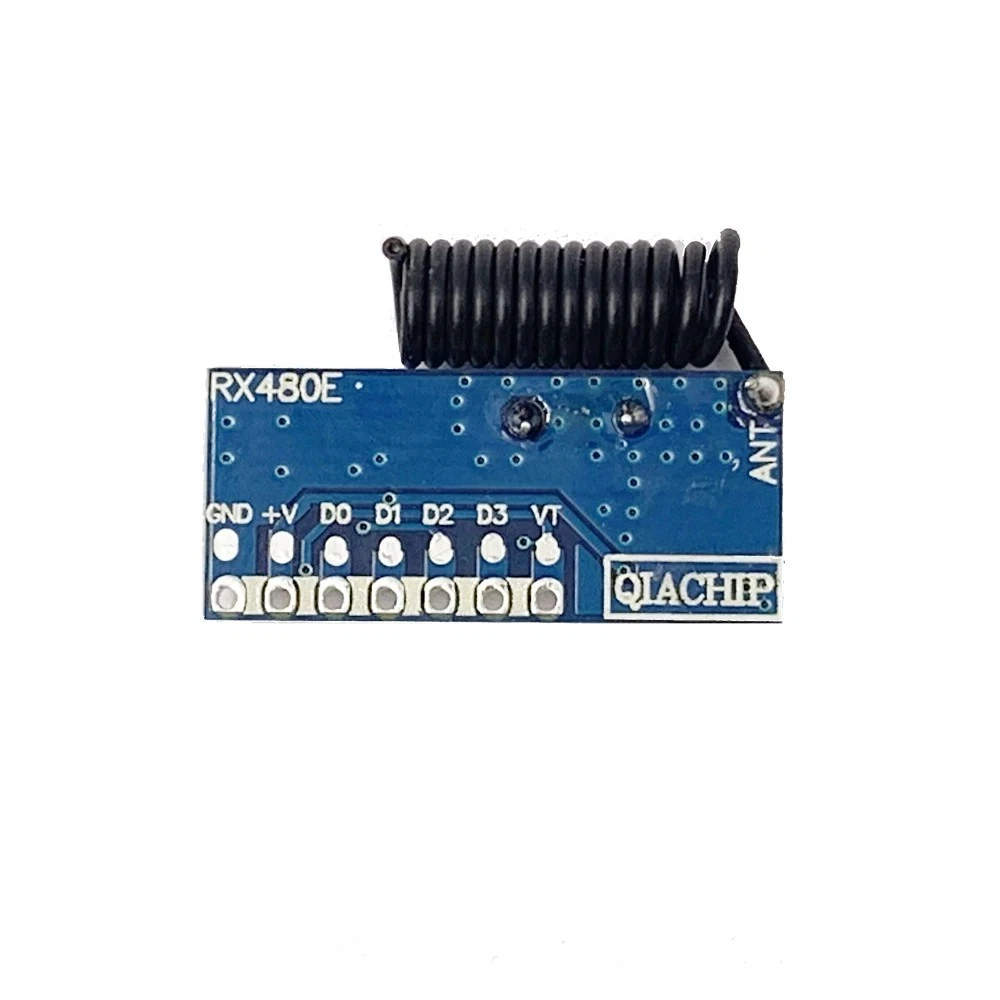

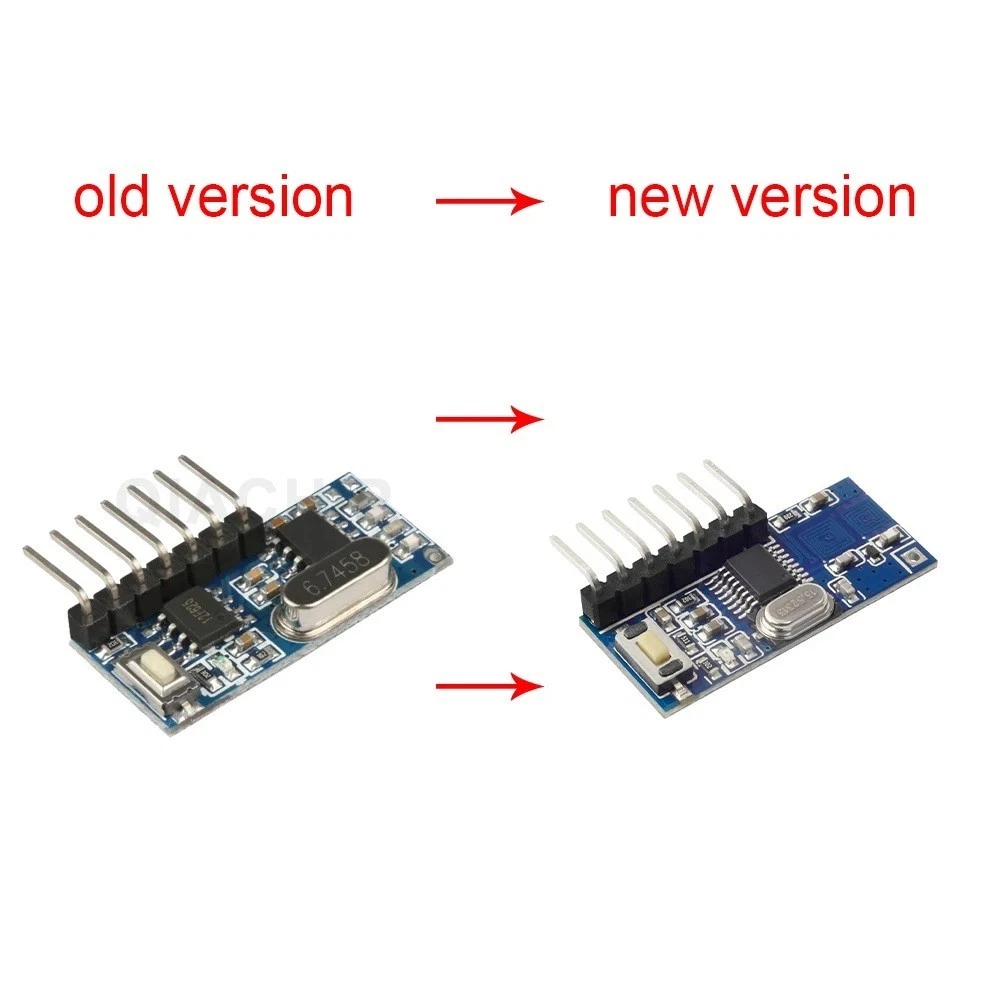

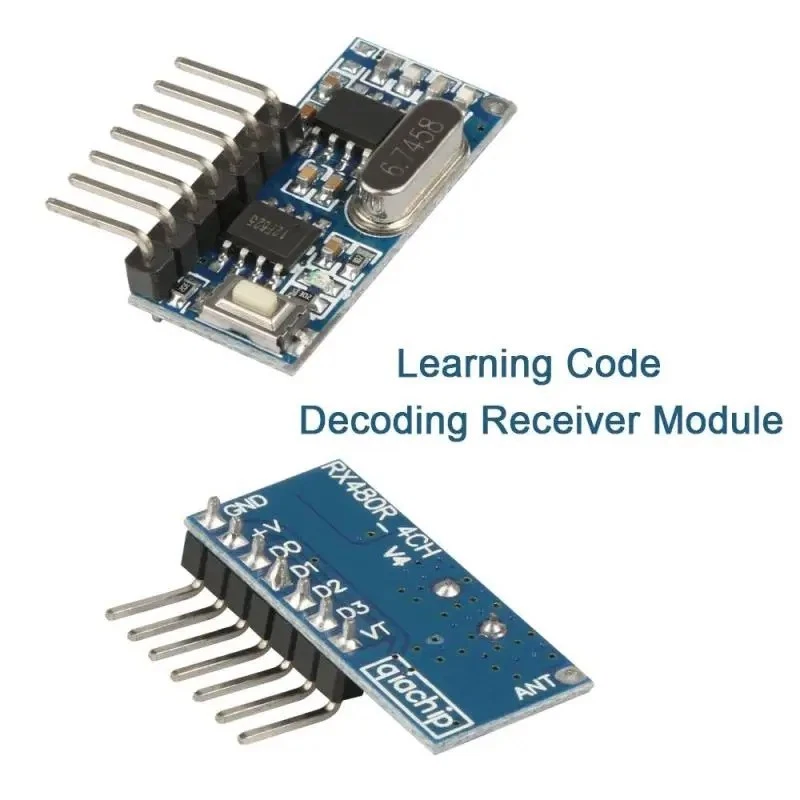

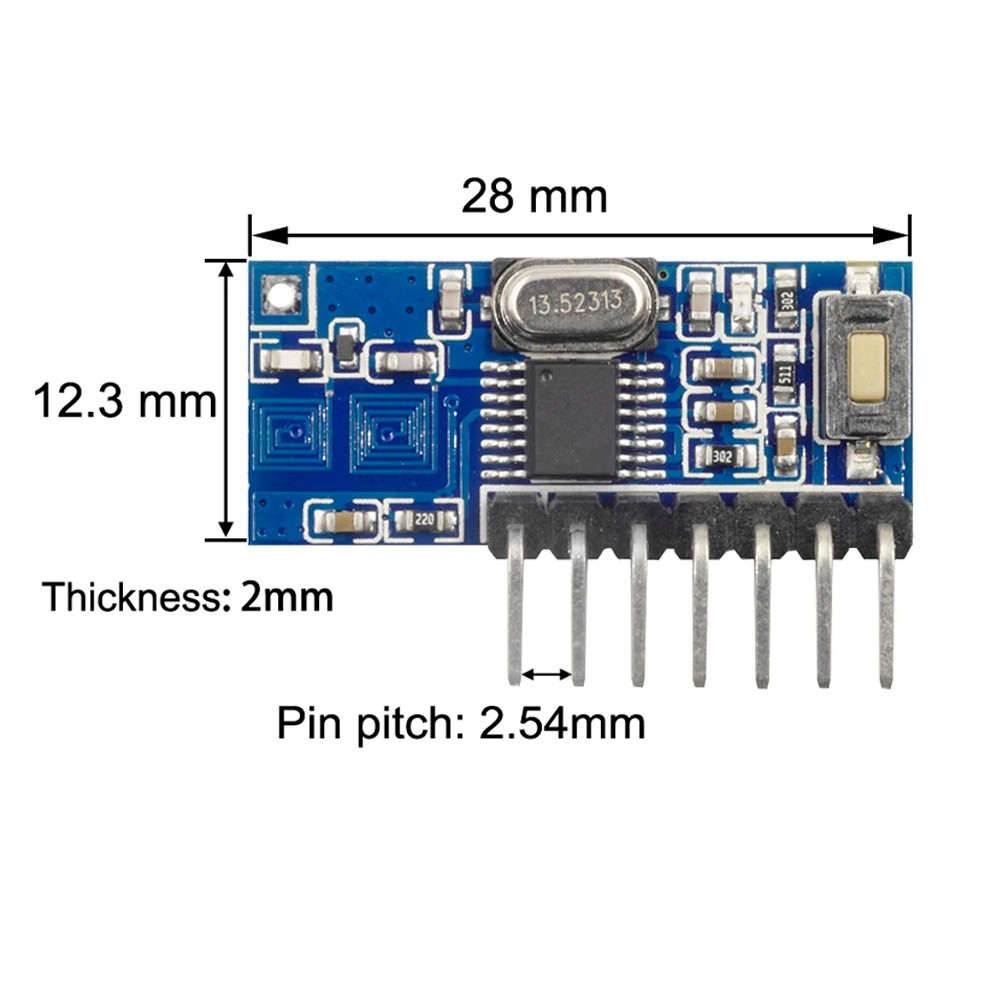

433MHz RF Receiver Learning Code Decoder Module 4 Channel Output Wireless 433MHz RF Receiver Learning Code Decoder Module 4 Channel Output Wireless Product Description new version Specifications Working Temperature : -25~75C Frequency band: +-0.2MHz ReceiveDistance: 20-100M ( open space) Receive Sensitivity: -108dB Working Frequency: 433MHz( Others can be customized ) Quiescent Current : <=5mA Working Voltage : DC3.3~5V Function Pin-out instructions: GND : groud or negative pole +V : DC3.3~5V input D0: Data output D1: Data output D2: Data output D3: Data output VT: Output Working mode:Point move, self-locking, interlocking The output: 4 channel CMOSlevel signalCorresponding to the remote control ABCD 4 buttons. Instructions How To Programming: 1. Delete existing data:Press learning button 8 times. Response: LED flashes 7 times. 2. Learning remote code:press learning key once, twice or three times (see below). LED turns on:learning mode is active. Press any button of the remote control. LED indicator flashes three times:learning successfully completed. 3. Test:after the above operation , the receiver board can be controlled by the remote control . More transmitters with different IDs can be learned and stored additionally, starting with step 2. A mixture of different modes is possible. Button usage (sets mode and starts pairing process): Press once:Inching mode (Momentary Mode) Press twice:self-Lock Mode (Toggle-Mode of the 4 Channels) Press three times:interlocked mode (selected channel active and be cleared, if another channel becomes active) (This instructions is provided by Manfred, thanks to Manfred) Applications 1.wireless power switch, socket, remote control switch, receiver module, 2. access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closers control system 3. security, surveillance systems, home security products, electric doors, alarm host, alarm 4. rooms controls, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote rolling gates, sliding door 5. smart home products, remote control curtains, remote MP3, audio Antenna selection Description General application mode For general application mode ,the antenna can directly adopt the general specifications from the market; The specific information as follows: The antenna’s core of conductor diameter(including the Antenna skin): 1.0mm,(except the Antenna skin): 0.5mm ; The wire length of weld end: 17.5mm, the wire length of antenna terminal: 9.5mm; The diameter of antenna winding (including the Antenna skin):5mm; The turn number of winding: 15 turns The diagrammatic drawing: The special enhancement mode The general application mode cannot satisfy if you need farther communication distance, so the special enhancement mode can receive farther communication distance, and the specific information as follows: 433Mhz Antenna The antenna’s core of conductor diameter (including the Antenna skin): 1.0mm; (except the Antenna skin): 0.35mm The wire length of weld end: 12mm The diameter of antenna winding (except the Antenna skin):3.0mm; The turn number of winding: 26 turns; The length of the winding: 36m The diagrammatic drawing Old version Specifications Working Temperature : -25~75C Frequency band: +-0.2MHz ReceiveDistance: 20-100M ( open space) Receive Sensitivity: -108dB Working Frequency: 433MHz( Others can be customized ) Quiescent Current : <=5mA Working Voltage : DC3.3~5V Function Pin-out instructions: GND : groud or negative pole +V : DC3.3~5V input D0: Data output D1: Data output D2: Data output D3: Data output VT: Output Working mode:Point move, self-locking, interlocking The output: 4 channel CMOSlevel signalCorresponding to the remote control ABCD 4 buttons. Specifications Working Temperature : -25~75C Frequency band: +-0.2MHz ReceiveDistance: 20-100M ( open space) Receive Sensitivity: -108dB Working Frequency: 433MHz( Others can be customized ) Quiescent Current : <=5mA Working Voltage : DC3.3~5V Function Pin-out instructions: GND : groud or negative pole +V : DC3.3~5V input D0: Data output D1: Data output D2: Data output D3: Data output VT: Output Working mode:Point move, self-locking, interlocking The output: 4 channel CMOSlevel signalCorresponding to the remote control ABCD 4 buttons. Notes Please allow 1-3cm error due to manual measurement. Colors may slightly vary due to different lighting conditions. Ensure accurate measurements before purchasing. Package Includes Selected Variation Explore More from Our Store Visit Store
