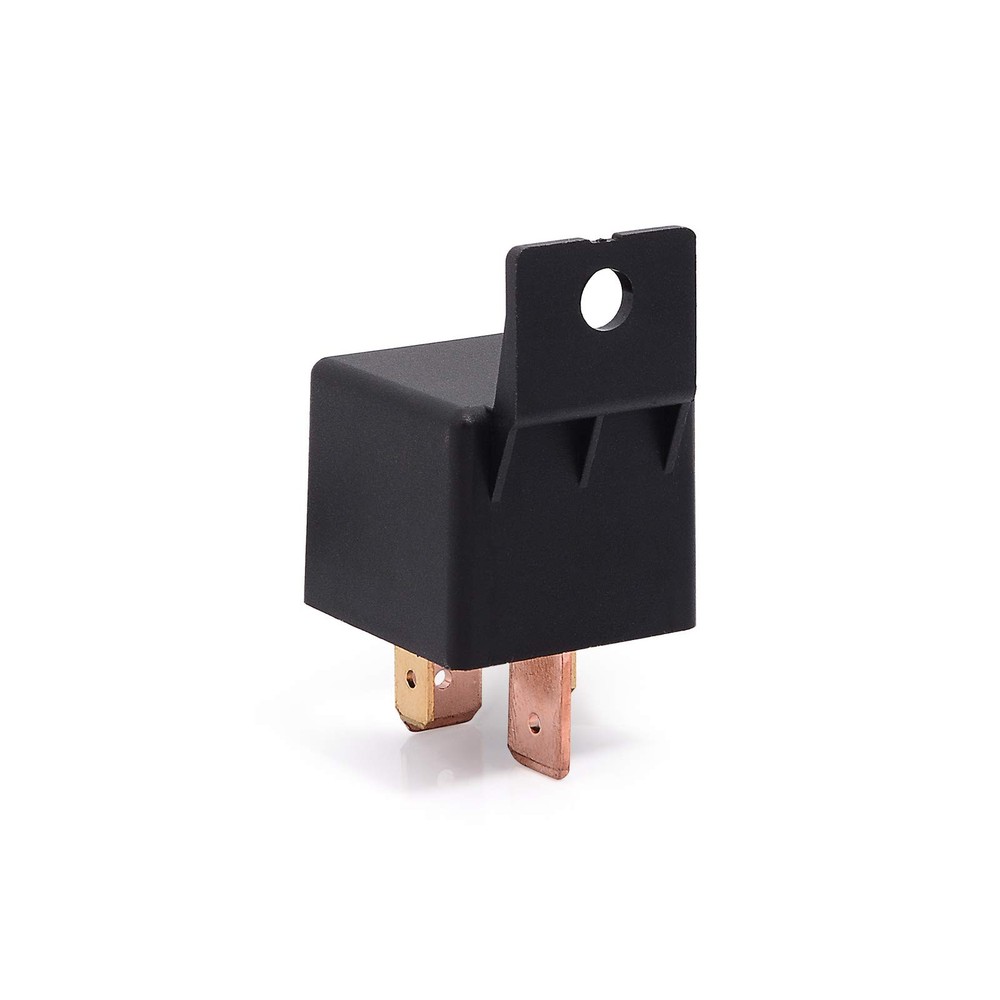

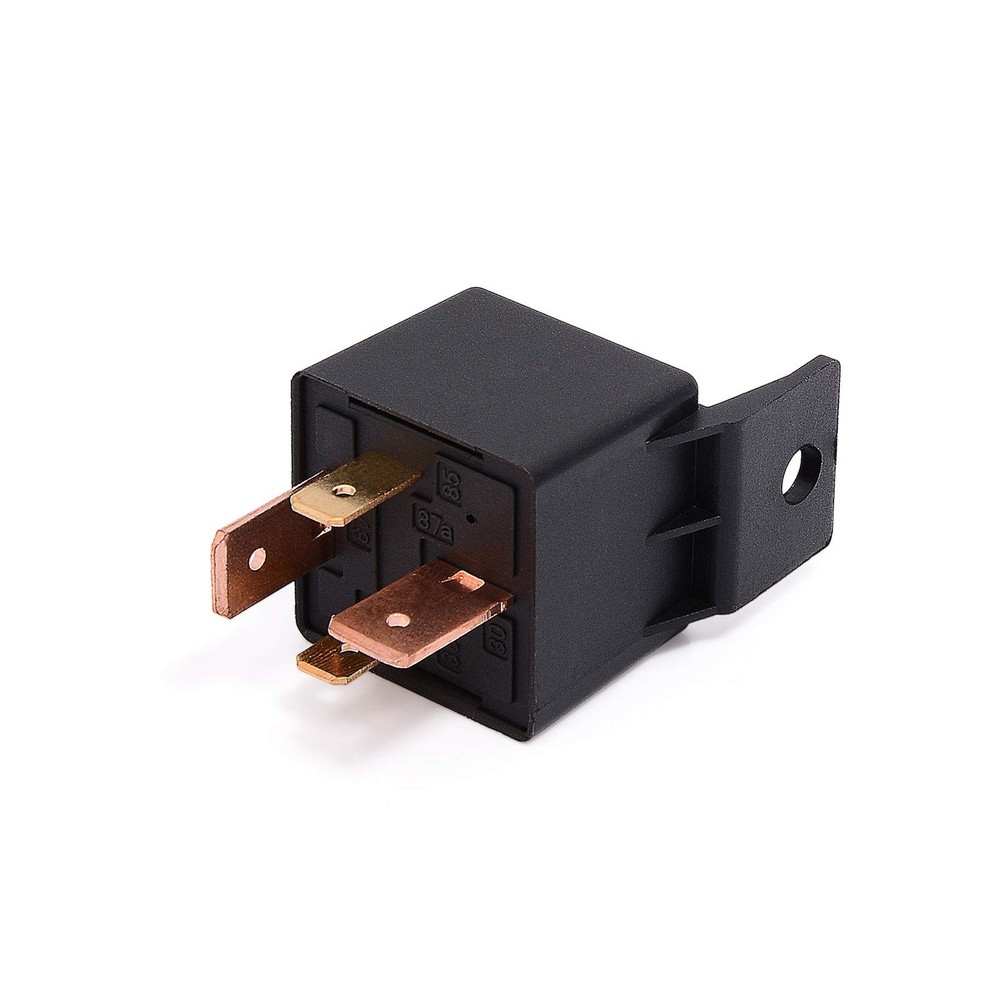

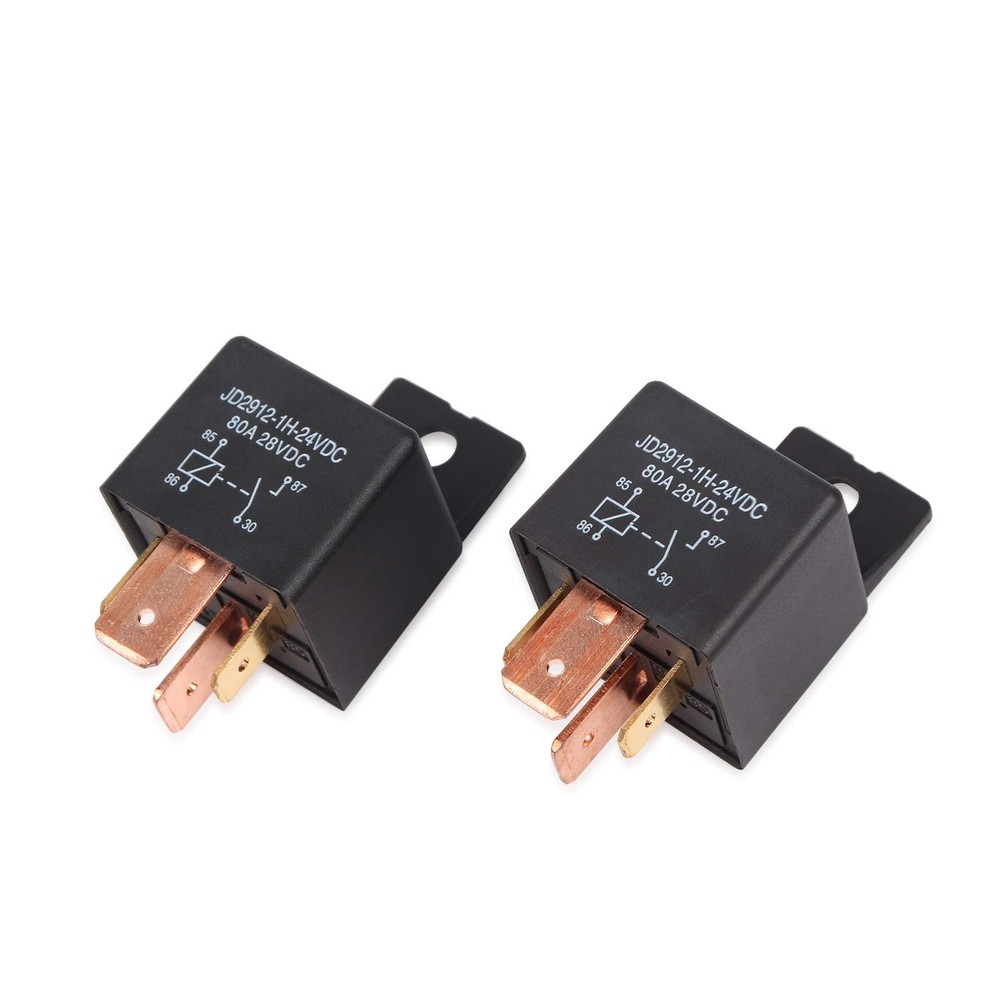

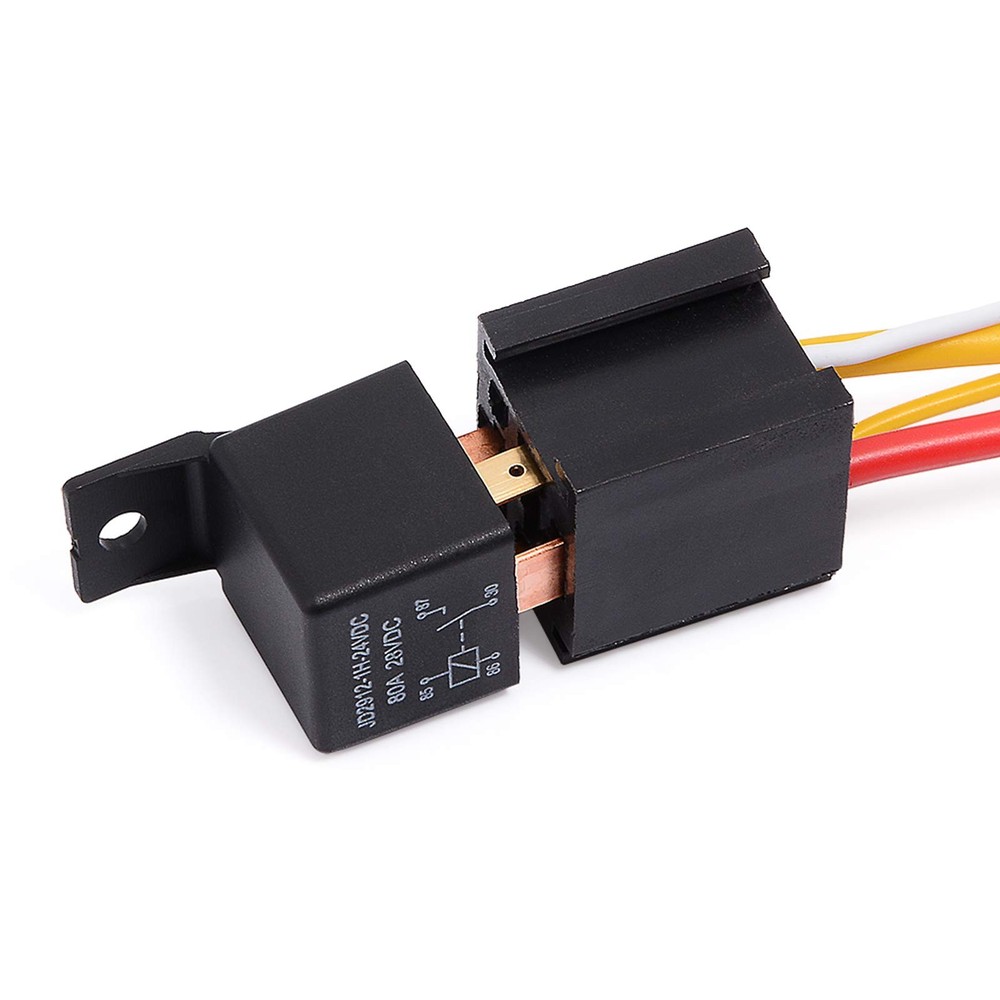

4-Pin Car Relay 24V 80A Relay On/Off Normally Open Car Truck Boat SPST Relays...

$ 5.69

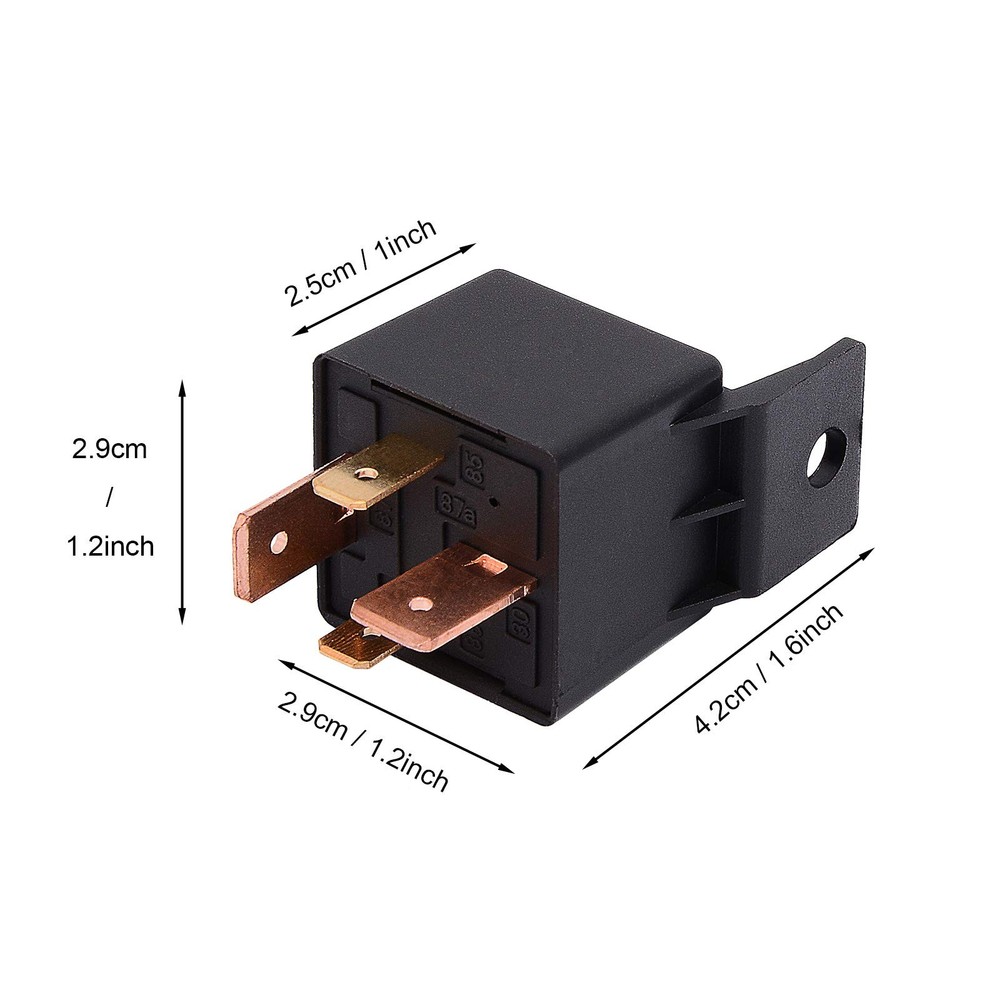

Brand: Ehdis Current Rating: 80.0 Measurement System: Imperial, Metric Maximum Switching Current: 80.0 Specification Met: Ms UPC: 713653050260 Wattage: 1260.0 Mounting Type: Chassis Mount Package Dimensions LxWxH: 1.9x1.2x1.0 Inches Item Package Quantity: 1 ISBN: 0713653050260 Coil Voltage: 24.0 material: Silver Tin Oxide EAN: 0713653050260 Contact Current Rating: 80.0 Coil Resistance: 320.0 Lower Temperature Rating: -30.0 Part Number: 2C03-24V Weight: 0.2 Pounds Contact Type: Normally Open Contact Material: Silver Tin Oxide Operation Mode: Electrical Upper Temperature Rating: 80.0 Minimum Switching Voltage: 12.0

Description

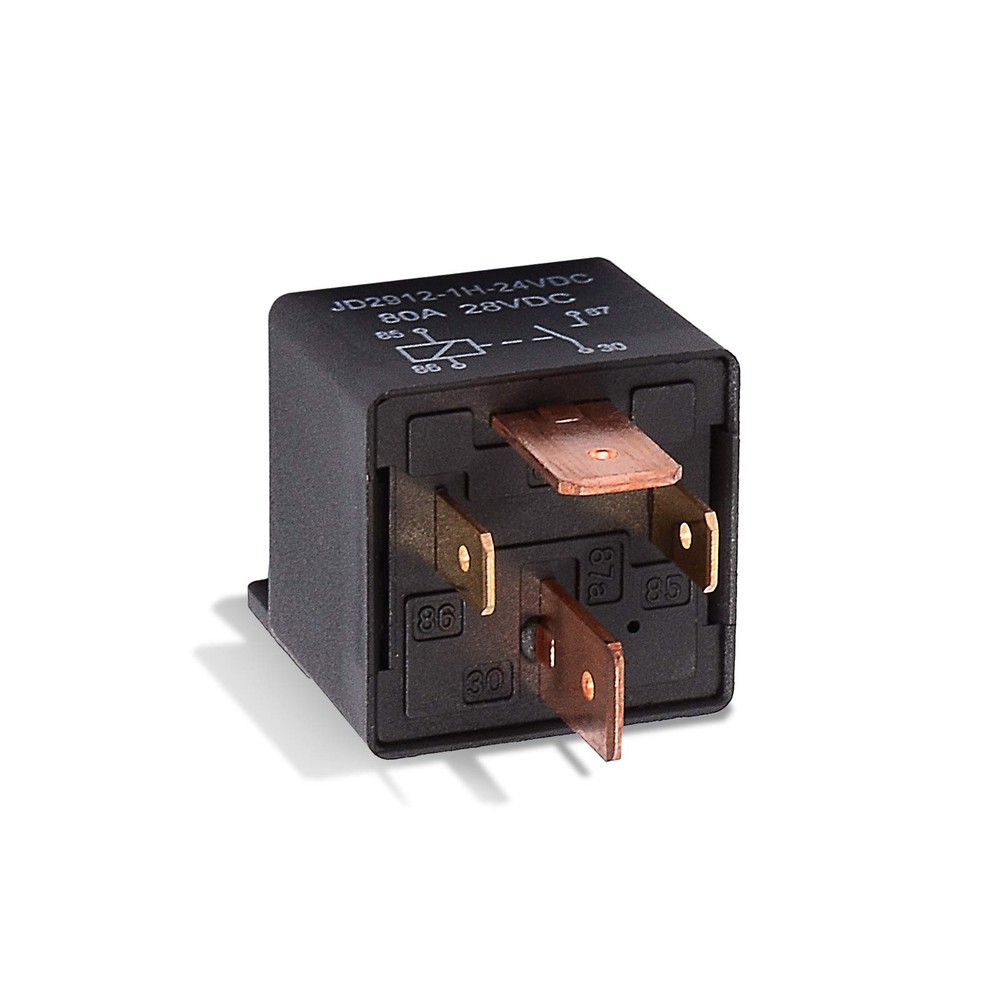

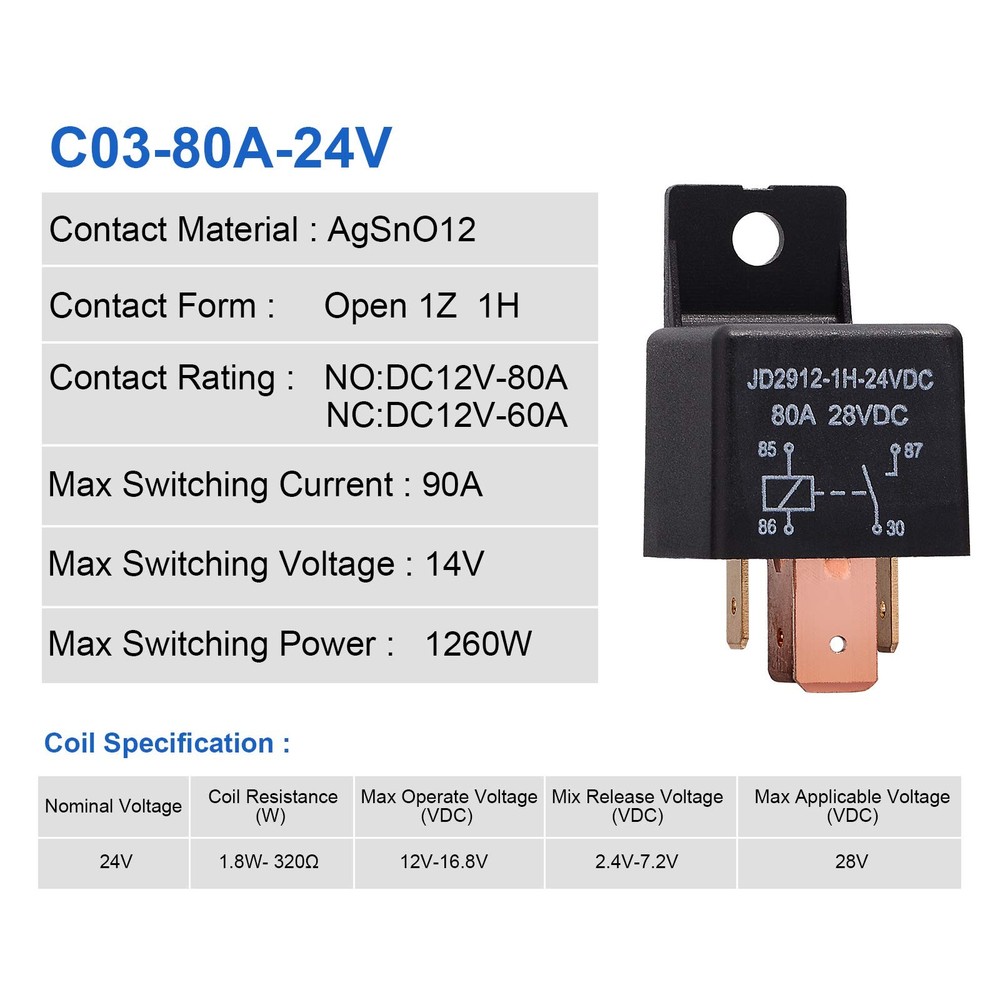

4-Pin Car Relay 24V 80A Relay On/Off Normally Open Car Truck Boat SPST Relays.... Max switching Current: 80A. Car Relay Part Number :JD2912-1H-24VDC 80A 28VDC. 4 Pin Automotive Electrical Relay: Work with vehicle electronics to help optimize vehicle capabilities. Resistance: 100mMax at 6VDC 1A. Data: Material: AgSnO2 Form: Normal Open Ratings: No: 80A 14VDC Resistance: 100mMax at 6VDC 1A Max switching Current: 80A Max Switching Power: 560W Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations Coil Specification: Nominal Voltage(VDC): 24V Coil Resistance (1.8W): 320 Max Operate Voltage (VDC): 12~16.0 Mix Release (VDC): 1.2~7.2 Max Applicable Voltage (VDC): 31.2 Characteristics: Temperature Range: -30°C ~+80°C Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance: Operations Extremes: 10g Damage Limits: 100g Humidity: 40%~85% Insulation Resistance: 100m ohm Min at 500VDC Safety Standard: CCEE Dielectric Strength Between Open Contacts 500VAC (for one minute/sec) Operate Time: 7ms Release Time: 5ms Weigh: Approx. 35gCar Relay Part Number :JD2912-1H-24VDC 80A 28VDCType: SPST (Normal Open); Pin Number: 4 Pin Coil: 24VDC 80AGeneral purpose applications for automotive in power.4 Pin Automotive Electrical Relay: Work with vehicle electronics to help optimize vehicle capabilitiesPackage Content: 2 Pcs x Car Relay
