4pcs H-Beam Steel Connecting Rods for Toyota 20R 22R 2.2L 2.4L Engines 5.819" Length

$ 289.83

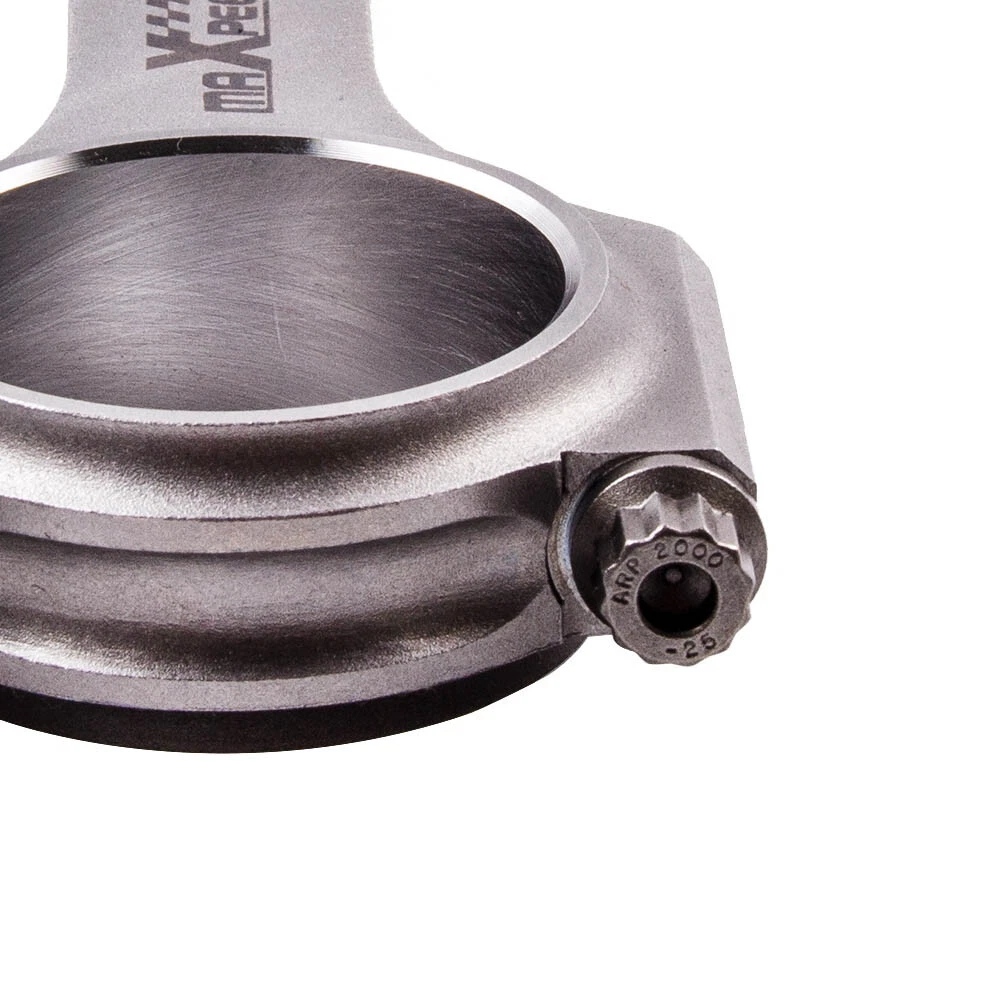

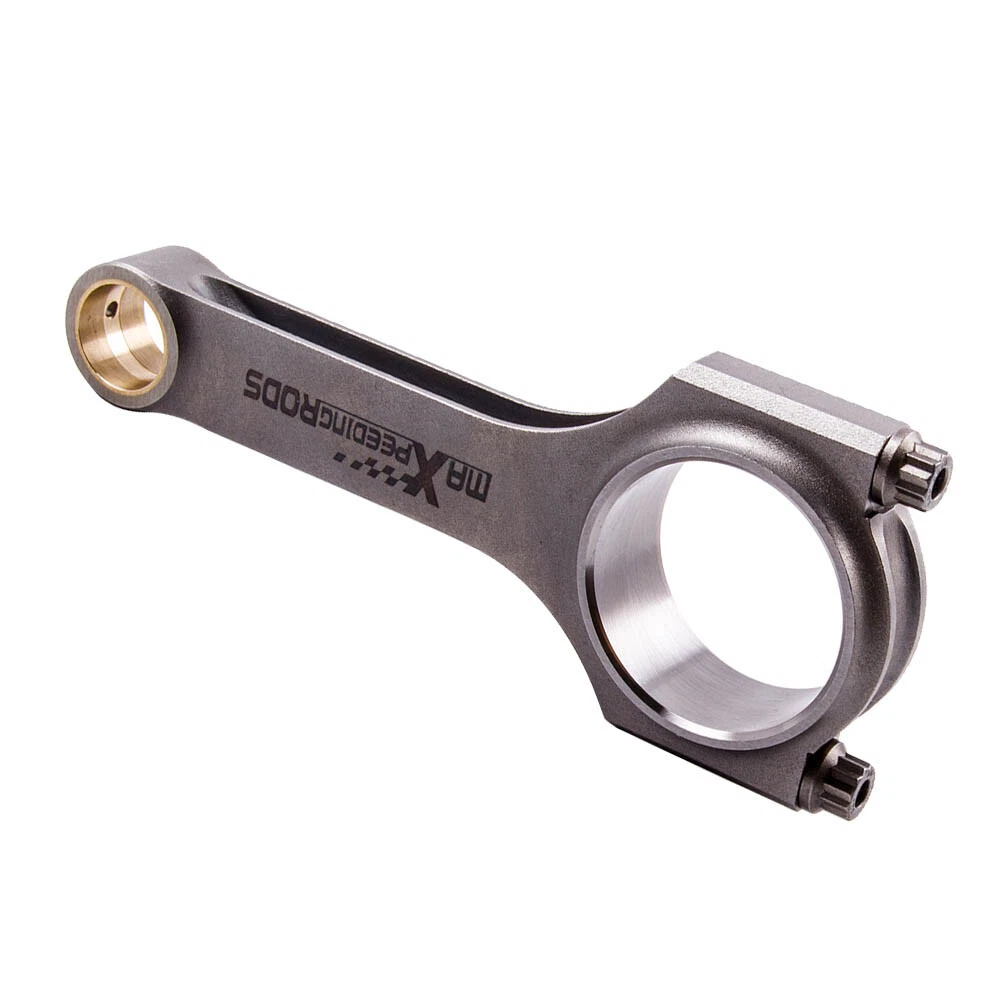

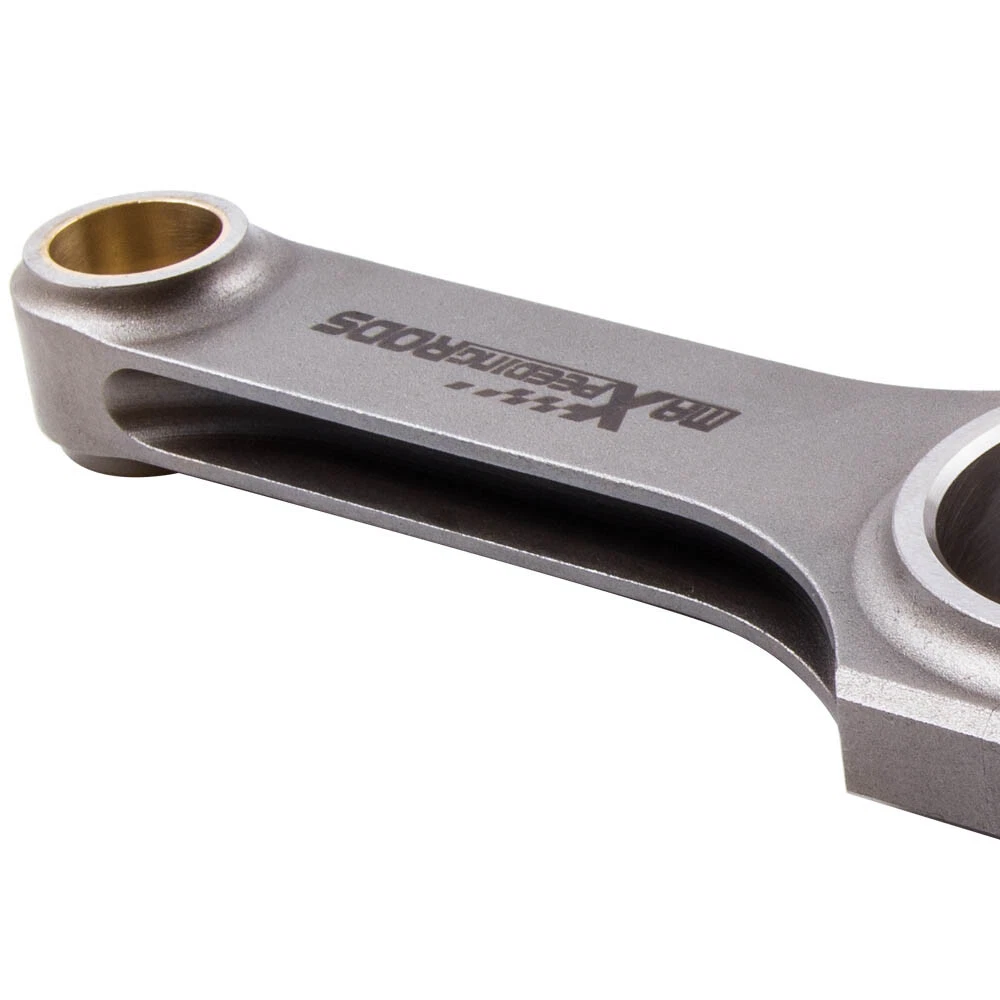

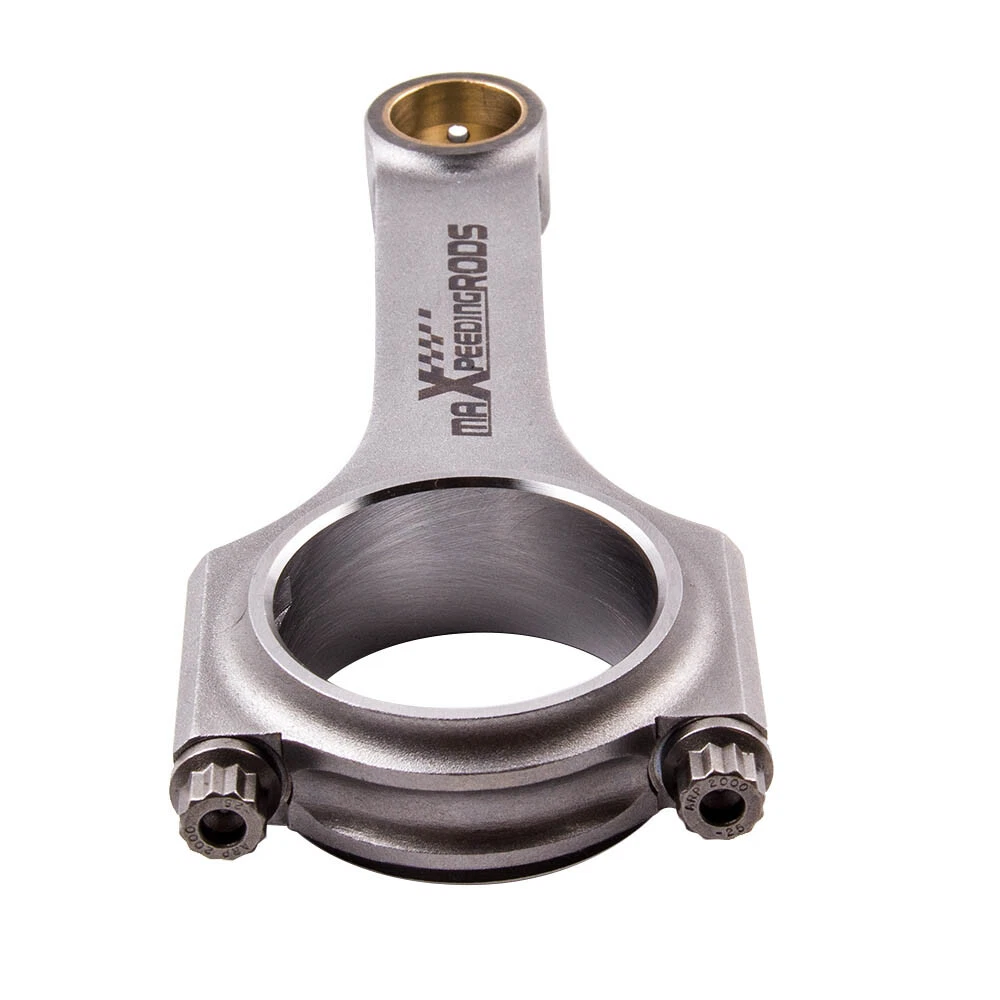

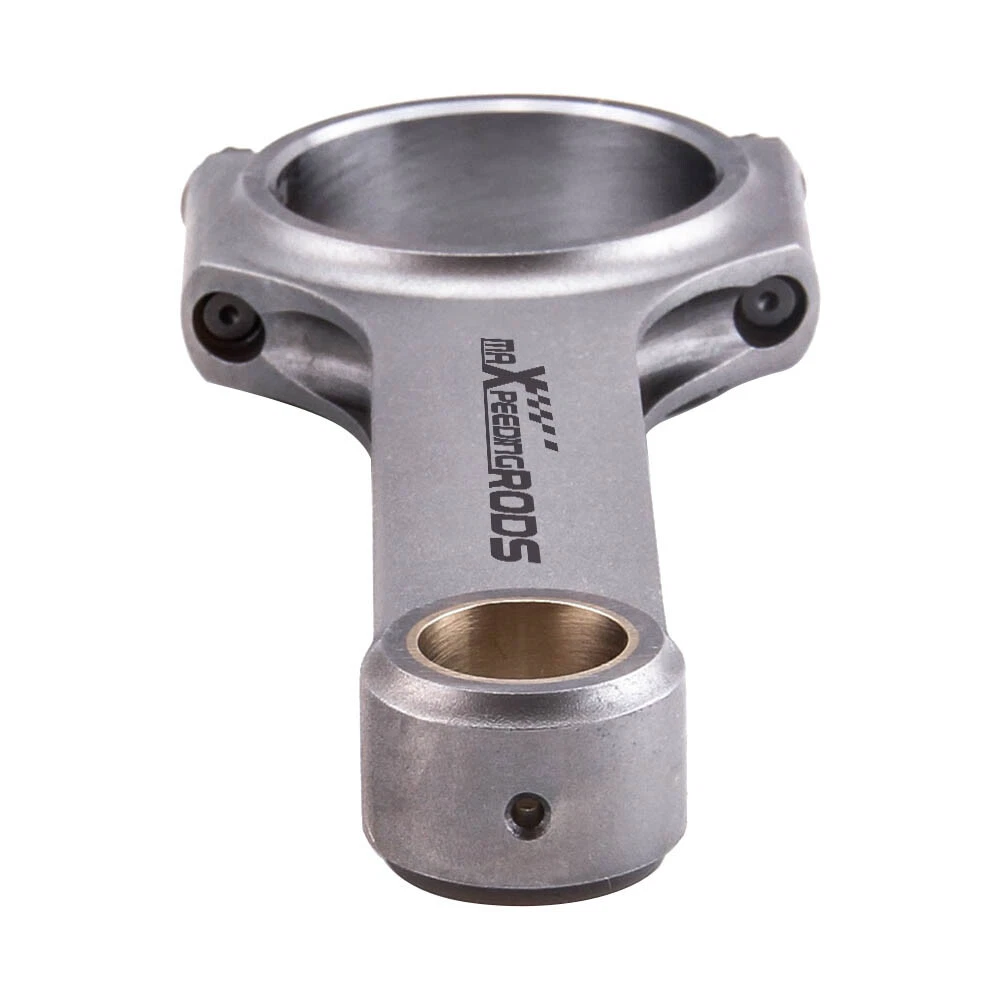

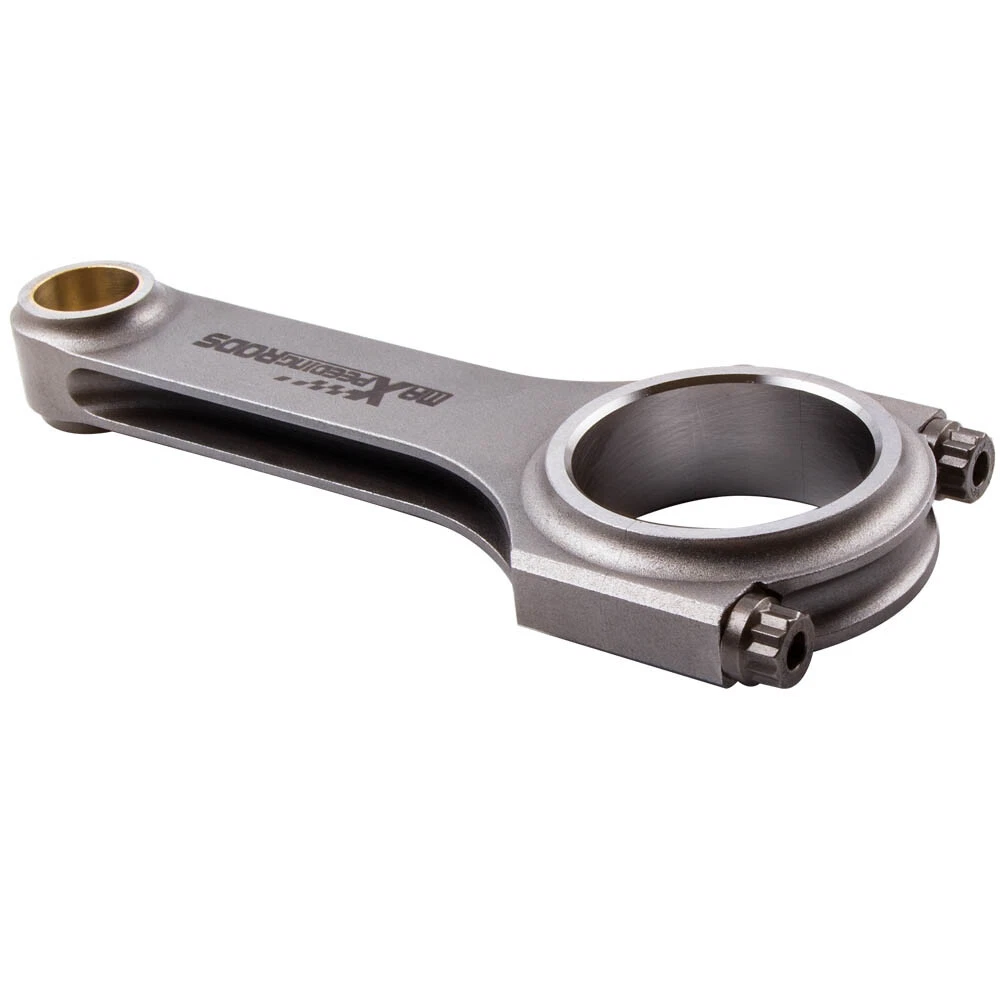

Small end diameter: 22mm/0.866" Quantity: 4 Pieces as showing in picture Strength of the fastening (PSI): ARP 2000 bolts are rated at 220,000 psi, the optional ARP L19 material at 260,000 psi UPC: Does not apply Big end diameter: 56mm/2.205" Pin Type: bronzed bushing floating pin Type: Connecting Rod Rod Bolts Torque: 48ft with regular moly for 3/8 Big end width: 27.5mm/1.083" Brand: maXpeedingrods Note: No Instruction Included Part Brand: maXpeedingrods HP Rating:: Single: up to 200HP, Complete set: 600-800HP Small end width: 27.5mm/1.083" Weight Tolerance: Balanced to +/- 1 gram in set Material: Steel Manufacturer Warranty: 2 Years Notice: This is aftermarket replcement part. Center to center length: 147.8mm/5.819" Manufacturer Part Number: WMOKJS gtin13: Does not apply

Description

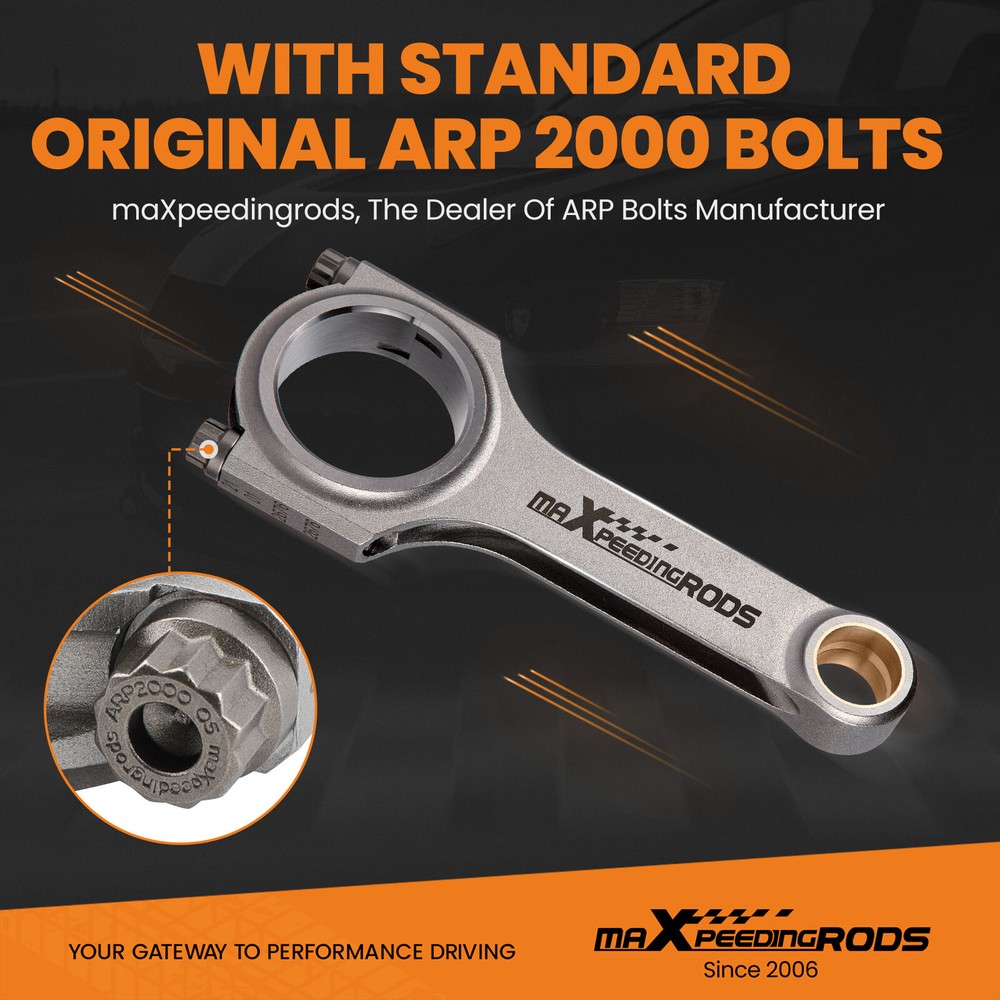

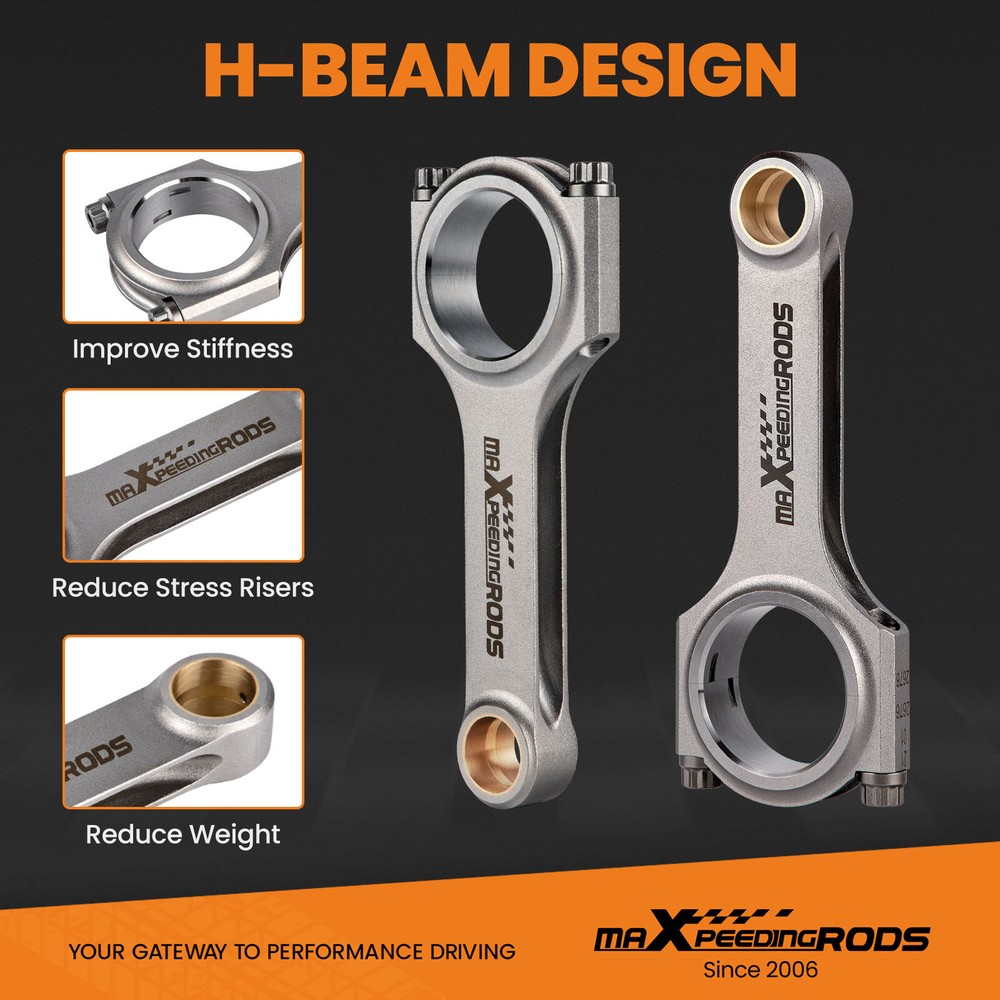

maXpeedingrods Canada Store Home About maXpeedingrods View Feedback Contact Us WHY CHOOSE US 4pcs H-Beam Connecting Rods For Toyota 20R/22R/22RE/22RET 2.2L 2.4L 5.819" Description Application For Toyota 20R/22R/22RE/22RET 2.2/2.4L For Toyota Hilux 1975–1980 For Toyota Celica (U.S. Version),1975–1980 For Toyota Corona (U.S. Version),1975–1980 For Toyota Hilux, 101 kW (135 hp; 137 PS),1985–1988 For Toyota 4Runner,1984–1995 Pin Type: Floating Pin Piston Specification *Type: Forged 4340 aircraft chrome moly quality steel for racing *H-beam Conrods Quantity: 4 Pieces as showing in picture *Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts) *The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product. *Advertised Horsepower Rating:200HP/piece *Top acceleration: 9000rpm *package size：28CM*21CM*10CM Dimension Center to center length:147.8mm/5.819" Big end diameter:56mm/2.205" Small end diameter:22mm/0.866" Big end width:27.5mm/1.083" Small end width:27.5mm/1.083" Feature 1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED； 2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing； 3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade； 4. H-Beam design reduces weight without compromising strength； 5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers； 6.High precision CNC machined,Precision rod cap alignment dowels； 7.Bores finished to +/- .01 mm； 8.Balanced to within +/- 1 g per rod； 9. Each rod is magnetic particle tested to ensure free of flaws； 10.Use X-rayed, sonic tested； 11.Custom Service. Note *Professional installation is highly recommended ； *Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs. Other items you might also like 24 Damping Levels Coilover For Nissan 350Z Coupe 03-08 Infiniti G35 Sedan 03-06 Engine Wiring Harnesses for Ford F250 F350 F450 Super Duty 03-04 3C3Z12B637BA 24 Damping Level Coilover For Subaru Impreza WRX Premium hatchback 2008-2014 Front Air Suspension Strut For Mercedes GL350 GL320 ML350 1643204513 W/o ADS 3" Full Lift Kit for Ford Crown Victoria For Mercury Grand Marquis 03-11 Power Steering Pump P/S For Lexus LS400 90-97 44320-50010 44320-50020 Pair Front Coilover Shock For Nissan S13 Silvia 180SX 200SX 240SX 1989-1994 Front Left And Manual Locking Hub for Geo Tracker LSi Convertible 2-Door 1994 Height Adjustment Coilover For BMW 3 E36 4-door sedan 316i,318i,318is,320i 90-98 Adjustable Dampening Coilover for Honda Accord DX/EX/LX CD5 CD7 1990-1997 Rubber 2x Front Upper Control Arm for GM F-Body 1993-02 Camaro Pontiac Firebird A-Arms Adjustable Front Upper & Lower A-Arm Set for 1990-2006 Yamaha Banshee 350 YFZ350 About MaXpeedingrods Shipping Policy Returns Policy
