5/16" 9mm PA66 High-Temp Automotive Oil Line Spring Check Valve

$ 12.9

Part Number: Ryf04 Model Number: Gy2304 Valve Type: Lift Check Valve Unit Count: 1.0 Outlet Connection Size: 0.71 Outlet Connection Type: Automotive-Standard Maximum Operating Pressure: 200.0 Inlet Connection Size: 0.71 Included Components: 2 Check Valve EAN: 0191868785892 ISBN: 0191868785892 Color: Black UPC: 191868785892 gtin13: 0191868785892 Model Name: Gy2301020304Fm2201 Item Package Quantity: 1 Size: 5/16" Material: Nylon Number Of Ports: 2 Weight: 0.02 Pounds Connector Type: Slip Inlet Connection Type: Automotive-Standard Brand: Bbtus Package Dimensions LxWxH: 2.68x1.65x0.67 Inches Type: Does not apply

Description

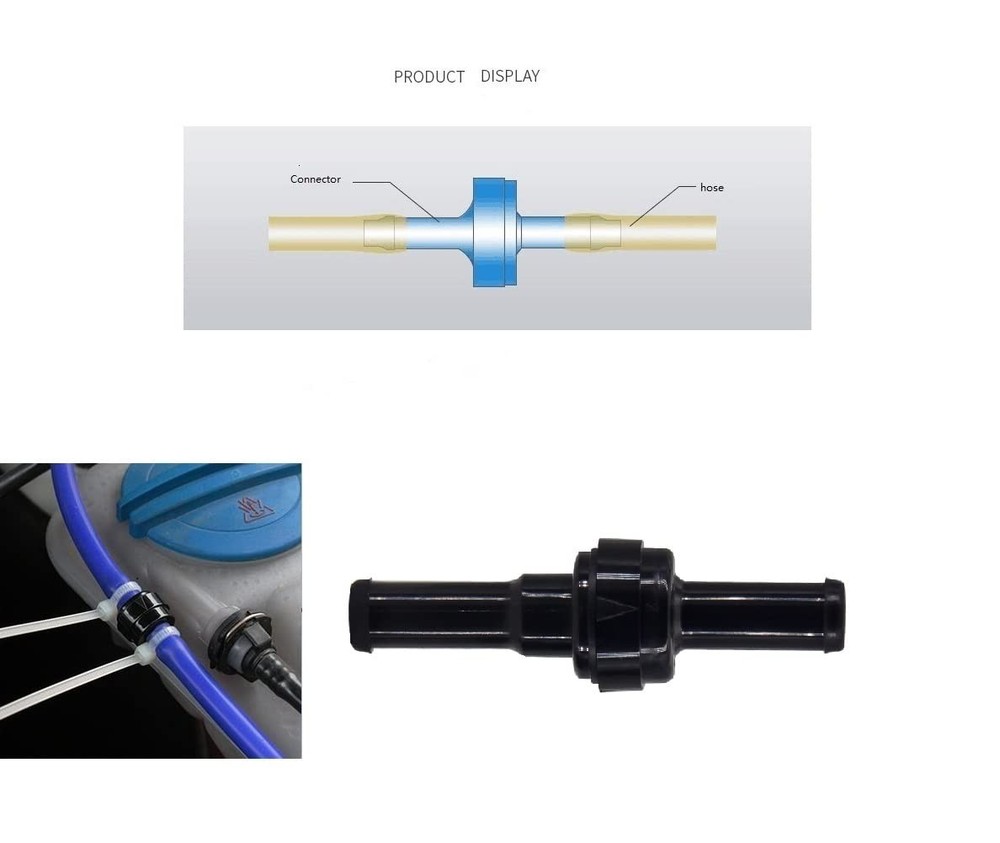

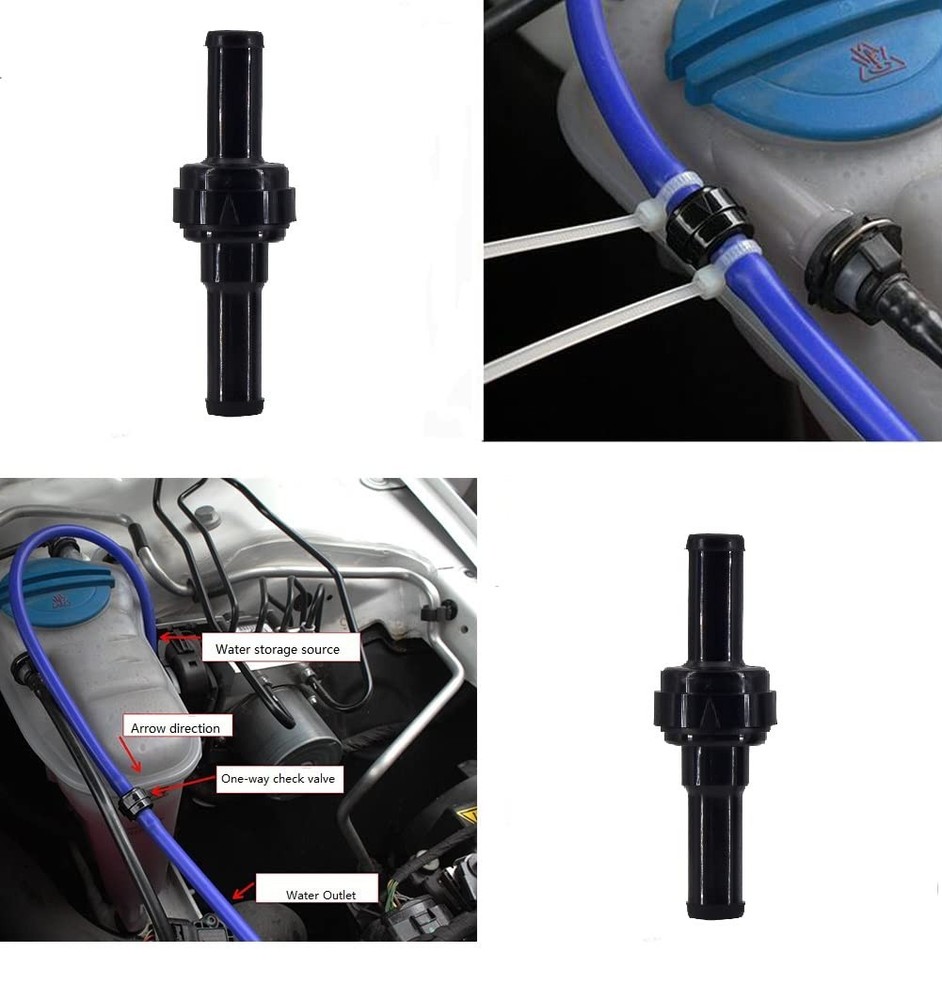

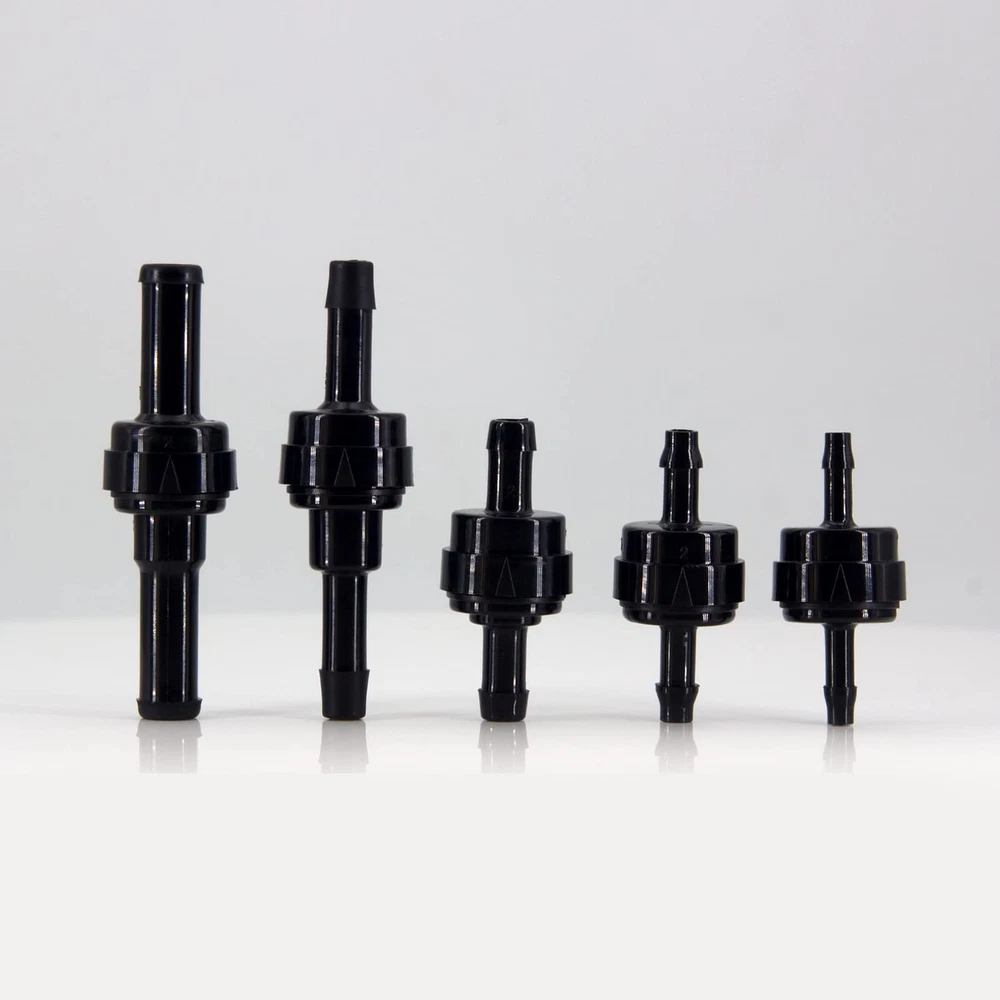

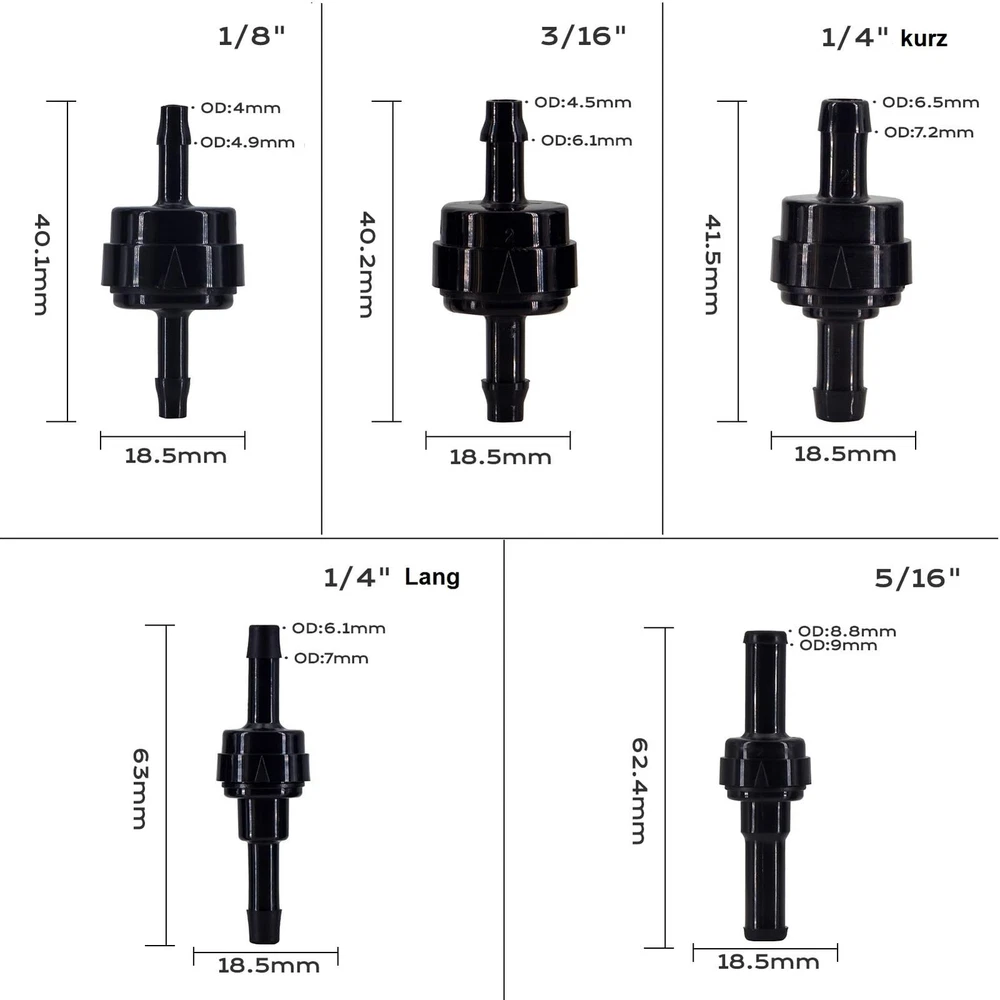

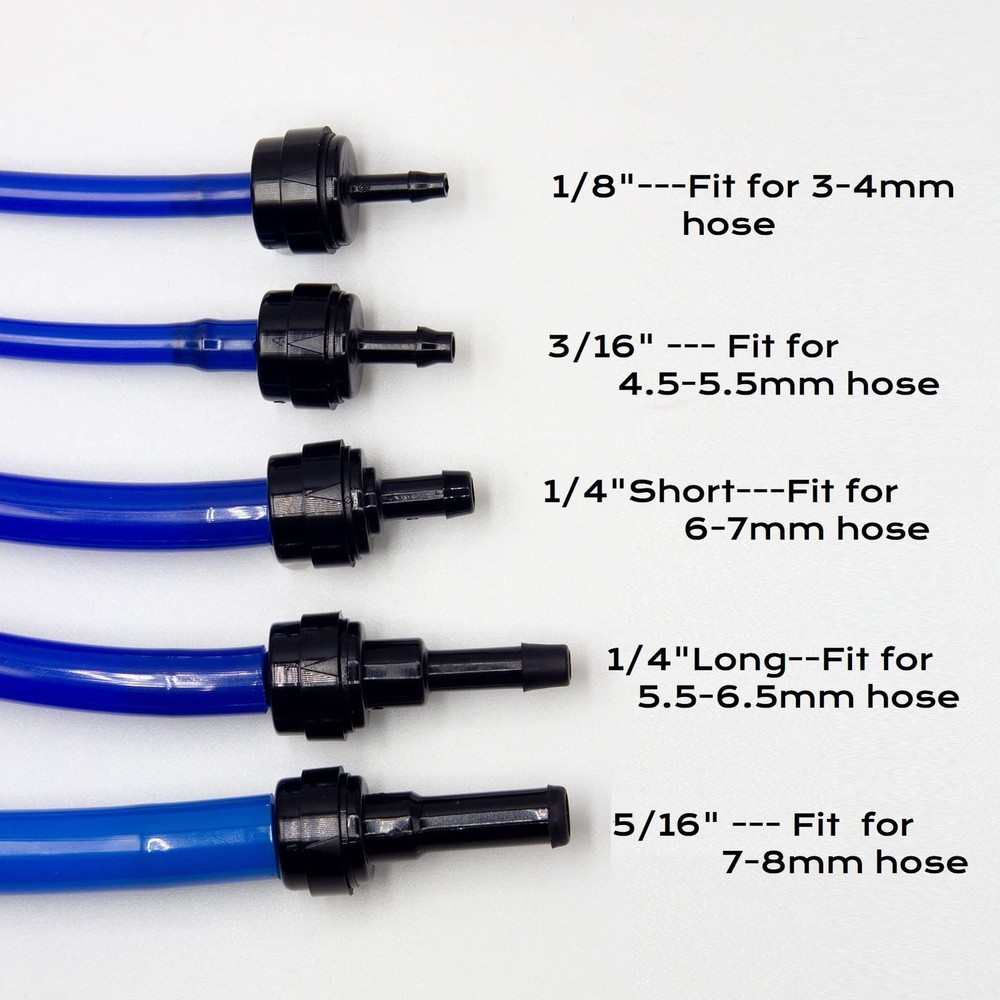

Specifications: Shell material: PA66 Diaphragm material: VITON Spring material: SUS316L Opening pressure: 1~2Kpa Maximum back pressure: ≥200K pa ※The pipe port designs a pagoda card slot, non-slip, good airtightness, the port outer diameter is available in 4 sizes, suitable for 3.2 to 9MM inner hole hose to connect, user-friendly design, easy to use ※Self-contained gas flow direction signs on the valve body for convenient installation. Avoid repeated installation and debugging work ※Under 25 Degrees Celsius ~ 135 Degrees Celsius environment works. Reliable quality, no need to worry about high temperature damage in the cabin ※Used in automotive system to prevent backflow of gases or liquids in the piping. One-way valves are commonly used in brake boosters - air conditioning damper ducts - exhaust valve ducts and wiper sprinkler ducts on automobiles. The one-way valve is widely used and can be reasonably used according to individual needs. Package include: 2x Check Valve The pipe port designs a pagoda card slot, non-slip, good airtightness, the port outer diameter is available in 5 sizes, suitable for 4mm to 9mm inner hole hose to connect. Please refer to our size pictures for detailed data.
