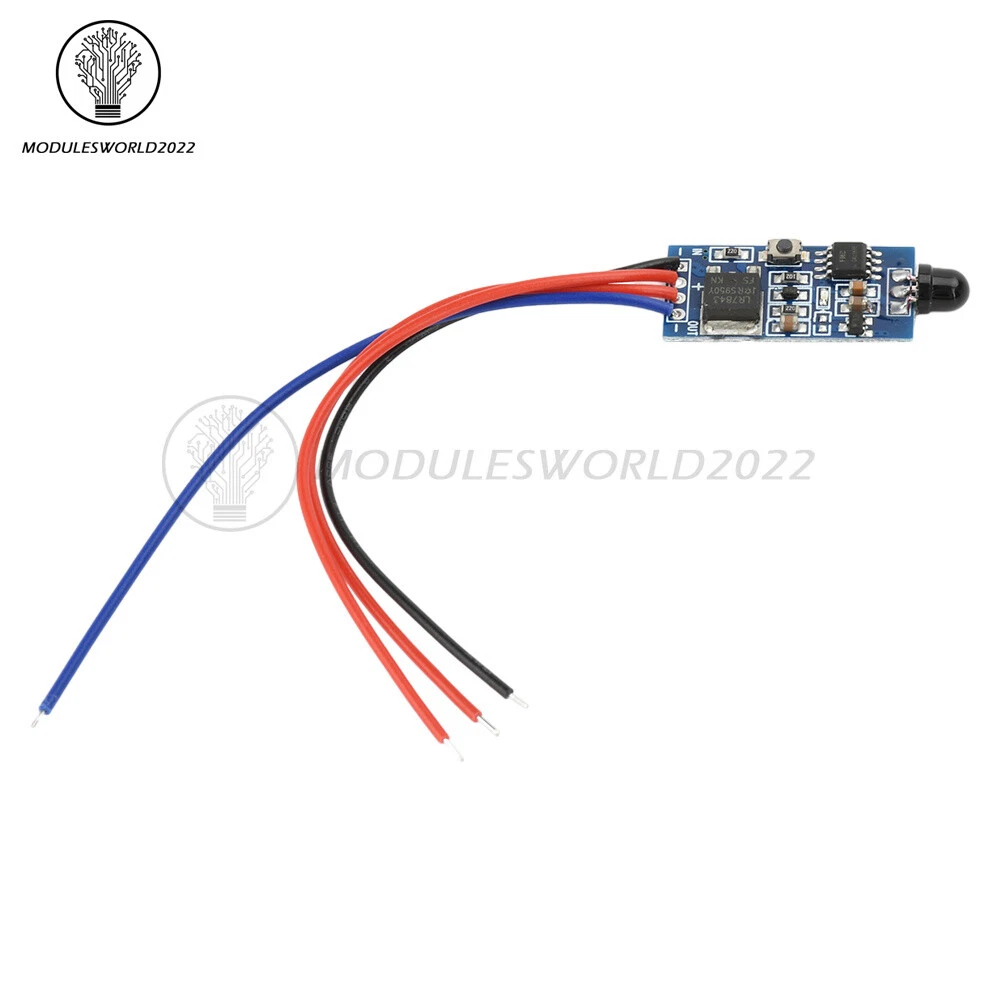

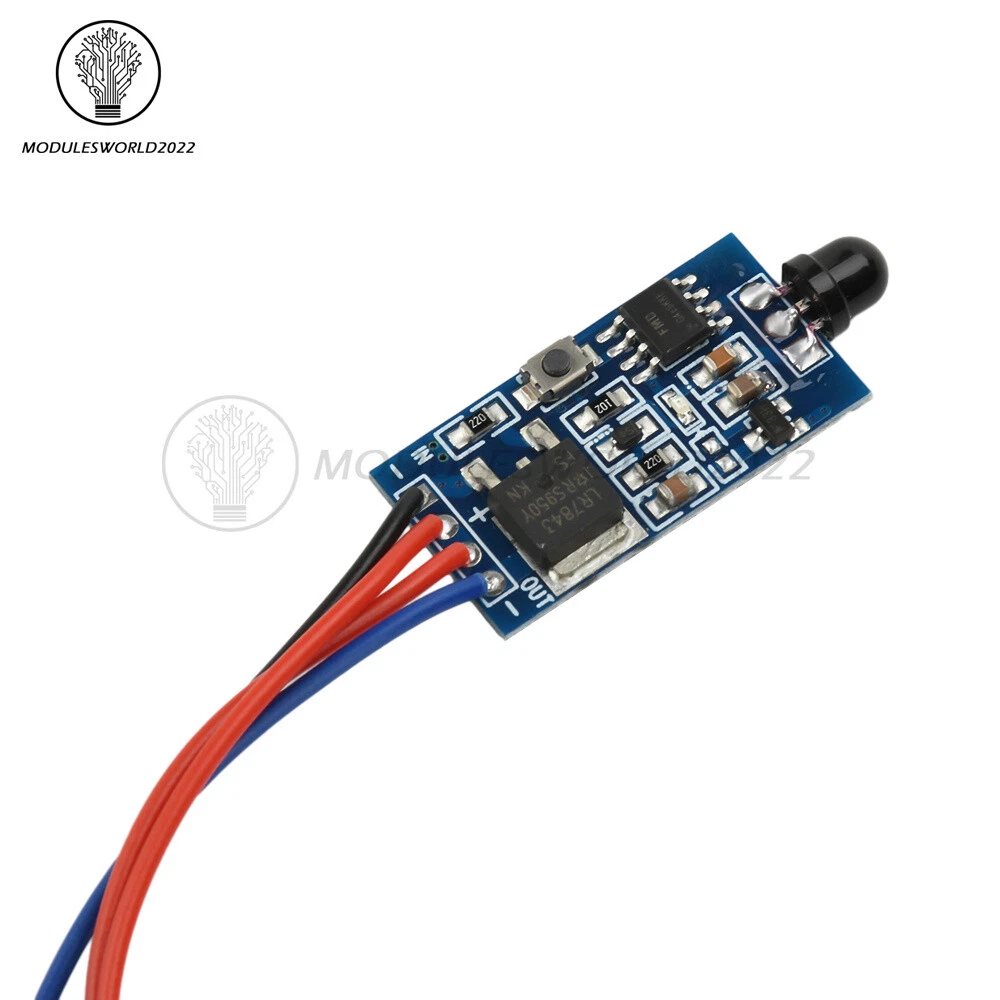

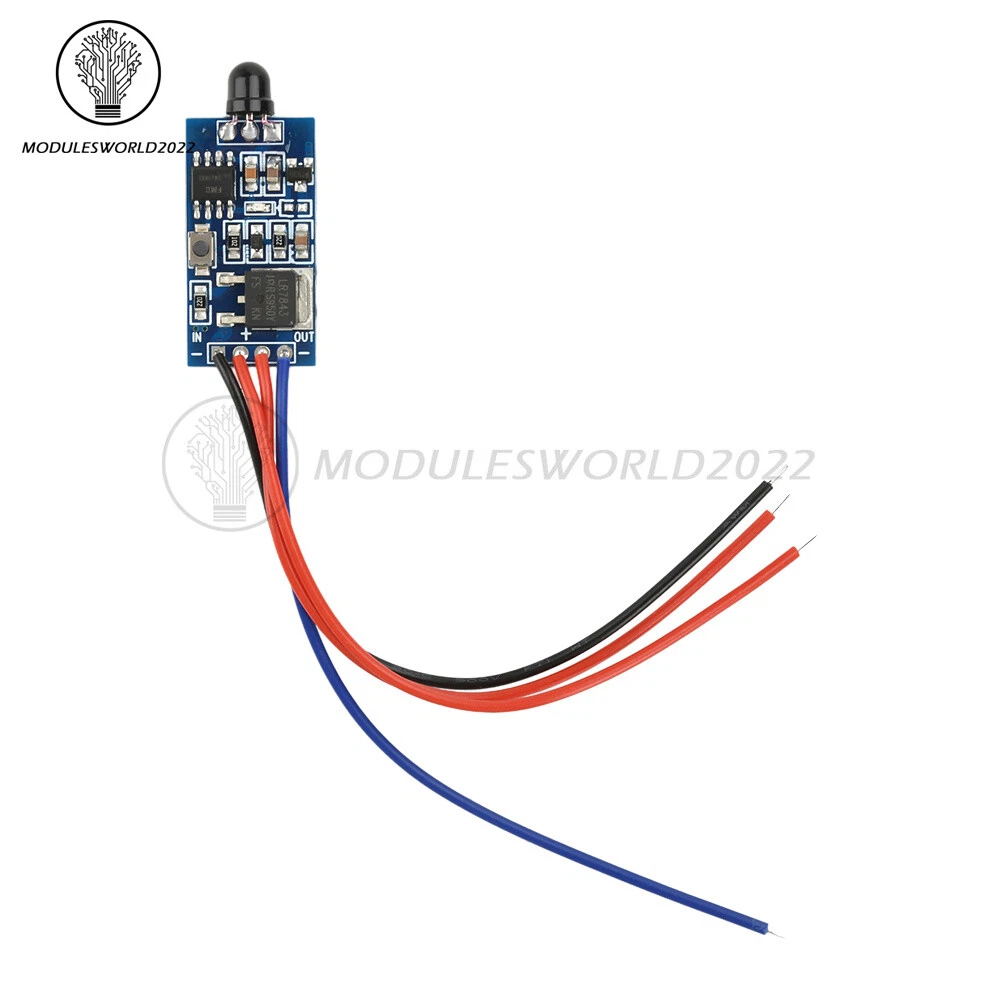

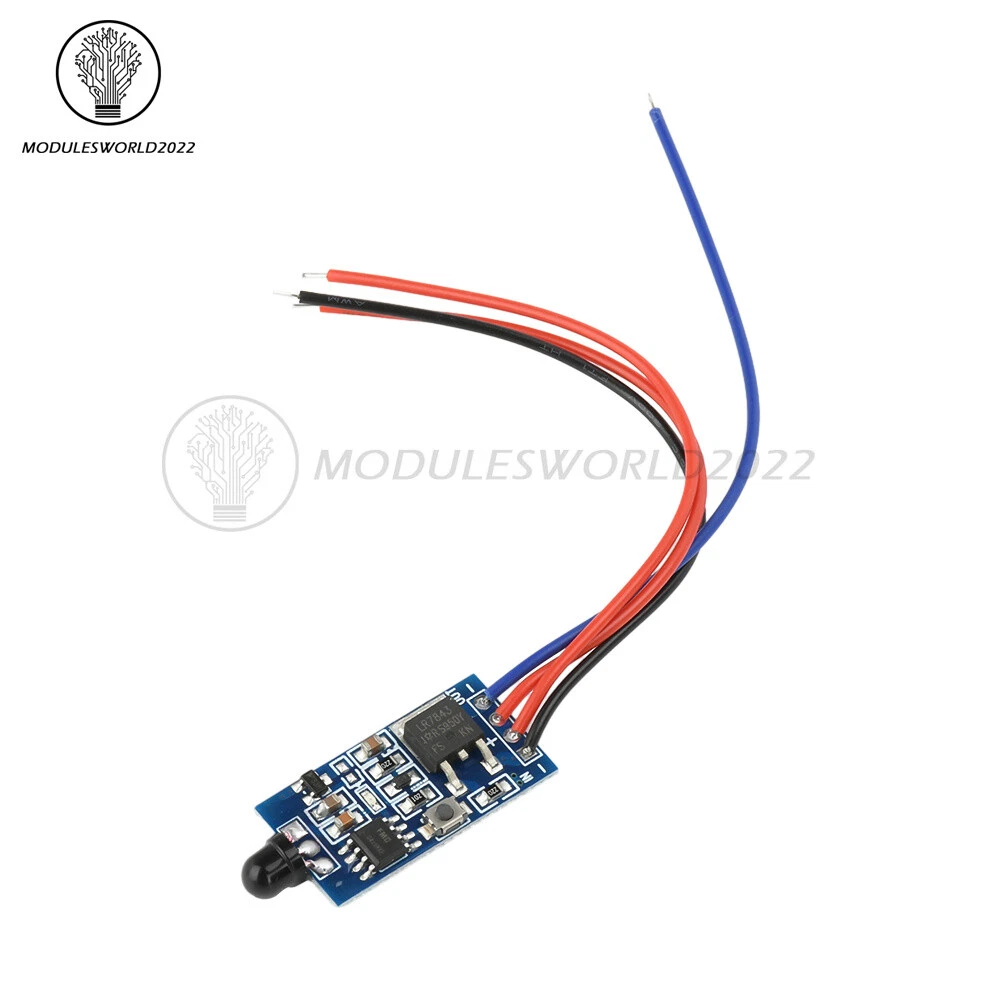

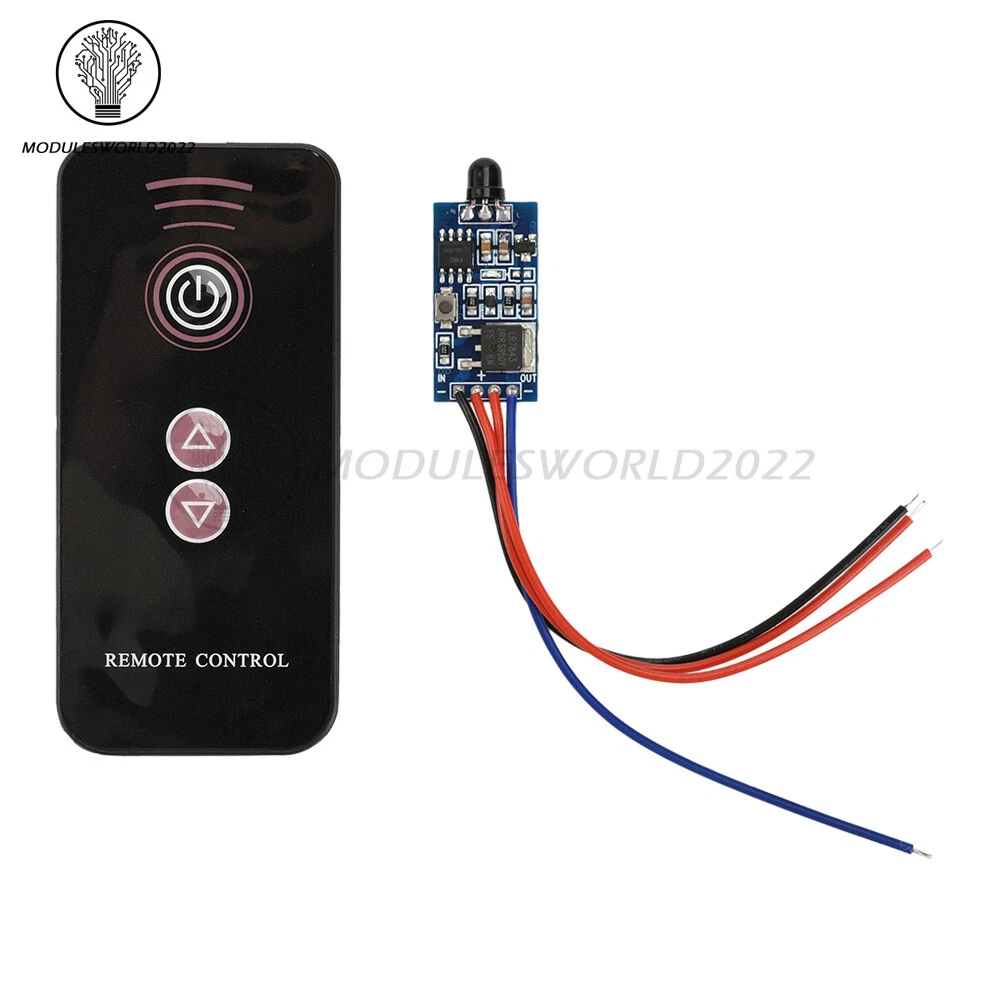

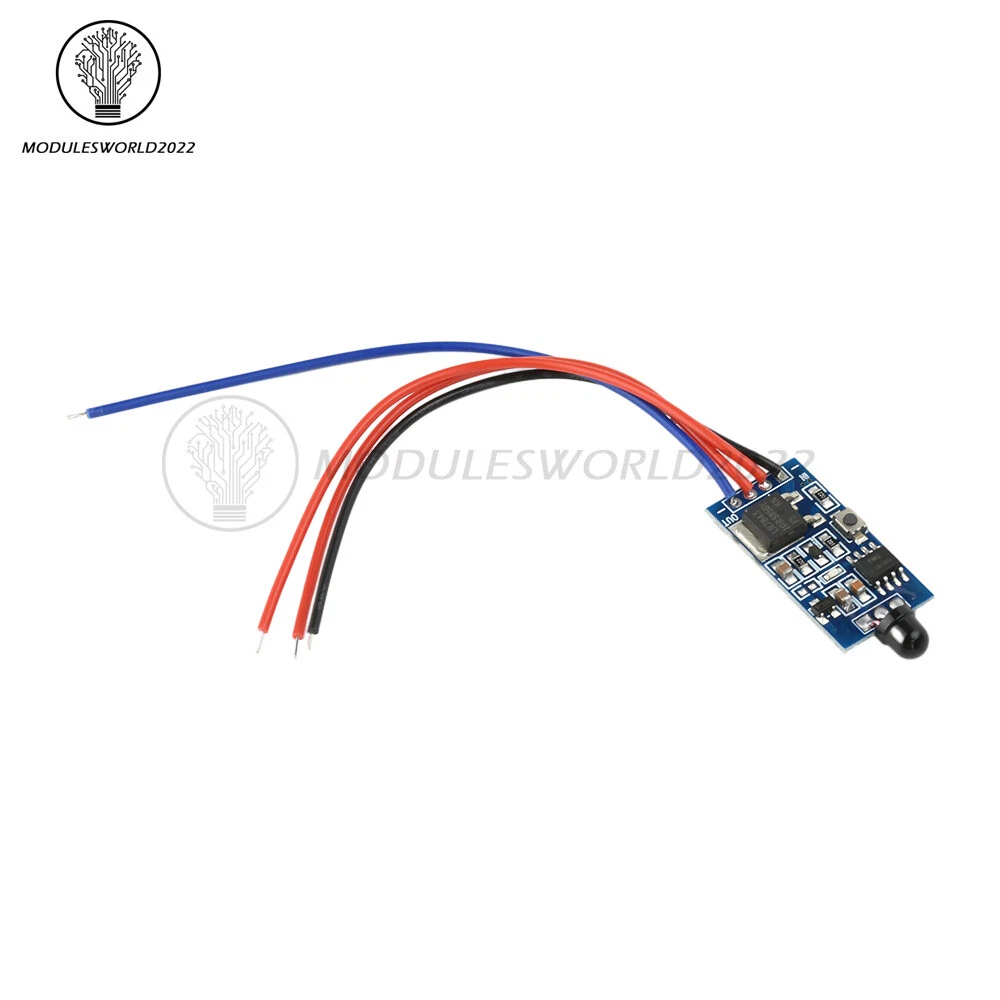

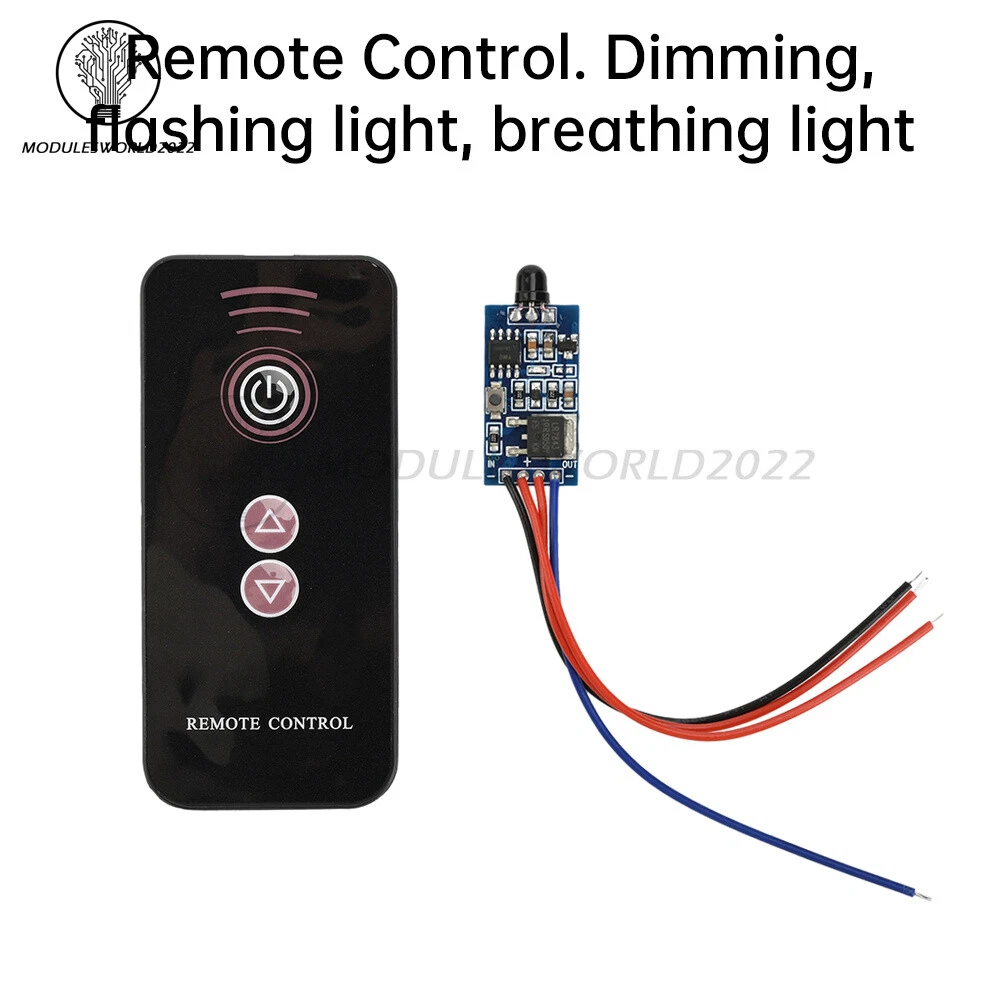

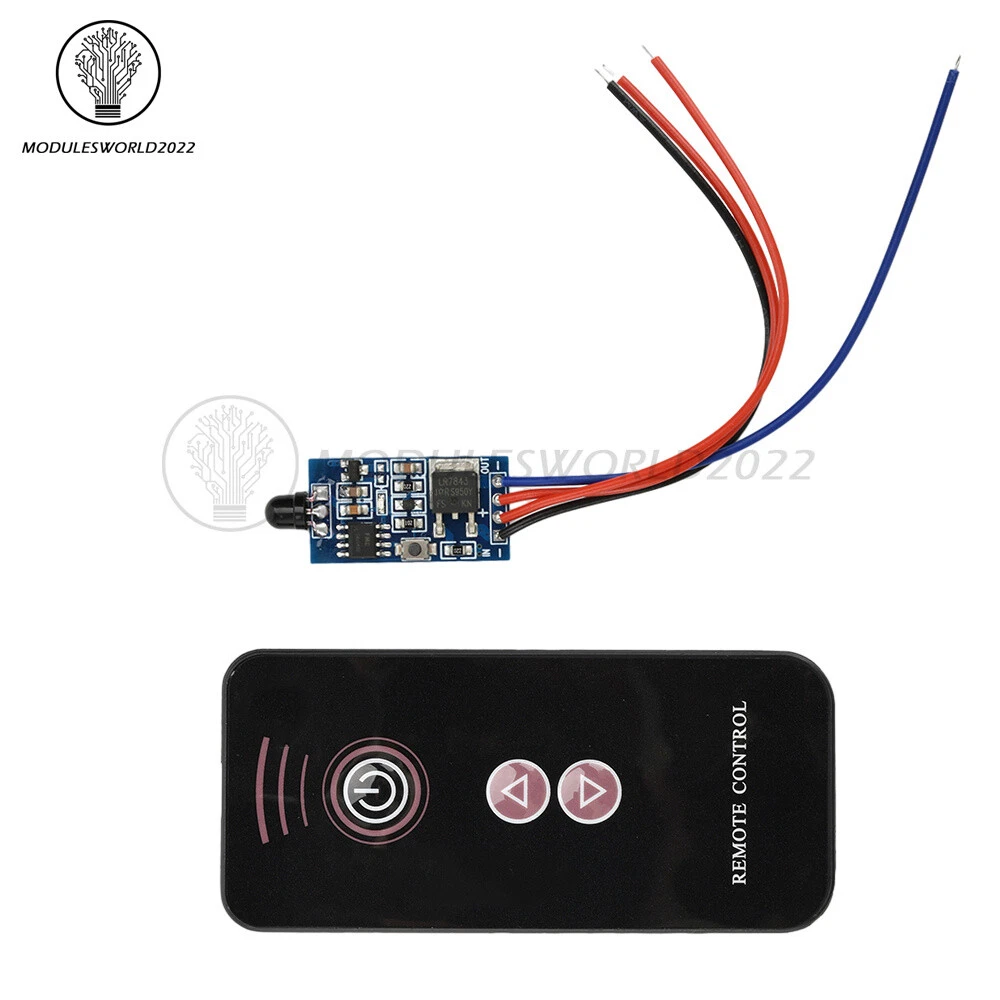

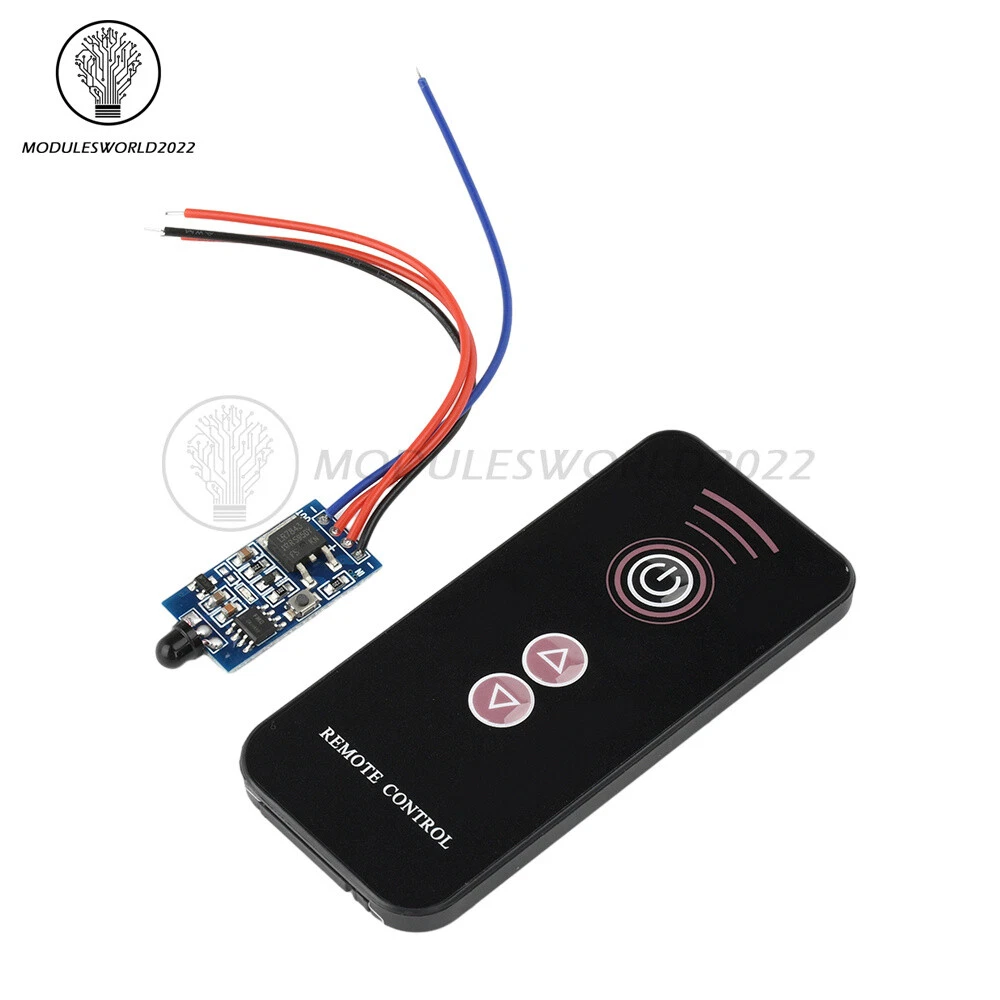

5-24V30W Breathing Light/Flashing IR Remote Switch PWM Dimming Module LED Driver
$ 2.38
Description

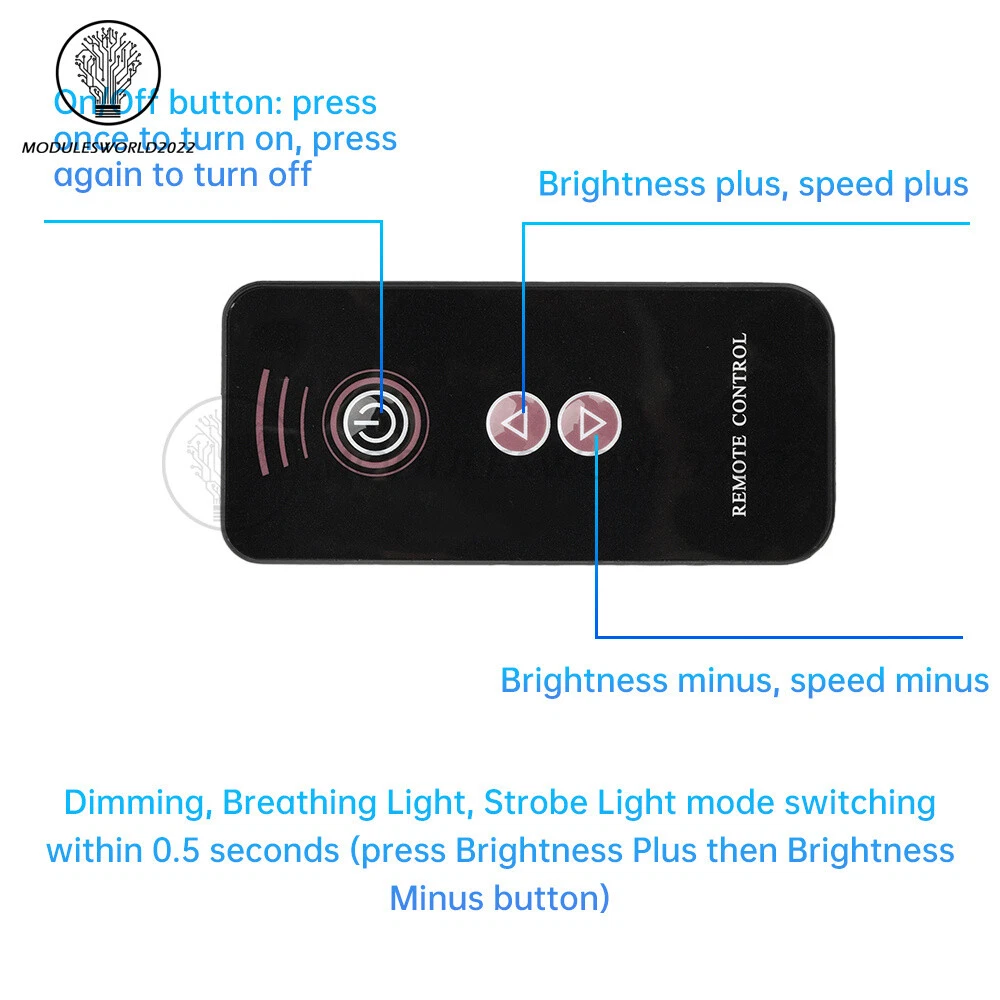

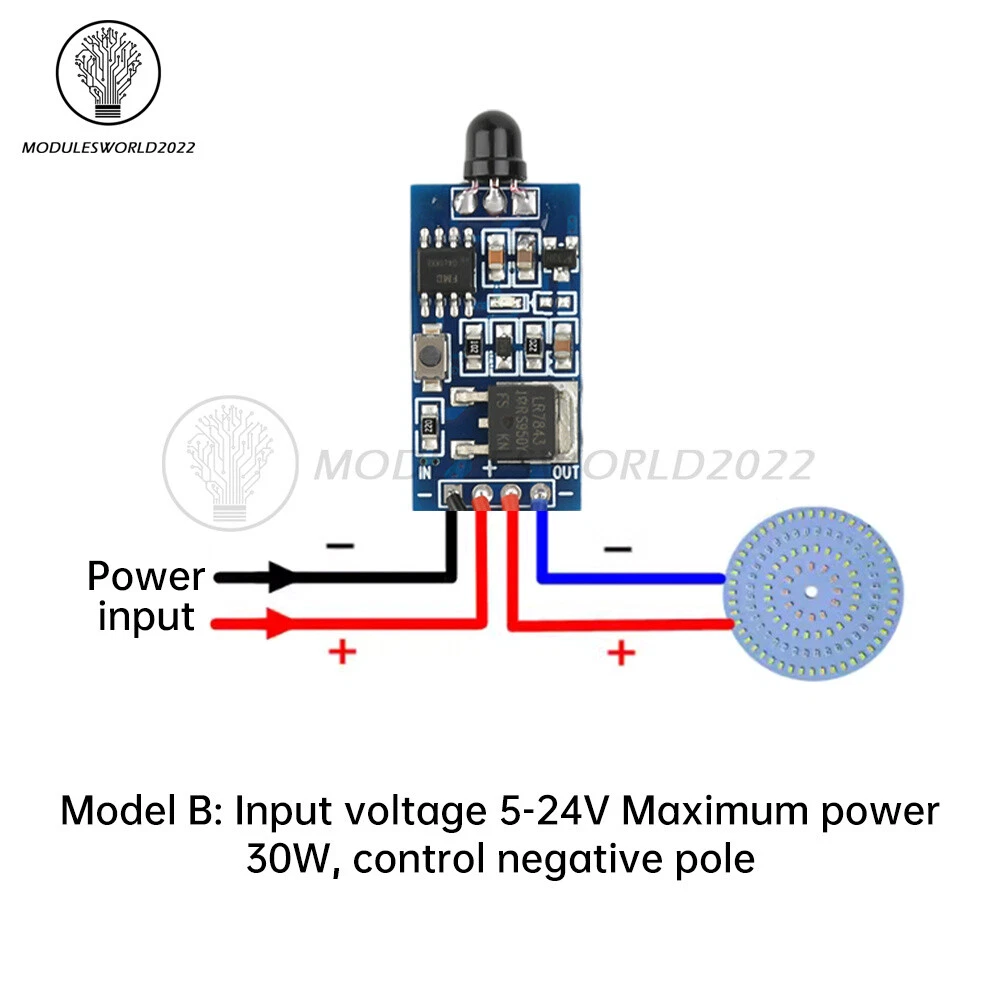

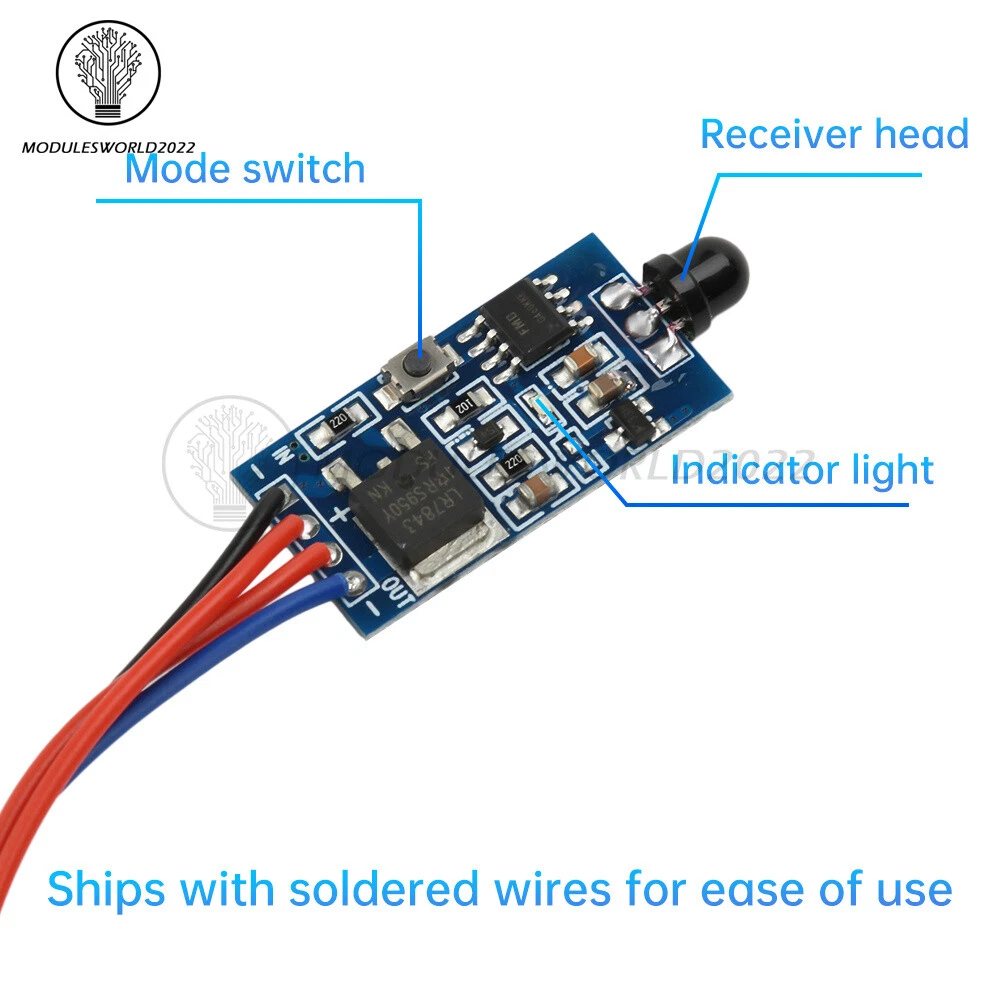

Store Categories Store Categories Other Product View Details Features: 1. The product is made of high quality materials, stable performance, quality assurance 2. There are two ways to convert the mode, through the remote control button conversion or through the module switch conversion 3. Dimming mode, flashing mode, breathing light mode, the three modes can be freely switched 4. The module has a memory function, after the power failure and then the last power will perform the mode before the last power failure. 5. Straight-line reception distance of 5-8 meters, there can be no obstruction in the middle, simple and convenient to use! Parameter: Input voltage: 5-24V Standby current: 0.2mA (suitable for long-term battery use) Working current: maximum 3A Power: Maximum 30W Receiving distance: 5-8 meters (straight line distance, remote control aligned with the receiving head, there can be no obstruction in the middle) Dimming: brightest 99%, darkest 6%, frequency 30K Breathing light: the fastest 0.2 seconds, the slowest 5 seconds Flashing light: the fastest 0.03 seconds, the slowest 2 seconds to flash once Warm tips: 1. Module is to control the negative pole 2. The use of the module requires a certain degree of electronic knowledge 3. Module connected to the back must be pure LED circuit (LED can not contain capacitors, chips, etc.) 4. Power on the work, you can add a switch in front of the module 5. Before powering up, you must check again whether the positive and negative poles are connected to the right and then energized Package include: Dimming module *1 Remote control *1 (optional) Shipping Policy Payment Method Returns Policy Shipping Policy Payment Method Returns Policy Home Payment Shipping About us Contact us Copyright©2018 datacaciques Home Payment Shipping About us Contact us Store Categories Store Categories Other Product View Details Features: 1. The product is made of high quality materials, stable performance, quality assurance 2. There are two ways to convert the mode, through the remote control button conversion or through the module switch conversion 3. Dimming mode, flashing mode, breathing light mode, the three modes can be freely switched 4. The module has a memory function, after the power failure and then the last power will perform the mode before the last power failure. 5. Straight-line reception distance of 5-8 meters, there can be no obstruction in the middle, simple and convenient to use! Parameter: Input voltage: 5-24V Standby current: 0.2mA (suitable for long-term battery use) Working current: maximum 3A Power: Maximum 30W Receiving distance: 5-8 meters (straight line distance, remote control aligned with the receiving head, there can be no obstruction in the middle) Dimming: brightest 99%, darkest 6%, frequency 30K Breathing light: the fastest 0.2 seconds, the slowest 5 seconds Flashing light: the fastest 0.03 seconds, the slowest 2 seconds to flash once Warm tips: 1. Module is to control the negative pole 2. The use of the module requires a certain degree of electronic knowledge 3. Module connected to the back must be pure LED circuit (LED can not contain capacitors, chips, etc.) 4. Power on the work, you can add a switch in front of the module 5. Before powering up, you must check again whether the positive and negative poles are connected to the right and then energized Package include: Dimming module *1 Remote control *1 (optional) Shipping Policy Payment Method Returns Policy Shipping Policy We will arrange shipping for you within 24 Hours after payment cleared except the holidays. -We ship items to Worldwide. Thank you! -we will ship out the order in 1-2 business days after payment cleared .Since it is international shipping ,delivery time is about 15--28 business days to arrive to most countries. Payment Method We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase. 2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. 3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country. Returns Policy 1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase. 2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse. 3. Please include your eBay ID and item number with any email requests.
