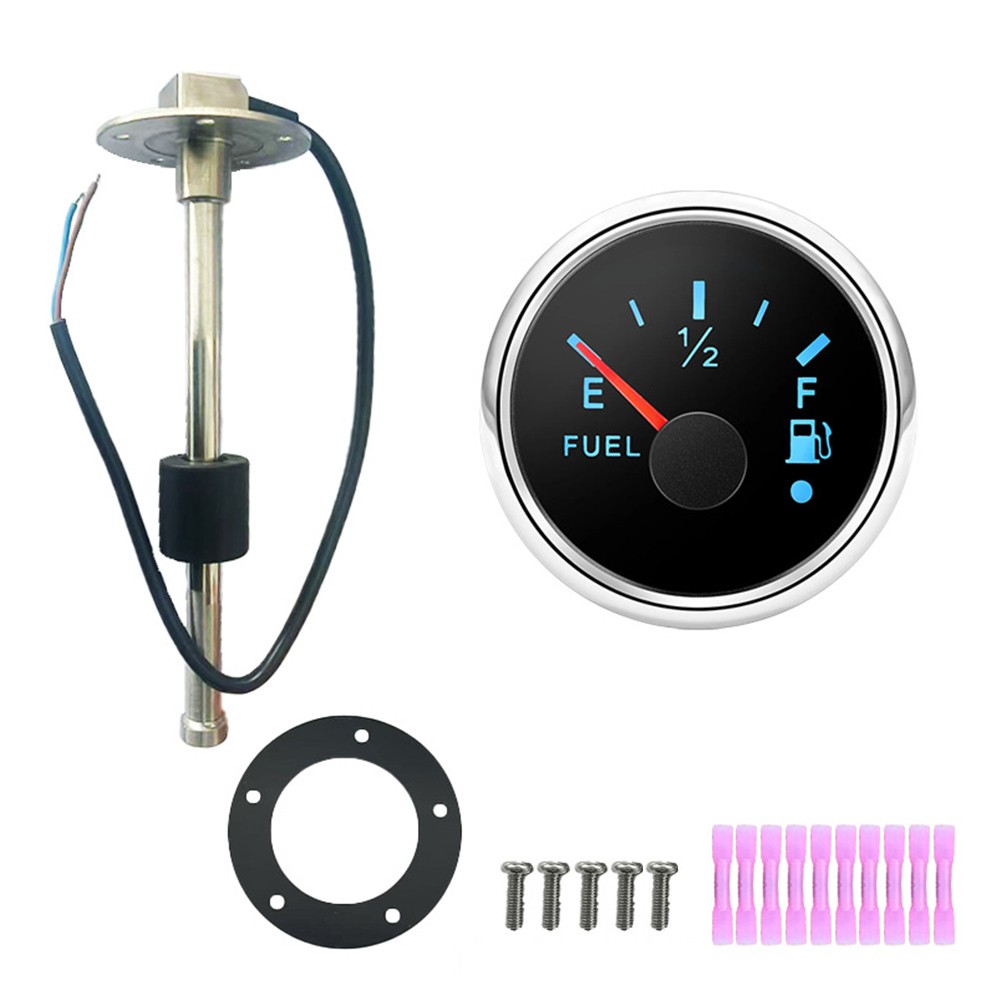

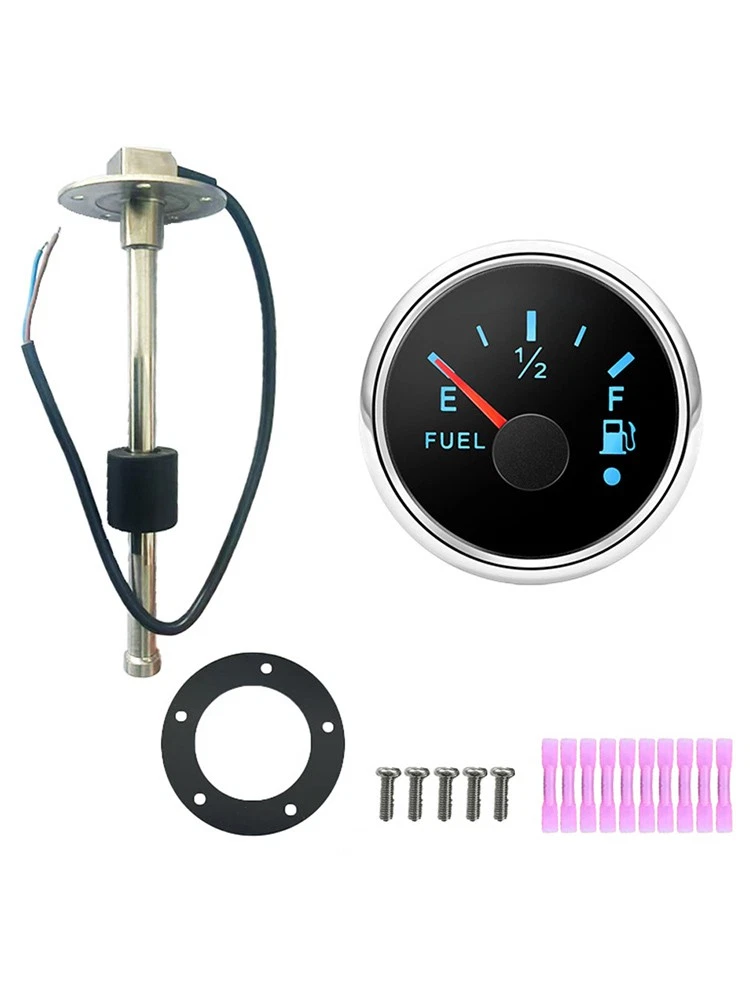

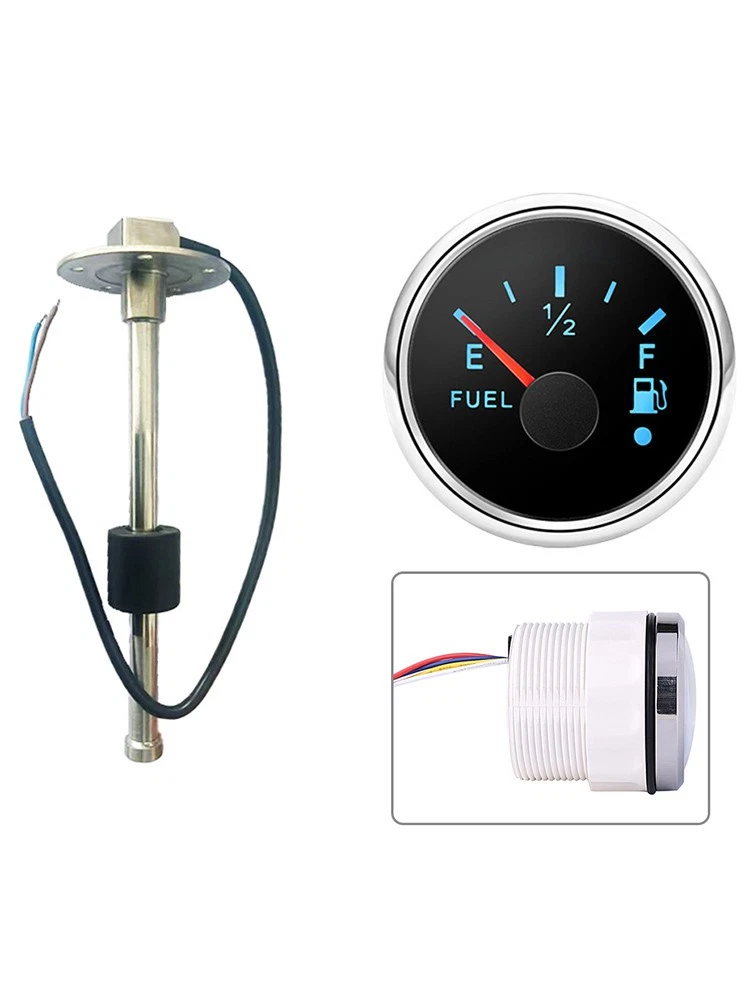

52mm Fuel Level Gauge with Fuel Level Sensor 0-190ohms Sending Unit Boat Tank;

$ 25.94

Country of Origin: China Brand: Unbranded Suitable For: Interior MPN: Does not apply Material: Plastic Type: Fuel Level Gauge

Description

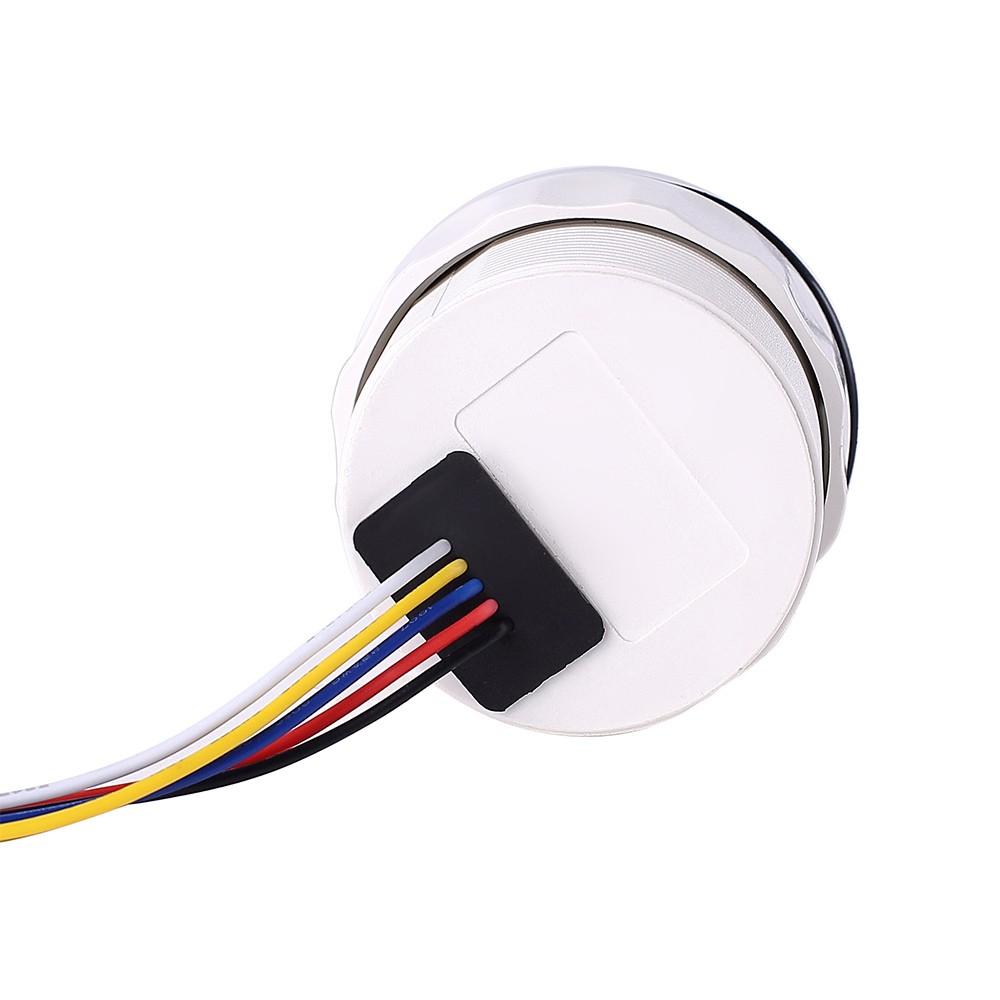

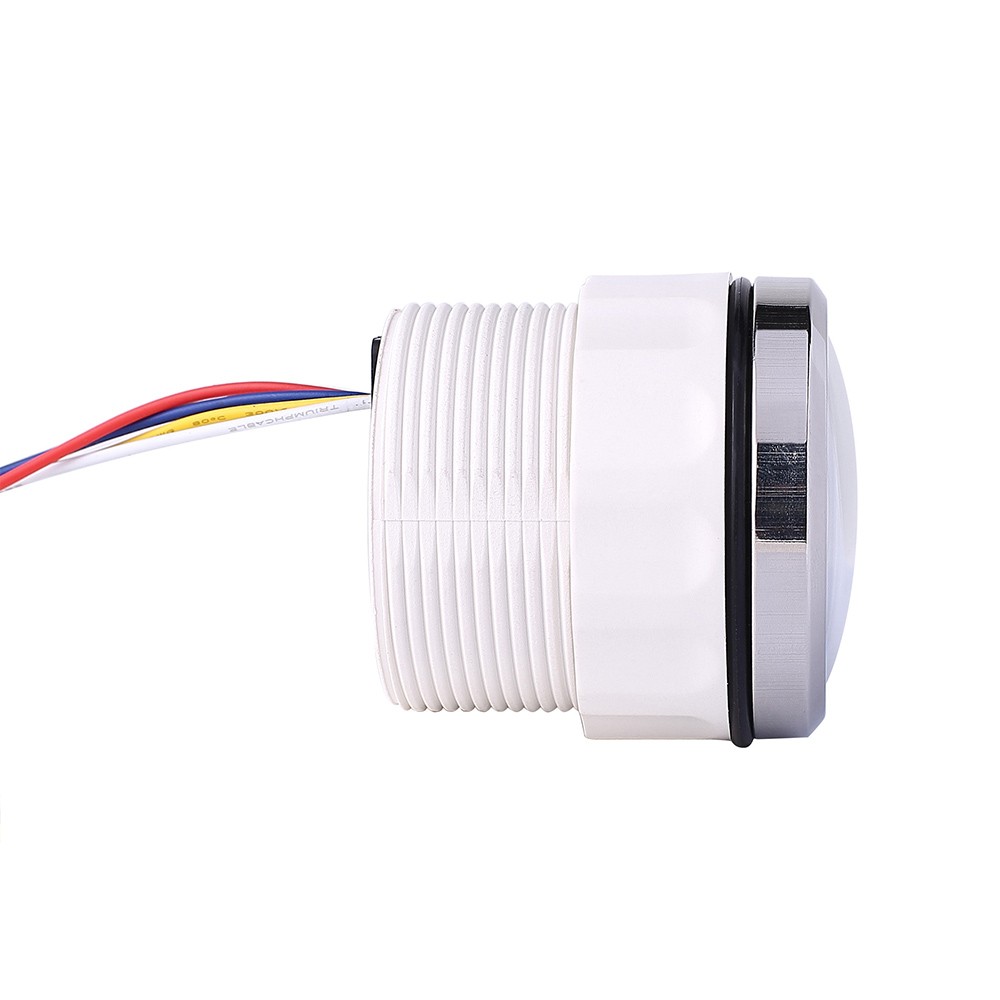

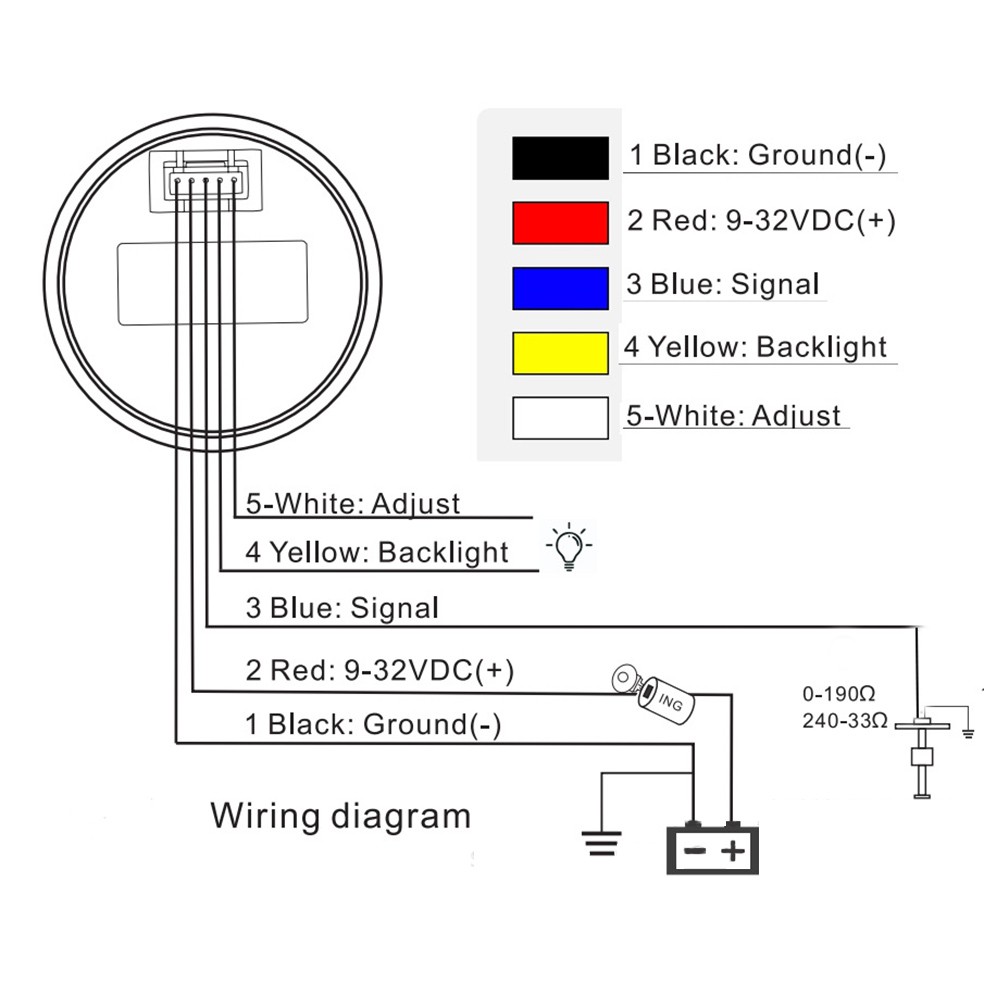

52mm Gauge Specifications: Material: Plastic Backlight Color: 7 Color Light Install diameter:Φ52mm or 2-1/16" Working voltage: 9-32V Signal: 0-190ohms Indicating Range: Empty- Full Fitment: for Boat Car Marine RV Camper etc Waterproof Operation: The white wire touches the negative pole shortly, change the backlight color : Backlight changed in sequence: red (default) green→blue→white →yellow→cyan→Purple→(automatic). Automatic: Automatically switch the backlight color every 1 minute, Cycle switch according to the above sequence. Connection 1 Black: Ground(-) 2Red: 9-32VDC(+) 3 Blue: Signal Input 4 Yellow: Backlight 5 White: Adjust Package included: 1 X Fuel Level Gauge Notice: 1. Please allow 1-2mm difference due to manual measurement 2. Due to the light and screen difference, the item colour may be slightly different from the pictures Fuel Level Sender Sensor parameter: * Resolution range: 21 mm * Assembly: SAE standard 5 holes * Operating temperatures: - 40 to 85 * Rated current for alarm switch: 500mA * Operating temperatures: - 40 to 85 Celsius * Level Sensor fit for Diesel & Gasoline Engine * Fit for Fuel Level Gauge and Water Level Gauge * Liquid level sensor length:100mm, 125mm, 150mm, 175mm, 200mm, 225mm, 250mm, 275mm, 300mm, 350mm400mm, 450mm, 500mm (please choose the size you want) * Mounting: 5 pieces of M5 screws and 2 mm thick gasket * Output signal: 0~190 ohm Package Includes: 1 x Sensor 1 x Gasket 5 x Screws Notice: Professional installation is highly recommended. Any problem on the way please don't make a decision immediately. Please contact first to check what is the reason, we will give you a satisfactory solution asap. On Mar 12, 2026 at 18:21:50 PDT, seller added the following information:
