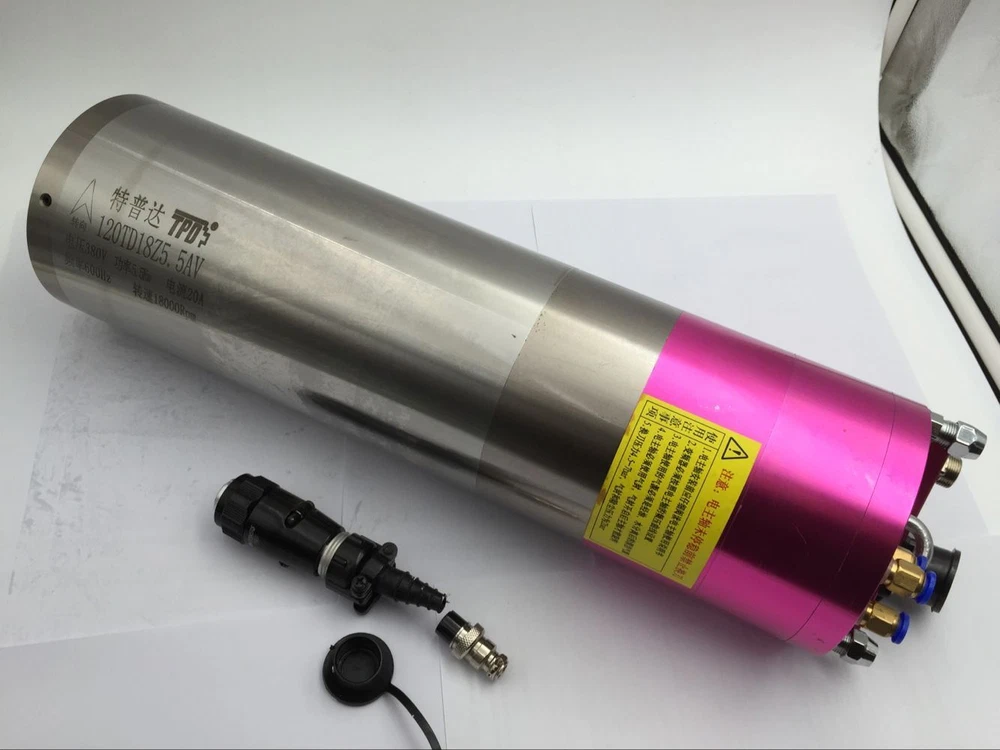

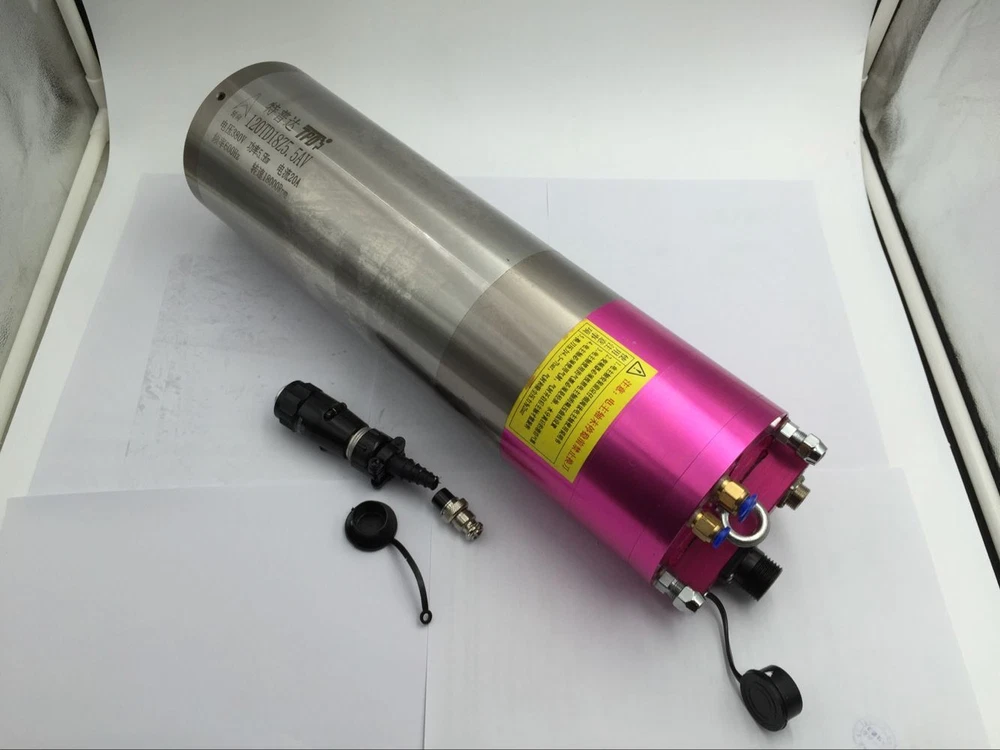

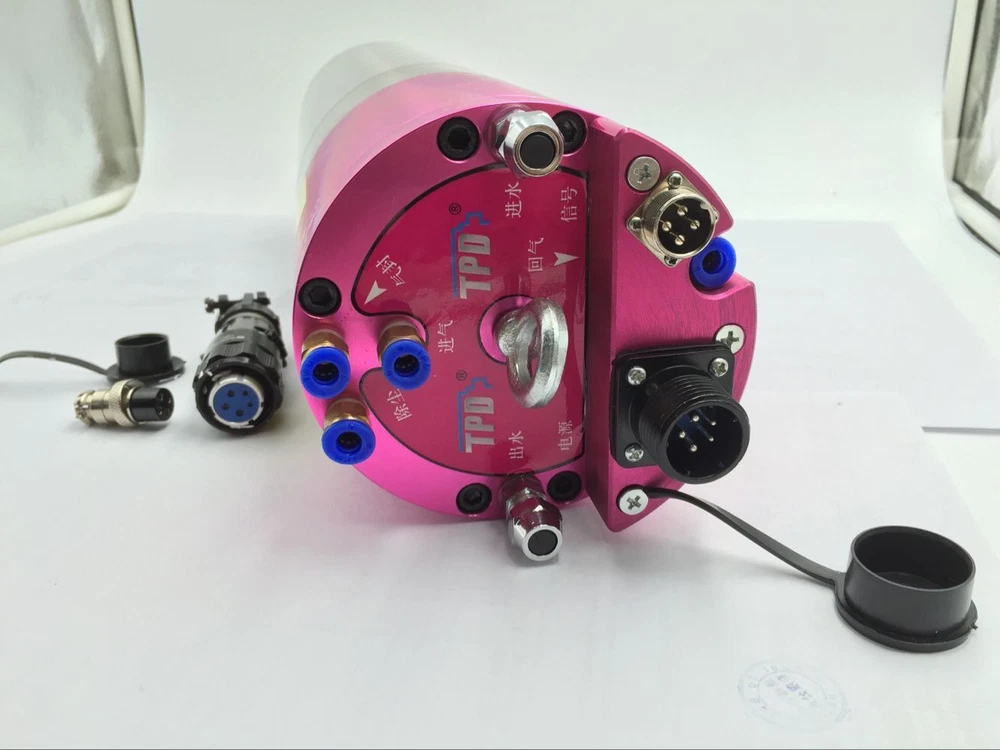

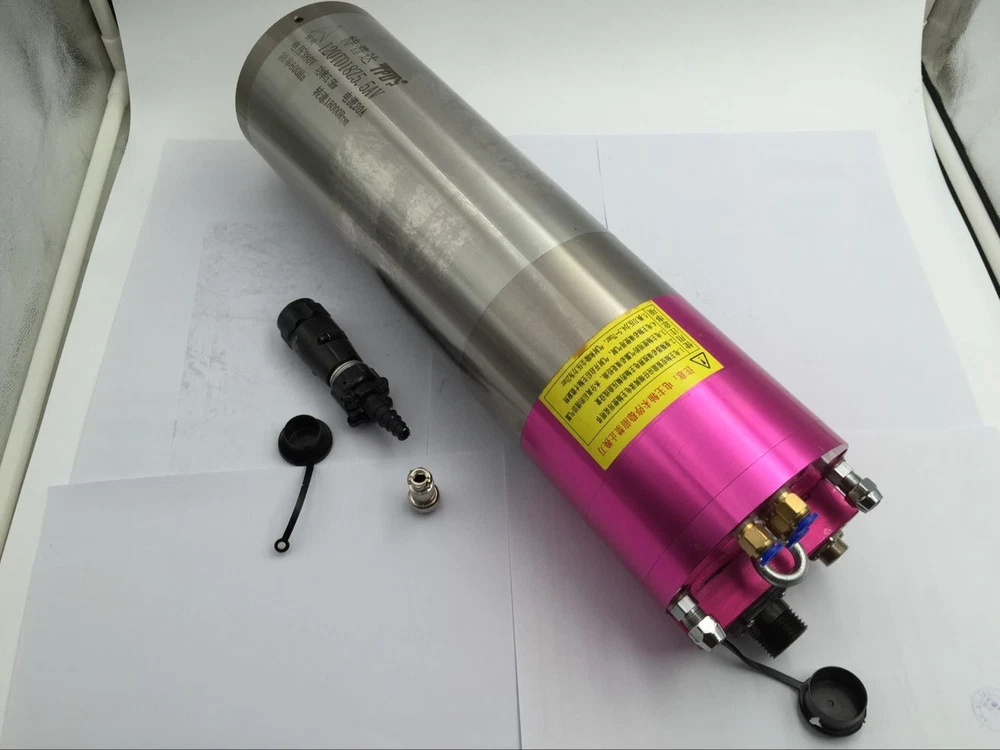

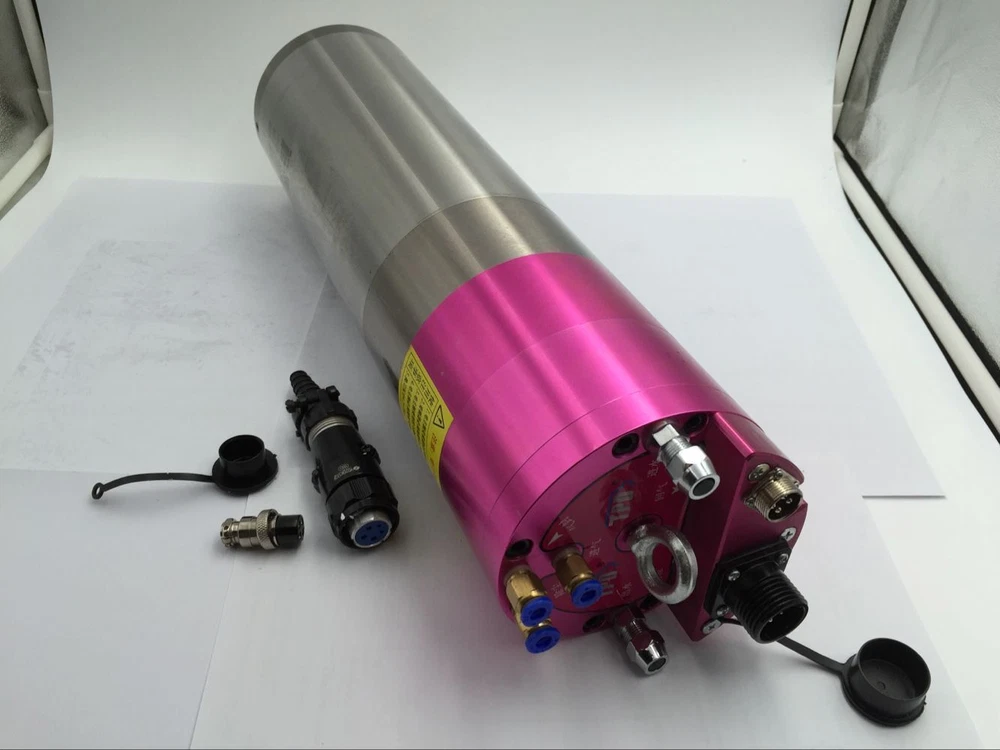

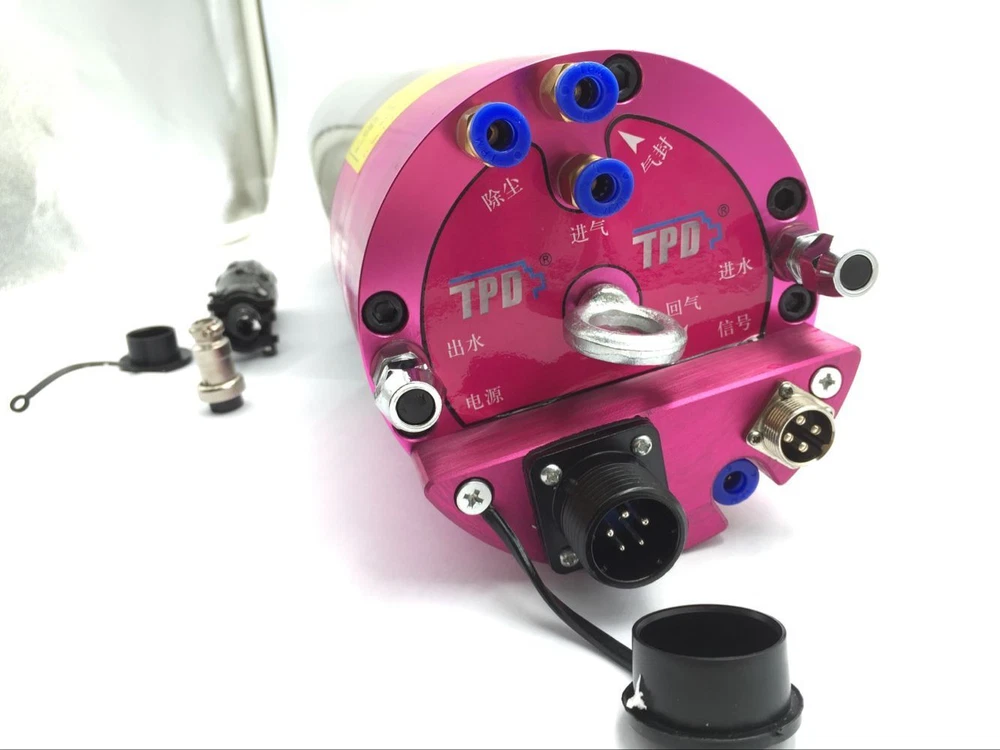

5.5KW BT30 ATC Spindle Motor Water-cooled 220V 18000rpm High Speed CNC Engraving
$ 1512.72
Description

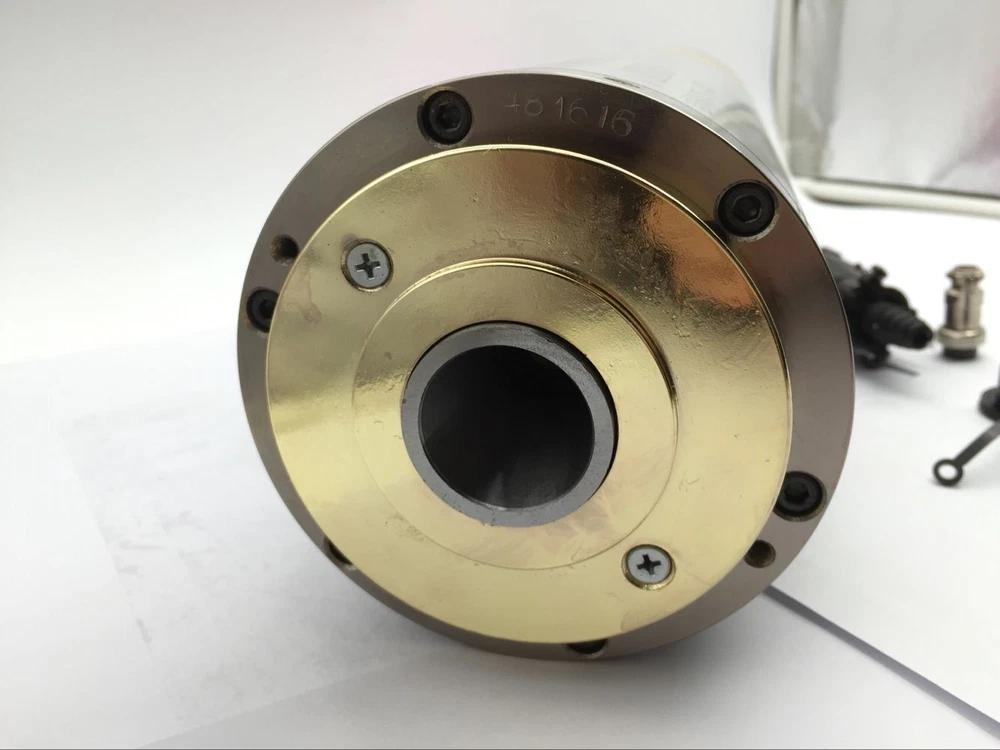

ITEMS DESCRIPTION 18000rpm 5.5KW 220V 20A 2.9Nm 600Hz BT30 Water-cooled ATC Spindle Motor for CNC Engraving New Specifications: Model No. 120TD18Z5.5A-220V Brand Changsheng(Made in China) Product type three-phase asynchronous Automatic Tool Change (ATC) Spindle motor Power 5.5KW Frequency 600Hz Voltage 220V Speed 18000r/min Current&N.M 18A 2.9N.M Certification ISO9001-2000 Pole number 4 Cooling Water-cooled Lubricate grease Joint of nose BT30(if needed, please let us know) Repair time bearing(half year),spindle(one year) Weight 26KG Kindly note: Motorized spindle motors are matched with inverters, choosing inverters should be according to the current, voltage, and frequency of motorized spindle motors. Setting the inverter must firstly set up the basal frequency, its basal frequency is based on the highest frequency of motorized spindle motor, if not setting the basal frequency (the factory setting is 50Hz),the motorized spindle motor would burn out once start running; The highest frequency, break frequency and the corresponding voltage also should be set according to the curve on the operating instruction; setting the current of the inverters is also based on the rated current of motorized spindle motor; The overcurrent is 120% of rated current; overload tripping is 100%, time is 5s; Carrier frequency is set by the power of spindle motor,8kHz for less than 10KW motorized spindle motor, 5kHz is for more than 10KW spindle motor; The acceleration time and deceleration time are 10s and 20s respectively, if starting current exceed the rated current and need protection, it should extend the acceleration time. I/O lack-phase protection also should be set above the function of protecting inverters and motorized spindle motors. Connecting the inverter and the three-phase power of spindle motor, solder the inverter three-phase power cord on the plug 1(U1),2(V1),3(W1), plug 4 is ground wire. Then the inverter is connected with the external power supply and start work, then to check whether the rotation direction of spindle motor is consistent with its indication direction, if inconsistent, immediately shut down and change two wire on the three-phase power supply of connecting inverter and motorized spindle motor. The motorized spindle motor is prohibited running in the wrong rotation direction. Power lines should be taken waterproof and shielding measures. The connection between motorized spindle motor and inverter should not exceed 25m.When the power cord of the water-cooled spindle motor connects the terminal block, it must be bent into U shape and fixed on the bottom of the terminal block and then connect, so that can protect the condensed water of the power cord into the terminal block. Another, use shielding power lines to prevent its interference to inverter.
