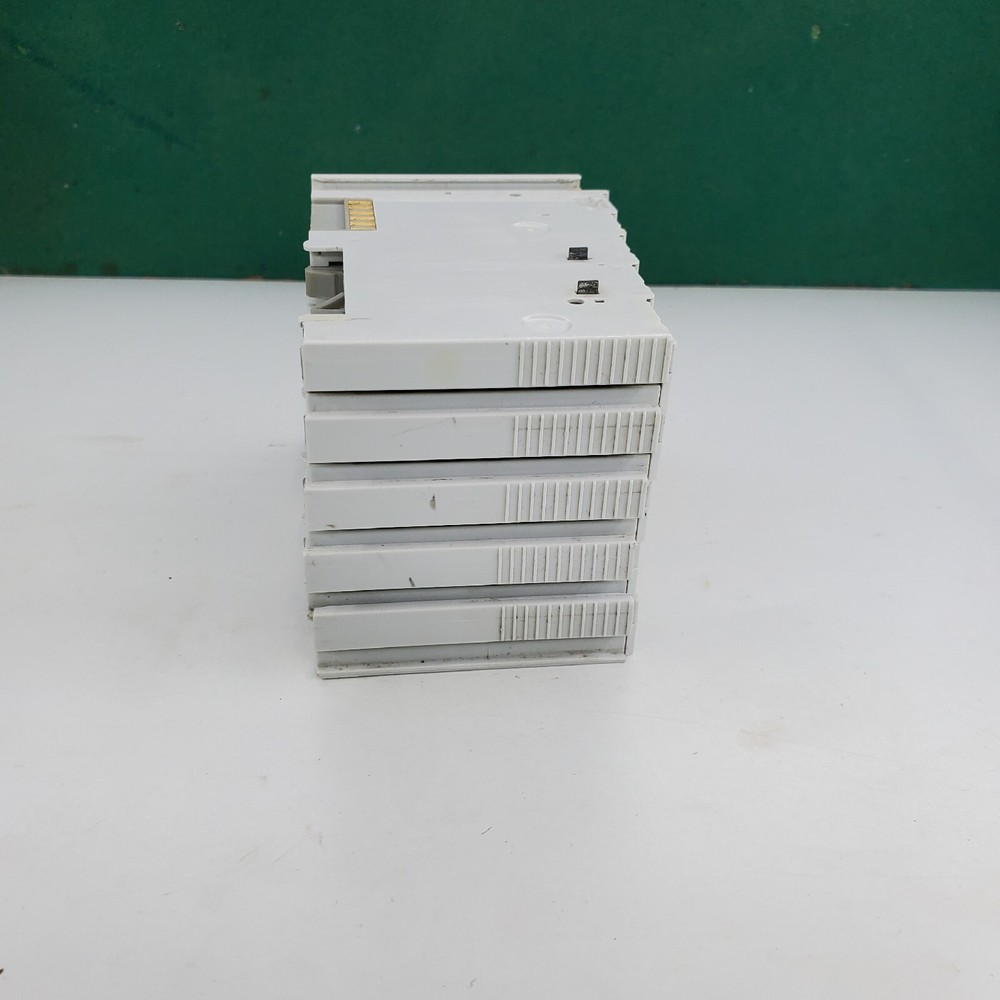

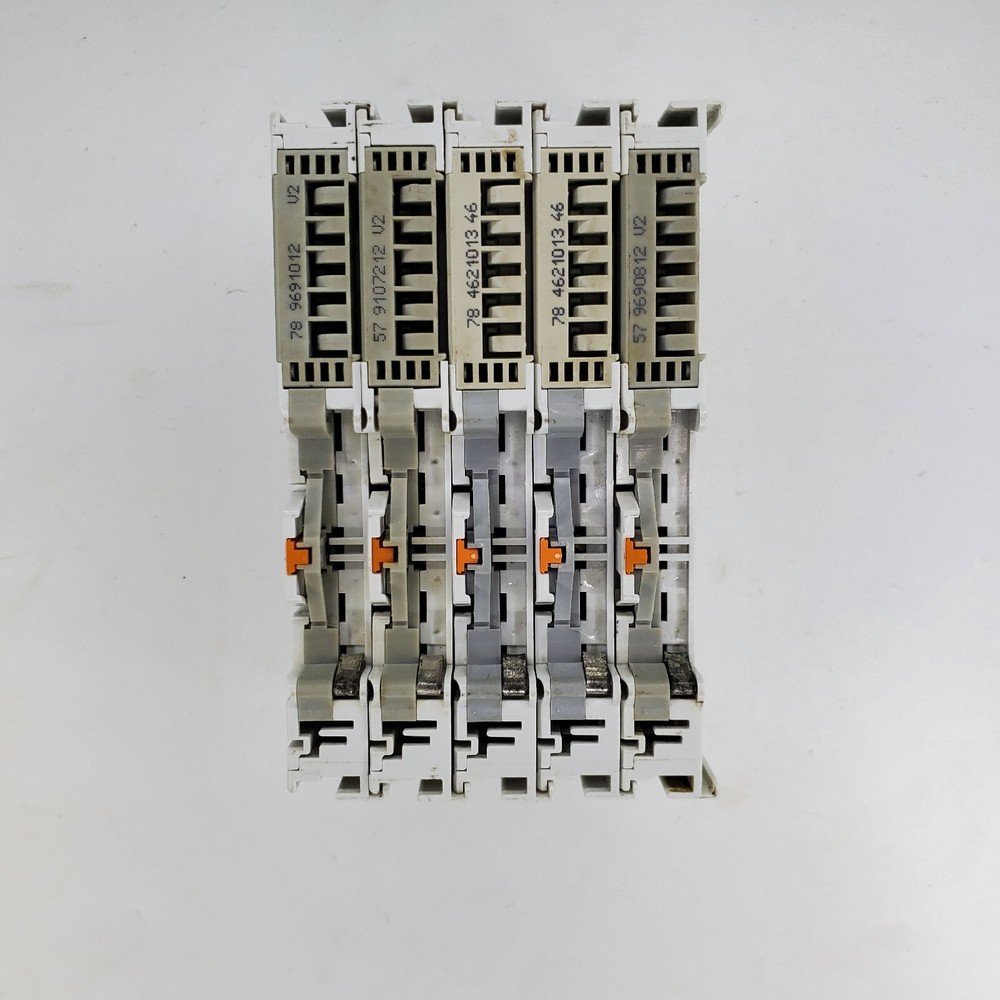

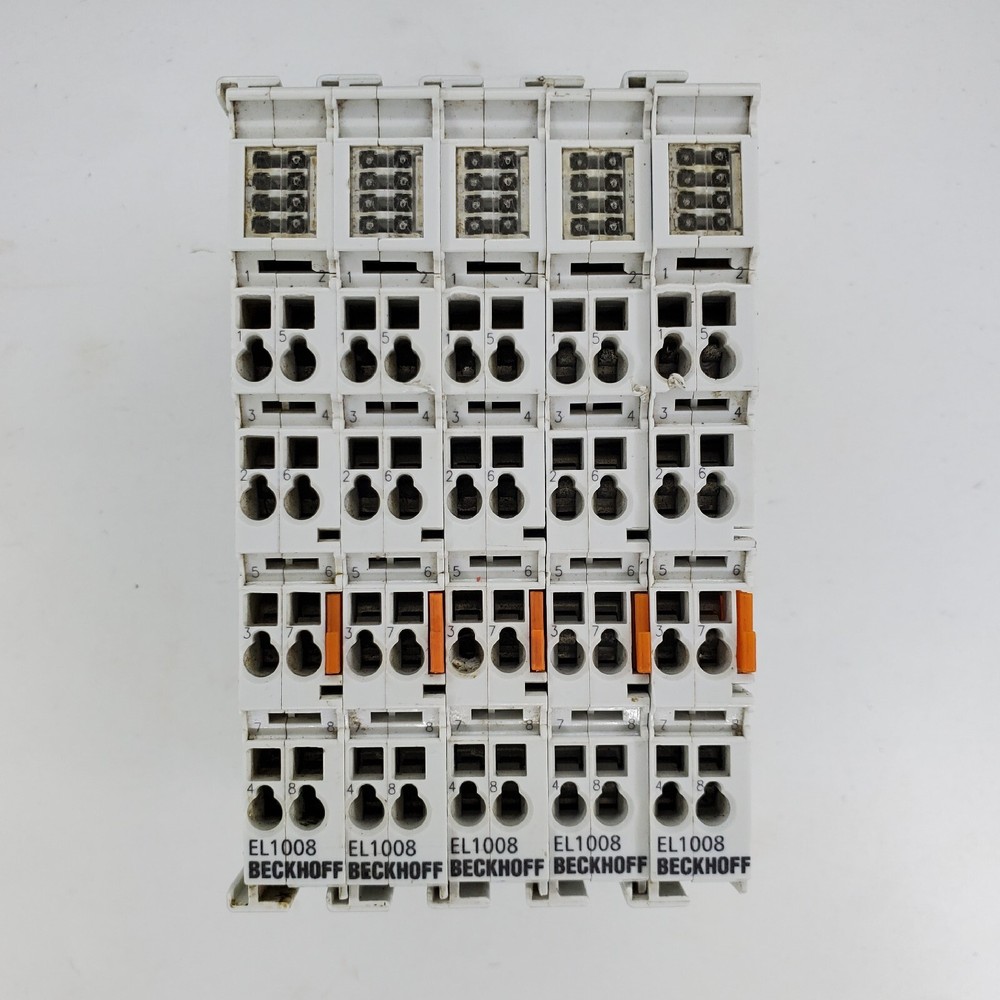

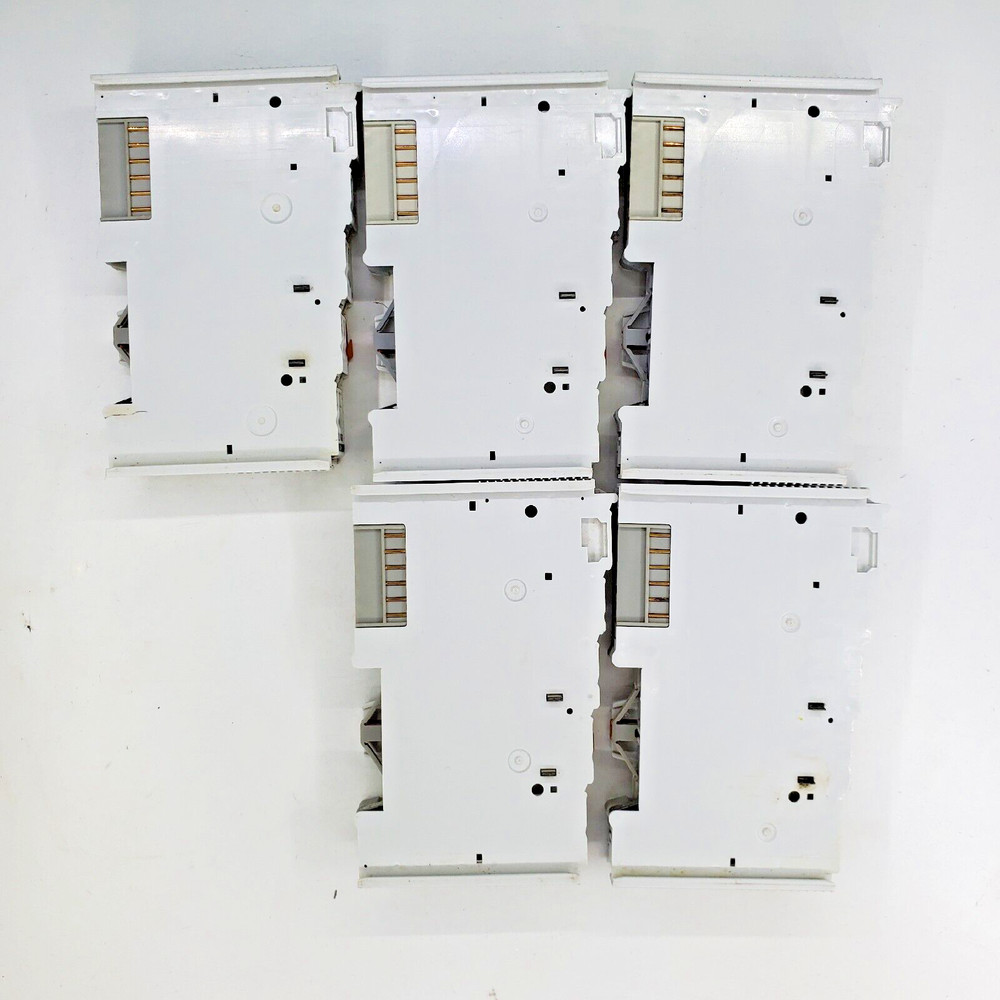

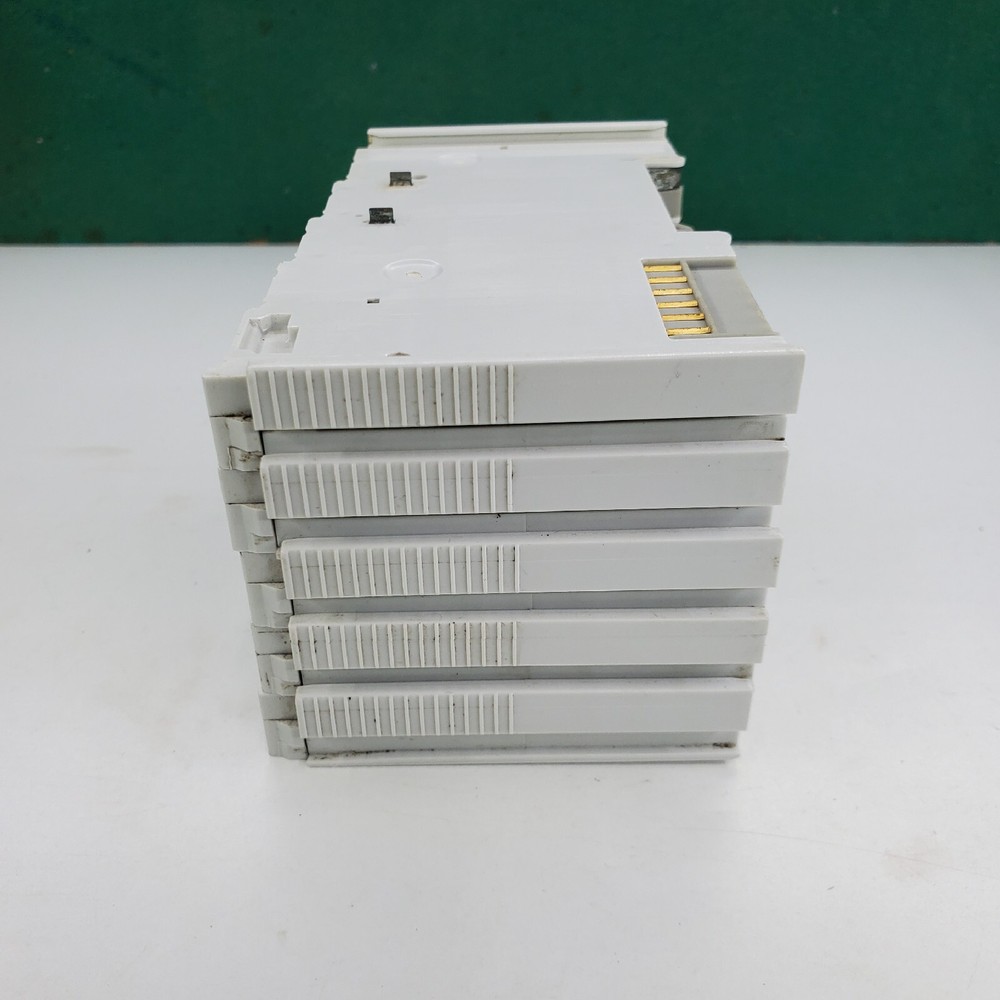

5pcs Beckhoff EL1008 EtherCAT Terminal, 8-channel digital input, 24 VDC GERMANY
$ 41.82
Description
5pcs Beckhoff EL1008 EtherCAT Terminal, 8-channel digital input, 24 VDC GERMANY. Input current typ. 3 mA (EN 611312, type 3). Input filter typ. Electrical isolation 500 V (Ebus/field potential). AND WORK AT NARROW MARGINS. Installation on 35 mm DIN rail, conforming to EN 60715 with lock. {WORLDWIDE DELIVERY 810 WORKING DAYS} "DISCLAIMER" "THIS PARTICULAR ITEM WILL BE SHIPPED FROM ONE OF OUR INDIAN WAREHOUSE" BEFORE BUYING AN ELECTRONIC PRODUCT: IN ELECTRONIC ITEMS WE UPLOAD VIDEOS SO THAT BUYER CAN GET AN IDEA HOW FUNCTIONAL IT IS, KINDLY PLEASE WATCH THE VIDEO AND IF YOU HAVE ANY QUERIES CONTACT US, WE WILL SOLVE YOUR QUERY 5pcs Beckhoff EL1008 | EtherCAT Terminal, 8channel digital input, 24 V DC, 3 ms WE VALUE YOUR TIME & MONEY , THANKS FOR OPTING US. WE SELL ALL THE PRODUCTS AS DESCRIBED TO ENSURE YOUR SATISFACTION, AND WORK AT NARROW MARGINS, KINDLY REQUEST YOU NOT TO RETURN PRODUCTS . WE ARE ALWAYS HERE TO HELP YOU. WE STRIVE FOR 100% CUSTOMER SATISFACTION, AND WE STAND BEHIND EVERYTHING WE SELL! WHEN YOU RECEIVE AND ARE HAPPY WITH YOUR PURCHASE PLEASE LEAVE US A 5 STAR FEEDBACK RATING. THANK YOU FOR HELPING US SERVE YOU BETTER!! Technical data Housing data To top Technical dataEL1008Connection technology 1wire Specification EN 611312, type 1/3 Number of inputs 8 Nominal voltage 24 V DC (15 %/+20 %) “0” signal voltage 3…+5 V (EN 611312, type 3) “1” signal voltage 11…30 V (EN 611312, type 3) Input current typ. 3 mA (EN 611312, type 3) Input filter typ. 3.0 ms Distributed clocks – Current consumption power contacts typ. 2 mA + load Current consumption Ebus typ. 90 mA Electrical isolation 500 V (Ebus/field potential) Configuration no address or configuration setting Special features standard input terminal for bouncing signals (filter 3 ms) Weight approx. 55 g Operating/storage temperature 25…+60 °C/40…+85 °C Relative humidity 95 %, no condensation Vibration/shock resistance conforms to EN 6006826/EN 60068227 EMC immunity/emission conforms to EN 6100062/EN 6100064 Protect. rating/installation pos. IP20/see documentation Pluggable wiring for all ESxxxx terminals Approvals/markings CE, UL, ATEX, IECEx, DNV GL, cFMus Ex marking ATEX:II 3 G Ex nA IIC T4 GcIECEx:Ex ec IIC T4 GccFMus:Class I, Division 2, Groups A, B, C, DClass I, Zone 2, AEx ec IIC T4 Gc Technical data Housing data To top Housing dataEL128pinES128pinDesign form compact terminal housing with signal LEDs terminal housing with pluggable wiring level Material polycarbonate Dimensions (W x H x D) 12 mm x 100 mm x 68 mm Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of double slot and key connection Marking labeling of the BZxxx series Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver Connection crosssection s*: 0.08…2.5 mm²,st*: 0.08…2.5 mm²,f*: 0.14…1.5 mm² s*: 0.08…1.5 mm²,st*: 0.08…1.5 mm²,f*: 0.14…1.5 mm² Connection crosssection AWG s*: AWG 28…14,st*: AWG 28…14,f*: AWG 26…16 s*: AWG 28…16,st*: AWG 28…16,f*: AWG 26…16 Stripping length 8…9 mm 9…10 mm Current load power contacts Imax : 10 A *s: solid wire; st: stranded wire; f: with ferrule
