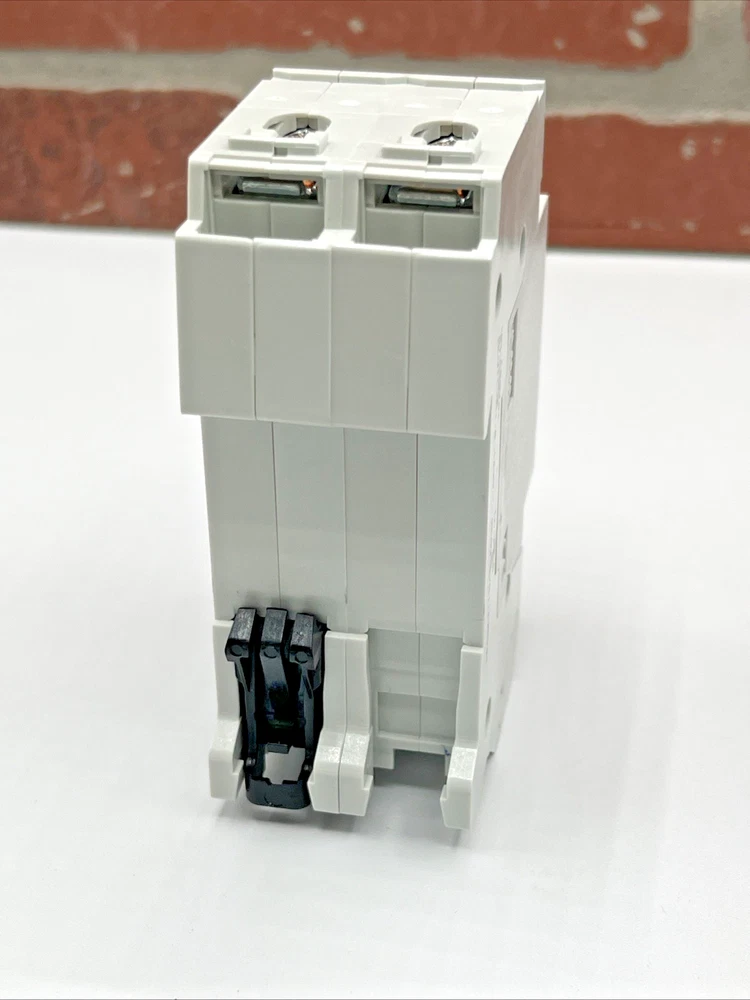

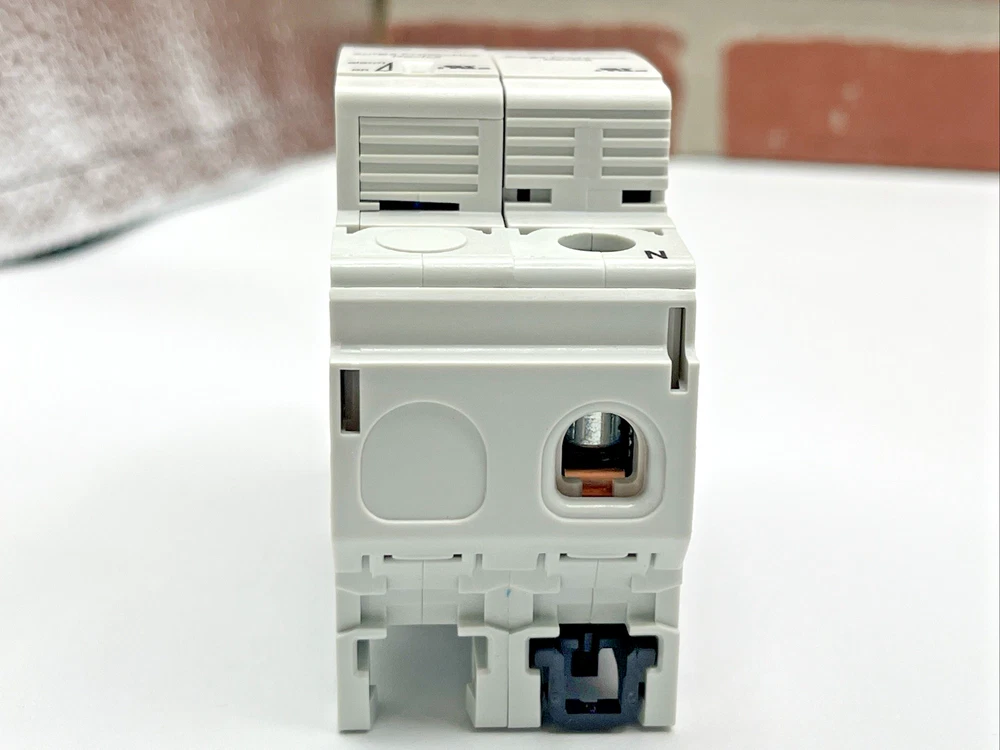

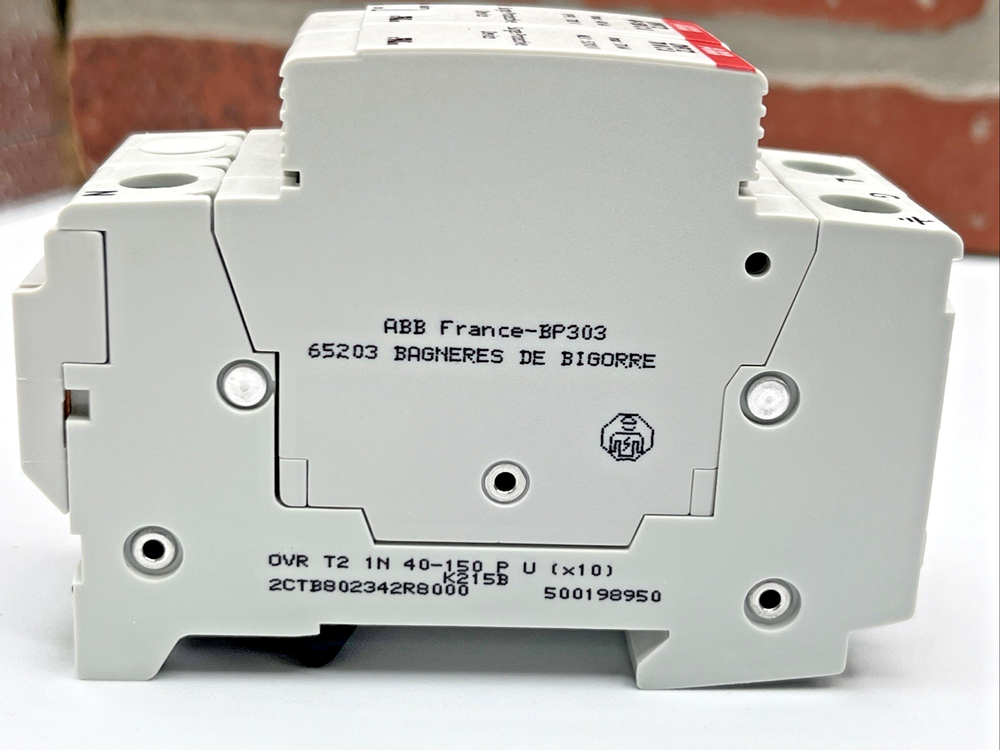

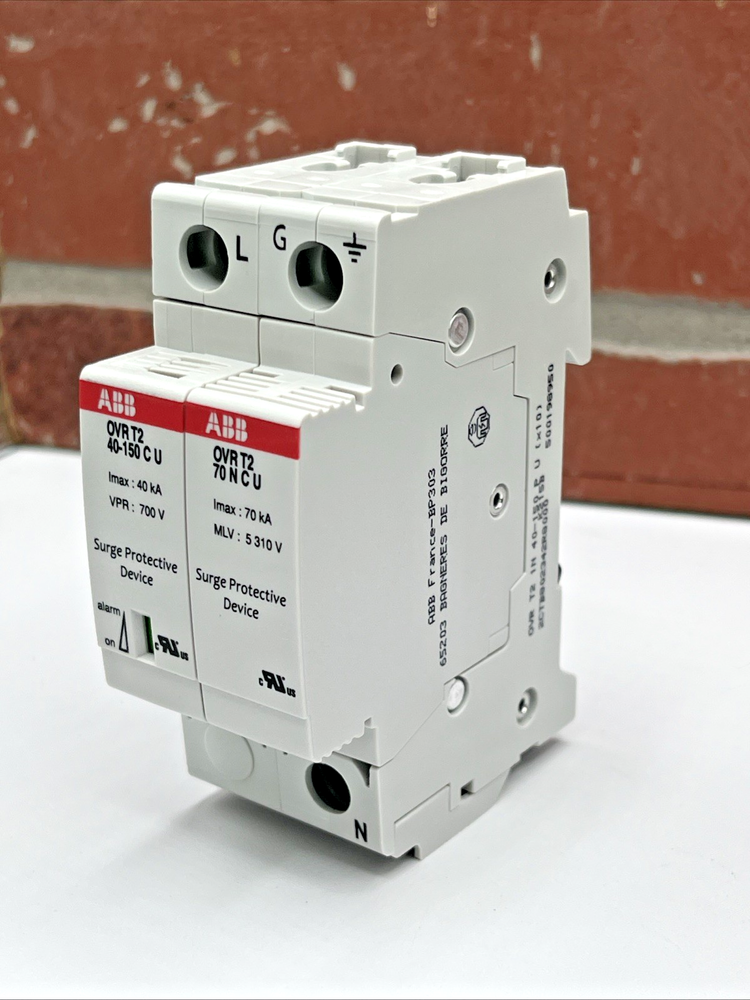

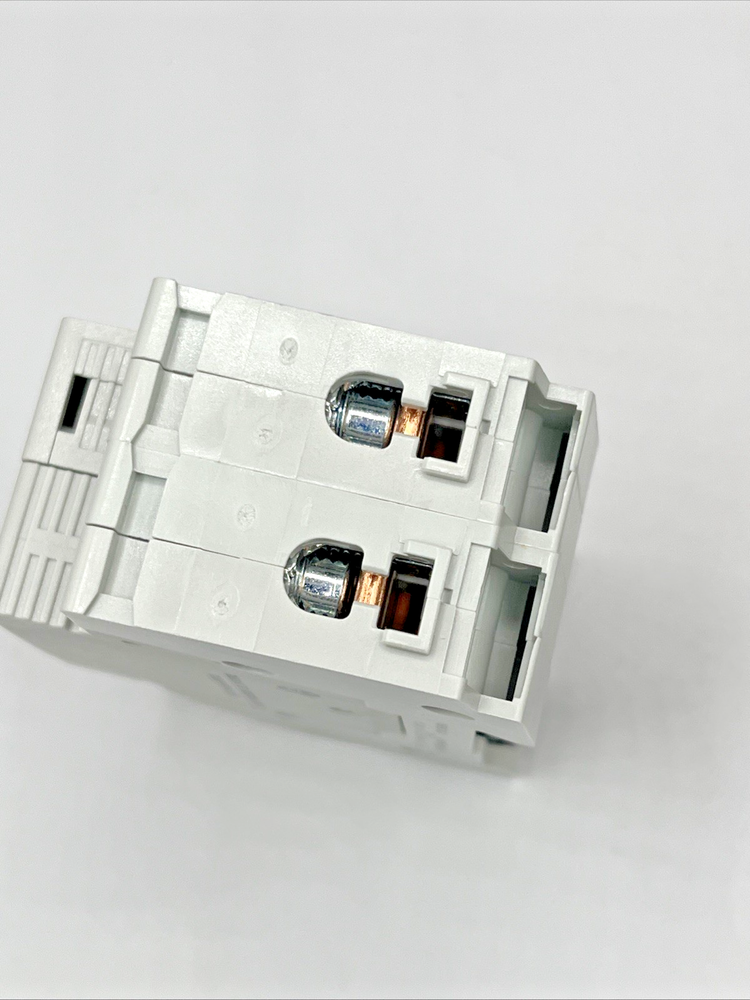

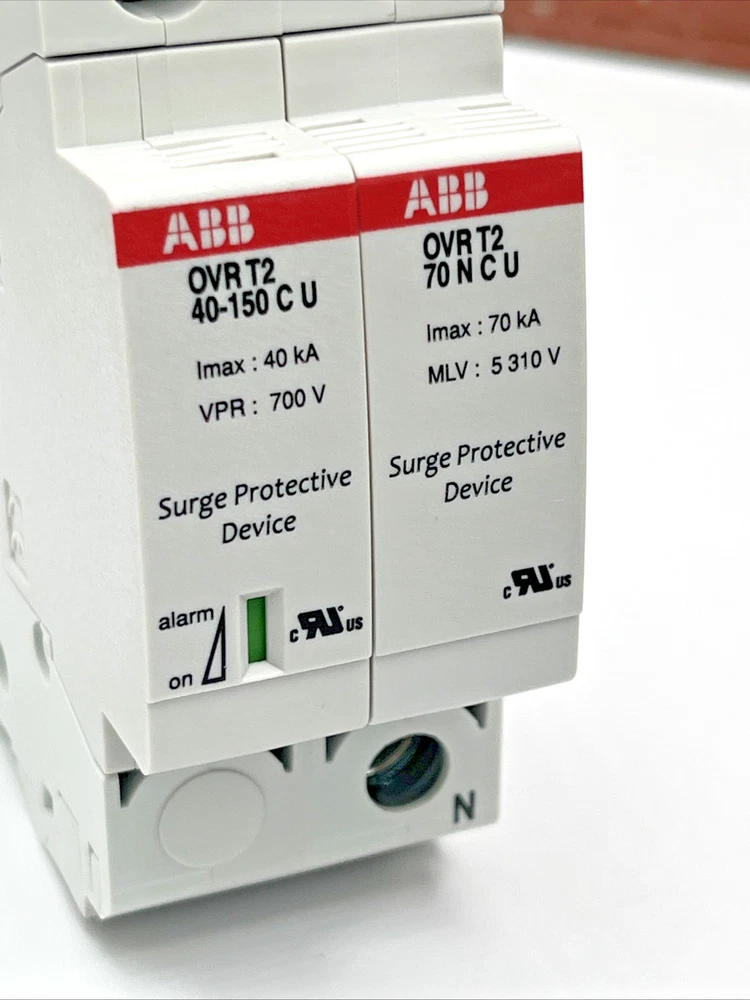

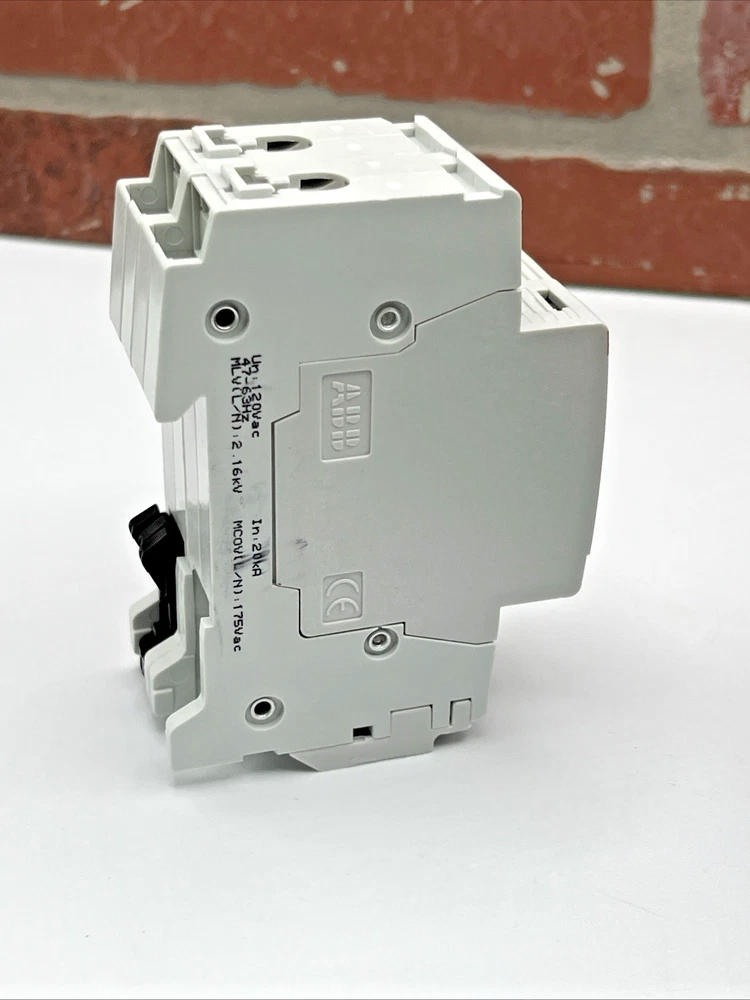

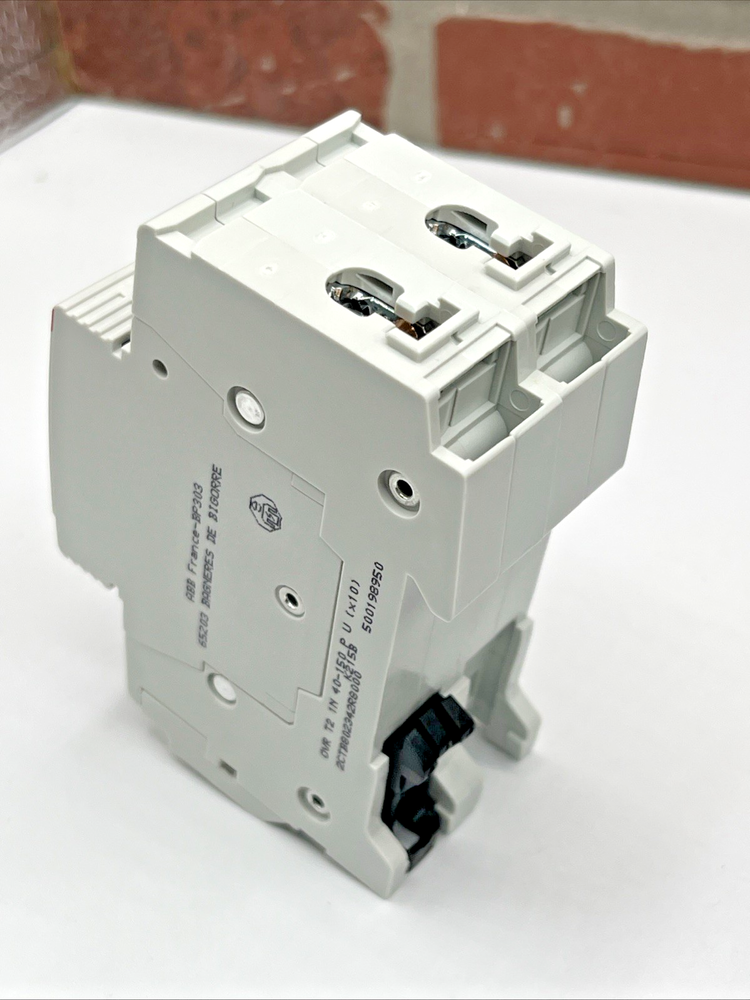

ABB OVR T2 1N 40-150 P TS U Surge Protective Device *NEW*
$ 39.6
Description
Go To Section: Technical Electrical Technical UL/CSA Material Compliance Environmental Dimensions Ordering Certificates and Declarations Installation Popular Downloads External Classifications and Standards Technical Suitable For: To protect the systems against the transient overvoltage (lightning) Nominal AC Voltage of the System (U o ): 120 V Maximum Continuous Operating Voltage (U c ): (L-PE) 175 V Rated Service Short-Circuit Breaking Capacity (I cs ): 100 kA Discharge Current: Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA Short Circuit Withstand Icc: 100 kA Arrester Class: II Number of Protected Poles: 2 Number of Poles: 2P Number of Conductors: 2 Position of Neutral Terminals: Right Transmission Standard: Optic Version: Plug-in Options Provided: Residential, commercial building. Preventive Maintenance Feature: No Status Indicator: Yes Fuse Size: 2 modular spacing Electrical Short-Circuit Current Rating (SCCR): 200 kA Rated Voltage (U r ): 120 V AC Voltage Protection Level ( Up): 1 kV (L-N) 1 kV (N-PE) 1 kV Technical UL/CSA Maximum Continuous Operating Voltage UL/CSA (MCOV): (L-PE) 175 V (L-L) - V (L-N) 175 V (N-PE) 175 V Maximum Operating Voltage UL/CSA: 175 V Type of Low Voltage Distribution System UL/CSA: Single Phase Material Compliance RoHS Declaration: Declaration of Conformity for OVR T2 U RoHS Information: Following EU Directive 2011/65/EU RoHS Date: 20220610 REACH Declaration: Declaration regarding the REACH-Regulation REACH Information: False - does not contain substances > 0.1 mass percentage REACH Date: 20250225 Conflict Minerals Reporting Template (CMRT): Conflict Minerals Reporting Template SCIP: 21369036-5835-4b17-8827-a831f2b9204c Bulgaria WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm) WEEE B2C / B2B: Business To Business Environmental Degree of Protection: IP20 Maximum Operating Altitude Permissible: Without Derating 5000 Dimensions Width in Number of Modular Spacings: 2 Product Net Width: 35.6 mm Product Net Height: 90.5 mm Product Net Depth / Length: 64.8 mm Product Net Weight: 0.24 kg Ordering Package Level 1 Units: box 1 piece Package Level 1 Gross Weight: 270 g Certificates and Declarations Declaration: 2CTC432056G1701 Declaration of Conformity - CE: Declaration of Conformity for OVR T2 U UL Certificate: Certificate UL & CSA OVR T2 P Installation Instructions and Manuals: Manual OVR T2 Multipoles Pluggable U Mounting Type: DIN-Rail Popular Downloads Data Sheet, Technical Information: Data sheet OVR T2 1N 40-150 P U Mechanical Drawings: 2CTC800020F2900.pdf 2CTC800020F2901.dxf 2CTC800020F2902.stp 2CTC800020F2903.igs External Classifications and Standards ETIM 9: EC000941 - Surge protection device for power supply systems ETIM 10: EC000941 - Surge protection device for power supply systems eClass: V11.0 : 27130805 Object Classification Code: 141DBC Standards: UL 1449 Ed3
Speedy delivery, reasonably priced, and Bad description the seller would not accept responsibility. I have to contact eBay and ask them to step in. the seller made it clear that they was not intend to accept any return. after I try to boot the system it did boot but the bios was lock. so I could not use it for the parts that I intendent to.
Easy seller to work with, received all product promptly and in good condition as described. I'm already placing another order.
Good communication and prompt shipping. All transaction was easy and item arrived as described. Recommend business.
Related products
1pcs cathode vacuum gauge HPT200PB PTR39152A
$ 990.97Penn-Union PNL-500 Bronze Solderless Mechanical Lug 500MCM 4-AWG P-U lot of 19
$ 95.04New In Box NEC NL10276AC30-42D LCD Display Panel 15-inch

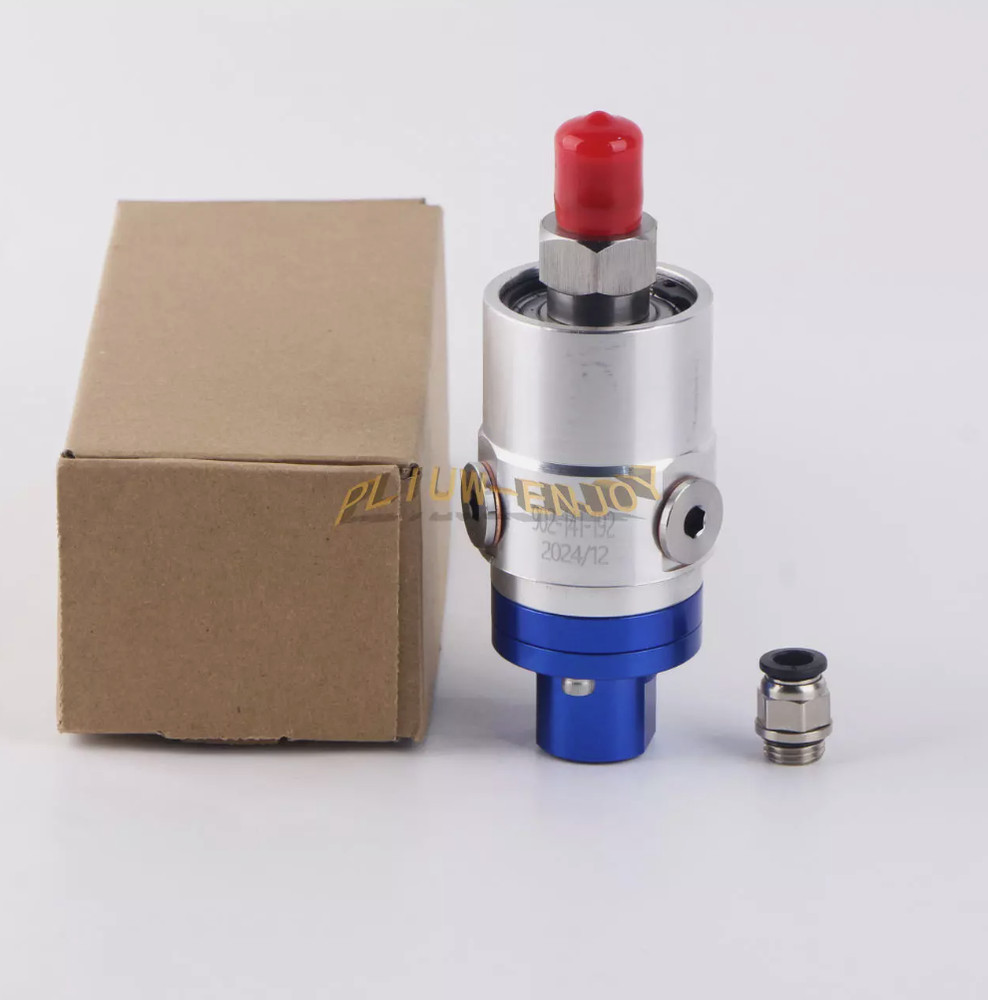

$ 116.861pcs New for DEUBLIN 902-141-192 Rotary joint Substitute
