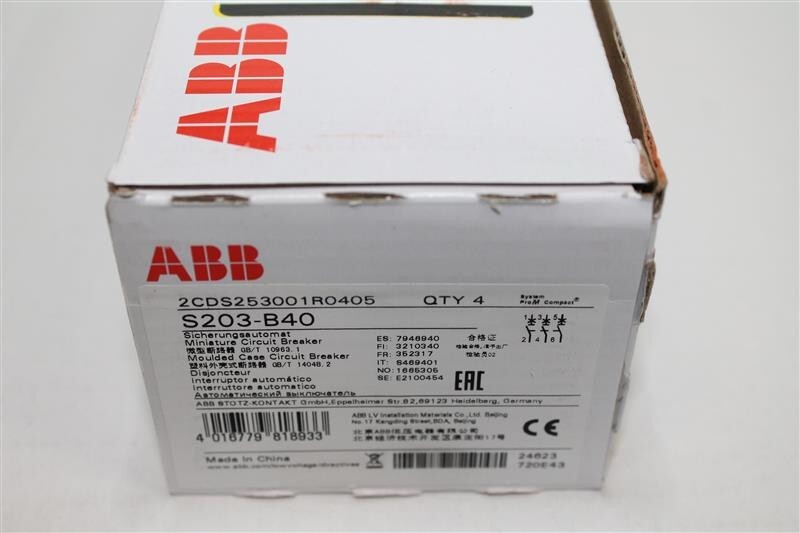

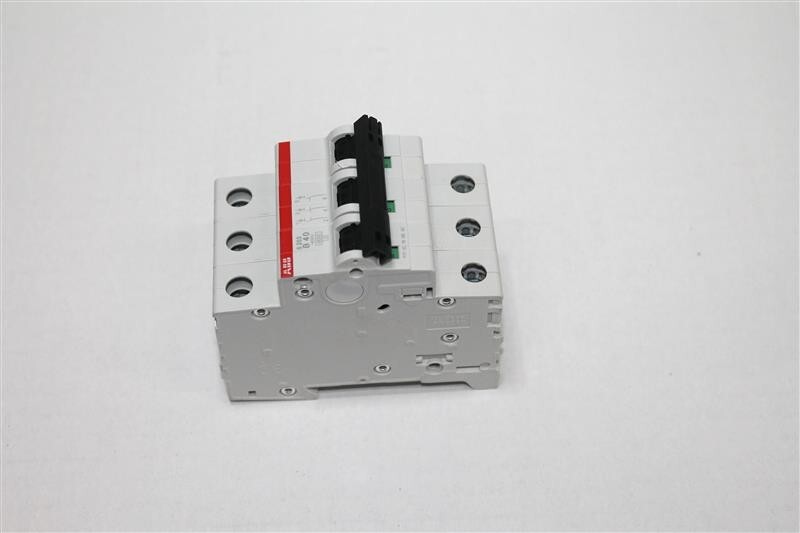

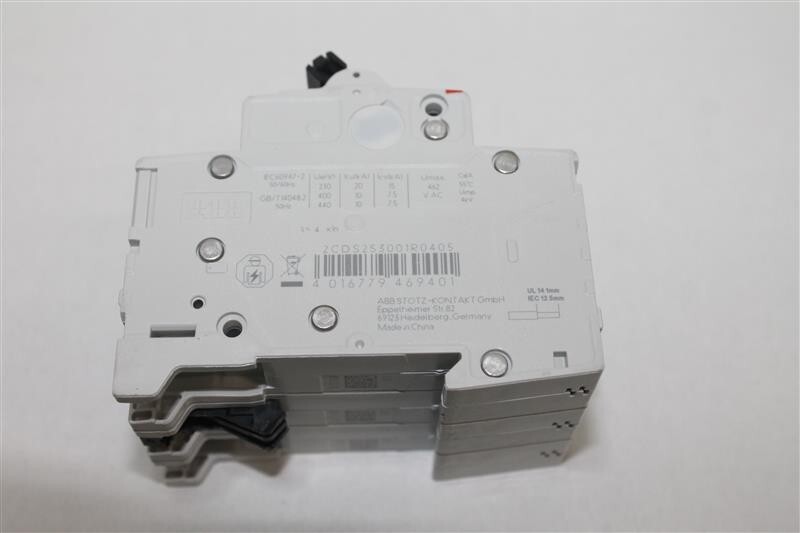

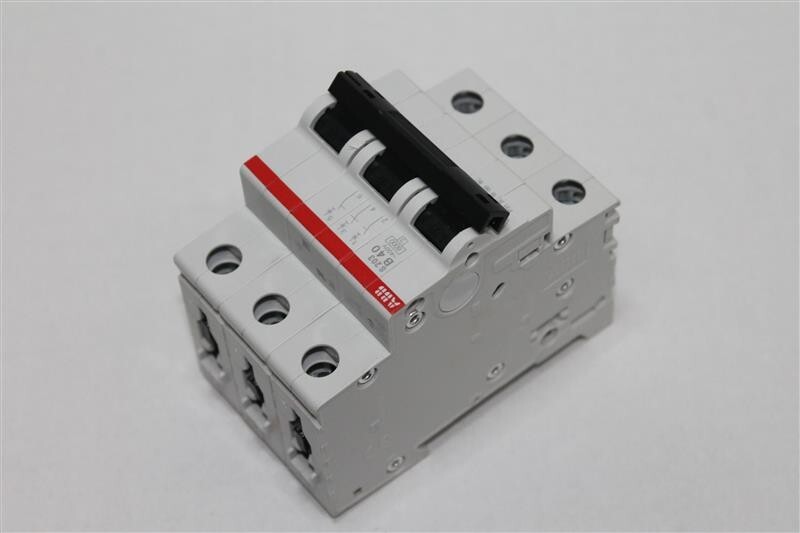

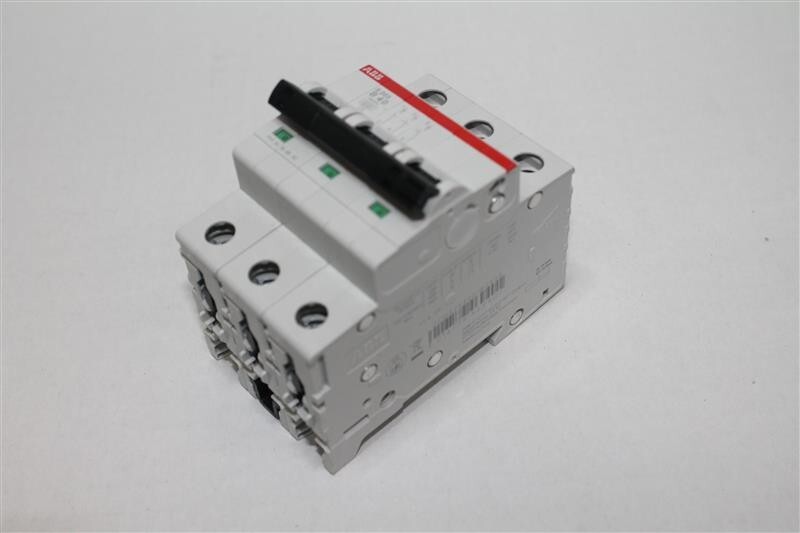

ABB S203-B40 Miniature Circuit Breaker

$ 34.67

UPC: 4016779469401 Model: S200 Frequency (f): 50 Hz Dielectric Test Voltage: 50 / 60 Hz - 1 min 2 kV Type: Miniature Circuit Breaker Resistance to Shock: 25g 2 shocks 13 ms Brand: ABB Item Width: 52.5 mm Rated Impulse Withstand Voltage (Uimp): 4 kV; at 2000 m, 5 kV; at Sea Level, 6.2 kV Recommended Screw Driver: Pozidriv 2 Input Voltage Type: AC/DC MPN: S203-B40 Electrical Endurance: 10000 AC cycle Reference Ambient Air Temperature: 30 °C Power Loss: 14.4 W; at Rated Operating Conditions per Pole, 4.8 W Actuator Marking: I/O Accessories Available: Yes Operating Temperature: -25 ... +55 °C Contact Position Indication: Red ON / Green OFF Rated Current (In): 40 A Wire Stripping Length: 12.5 mm Tightening Torque: 2.8 N·m Power Supply Connection: Arbitrary height: 88 mm Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal width: 52.5 mm Mechanical Endurance: 20000 cycle Storage Ambient Air Temperature: -40 ... +70 °C Color: Gray Number of Normal Poles: 3P Resistance to Shock acc. to IEC 60068-2-27: 25g 2 shocks 13 ms Maximum (Incl. Tolerance) Operational Voltage: 440 V AC Terminal Type: Screw Terminals Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz Environmental Conditions: 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % Product Net Weight: 0.375 kg Item Height: 88 mm Minimum Operational Voltage: 12 V AC/DC Maximum Operational Voltage: 440 V AC

Description

ABB S203-B40 Miniature Circuit Breaker. System pro M compact S200 miniature circuit breakers are current limiting. System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
