AC Miniature Circuit Breaker, 120V/240V 2 Pole 20 Amp DIN Rail Mount Circuit Br
$ 8.73
Description

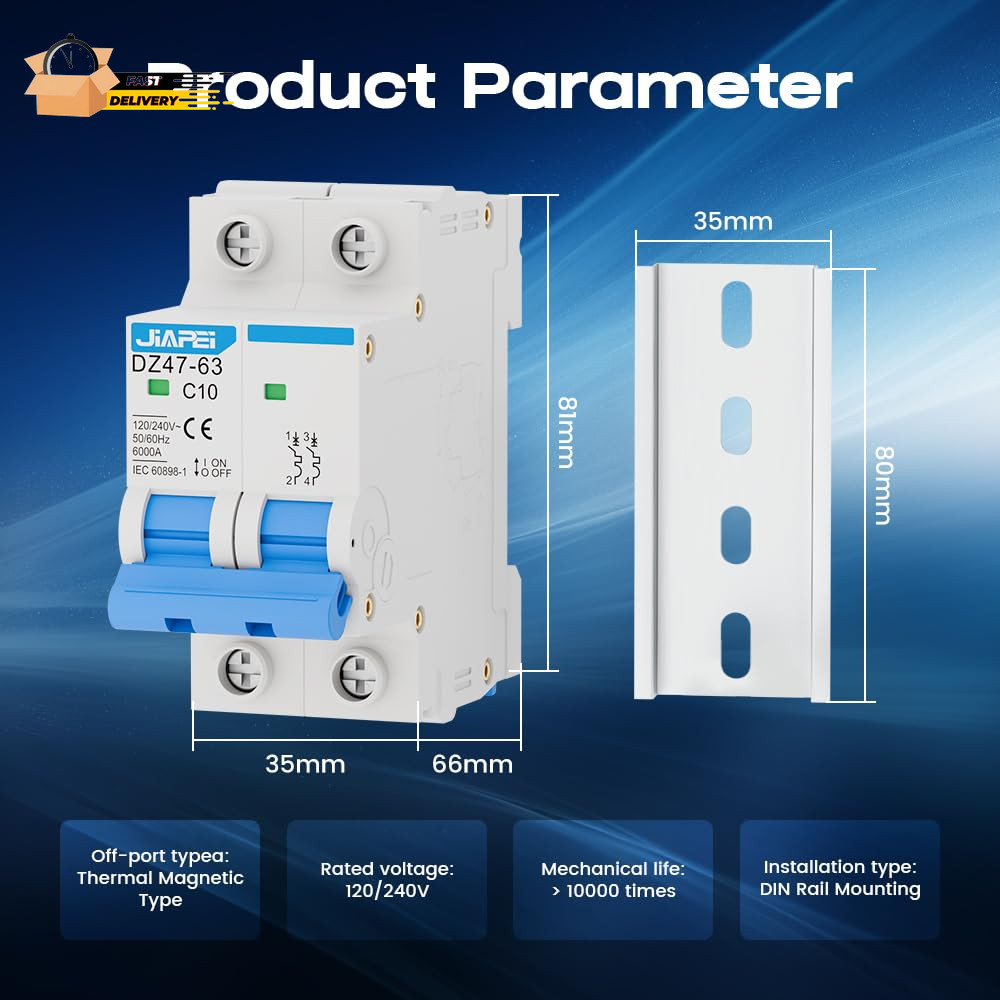

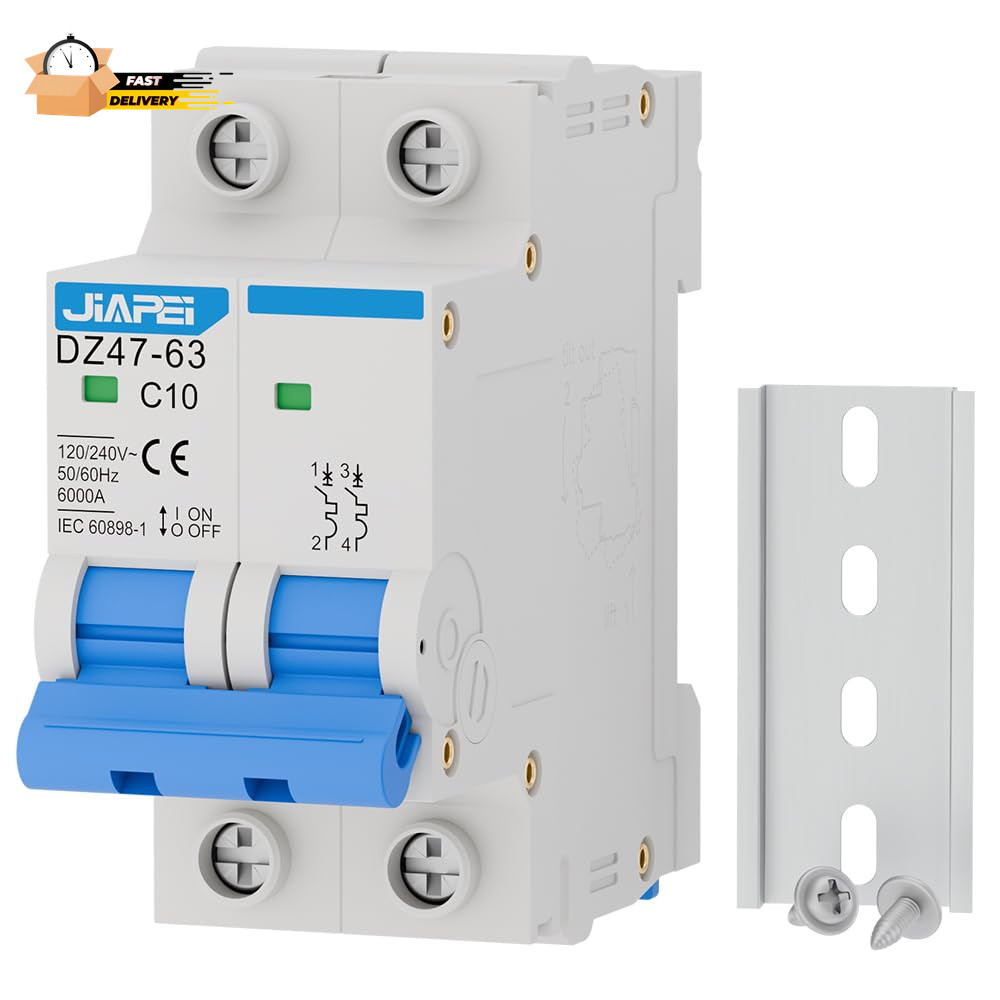

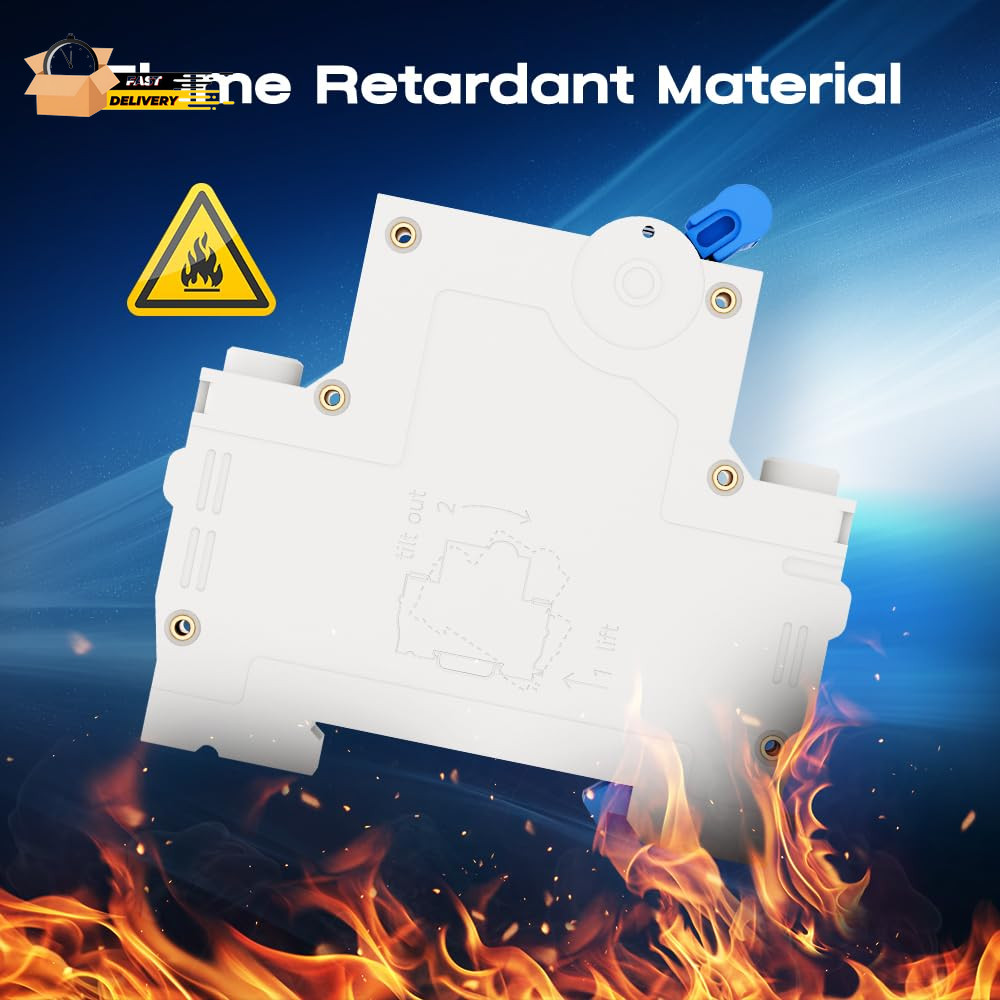

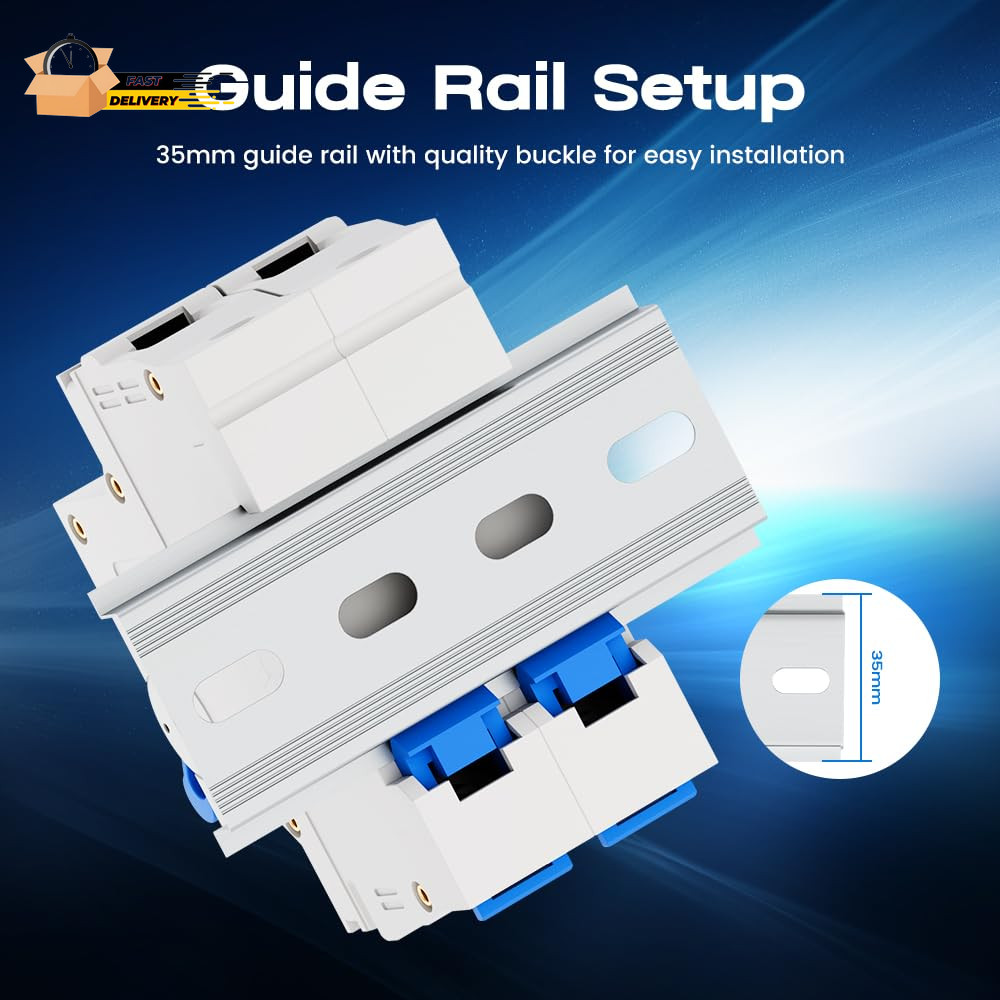

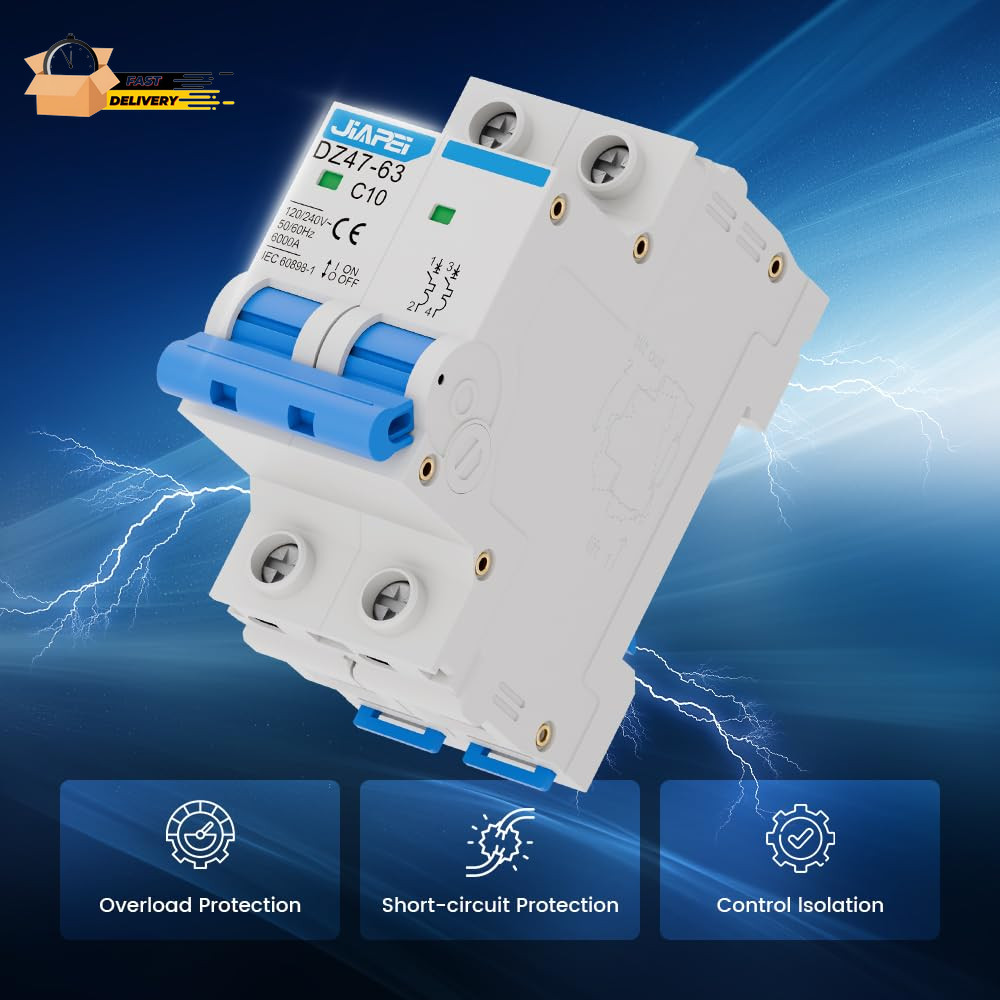

AC Miniature Circuit Breaker, 120V/240V 2 Pole 20 Amp DIN Rail Mount Circuit Br. Mounting Type DIN Rail Mount. Included Components DIN Rail. Circuit Breaker Type Ac. CNJIAPEI DC Miniature Circuit Breaker. AC Miniature Circuit Breaker 2P 10A 120V/240V. 1×35mm din rial. Built-In DIN Rail. Store New Arrivals Add to Favorite View Feedback Contact AC Miniature Circuit Breaker, 120V/240V 2 Pole 20 Amp DIN Rail Mount Circuit Br Description Part Number AC 2P-10A Current Rating 10 Amps Mounting Type DIN Rail Mount Circuit Breaker Type Ac Number of Poles 2 Voltage 240 Volts Model 10A Number Of Poles 2 Included Components DIN Rail Function: Designed to protect 110V, 120V, 220V, and 230V AC circuits from overload and short circuit damage; also suitable for control and isolation purposes. Curve C: Magnetic trip range of 5-10 times the rated current. Quality: Features silver alloy contacts, a flame-retardant housing, and color-coded indicators for easy status identification Applications: Suitable for solar AC systems, RVs, household circuits, or other 50/60Hz AC systems. Installation: Screw terminal connections with 35mm DIN rail mounting. Product description CNJIAPEI DC Miniature Circuit Breaker Observe Polarity : Ensure proper polarity alignment during installation. Choose the Right Wire Size : Select wiring that matches the rated current for optimal performance. AC Miniature Circuit Breaker 2P 10A 120V/240V Material: ABS plastic , Metal , Copper Rated Operational Voltage:120V / 240V AC Rated Current:10A Poles：2 Uimp：4kV Breaking Capacity：6kA Standard:IEC60898-1 Package Contents 1× 2 pole 10A 120V/240V AC Circuit Breake 1×35mm din rial 2×screw High-Quality Solutions for Electrical Safety Indicator Window Stay informed at a glance and avoid misoperation. The green indicator signals a power-off state, while the red indicator shows the circuit breaker is active. Built-In DIN Rail Comes with pre-included DIN rails for hassle-free installation—no need for additional purchases. Flame-Retardant Construction The housing is made from high-temperature, flame-retardant material, offering exceptional fire resistance and ensuring enhanced safety. Installation DIN Rail Installation Ensure the 35mm DIN rail is securely mounted horizontally in a stable location. Installation Steps 1.Hook the top slot of the circuit breaker onto the DIN rail. 2.Press the bottom of the circuit breaker firmly into place on the rail. Removal Steps 1.Push the circuit breaker upward to release it from the rail. 2.Tilt the top of the circuit breaker outward to fully detach it from the DIN rail. Product Name AC Miniature Circuit Breaker 120V/240V 10A Rated Operational Voltage AC 120 V / 240 V (optional) Rated Current [In] 6 A /10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) Poles 2P Package Includes 1 x AC miniature circuit breaker, 1 x DIN rail, 2 x screws Mounting Support 35mm DIN rail Operating Temperature -13°F(-25℃) ~ 140°F(60℃) Mechanical Durability 10000 Cycles Electrical Durability 4000 cycles Tightening Torque 2.5 N.m Standard IEC60898-1 Uimp 4kV Breaking Capacity 6kA Ics=Icu
