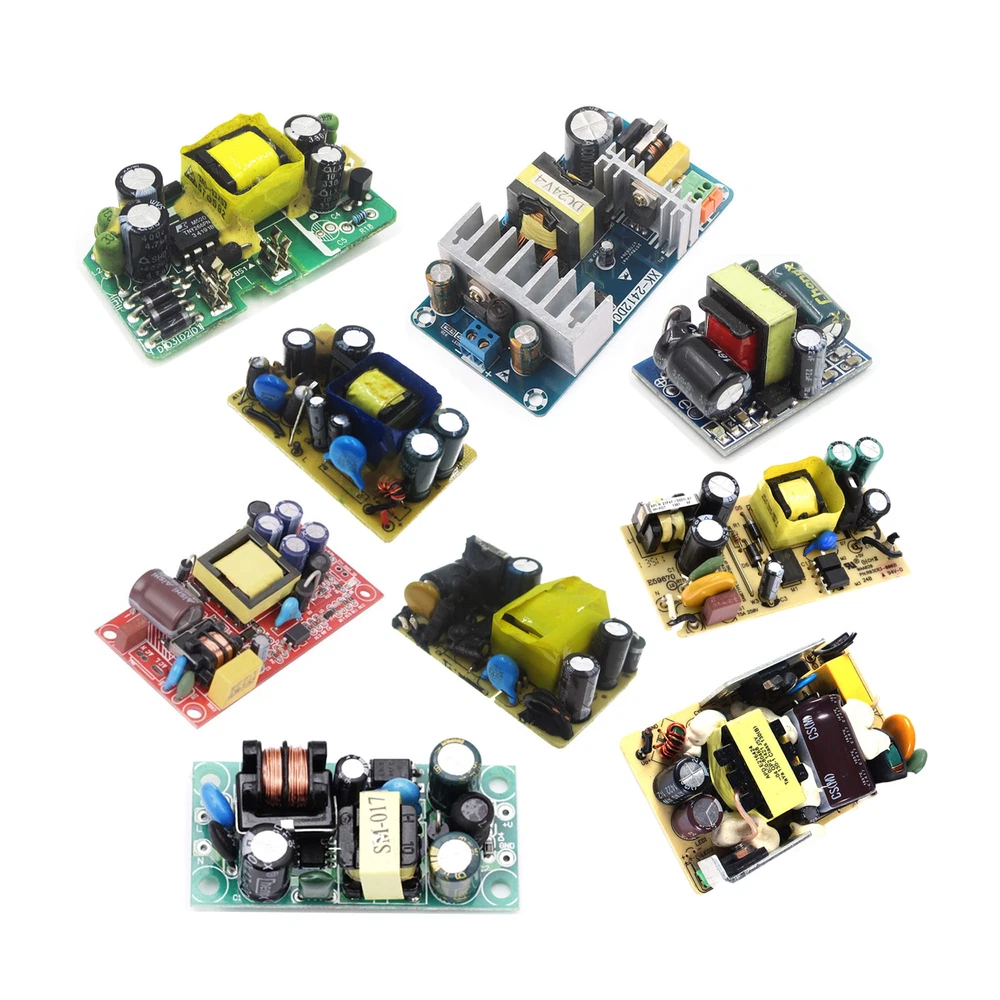

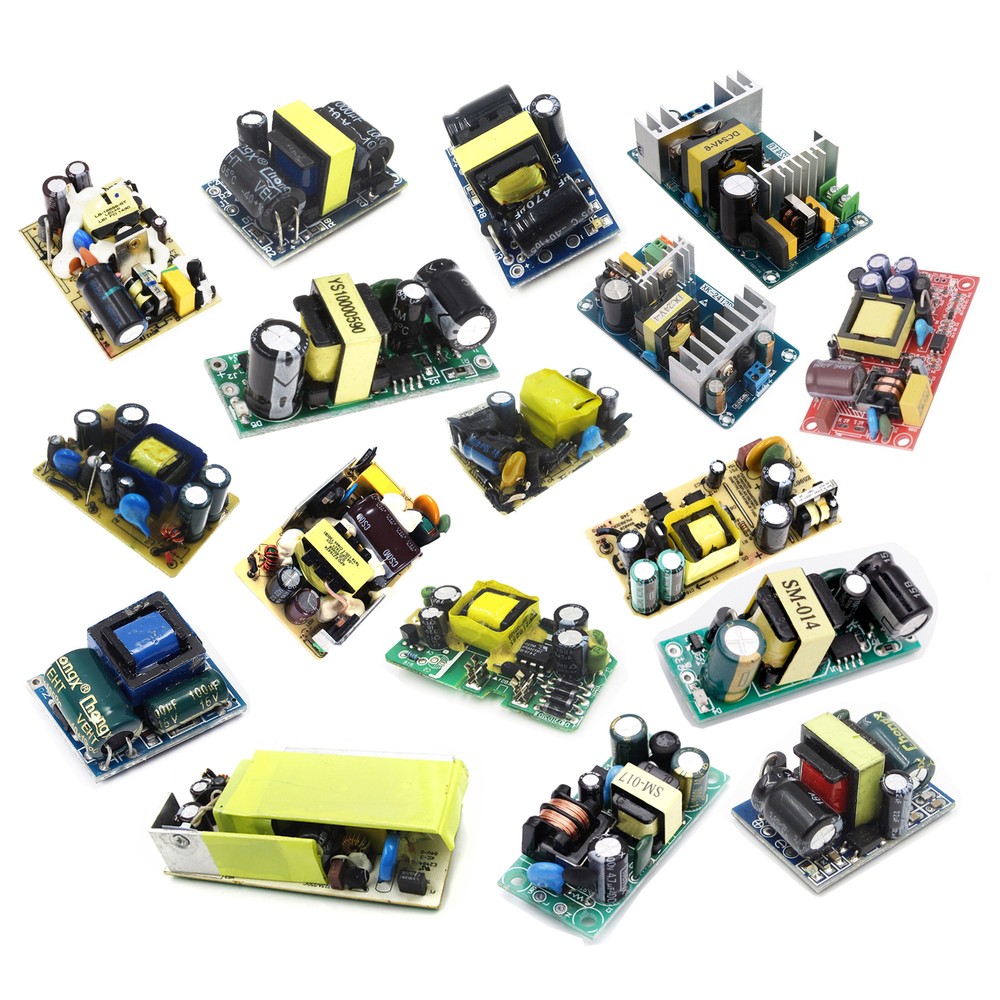

AC-DC Power Supply Buck Converter Step Down Module Replacement for A3GS

Description

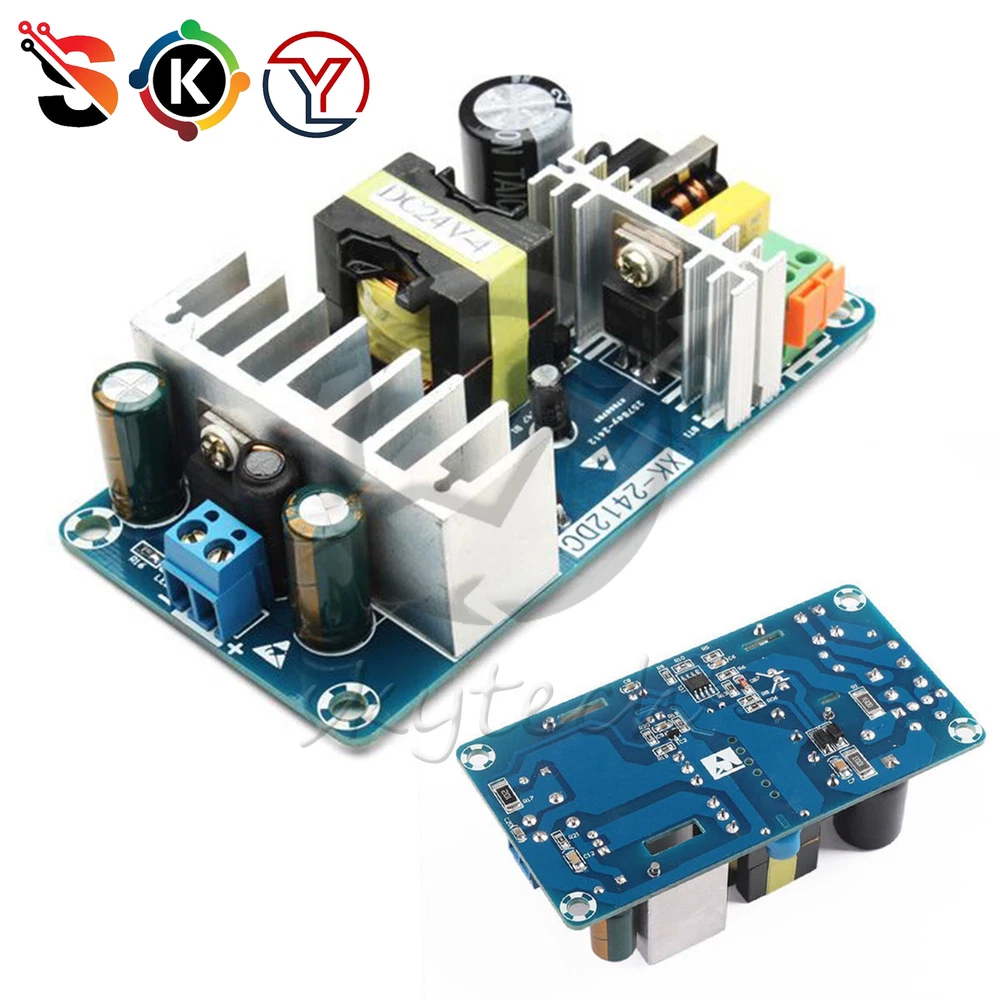

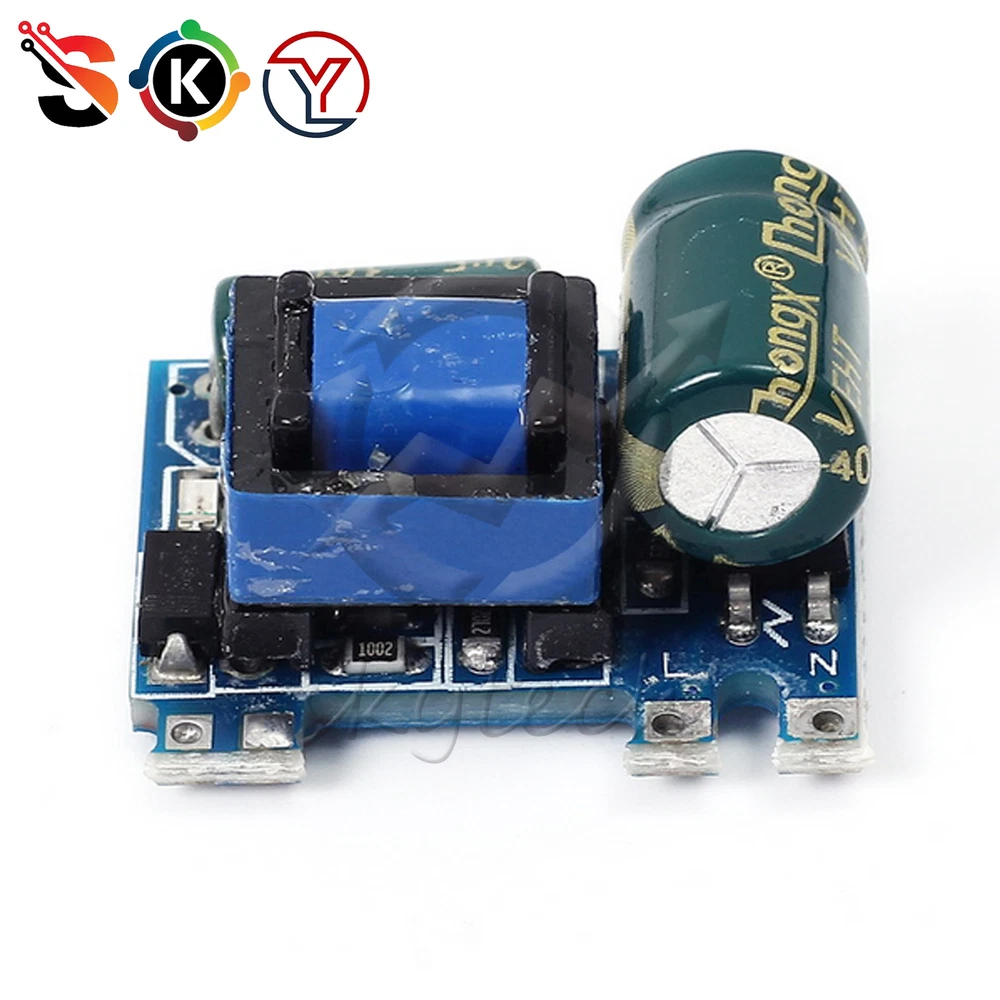

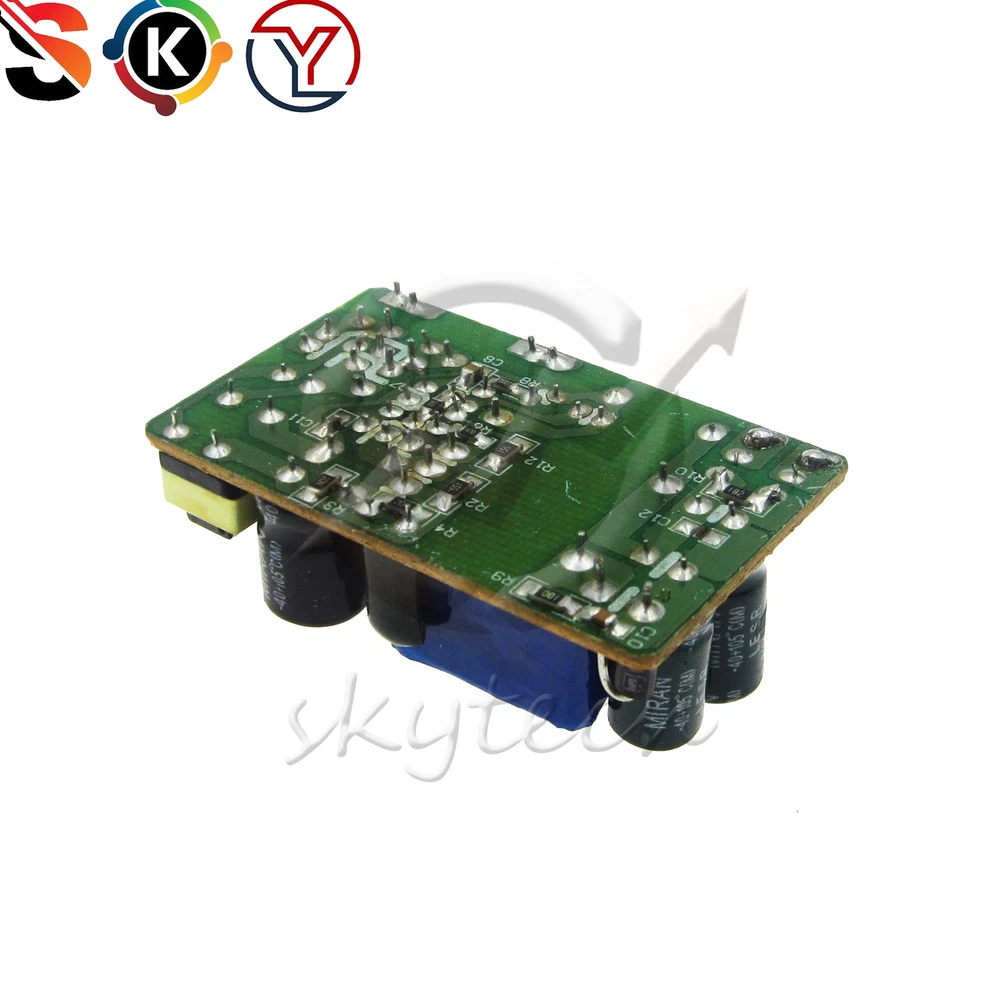

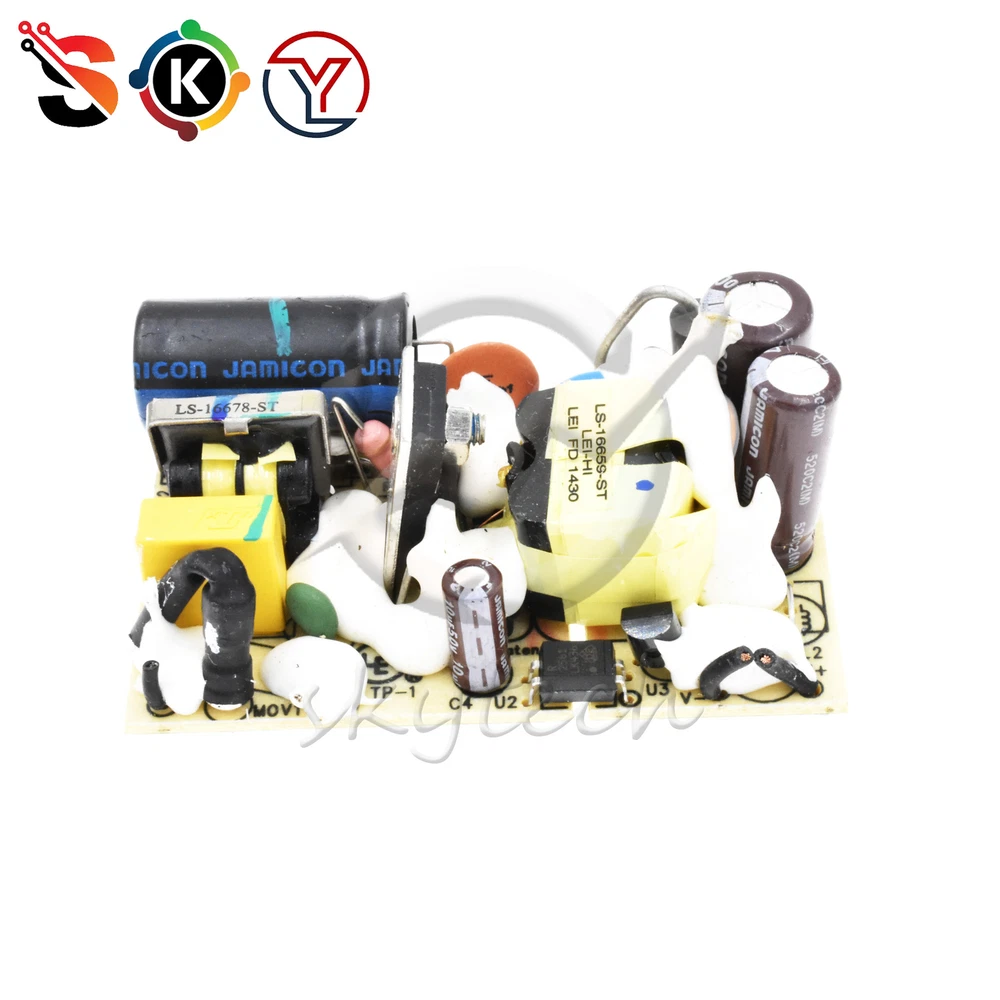

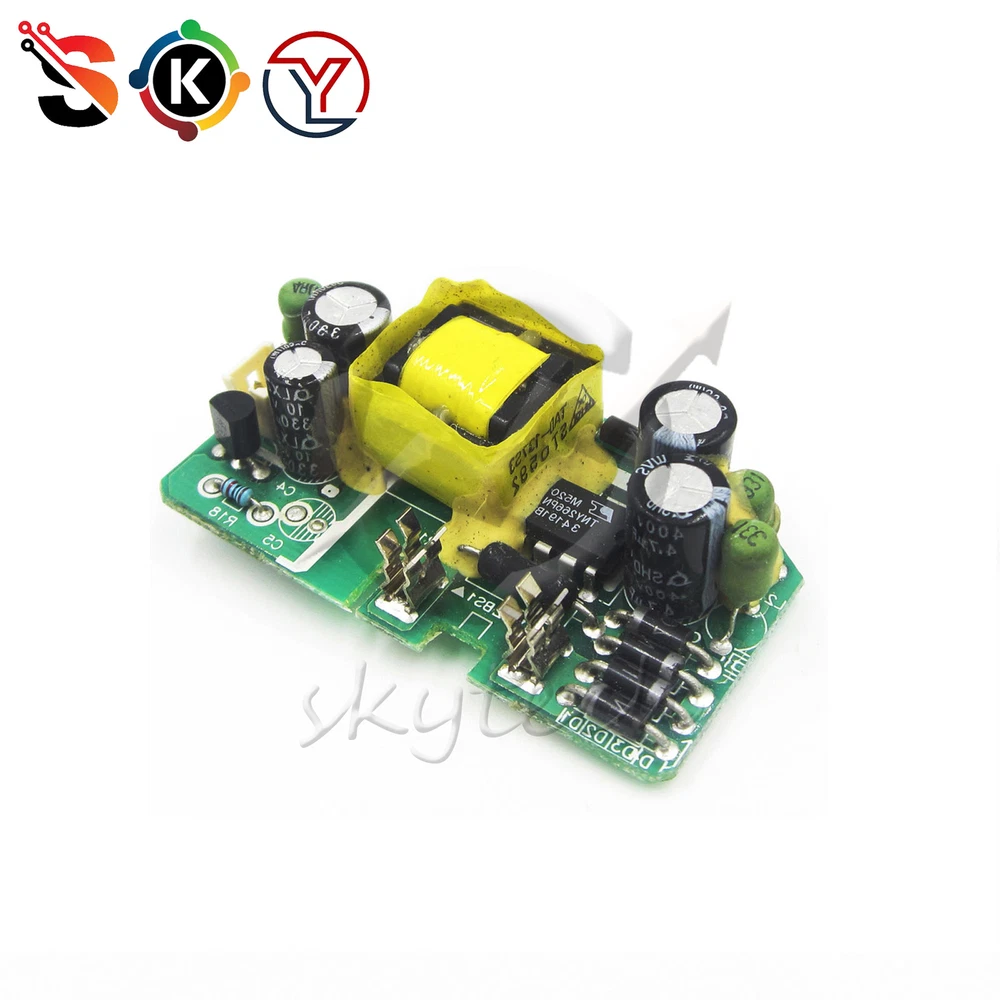

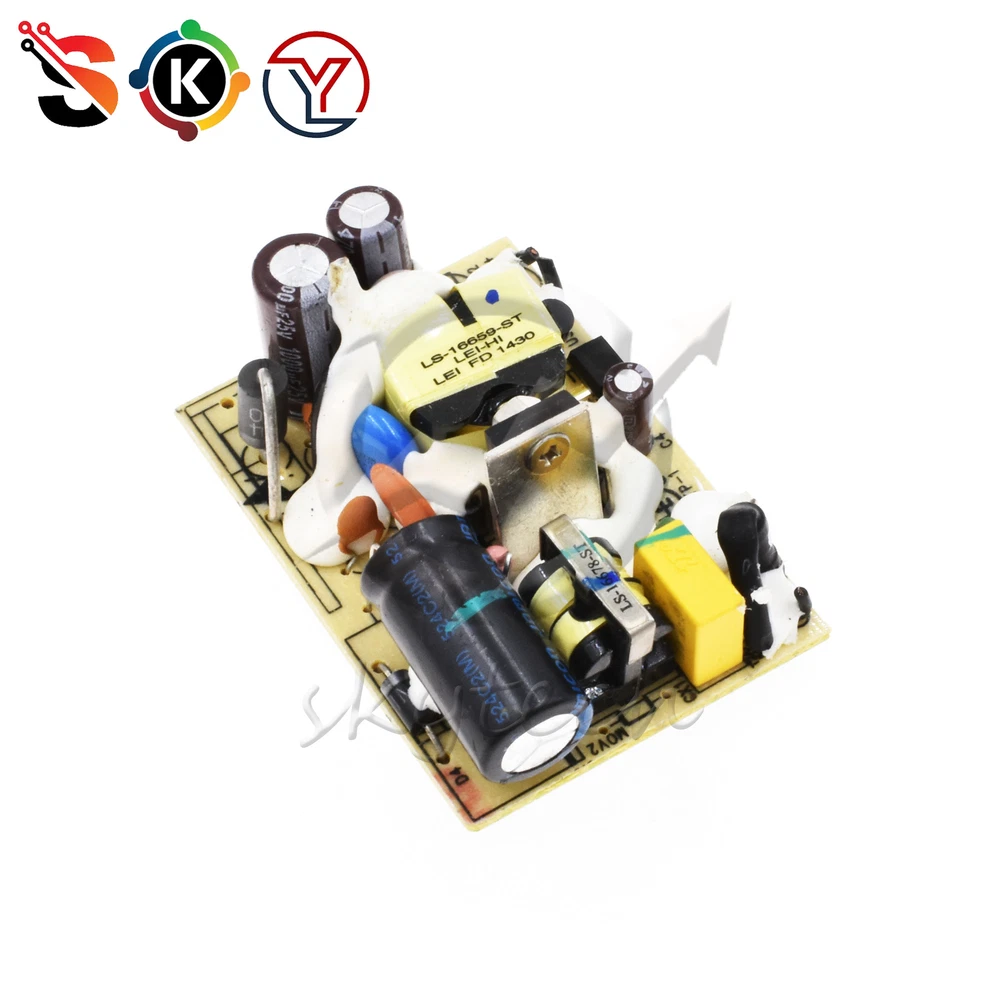

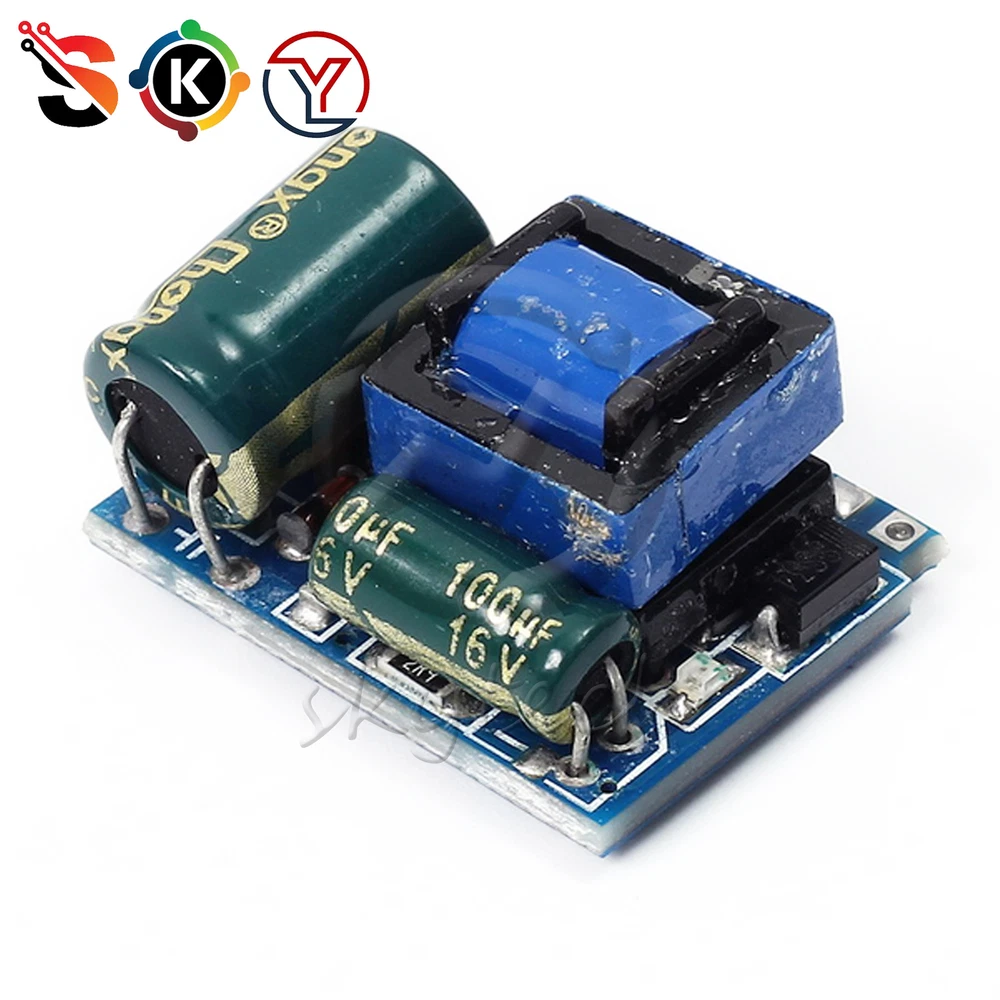

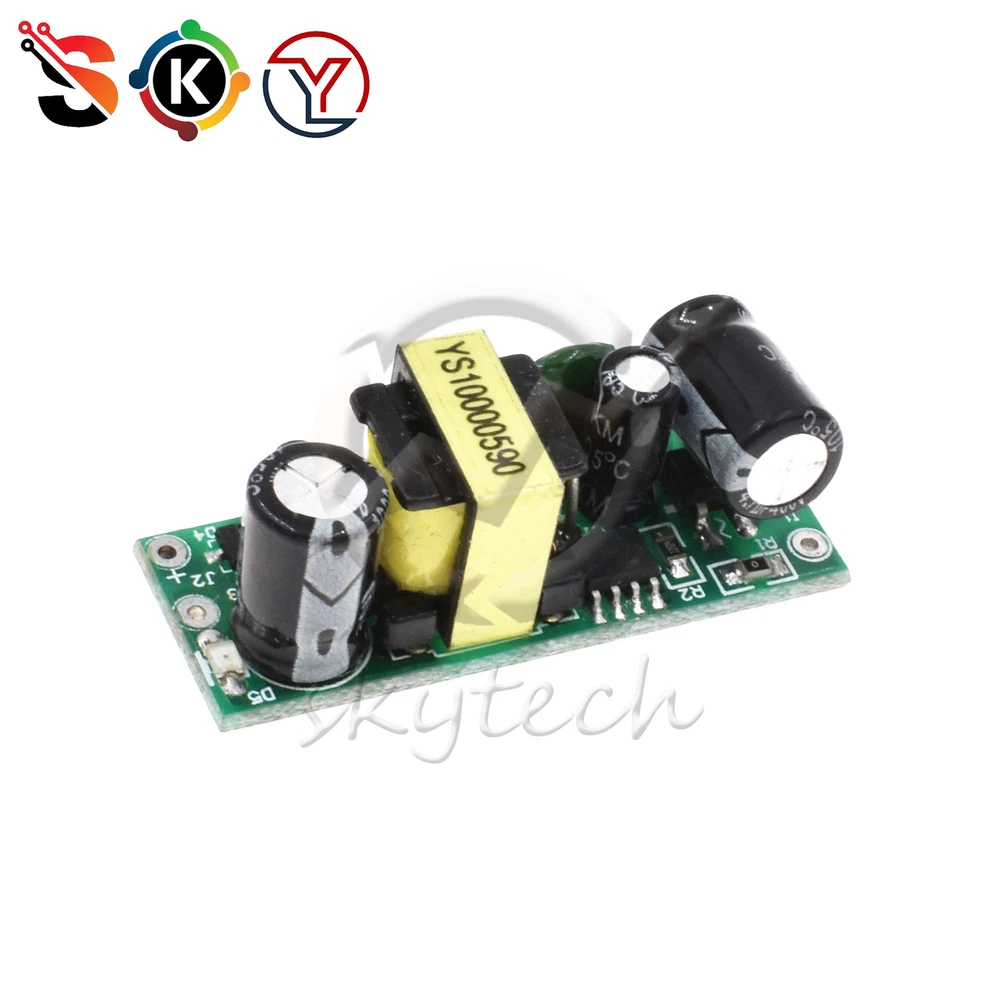

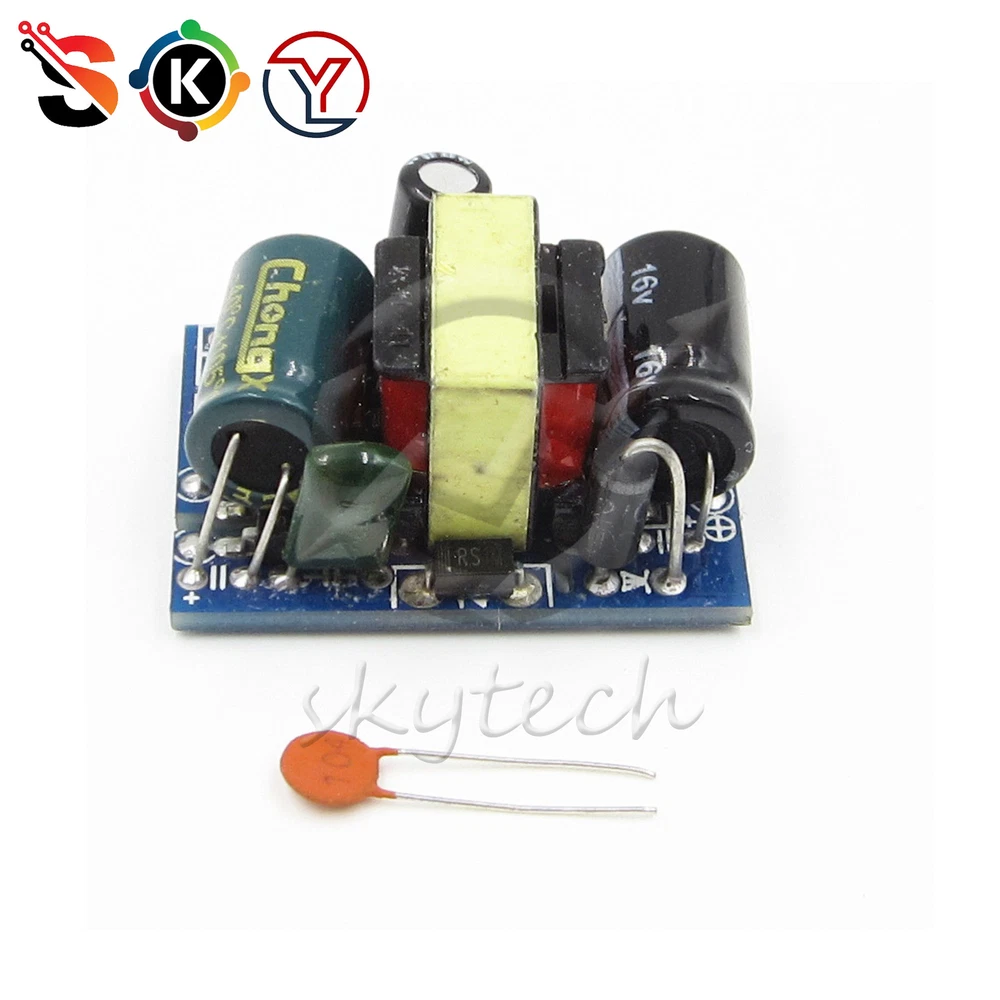

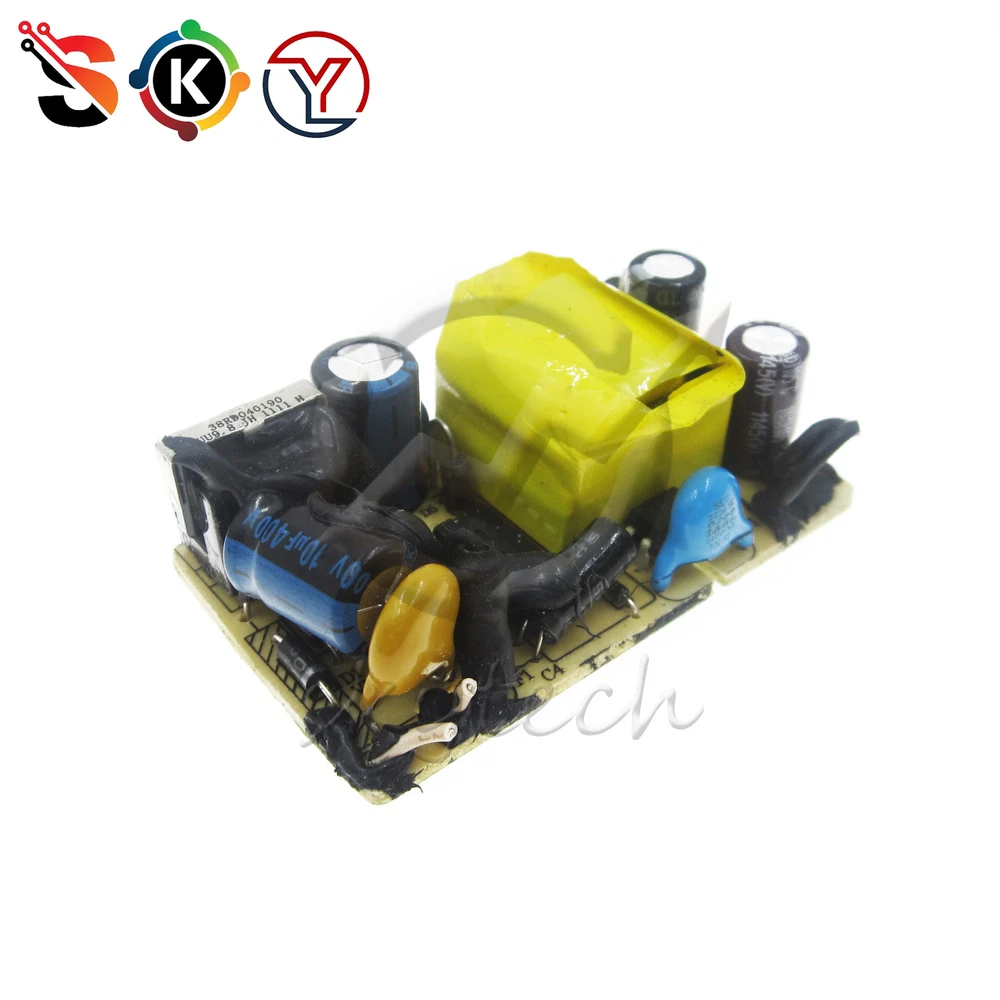

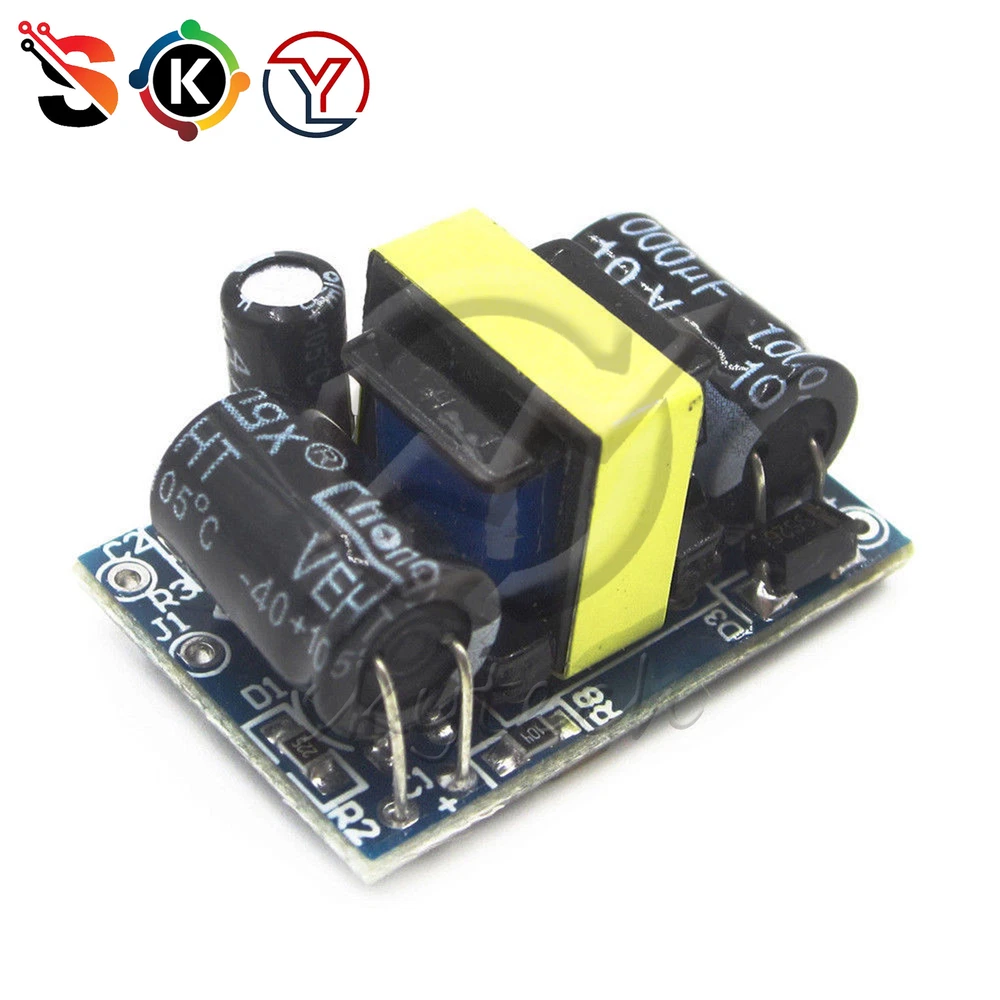

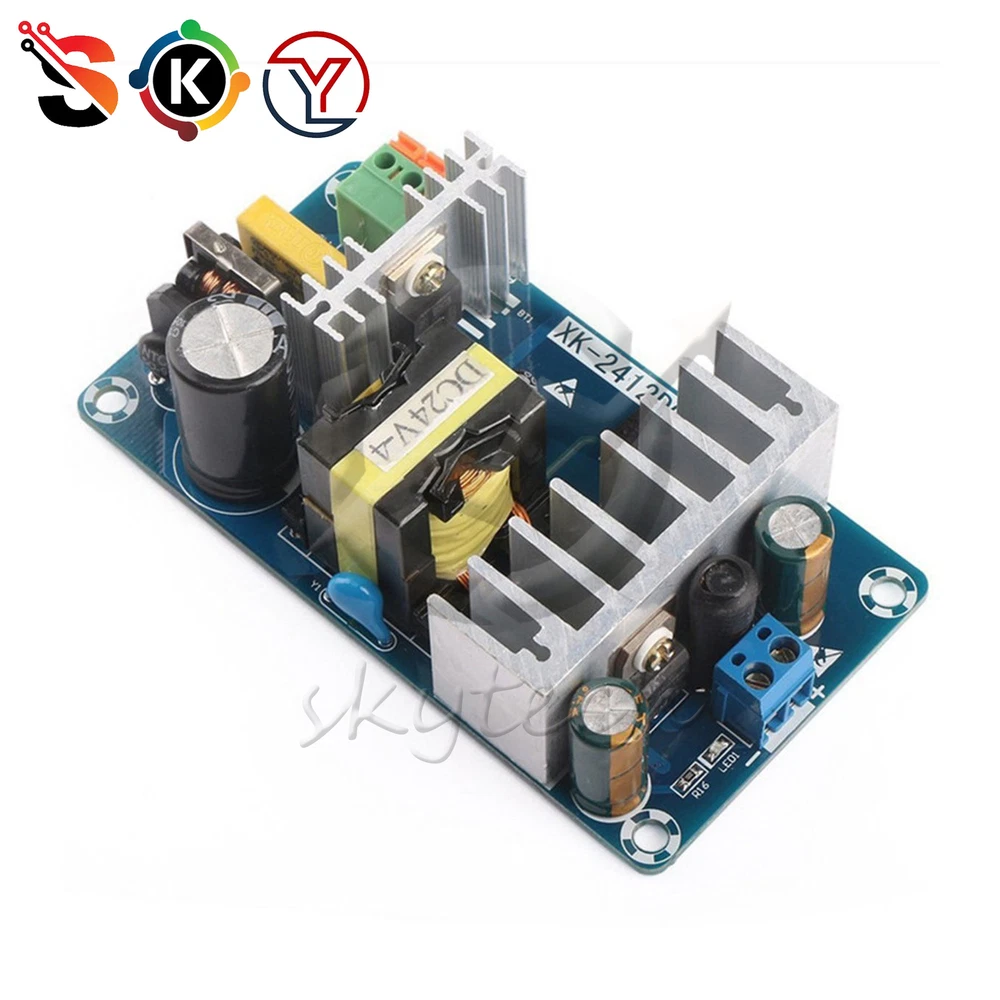

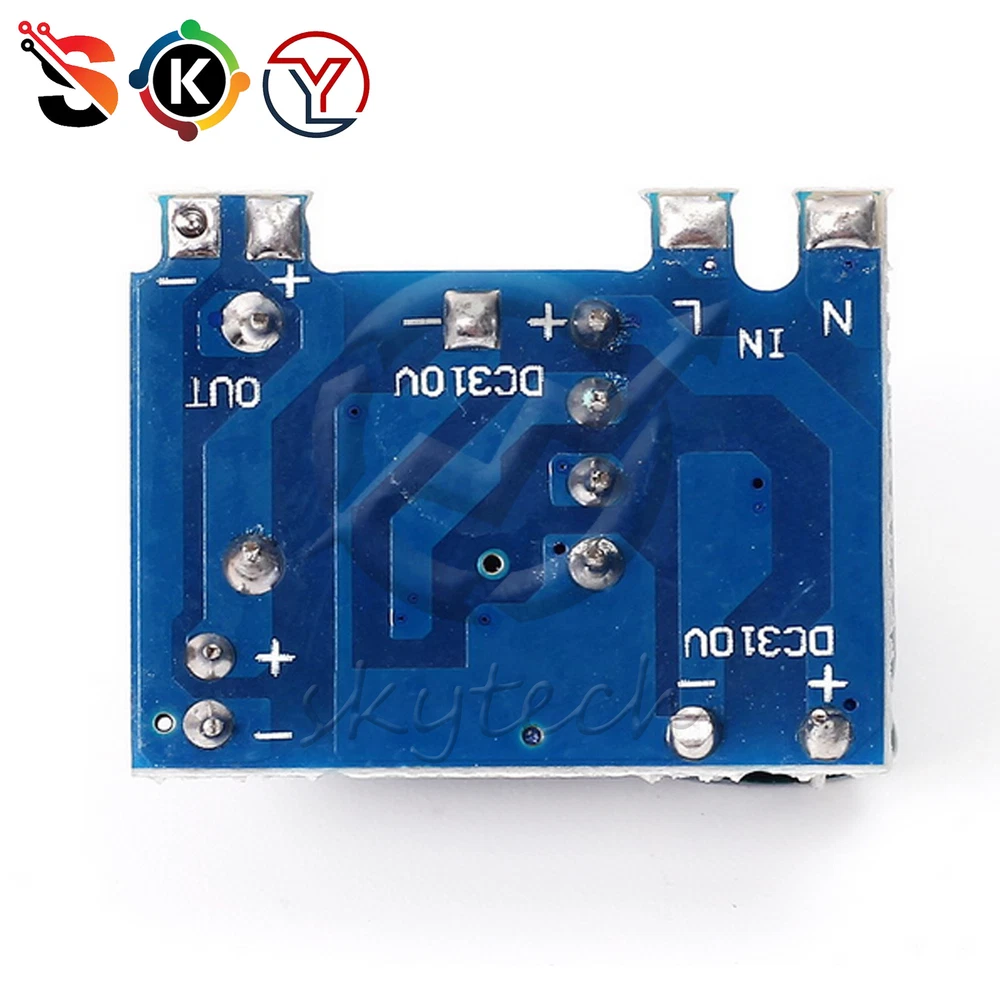

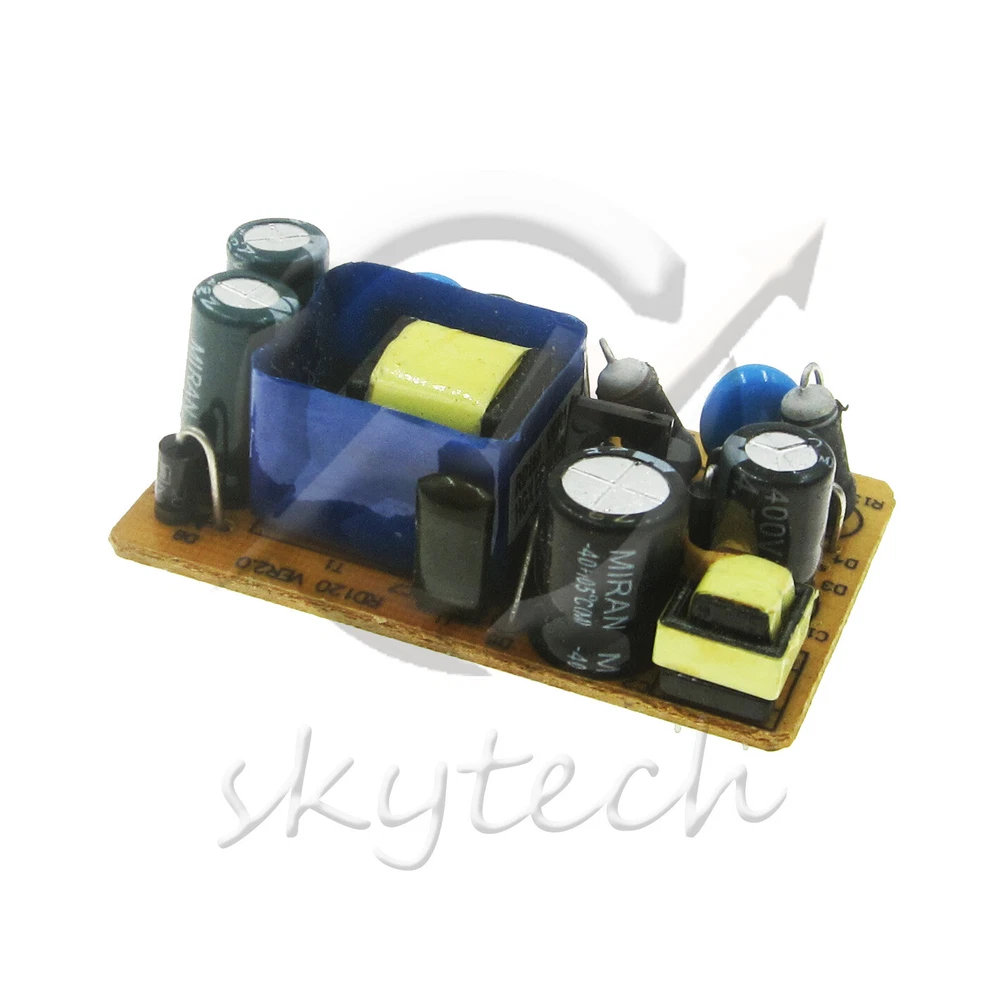

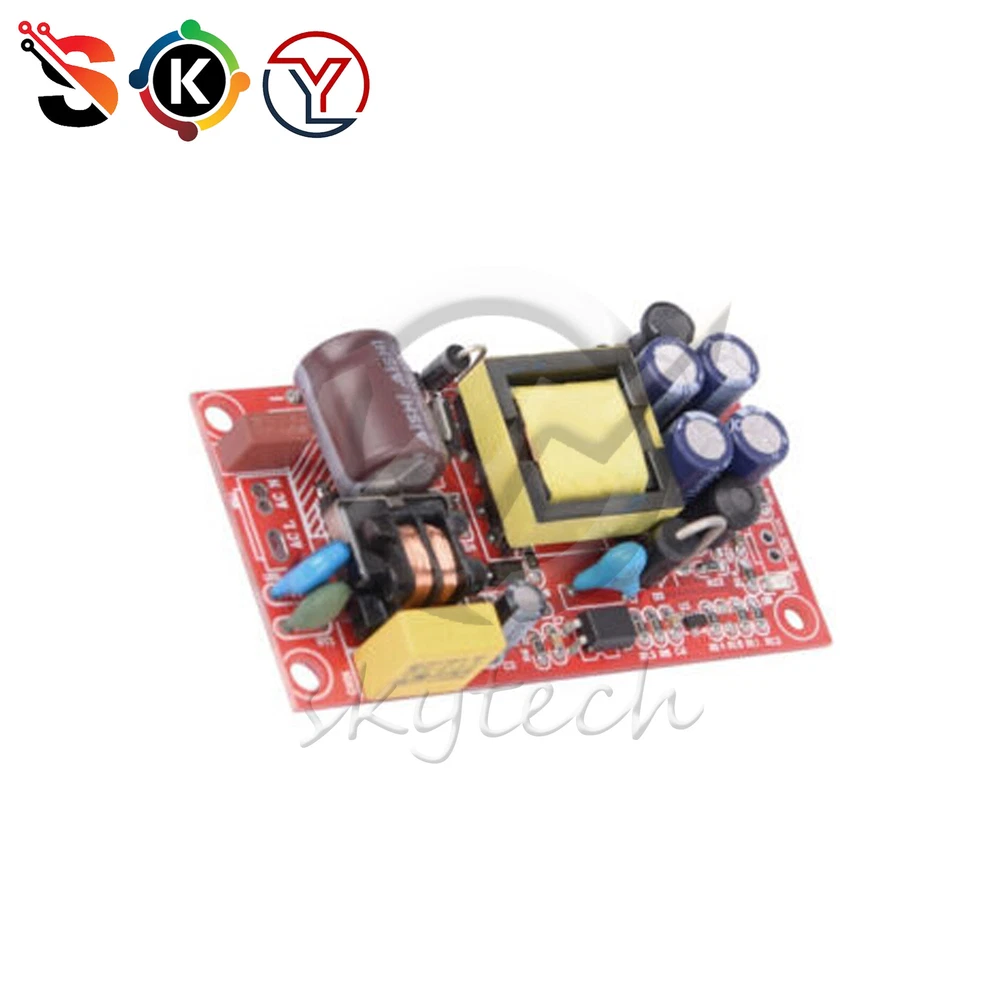

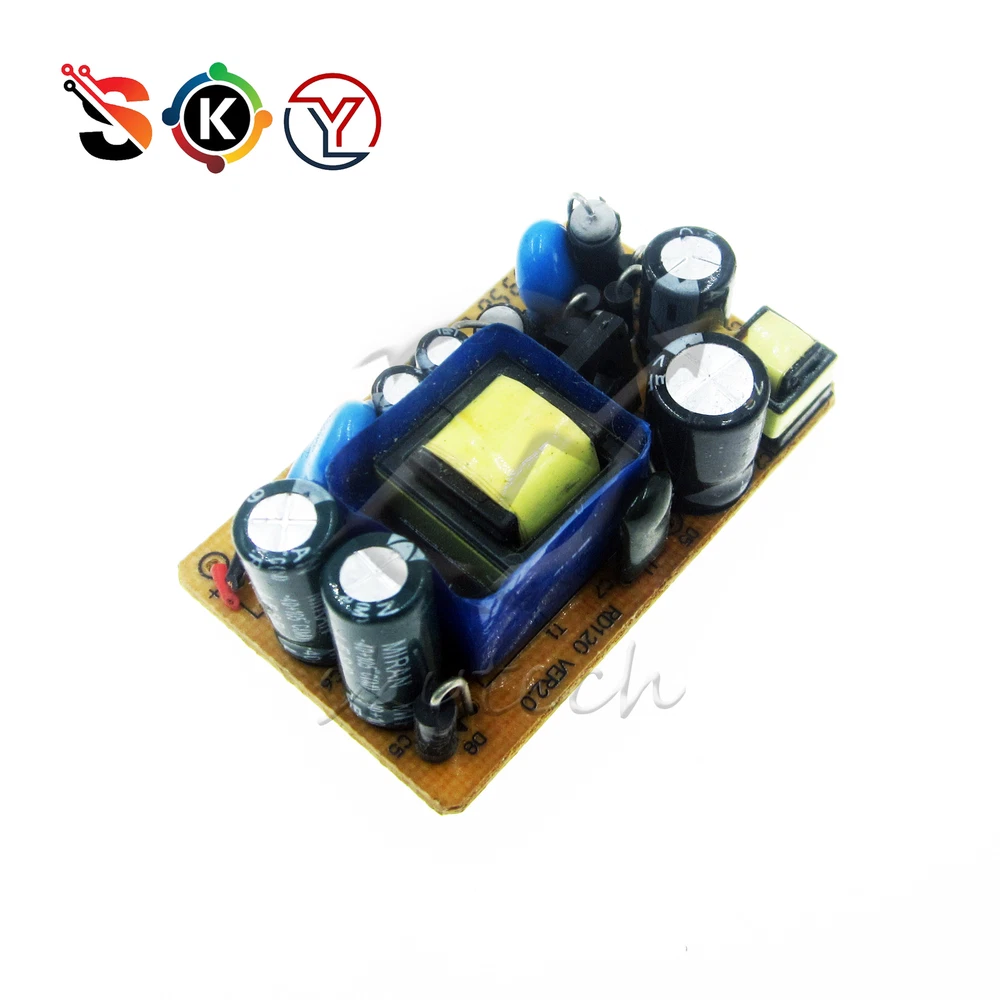

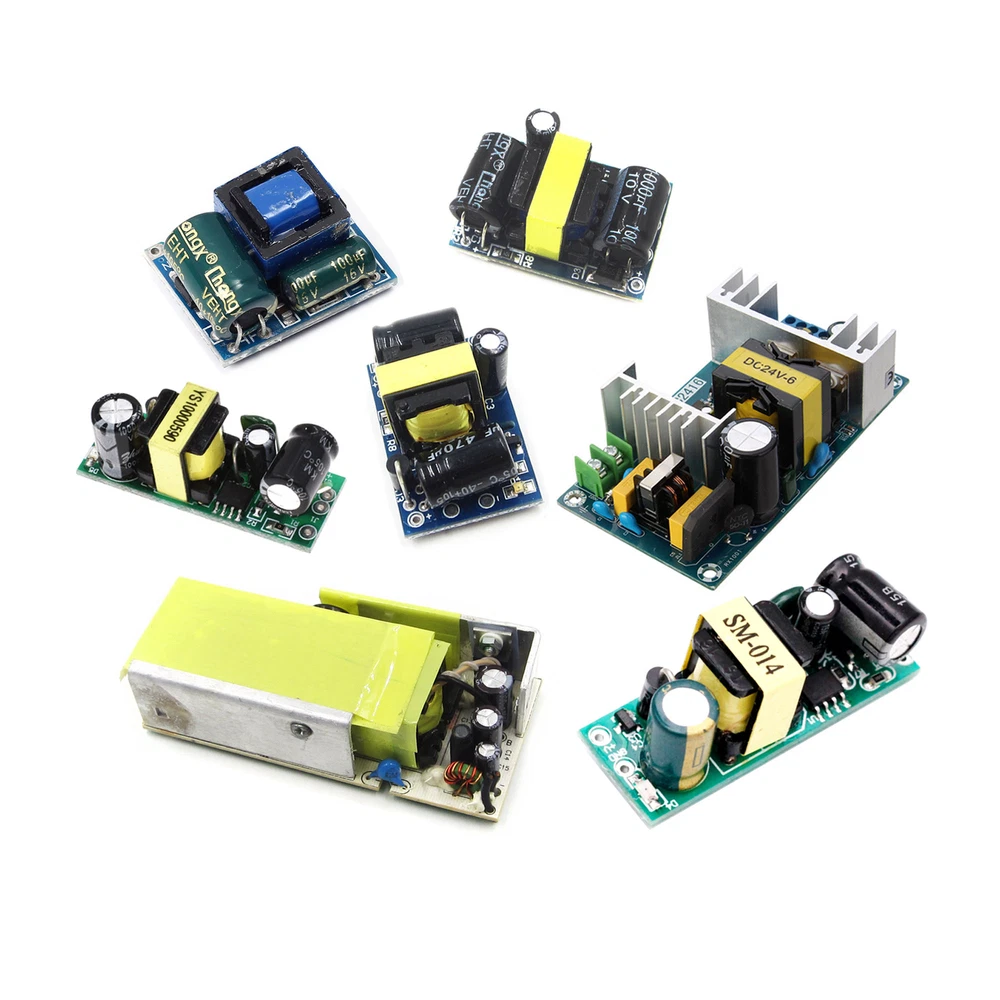

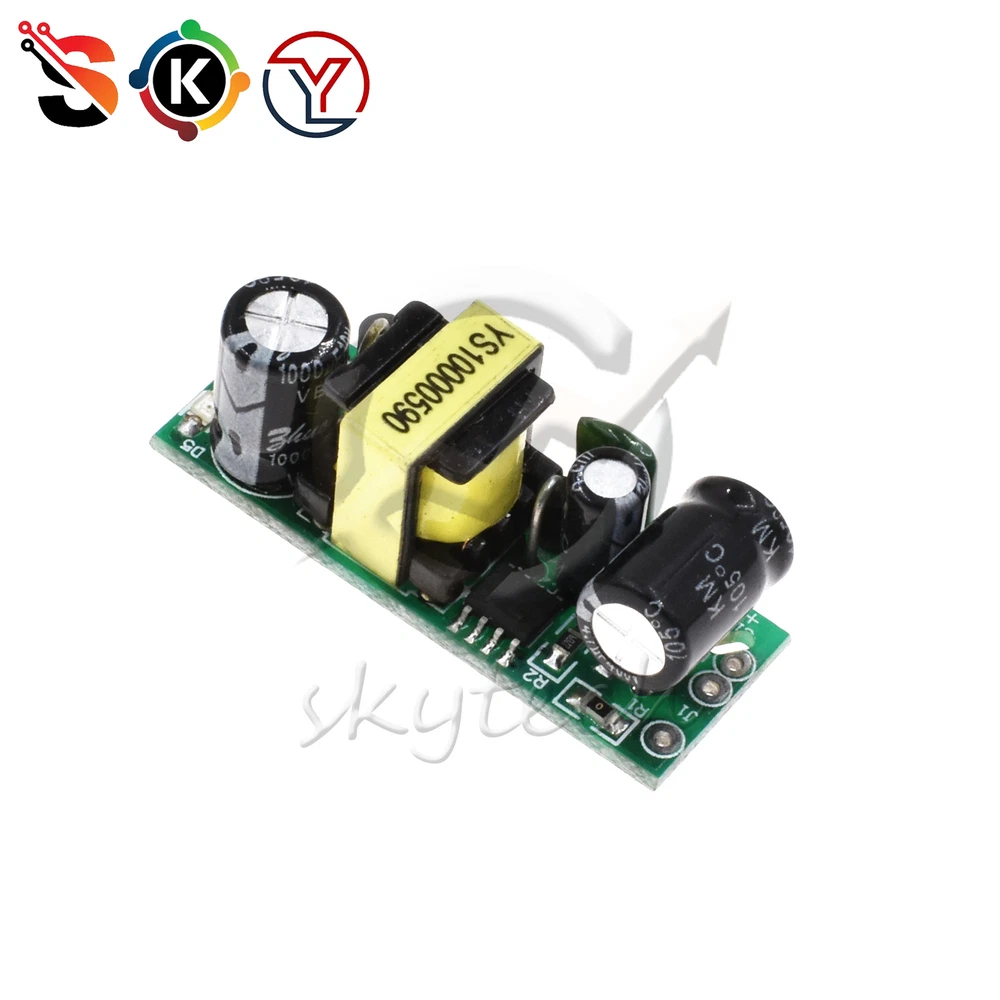

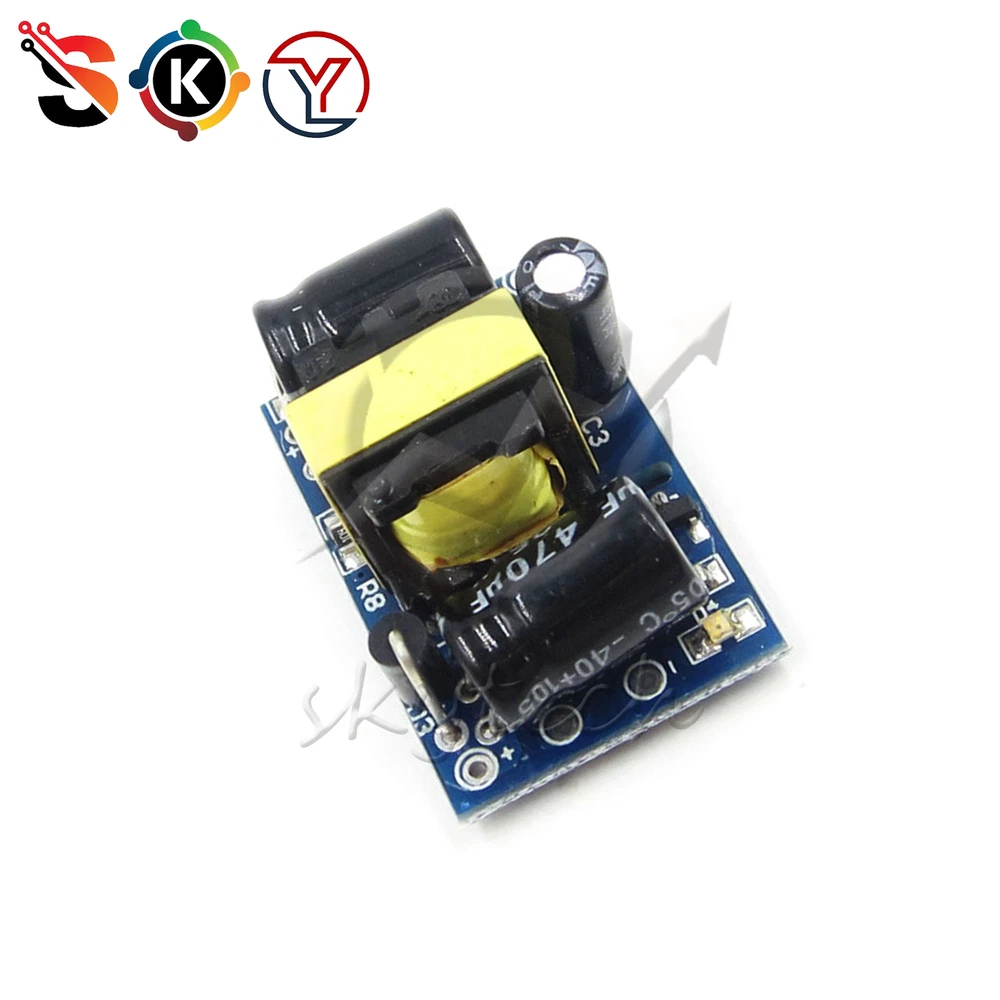

Store Categories Store Categories eBay Motor Fashion Books, Movies & Music Electronics Collectibles & Art Home & Garden Sporting Goods Toys & Hobbies Business & Industrial Health & Beauty Other Product View Detail 12V 0.4A Input voltage: AC 85 - 265v 50 / 60HZ or DC 100V - 370V Output voltage: DC 12V (± 0.1V) Output Current: 400mA Power: 5W 12V 0.5A 1. Input: 100-240V 50-60Hz 2. Output: 12V 3. Output Current: 500MA 4. Size: 5.4*3.5*1.9cm 12V 2A 1.Input Voltage:100-240V 2.Output Voltage:12V 3.Output Current:2A 4.Size:6.7*4.5*2.3cm Function: 1.Overvoltage Protection 2.Overcurrent Protection 3.Short Circuit Protection 12V 5A 1. Input: 100-240V 50-60Hz 2. Output: 12V 3. Output Current: 5000MA 4. Size: 10.7*5.0*2.4cm 15V 3A 1.Input Voltage:100-240V 50-60HZ 2.Output voltage:15A 3.Board Current:3A 4.Size:8.2*4.9*2.3cm 3.3V 0.5A Input characteristics 1. Input voltage range: 90 Vac to 240Vac (under full load conditions) or DC100v-370v 2. Input Current: 0.0273 (AC110V) 0.014 (AC220V) 3. Input surge current: 20A (full load) Output Characteristics 1. Output voltage range: 3.1 ~ 3.5V 2. Output Current Range: 0A to 500mA, the peak current of 600mA 3. Output power: 2w maximum of 2.5W. 4. Output efficiency: 85% 5. Output ripple: 150mv 6. Switching Overshoot: 10% 7. Output Rise Time: 100ms PCB size:4*1.5*1.8mm 3.3V 0.7A This power supply has the temperature protection, over current protection and short circuit protection, AC90 ~ 240 V input voltage, wide DC3.3 V output, small size, 431 precision voltage regulator Use Environment - Working temperature:-20 ~ 60? - Relative humidity?40 ~ 90%RH Technical requirements - Input voltage range:85~ 240v - Input current:0.0273A (AC110V) 0.014A (AC220V) - Input Inrush Current: 20A - Output voltage range:3.1~3.5V 0~ 700mA - Output power:2.5 W - Output efficiency:85% - Size:3*2*1.8cm 3.3V 1A Input characteristics: 1. Input current:0.065 (AC110V) -0.032 (AC220V) A (at full load conditions) 2. Input surge current:20A (full load) 3. Input voltage:AC 85-265v 50/60HZ (at full load conditions) Output Characteristics: 1. Output voltage:DC3.3V (±0.2V) 2. Output current:1A 3. Output efficiency:85% (rated load) 4. Output ripple:50Mv 5. Power:3.5W 6. Size:5.1*2.3*2.2(cm) 7. Ambient temperature:-20 to 60℃ 8. Relative humidity:40 to 90% RH 9. Switch overshoot:150% 10. Output rise time:100MS 5V 0.6A 1: Working environment Operating temperature: -20 to 60 ℃ Relative temperature: 40 to 90% RH 2: technical requirements 2.1 Input characteristics Input voltage range: 90 V ac to 240 V ac (full load) Input Current: 0.0273 (AC110V) 0.014 (AC220V) Input surge current: 20A (full load) 2.2 The output characteristics 2.2.1 The output regulation characteristics Output Voltage Range: 4.90 ~ 5.1V Output Current Range: 0A to 600m 2.2.2 Other output characteristics Output power: 3W Output efficiency: 85% Switching machine overshoot: 10% Output rise time: 100ma 2.3 protection function Output power protection: recovery characteristics: lock, restart and recovery Short circuit protection: recovery characteristics: lock, reboot recovery Temperature protection: recovery characteristics: lock up, restart and recovery Over current protection: recovery characteristics: lock, restart and recovery Size: 40 * 15 * 18 mm 5V 0.6A(3W) Description: 1>. Input Voltage Range: AC 55-277V; DC 70-390V 2>. No Load Power: 3>. Output Voltage: 5V; max output voltage range: 4.9-5.3V or 4.8-5.2V; ripple wave 60mW 4>. Output Current: 0-600mA; output indicator lamp 1mA red light 5>. Output Power: 3W; efficiency 80% 6>. Output Protection: overvoltage, overcurrent, overtemperature, overpower, short circuit protection etc 7>. Applications: for zero line, live line intelligent switch, intelligent socket, equipment and instructions, other controllers etc 8>. Working temperature:-25~85℃ 5V 0.7A 1.Input voltage:AC 100V-240V 50-60Hz 2.Output voltage:5V/20V 3.Output current: 5V0.7A 4.Size: 5.4*3.2*1.6cm 5.Overvoltage Protection:Yes 6.Overcurrent protection:Yes 7.Short circuit protection:Yes 5V 0.7A(3.5W) With temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 ~ 265 v wide voltage input, ac/dc current , 431 precision voltage stability DC5V output Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Imput current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 5V (+ / - 0.2 V) Output current 700 mA Power 3.5 W Operating temperature -20~60℃ Relative humidity 40-90%RH Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV Output power:0-4W Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery Size: 3 x 2 x1.8cm Package Included: 1PCS*AC-DC Power Supply Buck Converter Step Down Module Chip 5V 700mA 3.5W 5V 2.5A 1.Input voltage:AC 100V-240V 50-60Hz 2.Output voltage:5V/20V 3.Output current: 5V2.5A 4.Size: 6.4*3.9*2.0cm 5.Overvoltage Protection:Yes 6.Overcurrent protection:Yes 7.Short circuit protection:Yes 5V 2A 1.Input voltage:AC 100V-240V 50-60Hz 2.Output voltage:5V 3.Output current:2A 4.Size:7.2*3.4*2.5cm 5.Overvoltage Protection:Yes 6.Overcurrent protection:Yes 7.Short circuit protection:Yes 5V/12V 1A Product Description 1. Input voltage:AC85~265V 50/60HZ 2. Output voltage:DC5V/12V (±0.2V) 3. Output current:2000mA 5. PCB size:6.6*3.0*2.0cm AC 100-240V to DC 24V 4A 6A Power Condition: New Protection: AC85-265V input Voltage: 110-260V Output voltage: DC DC24V Output Current: 4A-6A Output Power: 100W Positioning hole size: 9.8 * 4.7CM Overall dimensions: 10.65 * 5.7CM AC 100-240V to DC 24V 9A Input Voltage: AC 100-240V 50/60HZ Output Voltage: DC 24V Output Current: 6-9A Output Power: 150W(Max 220W) Location pore Zize: 105.8 x 55.7mm Overall Dimensions: 115 x 65mm Ripple Noise: Overcurrent Protection: Yes Overload Protection: Yes Short circuit Protection: Yes Feedback Payment Shipment About us Feedback We appreciate positive feedback . we always try our best to service our customers . so if you have ant question ,PLEASE DON’T HESITATE TO TELL US, we are always here to offer help . Payment We prefer PayPal .For purchasing multiple items , please contact us for a combined invoice . generally we would like to receive payment thin 48 hours if . Shipment We provide airmail service with good package . The items will be shipped within the nest 2 business days after we received the payment . when you buy multiple items ,your shipping cost will be combined with discount . SHIPPING TIME (weekends/holidays excluded) Country Name Shipping Time Country Name Shipping Time USA/Canada 10 -15d Spanish/Portugue 10-25d East/South Asia 10 -15d France/West Asia 10-25d United Kingdom 10 -20d Italy 10-30d Australia/New Zealand 10 -15d West Asia/Middle East 15-25d Most Country of West/North Europe 10-20d South America and Africa 15-30d East /Middle Europe/Russia 10-25d About us NEW, GOOD QUALITY, ORIGINAL PACKAGE LARGE STORE AND THE LOWEST PRICE NO-QUESTION-REFUND, FOR LARGE QUANTITY ,OFFER BETTER PRICE, ORIGINAL PACKING(TAPE REEL/TUBE/TRAY） We specialize in electronic components . ICs, Capacitors, Diodes, Resistors, LEDs, Transistors, and so on. Especially in Hard To Find Parts . we only sell NEW , ORIGINAL parts . please buy with confidence .We offer NO-QUESTION-REFUND go to my store
