Accurate Eagle Power Giant Tools Morpower Diesel Generator Ignition Key Switch
$ 21.12
Description

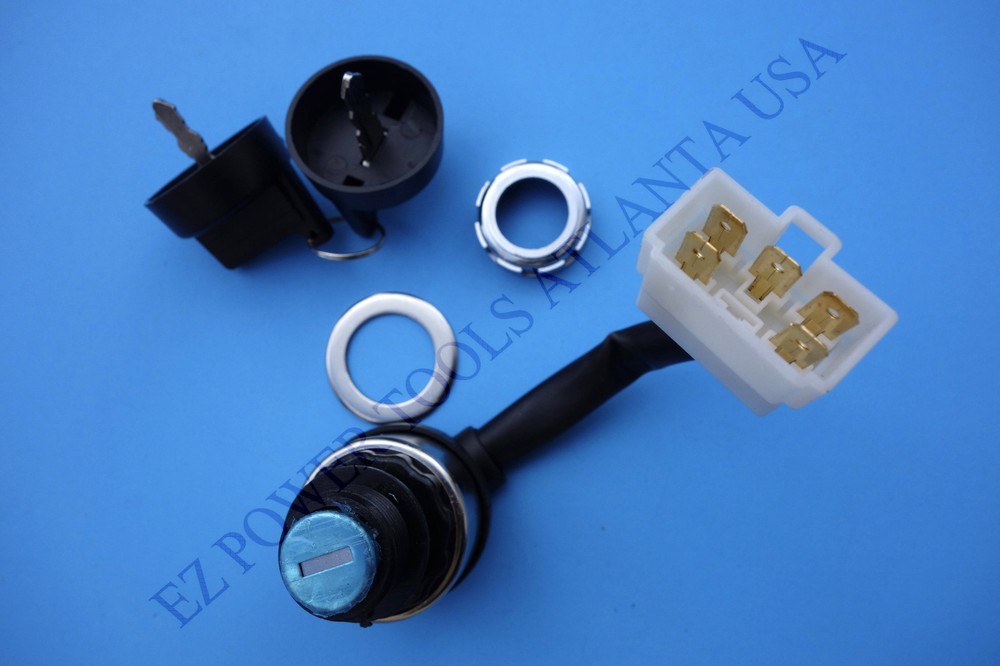

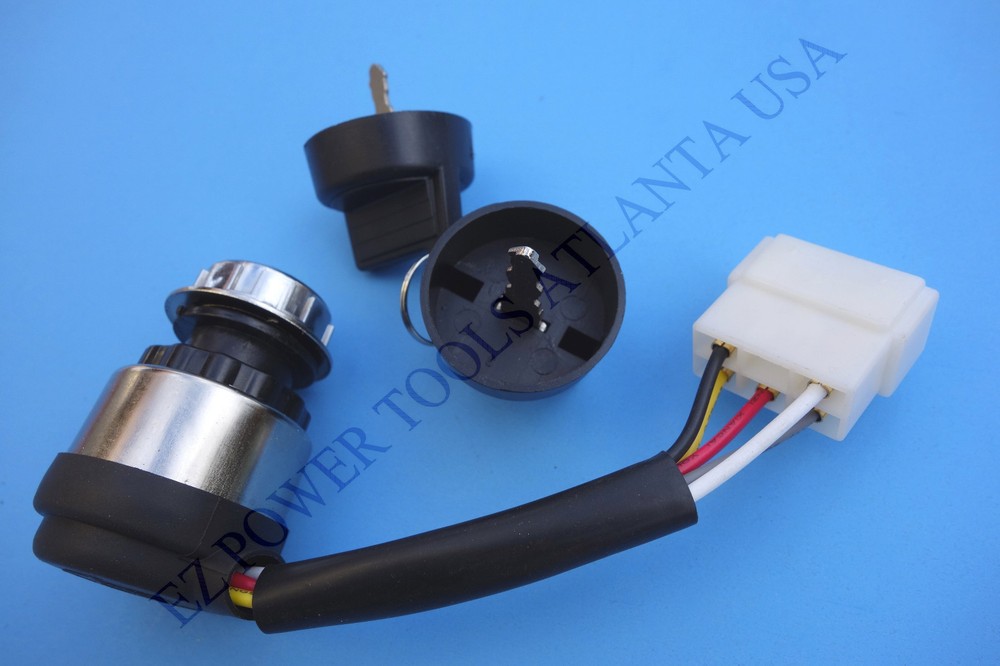

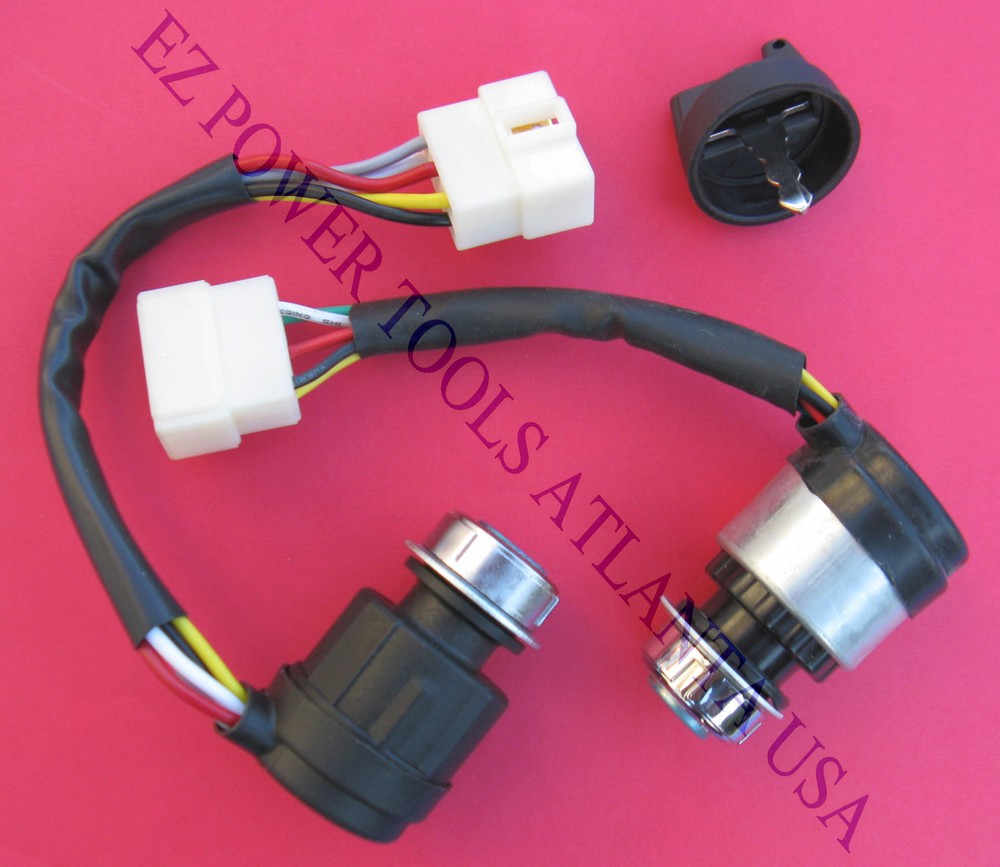

Product Description: Standard 5-wire/pin starter ignition key switch for Accurate Power, Eagle Power, Giant Tools & Morpower Branded Diesel Gene rators Powered by a 170FE, 178FE, 178FAE, 186FE or 186FAE Engine . It operates under "ON/RUN", "OFF/STOP" & "START" manually. 3-wire or 3-pin switch is also used in some models. It only uses three of 5 wires in our 5-wire ignition key switch: C, D & E. Please refer to Wiring Connections Section B for 3-Wire Ignition Key Switch. Quality Product with Prompt Shipping & Solid After Sales Support! All our orders are shipped out of Atlanta, USA and EDT is about 1 to 3 business days for delivery in most areas of continental states. Packing Contents: 1 X 5-Wire Ignition Key Switch + 2 X Keys . Part Number: EZ-DSG7200-IKS01. Wiring Connections: A) 5 or 6-Wire Ignition Key Switch: Vehicle Electronic Connector DJ7061-6.3-11 or DJ7061-6.3-10 5-Wire or 3-Wire Ignition Key Switch Combinations A: Yellow Wire, to the NEGATIVE POLE of an oil pressure sensor; the negative pole is directly grounded to the engine case for a single pole sensor and the top electrical contact for a two-pole sensor, respectively. B: Black Wire, to the POSITIVE POLE of an oil pressure sensor; the positive pole is the top electrical contact for a single pole sensor and the side electrical contact for a two-pole sensor, respectively. C: Grey or Green Wire, to the output of 12V voltage stabilizer for battery charging. Note: 12V voltage stabilizer is also called 12V voltage regulator, 12V bridge rectifer or 12V manostat. It is usually installed underneath a starter motor. D: White Wire, to the POSITIVE POLE of DC 12V battery. E: Red Wire, to the terminal pin of a starter motor solenoid. F: BLANK . Special Note: Different color wires may be used for different brand 5-wire ignition key switch. However, they are ALL wired at the same order and completely interchangeable, e.g., some ignition key switches are used with the following color wires: A: Green Wire , B: Black Wire , C: Yellow Wire , D: Red Wire & E: Brown Wire. B) 3-Wire Ignition Key Switch: 3-wire ignition key switch only uses three of 5 wires in our 5-wire ignition key switch: C, D & E. If your ignition key switch has the same 6-hole connector as ours, you need to do nothing about rewiring, just hook up our 5-wire ignition key switch and it will let you go! If your connector is different from ours, you need to rewire it as follows for fitting your generator: 1) Your fuel pump has no fuel shutoff solenoid. C: Grey or Green Wire, to the output of 12V voltage stabilizer for battery charging. Note: 12V voltage stabilizer is also called 12V voltage regulator, 12V bridge rectifer or 12V manostat. It is usually installed underneath a starter motor. D: White Wire, to the POSITIVE POLE of DC 12V battery. E: Red Wire, to the terminal pin of a starter motor solenoid. 2) Your fuel pump has a fuel shutoff solenoid. C: Grey or Green Wire, to the fuel pump solenoid. D: White Wire, to the POSITIVE POLE of DC 12V battery AND to the output of 12V voltage stabilizer for battery charging. Note: 12V voltage stabilizer is also called 12V voltage regulator, 12V bridge rectifer or 12V manostat. It is usually installed underneath a starter motor. E: Red Wire, to the terminal pin of a starter motor solenoid. Shipping: We ship worldwide. Please contact us and confirm international shipping & handling fee for shipping out of USA before you place an order with us. Warranty: We warrant our PRODUCTS against manufacturer defects in materials, workmanship and finish under normal use and service for three (3) months from the original date of purchase. Please retain the dated invoice as evidence of the date of purchase. You will need it for any warranty service. Return: If you are not satisfied with our items and want to return to us, please contact us for a Return Material Authorization (RMA) number within 30 days of receipt before you arrange for return. We DO NOT accept any return without EMA number. Non-authorized returns will be refused and sent back to YOU at your cost. Customers are responsible for all return shipping charges incurred. Shipping and handling fee is NON-REFUNDABLE under any circumstances. Payment: We take credit card payment for domestic customers in USA only. Payment through Paypal is also acceptable. For international customers, we only take credit card payment through Paypal. Thank you for the interest in our products , welcome to coming and taking a look next time.
These guys are the best customer service I’ve seen in 20 yrs I ordered the part that was wrong and they sent me another working with me to find right one it was wrong and after third attempt my generator is top notch I worked with an amazon vendor they sent wrong part and never answered my contact request If you ever need anything generator parts or anything this vendor sells this is not only your first choice it’s the only choice if your old and live remote their service and speed is perfect
Thank you! I’ve been scammed twice trying to find the right regulator for my older Honda generator being I was buying the correct part. I was ready to take it to the dump or sell it not working but decided to give it one more try. Thanks you you I now have a fully functional generator again. Regulator works perfectly. You also quickly answered my questions on a Saturday about correct fit. Awesome selller!!!! A++++ , Highly recommend. Oh, and I got the part in 2 days as an added bonus.
I ordered this gen carb a couple days ago. Even with the bad weather, i still received it in just a very short couple days. The quality and condition is superb and as stated. I had good communication with the seller to verify that the carb was a fit for my generator. I sent them a couple pics of my air filter box and carb and they verified it would fit. And their carb us an exact maych for mine as they said. Packaging was great and the carb received with zero damage. Thanks!
Related products

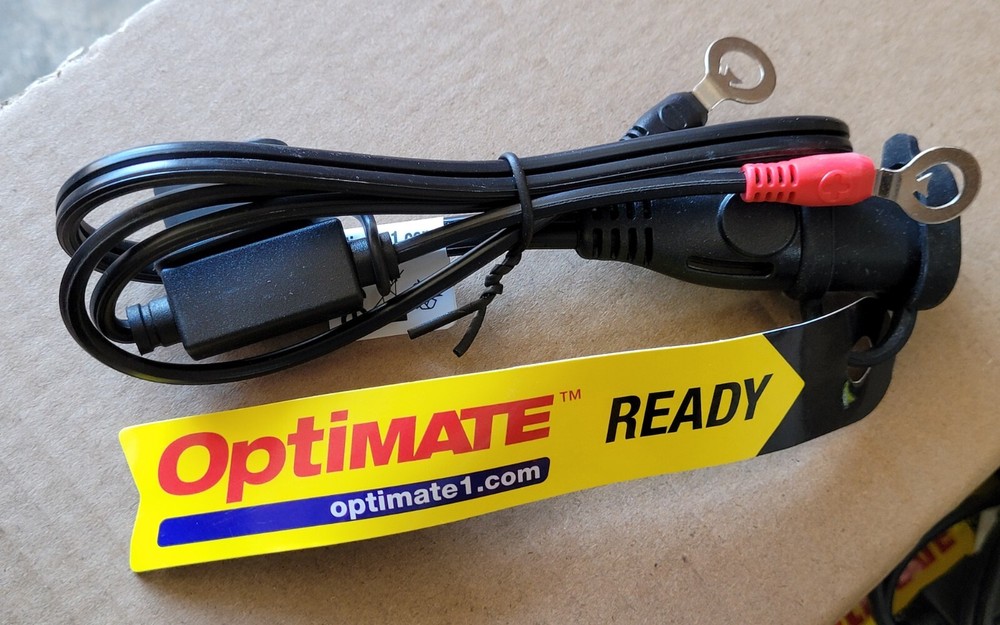

OptiMATE CABLE O-01 Battery Charger Accessory Weatherproof Battery Lead

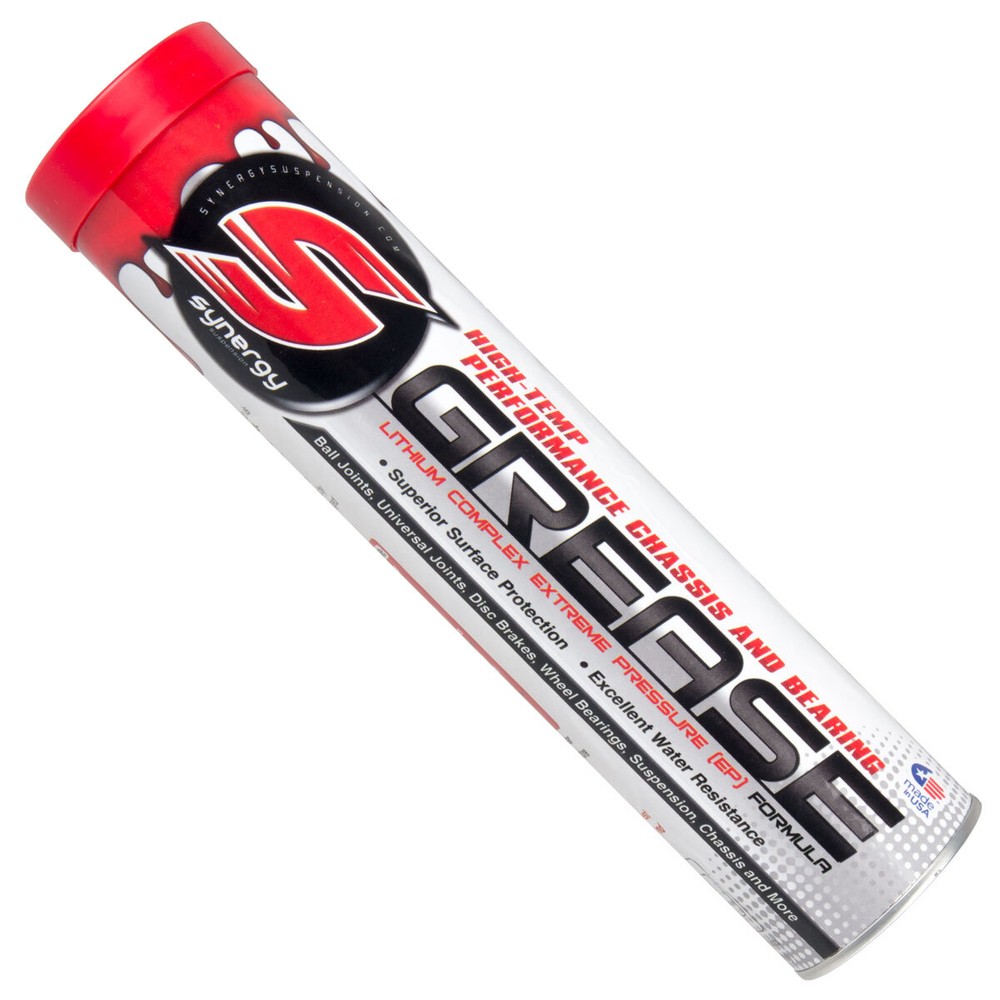

$ 5.28Synergy Chassis & Bearing Grease - (1) 14oz Tube 4119
$ 23.82Synergy Chassis & Bearing Grease - (1) 14oz Tube 4119

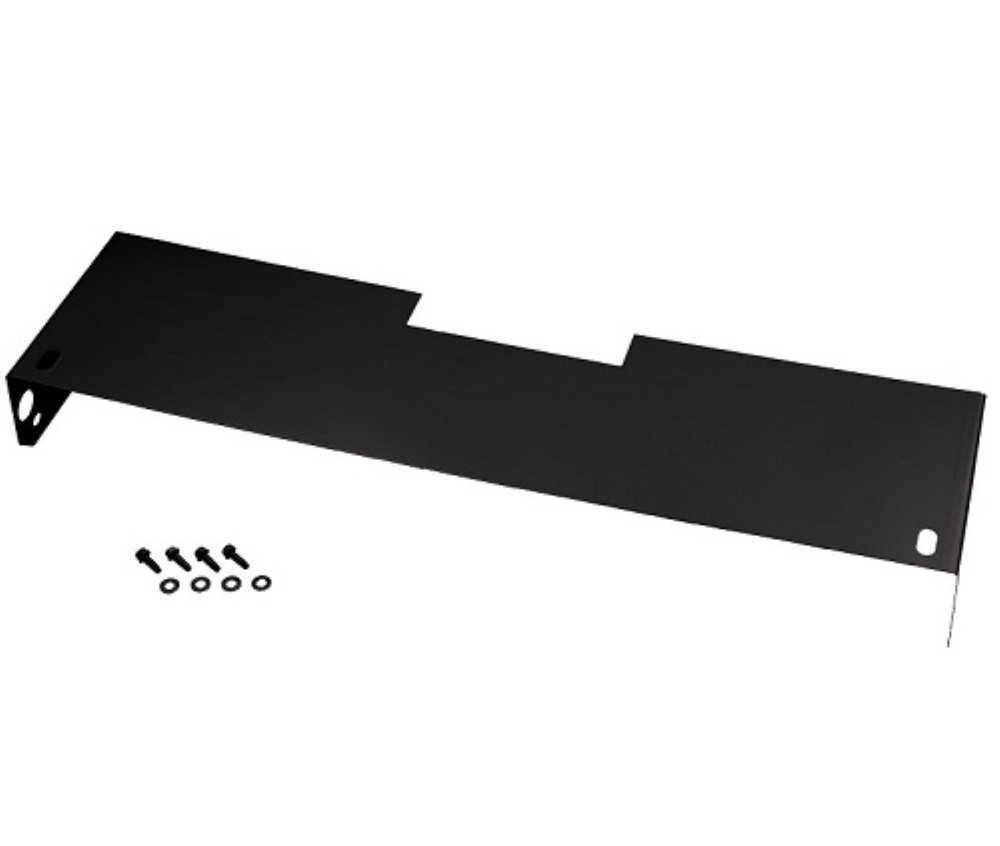

$ 23.82Kentrol 50433 for Jeep® CJ 1972-86 Frame Cover (410) Black Powder Coated Stainl
