Anritsu MA80002A 39GHz RF Converter 37-42.5GHz for MT8000A Radio Test Station

$ 210.68

Brand: Anritsu Modified Item: No MPN: MA80002A Type: RF Converter Custom Bundle: No

Description

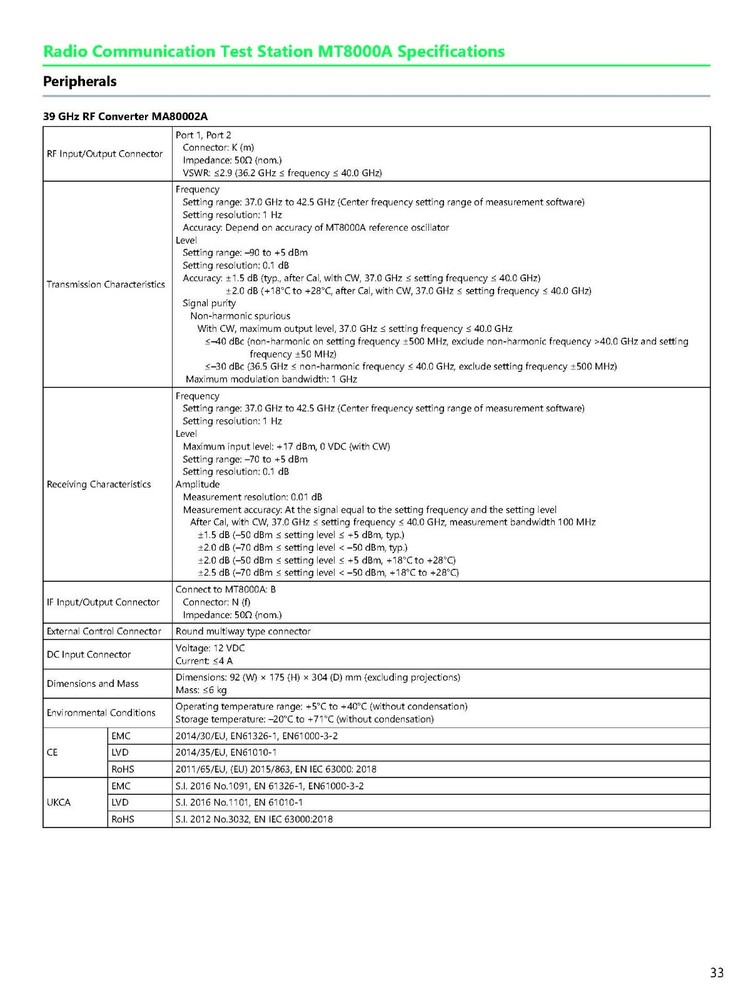

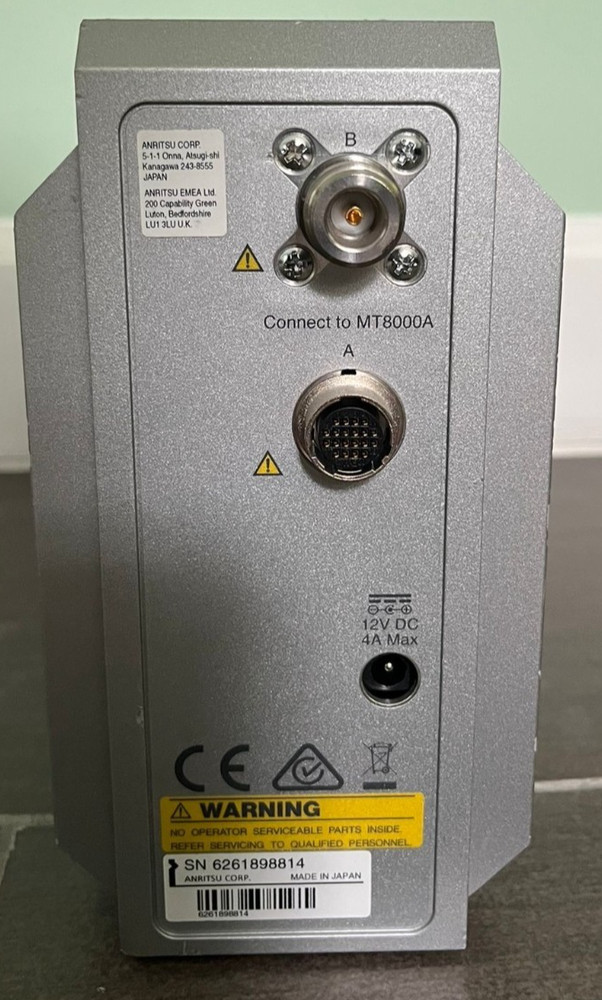

Anritsu MA80002A 39GHz RF Converter 37-42.5GHz for MT8000A Radio Test Station. 39 GHz RF Converter MA80002A RF Input/Output Connector Port 1, Port 2 Connector: K (m) Impedance: 50Ω (nom.). ±2.0 dB (–70 dBm ≤ setting level < –50 dBm, typ.). ±2.0 dB (–50 dBm ≤ setting level ≤ +5 dBm, +18°C to +28°C) ±2.5 dB (–70 dBm ≤ setting level < –50 dBm, +18°C to +28°C) IF Input/Output Connector Connect to MT8000A: B Connector: N (f) Impedance: 50Ω (nom.). 39 GHz RF Converter MA80002A RF Input/Output Connector Port 1, Port 2 Connector: K (m) Impedance: 50Ω (nom.) VSWR: ≤2.9 (36.2 GHz ≤ frequency ≤ 40.0 GHz) Transmission Characteristics Frequency Setting range: 37.0 GHz to 42.5 GHz (Center frequency setting range of measurement software) Setting resolution: 1 Hz Accuracy: Depend on accuracy of MT8000A reference oscillator Level Setting range: –90 to +5 dBm Setting resolution: 0.1 dB Accuracy: ±1.5 dB (typ., after Cal, with CW, 37.0 GHz ≤ setting frequency ≤ 40.0 GHz) ±2.0 dB (+18°C to +28°C, after Cal, with CW, 37.0 GHz ≤ setting frequency ≤ 40.0 GHz) Signal purity Non-harmonic spurious With CW, maximum output level, 37.0 GHz ≤ setting frequency ≤ 40.0 GHz ≤–40 dBc (non-harmonic on setting frequency ±500 MHz, exclude non-harmonic frequency >40.0 GHz and setting frequency ±50 MHz) ≤–30 dBc (36.5 GHz ≤ non-harmonic frequency ≤ 40.0 GHz, exclude setting frequency ±500 MHz) Maximum modulation bandwidth: 1 GHz Receiving Characteristics Frequency Setting range: 37.0 GHz to 42.5 GHz (Center frequency setting range of measurement software) Setting resolution: 1 Hz Level Maximum input level: +17 dBm, 0 VDC (with CW) Setting range: –70 to +5 dBm Setting resolution: 0.1 dB Amplitude Measurement resolution: 0.01 dB Measurement accuracy: At the signal equal to the setting frequency and the setting level After Cal, with CW, 37.0 GHz ≤ setting frequency ≤ 40.0 GHz, measurement bandwidth 100 MHz ±1.5 dB (–50 dBm ≤ setting level ≤ +5 dBm, typ.) ±2.0 dB (–70 dBm ≤ setting level < –50 dBm, typ.) ±2.0 dB (–50 dBm ≤ setting level ≤ +5 dBm, +18°C to +28°C) ±2.5 dB (–70 dBm ≤ setting level < –50 dBm, +18°C to +28°C) IF Input/Output Connector Connect to MT8000A: B Connector: N (f) Impedance: 50Ω (nom.) External Control Connector Round multiway type connector DC Input Connector Voltage: 12 VDC Current: ≤4 A Dimensions and Mass Dimensions: 92 (W) × 175 (H) × 304 (D) mm (excluding projections) Mass: ≤6 kg Environmental Conditions Operating temperature range: +5°C to +40°C (without condensation) Storage temperature: –20°C to +71°C (without condensation) CE EMC 2014/30/EU, EN61326-1, EN61000-3-2 LVD 2014/35/EU, EN61010-1 RoHS 2011/65/EU, (EU) 2015/863, EN IEC 63000: 2018 UKCA EMC S.I. 2016 No.1091, EN 61326-1, EN61000-3-2 LVD S.I. 2016 No.1101, EN 61010-1 RoHS S.I. 2012 No.3032, EN IEC 63000:2018
