Apollo 550W 24V AC Wind Turbine Generator Kit with 3 Blades Controller and Dumpload

Description

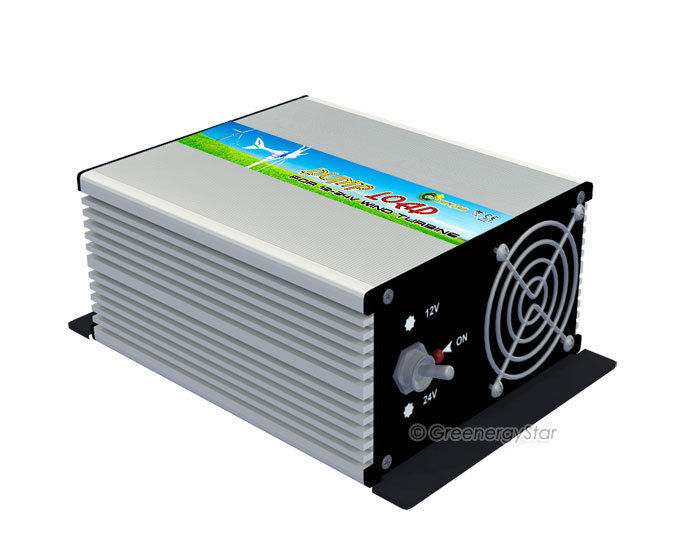

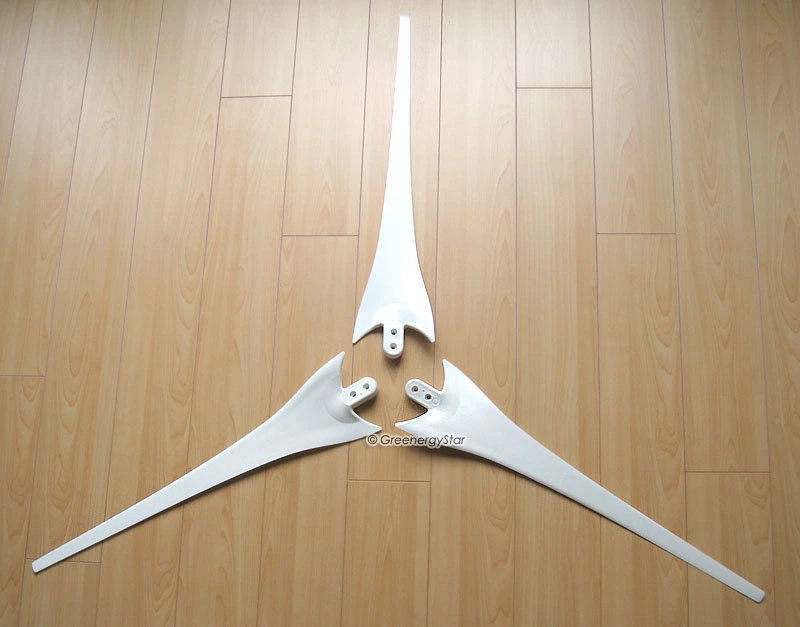

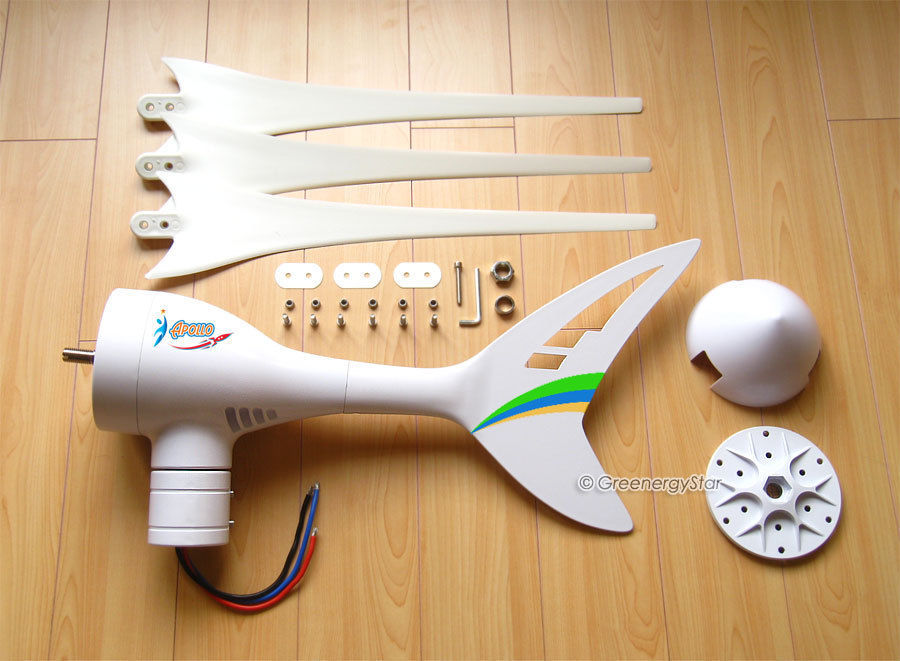

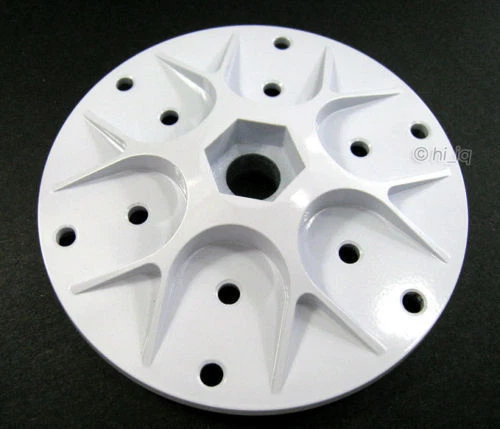

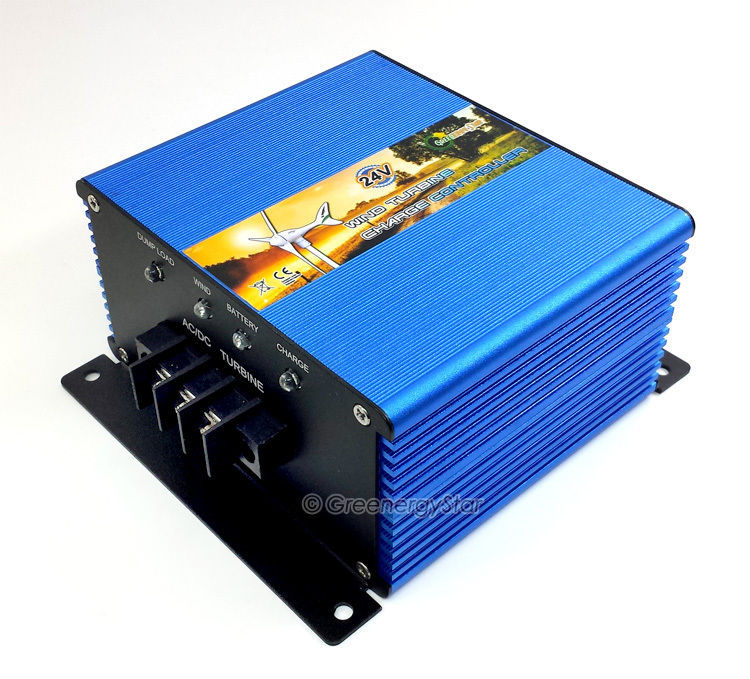

Apollo 550W AC 24V Wind Turbine 3 Blades +24V Charge Controller + Dump Load For Land or Marine Use Product designed in Canada 24V Wind Turbine charge controller & Dump Load are included. Package Includes: Wind turbine Generator, Nose Cone, 3 turbine blades, Hub, all screw & bolts 24V charge controller & Dump Load is included. Certification: CE, RoHS and ISO 9001:2000 Connection Overview: The Wind Generator is connected to the charge controller, which changes the Alternative Current output by the generator to Direct Current (AC to DC). Electricity generated by the wind turbine are then stored to batteries. Note: the 12V Batteries above are not included. If your home or farm is connected to the power grid, on windier days you may be able to sell excess power generated by your wind turbine to your utility. At other times when the turbine cannot generate all the power you need, you would buy power from the grid. This concept is called net metering. Even if net metering is unavailable, you might be able to reduce your power bills by using the electricity generated by wind turbines, and become less dependent on your utility. Apollo Wind Generator Over the last few decades renewable energy has started to gain its ground. Of all the different kinds of alternative energy sources available, the use of wind power has been growing steadily. However, wind turbines that are available for homeowners in the market today are mostly designed (or copied) a decade ago and although they work, most have mechanical flaws that were neglected since their debut and there is a lot of room for improvements. With that in mind, we have redesigned a new wind turbine - the Apollo. Built-in with a stronger alternator for higher power output, Anti-vibration system to increase power efficiency, and the ability to be customized and upgraded for the future. Exploded View (No inverter, batteries, turbines and solar panels included in this listing) What is the difference in an Apollo Wind Turbine? GreenergyStar's Apollo Wind Turbine is the most mechanically advanced generator in the market today. It features many upgrades that solves performance issues that our competitors struggle with. It is designed to work with other GreenergyStar branded products such as the SolarWind Hybrid RX charge controller and grid tie inverters to better utilize the renewable energy generated. The following list will summarize its major features: I. Performance Curves The above battery charging power curve is obtained from charging a 12V 100Ah battery bank Blade Features - Color: White - With 49" swept area when mounted on a 5" Hub - Incorporates highly efficient, true airfoil - Quiet performance with minimal vibration - Can generate 800 watts or more depending on PMA efficiency - Manufactured using a precision injection molding process that produces blades of exceptional consistency - Made with new thermoplastic to increase durability - Smoother and more durable than any blades you can find in the market - Adjustable blade degree with included degree adjusters / shims (see picture below) - High resistance to bending (over 150 degrees) What is Nylon 6.6? Nylon is a man made product. On the man made side, you will see primarily three types of thermoplastic. These are polyester, polypropylene, and nylon. Of the three types, nylon is by far the better choice. Nylon is extremely versatile in its applications. It is highly resistant to abrasion and has excellent resilience . Within nylon, there are two groups: nylon 6 and nylon 6.6 . Nylon 6.6 is the premium thermoplastic . It is the thermoplastic that is most often specified by professional architects and designers because it provides the flexural strength, low-temperature toughness, UV Resistance and is the most resilient . Nylon 6.6 performs well in many applications such as wind turbine blades, automotive parts, and other fields that get a lot of wear and tear. Nylon 6.6 has additional molecules that give extra strength and the resilience compared to nylon 6. If you still have no idea what Nylon 6.6 is, do a search on google. Adjustable blade degree with included degree adjusters (Shims) Increase/decrease blade angle by installing degree adjuster under the blades "+" on the right side = Increase angle = More Torque, Less Speed "-" on the right side = Decrease angle = Less Torque, More Speed Specification Material Nylon 6.6 + Carbon Fiber (<20%) Length 23.5 inches Width (base) 5 inches Mounting 6mm bolts Weight (per blade) 166g, 6oz Rotor Apollo Competitor's Pros - 20mm rotor thickness, 66% more compare to competitor's - Stronger Magnetic flux due to thicker rotor, and thus, more Power - Evenly spread magnets decrease magnetic drag - 6 balanced hole to reduce weight - Reduce forces required to start rotor due to less reciprocation mass - Brushless Permanent Magnet Alternator Cons - only 12mm in rotor thickness and thus weaker magnetic flux - Magnets are not evenly spread out (ie: screw at top) - No weight reduction = harder start up Specification Rotor Diameter 77mm Magnet Material Rare Earth Neodymium magnets Number of Magnets 12 Magnet Width (Rotor thickness) 20mm Weight 682g Body Reference picture ONLY. Please refer to listing details on the actual model you are getting. - Bigger body allow fitting of a more powerful alternator than competitor's - Longer body and tail (62cm) allow the Apollo to face wind even if more blades are added while our competitor just spins round and round - High surface area tail, 33cm in height, 30% more surface area will let the turbine stay focus to incoming wind - Installation of 29" blades and capture 50% more wind is now possible Specification Material Aluminum (with coating) Length 62 cm Tail Height 33 cm Tail surface Area 225 cm^2 Upgradable with 29" blades Yes Blades allowed 6 Hub Pros - 140mm diameter, 10% larger than competitor's - High blade capacity, allow up to 6 to be installed - Covers the entire face plate to eliminate vortex Cons - 125mm in diameter - Only allows 3 blades to be installed - Does not cover face plate completely Specification Material Aluminum (with coating) Diameter 140 mm Capacity 6 Blades Compatibility Air-X, 403, 303 Shaft Diameter for 17mm shaft Disc Thickness 23mm II. Anti-Vibration System Horizontal Pros - Dual Metal ball bearing located at front and rear of rotor - 5.5cm of stabilizing distance to prevent rotor and blades from vibrating - No vibration = Increase in efficiency - Reduction in noise output Cons - 2 bearings placed side by side together - Stabilizing distance effectively shorten to 2cm (63% reduction) - Vibration = Energy wasted - Wasted energy gets converted to Noise and Heat Vertical Pros - Dual Metal ball bearing to prevent vertical vibration - Yaw shaft diameter: 40mm - 3cm of stabilizing distance with 2 bearings - No vibration = Increase in efficiency - Reduction in noise output - One piece design Yaw body provides more stability Cons - Single bearings will not eliminate vertical vibration - Yaw shaft diameter: 35mm - Stabilizing distance effectively shorten to 1.4cm with one bearing (53% reduction) - Vibration will cause bearing to grind on yaw shaft and create a bigger play, which in turn will cause more vibration in a never ending cycle - 2 pieces design Yaw body is less stable III. Anti-Leak System Pros - Unlike rubber, PVC Rings are much more durable will not harden and crack and cause leaks - Bearing are covered and will not rust / leak Cons - Rubber ring will harden after approximately 1 year of use and will start cracking and leaking - Bearing are exposed and will rust / leak IV. Generator Specification Body Material Aluminum Rotor Diameter 124.5cm (49 inches) Starting Wind Speed 3.5m/s (8 mph) Rated Wind Speed 13m/s Survival Wind Speed 45m/s Voltage 24 VAC Rated Power 450W Maximum Power 550W Weight 7.88kg (17.39 lb) Yaw Body / Tower Mount Inner Diameter 53.3mm, 2.1 inch Recommended Tower (Pipe) Size 1.5 in ch schedule 40 pipe Actual Pipe diameter: 48mm (1.9 inch) Recommend adding 2.5mm padding Why do we need a Dump Load? As we all know, wind turbines are designed to operate in a loaded situation so it can generate power to either the battery / the grid. It is, however, not designed to operate under a no load (open circuit) situation because doing so will put a lot of strain on the wind turbine components and speeds out the wear out process which will eventually will lead the turbine to self destruct. Therefore, a dump load is required to burn out the extra energy when the battery is full OR when the grid is out. Because of this, a dump load is also known as a "diversion load". This dump load is designed to work with GreenergyStar SolarWind Hybrid RX Charge Controller. It will work with the Apollo & Patriot Wind Turbines as well. Installation Reference - not to scale (No inverter, charge controller, batteries, turbines and solar panels included in this listing) Features - Specifically designed to work with GreenergyStar SolarWind Hybrid RX Charge Controller - Switch between 12V / 24V system - 2 fans active convection cooling system - LED to indicate if dump load is active - Finned case to efficiently dissipate heat - Consist of 4 high quality golden low temperature resistor Dump Load Interior - High Quality golden low temperature resistor Specification Input Voltage 12V and 24 V switchable Maximum Aperage 15A Operating Temperature Range -25'C ~ 80'C Weight 1094g, 2.41lb Dimension (L x W x H) 19.3 x 13.1 x 6.9 cm 7.5" x 5.2" x 2.7" Mounting Wall Mount at base Cooling 2 fans convection cooling Casing High quality finned aluminum to act as heat sink for fast heat dissipation LED Indicatior RED, turns on when dumpload is active What are included: -1 Apollo Wind Turbine - 3x Blades - Hub with 6 lots - Nose Cone - Screws and Nuts - Degree Adjuster - Allen Key - Instruction Manual - Charge Controller - Dump Load Upgrades / Recommendations (not included in this auction) WARNING !!! Rotating blades present the most serious mechanical hazard. The blades may be moving at velocities over 275 miles per hour (440 km/hr). At this speed, the tip of a blade is nearly invisible and can cause serious injury. Under no circumstances should you install the turbine where a person could come in contact with moving rotor blades. The installer of these blades is solely responsible for the use or misuse of these blades. We assume no liability for ANY injuries caused by these products Warranty: We will warrant this unit against any manufacture defects or workmanship for 1 year from the date of purchase. This limited warranty specifically excludes damage caused by improper installation, accident, misuse , abuse , improper storage , or any unauthorized disassembly, repair, or modification .This warranty is not transferable. In the event of a claim against this warranty, the seller's obligation, and the claimant's sole remedy, shall be replacement of the product, repair, or refund of the original purchase price excluding any shipping and handling fees. All shipping and handling fees going both ways are responsible by the buyer. NO OPERATING COST GENERATES ELECTRICITY FROM THE ABUNDANT RESOURCE - SOLAR & WIND Terms & Conditions Bidding this auction means that you agree with the following terms & conditions. All pictures and descriptions are subjected to change without notice. Items may not look exactly the same as the auction shown. We are not responsible for any inadvertent errors. Payment Total payment = winning price + shipping & handling Insufficient payment will be charge extra US$0.50 to compensate the Paypal penalty fees. Shipping & Handling Total shipping = Base S&H + Combine S&H ( for each additional item ) a) Base S&H is the highest shipping cost of the first item. 1. Combine shipments are only available on the condition of a SINGLE PAYMENT . Auctions that are paid separately will NOT be shipped in combo and therefore, they are not qualified for shipping discounts. 2. We ship within 2 working days after payment is received and confirmed. Please allow up to 5-10 BUSINESS DAYS for item(s) with a physical address sending to the 48 states of United States & Canada. For international bidders, the shipping time varies with respect to your location. 3. Bounce backs due to incorrect shipping address will result in setback on deliveries. It is the buyer's responsibility to repay the shipping & handling fees. 4. We are not responsible for any loses or damages resulting from shipping. Return & Refund Policy No refunds after 30 days Shipping & handling & other service fees are NOT refundable All returned items must be in original packing. Items that are used/ damaged/ deformed or altered in any ways will not be accepted. A 20% restocking fee will be charged on all refunded items. E-mails E-mails are usually answered within 2~3 business days in priority order. Spams and mass e-mailing will be deleted without slightest glance. E-mails with virus or anything subjected to hacking are automatically deleted.
