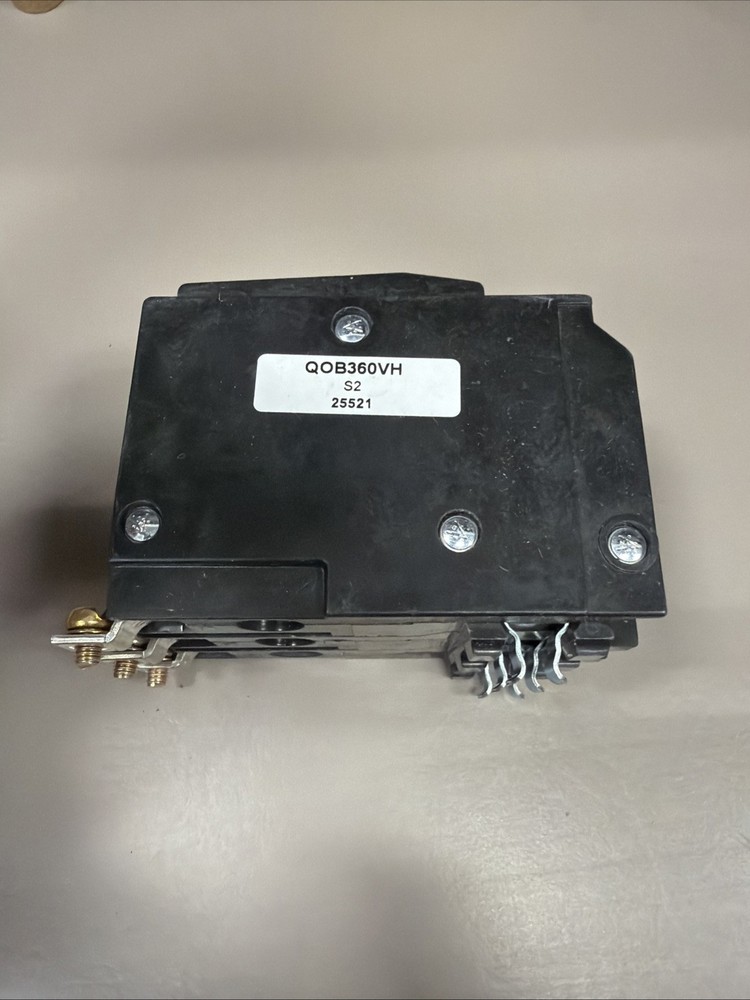

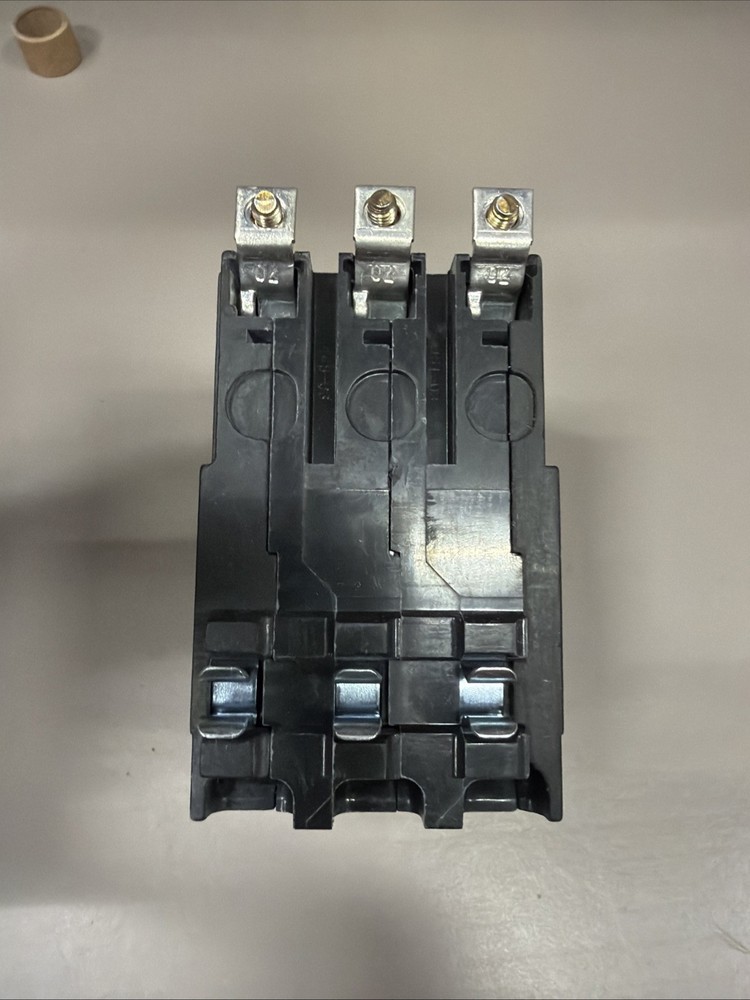

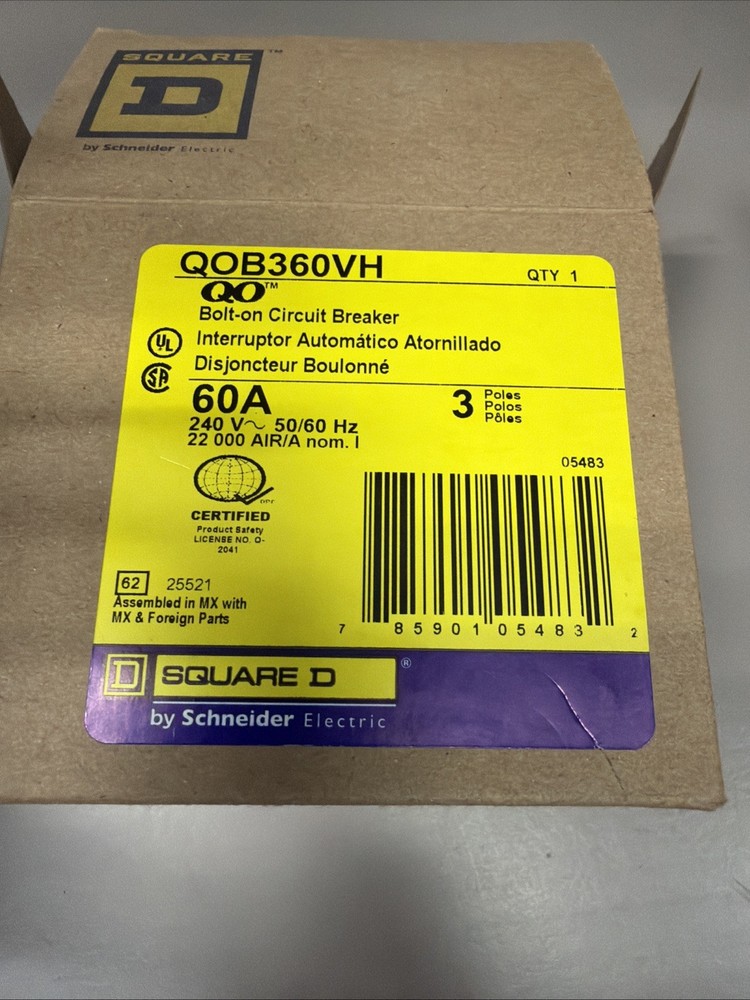

Circuit Breaker Square D QOB360VH 60 Amp 3 Pole 240V 22kA Bolt On AB

$ 23.76

Features: Thermal Overload Protection Material: ABS/Plastic, Plastic Voltage: 120/240 Vac MPN: QOB360VH, DP-4075 Number of Phases: 3 Tripping Characteristics: Type D Protection Properties: Overcurrent Protection Number of Positions: 3 Mounting Style: Bolt-On Number of Gangs: 6 Model: QOB360VH Voltage Rating: 120/240V Country of Origin: Unknown Brand: Square D Type: Main Breaker Number of Poles: 3 Operation Method: On/Off Room: Any Room Current Rating: 60A Number of Throws: 1 Color: Black Number in Pack: 1 Maximum Amperage: 60 A Compatible Wire Gauge (AWG): 1-5 Suitable For: Interior Current Type: AC Break Time: Instantaneous Control Style: Switch

Description

Circuit Breaker Square D QOB360VH 60 Amp 3 Pole 240V 22kA Bolt On AB. It supports wire sizes AWG 8 to AWG 2 for copper or aluminum conductors and is designed for use with NQOD panelboards. Part Number: QOB360VH. Manufacturer: Square D. Brand New in the Box!! QOB360VH is a Square D 3 Pole thermal magnetic molded case circuit breaker rated for 60 Amps and 120/240VAC voltage with bolt-on mounting.This QOB series breaker features a 22kA interrupting rating at 120/240VAC, long time and instantaneous trip functions, and is UL and CSA approved. It supports wire sizes AWG 8 to AWG 2 for copper or aluminum conductors and is designed for use with NQOD panelboards. Key Specifications Manufacturer: Square D Part Number: QOB360VH Amperage: 60 Amps Voltage: 120/240VAC Poles: 3 Mounting Type: Bolt-On Interrupt Rating: 22kA at 120/240VAC Series/Frame: QOB Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip Certifications: UL, CSA Wire Gauge: AWG 8 to AWG 2 Copper or Aluminum Terminal Connection: Box Lugs
