DAYTON MINIATURE CIRCUIT BREAKER-5MLC0-C Curve, 1P, 1A, 220VDC--FREE SHIP-BIN 2
$ 10.54
Description

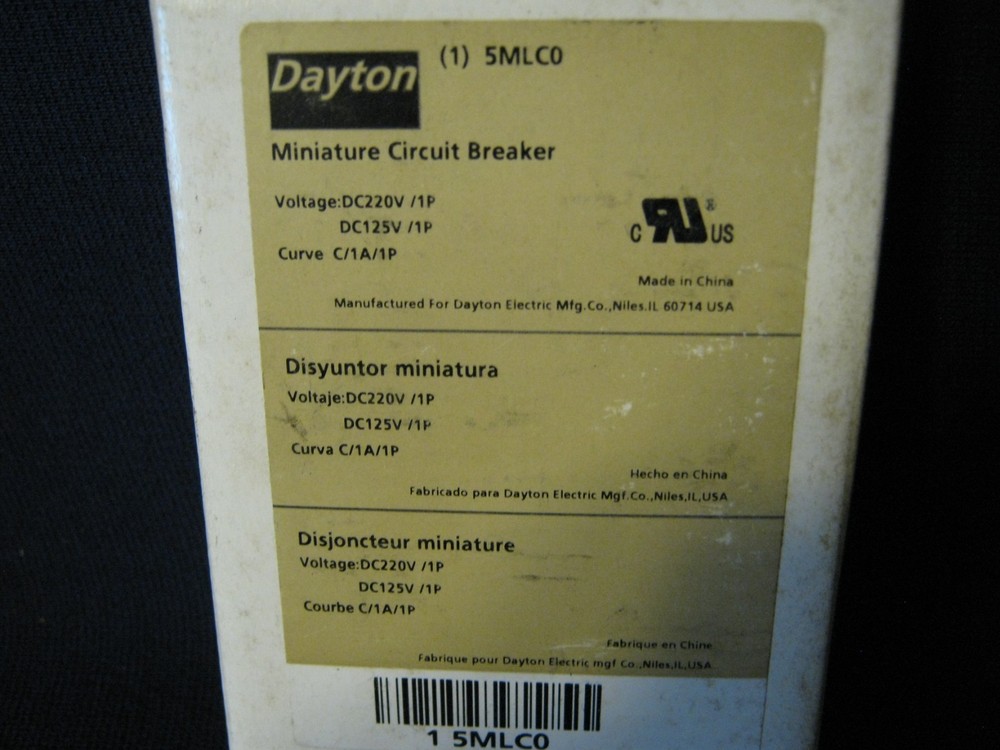

DAYTON MINIATURE CIRCUIT BREAKER-5MLC0-C Curve, 1P, 1A, 220VDC--FREE SHIP-BIN 2. Circuit Breaker Actuator. Circuit Breaker Mounting Style. Curve Type. Number of Poles. China (subject to change). Country of Origin. CSA,TUV,CE; UL Listed. Thermal Magnetic. You are bidding on a Dayton Miniature Circuit Breaker #5MLC0.These items come from overstocks and store closings...This item has Free Shipping Mainland USA Only!!! Product Details Catalog PageN/A BrandDAYTON Amps1 A AC Voltage RatingNot Rated Max. AIR Rating10kA at 440V DC Curve TypeC DC Voltage Rating220V DC Number of Poles1 Phase1 Circuit Breaker ActuatorToggle Circuit Breaker Mounting StyleDIN Rail Meets UL TypeUL 1077 Terminal ConnectionScrew Clamp Trip TypeThermal Magnetic ApplicationSupplemental Protection Min. Wire Size14 AWG Max. Wire Size4 AWG Length3.21 in Width0.71 in Depth2.91 in StandardsCSA,TUV,CE; UL Listed SeriesNDB2Z-63 C1/1 UNSPSC39121601 Country of OriginChina (subject to change) Product DescriptionDC-only one-pole supplementary protectors mount on standard 35mm DIN rail and provide more support than protectors used for both AC and DC voltage applications. These protectors are used with a single circuit in semi-conductor machines, communication equipment, process control panels, computers, and other DC-powered equipment. They're UL1077 listed for use as supplementary protection from damage caused by overcurrents and short circuits. I buy estates and list the items the way I view them and may miss something that is important to you,so please ask BEFORE BIDDING!!!!
