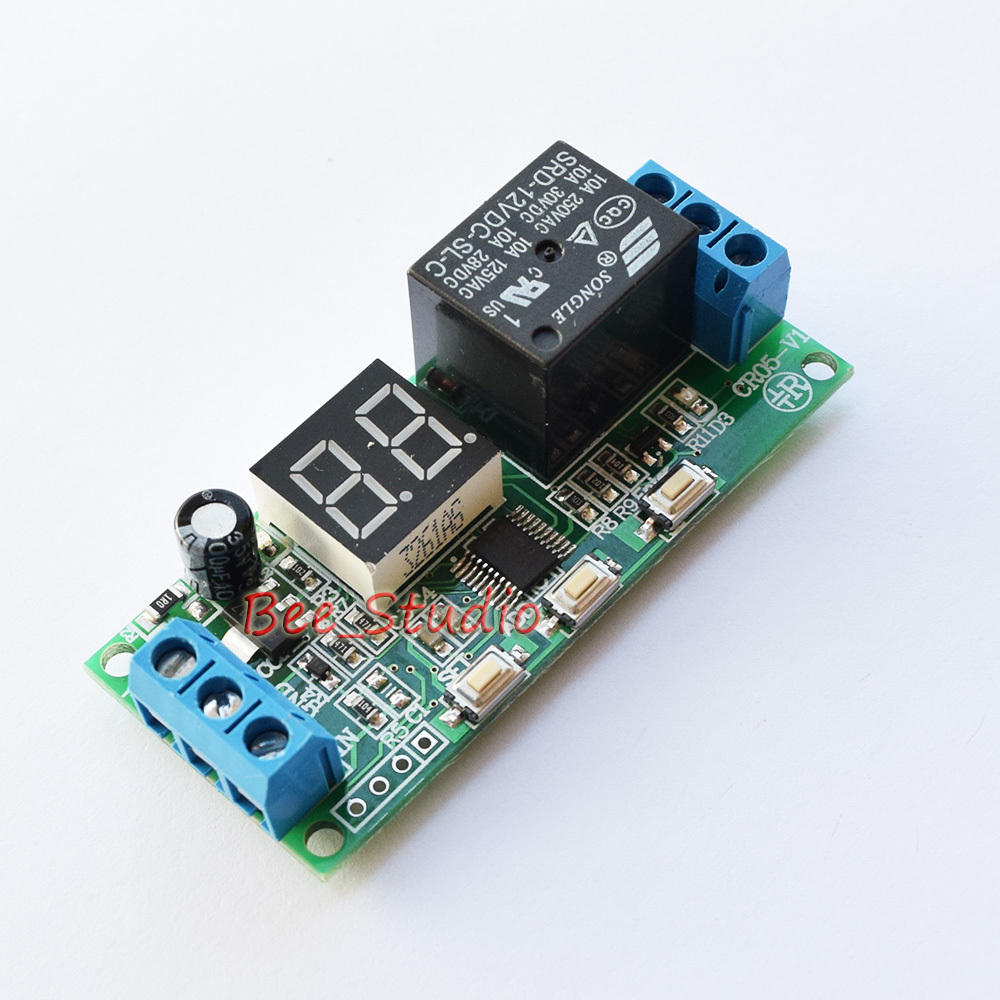

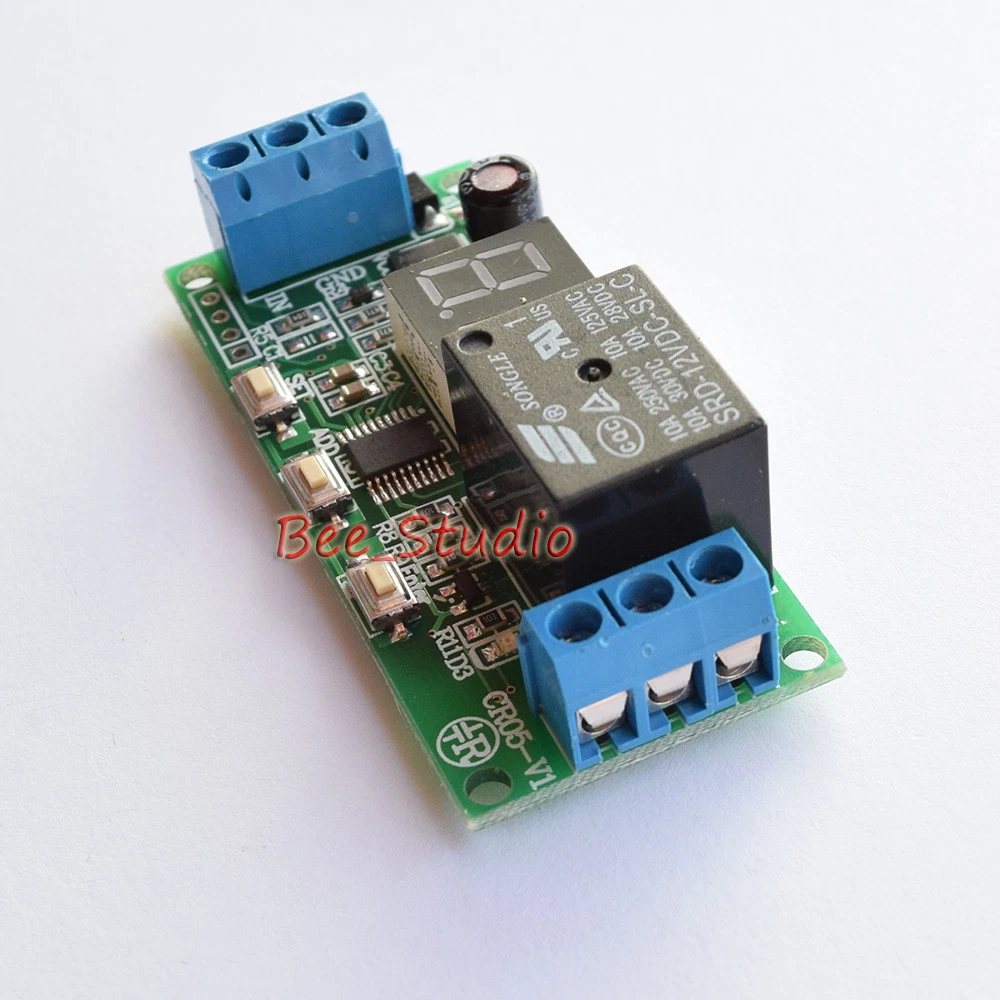

DC 12V Multifunction Digital LED Time Infinite Delay Switch Timer Relay Module

Description

Welcome to Plc-Electric If you like this item, welcome to "Add to watch list" If you like our store, welcome to "+ Follow this seller" to follow us. You may also like, welcome use "Add to basket to buy" Description Welcome to my eBay store: plc-electric Specification : Function introduction: Time delay range: T1 and T2 between 0.1 seconds to 99 hours adjustable. P1(delay turn off): when power on, the relay on, delay T1, and the relay off. Give IN a low level, repeat the above function. P2(delay turn on): when power on, the relay disconnected, delay T1, and the relay on. Give IN a low level, repeat the above function. P3(Timing cycle on-off): when power on, the relay on, delay T1, and the relay off, delay T2, the relay on, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. P4(Timing cycle off-on): when power on, the relay disconnected, delay T1, and the relay on, delay T2, the relay off, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. P5(trigger delay turn off): when power on, the relay disconnected, triggered the relay on, delay T1, and the relay off. Give IN a low level, repeat the above function. P6(trigger delay turn on): when power on, the relay disconnected, triggered the relay disconnected, delay T1, and the relay on. Give IN a low level, repeat the above function. P7(trigger cycle on-off): when power on, the relay disconnected, triggered the relay on, delay T1, and the relay off, delay T2, and the relay on, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. P8(trigger circle off-on): when power on, the relay disconnected, triggered the relay disconnected, delay T1, and the relay on, delay T2, and the relay off, and then repeat the above condition, cycle times can be adjusted 1-99 times or infinite loop. Product parameters : 1. working voltage: DC 12V 2. Load Power: DC 0~30V 10A / AC 0~220V 10A. 3. Static current: 15mA 4. Working current: 30mA 5. Service life: 100 thousand times; 6. Working temperature: -40~85℃; 7. Size: 65mm*28mm*18mm Use operation instructions : Step 1: power on. Step 2: long press the SET key to enter the function to choose, display P1-P8, short press SET key, switch between function P1 to function P8. Step 3: press the ADD key to select the T1 time unit, the display value (-0/-1/-2/-3), set the T1 time unit, then press the ADD key time unit to switch between -0/-1/-2/-3. Time unit: -0:time range 0.1s to 9.9s.(time accuracy:0.1s) Time unit: -1: 1s to 99s.(time accuracy:1s) Time unit: -2: 1min to 99min.(time accuracy:1min) Time unit: -3: 1h to 99h.(time accuracy:1h) Step 4: press the SET key to set T1 time, display T1, then press ADD/Enter key to add and subtract time, display value (00). If it is a function of P1, P2, P5 and P6, press SET key to confirm the save, set the end. If it is a function of P3, P4, P7 and P8, to enter the step 5. Step 5: press the SET key to select the T2 time unit, the display value (-0/-1/-2/-3), set the T2 time unit, then press the ADD key time unit to switch between -0/-1/-2/-3. Time unit: -0:time range 0.1s to 9.9s.(time accuracy:0.1s) Time unit: -1: 1s to 99s.(time accuracy:1s) Time unit: -2: 1min to 99min.(time accuracy:1min) Time unit: -3: 1h to 99h.(time accuracy:1h) Step 6: press the SET key to set T2 time, display T2, then press ADD/Enter key to add and subtract time, display value (00). Step 7: press the SET key to set the cycle times, display "C-", then press the ADD/Enter button to add and subtract the times of cycles, display value (00), if set to 0 is infinite loop. Step 8: press the SET key to confirm the preservation Package Include: Module x 1PCS Payment We only accept payment via Paypal. The buyer is responsible for any applicable import duties and local taxes. Usually there's no any charges for small parcel. But please verify with your customs before making your purchase. Delivery details The items will be shipped within 1~2 working days after your payment is received and cleared.(excluding Saturday, Sunday & Holiday) All items will be shipped to your Paypal address, so please make sure to provide us with the correct, precise, detailed shipping address. The Delivered time to USA buyer is about 7~20 days, other country about 15~35 days delivered. Notes: Please contact us in advance if you need faster trackable or express shipping service. Terms of sales All the items will be tested before shipping. Buy them with the confidence! We maintain the excellent service standards and strive for 100% customer satisfaction and Positive feedback. If you have any problem, please do feel free to contact us before leave Neutral or Negative feedback, so that we can satisfactorily address your concerns. Return We afford all cost if it's our fault. Exchange or refund. Contact us We strive to provide you with the best service, reply your question within 24 hours. Business time: 9:30~21:30 (GMT+8) exclude the weekend and holidays. Contact us
