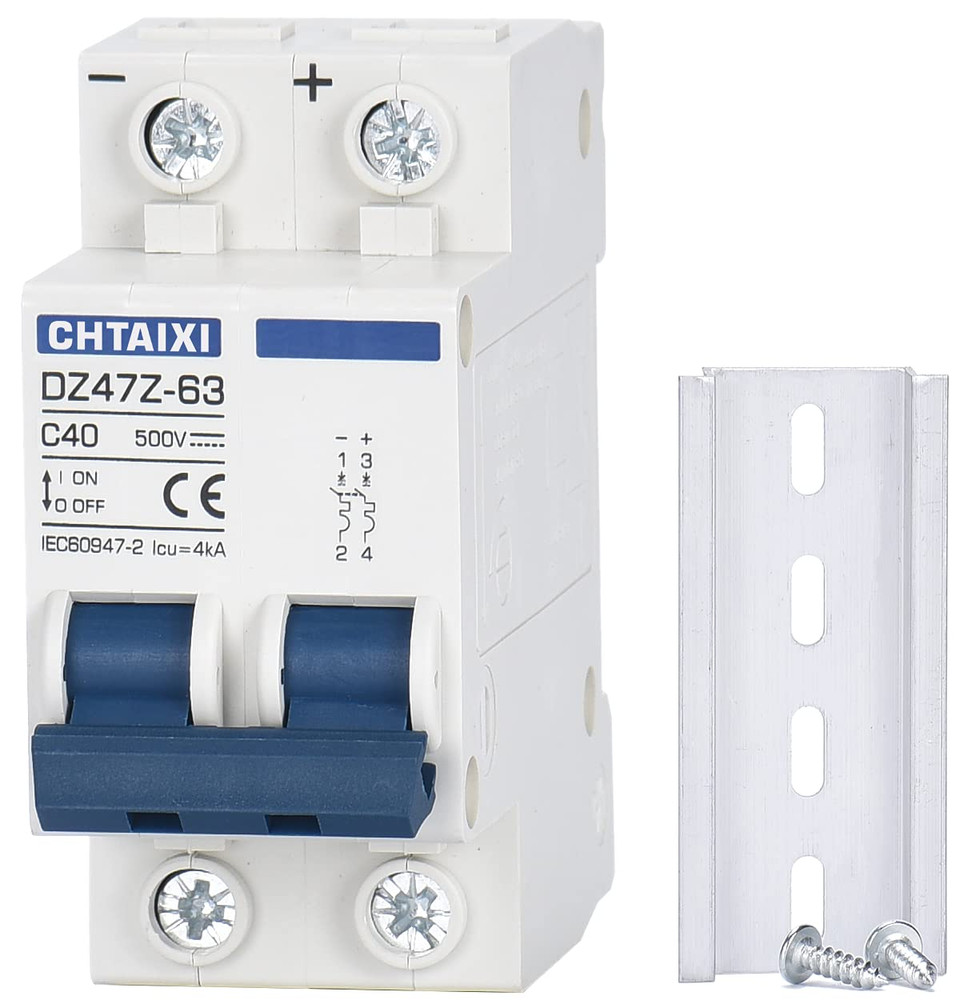

DC Miniature Circuit Breaker, 2 Pole 500V 40 Amp Isolator for Solar PV System, T
$ 10.38
Description

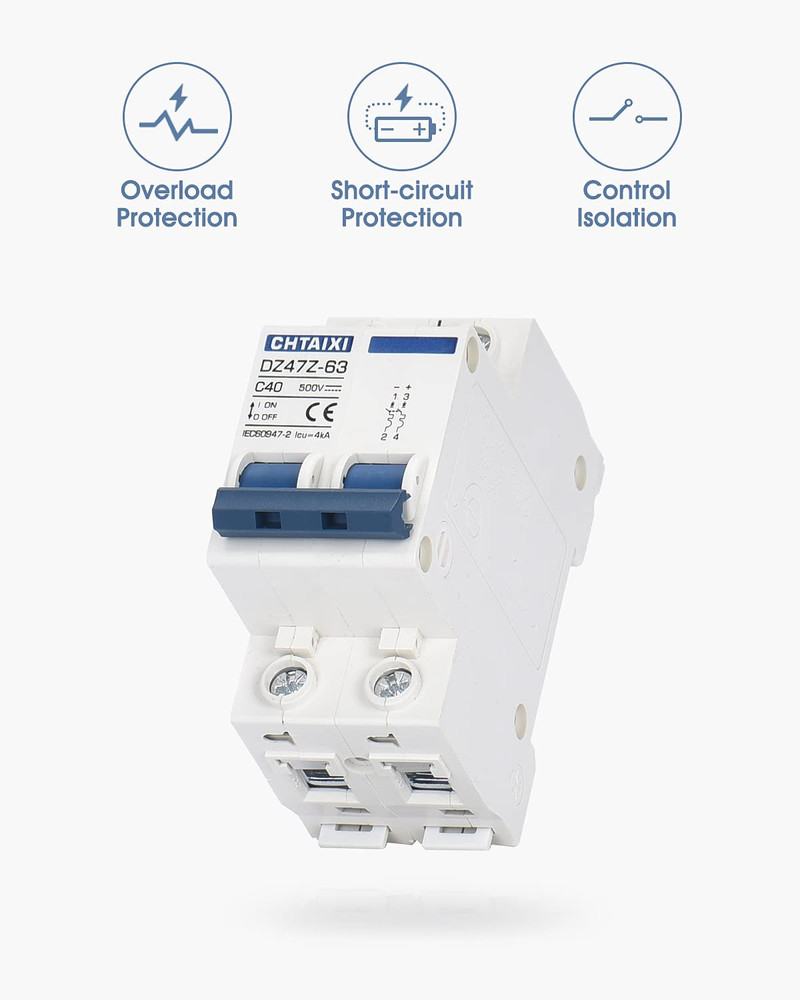

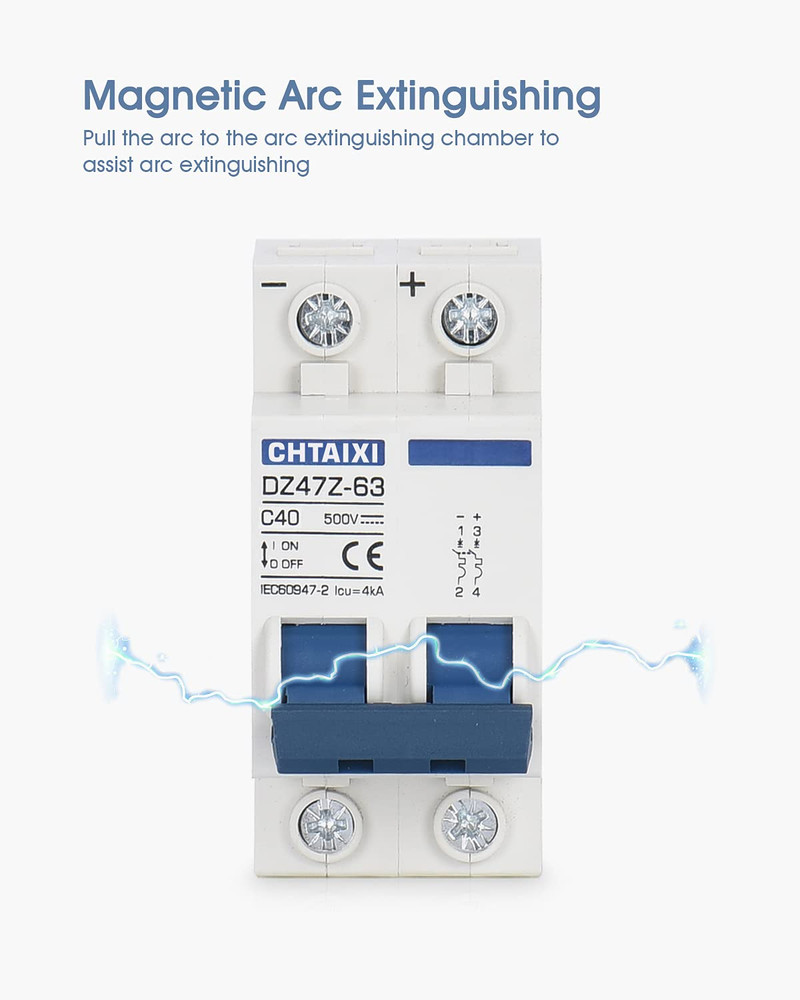

DC Miniature Circuit Breaker, 2 Pole 500V 40 Amp Isolator for Solar PV System, T. DC Miniature Circuit Breaker, 2 Pole 500V 40 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount, DC Disconnect Switch C40. AC has a zero-crossing point, but DC does not, so DC arc is more difficult to extinguish than AC arc, which is why AC circuit breakers can not be used for DC power, and DC circuit breakers can be used for AC power. Store New Arrivals Add to Favorite View Feedback Contact DC Miniature Circuit Breaker, 2 Pole 500V 40 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount, DC Disconnect Switch C40 Description Part Number 47Z63-2P500 Current Rating 40 Amps Mounting Type DIN Rail Mount Circuit Breaker Type Standard Number of Poles 2 Item Weight 6.35 Ounces Voltage 500 Volts Model DZ47Z-63 Number Of Poles 2 Size 40A FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation. FAST TRIP: The electromagnetic trip system can trip immediately when the circuit is short-circuited to protect the safety of the circuit. ARC EXTINGUISHING: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing. APPLICATION: Used in DC power system, ship electric power system, solar photovoltaic system, or other DC system. INSTALLATION: Screw clamp wires, 35mm DIN rail mount. Product description Chtaixi DC Miniature Circuit Breaker Warm Tips: Pay attention to polarity. Select wire size according to rated current. Magnetic Arc Extinguishing AC has a zero-crossing point, but DC does not, so DC arc is more difficult to extinguish than AC arc, which is why AC circuit breakers can not be used for DC power, and DC circuit breakers can be used for AC power. This DC mini circuit breaker is equipped with a magnetic field system under the breaking contacts, which can pull the arc to the arc extinguishing chamber to assist arc extinguishing. Quality Products to Protect Your Electricity Safety Polarity Marked This DC MCB has no polarity requirement in use, and the positive and negative poles can be inverted. However, the installation, use, and maintenance of DC circuits are based on polarity requirements. So, in order to provide reliable indication and reference for the distribution, we highly recommend that you connect the wires according to the marked polarity. Tunnel Terminal The clamping design of the terminal block is designed to connect firmly, and the tightening torque is 2.5 N.m. ( Soft silicone wire needs to crimp fixed the wire end with copper crimp before wiring. ) Make sure that the wires are tightly connected when connecting to prevent loosening and heating. The surface of the terminal is tin-plated, and the plating layer can improve conductivity, corrosion resistance, and durability. Silver Alloy Contacts Contacts are very important to circuit breakers, especially for DC distribution with high arc extinguishing requirements. Good contacts can reduce the heat generated by arcing during disconnection and reduce the wear of the contacts. This DC circuit breaker uses silver alloy contacts, which improves electrical durability, and protects your electricity safety for a long time. Specifications product type DC Miniature Circuit Breaker rated operational voltage 500 V / 1000 V (optional) DC rated current [In] 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) poles 2 P trip unit technology Thermal-magnetic curve code C breaking capacity 4 kA Ics=Icu Uimp 4 kV mechanical durability 10000 cycles electrical durability 2000 cycles operating temperature -13°F(-25℃) ~ 140°F(60℃) mounting support 35 mm DIN rail tightening torque 2.5 N.m standard IEC60947-2 package includes 1 x DC miniature circuit breaker, 1 x DIN rail, 2 x screws Installation DIN Rail Install the 35mm DIN rail horizontally in a stable environment. Installation Hang the circuit breaker slot on the DIN rail Push the lower end of the circuit breaker into the DIN rail Dismounting Push the circuit breaker upward Turn the upper end of the circuit breaker out of the DIN rail ABOUT US We offer the best prices around on high quality products. Our E-store includes media such as books, movies, music and games while offering electronics, toys, sporting apparel, clothing, tools, general home, garden items and more. SHIPPING We are always working hard to ensure your package arrives as soon as possible. Please understand that some factors like weather, high postal traffic, and the performance of shipping companies are outside of our control. We offer free shipping to the lower 48 states and ship within 2 business days of payment, usually sooner. We do not accept P.O. Boxes. Please provide a physical address. RETURNS We offer a 30-Day Return Policy on items which you are not completely satisfied with. You have the option for a full-refund or an exchange of the item. No returns are available on items shipped outside of the USA. PAYMENT We accept PayPal. CONTACT US This page content is yet to come Please ad us to your favorite seller and visit again later Thank You CUSTOMER SATISFACTION We try our very best to make sure every customer is completely satisfied. If there's a problem, message us! We're happy to help.
