DC/DC 12V 24V to 5V 3A 15W Voltage Reducer Converter Regulator, Step Down Con...

Description

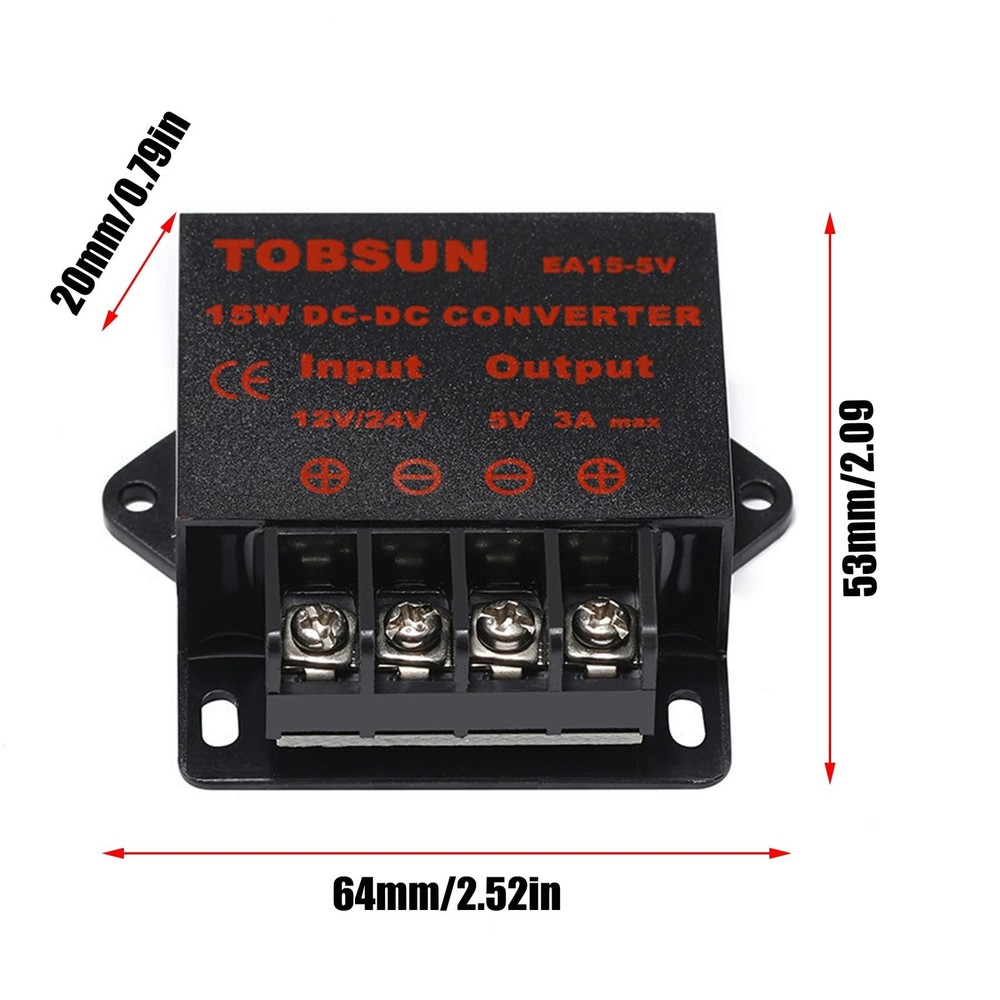

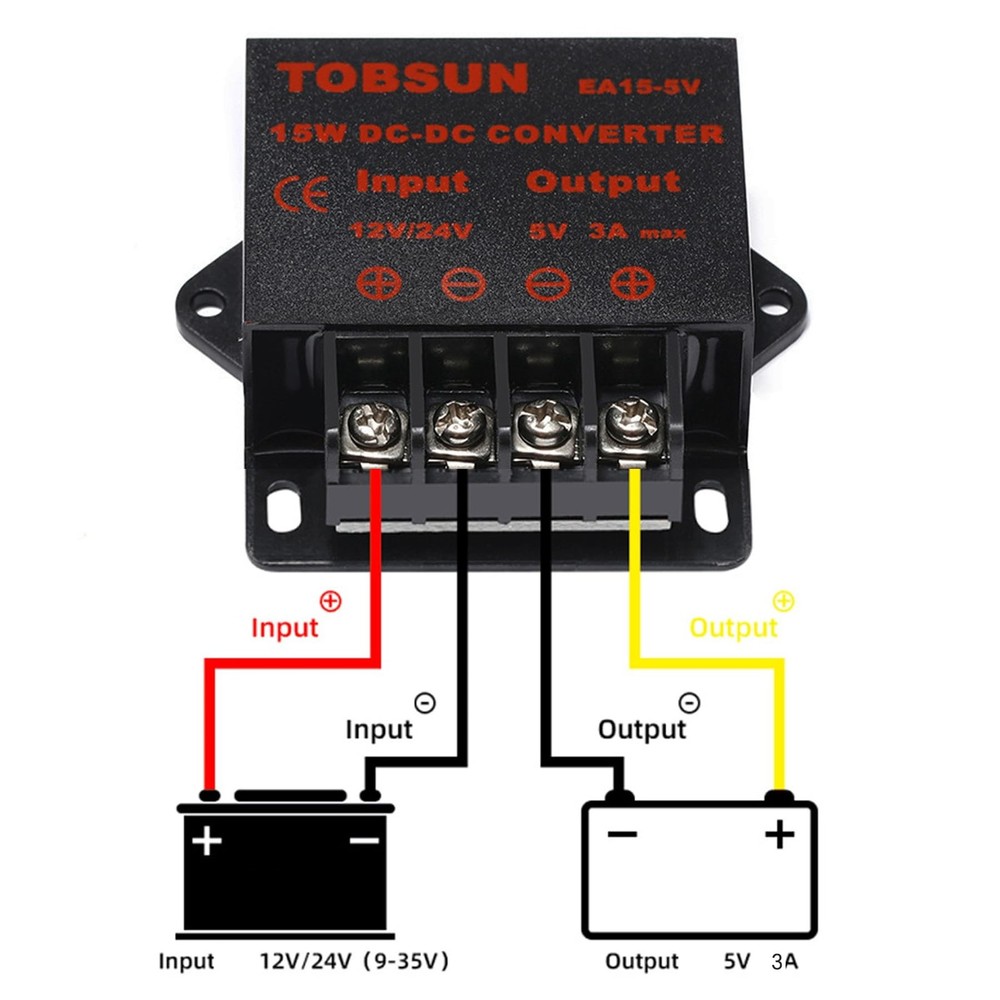

DC/DC 12V 24V to 5V 3A 15W Voltage Reducer Converter Regulator, Step Down Con.... Size: 12V 24V to 5V 3A 15W HK. It can work safely and reliability in -40C85C. LISTED LOAD POWER. Die-cast aluminum shell, Silicone sealed, Expoxy potting, Cooling by free air convection, Anti-shock, Anti-humidity, Dust-proof. DC/DC 12V 24V to 5V 3A 15W Voltage Reducer Converter Regulator, Step Down Converter Regulator DC to DC Waterproof Power Supply Module Buck Transformer Product Details Size: 12V 24V to 5V 3A 15W HK Brand: MGGi MPN: MG2 UPC: 768771597128 EAN: 0768771597128 Brand: MGGi Power Source: Corded Electric Product Dimensions: 2.52"D x 2.09"W x 0.79"H Current Rating: 3 Amps Item Weight: 2.4 ounces Brand Name: MGGi UPC: 768771597128 Manufacturer: XingHua Warranty Description: 1 Year Part Number: MG2 Included Components: Non Power Source: Corded Electric Current Rating: 3 Amps Item Dimensions D x W x H: 2.52"D x 2.09"W x 0.79"H Item Weight: 2.4 ounces Input voltage range: DC 9-35V; Output voltage: DC 5V (non-adjustable); Output current: 3A(max); Output power 15W. Die-cast aluminum shell, Silicone sealed, Expoxy potting, Cooling by free air convection, Anti-shock, Anti-humidity, Dust-proof. Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; over 100,000 hours lifetime, 100% full power and stable current output, non-isolated module. Protection function with high conversion efficiency and stability, maximum transfer efficiency of 96% max, low heat generated and stable performance,100% waterproof, can work in rain. Used on golf cart,club car,bus, cmb, large trucks,taxi radio,motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, DVD, solar panel, electronic systems, industrial equipment and other 12V devices The dc converter regulator is a high reliability power transformer. It features wide input voltage, low power consumption, high efficiency, high reliability. It can work safely and reliability in -40C85C. It widely used in industrial, automotive, instruments, telecommunication and civil applications. Die-cast aluminum shell, epoxy potting, cooling by free air convection 5 Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over- voltage; Auto-recovery when device is back to normal operating Stable and reliable performance, 100% waterproof & anti-shock protection, lifetime up to 100,000 hours 100% full power and stable current output, non-isolated module. Synchronization Rectification Technology，efficiency up to 96% max Non-Isolated Module Applications: golf cart, forklifts, bus, CMB, large trucks, motor car, solar power generating, bus displaying screen, taxi advertising screen, taxi radio without interference, car audio speaker, LCD TV, LED, intercom and monitor system, etc. Specifications: Input voltage: 12V/24V DC Input range: 9-35V DC Output voltage: 5V DC Output current: 3A Output Rated Power: 15W Efficiency: 96% max Operating temperature:-40 85℃ Waterproof rating: IP68 Safety Instructional Manual: 1. Can not used long time Under the MAX. LISTED LOAD POWER. 2. Please connect the converter and your device as the wiring diagram provided on above picture.
