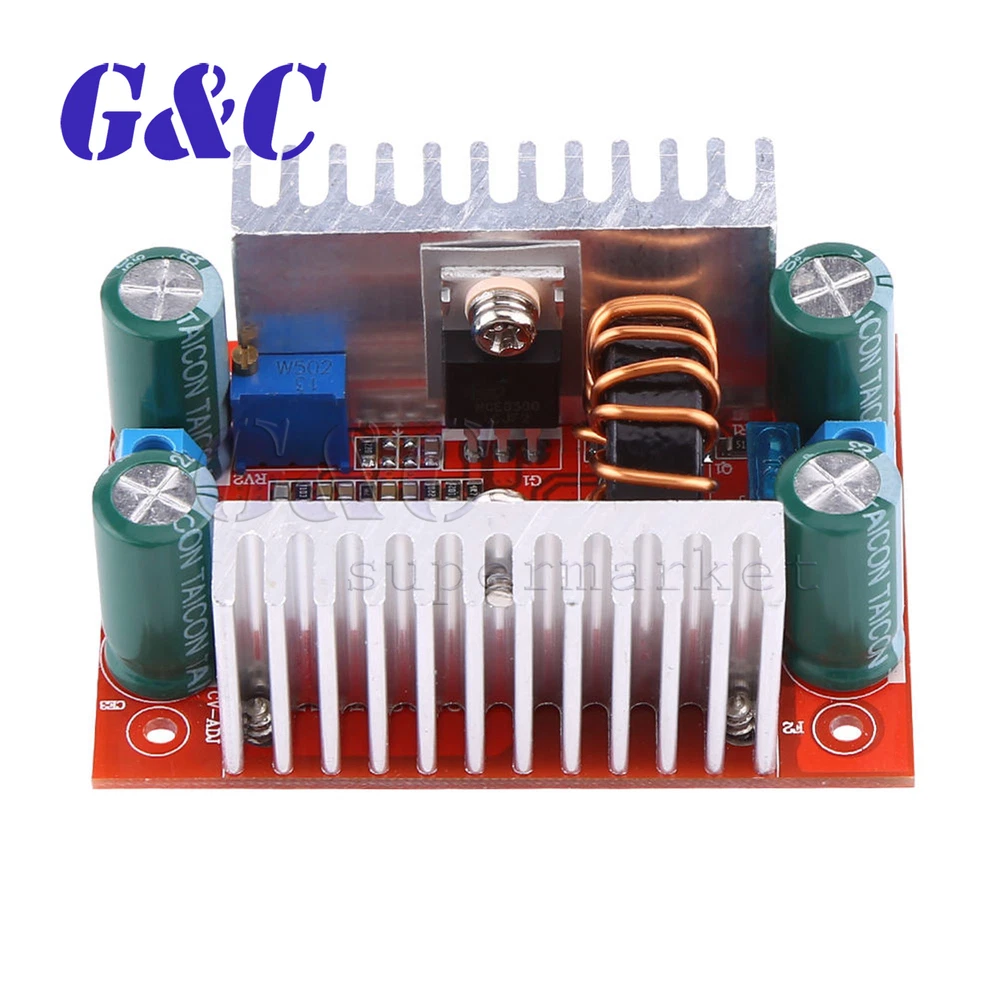

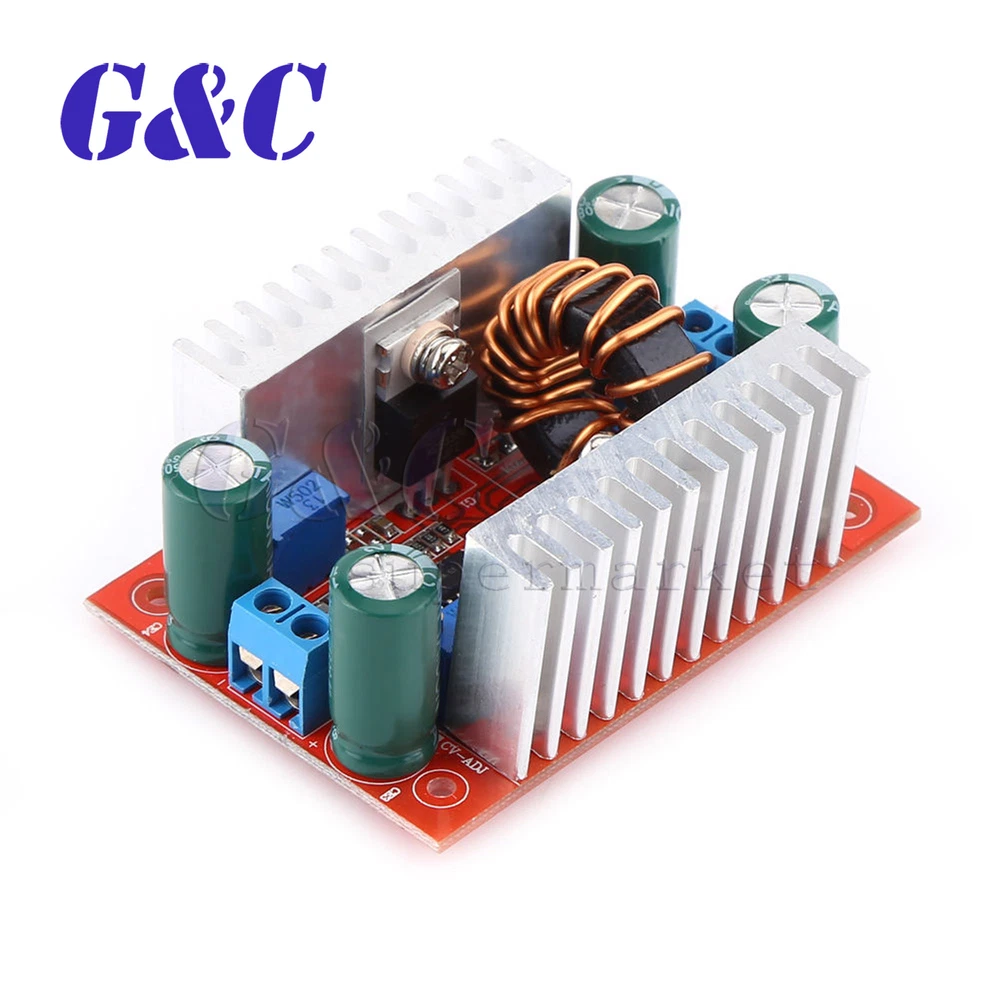

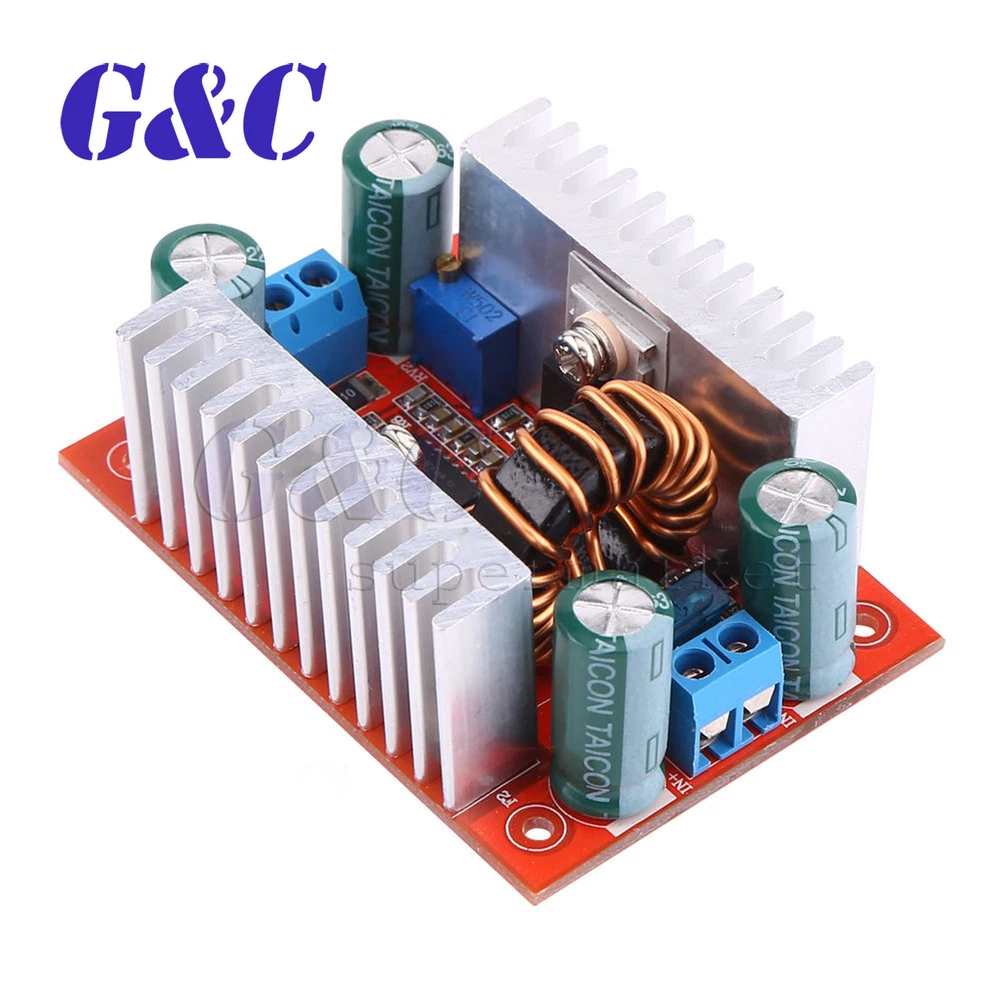

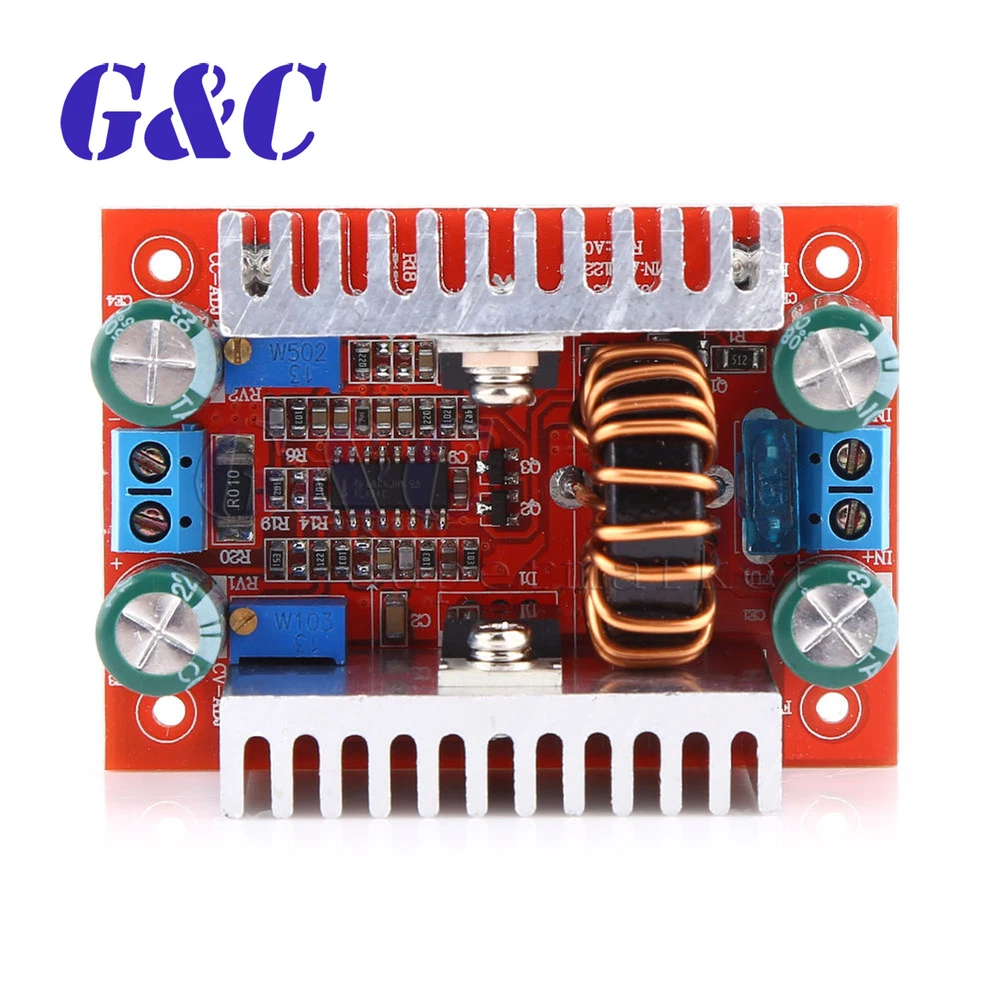

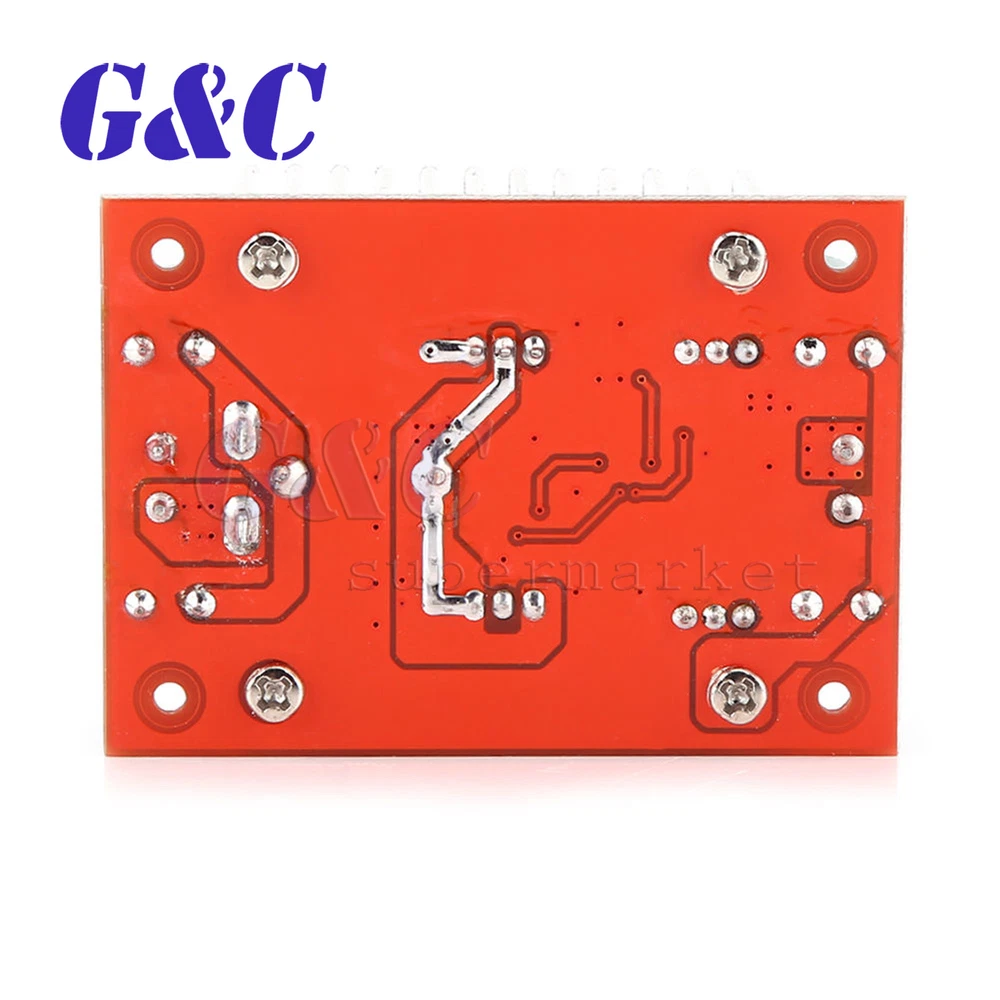

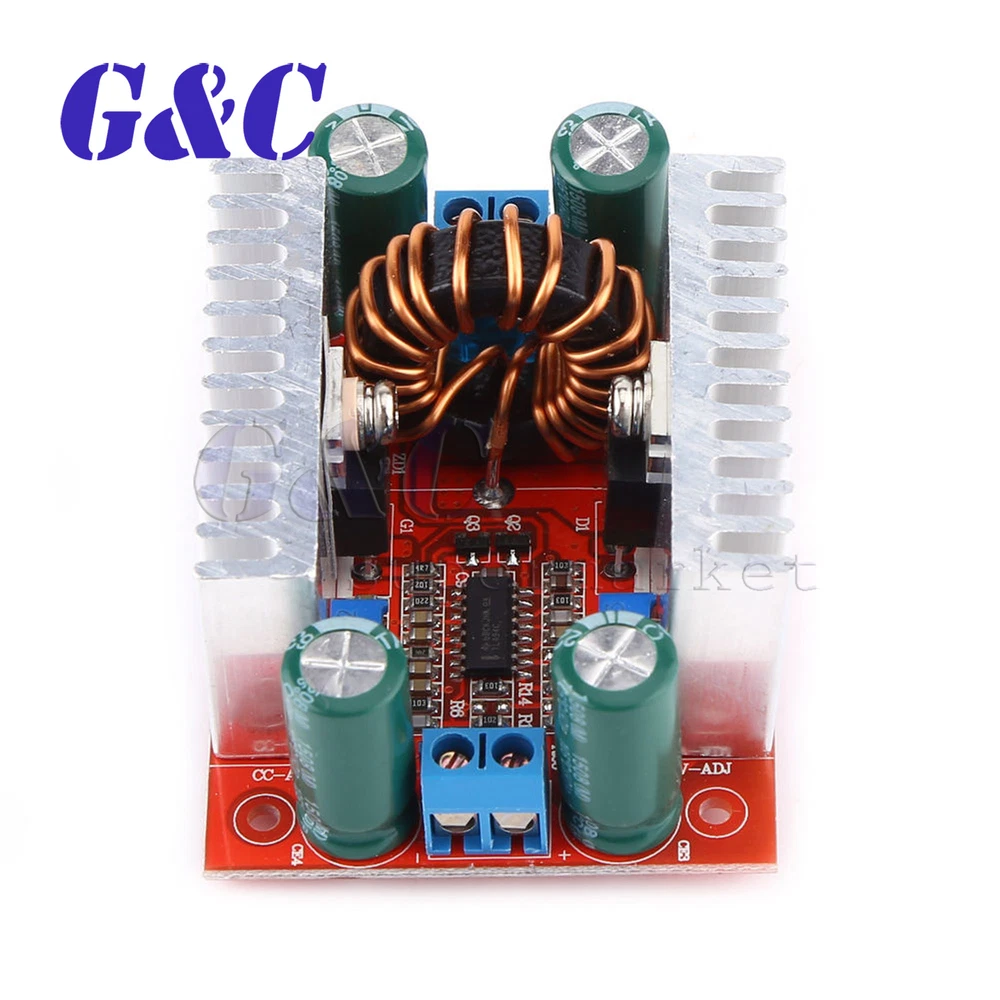

DC-DC Step Up Boost Converter Constant Current Power Supply 400W 15A LED Driver
$ 1.07
Description

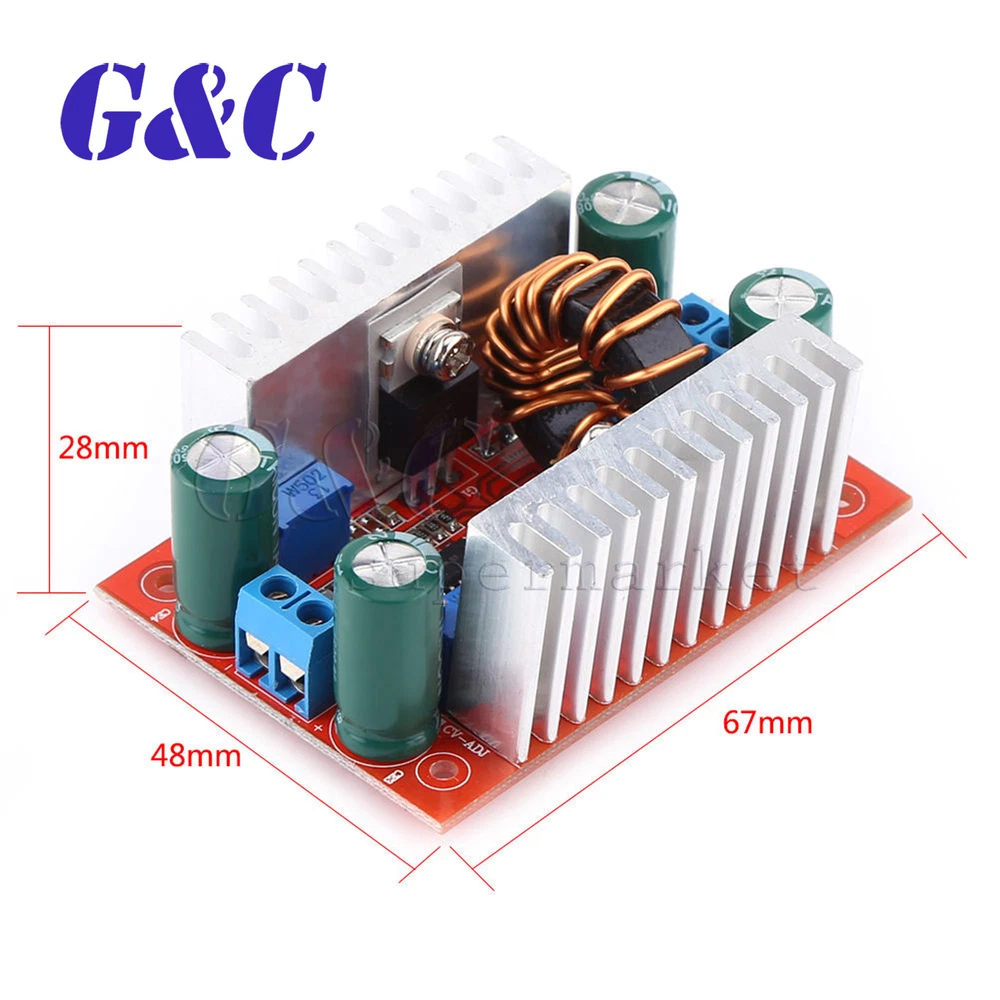

Store Categories Store Categories eBay Motor Fashion Books, Movies & Music Electronics Collectibles & Art Home & Garden Sporting Goods Toys & Hobbies Business & Industrial Health & Beauty Other Item Description 15A 400W Power Supply Feaures: Module name :400W boost constant current module Module properties: non-isolated step-up module (BOOST) Input voltage: DC8.5V-50V Input current: 15A (MAX) exceeds 8A please enhance heat dissipation Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet) Output voltage: 10-60V continuously adjustable Constant] range: 0.2-12A Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation) Operating frequency: 150KHz Conversion efficiency: up to 96% Overcurrent protection: yes Input reverse polarity protection: no Installation: 4 2.55mm screw holes Connection method: Connection Output Module size: 67mm X48mm X 28mm (LxWxH) Applications: 1. DIY a power supply, 12V can input and output can 12-50V adjustable. 2. the power supply for your electronic device, according to your system can set the output voltage value. 3. as the car power supply for your laptop, PDA or a variety of digital products supply. 4. DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books. 5; solar panel regulator. 6 to the battery, rechargeable lithium batteries. 7. driving high-power LED lights. Package Include: 1 x 400W Boost Converter 15A 400W Trigger Switch 100% brand new and high quality Material: Electrical components Color: See pictures Module Highlights: 1. The use of imported dual-MOS parallel active output, lower resistance, more current, strong power at room temperature, 15A, 400W, to meet the most use of the equipmen 2. Wide voltage, the perfect support for PWM 3. Easily control high power devices Product specifications and applications: 1: Operating Voltage: DC 5V - 36V; 2: The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support. 3: output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A. 4: Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., you can enter PWM, motor speed control, lamp brightness. 5: Availability: unlimited switch; Operating temperature: -40-85 ; Package Include: 1 xTrigger Switch Drive Module Feedback Payment Shipment About us Feedback We appreciate positive feedback . we always try our best to service our customers . so if you have ant question ,PLEASE DON’T HESITATE TO TELL US, we are always here to offer help . Payment We prefer PayPal .For purchasing multiple items , please contact us for a combined invoice . generally we would like to receive payment thin 48 hours if . Shipment We provide airmail service with good package . The items will be shipped within the nest 2 business days after we received the payment . when you buy multiple items ,your shipping cost will be combined with discount . SHIPPING TIME (weekends/holidays excluded) Country Name Shipping Time Country Name Shipping Time USA/Canada 10 -15d Spanish/Portugue 10-25d East/South Asia 10 -15d France/West Asia 10-25d United Kingdom 10 -20d Italy 10-30d Australia/New Zealand 10 -15d West Asia/Middle East 15-25d Most Country of West/North Europe 10-20d South America and Africa 15-30d East /Middle Europe/Russia 10-25d About us NEW, GOOD QUALITY, ORIGINAL PACKAGE LARGE STORE AND THE LOWEST PRICE NO-QUESTION-REFUND, FOR LARGE QUANTITY ,OFFER BETTER PRICE, ORIGINAL PACKING(TAPE REEL/TUBE/TRAY） We specialize in electronic components . ICs, Capacitors, Diodes, Resistors, LEDs, Transistors, and so on. Especially in Hard To Find Parts . we only sell NEW , ORIGINAL parts . please buy with confidence .We offer NO-QUESTION-REFUND go to my store
