ESUPPORT 12V Car Vehicle Red LED Light Hazard Emergency Warning Push Button M...

$ 6.5

Compatible With Vehicle Type: Car, Suv, Truck, Van, Rv, Boat, Yacht, Motorcycle Contact Type: Normally Open Item Package Quantity: 1 Control Method: Application Switch Type: Push Button Contact Material: Silver Coil Voltage: 12.0 Package Dimensions LxWxH: 4.45x3.43x0.87 Inches Controller Type: Push Button, Ring Color: Red Emergency Hazard Light UPC: 767267364145 Control Type: Manual Weight: 0.04 Pounds Actuator Type: Push Button,Toggle Mounting Type: Panel Mount Part Number: Cxcp330Br-19Brcp16 Number Of Packs: 1 Operating Voltage: 12.0 Terminal Type: Button Operation Mode: On-Off EAN: 0767267364145 Unit Count: 1.0 Circuit Type: 2-Way Number of Positions: 2 Material: Metal,Silver,Rubber Connectivity Protocol: X-10 Brand: Esupport Current Rating: 5.0 Connector Type: Plug In ISBN: 0767267364145

Description

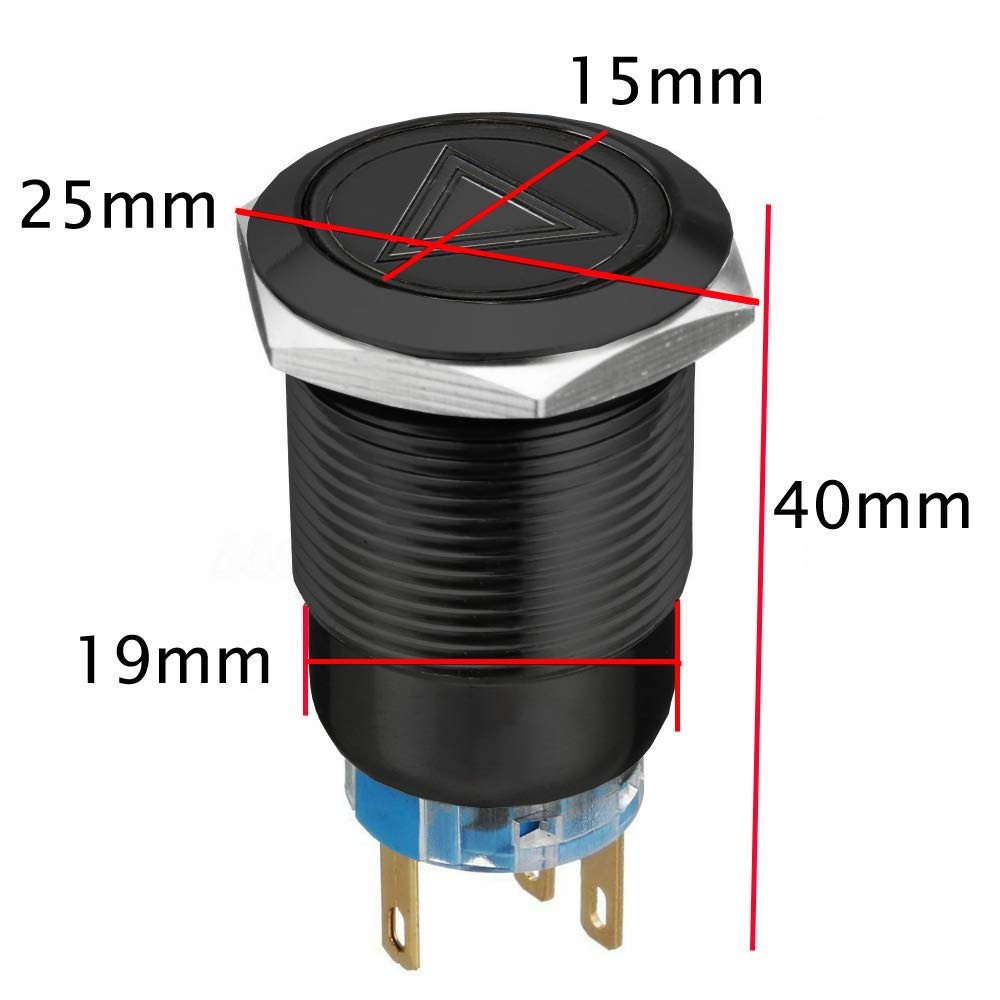

ESUPPORT 12V Car Vehicle Red LED Light Hazard Emergency Warning Push Button M.... Universal fit all 12V Car SUV truck conversion Van RV Boat Yatch. Easy setup. All you need is a 19mm hole and the switch will sit in nicely. Thread depth: 5/8" (16mm). 1 X Red LED Push Switch. This has a wide range of functions. Feature: 1. This has a wide range of functions. For example, it can be applied as the switches for the additional equipment inside and outside the vehicle. 2. For load under 5 Amp, you do not need a relay with this switch. For load above 5 Amps, we advise you to use of Automotive Relay 3. Easy setup. All you need is a 19mm hole and the switch will sit in nicely. 4. With waterproof rubber ring, have good performance at waterproof and dust-proof. 5. Universal fit all 12V Car SUV truck conversion Van RV Boat Yatch. Specification: 1. Thread depth: 5/8" (16mm) 2. Head diameter: 7/8" (22mm) 3. Mounting hole size: 3/4" (19mm) 4. Depth inc contacts: 1.5" (38mm) 5. Switch combination: 1NO1NC 6. Operation types: Latching 7. Switch rating: 5A/250VAC, 5A/30VDC 8. LED rating: 15mA, AC/DC 12V Package Include: 1 X Red LED Push Switch 1 X PlugHigh Quality: Made of High quality metal material, strong and durable, High grade appearance and nice touch feeling.Waterproof design: Adopt rubber ring and hexagonal nut fixed, waterproof and dustproof can be used in wet or dusty enviroment.LED voltage: 12V, Light Color: Red, Hole size required 19mm, Switch Rating:5A/250VAC, Contact Configuration: 1NO 1NCLatching type: push it on, push it again off, Silver contacts and Gold plated terminal for good conductive properties.Widely Application: can be applied to car motorcycle modificine, electric equipment ,appliance, machine ,home Lamps and so on
