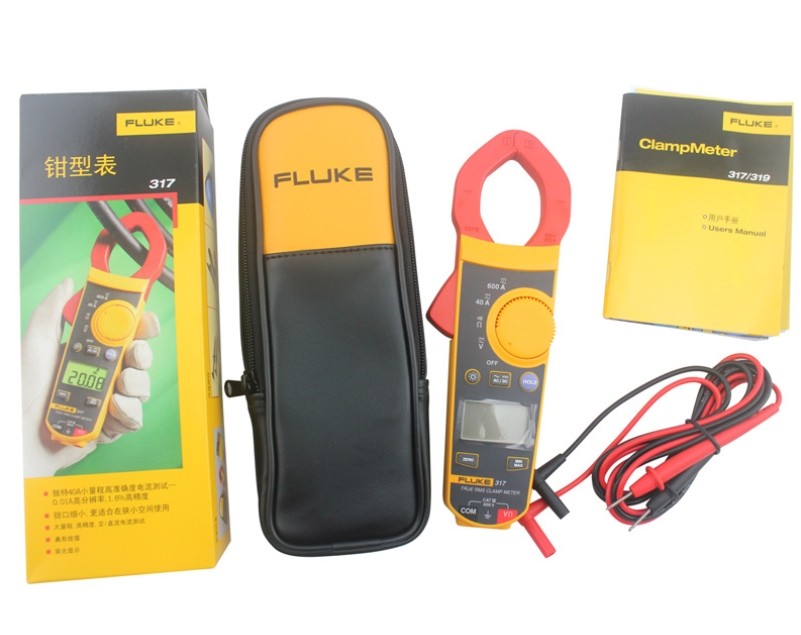

F317 Fluke 317 Multimeter 400A/600A Digital Clamp Meter fo
$ 122.8
Description
F317 Fluke 317 Multimeter 400A/600A Digital Clamp Meter fo. Jaw opening. (162.4 mm x 58.25 mm x 30.5 mm). 1.45 in (37 mm). 5.0 - 500.0 Hz. 2.5% ± 5 (60-500 Hz) {600 A}. Inrush Current. 0.1 Ω, 1 Ω. 400.0 Ω, 4000 Ω. Fluke 317 400A/600A F317 Digital Clamp Meter Multimeter Common Display 6000 Resolution Automatic low battery indicator Automatic low battery indicator Battery 3xAAA IEC LR03 Jaw opening 1.45 in (37 mm) Dimension(LXWXH) 6.39 in x 2.29 in x 1.20 in (162.4 mm x 58.25 mm x 30.5 mm) Weight 384g (Include battery) Auto Range Ohms Safety Rating CE EN/IEC 61010-1 and IEC 61010-2-032 CATIII, 600V Operating Temperature 14°F to 122°F (-10 °C to 50 °C) Storage Temperature -40 °F to 140 °F (-40 °C to 60 °C) Operating humidity non-condensing (< 50 °F) (< 10 °C) 90 % RH (50 °F to 86 °F) (10 °C to 30 °C) 75 % RH (86 °F to 104 °F) (30 °C to 40 °C) 45 % RH (104 °F to 122 °F) (40 °C to 50 °C) non-condensing Operating Altitude 2000 Meter Storage Altitude 12,000 Meter IP Rating IP40 Vibration Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis Drop test requirements 1 Meter EMI, RFI, EMC Not Appoint EMC >= 0.1 V/m Temperature coefficients 0.1x (Reading Accuracy)/ °C ( 82° F) ( 28 °C) 317 319 Current AC Range 40.00 A, 600.0 A 40.00 A, 600.0 A, 1000 A Resolution 0.01 A, 0.1 A 0.01 A, 0.1 A, 1 A Accuracy 1.6% ± 6 (50-60 Hz) {40 A} 2.5% ± 8 (60-500 Hz) {40 A} 1.5% ± 5 (50-60 Hz) {600 A} 2.5% ± 5 (60-500 Hz) {600 A} 1.6% ± 6 (50-60 Hz) {40 A} 2.5% ± 8 (60-500 Hz) {40 A} 1.5% ± 5 (50-60 Hz) {600/1000 A} 2.5% ± 5 digit (60-500 Hz) {600/1000 A} Crest Factor add 2% into spec for CF > 2 3.0 Max @ 500 A, 2.5 Max @ 600 A 3.0 Max @ 500 A, 2.5 Max @ 600 A, 1.4 Max @ 1000 A AC Response True-rms True-rms Current DC Range 40.00 A, 600.0 A 40.00 A, 600.0 A, 1000 A Resolution 0.01 A, 0.1 A 0.01 A, 0.1 A, 1 A Accuracy 1.6% ± 6 (40 A) 1.5% ± 5 (600 A) 1.6% ± 6 (40 A) 1.5% ± 5 (600/1000 A) Voltage AC Range 600.0 V 600.0 V Resolution 0.1 V 0.1 V Accuracy 1.5% ± 5 (20-500Hz) 1.5% ± 5 (20-500Hz) AC Response True-rms True-rms Voltage DC Range 600.0 V 600.0 V Resolution 0.1 V 0.1 V Accuracy 1% ± 4 1% ± 4 Resolution Range 400.0 Ω, 4000 Ω 400.0 Ω 4000 Ω Resolution 0.1 Ω, 1 Ω 0.1 Ω 1 Ω Accuracy 1% ± 5 1% ± 5 Continuity ≤ 30 Ω ≤ 30 Ω Inrush Current Integration Time No 100 ms Frequency Range No 5.0 - 500.0 Hz Accuracy No 0.5% ± 5 Trigger Level No 10 - 100 Hz ≥ 5 A, 5 - 10 Hz, 100 - 500 Hz ≥ 10 A Sun, 05 Oct 2025 00:03:01 GMT 638952481818646278 2792D8D3519FECB0EB8F0A8CEDDDB293
