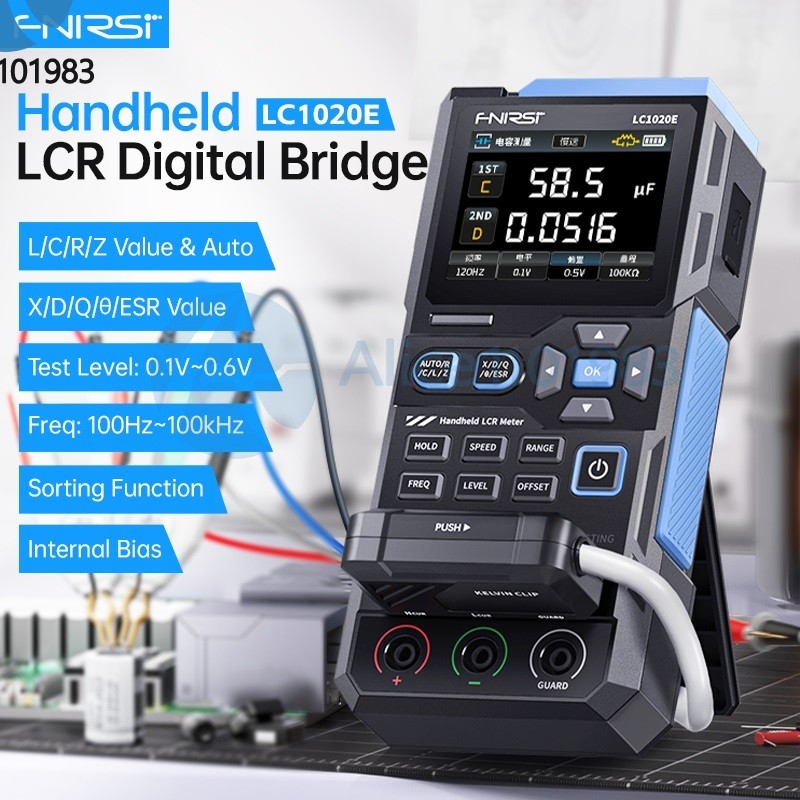

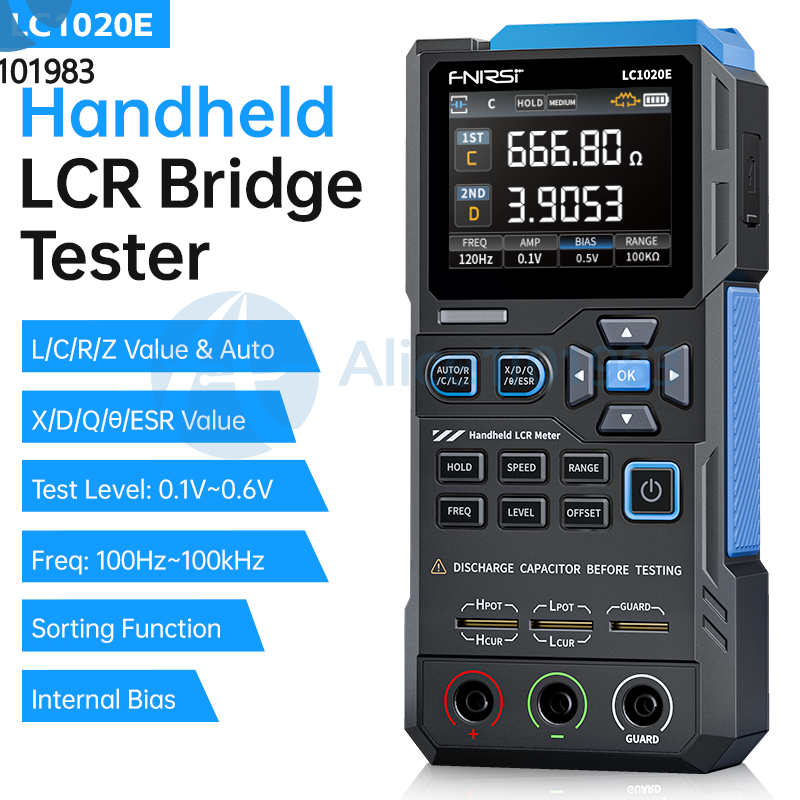

FNIRSI LC1020E Bridge LCR Tester ESR Resistance Capacitance Inductance Meter
$ 38.02
Description

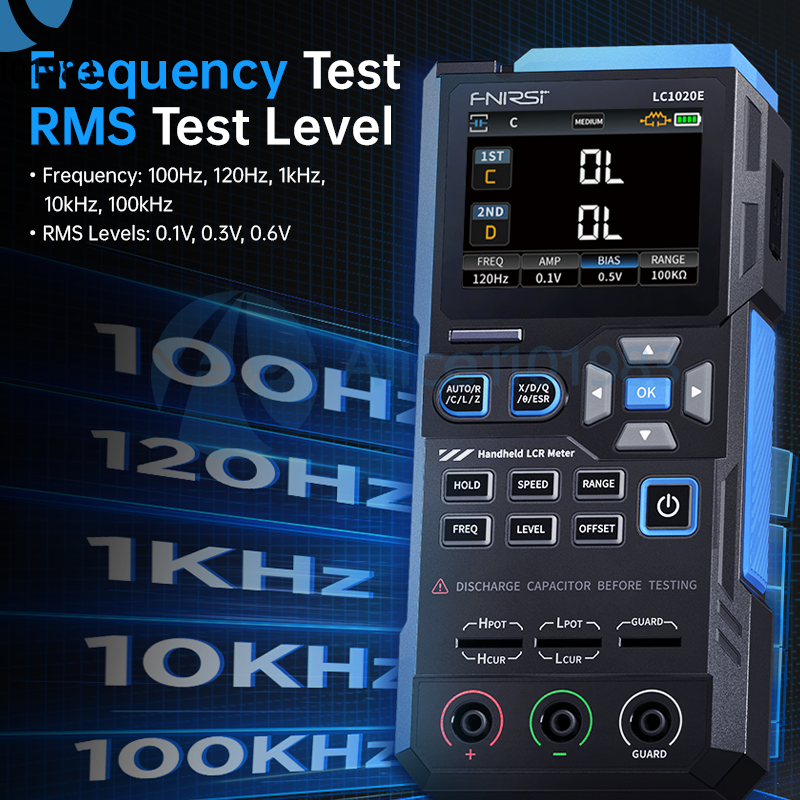

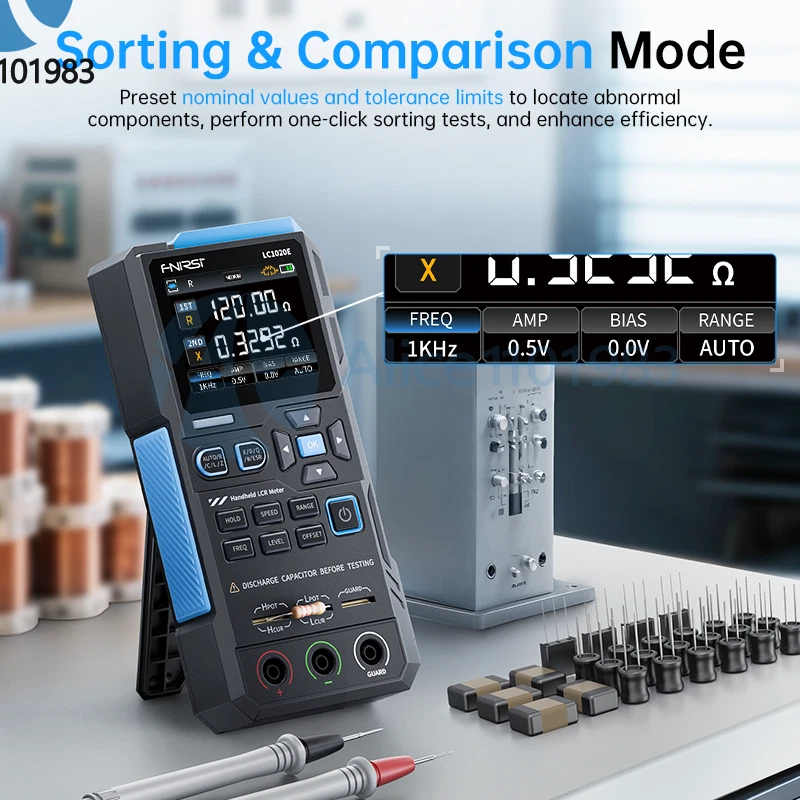

Visit store Items for sale About us Product Details Features: 1. High precision and wide measurement range: The LC1020E offers a basic accuracy of 0.3%, ensuring reliable and precise readings for professional use. It supports a wide measurement range for inductance (0-100H), capacitance (0-100mF), and resistance (0-10MΩ), making it suitable for various components. 2. Multiple Selectable Test Levels: This LCR meter features five selectable test frequencies (100Hz, 120Hz, 1kHz, 10kHz, 100kHz) and three test levels (0.1V, 0.3V, 0.6V), enabling flexible and accurate analysis of component characteristics under various conditions, from general testing to high-frequency parameter analysis. 3. Dual test ports for versatility and accuracy: The device features a convenient three-terminal test socket and a five-terminal test slot for quick, daily measurements. The five-terminal configuration allows for complete four-terminal Kelvin measurements using professional test fixtures, ensuring the highest accuracy by minimizing lead impedance errors. 4. Intelligent component sorting and data logging: Significantly improve your batch testing efficiency with the intelligent comparison function. Set nominal values and tolerances (0.1%–99.9%) to automatically sort components and display audio-visual alerts for pass/fail results. The data logging mode records the number of successful and failed measurements for effective quality control. 5. Portable design with a clear display, long battery life: The LC1020E is designed for laboratory, production line, and field use, featuring a compact chassis and a powerful 3.7V, 3000mAh rechargeable lithium battery. The 2.8-inch TFT color display clearly shows all primary and secondary parameters (L/C/R/Z, X/D/Q/θ/ESR), making it easy to read measurement values anywhere. Product specifications: Product model: LC1020E Battery capacity: 3000mAh lithium-ion battery Test frequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHz Basic accuracy: 0.3% Display: 2.8-inch TFT LCD screen Display digits: 4.5 digits for main parameters / 4.5 digits for secondary parameters Measurement Parameters: Main Parameters: AUTO/R/C/L/Z, Secondary Parameters: X/D/Q/θ/ESR Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10M Test Level: 0.1V, 0.3V, 0.6V Calibration Function: Open-circuit calibration, short-circuit calibration Comparison Function: Used to calculate the relative error between the measured value and the nominal value of the component, displayed as a percentage, and provides screening results. The nominal value and tolerance can be set, with the tolerance range adjustable from 0.1% to 99.9% Recording Function: Check whether the data of the tested component meets the set nominal value and tolerance value, and record the number of successful and failed measurements Test Terminal Configuration: Three-terminal, five-terminal Output Impedance: 100Ω Communication Interface: USB-Type-C Other: Language Settings, Screen Brightness, Sound Settings, Auto Shutdown, Calibration Settings, System Information Shipping List: Handheld Bridge *1 Type-C Charging Cable *1 LCR Shorting Plate *1 LC Clamp Kit *1 3001 Test Probes *1 (Set) Manual *1 Payment Method Shipping Policy Returns & Refund Policy Feedback Payment Method EBAY Managed Payment. But we only Accept your Ebay Address , please Make sure it's 100% right. Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Policy 1. We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2. Orders will be processed instantly and dispatched within 1-3 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3. All package need to wait 30 days,Please take care it.Less than 30 days,we can't take a refund. Returns & Refund Policy All package need to wait 30 days (US only n eed 7-10 days) , Please take care it.Less than 30 days,we can't take a refund . If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please keep in touch with us and double check the return address before you return it. If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you keep in touch with us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
Sehr gutes Preis-Leistungs-Verhältnis. Die angegebenen Messgenauigkeiten wurden mit einem professionellen Präzisions-LCR-Meter HP 8442A überprüft und für o.k. befunden. Die Bedienung ist logisch und nach der Anleitung leicht verständlich nachvollziehbar. Allerdings sollte man keine Wunder erwarten, da die Einstellung von Arbeitspunkten bzgl. Messpegel sowie DC-Bias bei L-Messung nur sehr eingeschränkt möglich ist. Die Messung bei 5 Frequenzen ist sehr vorteilhaft, und nicht selbstverständlich.
Top AAA+ seller. Complete and very, very fast delivery. Simply sensational! Many thanks!
etwas ungenau, aber erfüllt seinen Zweck
Related products
LCR Meter - Capacitance Resistance Inductance Digital LCR Multimeter with LCD Ov
$ 28.98Portable Digital Battery Tester for AA AAA 9V with Easy Read LCD Display
$ 18.41ZOYI Portable LCR Meter DQ02 100 kHz Auto-Range Handheld Digital Bridge for Ca

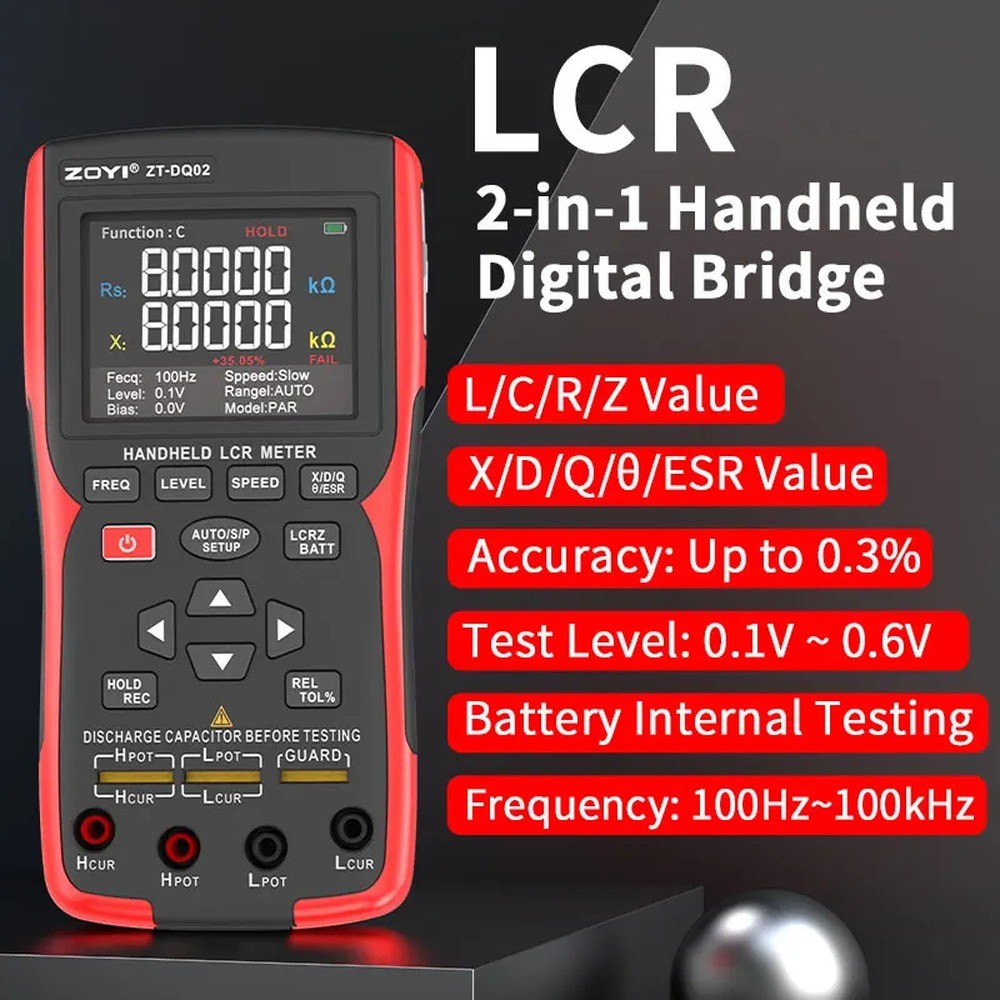

$ 116.69Handheld LCR Meter with Auto Range – Battery-Included Internal Resistance Tester
