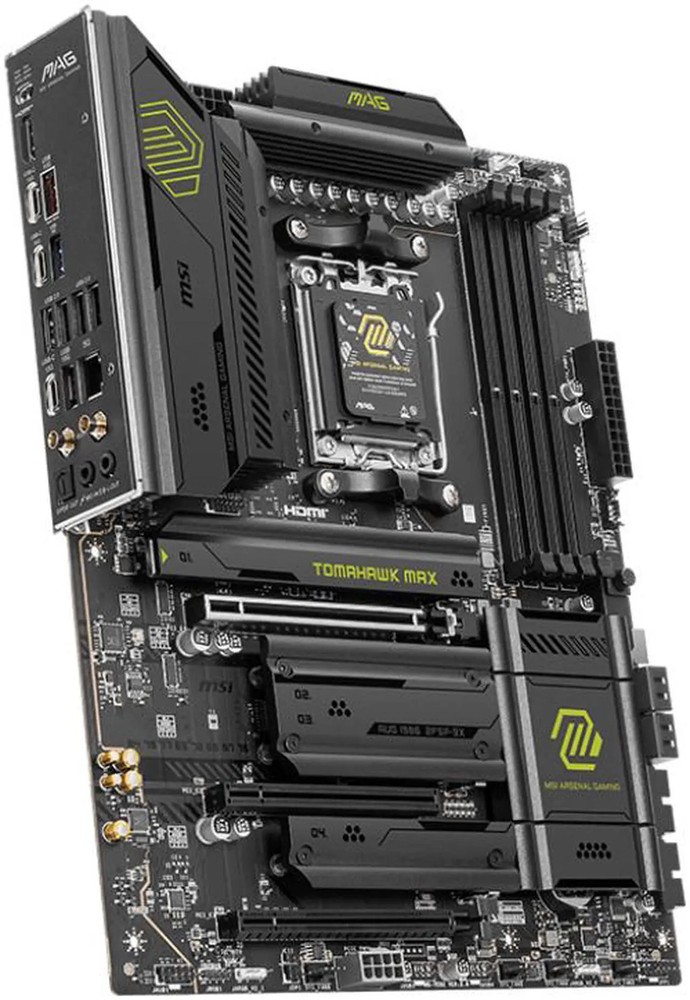

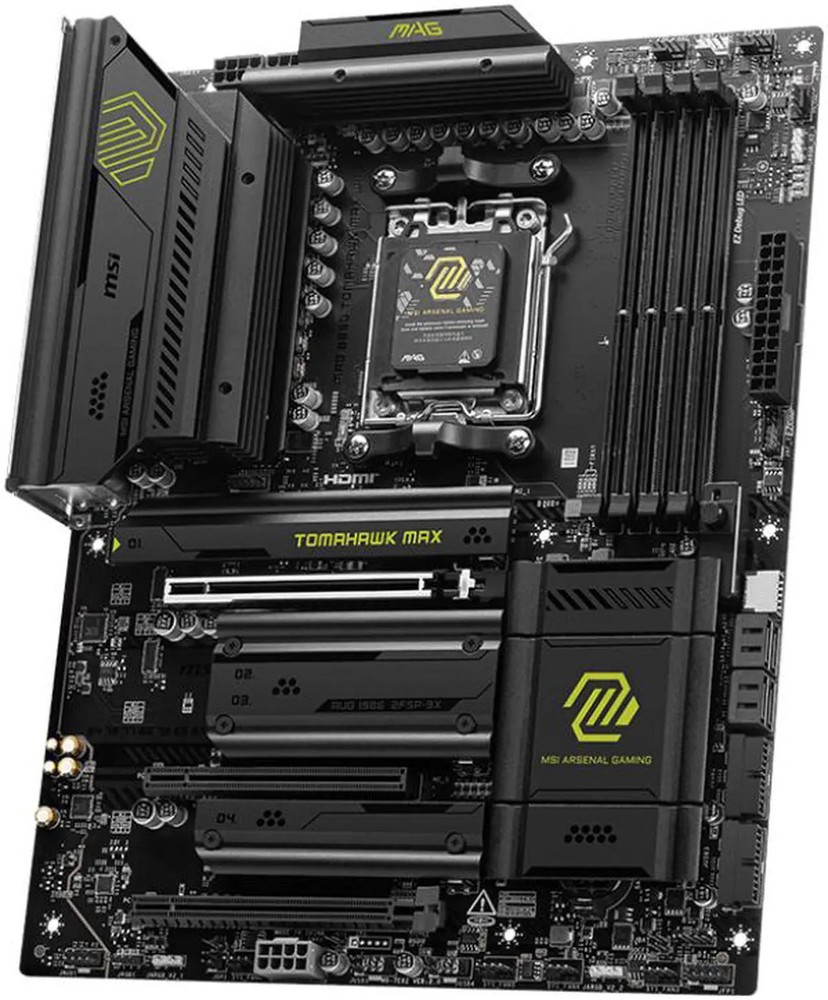

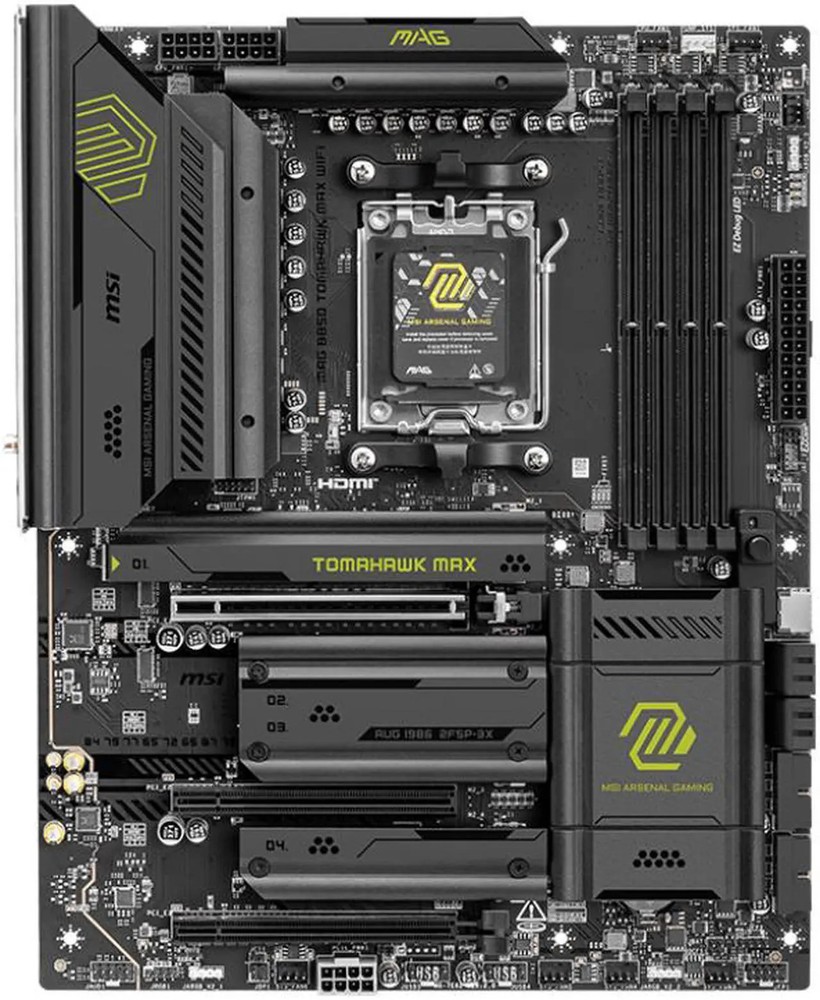

(Factory Refurbished) MSI MAG B850 TOMAHAWK MAX WIFI AM5 AMD DDR5 Motherboard
$ 95.04
Description
(Factory Refurbished) MSI MAG B850 TOMAHAWK MAX WIFI AM5 AMD DDR5 Motherboard. ModelMAG B850 TOMAHAWK MAX WIFI. CPU Socket Type AM5. Supports AMD POR Speed and JEDEC Speed. Ryzen 9000 Series Processors max. overclocking frequency - 1DPC 1R Max speed up to 8400+ MT/s. - 1DPC 2R Max speed up to 6400+ MT/s. MSI manufacturer refurbished unit, 120 days MSI direct warranty, comes with SATA cable, I/O shield, and Wi-Fi antenna. ModelBrandMSI ModelMAG B850 TOMAHAWK MAX WIFI Supported CPUCPU Socket Type AM5 CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series ChipsetsChipset AMD B850 MemoryNumber of Memory Slots4x288pin (DDR5) Memory StandardUp to DDR5 8400+ MT/s (OC) Maximum Memory Supported256GB Channel Supported Dual Channel ECC SupportedNon-ECC Memory FeatureMemory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: - 1DPC 1R Max speed up to 8400+ MT/s - 1DPC 2R Max speed up to 6400+ MT/s - 2DPC 1R Max speed up to 6400+ MT/s - 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only Expansion SlotsPCI Express 5.0 x16PCIE1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI Express x4PCIE3 Gen PCIe 4.0 supports up to x4 (From Chipset) *PCIE3 slot will run at x2 speed when installing device in the M23 slot. You can switch PCIE3 slot to x4 in the BIOS, but this will disable the M23 slot PCI Express x1PCIE2 Gen PCIe 3.0 supports up to x1 (From Chipset) Storage DevicesSerial ATA (SATA) 4 x SATA 6Gb/s M.2M.21 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.22 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.23 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.24 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices *PCIE3 slot will run at x2 speed when installing device in the M23 slot. You can switch PCIE3 slot to x4 in the BIOS, but this will disable the M23 slot. ** Please refer to the manual for M.2 SSD heatsink restrictions SATA RAIDSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Onboard AudioAudio Chipset Realtek ALC4080 Audio Channels 7.1 Channels Onboard LANLAN ChipsetRealtek 8126VB Max LAN Speed5Gbps Wireless LANWi-Fi 802.11 be BluetoothBluetooth 5.4 Rear Panel PortsBack I/O Ports1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x LAN (RJ45) / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 3.2 Gen 2 Type-A / 3 x USB 3.2 Gen 2 Type-C / 4 x USB 2.0/1.1 Internal I/O ConnectorsOnboard USB4 x USB 2.0 ports 4 x USB 5Gbps Type A ports 1 x USB 20Gbps Type C ports Other Connectors1 x CPU Fan 1 x Combo Fan (PumpSys Fan) 6 x System Fan 1 x EZ Conn-header (JAF2) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 3 x Addressable V2 RGB LED connector (JARGBV2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) Physical SpecForm FactorATX LED Lighting4 x EZ Debug LED 1 x EZ Memory Detection LED Dimensions (W x L)12.0" x 9.6" Power Pin1 x Power Connector(ATXPWR) 2 x Power Connector(CPUPWR) 1 x Power Connector(PCIEPWR 8pin) Software FeatureWindows 11Windows 11 64-bit
