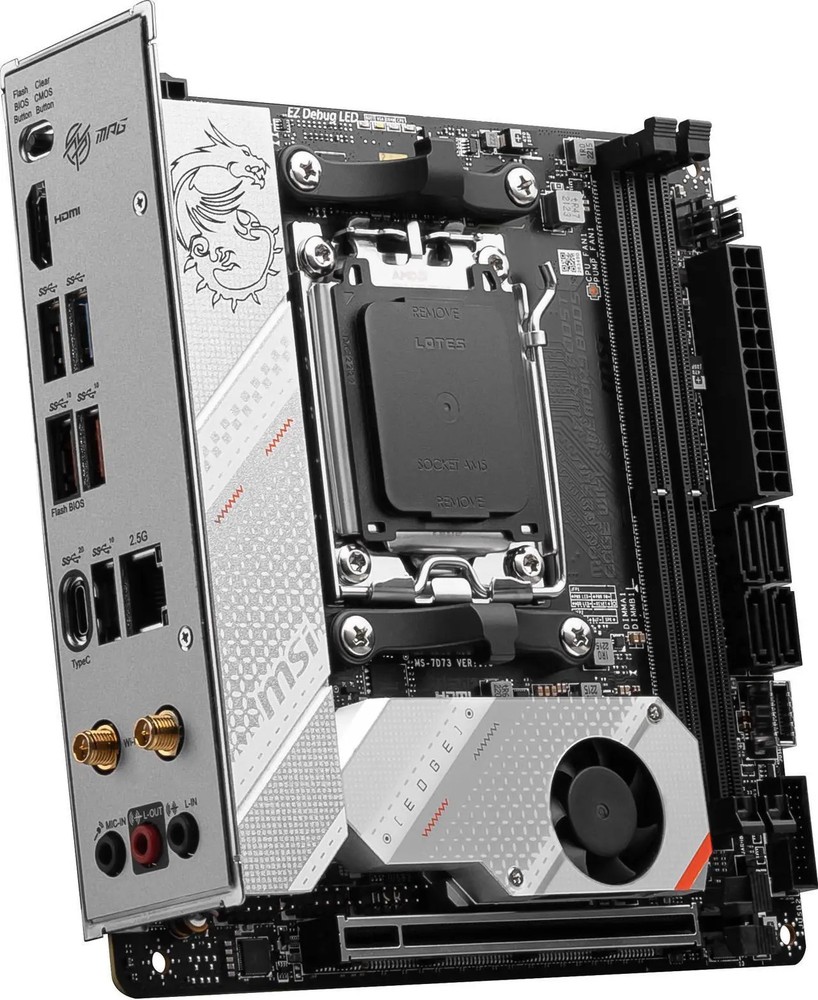

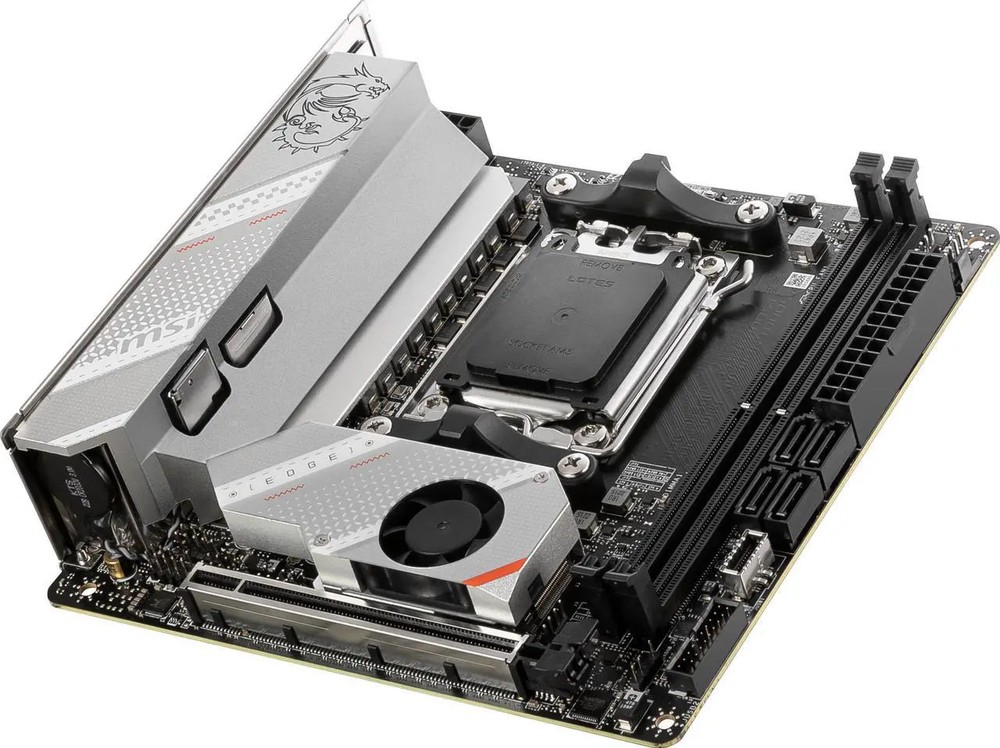

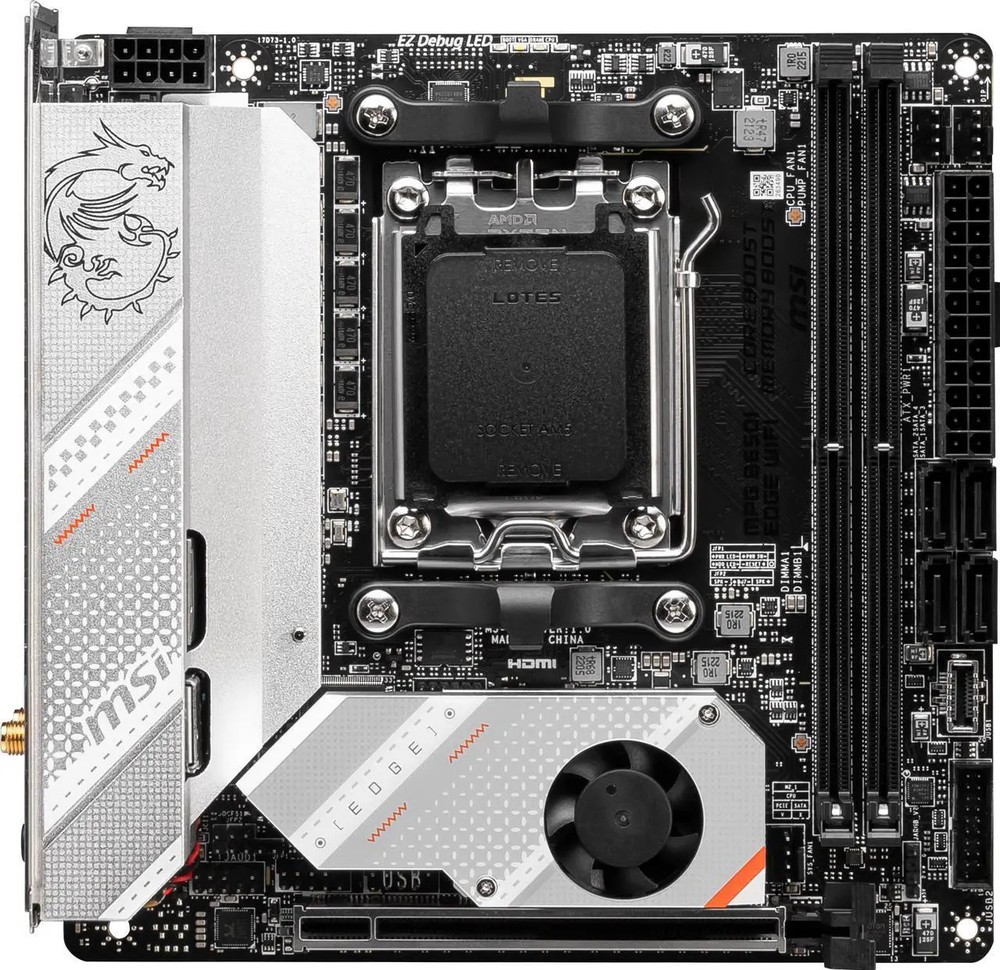

(Factory Refurbished) MSI MPG B650I EDGE WIFI AM5 AMD DDR5 Mini ITX Motherboard
$ 105.6
Description

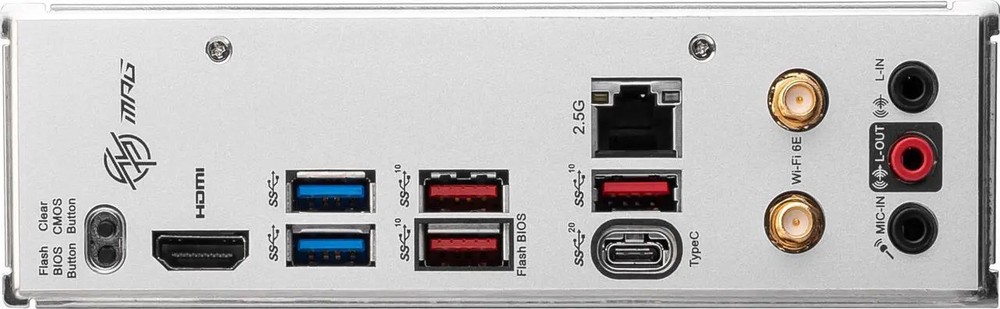

(Factory Refurbished) MSI MPG B650I EDGE WIFI AM5 AMD DDR5 Mini ITX Motherboard. ModelMPG B650I EDGE WIFI. CPU Socket Type AM5. Form FactorMini ITX. CPU TypeSupports AMD Ryzen 7000 Series Desktop Processor. - MSI Display kit. 1x HDMI port. Rear Panel Ports. - Fan headers (CPU + PUMP + SYSTEM). MSI manufacturer refurbished unit, 120 days MSI direct warranty, comes with SATA cable, I/O shield, and Wi-Fi antenna. ModelBrandMSI ModelMPG B650I EDGE WIFI Supported CPUCPU Socket Type AM5 CPU TypeSupports AMD Ryzen 7000 Series Desktop Processor ChipsetsChipset AMD B650 MemoryNumber of Memory Slots2x288pin (DDR5) Memory StandardMemory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Maximum Memory Supported64GB Channel Supported Dual Channel Expansion SlotsPCI Express 4.0 x161x PCIe x16 slot (From CPU) - Supports PCIe 4.0 x16 Storage DevicesSerial ATA (SATA) 4 x SATA 6Gb/s M.22x M.2 M.21 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.22 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices Onboard AudioAudio Chipset Realtek ALC4080 Audio Channels 7.1 Channels Onboard LANLAN Chipset1x Realtek RTL8125 2.5Gbps LAN controller Max LAN Speed2.5Gbps Wireless LANAMD Wi-Fi RZ616 - The Wireless module is pre-installed in the M.2 (Key-E) slot Rear Panel PortsBack I/O Ports1x Clear CMOS button 1x Flash BIOS button 1x HDMI port 2x USB 3.2 Gen 1 5Gbps Type-A ports (From CPU) 2x USB 3.2 Gen 2 10Gbps Type-A port (From CPU) 1x USB 3.2 Gen 2 10Gbps Type-A port (From B650 chipset) 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From ASM4242) 1x LAN (RJ45) jack 2x Wi-Fi Antenna connectors 3x Audio jacks Internal I/O ConnectorsOnboard USB1x USB 3.2 Gen 2 10Gbps Type-C port (From B650 chipset) 1x USB 3.2 Gen 1 5Gbps connector (From B650 chipset) - Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 connector - Supports additional 2 USB 2.0 ports (From B650 chipset) Other ConnectorsFan Connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector System Connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector LED Features 4x EZ Debug LED 1x 3-pin ARGB V2 LED connector Physical SpecForm FactorMini ITX LED LightingRGB Dimensions (W x L)6.7" x 6.7" Power Pin1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector Software FeatureWindows 11Supported FeaturesFeaturesMSI Center Features - Gaming Mode - Smart Priority - Game Highlights - Mystic Light (Sync & control) - Ambient link - Frozr AI Cooling - User Scenario - True Color - Live Update - Hardware Monitoring - Super Charger - Device Speed Up - Smart Image Finder - MSI Companion - System Diagnosis - System Info - Microsoft APP - My Device - MSI Display kit Thermal Features - Extended Heatsink Design - MOSFET Baseplate - M.2 Shield Frozr - K7 MOSFET thermal pad/ Extra choke pad - Fan headers (CPU + PUMP + SYSTEM) Performance - Core Boost - VRM Power Design - Memory Boost - Lightning Gen 4 PCI-E/ M.2 Slot - Front USB Type-C - 2oz Copper thickened PCB DIY Friendly - PCI-E Steel Armor - Pre-installed I/O Shield - EZ DEBUG LED - EZ LED Control - Flash BIOS Button RGB Soupport - Mystic Light Extension (A-RAINBOW V2) - Ambient Devices Support Exclusive Software - AIDA 64 - APP player
