Fan Blade Aluminum 8
Fan Blade Aluminum 8

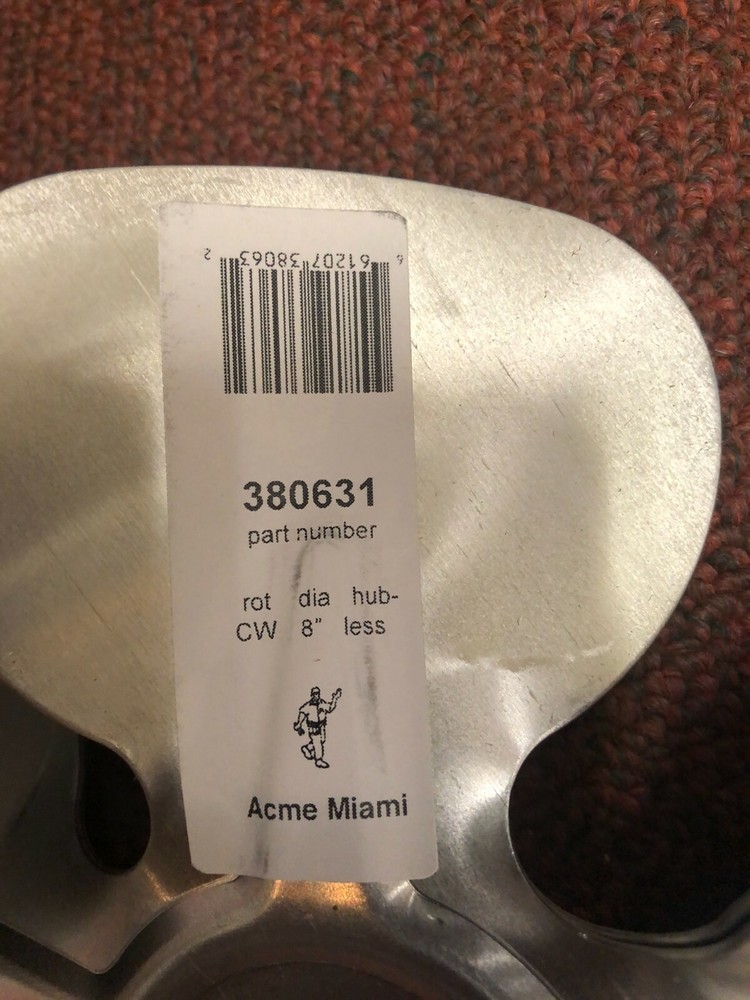

Fan Blade Aluminum 8", 5 Blades, CW, 20 Deg. Pitch, PART# ACME MIAMI 380631

$ 8.43

Compatible Brand: SUPCO FB106 Custom Bundle: No Country of Origin: China Compatible Model: FB106 Suitable For: Chest Freezer, Commerical Kegerator, Compact Fridge, Compressor Wine Fridge, Kegerator Tank/Cartridge, Kegerator Tap, Larder Fridge, Miniature Kegerator, Mini Freezer, Mini Fridge Color: aluminum Installation: hub mount Material: Aluminum UPC: 661207380632 Model: 8" CW Fan Blade Capacity: 8" CW Rotation MPN: 380631 Brand: ACME Miami Type: Fan Blade

Description

Fan Blade Aluminum 8", 5 Blades, CW, 20 Deg. Pitch, PART# ACME MIAMI 380631. Rotation: CW. If the Left side is touching the flat surface the blade is "CW". Fan Blade Rotation. Lay blade on a flat surface, either side up. Pitch in Degrees: 20. Sid Part# 38061 Made by: ACME Miami Aluminum Condenser Fan Blade DIAMETER: 8" Number of Blades: 5 Rotation: CW Pitch in Degrees: 20 * Aluminum Construction Applications: Unit Bearing Motors with 1/4" x 20 Threaded Shafts. ************TECH TIP**************** Fan Blade Rotation To determine the blade rotation. "CW" means Clockwise and "CCW" means Counter Clockwise 1.) Lay blade on a flat surface, either side up. 2.) The direction of rotation is determined by observing which blade edge touches the flat surface. 3.) If the Left side is touching the flat surface the blade is "CW" 4.) If the Right side is touching the flat surface the blade is "CCW".
