Ground Fault Circuit Breaker, 32 Amp 120V AC DIN Rail Mount Residual Current Cir
$ 12.23
Description

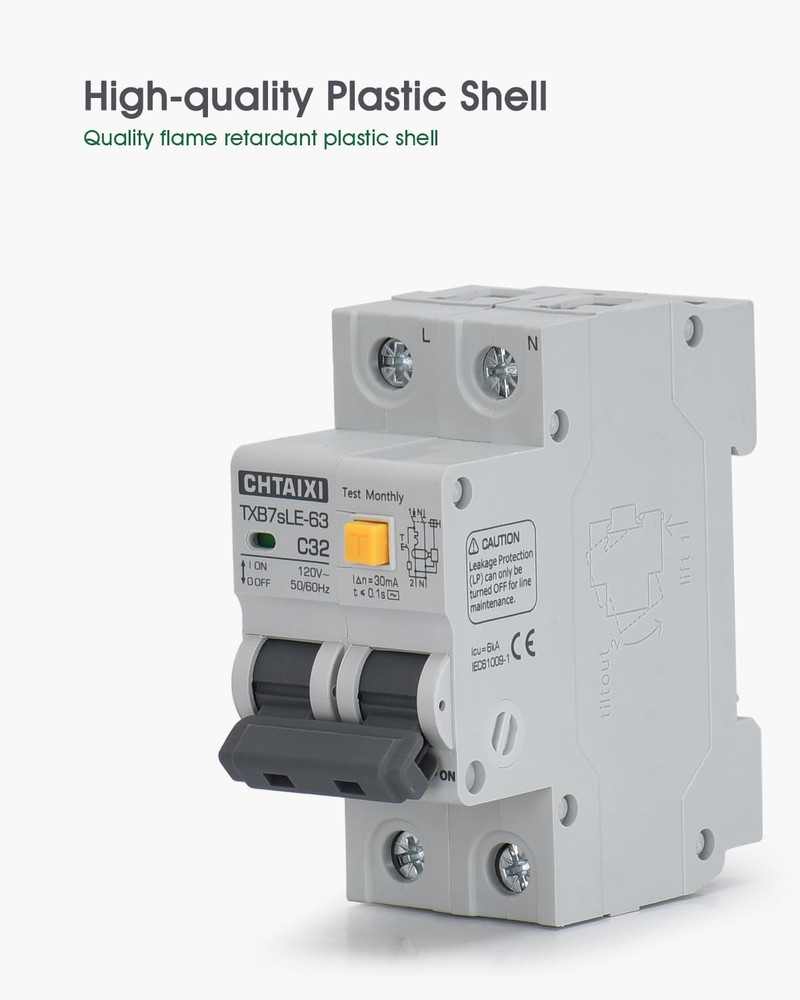

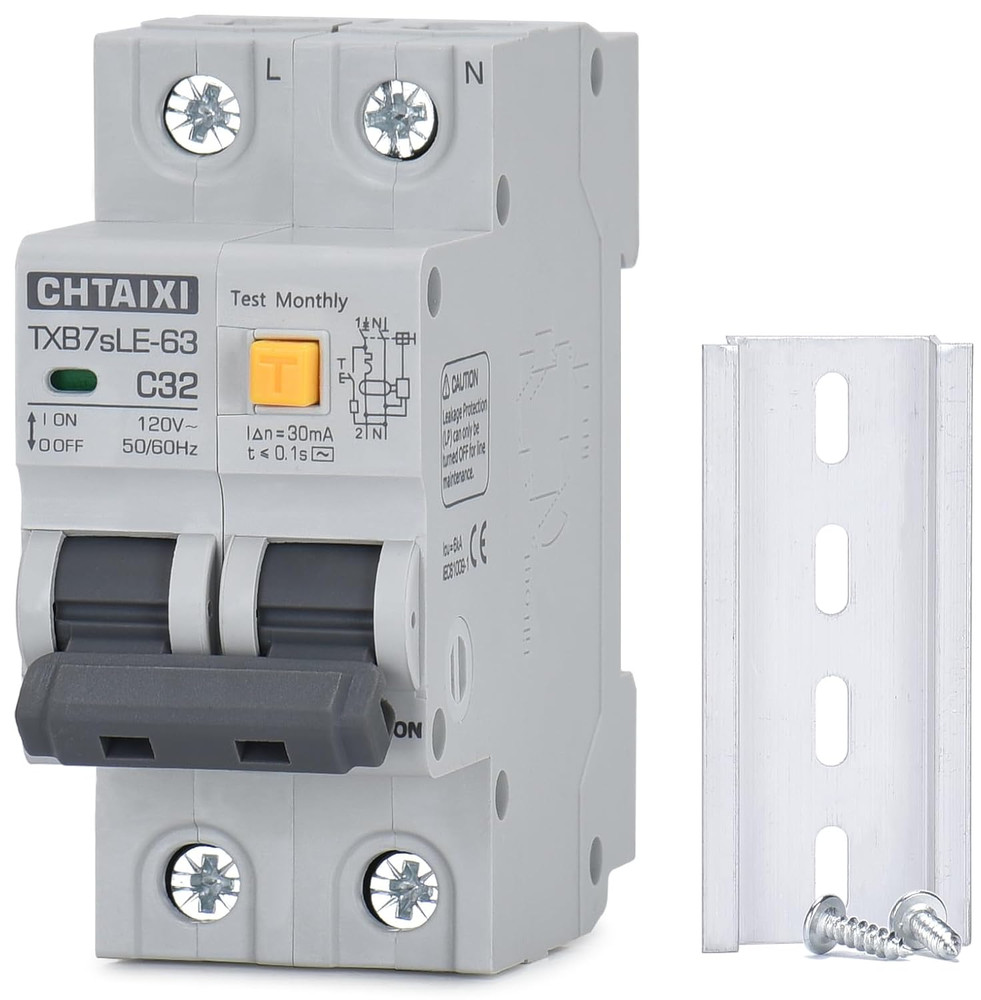

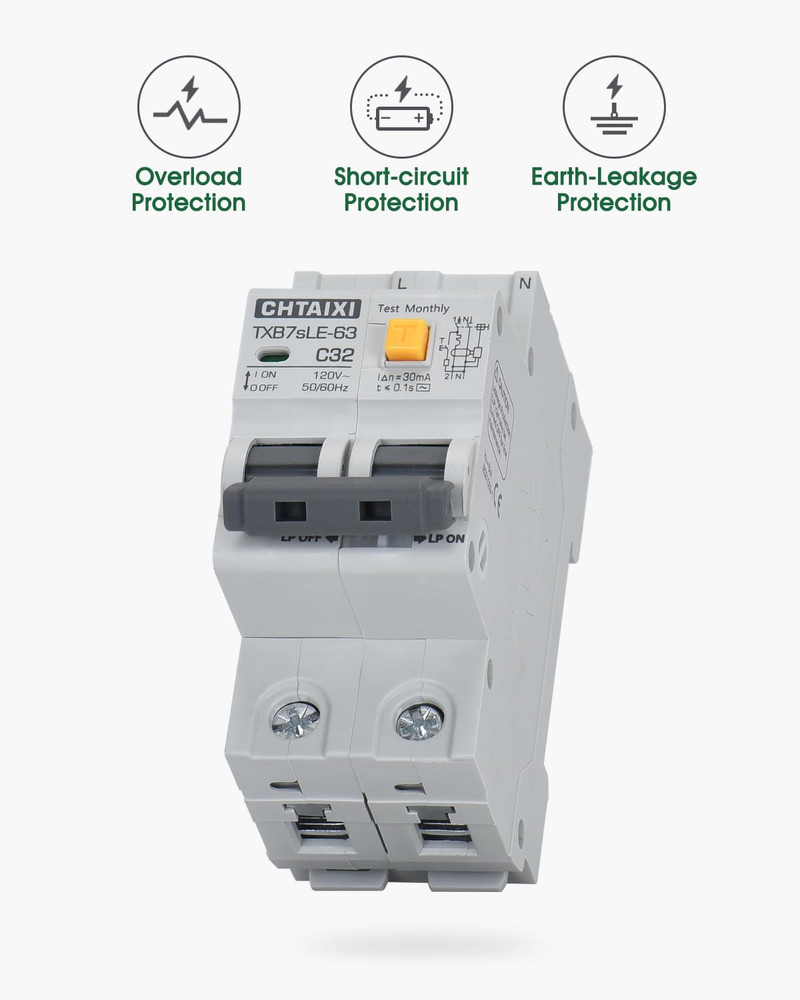

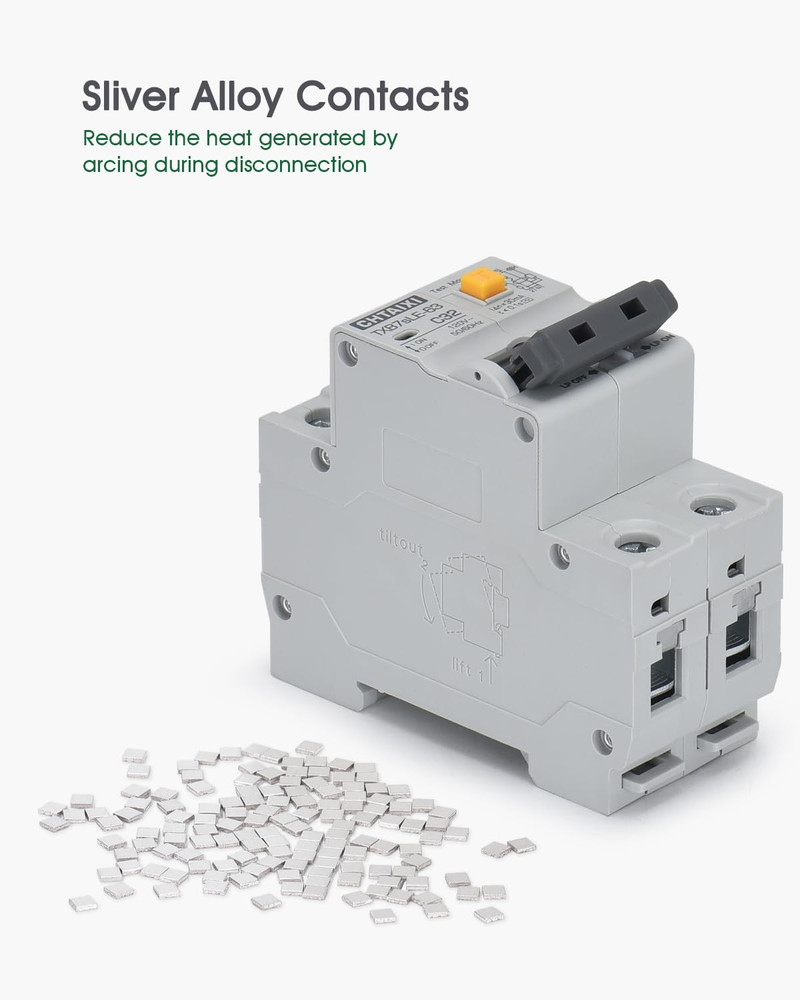

Ground Fault Circuit Breaker, 32 Amp 120V AC DIN Rail Mount Residual Current Cir. Residual Current: AC type, 0.03A, t≤ 0.1s. Hang the circuit breaker slot on the DIN rail. Push the lower end of the circuit breaker into the DIN rail. INSTALLATION: 35mm DIN rail mount, Screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first). Store New Arrivals Add to Favorite View Feedback Contact Ground Fault Circuit Breaker, 32 Amp 120V AC DIN Rail Mount Residual Current Cir Description Style 32 Amp Current Rating 32 Amps Mounting Type DIN Rail Mount Circuit Breaker Type GFCI Brand CHTAIXI Number Of Poles 1 FUNCTIONS: Used for earth-leakage protection ground fault protection of 110V 120V AC circuits, also short-circuit overload protection, control and isolation. Residual Current: AC type, 0.03A, t≤ 0.1s. QUALITY: Silver alloy contacts, flame retardant material shell, color indicators. APPLICATION: Can be used in solar ac system, RV, home line circuits, or other 50/60Hz AC systems. INSTALLATION: 35mm DIN rail mount, Screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first). DIN Rail Install the 35mm DIN rail horizontally in a stable environment. Installation Hang the circuit breaker slot on the DIN rail. Push the lower end of the circuit breaker into the DIN rail. Dismounting Push the circuit breaker upward. Turn the upper end of the circuit breaker out of the DIN rail.
