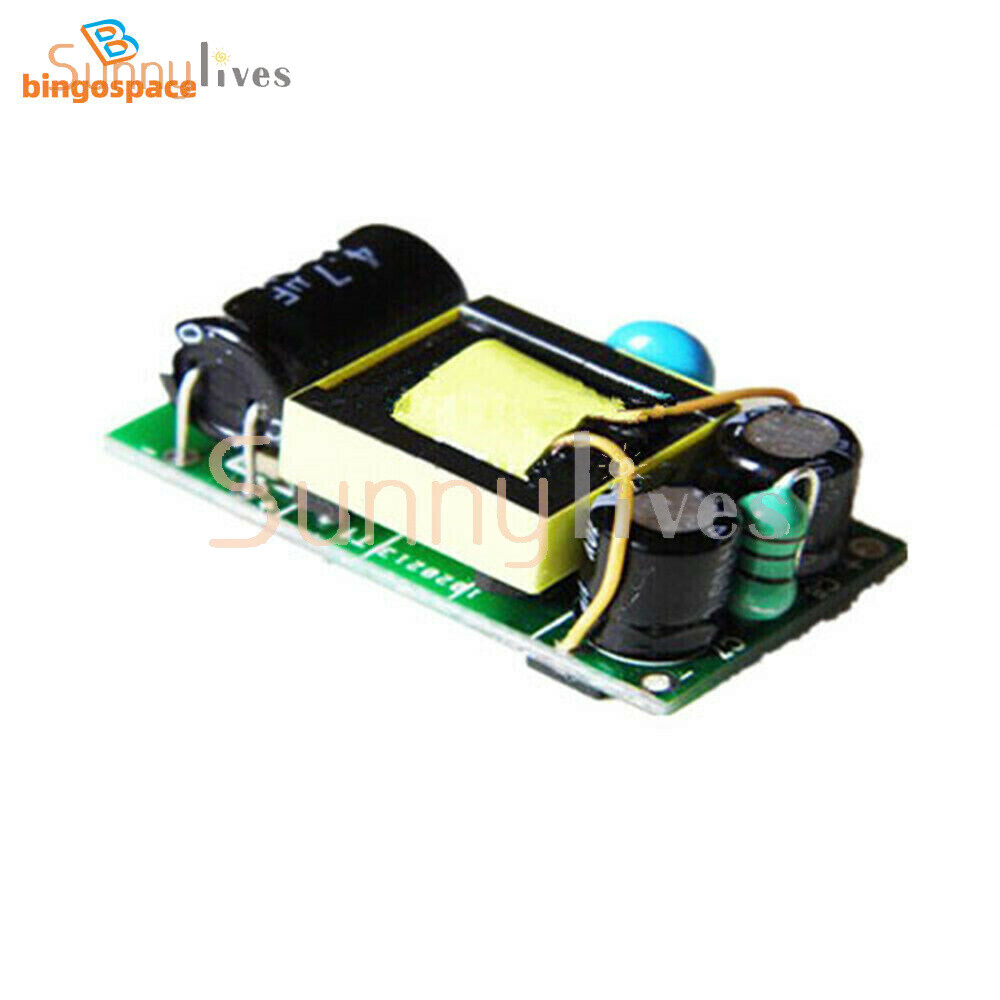

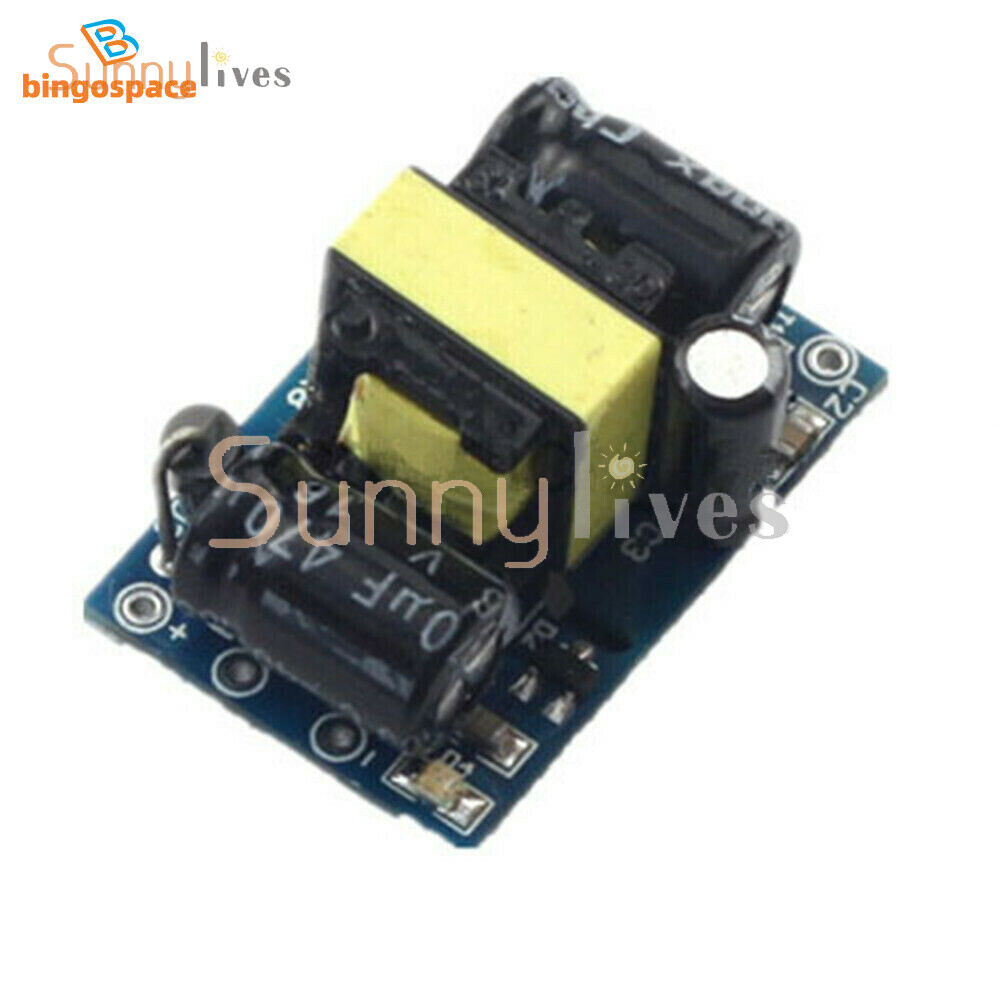

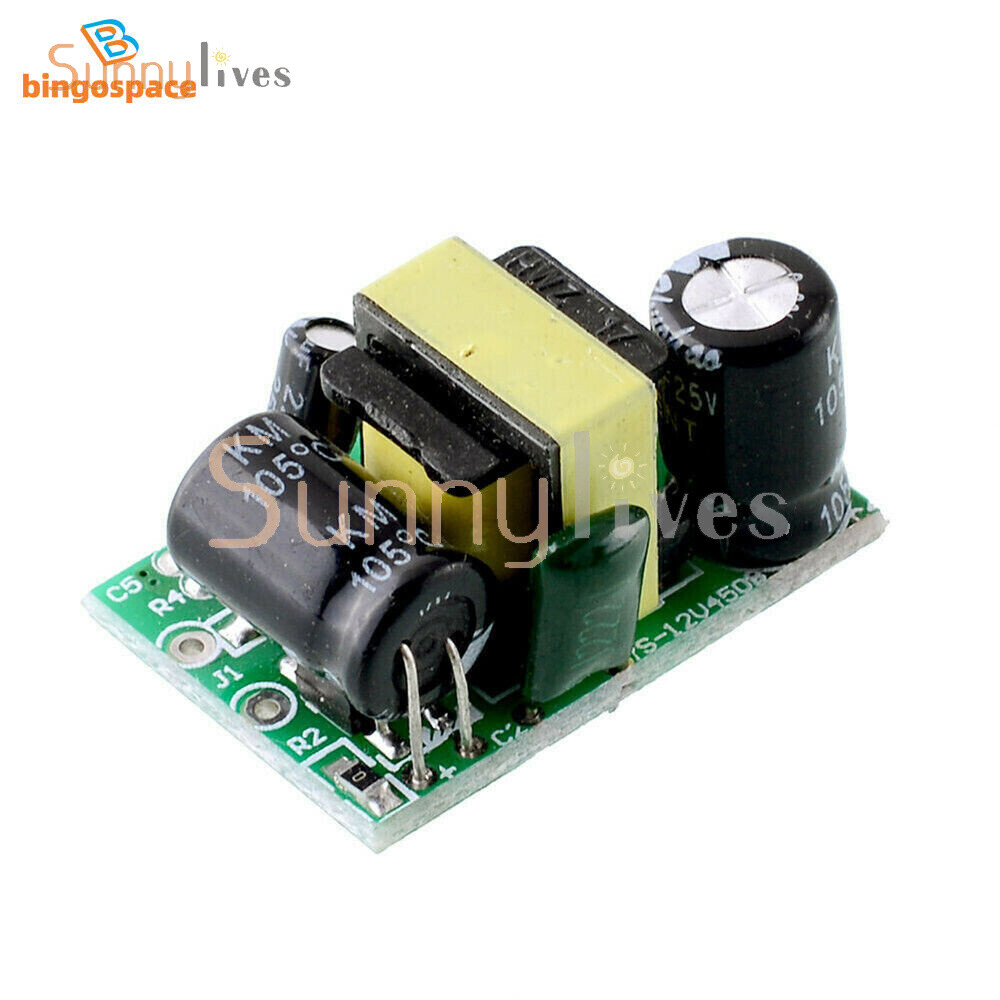

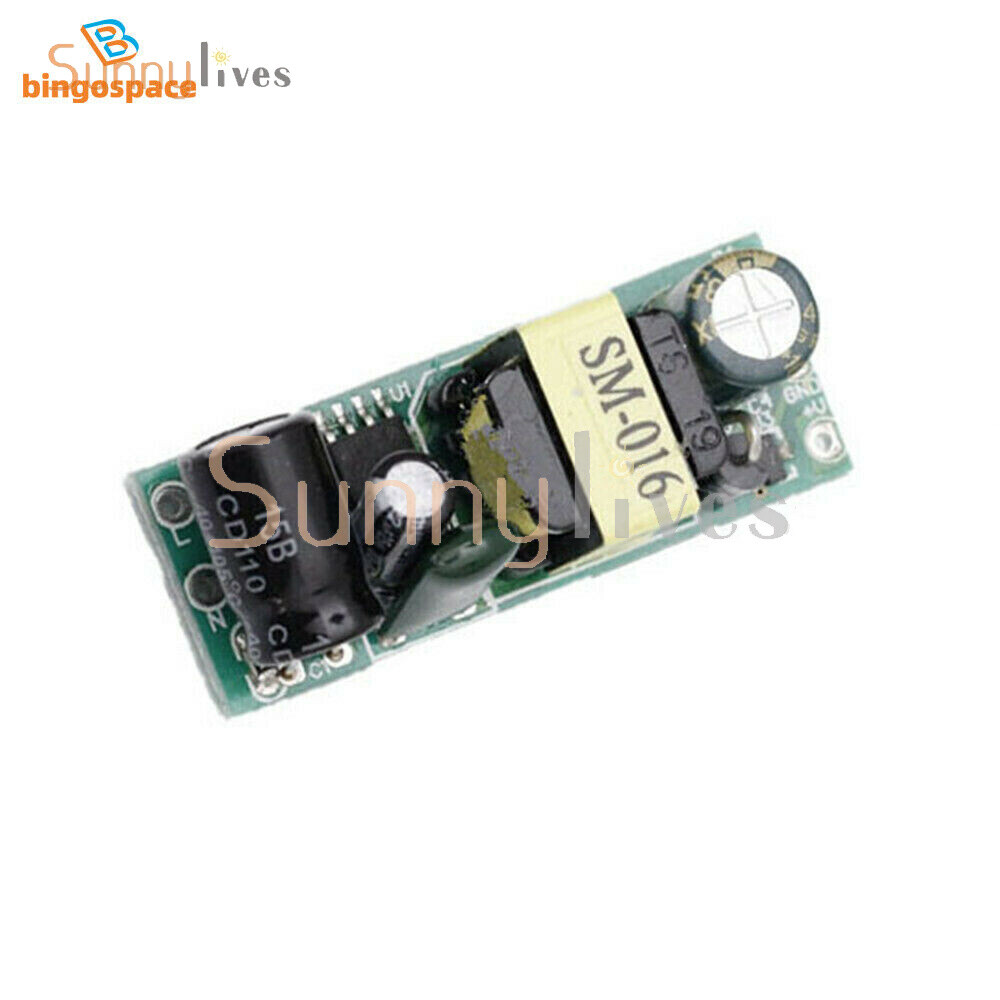

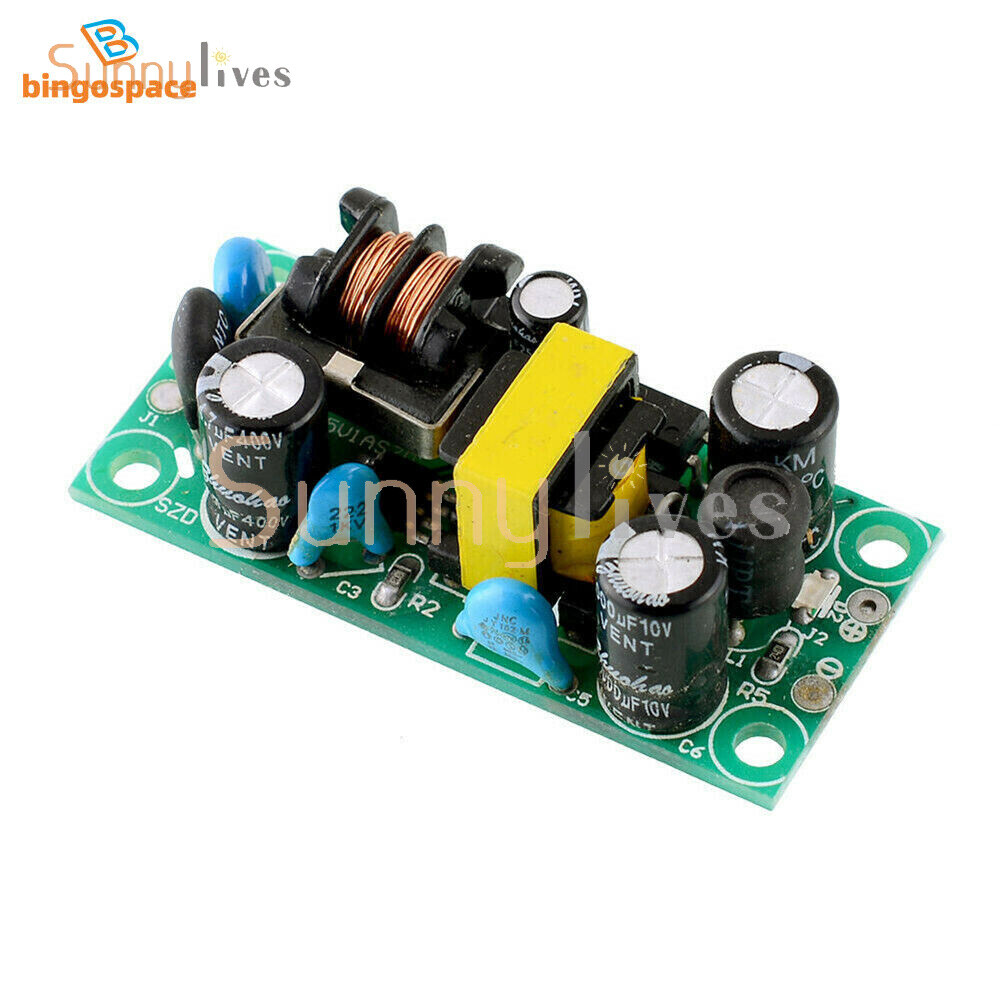

High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module New

Description

High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module New. Peak current :450mA. Output Current Range: 0A to 150mA, the peak current of 200mA. Input surge current: 20A (full load). Output current:150mA. Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV. Home Payment Shipping About us Contact us Store CategoriesStore Categories Business, Office & Industrial Home, Furniture & DIY Computers/Tablets & Networking Sound & Vision Consumer Electronics Other Details 12V 400mA Input voltage :AC 85v ~ 265v ,50 / 60HZ Output voltage :DC12V Working Current :400mA Peak current :450mA Power: 4.5W Size:30*20*19mm 24V 150mA 1. Input voltage:AC85~265v 50/60HZ 2. Output voltage:DC24V (±0.2V) 3. Output current:150mA 4. Power:3.6W 5. PCB size:4*1.5*1.8cm Use environment: 1. Working temperature: -20 to 60℃ 2. Relative humidity: 40 to 90% RH Input characteristics 1. Input voltage range: 85VAC-265VAC 2. Input Current: 0.0273 (AC110V) 0.014 (AC220V) 3. Input surge current: 20A (full load) Output Characteristics 1. Output voltage range: 23.80~24.2V 2. Output Current Range: 0A to 150mA, the peak current of 200mA 3. Output power: 3.6w. 4. Output efficiency: 85% 5. Switching Overshoot: 10% 6. Output Rise Time: 100ms 5V 1A -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC5V（±0.2V） -Output current 1000MA -Power 5w 5V 500mA Input voltage AC85 ~ 265v 50 / 60HZ Output voltage DC5V Operating current 500mA Dimensions Volume: LWH 32 * 18 * 13 (mm) 12V 500mA -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC12V（±0.2V） -Output current 500mA 12V 450mA Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Input current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 12V (+ / - 0.2 V) Output current 500 mA Operating temperature -20~60Deg.C Relative humidity 40-90%RH Output 12V, min current 0a, max current 500mA, peak current: 600mA, output range:11.80~12.1V, ripple wave: 150mV Output power:0-6W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 11.8-12.1V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery Size: 3 x 2 x1.8cm 5V 700mA Condition: brand new Quantity: 1pc Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Imput current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 5V (+ / - 0.2 V) Output current 700 mA Power 3.5 W Operating temperature -20~60¡æ Relative humidity 40-90%RH Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV Output power:0-4W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery 5V 1.5A Input voltage AC 85 ~ 265v 50/60HZ or DC100v-370v Output voltage DC5V (± 0.2V) Output current 1500mA Power 7.5W Package included: 1PCS Shipping Policy Payment Method Returns Policy Shipping Policy Payment Method Returns Policy Home Payment Shipping About us Contact us Copyright©2018 datacaciques Top & Fast Shipping！ Get The Right At The Right Price！ High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module New DESCRIPTION 12V 400mA Input voltage :AC 85v ~ 265v ,50 / 60HZ Output voltage :DC12V Working Current :400mA Peak current :450mA Power: 4.5W Size:30*20*19mm 24V 150mA 1. Input voltage:AC85~265v 50/60HZ 2. Output voltage:DC24V (±0.2V) 3. Output current:150mA 4. Power:3.6W 5. PCB size:4*1.5*1.8cm Use environment: 1. Working temperature: -20 to 60℃ 2. Relative humidity: 40 to 90% RH Input characteristics 1. Input voltage range: 85VAC-265VAC 2. Input Current: 0.0273 (AC110V) 0.014 (AC220V) 3. Input surge current: 20A (full load) Output Characteristics 1. Output voltage range: 23.80~24.2V 2. Output Current Range: 0A to 150mA, the peak current of 200mA 3. Output power: 3.6w. 4. Output efficiency: 85% 5. Switching Overshoot: 10% 6. Output Rise Time: 100ms 5V 1A -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC5V（±0.2V） -Output current 1000MA -Power 5w 5V 500mA Input voltage AC85 ~ 265v 50 / 60HZ Output voltage DC5V Operating current 500mA Dimensions Volume: LWH 32 * 18 * 13 (mm) 12V 500mA -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC12V（±0.2V） -Output current 500mA 12V 450mA Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Input current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 12V (+ / - 0.2 V) Output current 500 mA Operating temperature -20~60Deg.C Relative humidity 40-90%RH Output 12V, min current 0a, max current 500mA, peak current: 600mA, output range:11.80~12.1V, ripple wave: 150mV Output power:0-6W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 11.8-12.1V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery Size: 3 x 2 x1.8cm 5V 700mA Condition: brand new Quantity: 1pc Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Imput current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 5V (+ / - 0.2 V) Output current 700 mA Power 3.5 W Operating temperature -20~60¡æ Relative humidity 40-90%RH Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV Output power:0-4W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery 5V 1.5A Input voltage AC 85 ~ 265v 50/60HZ or DC100v-370v Output voltage DC5V (± 0.2V) Output current 1500mA Power 7.5W Package included: 1PCS SHIPPING Please Make sure your Ebay Address is 100% right. We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you keep in touch with us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. PAYMENT Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. RETURN Please contact us first if you have any problems/questions/concerns. We will be happy to resolve any issues you may have in a cordial and friendly manner. ---------------------------------------------©Copyright Gogaviinse. All Rights Reserved.--------------------------------------
