High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module
$ 0.94
Description

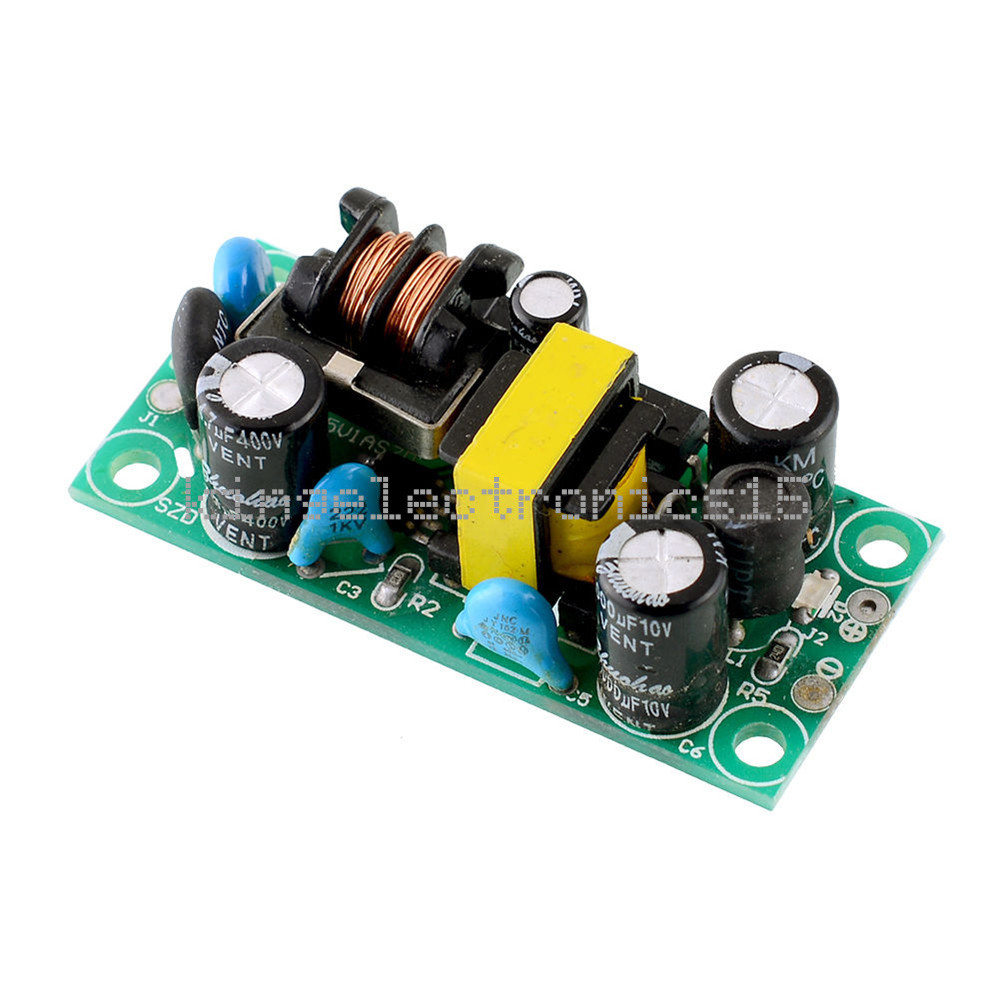

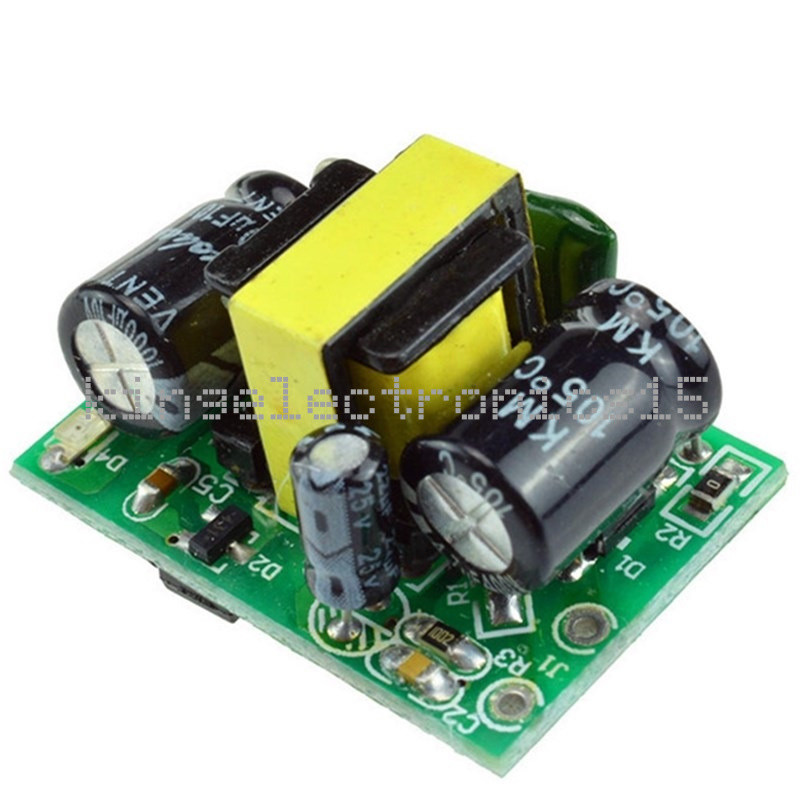

High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module. Output Current Range: 0A to 150mA, the peak current of 200mA. Input surge current: 20A (full load). Peak current :450mA. Output current:150mA. Output power: 3.6w. Input characteristics. Output Characteristics. High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module Product Image: Product Description: 12V 400mA Input voltage :AC 85v ~ 265v ,50 / 60HZ Output voltage :DC12V Working Current :400mA Peak current :450mA Power: 4.5W Size:30*20*19mm 24V 150mA 1. Input voltage:AC85~265v 50/60HZ 2. Output voltage:DC24V (±0.2V) 3. Output current:150mA 4. Power:3.6W 5. PCB size:4*1.5*1.8cm Use environment: 1. Working temperature: -20 to 60℃ 2. Relative humidity: 40 to 90% RH Input characteristics 1. Input voltage range: 85VAC-265VAC 2. Input Current: 0.0273 (AC110V) 0.014 (AC220V) 3. Input surge current: 20A (full load) Output Characteristics 1. Output voltage range: 23.80~24.2V 2. Output Current Range: 0A to 150mA, the peak current of 200mA 3. Output power: 3.6w. 4. Output efficiency: 85% 5. Switching Overshoot: 10% 6. Output Rise Time: 100ms 5V 1A -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC5V（±0.2V） -Output current 1000MA -Power 5w 5V 500mA Input voltage AC85 ~ 265v 50 / 60HZ Output voltage DC5V Operating current 500mA Dimensions Volume: LWH 32 * 18 * 13 (mm) 12V 500mA -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC12V（±0.2V） -Output current 500mA 12V 450mA Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Input current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 12V (+ / - 0.2 V) Output current 500 mA Operating temperature -20~60Deg.C Relative humidity 40-90%RH Output 12V, min current 0a, max current 500mA, peak current: 600mA, output range:11.80~12.1V, ripple wave: 150mV Output power:0-6W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 11.8-12.1V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery Size: 3 x 2 x1.8cm 5V 700mA Condition: brand new Quantity: 1pc Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Imput current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 5V (+ / - 0.2 V) Output current 700 mA Power 3.5 W Operating temperature -20~60¡æ Relative humidity 40-90%RH Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV Output power:0-4W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery 5V 1.5A Input voltage AC 85 ~ 265v 50/60HZ or DC100v-370v Output voltage DC5V (± 0.2V) Output current 1500mA Power 7.5W Package included: 1PCS * Module Feedback Warranty Shipment Feedback We appreciate your feedback very much. As it will motivate us do better. If you have any questions with our goods or service, Please kindly contact us firstly before leaving negative feedback. Thank you in advance Warranty 1. All merchandise will be carefully test before shipping. We will try our best to avoid any quality problem. 2. We promise warranty for quality in one year and we will repair it free of charge. The returning shipping should be paid by customer. 3. If you are not satisfied with the product, Please contact us. We'll provide you a satisfying solution. Shipment 1.Normmly we will send the goods within 1-3 working days after your payment is verified . 2.Please check if the goods are in good condition and sign before the delivery man leaves.If you find the product is lost or damaged on the way. Please take photo and let the delivery men confirm it. Then we will help you let the shipping company compensate you. On Aug-17-17 at 02:20:25 PDT, seller added the following information:
