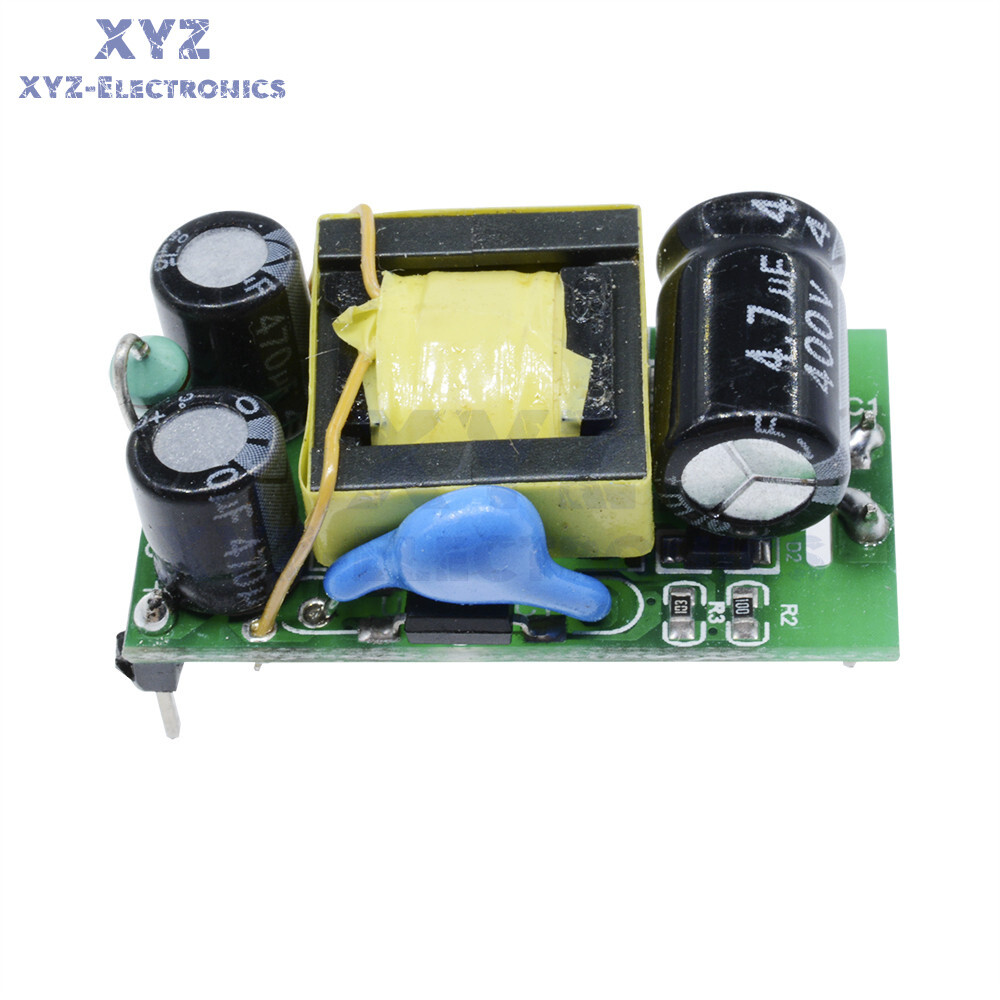

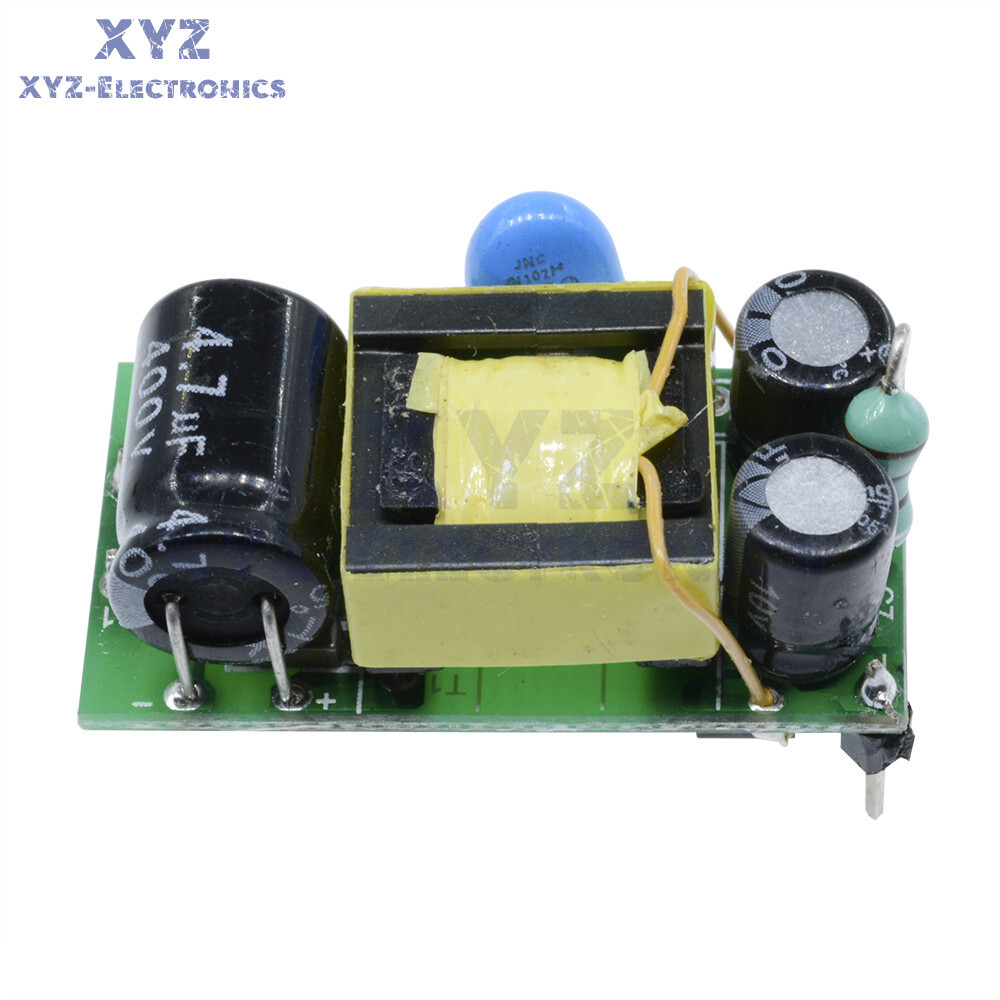

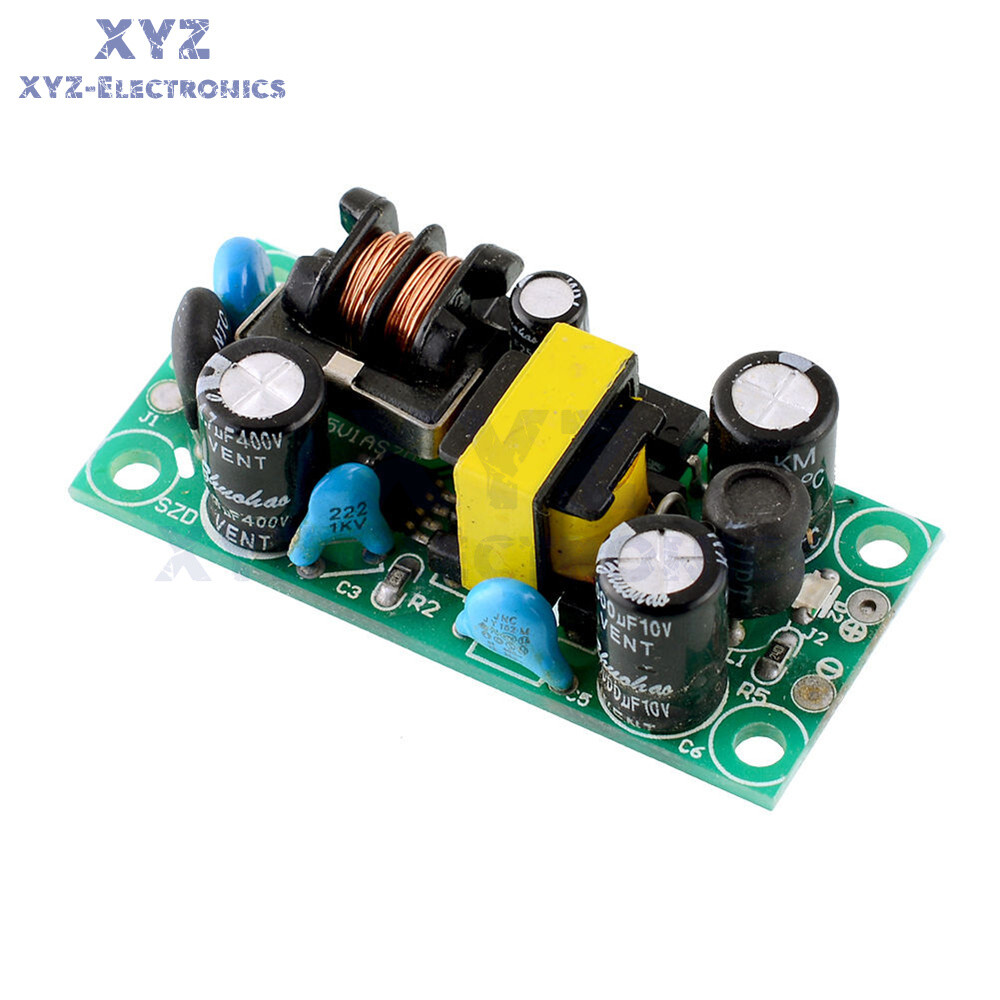

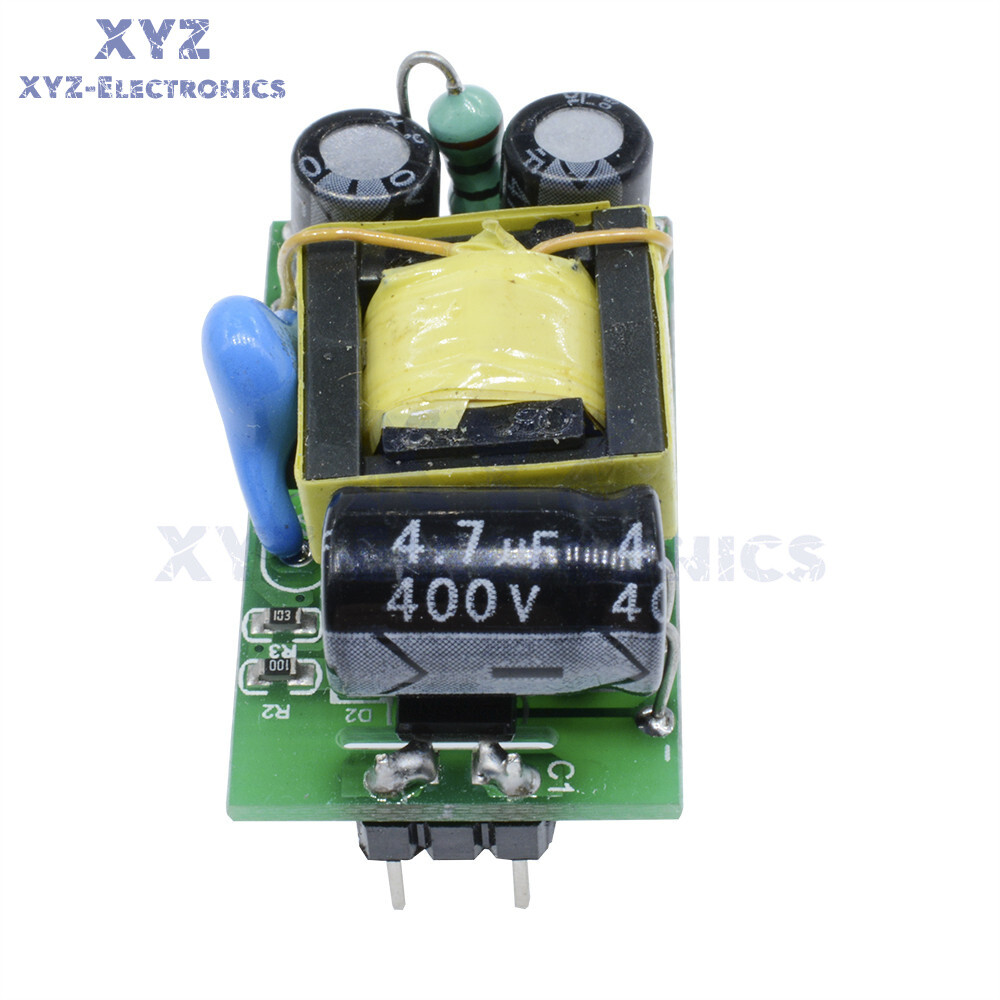

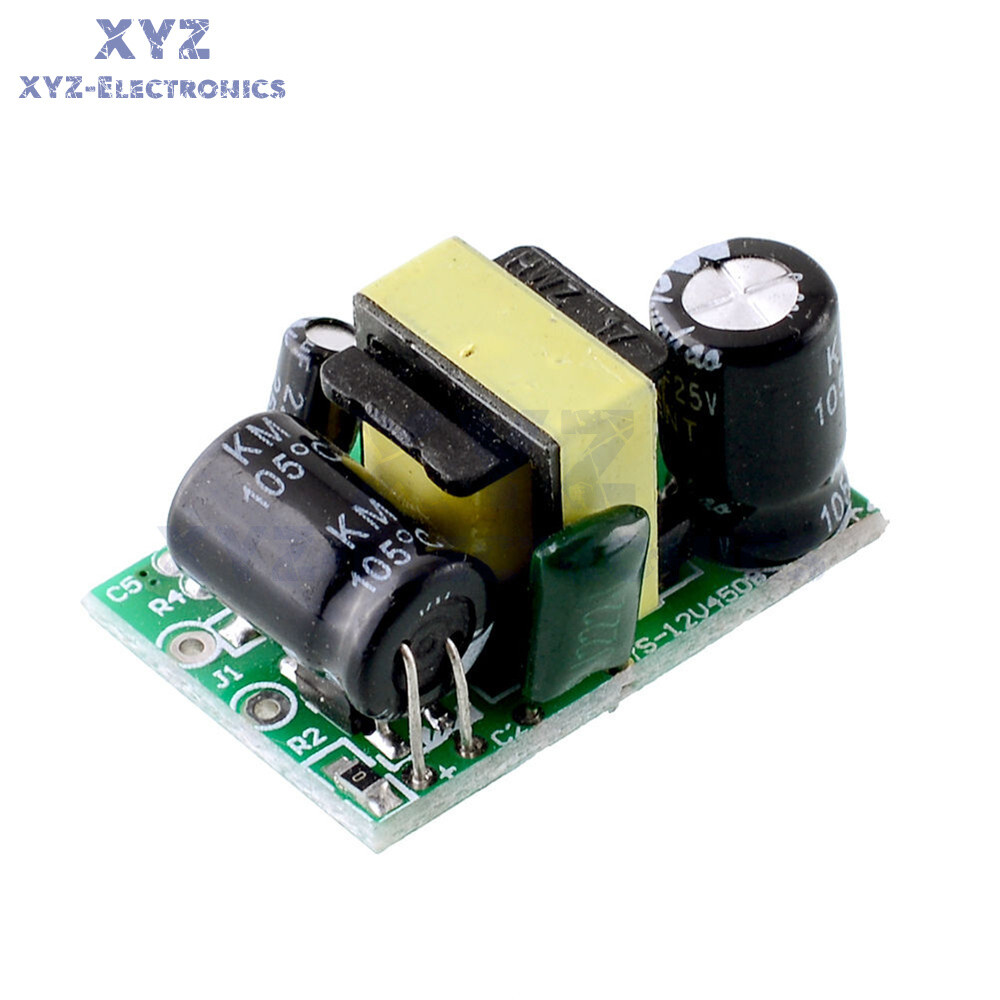

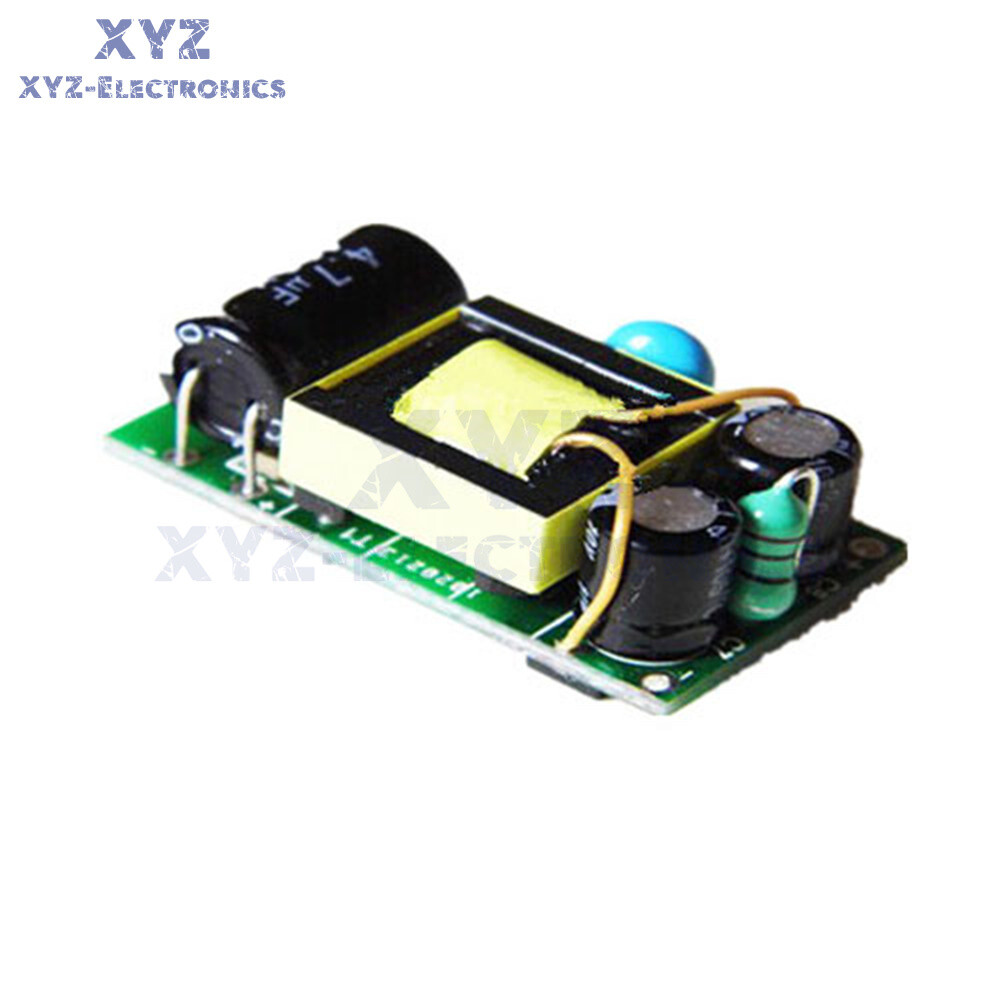

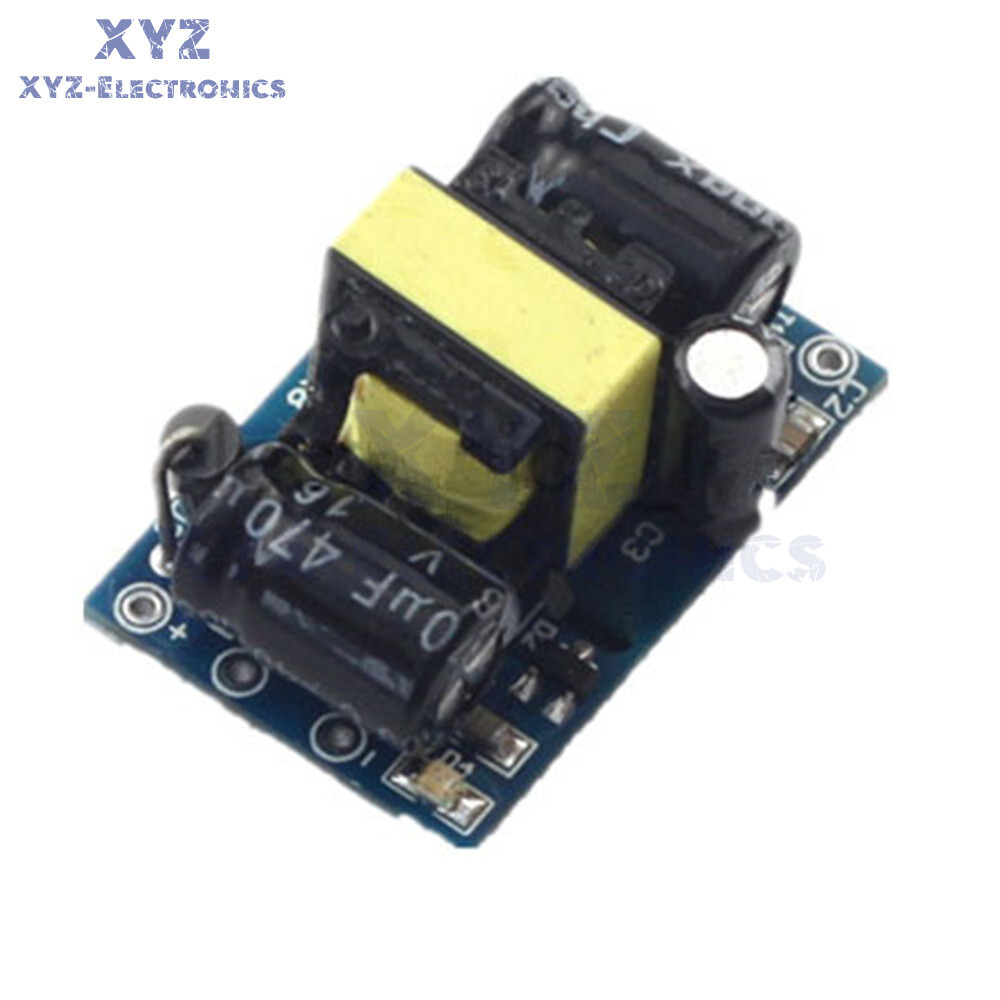

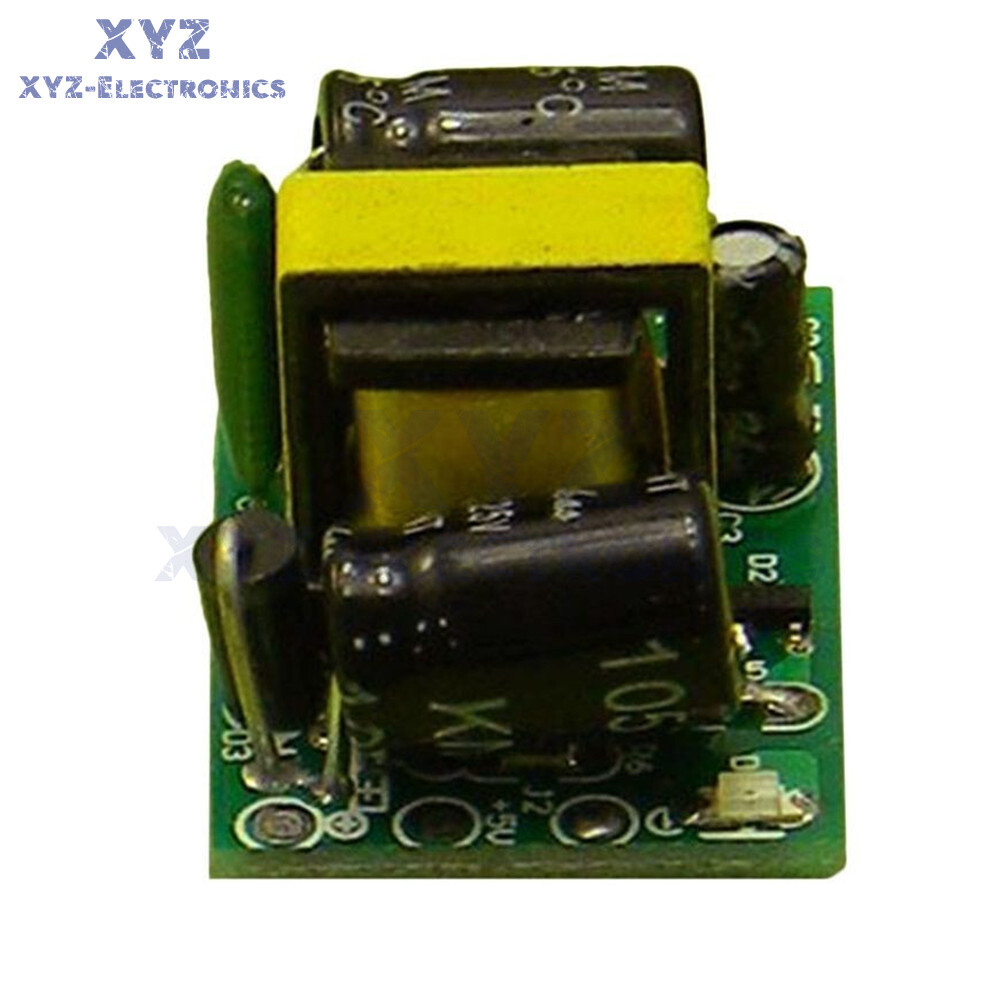

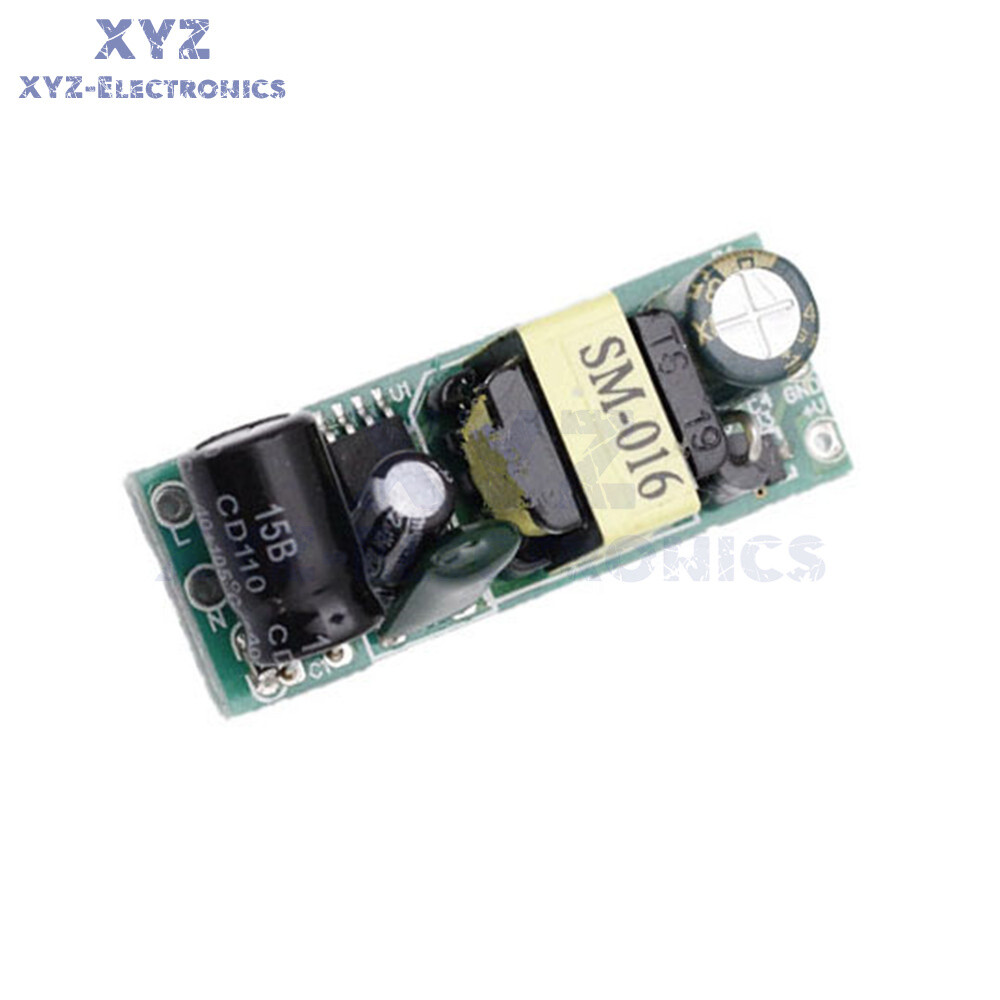

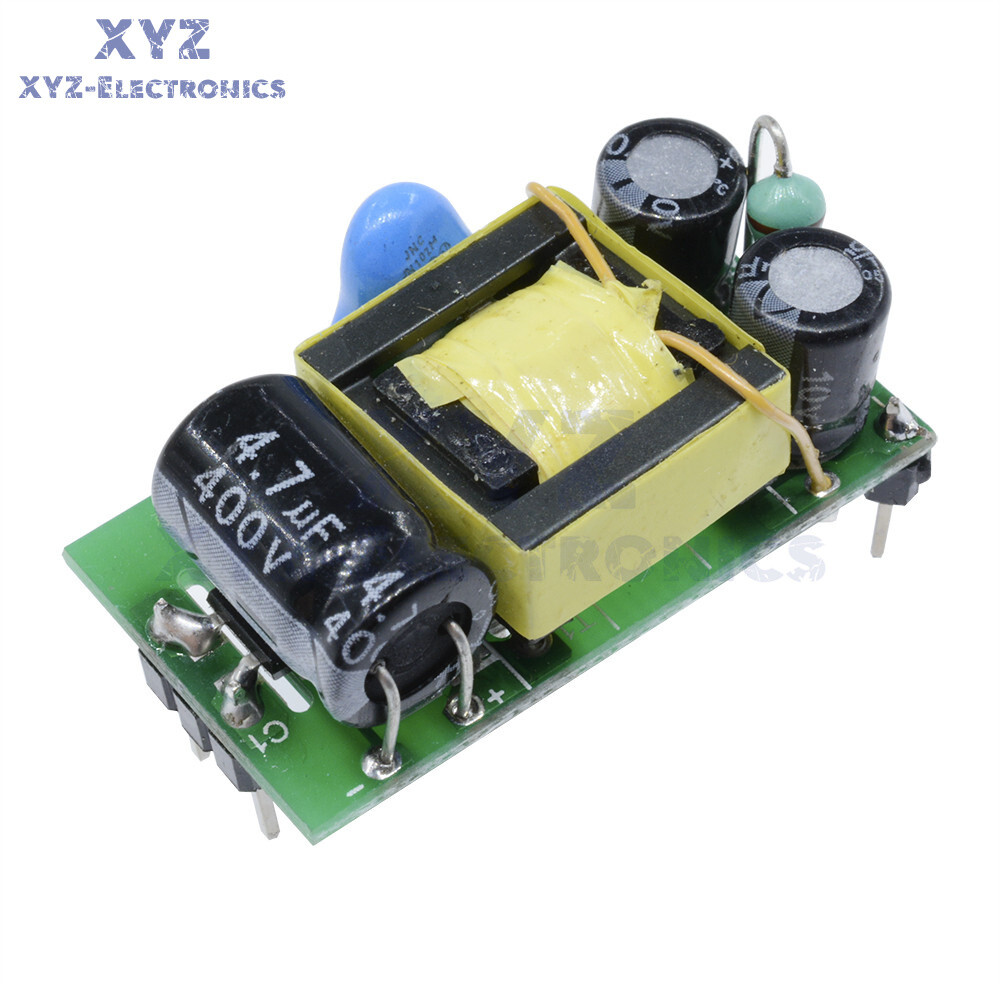

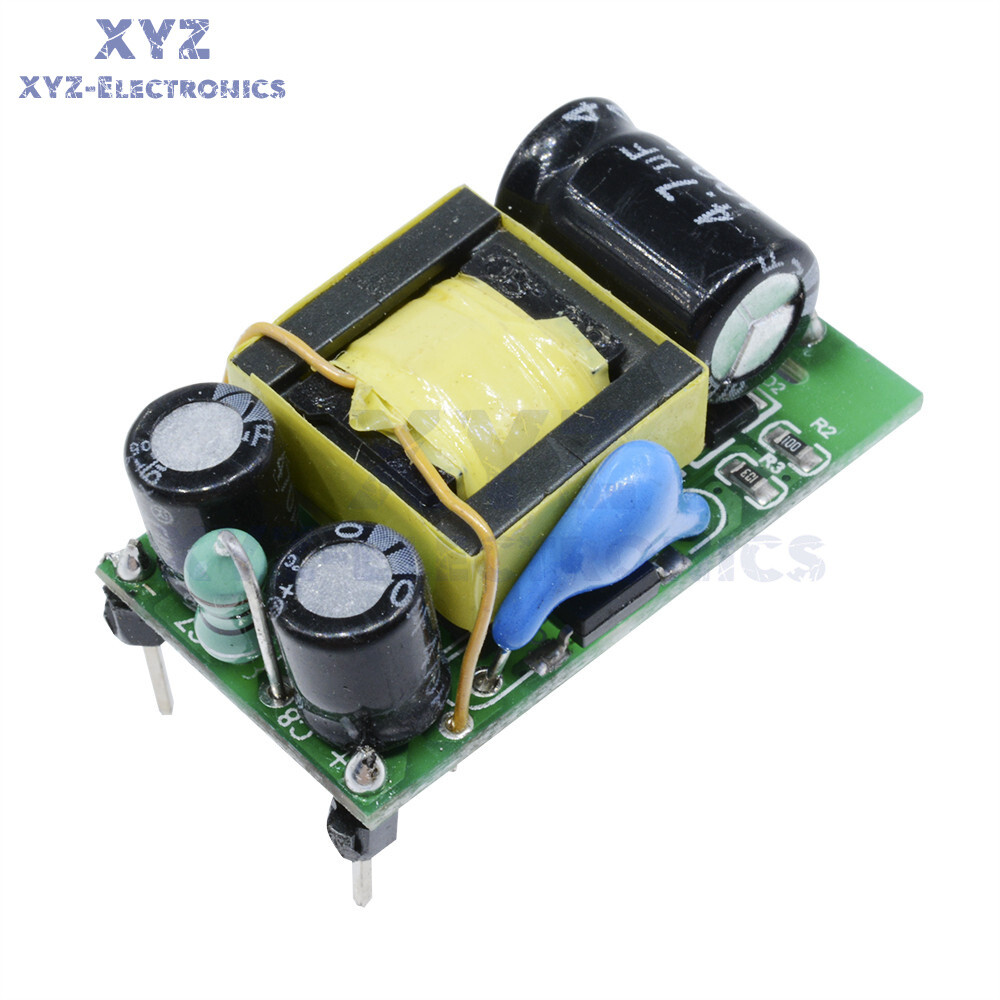

High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module
$ 0.81
Description
High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module. Output Current Range: 0A to 150mA, the peak current of 200mA. Input surge current: 20A (full load). Output current:150mA. Output power: 3.6w. Input characteristics. Output Characteristics. Input Current: 0.0273 (AC110V) 0.014 (AC220V). Store CategoriesStore Categories Other High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module Details Description： 24V 150mA 1. Input voltage:AC85~265v 50/60HZ 2. Output voltage:DC24V (±0.2V) 3. Output current:150mA 4. Power:3.6W 5. PCB size:4*1.5*1.8cm Use environment: 1. Working temperature: -20 to 60℃ 2. Relative humidity: 40 to 90% RH Input characteristics 1. Input voltage range: 85VAC-265VAC 2. Input Current: 0.0273 (AC110V) 0.014 (AC220V) 3. Input surge current: 20A (full load) Output Characteristics 1. Output voltage range: 23.80~24.2V 2. Output Current Range: 0A to 150mA, the peak current of 200mA 3. Output power: 3.6w. 4. Output efficiency: 85% 5. Switching Overshoot: 10% 6. Output Rise Time: 100ms 12V 2A Input Voltage: AC85 ~ 265V 50/60 Hz/DC100V-370V Output Voltage: DC12V（±0.2V Output Current: 2A(Max) Power: 24W Input Voltage Range: 85~ 265V Input Current:0.368A(AC110V) 0.123A(AC220V) Input Inrush Current: 20A Output Voltage Range: 12.0~12.4V 2.0~2.5A Output Power: 0 ~30W Output Efficiency: 85% Working Temperature: -20 ~ 60℃ Size: 8.5*4.5*2cm/3.34*1.77*0.78" 5V 1A Input voltage of AC 85 ~ 265v 50/60 HZ Output voltage DC5V（±0.2V） Output current 1000MA Power 5w 5V 500mA Input voltage AC85 ~ 265v 50 / 60HZ Output voltage DC5V Operating current 500mA Dimensions Volume: LWH 32 * 18 * 13 (mm) 12V 500mA -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC12V（±0.2V） -Output current 500mA 9V 500mA - Input voltage : AC90~240V 50/60 HZ - Output voltage: DC9V (±0.1V) - Output current: 500MA - Power: 4.5 W - Size:30*20*18（mm） 12V 450mA Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Input current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 12V (+ / - 0.2 V) Output current 500 mA Operating temperature -20~60Deg.C Relative humidity 40-90%RH Output 12V, min current 0a, max current 500mA, peak current: 600mA, output range:11.80~12.1V, ripple wave: 150mV Output power:0-6W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 11.8-12.1V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery Size: 3 x 2 x1.8cm 5V 700mA Step Down Module Condition: New With temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 ~ 265 v wide voltage input, ac/dc current , 431 precision voltage stability DC5V output Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Imput current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 5V (+ / - 0.2 V) Output current 700 mA Power 3.5 W Operating temperature -20~60℃ Relative humidity 40-90%RH Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV Output power:0-4W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery Size: 3 x 2 x1.8cm 5V 1.5A Input voltage AC 85 ~ 265v 50/60HZ or DC100v-370v Output voltage DC5V (± 0.2V) Output current 1500mA Power 7.5W 12V 400mA -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC12V（±0.2V） -Output current 400mA 5V 3A Output voltage: 5VRated current: 3ACurrent range: 0-3.5ARipple:
