Huanyang VFD 220V 1.5kw 2HP Variable Frequency Drive Inverter Convert for Motor
$ 34.31
Description

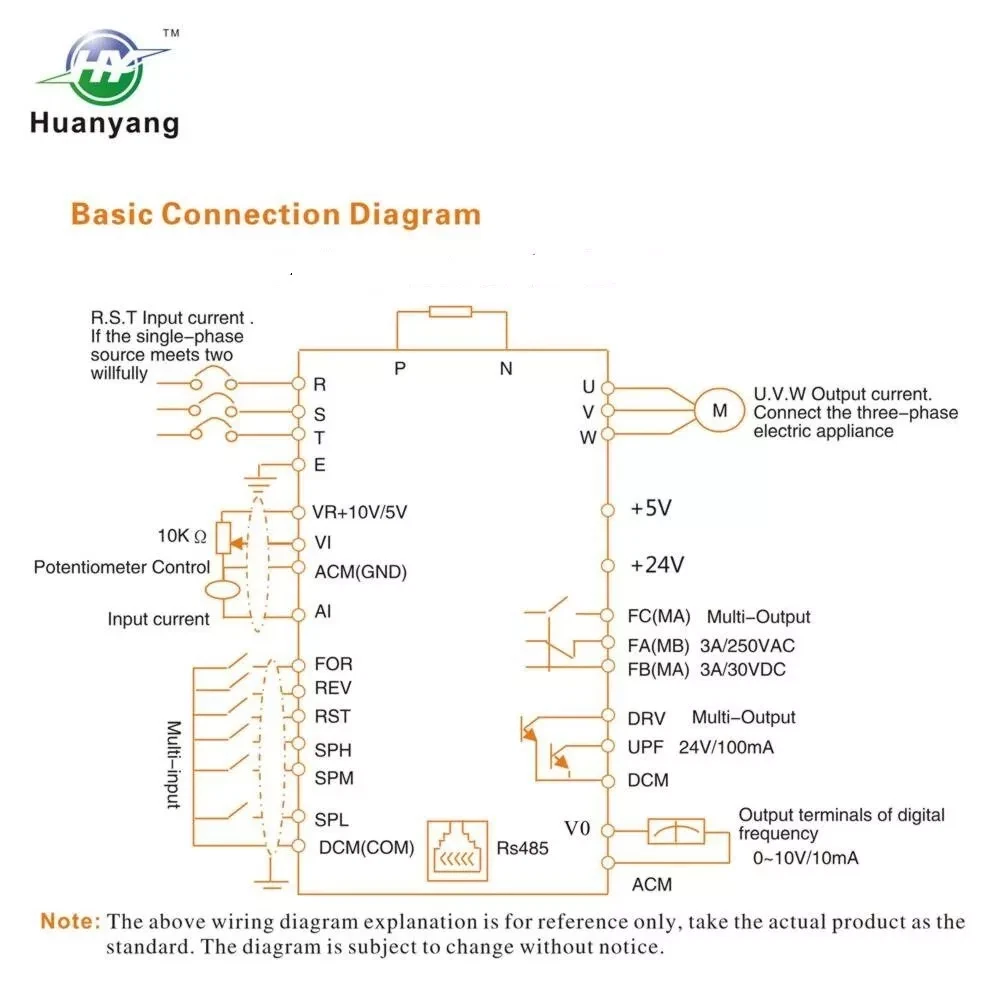

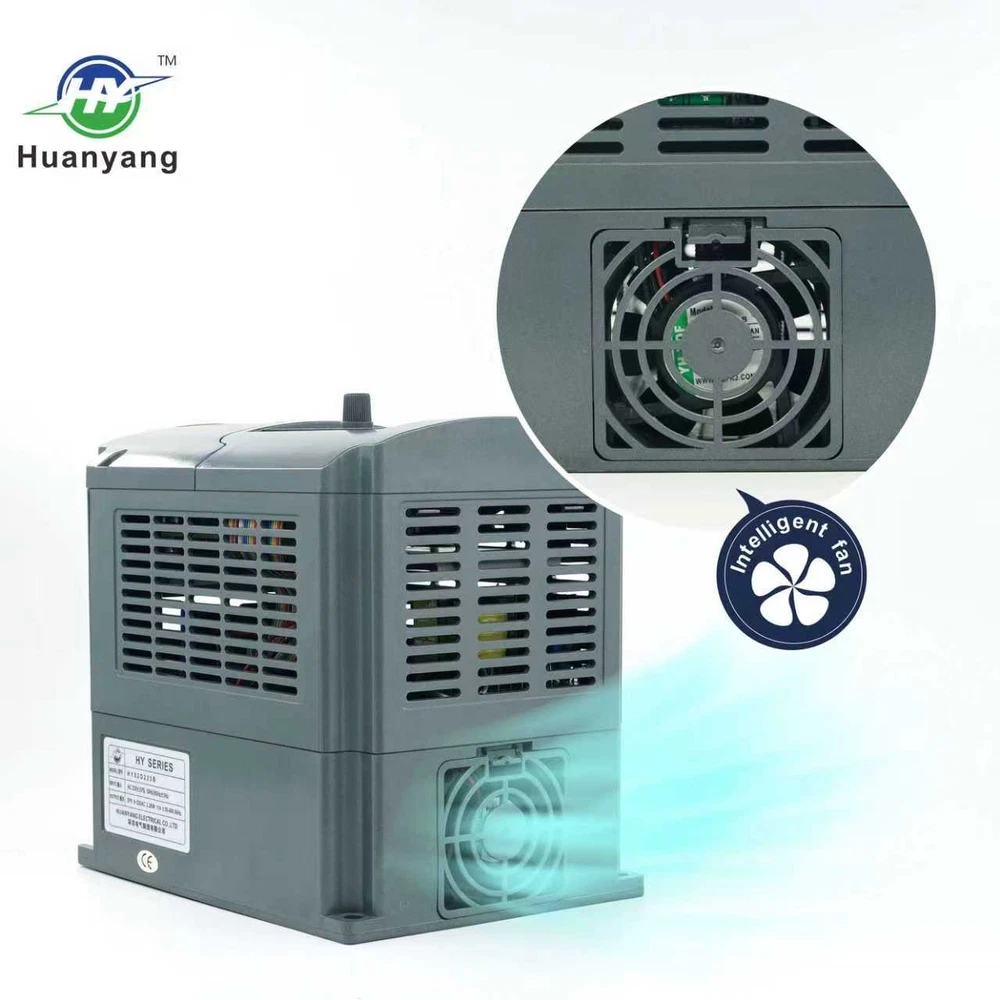

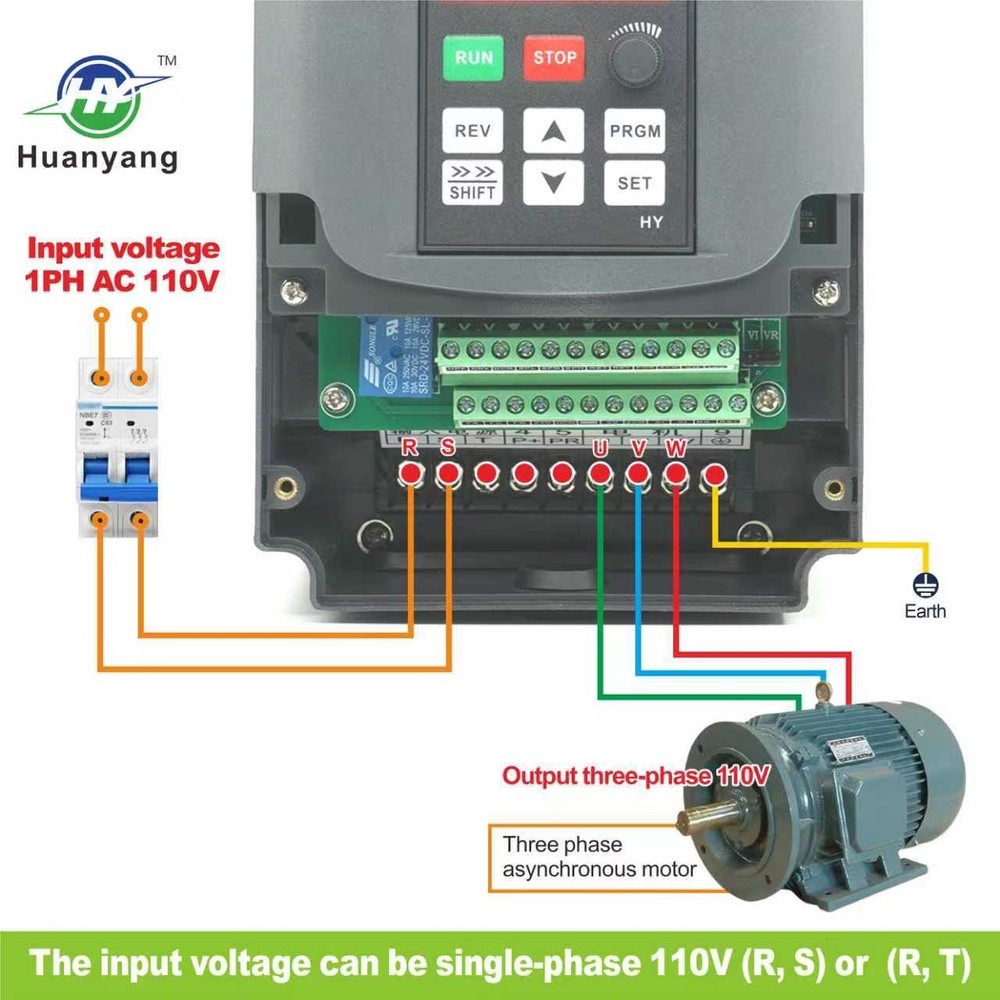

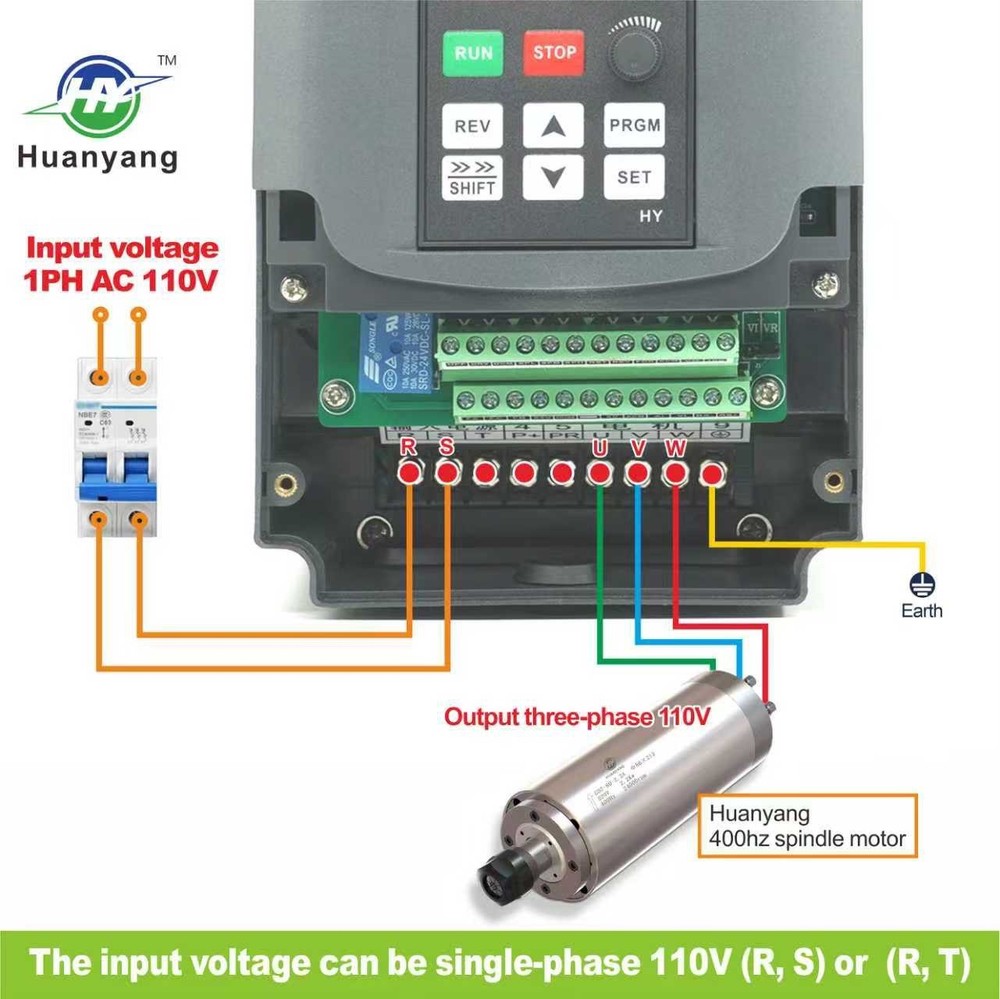

IMPORTANT NOTE The variable frequency drive can only drive three-phase asynchronous motors and cannot be used as a power source. This product does not support the installation of brake resistance ( this function needs to be customized ) If your motor is heavy load , pls choose a higher horsepower vfd than your motor's To protect the VFD, be sure to press the red button "Stop" and turn off the power when you stop using it. Huanyang 220v-1.5kw VFD Specifications Applicable motor horse-power ≤1.5kw (2hp) Input valtage 220VAC(+/-5%) 1 or 3 phase（”R“,”T“ terminals for 1 phase，”R“,”S“.”T“ terminals for 3 phase) output valtage 3 phase 220v input Frequency 47-63Hz output frequency 0-400Hz, 0-50Hz/60Hz rated current 6.8A (Represents the maximum current the VFD can withstand,this is a fixed value) Function introduction DC cooling fan DC cooling fan low noise, large air volume help vfd heat dissipation, improve product stability basic parameter for 110V-400hz spindle For 400hz motor：Set pd005 =400 , pd004 =400 , pd003 = 400 , pd072 =400 , pd144 =3000,Then you can start driving the 400hz spindle. (Note:The VFD is already set to 400Hz by default when it is received ,) basic parameter for 3 phase 50/60Hz motor Drive 50/60hz motor ：Set pd005 =50/60, pd004 =50/60, pd003 =50/60, pd072 =50/60 Diverse terminals, more functions for you to choose. supports external potentiometer control (connect the "FOR" and "DCM" terminals,than set PD001=1) supports mcah3 function and RS-485 communication (For more information, you can contact the seller, we will send you a video of the basic functions of VFD) Key Function UP : Progressively increase data or function codes. DOWN : Progressively decrease data or function codes. SET : Enter menus step-by-step, save setting parameters. PRGM : Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu. FWD/REV : 1, Press momentary button to start,release to stop; 2 Switch the rotation direction SHIFT : Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position. Kindly Note : If you want to show RPM in the display,please press 'SHIFT' key Advanced motherboard features PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability Easy PLC function can realize 16 legs of speed and inverter control function RS485 communication port, adopting standard international MODBUS main circuit control With extremely strong anti-jamming capability Low output ratting torque0.5HZ-150%, low speed running ability Carrier adjustable by 16KHZ, completely soundless working environment Broad voltage working area, normal running in 304V-456V Auto voltage regulation (AVR) technique, for ensuring the inverter load capability With perfect error protection and short circuit starting protection capability
