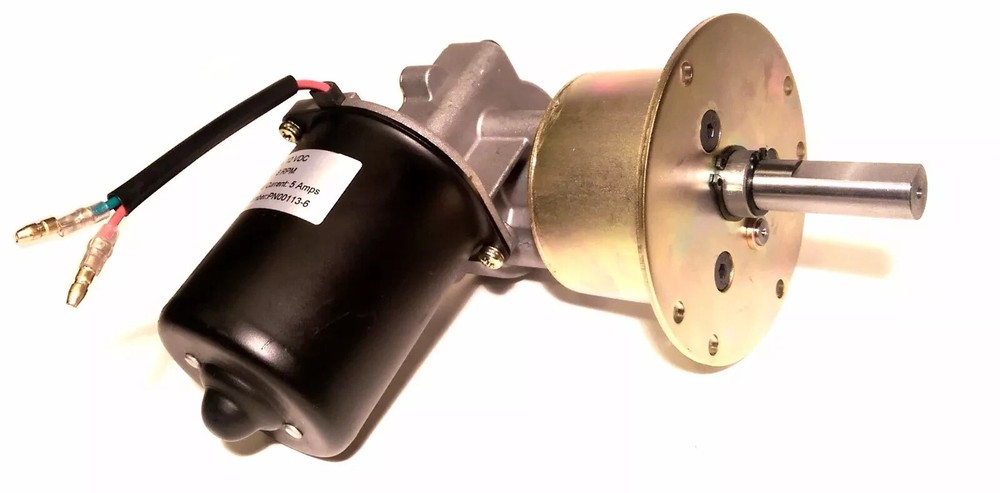

Makermotor 12V DC 6RPM High Torque Reversible Gear Motor with DPDT Switch

$ 50.16

Country/Region of Manufacture: United States Product+Type: Gearmotor gtin13: does not apply Product Type: Motor Controls Motor+Controls+Type: Speed+Controls Model: does not apply Current Type: DC Motor+Part+Type: Permanent+Magnet Drive+%26+Amplifier+Type: DC+Motor+Controller MPN: does not apply Rated Load (HP): 1/2 Reversible/Non-Reversible: Reversible Nominal Rated Input Voltage: 12 V Brand: Unbranded UPC: does not apply

Description

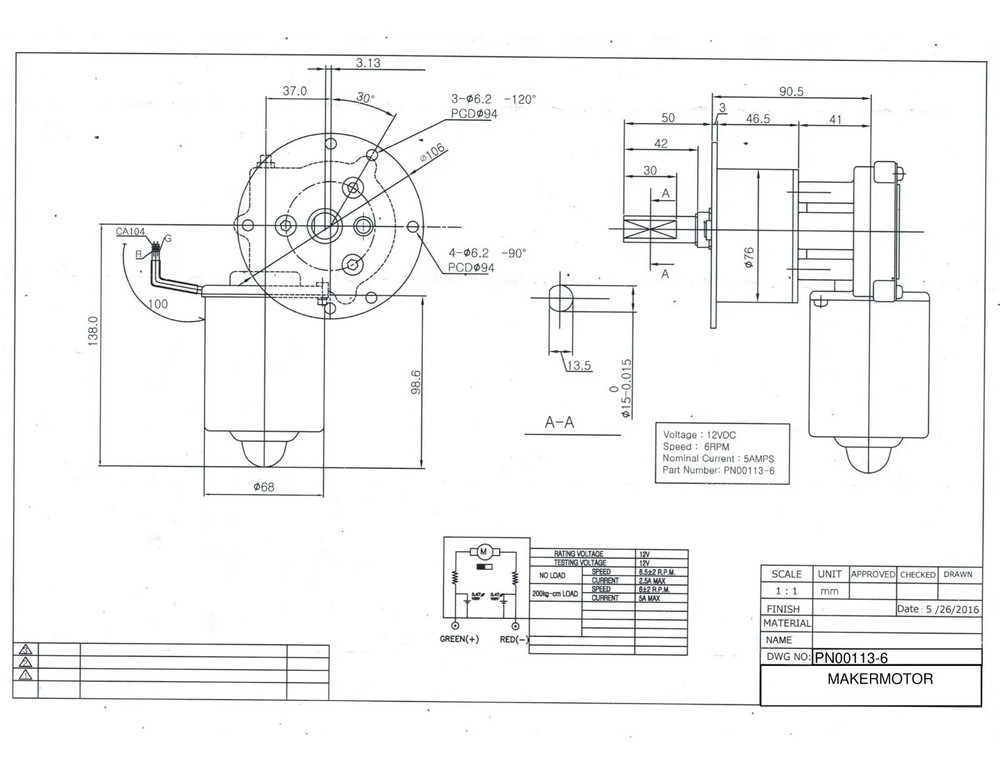

PN00113-6 High Torque 6 RPM Conveyor and Rotisserie Gear Motor 12V DC Reversible Due to its low speed and 12vdc features, this motor is ideal for a mobile rotisserie application. Other applications include display turntable, conveyor system, sign display, motorized fishing reel, and more. 12VDC Gear Motor: 21 N-m (15.5 ft-lb) torque at 6 RPM. Permanent magnet stator. Overall envelope dimensions are 8 inches by 8 inches by 5 inches. Shaft dimensions are 15mm diameter by 50mm (2.0 inches) of length. The shaft is a D-shaft (shaft with a flat). Motor control is very simple. A center-off DPDT switch is included so the user simply leave the toggle at its center position for off, flip the toggle to one side for forward, and flip the toggle to other side for reverse.

  1. This motor is a powerhouse for slow-speed applications! Perfect for rotisseries, conveyors, or display turntables, it delivers impressive torque at just 6 RPM. The reversible switch makes it super versatile, and the sturdy build ensures reliability. Installation was straightforward, and it runs smoothly without overheating. Great value for the performance—highly recommend for any DIY or industrial project needing steady, high-torque motion!
