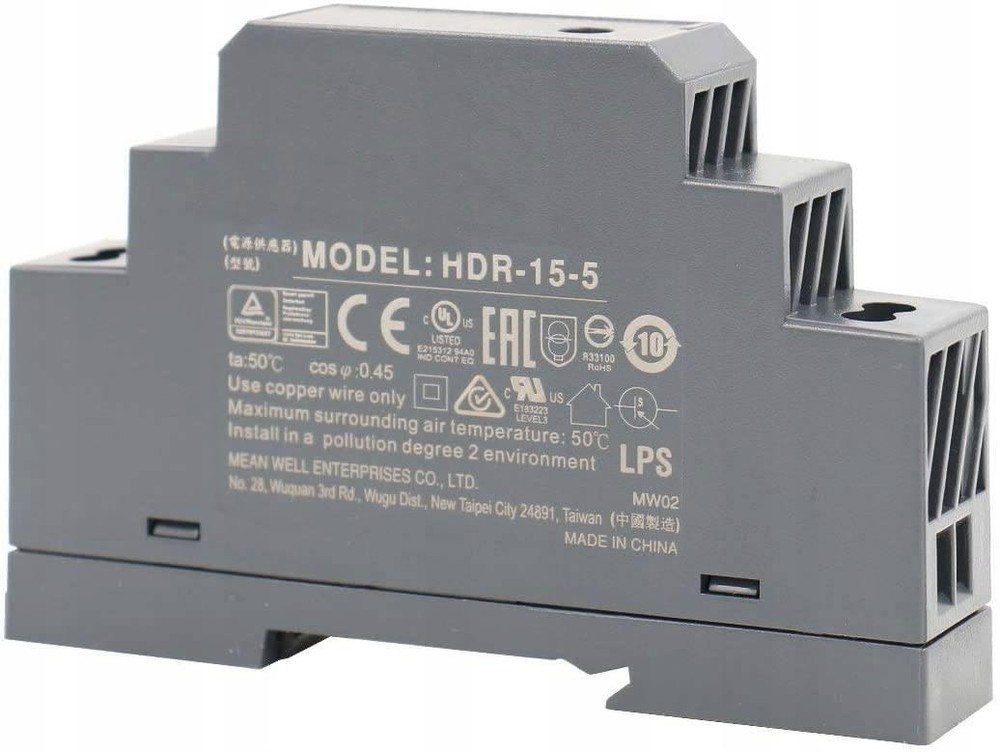

Mean Well HDR-15-5 12W 5V 2,4A DIN RAIL power supply DIN-RAIL

$ 9.2

Ripple & Noise: 80 mV Protection Properties: anti-overload OPP, anti-overvoltage OVP Mounting Style: DIN Rail Mount Output Voltage Rating (DC): 5 V Type: switched-mode Input Voltage VAC: 85V AC to 264V AC Unit Quantity: 1 Features: rated parameters obtained at full load Efficiency: 80% Electrical connection: terminal block MPN: HDR-15-5 Output voltage range: 4.5...5.5V DC Brand: MEAN WELL Unit Type: Unit Nominal Current Rating: 2.4 A Series: HDR-15 EAN: 2025174700059 Nominal Power Rating: 12 W Power Supply Output Type: Adjustable, Fixed

Description

Mean Well HDR-15-5 12W 5V 2,4A DIN RAIL power supply DIN-RAIL. HDR-15 series economical ultra slim 12-15.4W DIN rail power supply to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 17.5mm in width which allows space saving inside the cabinets.FeaturesShort circuit, overload and over voltage protectionUltra-slim 17.5mm designLED Indicator for power onAdjustable DC Voltage outputTS-35/7.5 or TS-35/15 MountableCool by free air convectionLED indicator for power onDimensions (HxWxD): 90 x 58.4 x 17.5mmNo load power consumption
