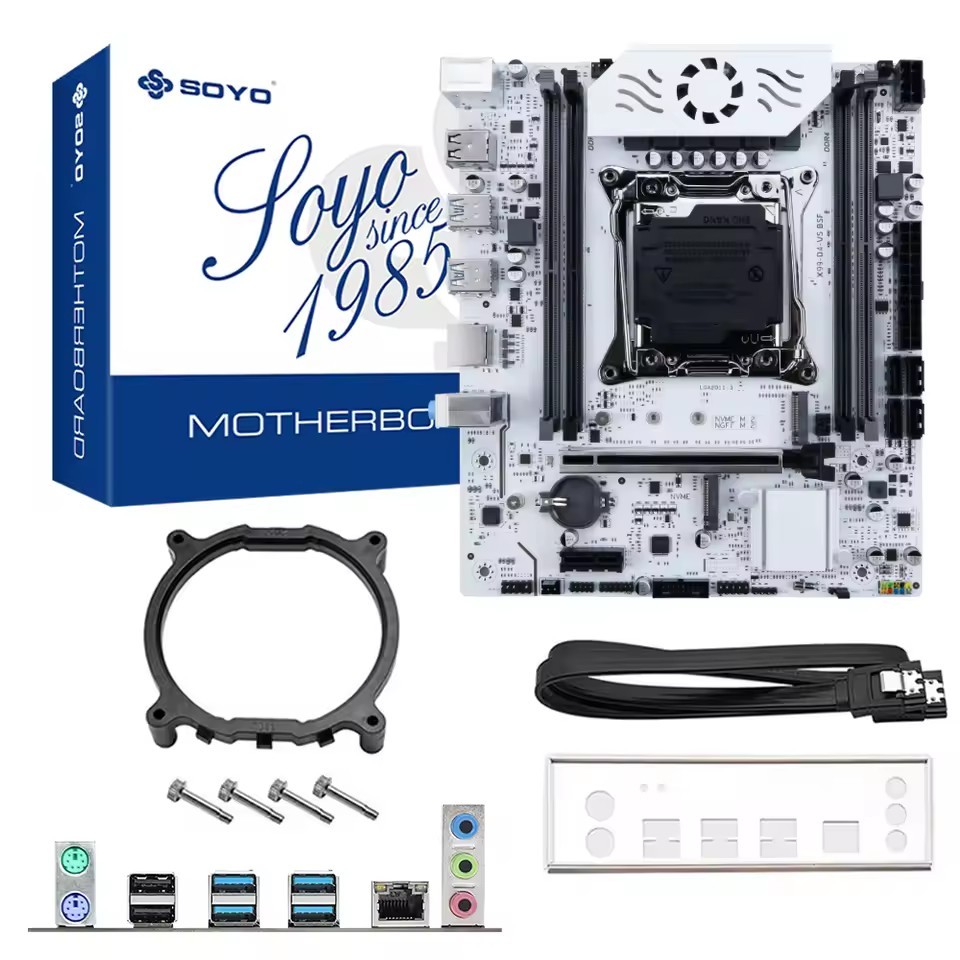

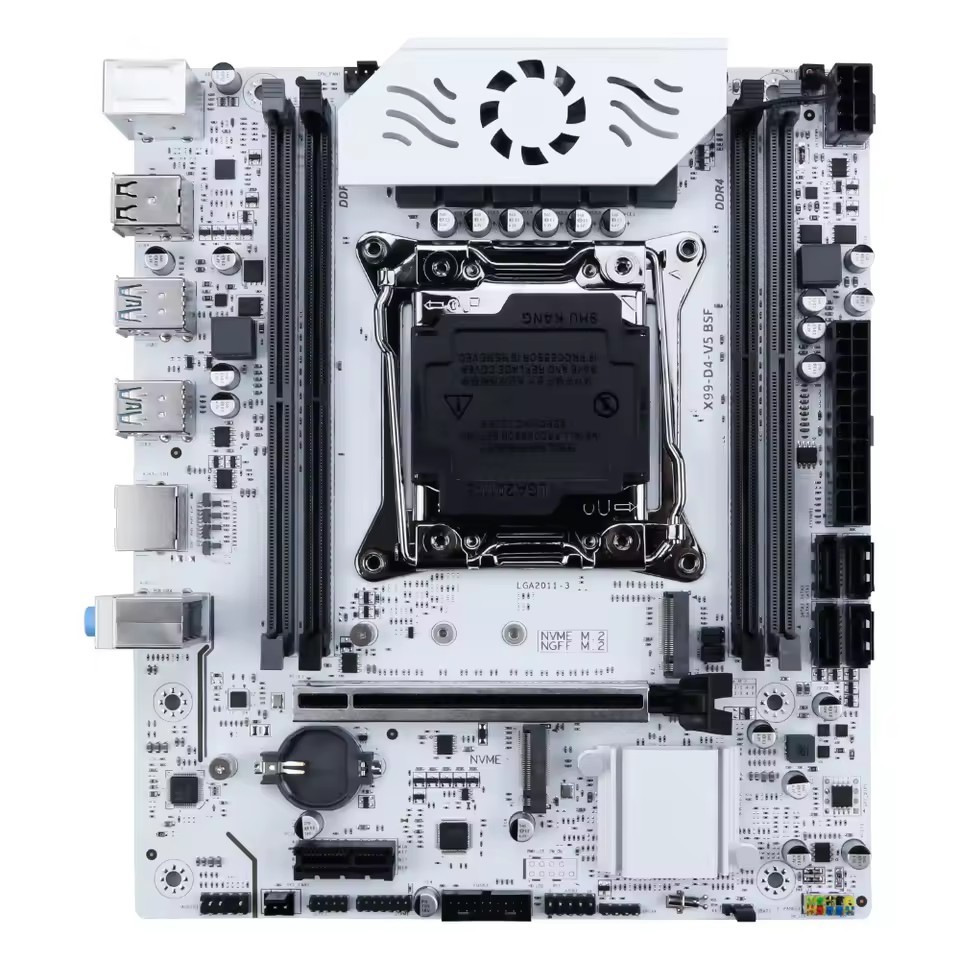

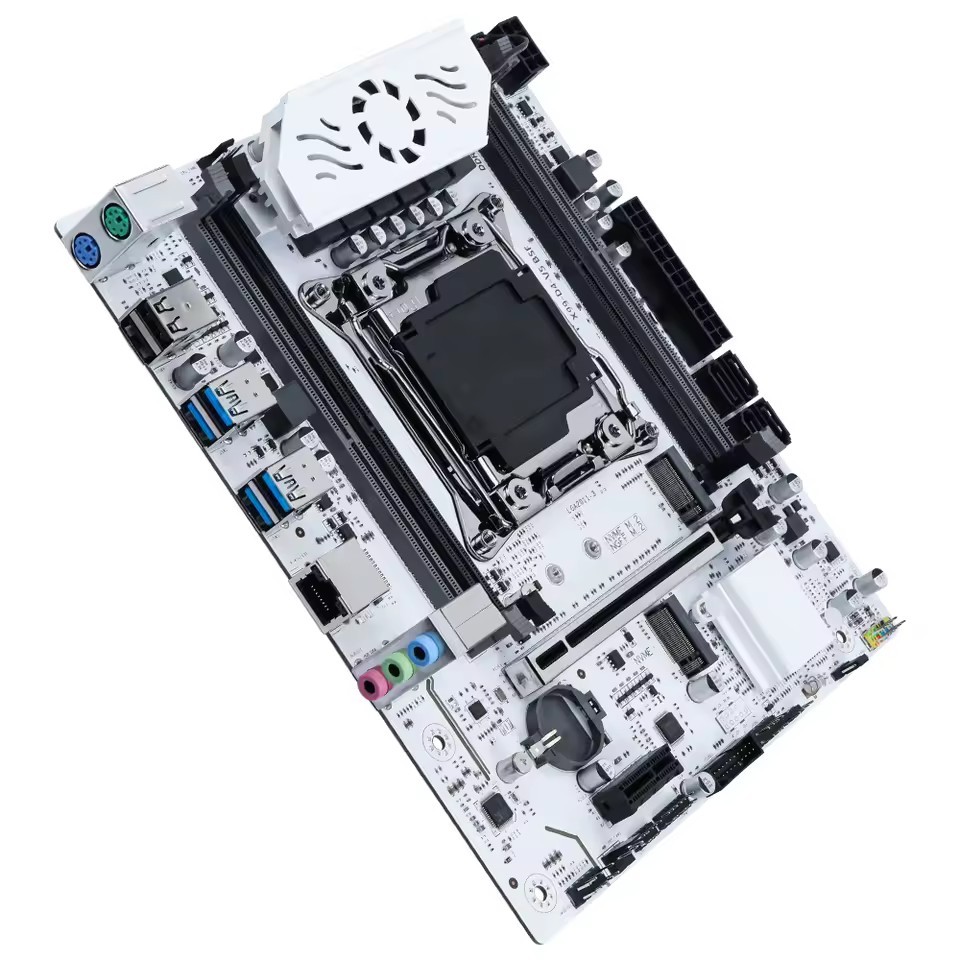

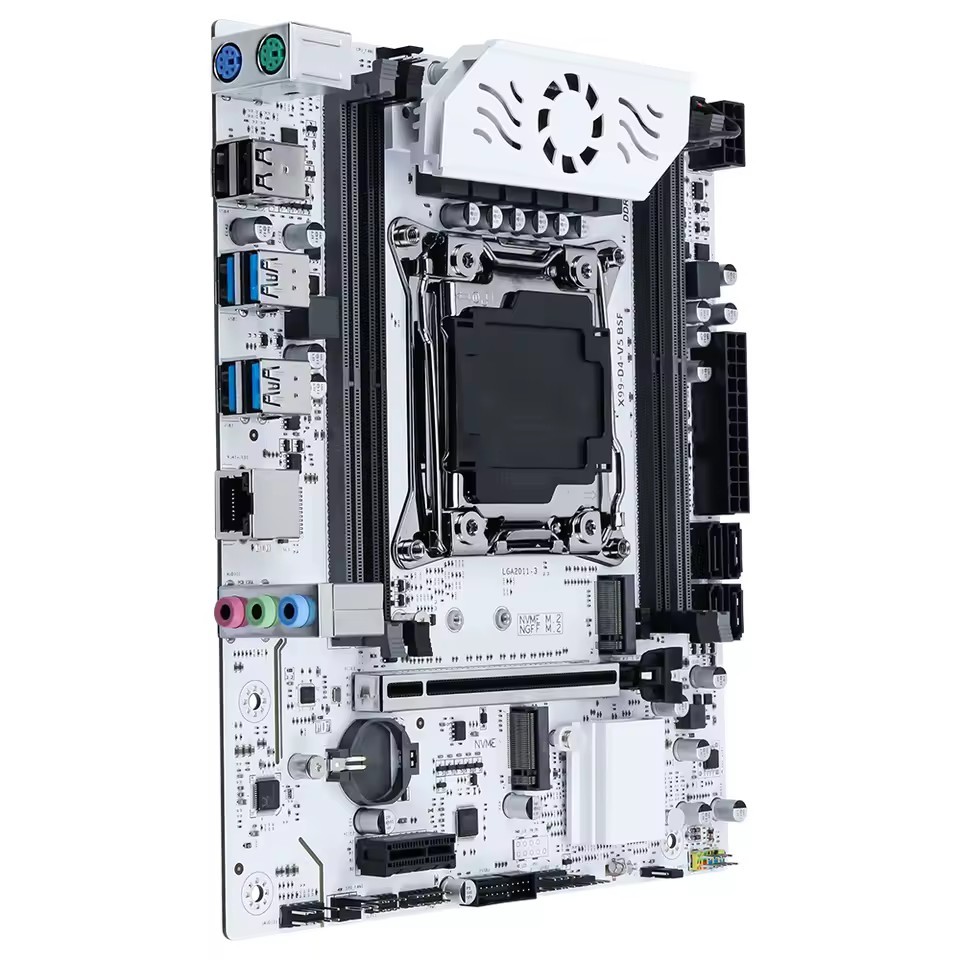

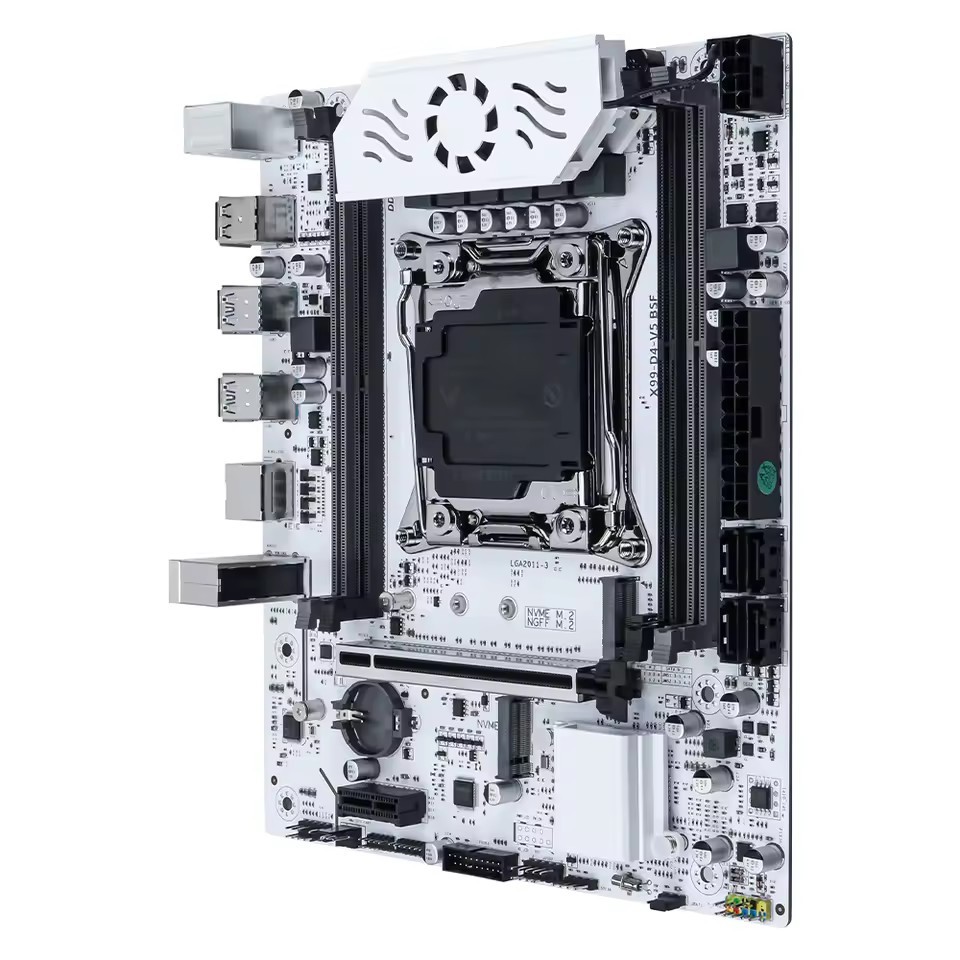

Motherboard SOYO X99 DDR4 LGA2011-3, M slot, White Cooling Armored, SATA 3.0
$ 59.25
Description

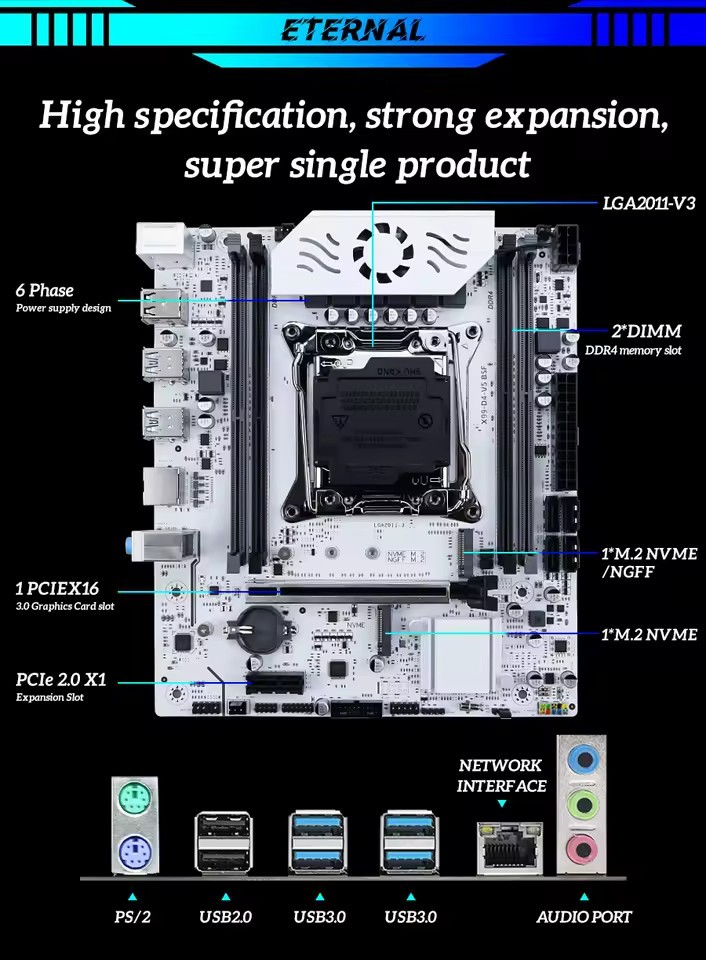

Motherboard SOYO X99 DDR4 LGA2011-3, M slot, White Cooling Armored, SATA 3.0. Number of SATA ports : 4. ALL RAM modules must be installed in the priority slot (grey slot). Female Plug Type : LGA 2011-3. - LAN Chip : Realtek RTL8111H Gigabit Ethernet. Special features : Cooling Armor. Details : Chemical of high concern : None RAID supported : Yes Processor compatibility : Intel Xeon E Series Ports : USB 3.0 Use case scenario : Passionate about overclocking, gaming, audio and video, office equipment, and video production. Onboard and Header Connectors : 24-pin main power connector Rear I/O ports : 1x RJ45, PS/2 USB Type Support : USB 2.0, USB 3.0 embedded LAN : 1x RJ45 Audio Channels : 5.1 Supports M.2 SSD : 2242,2280 Number of M.2 : 2 Number of SATA ports : 4 Storage Interface Type : SATA, M.2 (NVMe), M.2 (SATA) Number of PCIs : 2 Number of PCIe x4 : 0 Number of PCIe x8 slots : 0 Number of PCIe x16 slots : 1 PCI-E standards : PCIe 3.0 Number of Housing Units (For the Record) : 4 Memory Support Type : DDR4 Memory channel : Double Pack : Yes Maximum RAM capacity : 128 GB Form factor : Micro-ATX Chipset Manufacturer : Intel Battery included : No With UTC : No Chipset : c612 Application : Desk Female Plug Type : LGA 2011-3 Special features : Cooling Armor Noticed : ALL RAM modules must be installed in the priority slot (grey slot). The package does not include CR2032 batteries. Warning : A 2032 battery must be installed to start the computer; otherwise, it cannot be started. If inserted in the wrong location, it may cause your computer to not to start. Product Specifications : Supports TPM2.0 Chipset : Intel C612 CPU : Intel Xeon E5 LGA2011-V3 socket processors Supported models : E5-2603V3, 2666V3, 2673V3, 2680V3, 2678V3, 2696V3, 2684V4, 2696V4, etc. Memory : 4 x DDR4 DIMM slots Supports 2133/2400 MHz (Max), up to 128 GB (32 GB x 4) - The grey areas indicate the primary channels Storage : 2 x M.2 slots: - **Top slot**: NVMe protocol (PCIe 3.0 x4/SATA3.0) Lower slot : NVMe protocol (PCIe 3.0 x4) - 4 x SATA3.0 interfaces. TPM : - 1 x 14-pin header (compatible with the 14-pin MSI/TPM 2.0 module) Network : - 1 x RJ45 port - LAN Chip : Realtek RTL8111H Gigabit Ethernet PS/2 Ports : - 1 x PS/2 keyboard port - 1 x PS/2 mouse port Audio : - Rear I/O: 1 x Line Out, 1 x Microphone Input, 1 x Line Input - Internal header : 1 x Front audio header - Audio chip : Realtek ALC897 HD Audio USB Ports : - Rear I/O: 2 x USB 2.0, 4 x USB 3.0 - Internal headers : - 1 x USB 2.0 header (2-port expansion) - 1 x USB 3.0 header (2-port expansion) PCIe Windows : PCIe1 : PCIe x16 3.0 slot (for CPU) PCIe2 : PCIe x1 2.0 slot (from PCH) Functional Headers : - 1 x FPANEL (front panel) - 1 x 4-pin CPU fan - 1 three-pin system fan - 1 x JBAT (clear CMOS) - 1 x JLPC (LPC debugging) - 1 x SPEAK (system speaker) Power Input : - 24-pin ATX connectors + 8-pin EPS connectors. Dimensions : - 220 x 190 mm (4-layer PCB).
