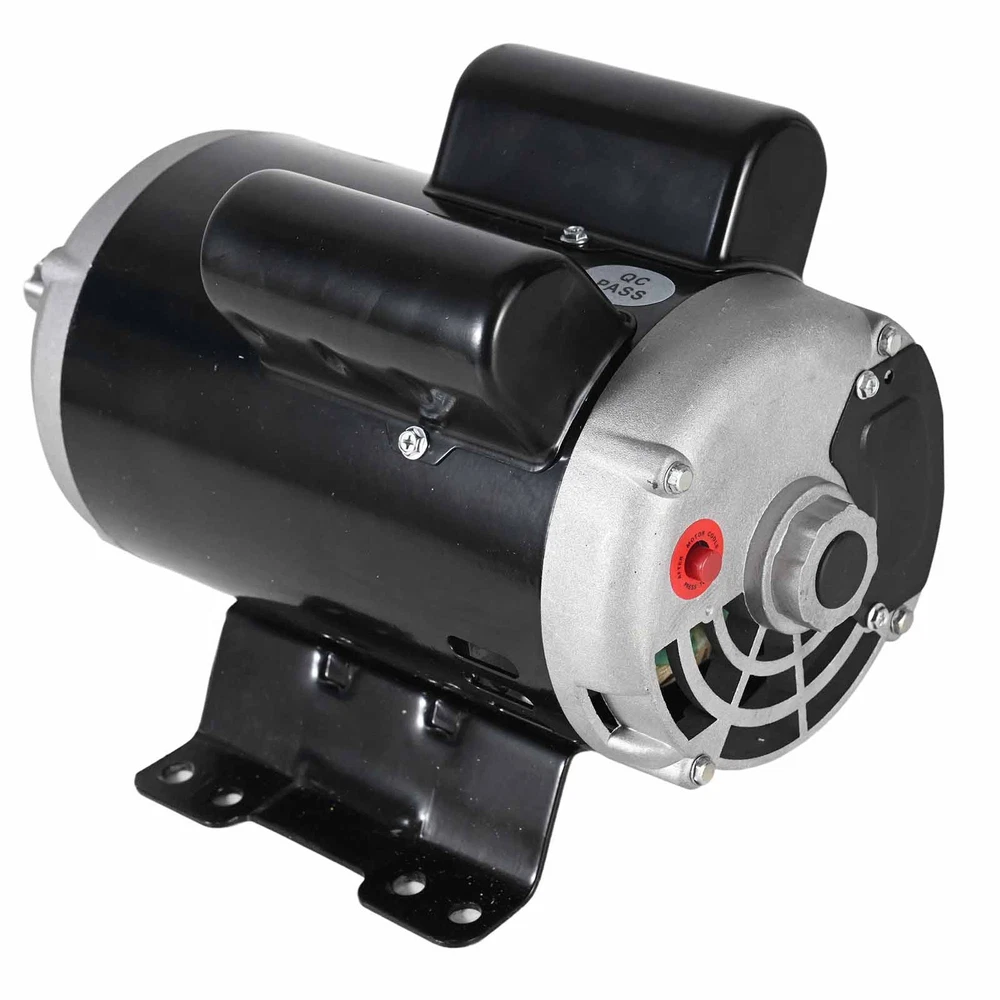

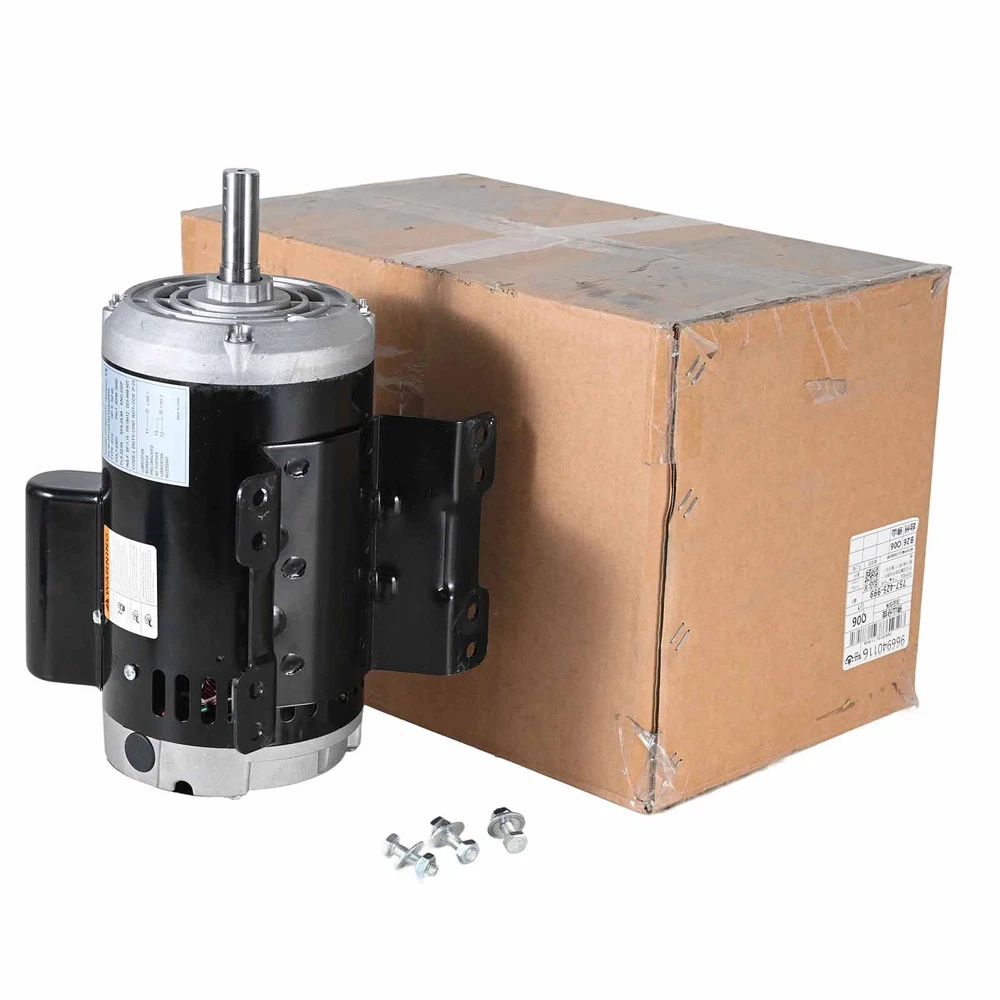

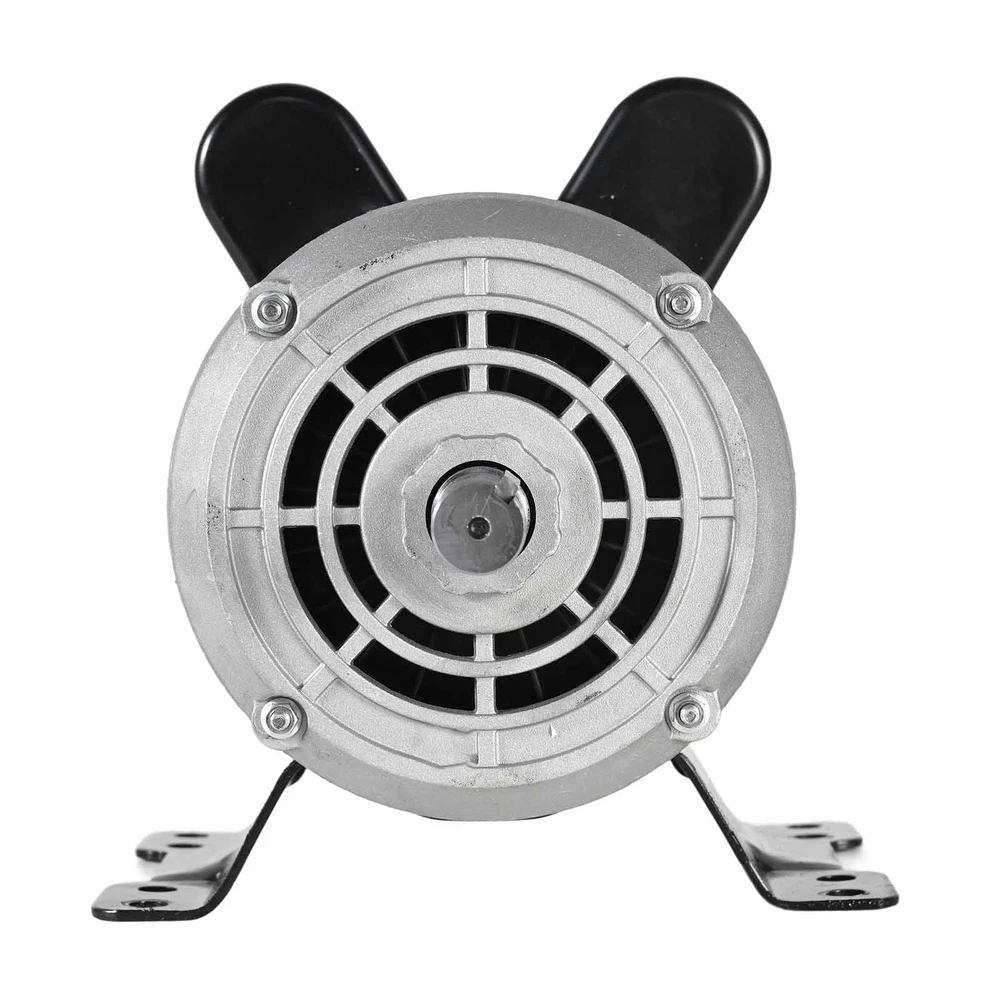

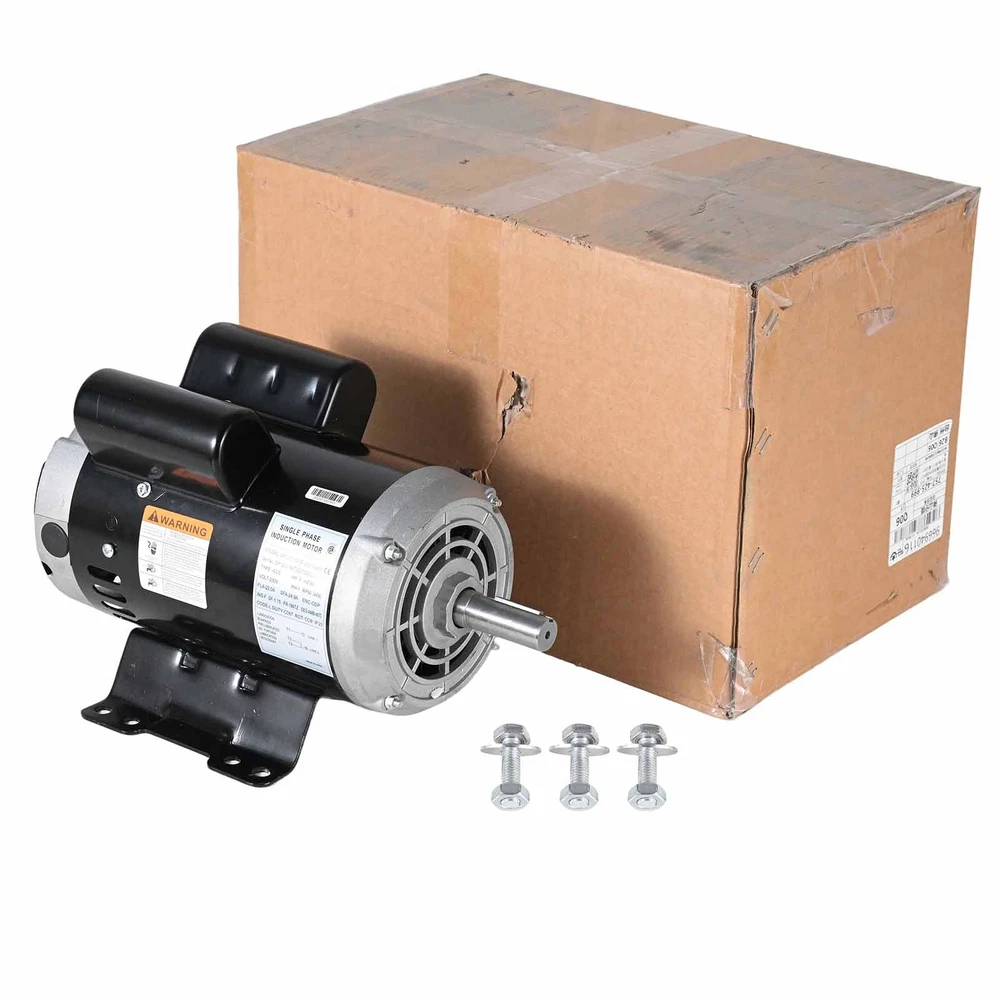

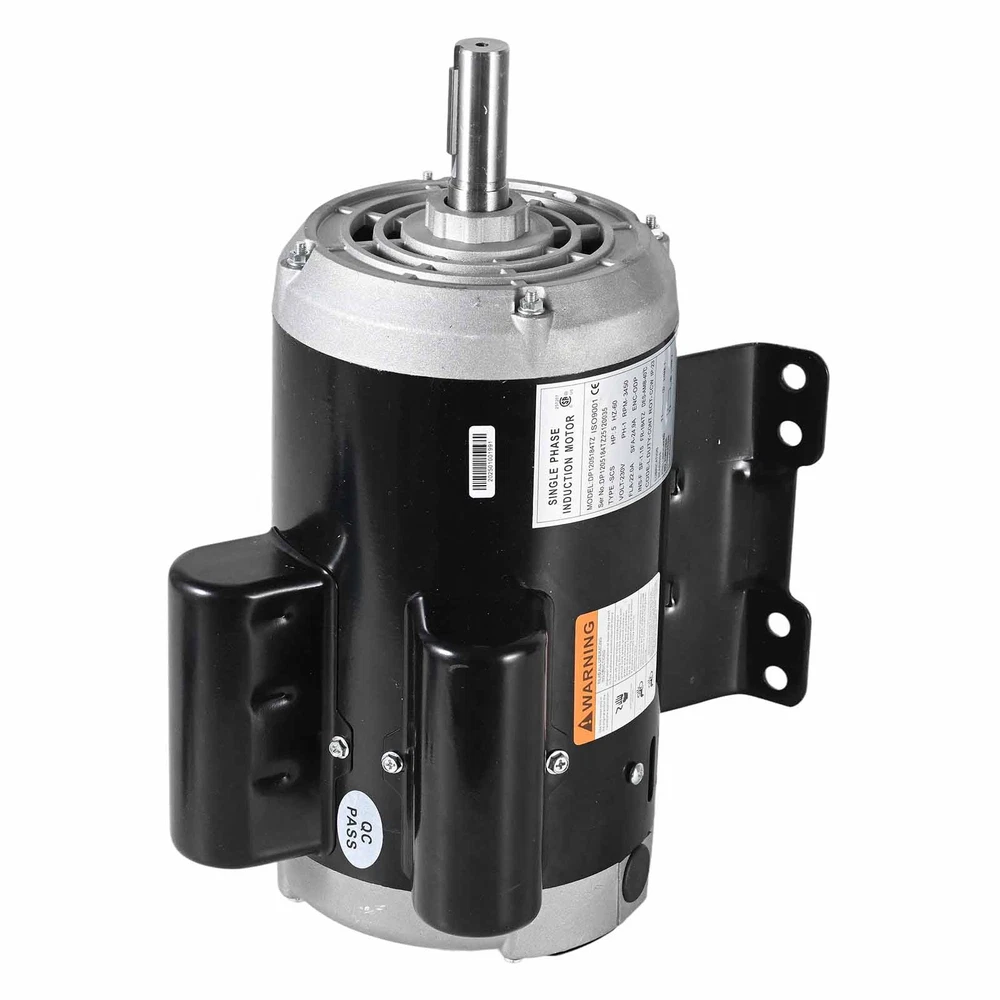

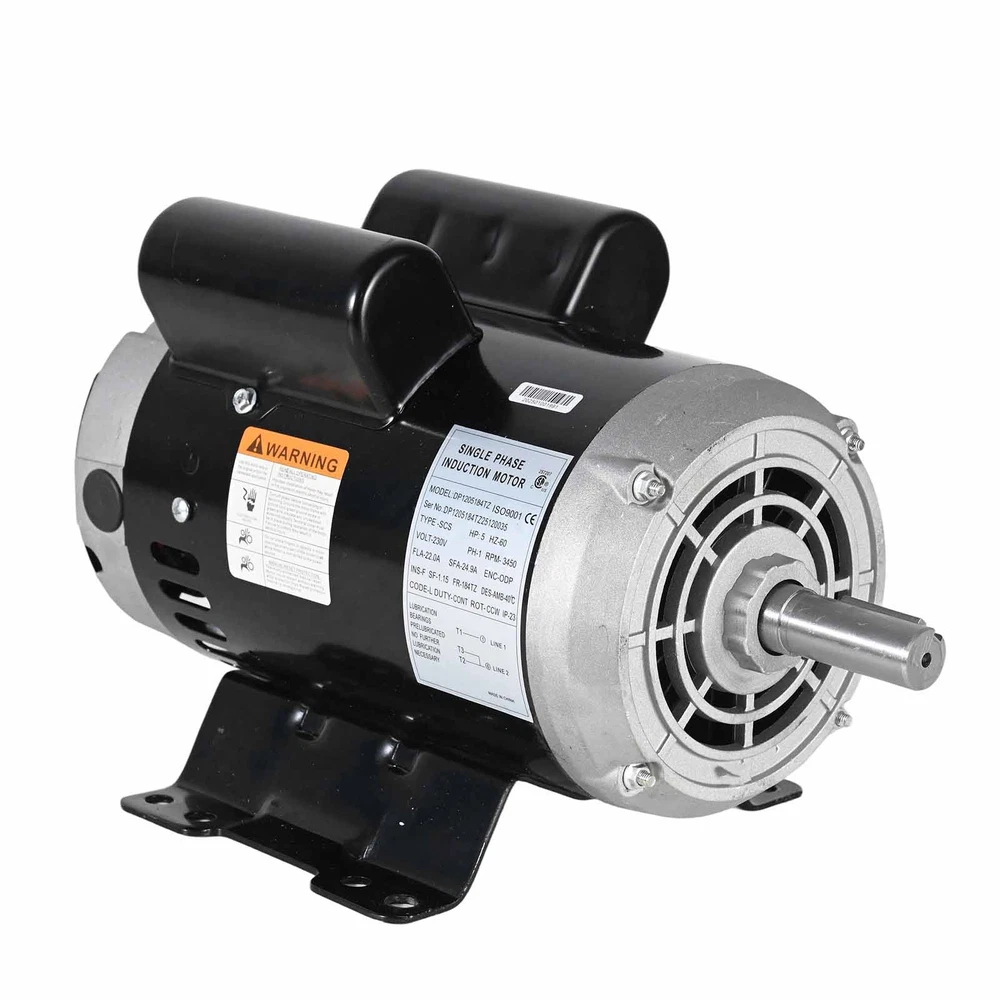

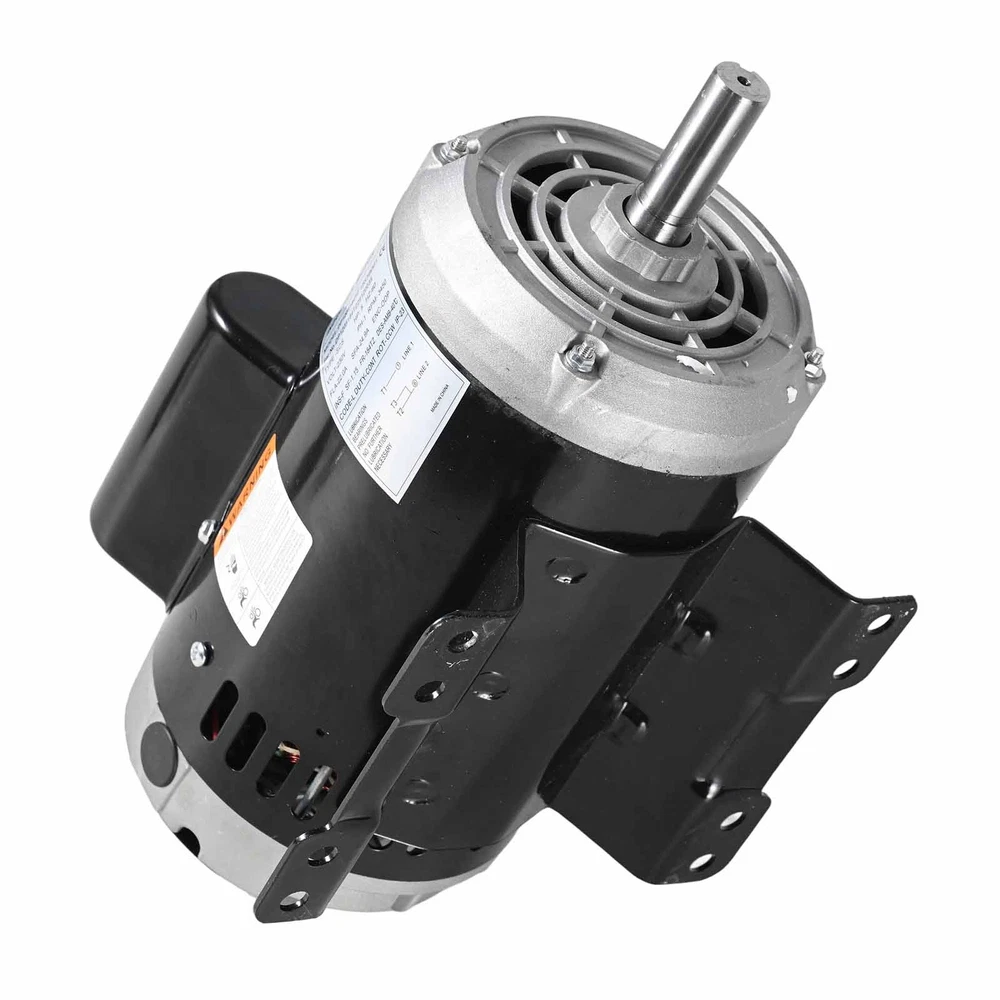

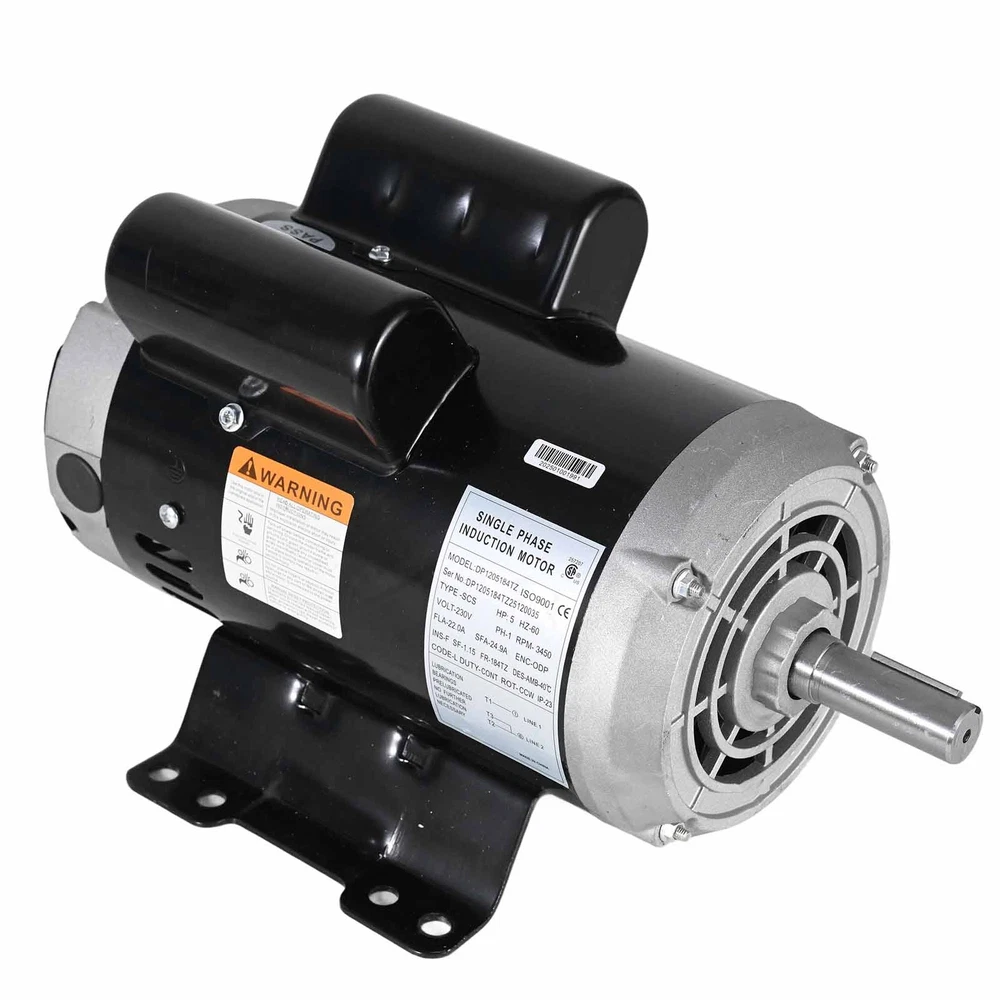

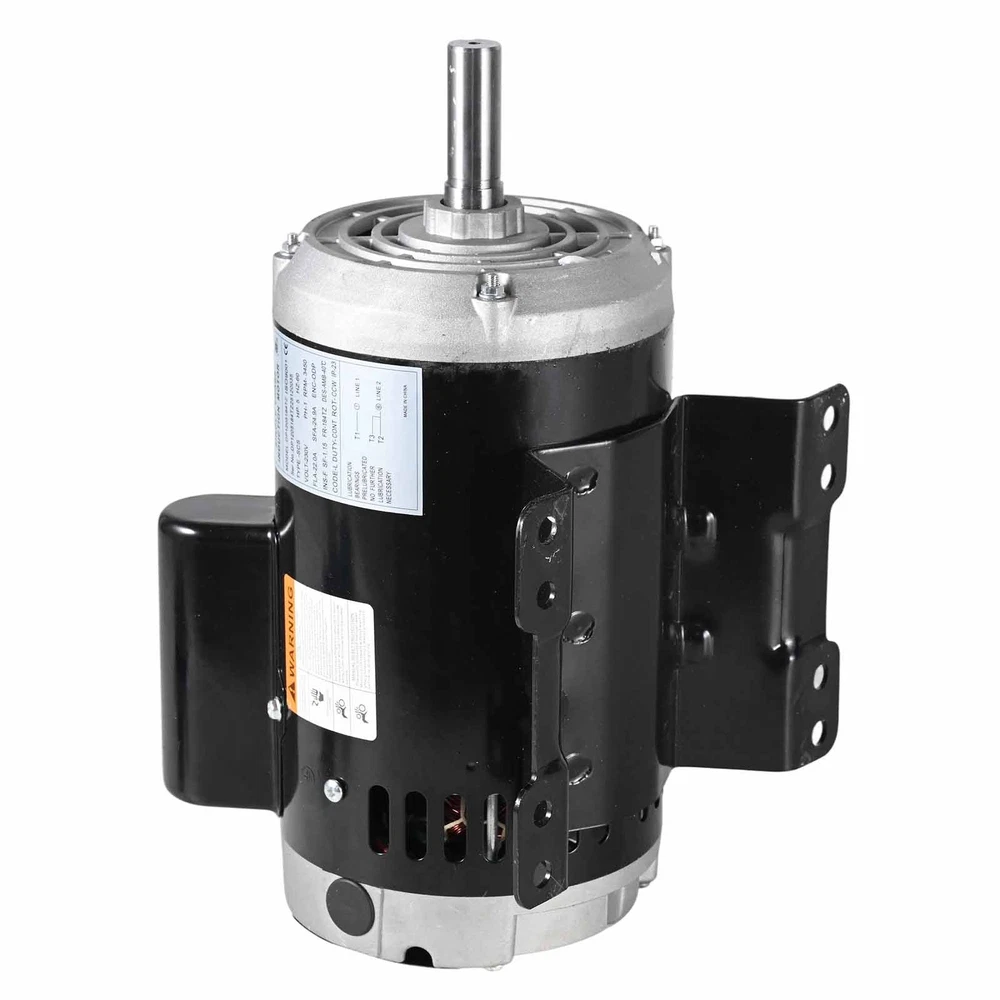

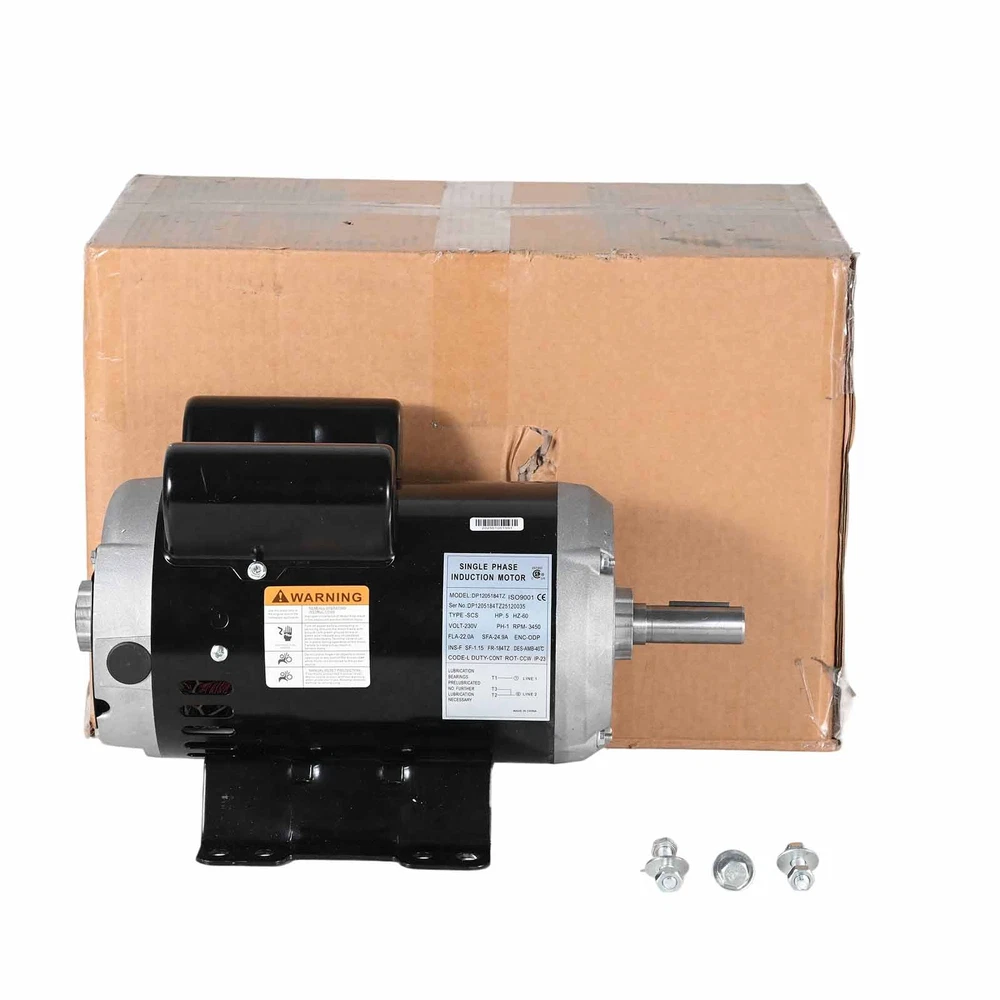

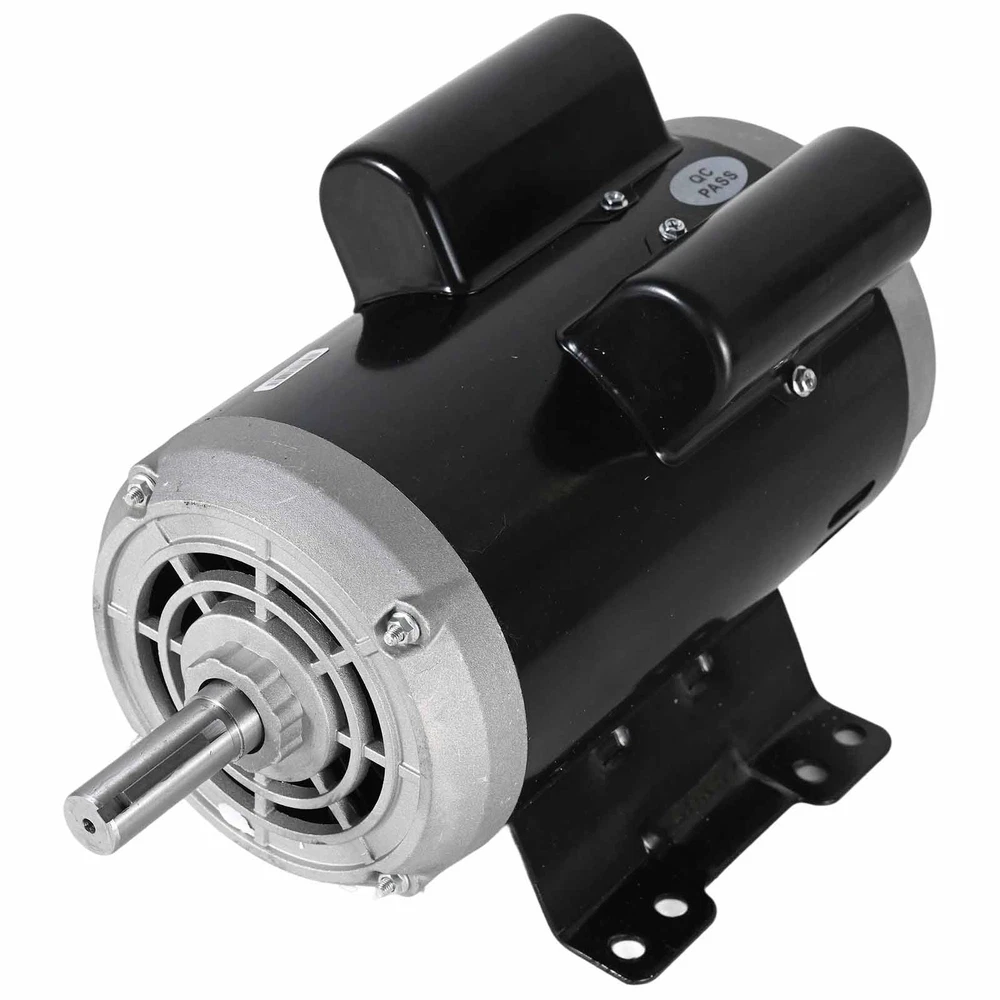

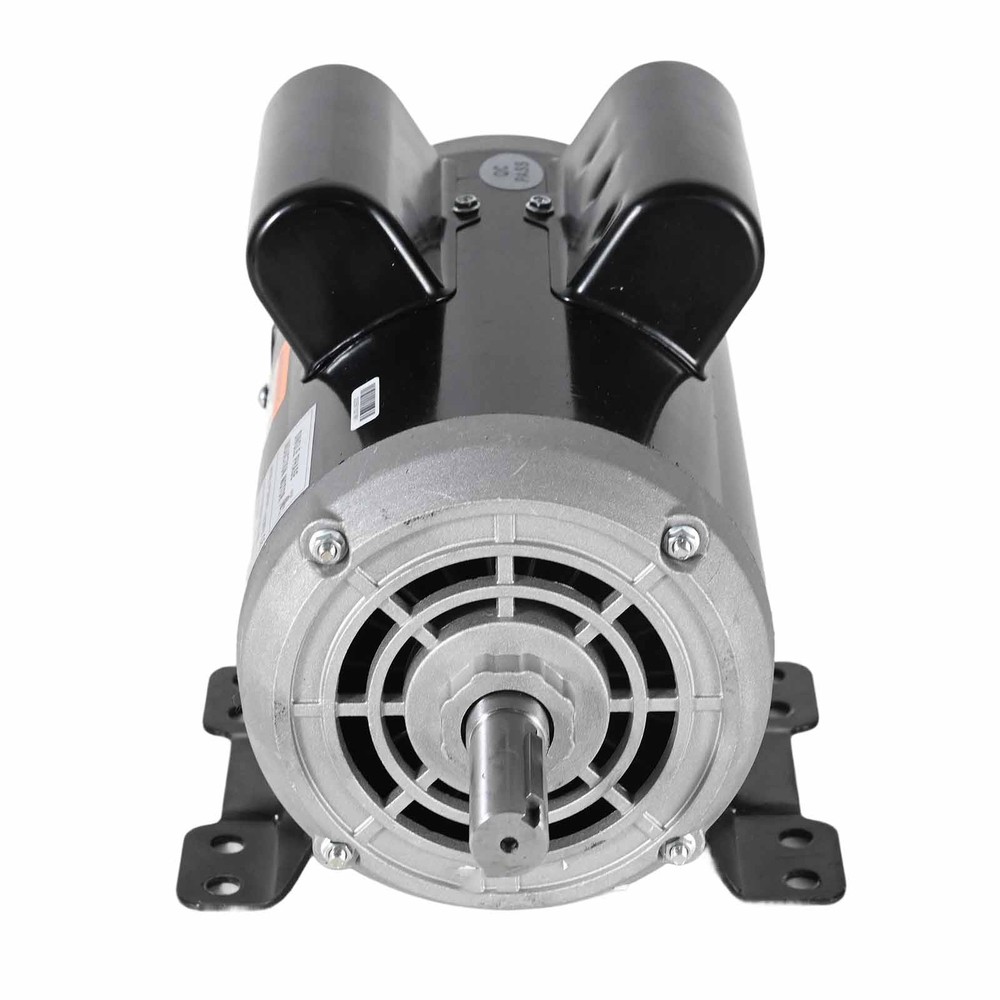

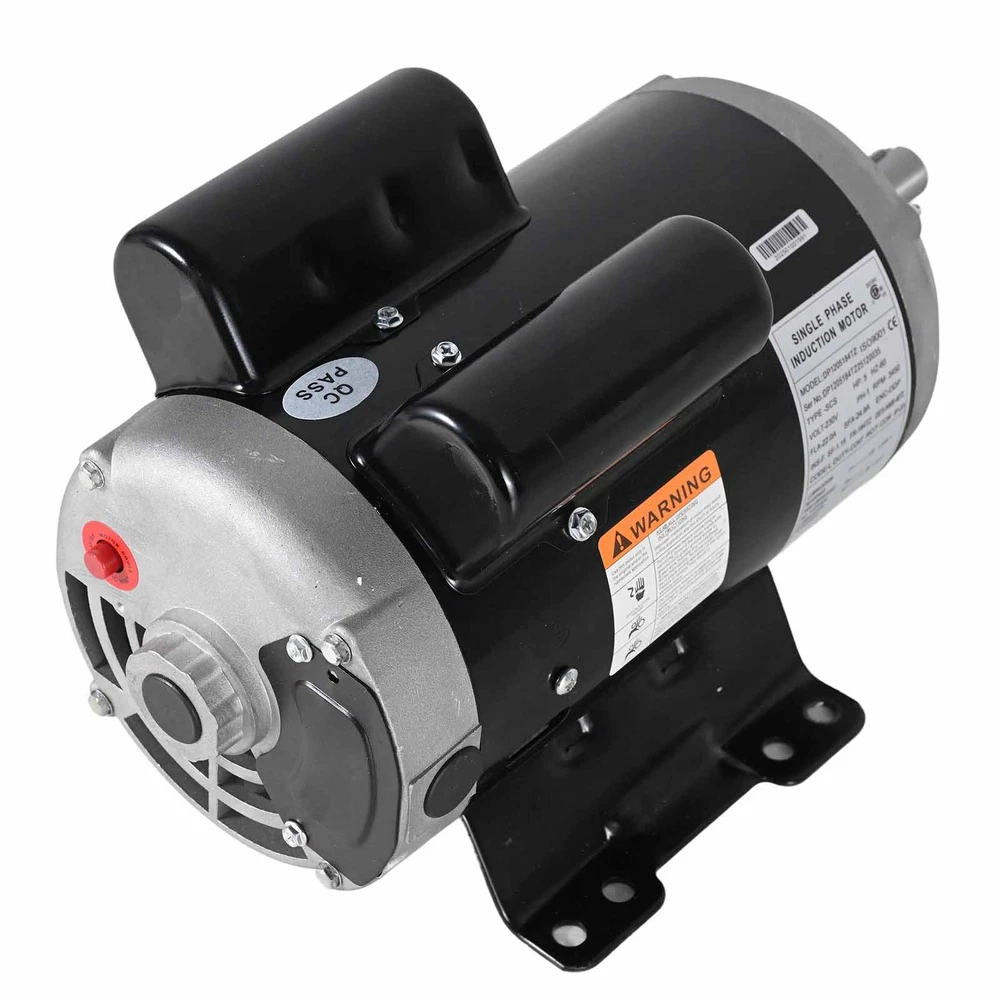

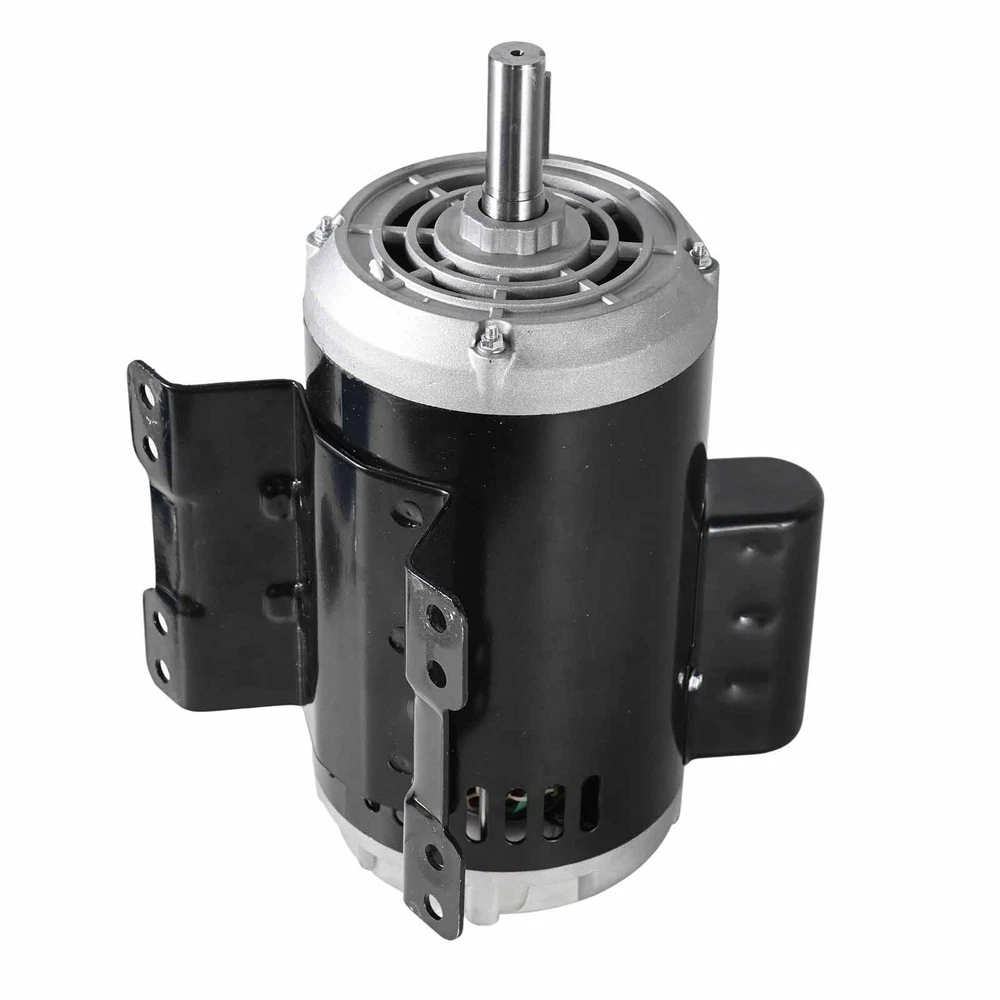

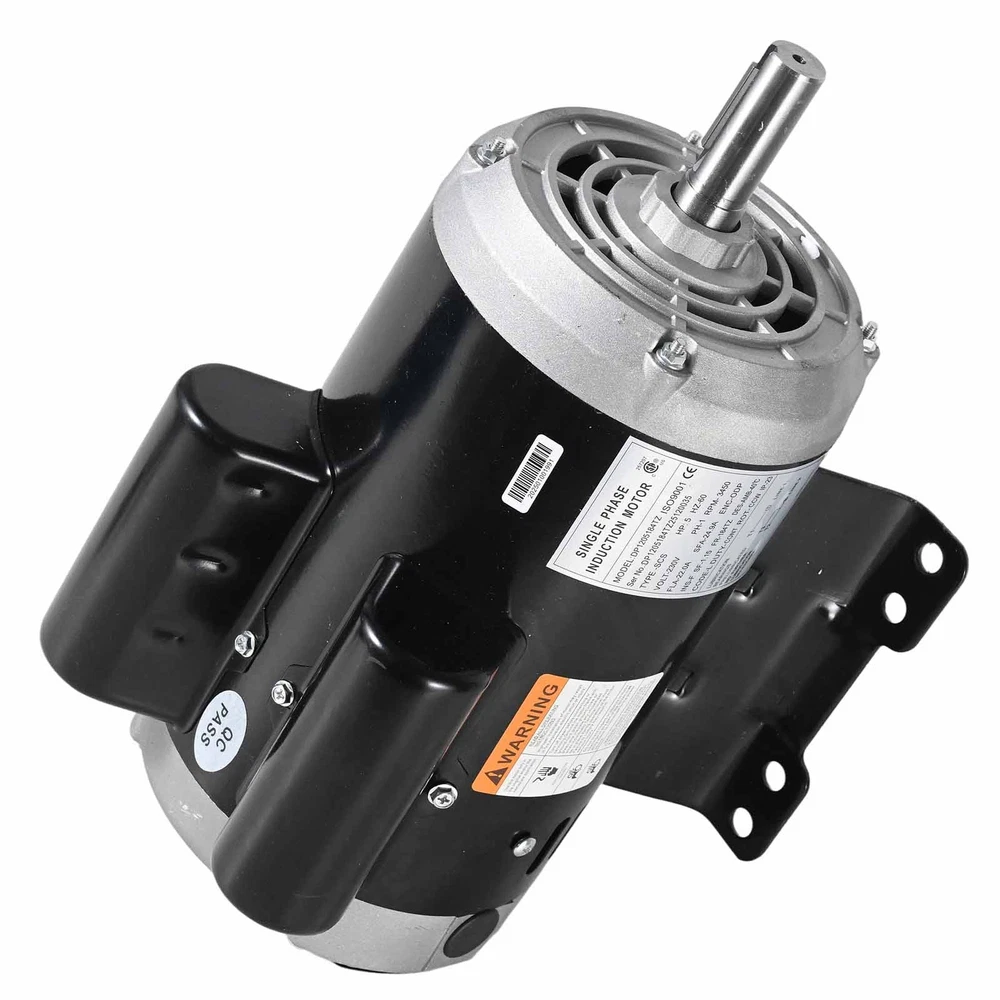

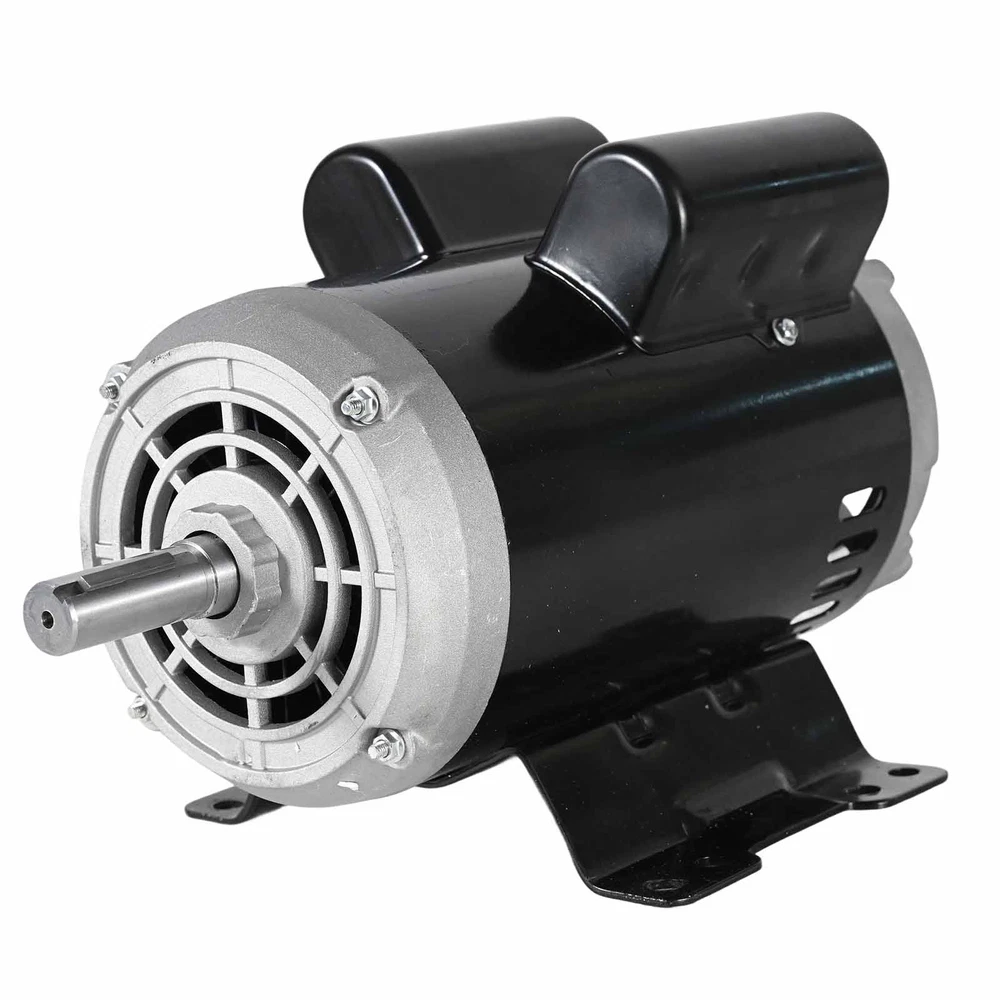

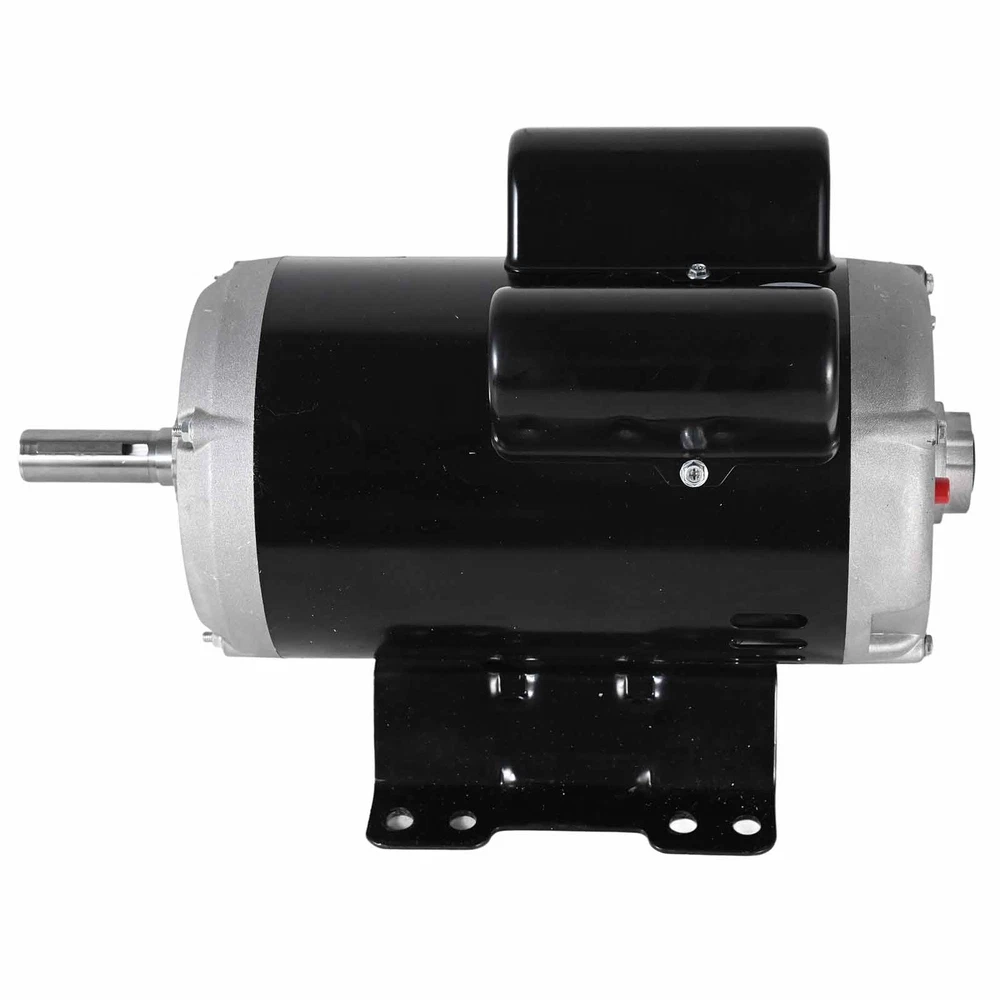

NEW Air Compressor Motor 230V 3450 Rpm 5HP For Ingersoll Rand 23378805 54421193
$ 137.81
Description

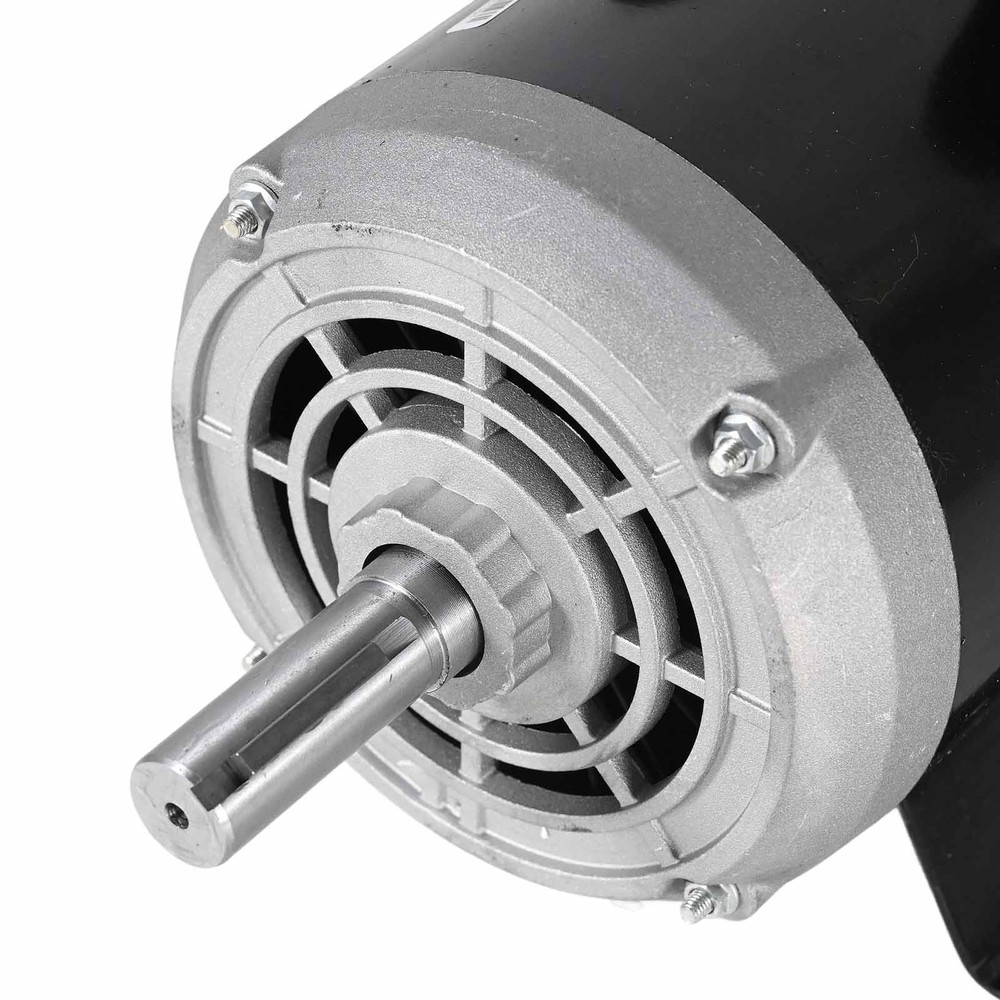

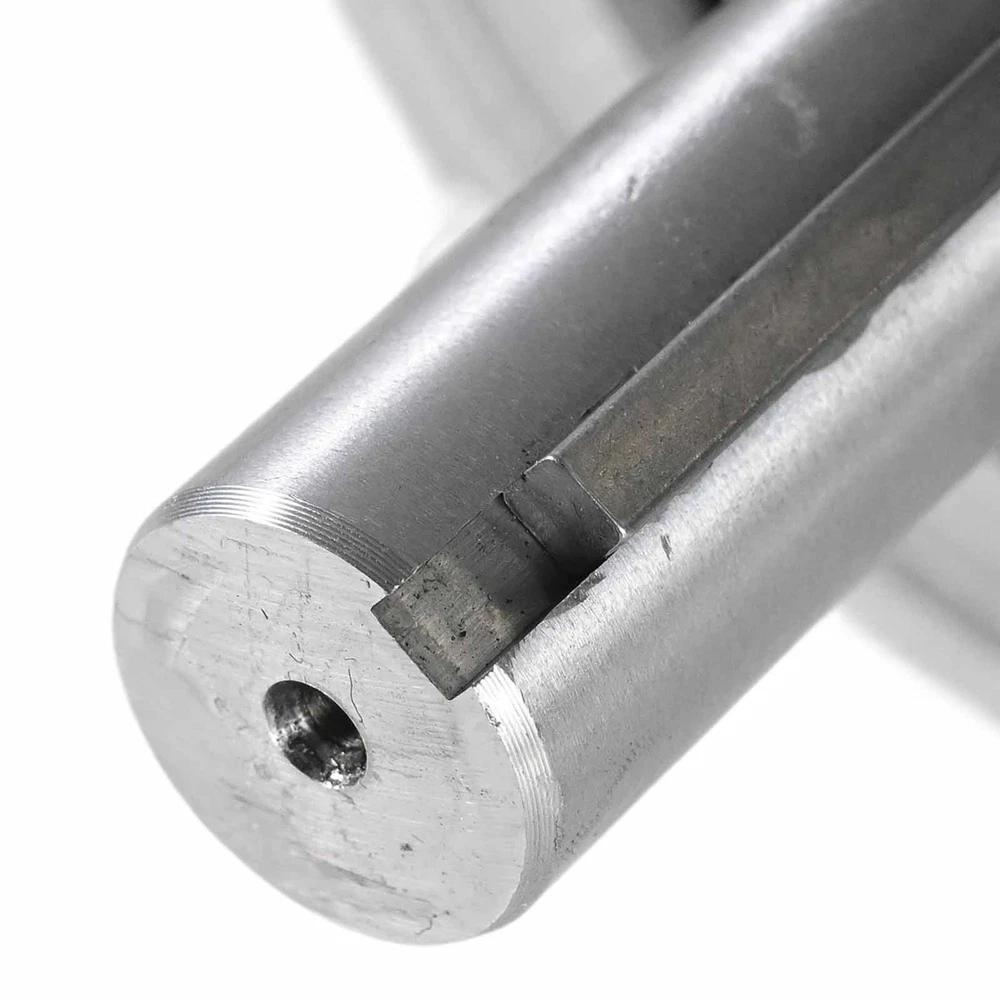

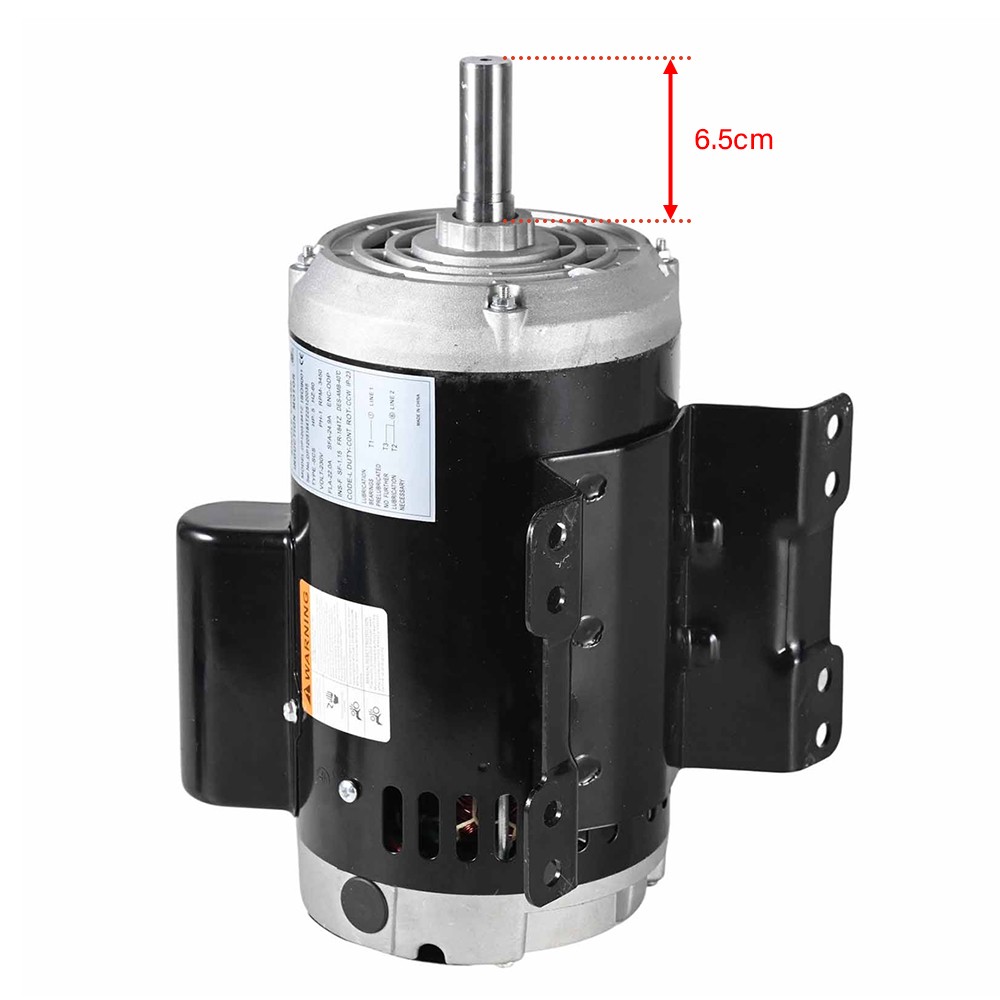

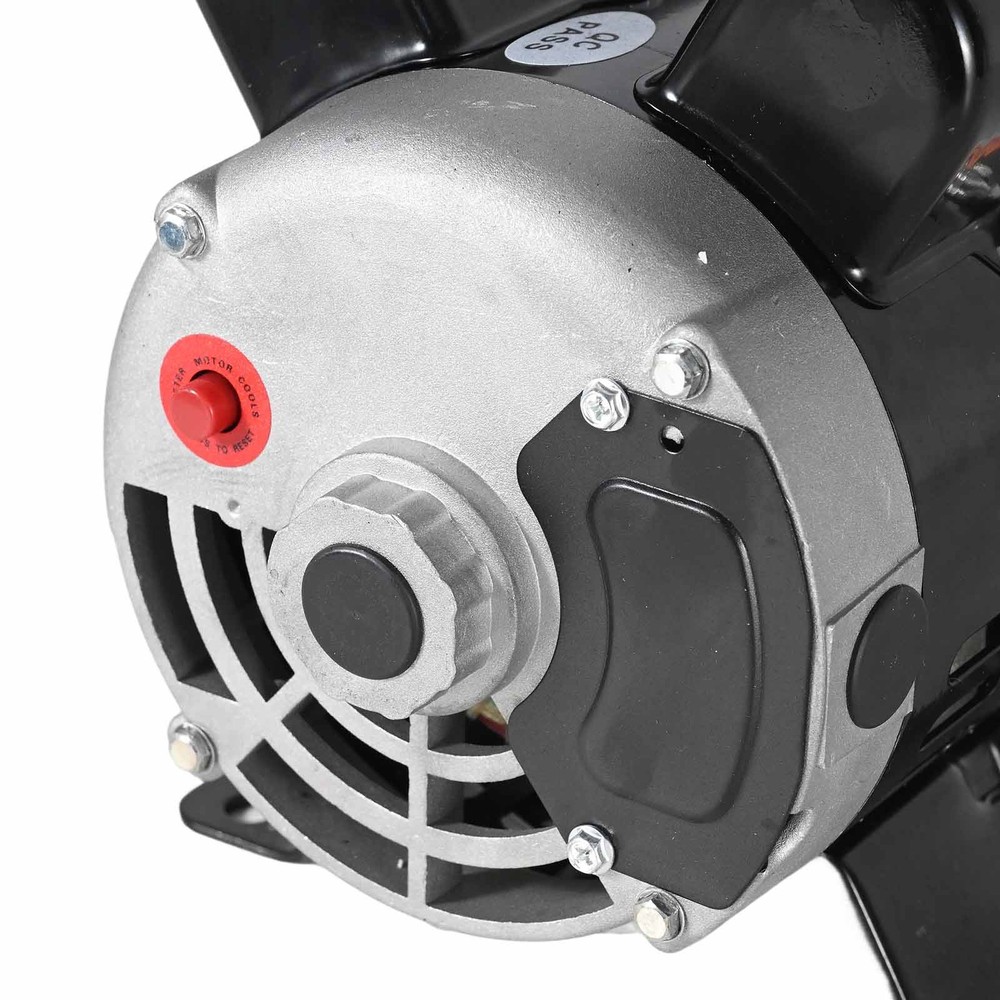

NOTES Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation. When the motor is received, 1. Turn the shaft by hand to see if the motor shaft can rotate normally. 2. Do not run with load first, run the machine for a few minutes, and then bring the load after everything is normal. 3. When running with load, it is best to use an ammeter to measure the actual running current and see if it exceeds the rating on the nameplate. SPECIFICATIONS Power 5 HP FLA 24.9 SFA 27.3 RPM: 3450 Frame: 184T Shaft Size: 7/8" x 2 1/4" with Keyway Shaft height: 4.5" (Measured to Shaft Center) Base: Flat Rigid Mounting Base Voltage: 208-230V 60hz, 24.9 AMPS Phase: Single Phase Service Factor: 1.15 Insulation Class B Ball Bearings Open Drip Proof Enclosure Manual Overload Protection PART NUMBERS 23378805 56283138 23220064 54421193 FEATURES Brand new, high starting torque design for compressor duty applications. Overload protection with manual reset. Steel frame and base. Welded base. Capacitor start/capacitor run.
Kept telling me it was being delivered today first the 13 th and then 14 th. Shipping company sucks and lies won’t do business with this company again unless they start offering different shipping service then you have to wait 7 days before you can put negative reviews so they can cheat more people. I had to cancel the guy I had set up twice as they told me multiple days being delivered not when and if I get it if he will show up to put on car
Item arrived when it said it would and is just what we needed. It’s the correct part for our car and works great! Saved so much money by purchasing here instead of a local auto parts store. Also, the seller is very responsive to messages. The tracking link tried to open in Amazon, and they responded and told us the correct shipping company to check. Highly recommend buying from them. Thank you!
Quick shipping. OEM part. Seller reached out to see if I was satisfied with purchase which was very professional. 3M trim tape was a bit old, which is expected on an OEM part that was likely made several years ago. I replaced the tape and it worked well. Seller gave a partial refund for the tape inconvenience. Great transaction and seller communication overall. Thank you!
Related products
RELIANCE A-C MOTOR P48H1357N-QL ½ HP PH 3 RPM 3450 VOLTS 208-230/460
$ 39.6GETTYS DC SERVO MOTOR16-0071-61
$ 168.44NEW Honeywell M7284A 1038 Modutrol Motor M7284A1038

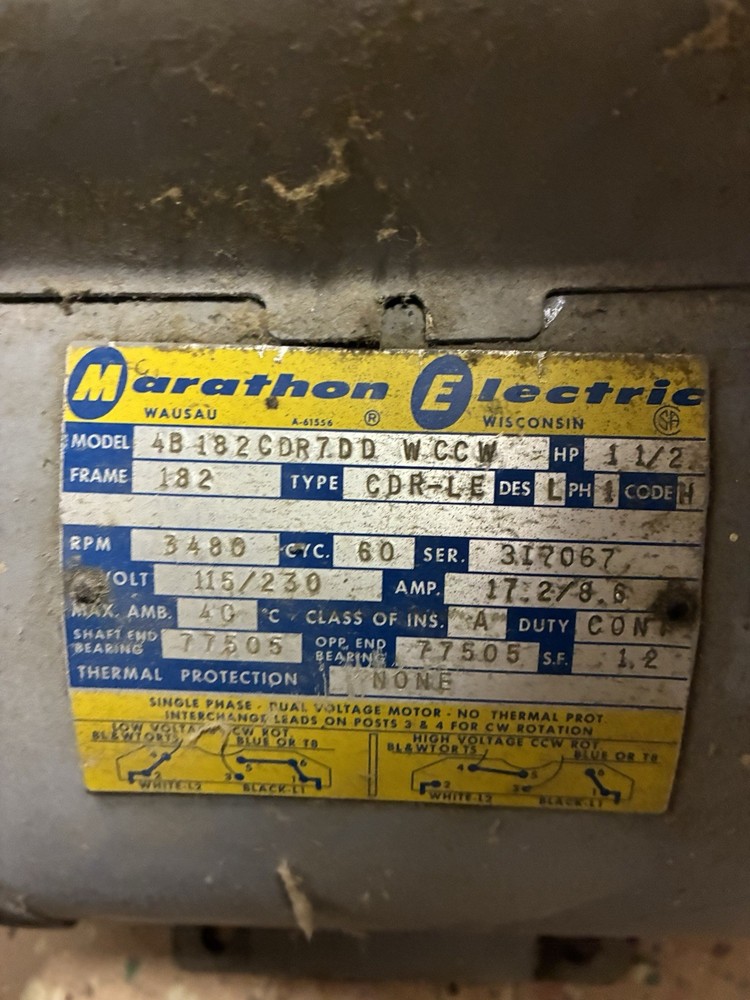

$ 987.14Marathon Electric 1.5 HP AC Motor 3480 RPM 115/230V Single Phase 4B182CDR7DD
