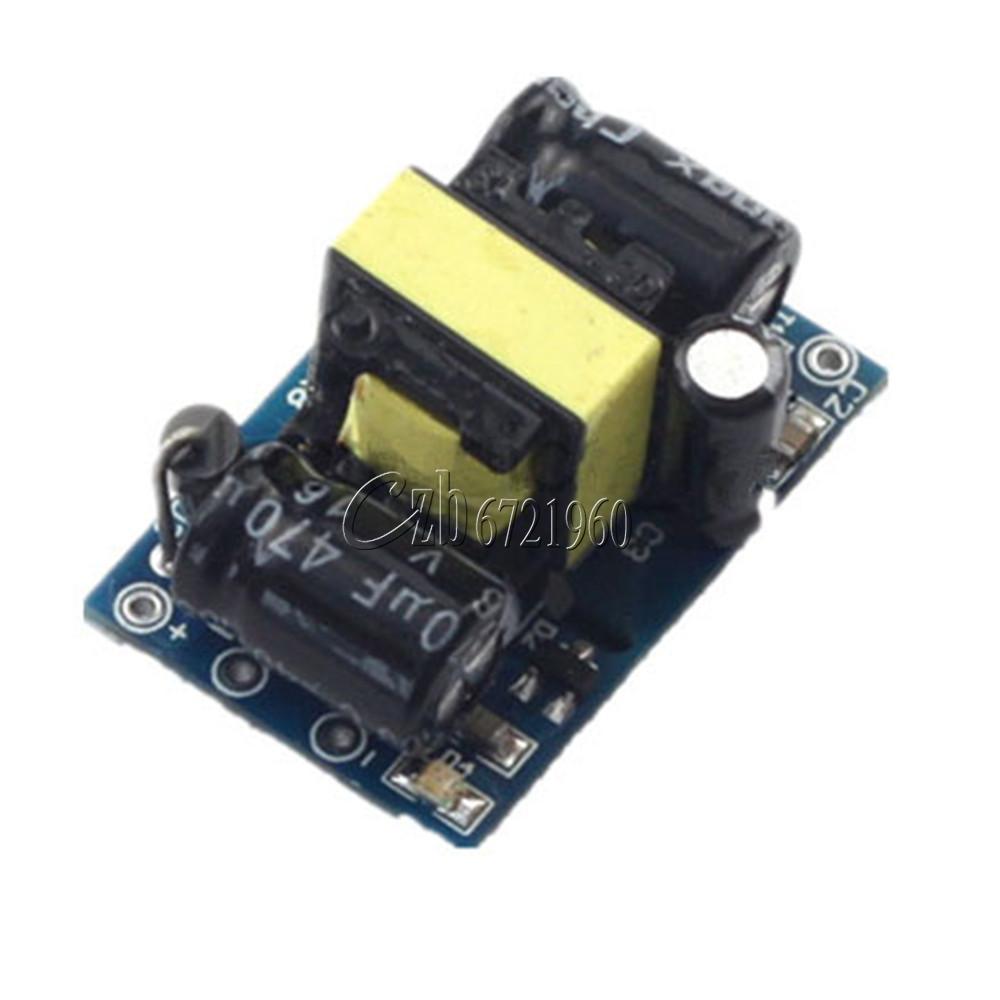

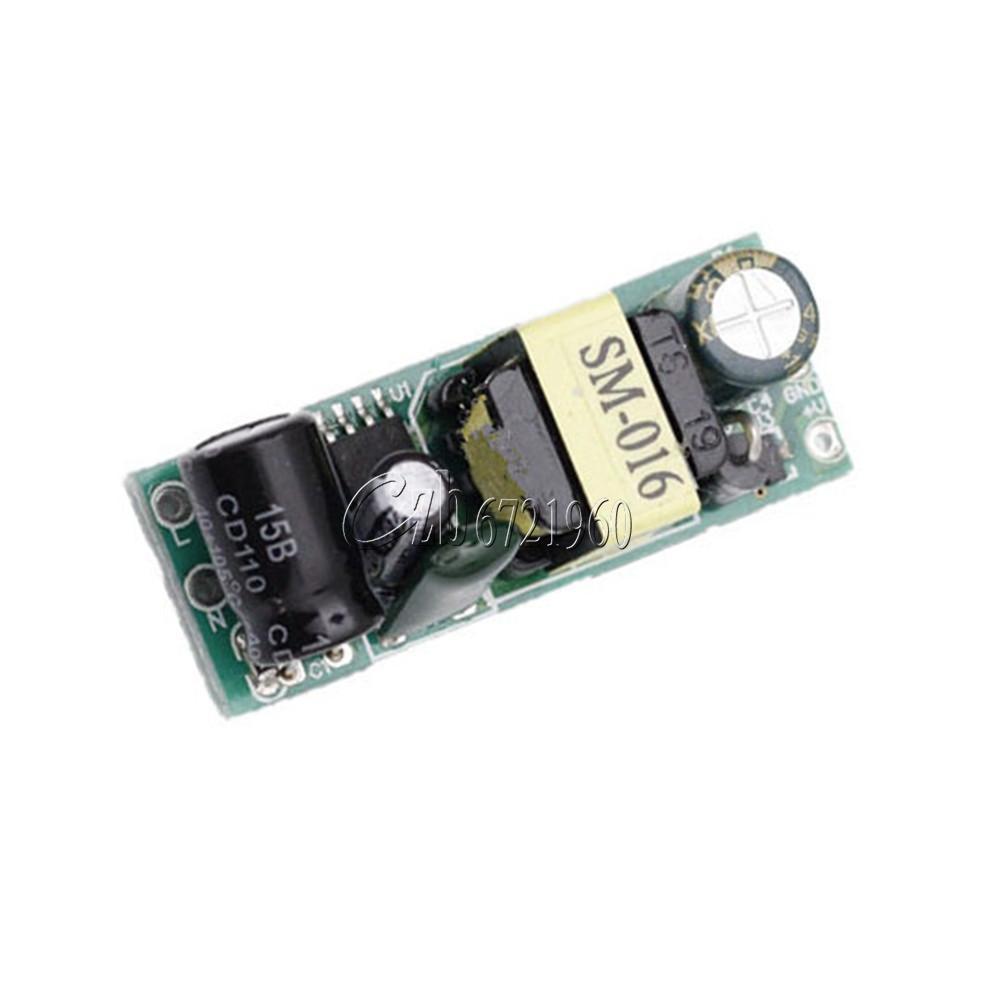

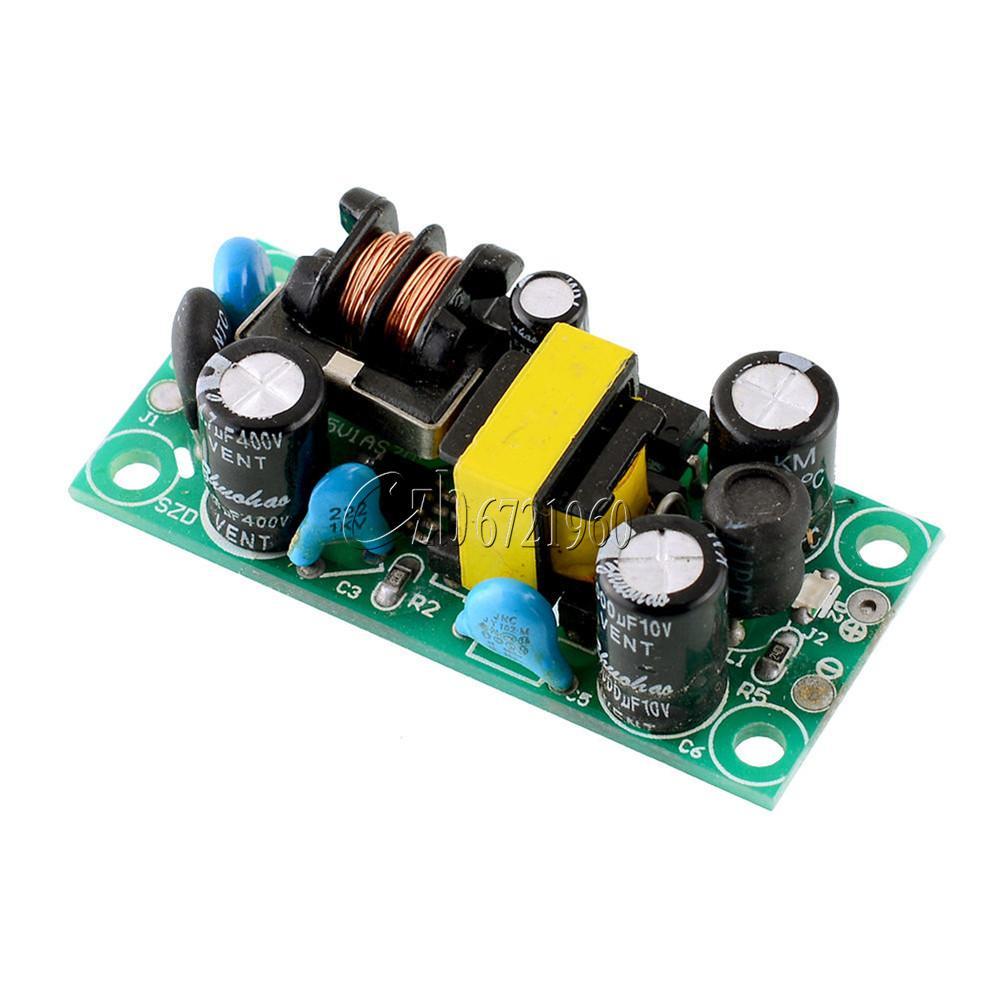

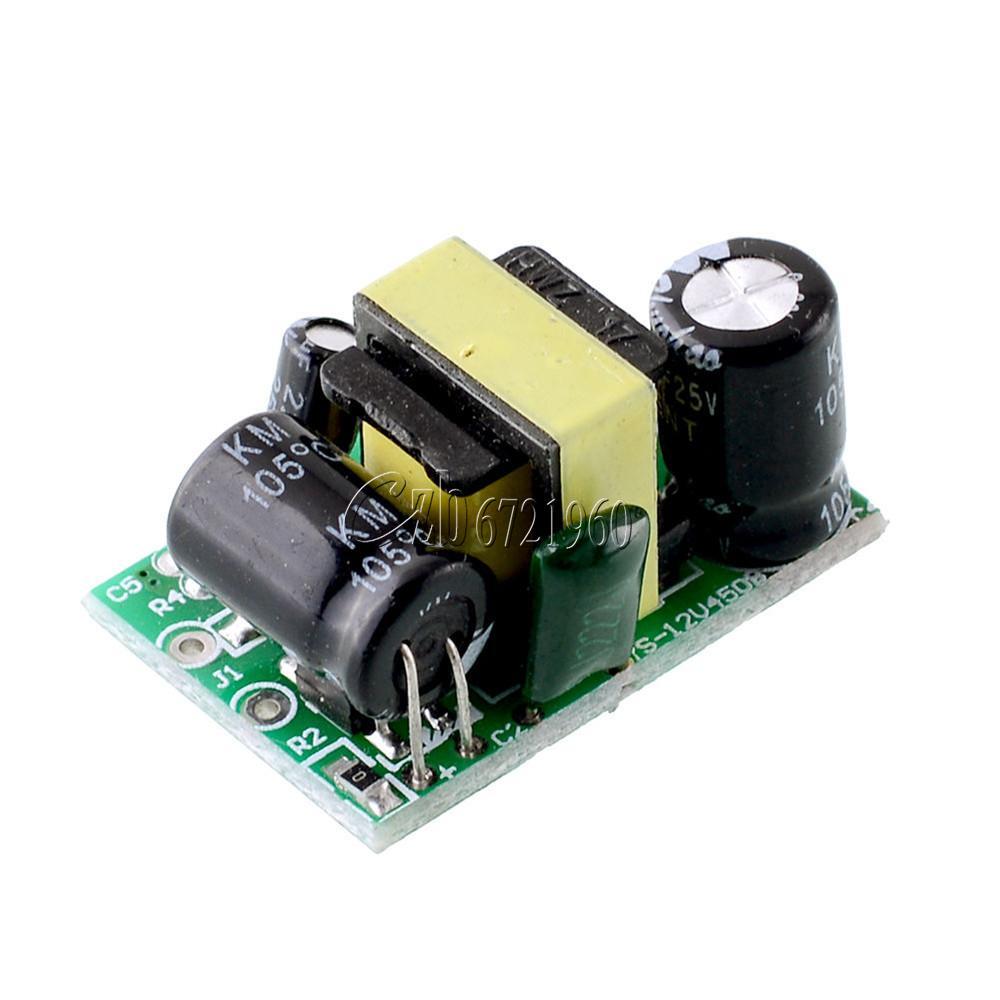

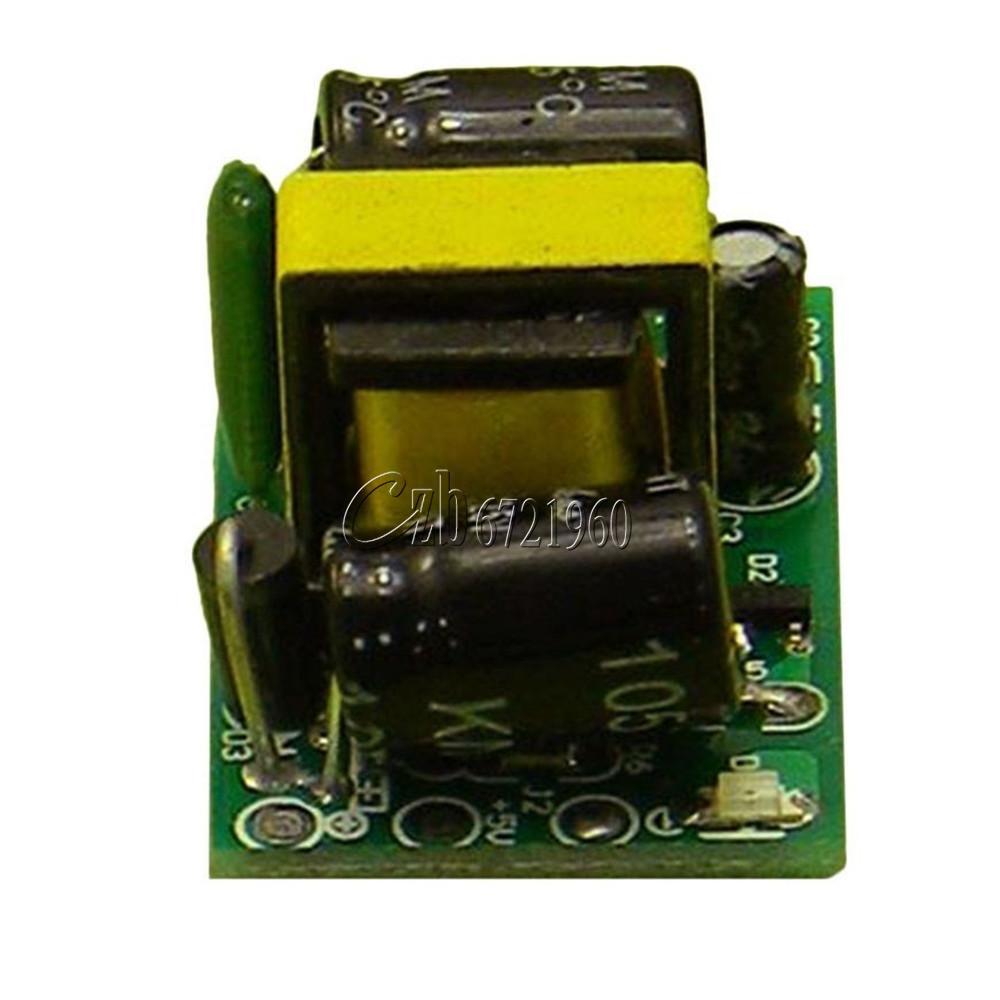

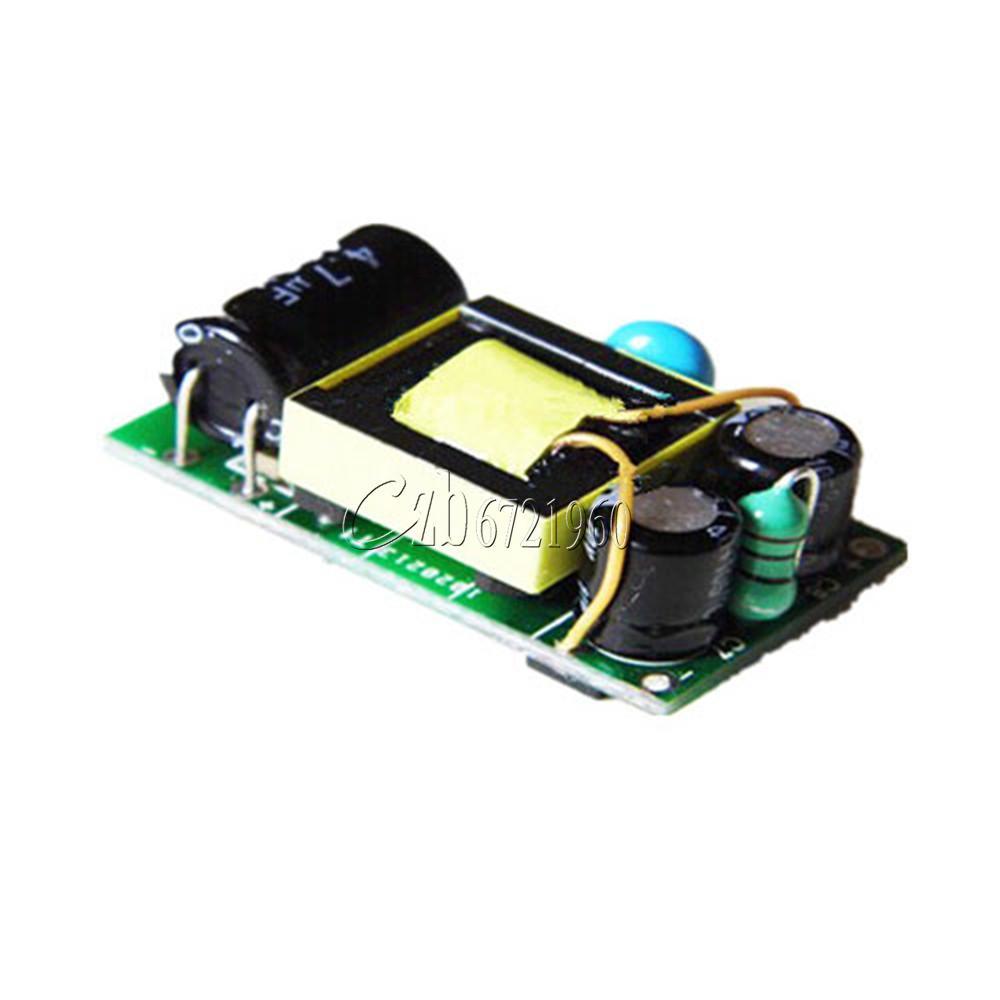

New High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module
$ 1.15
Description
New High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module. Arduino Module. Output Current Range: 0A to 150mA, the peak current of 200mA. Peak current :450mA. Input surge current: 20A (full load). Output current:150mA. Input Current: 0.0273 (AC110V) 0.014 (AC220V). Home Electronic Component Chips Sensor Arduino Module Raspberry Pi New High Grade 12V 5V 24V 9V AC-DC Power Supply Buck Converter Step Down Module 12V 400mA Input voltage :AC 85v ~ 265v ,50 / 60HZ Output voltage :DC12V Working Current :400mA Peak current :450mA Power: 4.5W Size:30*20*19mm 24V 150mA 1. Input voltage:AC85~265v 50/60HZ 2. Output voltage:DC24V (±0.2V) 3. Output current:150mA 4. Power:3.6W 5. PCB size:4*1.5*1.8cm Use environment: 1. Working temperature: -20 to 60℃ 2. Relative humidity: 40 to 90% RH Input characteristics 1. Input voltage range: 85VAC-265VAC 2. Input Current: 0.0273 (AC110V) 0.014 (AC220V) 3. Input surge current: 20A (full load) Output Characteristics 1. Output voltage range: 23.80~24.2V 2. Output Current Range: 0A to 150mA, the peak current of 200mA 3. Output power: 3.6w. 4. Output efficiency: 85% 5. Switching Overshoot: 10% 6. Output Rise Time: 100ms 5V 1A -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC5V（±0.2V） -Output current 1000MA -Power 5w 5V 500mA Input voltage AC85 ~ 265v 50 / 60HZ Output voltage DC5V Operating current 500mA Dimensions Volume: LWH 32 * 18 * 13 (mm) 12V 500mA -Input voltage of AC 85 ~ 265v 50/60 HZ -Output voltage DC12V（±0.2V） -Output current 500mA 12V 450mA Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Input current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 12V (+ / - 0.2 V) Output current 500 mA Operating temperature -20~60Deg.C Relative humidity 40-90%RH Output 12V, min current 0a, max current 500mA, peak current: 600mA, output range:11.80~12.1V, ripple wave: 150mV Output power:0-6W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 11.8-12.1V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery Size: 3 x 2 x1.8cm 5V 700mA Condition: brand new Quantity: 1pc Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v Imput current: 0.0273A(AC110V) 0.014A(AC220V) Input Inrush Current: 20A Output voltage: DC 5V (+ / - 0.2 V) Output current 700 mA Power 3.5 W Operating temperature -20~60¡æ Relative humidity 40-90%RH Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV Output power:0-4W(DC current) Output efficiency: 80% Switch machine overshoot: MAX 10% Output voltage rise time: MAX 100MS Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery Output over power protection:YES ,recovery:Lock, restart after recovery Short-circuit protection: YES, automatic recovery after problem solved Temperature protection: YES,recovery:Lock, restart after recovery Overcurrent protection: YES,recovery:Lock, restart after recovery 5V 1.5A Input voltage AC 85 ~ 265v 50/60HZ or DC100v-370v Output voltage DC5V (± 0.2V) Output current 1500mA Power 7.5W 12V 400mA Black Input voltage :AC 85v ~ 265v ,50 / 60HZ Output voltage :DC12V Working Current :400mA Peak current :450mA Power: 4.5W Size:30*20*19mm Package include: 1PC Payment Shipping Refund Payment We accept PayPal only. But we only Accept your Ebay Address ,Please Make sure it's 100% right. Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. Refund All package need to wait 30 days (US only n eed 7-10 days) ,Please take care it.Less than 30 days,we can't take a refund. If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it. If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item.
