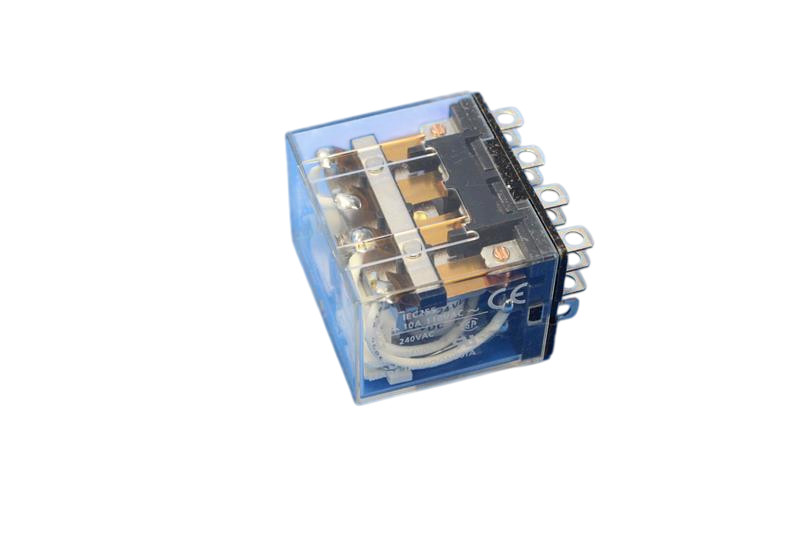

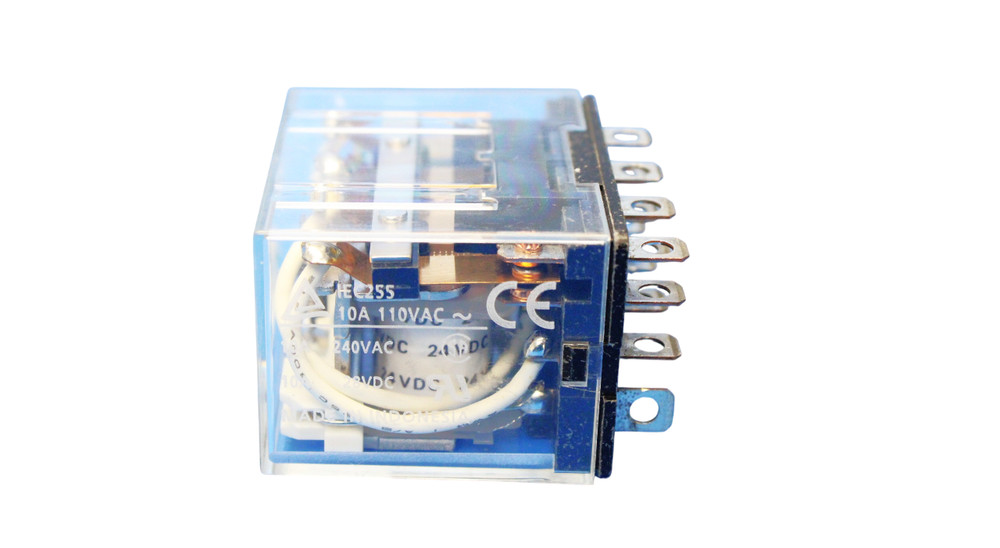

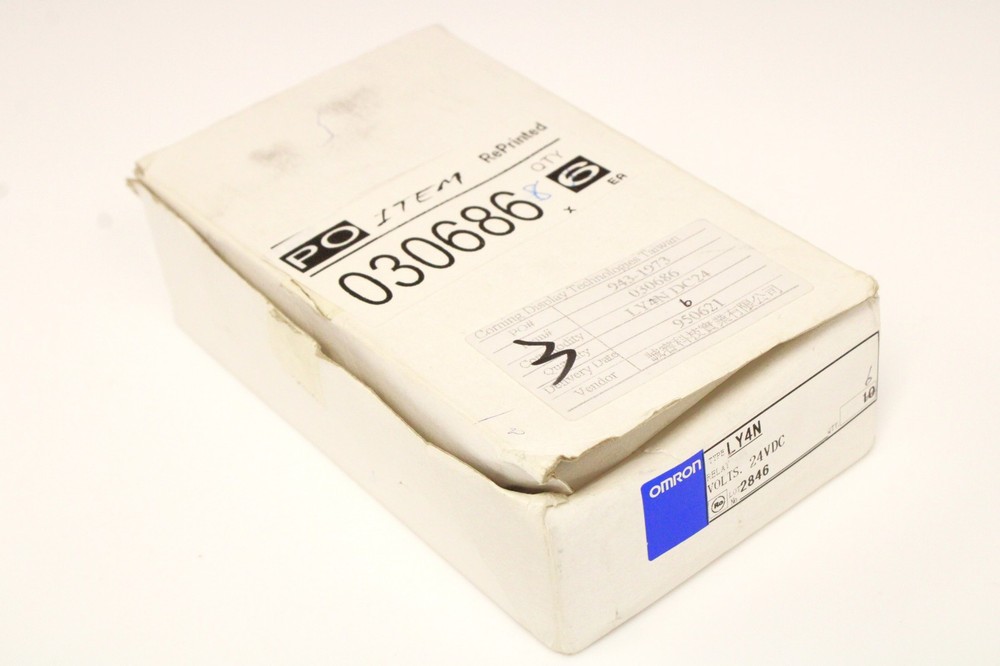

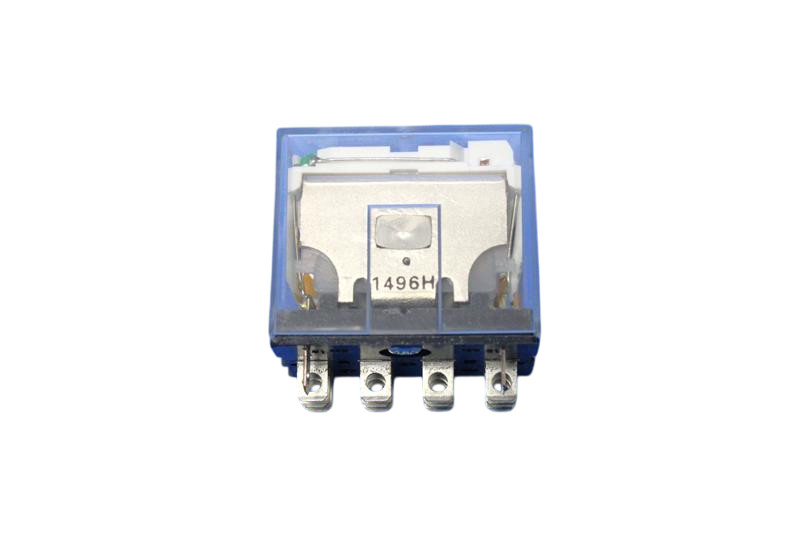

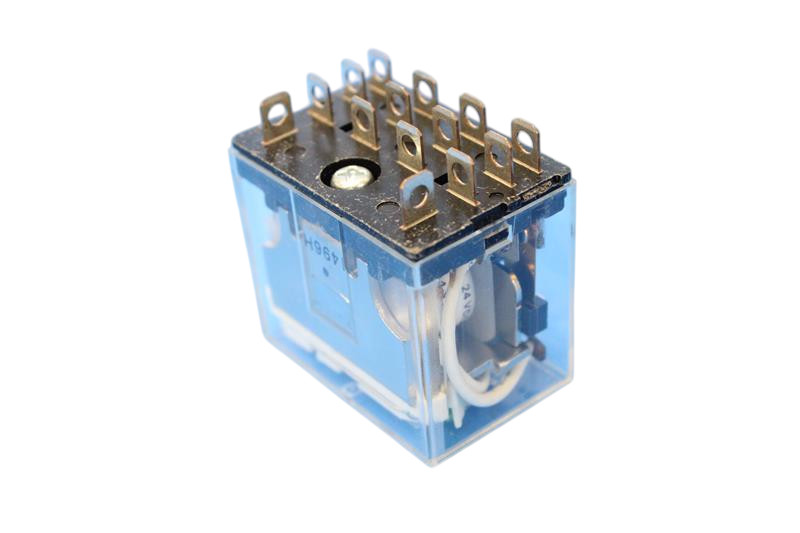

Omron LY4N-DC24 Bi-Power Relay

$ 13.18

Current Type: DC Ambient humidity (Operating): 5 to 85 % Dielectric strength: Between contacts of different polarity: 2000 VAC 50/60 Hz 1 min Contact rated load (Resistive load): 24 VDC/10 A Terminal structure: Plug-in terminal Operate voltage (Set voltage): 80% max. Insulation resistance: Between coil and contacts: 100 MΩ min. (at 500 VDC) Release voltage (Reset voltage): 10% min. material: Ag alloy Dielectric strength: Between contacts of same polarity: 1000 VAC 50/60 Hz 1 min Contact rated load (Inductive load (L/R = 7 ms)): 24 VDC/5 A Max contact voltage: 250 VAC/125 VDC Coil resistance: 350 Ω Contact Material: Ag alloy Brand: Omron Maximum voltage: 110% Maximum operating frequency: Mechanical: 18000 time/hour, Rated load: 1800 time/hour Weight: Approx. 70 g Contact form: 4PDT Vibration resistance (Malfunction): 10 to 55 to 10 Hz, 0.5-mm single amplitude (1mm double amplitude) MPN: LY4N-DC24 Endurance (Mechanical): 100 million oper. min. (switching frequency 18,000 operations/h) Max contact current: AC: 10 A, DC: 10 A Failure rate (Switching frequency: 120 operations per minute): 100 mA at 5 VDC (failure level: Preference value) Degree of protection: Closed type (cover) Shock resistance (Malfunction): 200 m/s^2 Type: Power Relay Contact rated load: 110 VAC 7.5 A (Inductive load (cosφ = 0.4)) Power consumption: Approx. 1.5 W Vibration resistance (destruction): 10 to 55 to 10 Hz, 0.5-mm single amplitude (1mm double amplitude) Insulation resistance: Between contacts of different polarity: 100 MΩ min. (at 500 VDC) Insulation resistance: Between contacts of same polarity: 100 MΩ min. (at 500 VDC) Mounting method: Socket Ambient temperature (Operating): -25 to 40 ℃ (with no freezing or condensation) Reset time (not including contact bounce): 25 ms max. (With rated operating power applied, 23 ℃) Operating indicator: LED Contact resistance: 50 mΩ max. (Voltage drop method with 5 VDC 1 A) Contact method: Single Operating time (not including contact bounce): 25 ms max. (With rated operating power applied, 23 ℃) Dielectric strength: Between coil and contacts: 2000 VAC 50/60 Hz 1 min Coil ratings: 24 VDC/69 mA Shock resistance (destruction): 1000 m/s^2

Description

Omron LY4N-DC24 Bi-Power Relay. Bi-power Relay, 4-pole, Single contact, With operation indicator, Plug-in Terminals, 24 VDC Bi-power Relay, 4-pole, Single contact, With operation indicator, Plug-in Terminals, 24 VDC
