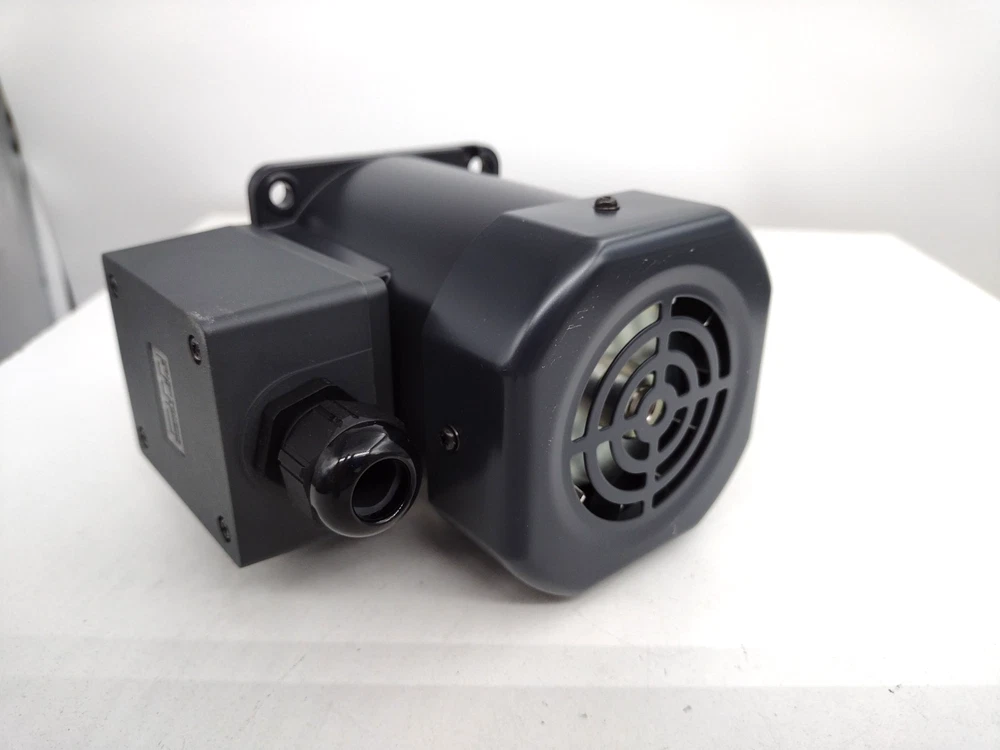

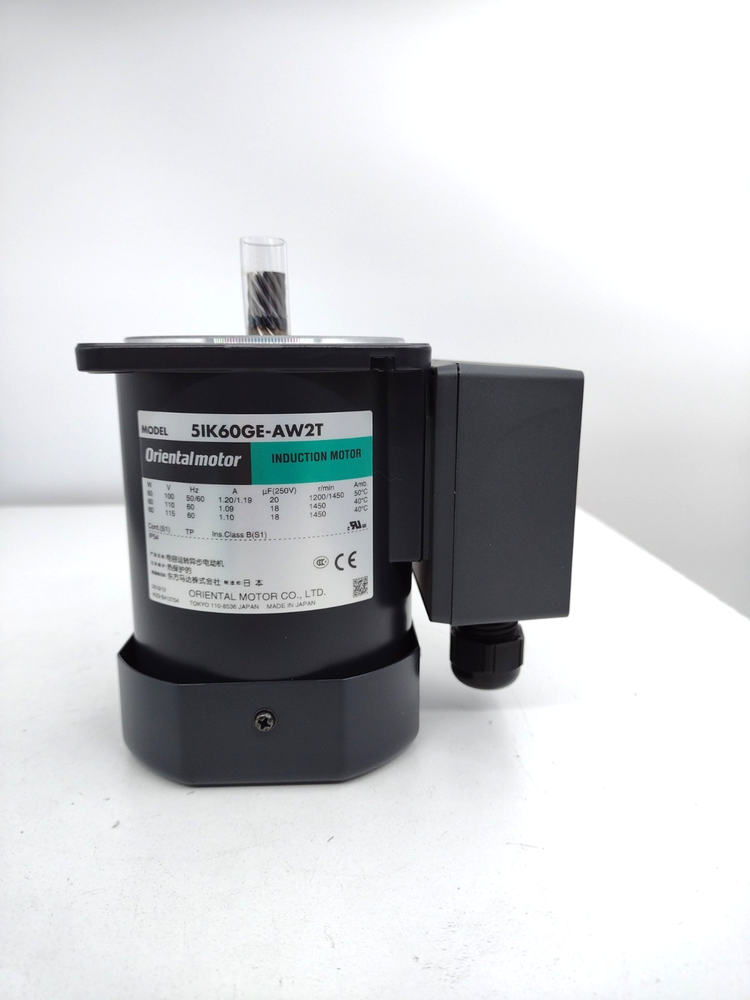

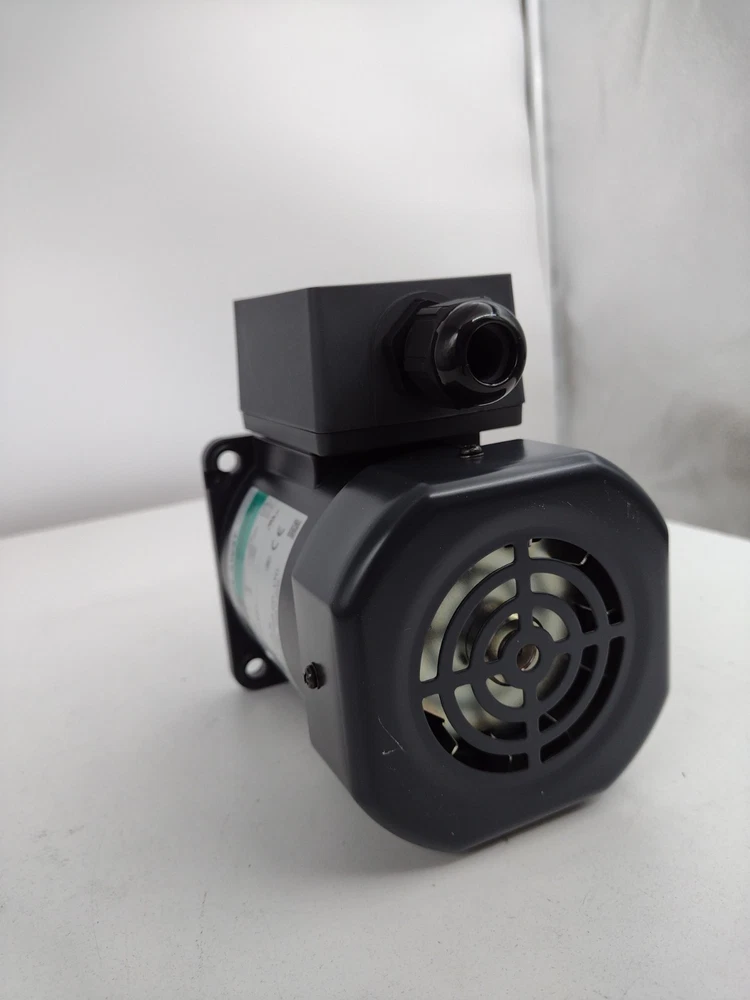

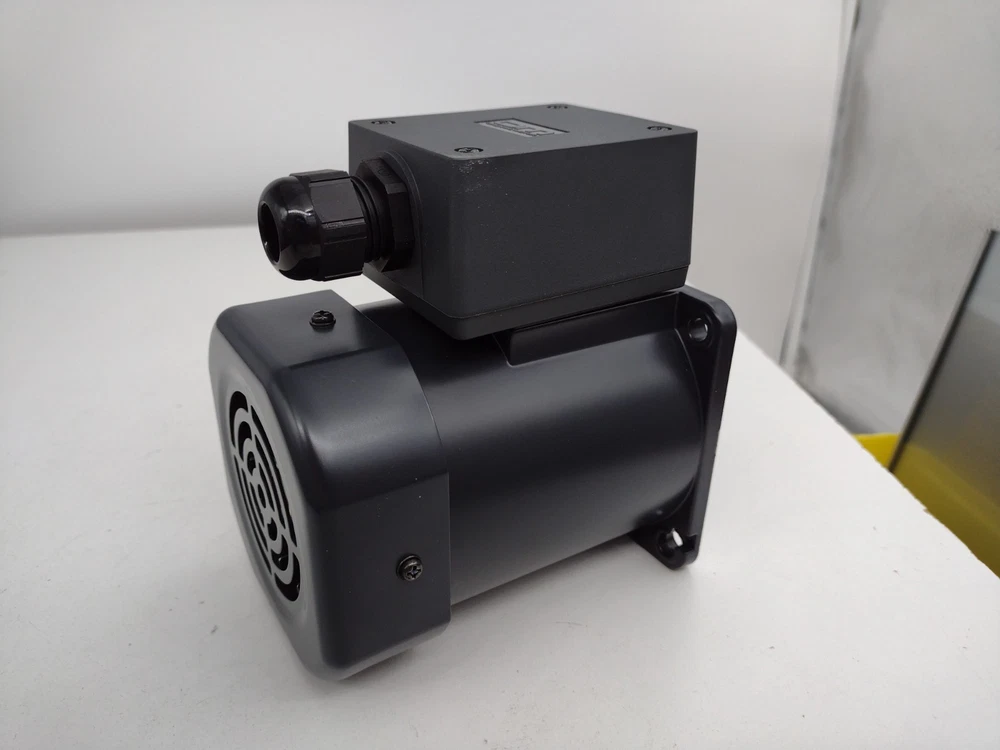

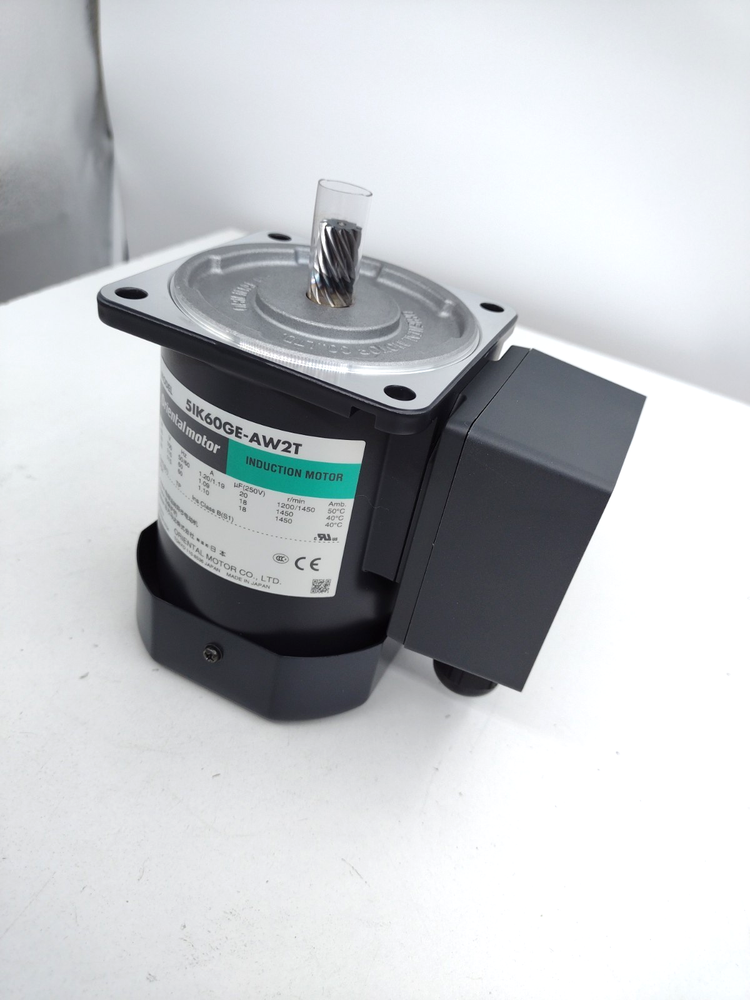

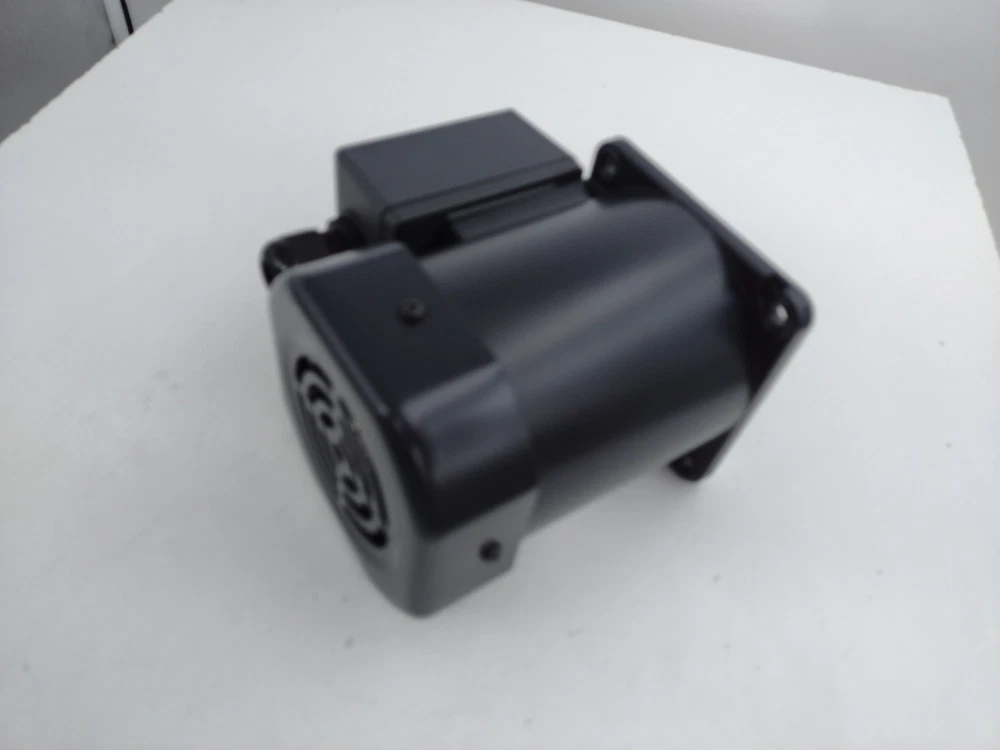

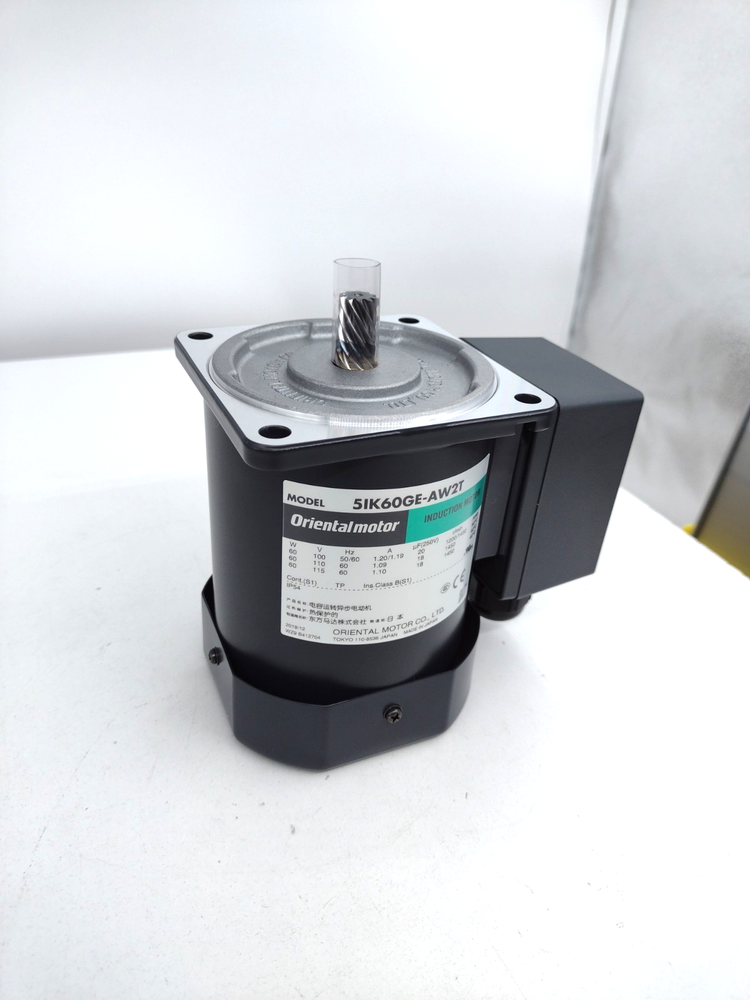

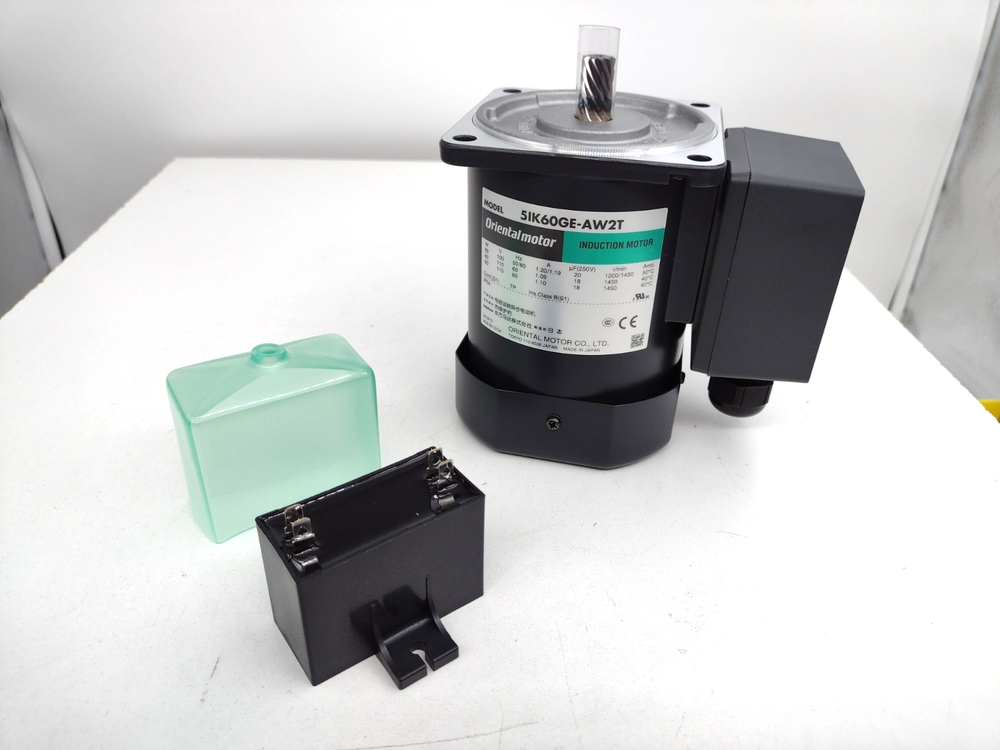

*** Oriental Motor 5IK60GE-AW2TU Induction Motor 60W 110/115VAC 1450RPM 4P

Description

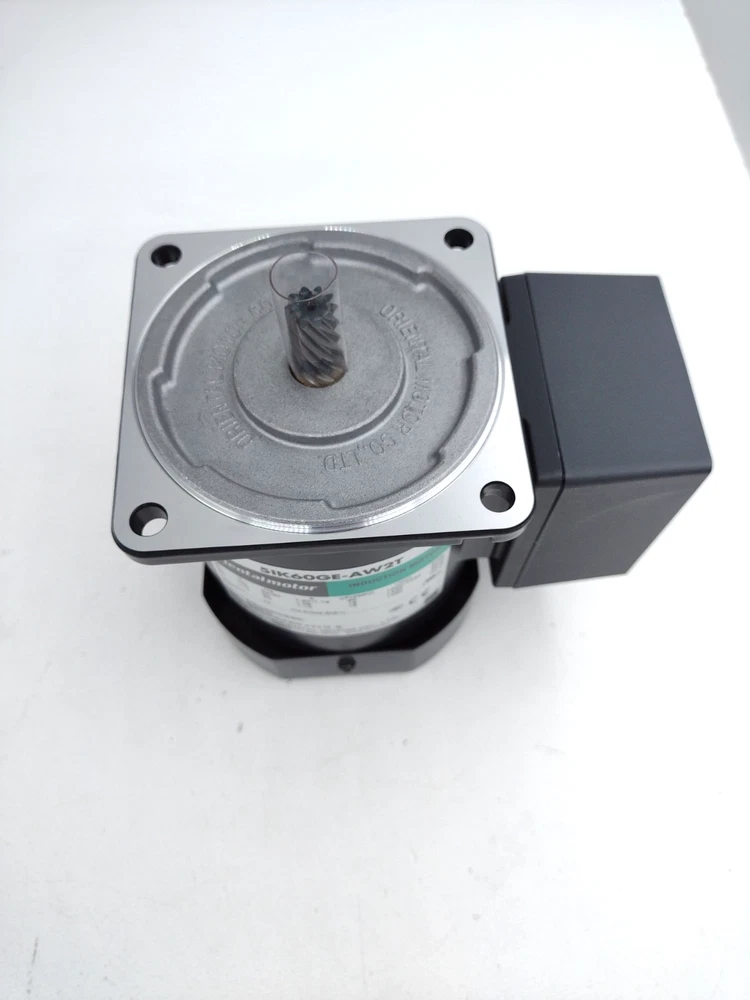

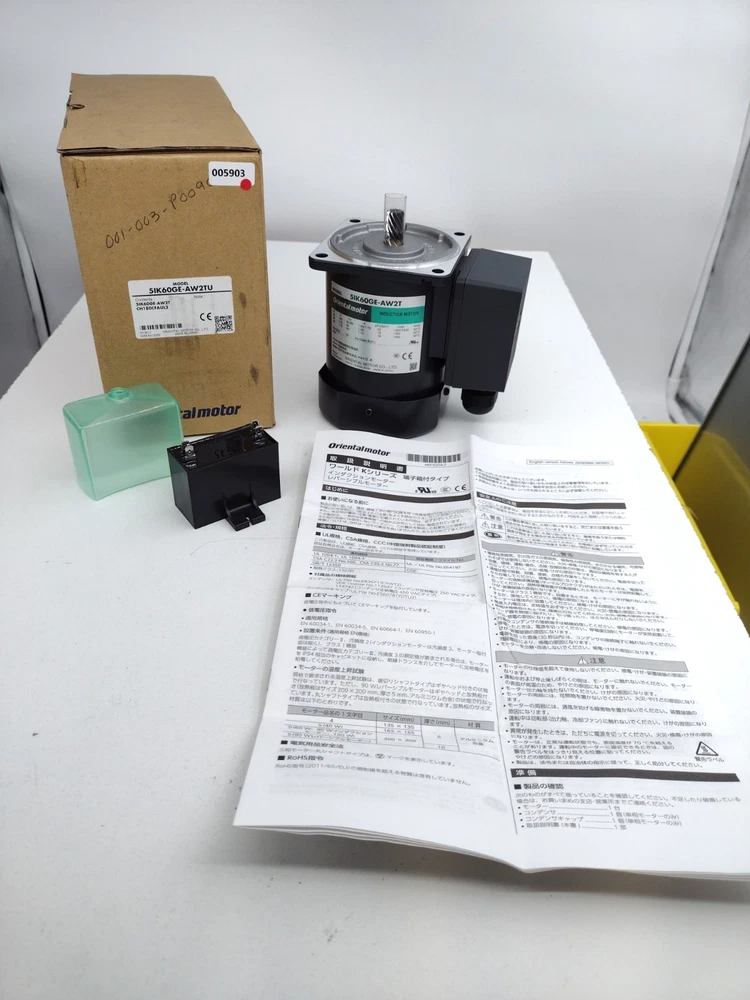

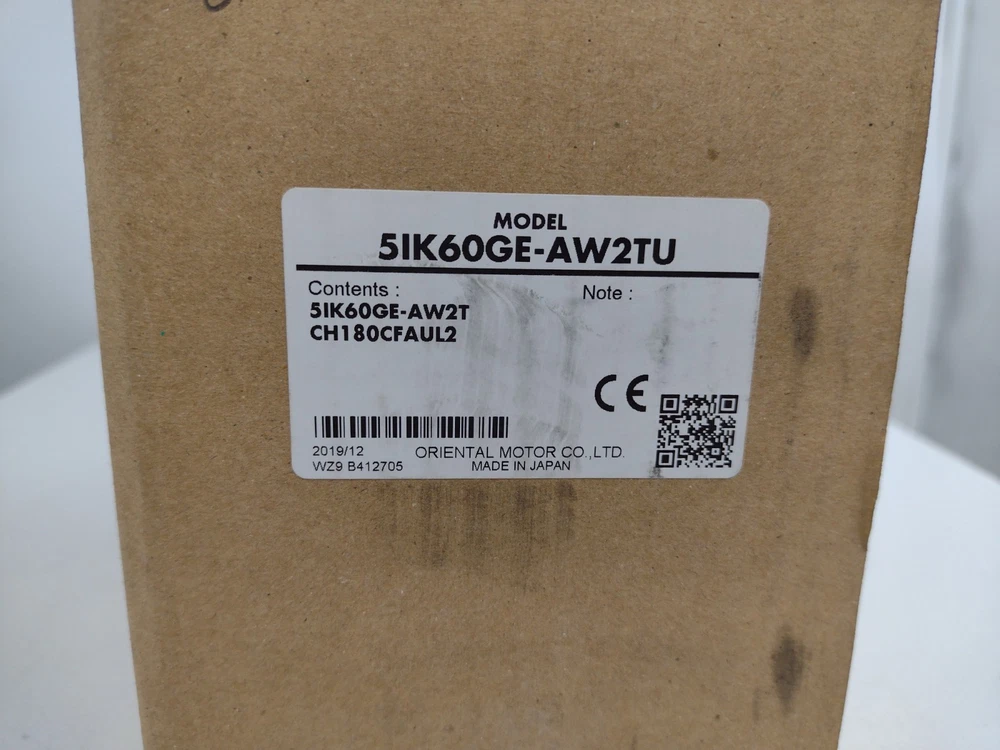

Oriental Motor Induction Motor 5IK60GE-AW2TU 60W 110/115VAC 1450RPM 4P Condition: New / New Open Box. New Old Stock. Made in Japan Specifications: M otor Type Induction Frame Size 3.54 in Output Power 60 W (1/12 HP) Voltage (VAC) Single-Phase 110/115 VAC Frequency (Hz) 60 Current 1.09 A [110 VAC] 1.10 A [115 VAC] Shaft/Gear Type Pinion Shaft (Gearhead required - sold separately) Type Terminal Box RoHS Compliant Yes Safety Standards UL CSA CCC EN CE CE Marking Low Voltage Directives California Proposition 65 CA WARNING Cancer risk from exposure to Nickel. See www.P65Warnings.ca.gov Risk of reproductive harm from exposure to Di-n-hexyl phthalate (DnHP). See www.P65Warnings.ca.gov Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl phthalate (DEHP). See www.P65Warnings.ca.gov See "?" or copy/paste www.P65Warnings.ca.gov in your browser. Electromagnetic Brake Not Equipped Insulation Resistance 100 MΩ or more when 500 VDC megger is applied between the windings and the frame after rated motor operation under normal ambient temperature and humidity. Dielectric Strength Sufficient to withstand 1.5 kV at 50 Hz or 60 Hz applied between the windings and the frame for 1 minute after rated motor operation under normal ambient temperature and humidity. Temperature Rise Temperature rise of windings are 144ºF (80ºC) or less measured by the resistance change method after rated motor operation with connection to gearhead. Insulation Class Class B (266ºF [130ºC]) Overheat Protection Built-in thermal protector (Automatic return type). Operating temperature, open: 266°F ± 9°F (130°C ± 5°C) close: 185°F ± 36°F (85°C ± 20°C) Ambient Temperature Range 14ºF ~ 104ºF (-10ºC ~ 40ºC) (nonfreezing) Ambient Humidity 85% maximum (noncondensing) Degree of Protection IP54 Main function AC Gearmotor Product series / family name K series Functions AC geared motor / gearmotor Design single-ended GE pinion shaft lead wire connection gearhead (to purchase separately) Induction motor Poles 4-poles (4P) Supply voltage (AC) 110Vac / 115Vac (single-phase) Rated current 1.09A (1450rpm; single-phase; 110Vac; 60Hz) 1.10A (1450rpm; single-phase; 115Vac; 60Hz) Rated active power (kW) 0.06kW / 60W Rated power (HP) 1/12HP Rotational speed 1450rpm (single-phase; 110Vac; 60Hz) 1450rpm (single-phase; 115Vac; 60Hz) Connection type 1 x 30cm pigtail terminated with bare end flying leads Length 0.3m / 0.84ft. cable Mounting mode Flange Dimensions Frame size 5 (90x90mm flange) Ambient air temperature for operation -10...+40 °C Contents 1 x 18μF capacitor Manufacturer product status Commercialized Equivalent to 5IK60GEAW2U Compliant with standard(s) RoHS UL CSA CCC system CE Thermal isolation class B (non-UL) DOA Guaranty : At Seller's option, DOA item(s) can be replaced or purchase price(s) refunded. Return shipping, if requested by Seller, is paid by Seller. If Seller elects to not have the item(s) returned, Buyer is responsible for disposal. All items are sold As-Is, Where-Is. Please contact Pristine Sales within 72 hours if (a) purchased item(s) arrive(s) D.O.A. (Dead On Arrival). If D.O.A. status is the result of shipping, the Buyer must make a claim with the shipping agent. At Seller's option, D.O.A. item(s) will be replaced or the purchase price(s) refunded. If the Seller requests a return, the Seller pays return shipping. If the Seller doesn't want the D.O.A. item(s) returned, the Buyer is responsible for item disposal. Warranty : 30 day warranty begins from the date Buyer receives delivery. All items are sold As-Is, Where-Is. All installations must be done by a Pristine Sales-approved, manufacturer-certified installer. At request of Seller, Buyer will provide documentation of analysis of any warranty-related issues. Returns : All sales are final, except the aforementioned D.O.A. and Warranty policies Please request any additional information and/or pictures before purchasing. Fine Print: The photos in this listing represent the item being sold, but the item pictured may not be the actual item shipped to the buyer. Because of the nature of our business as an industrial reseller, Pristine Sales often has multiple units of the same product in stock with some variances in package style and/or package condition. Pristine Sales guarantees that the item shipped will be as described in the listing. Each listing description describes the part's condition, not the packaging. Packaging may vary from item to item. If a buyer is concerned about the condition of the packaging, they should request photographs before making a purchase. The buyer is responsible for determining the viability of items purchased for the intended uses. Pristine Sales guarantees the accuracy of the item title on the listing and that it matches the part in the listing photos. Any other details about the item are listed as a courtesy. Buyers should check and confirm any measurements and other details listed in the item's details to ensure that the part being purchased is the part the Buyer wants. Items are being sold "As-Is, Where-Is." Shipping is a convenience, and the seller does not guarantee shipping once the item is picked up from the seller's location. The seller will endeavor to ensure and work with the buyer on timely delivery. Many items are available to be picked up locally. Manufacturer warranties may be available, and if the buyer needs a warranty, buyer should confirm applicable warranty with the manufacturer or whomever prior to purchase. Buyer agrees in no event shall the seller, seller's company, seller ownership entity(ies), associates, or affiliates be liable for any direct, indirect, punitive, incidental, special, consequential damages to property or life, or other damages whatsoever arising out of or connected with the use or misuse of products purchased. Buyer agrees purchased items will not be used in applications where life can be endangered or harmed. (3/5/2024) PROPOSITION 65 WARNING : WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. International Buyers: Please note: import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying. These charges are normally collected by the delivering freight (shipping) company or when you pick the item up, do not confuse them for additional shipping charges. We do not mark merchandise values below value or mark items as "gifts" - US and International government regulations prohibit such practices. (6/27/2023)
