Performance Titanium-Coated Forged ARP 2000 Connecting Rods for Suzuki 1.3L G13B Engine 4.7244in

$ 205.13

Notice: For remote areas, You need pay the additional shipping charge., We will contact you if the parcel cannot reach. Modified Item: No Important Notice: Package Included: Just like the picture, Professional installation required, Pick up service is not available. B.E Bore: 45mm/1.772" Custom Bundle: Yes Product Type: Connecting Rod Manufacturer Warranty: 2 Years Rod Length: 120mm/4.724" B.E. Width: 22mm/0.866" Material: Titanium Pin Diameter: 19mm/0.748" Quantity: 4 Pieces as showing in picture Compatible Number: Geschmiedet, H-Schaft Pleuel, Sport-Pleuel, Pleuelstange, Schubstange, Treibstange, ARP Schrauben, TÜV verzifiert, 4340 EN24 Chrom-Molybdän-Stahl, 100% geprüft und balanciert, Forged, connecting rod, conrod, Performance Conrod Con Rod, Forgée, bielle, Forgiato, Biella, Forjado, biela, Titanized Manufacturer Part Number: B03A6G Bundle Listing: Yes UPC: Does not apply gtin13: Does not apply Note: No Instruction Included Brand: maXpeedingrods Pin Type: Bronzed bushing floating pin Fit: for Suzuki 1.3L G13b Engine Bolts: Including Genuine 5/16 Weight Tolerance: Balanced to +/- 1 gram in set Type: Connecting Rod Set P.E. Width: 22mm/0.866"

Description

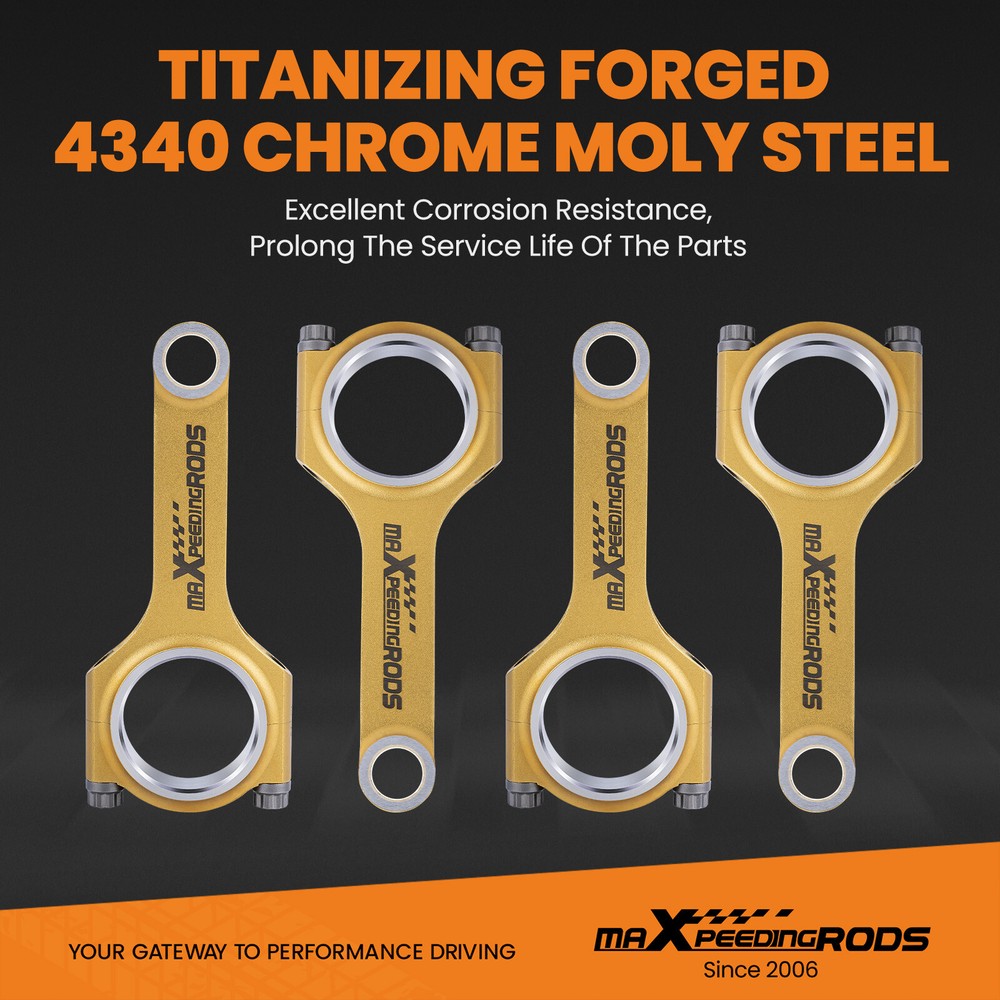

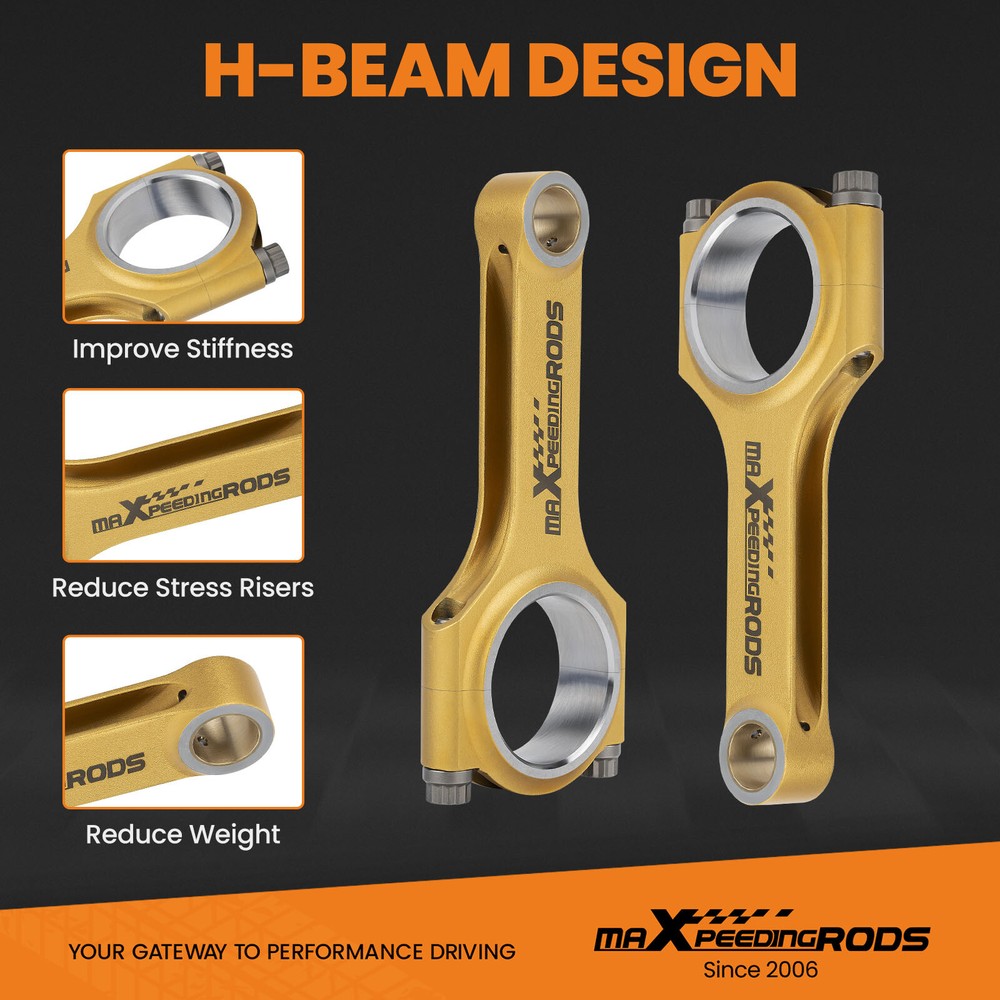

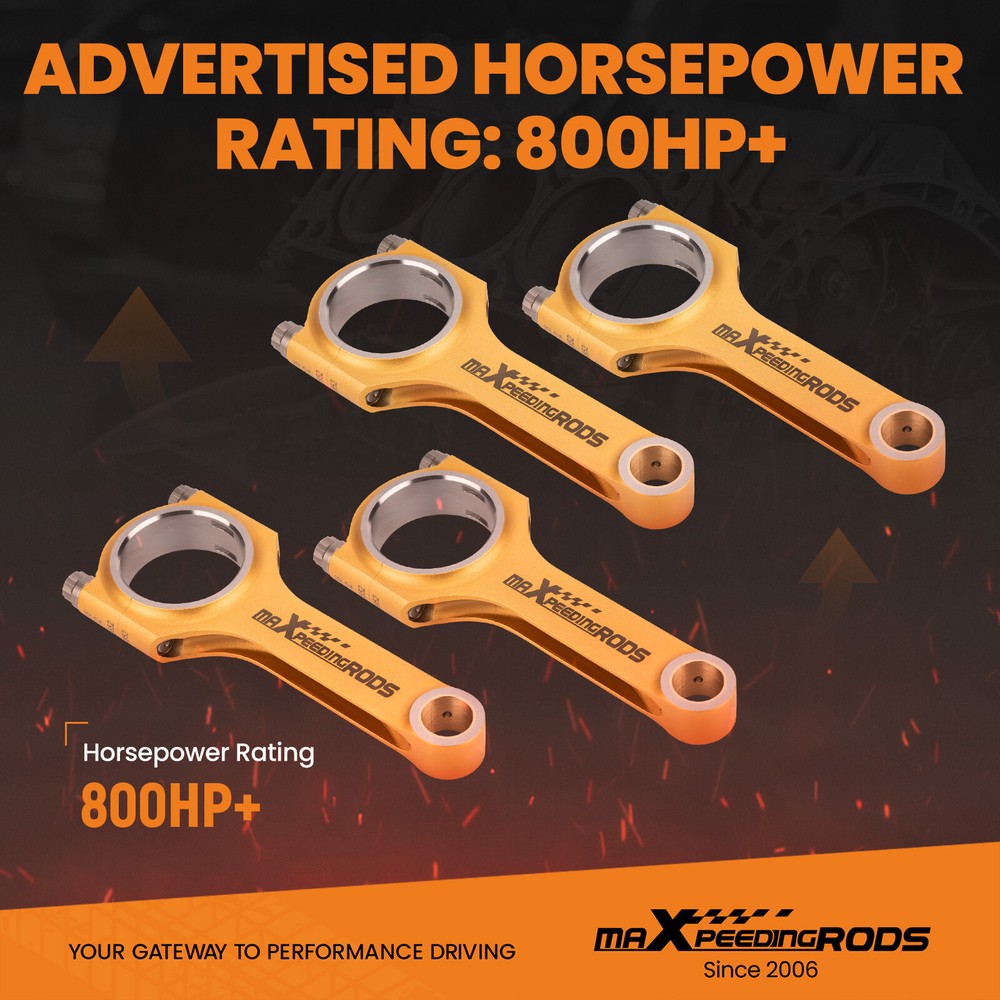

maXpeedingrods Canada Store Home About maXpeedingrods View Feedback Contact Us WHY CHOOSE US Titanized Forged Connecting Rods ARP 2000 for Suzuki 1.3L G13b Engine 4.7244" Description Application For Suzuki 1.3L G13b Engine For Suzuki RS/1 (prototype) 1985- For Suzuki Cultus/Swift GTi AA33S/AA34S 1986–1994 Pin Type: Floating Pin Piston Specification *Type: Forged 4340 aircraft chrome moly quality steel for racing *H-beam Conrods Quantity: 4 Pieces as showing in picture *Bolts: Including ARP 2000 5/16" bolts (Note: Extra cost for upgrading to ARP L19 bolts) *The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product. *Advertised Horsepower Rating:200HP/piece *Top acceleration: 9000rpm *package size：28CM*21CM*10CM Dimensions Center to center length:120mm/4.724" Big end diameter:45mm/1.772" Small end diameter:19mm/0.748" Big end width:22mm/0.866" Small end width:22mm/0.866" Feature: The density of titanium is significantly lower than that of steel, while maintaining considerable strength, which means that it is lighter than steel, but the strength is very similar. 1. Titanizing can further improve the bending strength of the product; 2. Titanizing will not affect the weight of the connecting rod; 3. Provide a wear-resistant layer, which greatly prolongs the service life of the parts; 4. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED. 5. Material: Titanizing Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing. 6. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade. 7. H-Beam design reduces weight without compromising strength. 8.Heat-treating & Shot-peened for remained consistent and strong, Shot-peened finish to remove potential for stress risers. 9.High precision CNC machined,Precision rod cap alignment dowels. 10.Bores finished to +/- .01 mm. 11.Balanced to within +/- 1 g per rod. 12. Each rod is magnetic particle tested to ensure free of flaws. 13.Use X-rayed, sonic tested. 14.Custom Service. Note *Professional installation is highly recommended ； *Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs. Other items you might also like TurboCharger K03 for Audi A4 A6 Quattro 2.0TFSI 147KW 125KW 2005 2006 2007 2008 Street Coilovers Suspension For BMW 3 Convertible E93 318i 320i 323i 325i 06-13 Door Pivot Hinge Rotating Door Hinge 360 Degree Stainless Steel Hinges 2PCS Stainless Steel Pump Bracket for Mercruiser Trim PH200-T066, 18-6750 Front & Rear 2" Lift Kit For Polaris RZR 900 Trail 50" Trail 2015 2016 2017 2018 Turbo Turbocharger For Buick Encore Chevrolet Trax Cruze Sonic 1.4L 140HP 781504 Pair Engine Motor Mounts For Chevrolet Corvette LS1 LS2 LS3 LS6 LS7 LS Engine VF52 Turbo Turbocharger For Subaru Outback Legacy Forester XT 2.5L 2x Rear Adjustable Camber Control Arms Kit for Dodge Journey 2009 & 2010 Gray 1 PCS 7 Degree Ball Joint Tapered Reamer, Reamer Bit Universal Reamer Tool 24 Damping Level Coilover for Honda Integra DC5 2001-2006 Acura RSX Type-S 02-06 Coilover Suspension Strut For Inifinit M35x M45x 06-10 AWD G35x 03-08 G37x 08-13 About MaXpeedingrods Shipping Policy Returns Policy
